Repacking system

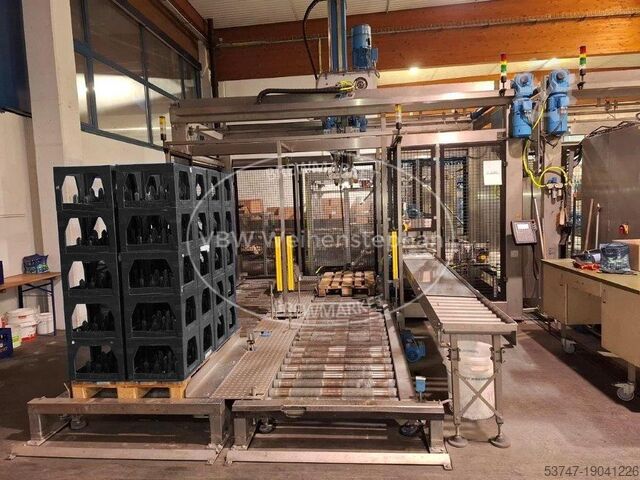

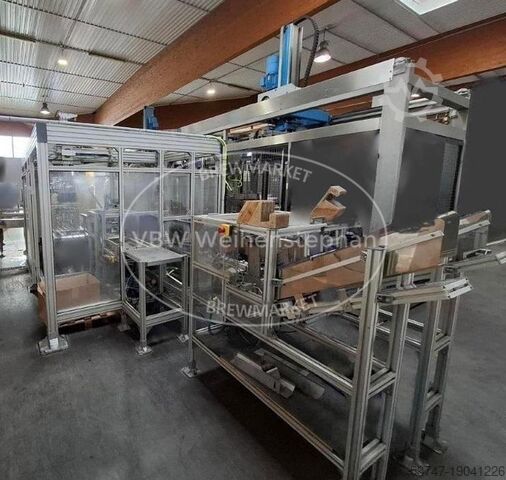

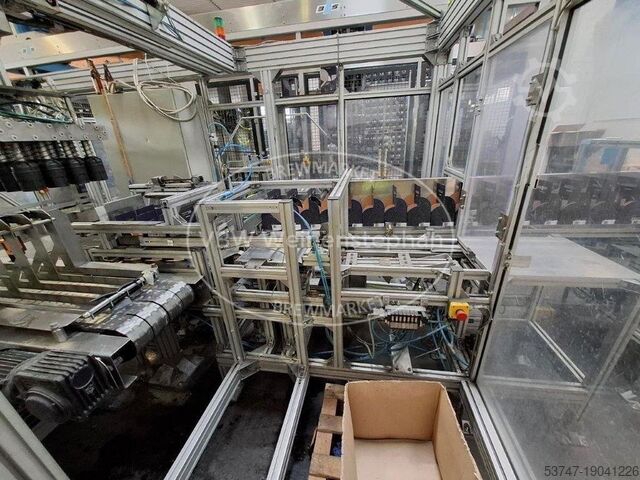

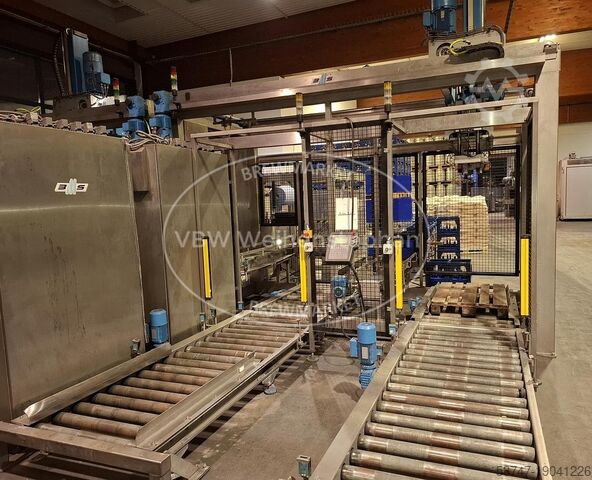

Repacking line for 0.5 litre glass bottles, consisting of three machines: 1. depalletising: Pallets with full modular crates are loaded and unstacked here, and empty crates are stacked and moved out. 2. repacking machine: This is where modular boxes of 20 are unpacked, 4-carrier cartons are unfolded and loaded/packed with bottles. 3. packer/palletiser Here, the 4-pack carrier cartons are packed into quill boxes, stacked on pallets and moved out of the system.
Additional title: combined repacking system with palletizing
Capacity approx.: 200 crates/h
Formats: Bottle crate (400 x 300 mm) on Euro pallet (1200 x 800 mm)
Running direction: right -> left
Operation / Control: on-site control unit / Siemens PLC
Position: free standing
Base construction: Square tube construction bolted to the floor
Features: depalletizing, unpacking, bottle transport, crate transport, carton unfolding, packer for the bottles in the cartons, packer for the cartons in the quill boxes, palletizing of the full crates, pallet infeed and outfeed, protective grilles, switch cabinets, control device
Csdpfx Agewgc Tmsmorh
Layer patterns: 2x2 bottles/carton, 2x4 crate, 5 layers / palet
