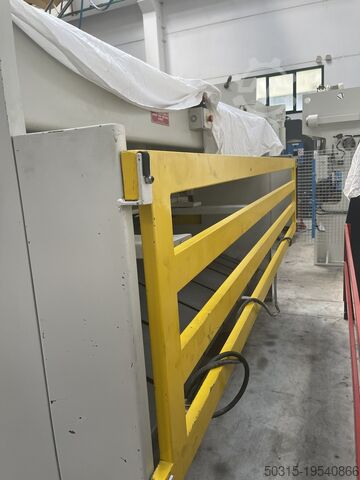

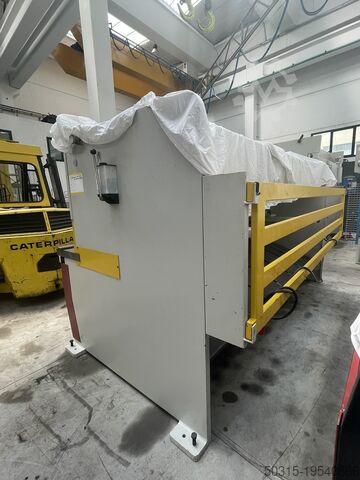

IMAL hydraulic shear 3050x6

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 66055, controller manufacturer: MEBA, workpiece diameter (max.): 260 mm, The saw has been technically overhauled and newly painted! The following components have been renewed: - Bearings of the idler pulley - Bearings of the drive pulley - Drive shaft from the gearbox - Bearings for pre- and post-centering of the saw band - Hardened flat guides for the saw band - Flat brushes for coarse cleaning of the saw band - Idler brush for cleaning the saw band - Pressure switch for the hydraulics - Hoses incl. shut-off valve for the cooling water - Saw band from Wikus, type Marathon M42, incl. 3 new spare bands Fsdpjyf Hatjfx Advefu TECHNICAL DETAILS Sawing diameter: 5 - 260 mm Mitre cut: stepless from 40° to 90° MACHINE DETAILS Roller conveyor length: 3000 mm Power supply: 380 V Current: 16 A EQUIPMENT Hydraulic clamping pressure regulation for thin-walled components Original control system from Meba Single cut operation for fast sawing cycles

Condition: ready for operation (used), Year of construction: 2016, operating hours: 400 h, functionality: fully functional, travel distance X-axis: 1,050 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 500 mm, controller model: Siemens 828D, spindle speed (max.): 12,000 rpm, The machine spindle was replaced in 2022! TECHNICAL DETAILS Travel X-axis: 1,050 mm Travel Y-axis: 550 mm Fsdpoyf E Szsfx Advefu Travel Z-axis: 500 mm Milling spindle (BT40): 12,000 rpm MACHINE DETAILS Control unit: Siemens 828D Operating hours: Power-on hours: 26,247 h Spindle hours: approx. 400 h (total 4,727 h) EQUIPMENT - Active electrical cabinet air/air cooler - Network connection - USB interface - Spindle chiller - Side windows left and right for large components - Safety cabin with armoured glass - Coolant pump at spindle - Pump for chip flush device - Air at the spindle via M-code function - Operating status light - Oil separator - Electronic handwheel - ICS system (internal coolant supply) - Pump for ICS - 24-position tool changer - Hinge-type chip conveyor, rear discharge - Glass scales including purge air by Siemens - Wireless workpiece measuring system Renishaw OMP60 - Tool measuring system Renishaw NC4 - Automatic machine door Note: The Halter automation system as well as vices including zero-point clamping system are not included in the scope of delivery.

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 724, saw blade diameter: 600 mm, table height: 850 mm, positioning accuracy: 0.4 mm, rotational speed (max.): 3,000 rpm, working length: 8,000 mm, TECHNICAL DETAILS Saw blade diameter: 600 mm Motor power: 12.5 HP Saw blade speed: 3,000 rpm Ffjdpfsyf Evyex Advju Working table height: 850 mm Extraction ports: 3 units, diameter: 100 mm Max. working length: 8,000 mm Positioning accuracy: +/- 0.4 mm Cutting capacities Width 610 mm, height: 30 mm Width 580 mm, height: 60 mm Width 530 mm, height: 100 mm Width 490 mm, height: 120 mm Width 450 mm, height: 140 mm Width 380 mm, height: 160 mm MACHINE DETAILS Drive system of saw unit: hydraulic Discharge area: 4,000 x 600 mm Compressed air requirement: 7 bar Dimensions & Weight Overall dimensions of assembled machine (L x W x H): 13,000 x 2,000 x 1,600 mm Transport dimensions (L x W x H): Machine 1,200 x 1,700 x 1,600 mm Transport dimensions (L x W x H): MATRIX pusher 8,800 x 1,500 x 1,500 mm Weight: 1,600 kg EQUIPMENT Feed system with precision rack and pinion and brushless motor Position measurement via magnetic tape Pneumatic lifting of the pusher with workpiece measuring probe Cutting cycle control via keyboard or remote PC Operator software with 99 programmable cutting cycles Operator software with 1 cutting cycle for 100 programmable dimensions Safety cover for cutting area Two-hand operation safety device Discharge flat table

Condition: ready for operation (used), functionality: fully functional, cutting length (max.): 3,550 mm, cutting width (max.): 530 mm, overall weight: 9,000 kg, stroke length: 100 mm, TECHNICAL DETAILS Usable cutting length (as double guillotine): 3,200 mm Usable cutting length (as single plate shear): 3,550 mm Press stroke: 100 mm Press width: 550 mm Min. cutting width: 18 mm Max. cutting width: 530 mm Scrap setting range: 0/50 mm Operating pressure: 6/7 bar MACHINE DETAILS Installed total power: 13.9 kW Dimensions & Weight Dimensions (L x W x H): 5,200 x 1,700 x 1,800 mm Weight: 9,000 kg Ffsdpsyf Eucefx Advju EQUIPMENT Robust steel construction Blade beam made of cast iron Self-lubricating prismatic guides Adjustable rear support Press for holding the veneer package during cutting Photoelectric cells Electronic programming device Perimeter safety guards

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, cutting length (max.): 4,400 mm, cutting width (max.): 4,300 mm, main saw diameter: 350 mm, controller model: G-VISION, Equipment: scorer, TECHNICAL DETAILS Cutting dimensions: 4,400 x 4,300 mm Saw blade projection: 90 mm Saw carriage feed speed: 5 - 100 m/min Pusher feed speed: 125 m/min Pusher return speed: 60 m/min Return speed: 100 m/min Main saw blade diameter: 350 mm Main saw motor power: 12.5 HP Scoring saw diameter: 180 mm Scoring saw motor power: 2 HP Extraction port: 200 mm Compressed air: 6.7 bar MACHINE DETAILS Control system: G-VISION Dimensions & Weight Dimensions (L x W x H; installed): 6,400 x 7,500 x 1,800 mm Dimensions (L x W x H; for transport) Machine: 6,500 x 1,500 x 1,800 mm Dimensions (L x W x H; for transport) Pusher: 5,200 x 1,200 x 1,200 mm Total weight: 3,200 kg EQUIPMENT Automatic horizontal panel saw with clamps Frontal stack loading Three front air cushion tables Automatic pusher with lateral and top guides as well as 7 pneumatic clamps Ffedpfxoyf Epyj Advou Automatic side alignment Automatic saw blade projection adjustment Electronic control of speed and position Easy access to saw carriage Pneumatic quick-change unit for tools Multitasking operating system Microsoft Windows XP/2000/NT Sequential control of cutting patterns Parametric control of feed speed Direct control of machine functions Cutting pattern adjustment

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 60 mm, workpiece length (max.): 3,000 mm, overall weight: 2,700 kg, TECHNICAL DETAILS Working area X-axis: 3,000 mm Working area Y-axis: 1,000 mm Working area Z-axis: 60 mm Maximum workpiece length: 3,000 mm Minimum workpiece length: 90 mm Maximum workpiece width: 1,000 mm Fodpfx Adsyf Elzjvsfu Minimum workpiece width: 70 mm Maximum workpiece height: 60 mm Minimum workpiece height: 8 mm Vertical electrospindle power: 4.8 HP Circular saw unit diameter: 150 mm Circular saw unit power: 2.3 HP Vertical drilling spindles: 29 Horizontal drilling spindles (X-axis): 8 Horizontal drilling spindles (Y-axis): 2 MACHINE DETAILS Compressed air: 7/8 bar Total installed power: 20 kW Machine weight: 2,700 kg EQUIPMENT Numerical control with Biesseworks software Infeed table with motorized belts (left) 2 panel clamps Outfeed table with motorized belts (right) Protection for machining head with emergency stop front mats Transfer system for panel loading and unloading with aluminium profiles Belt-driven table for panel transfer/lifting bar BiesseWorks machining programming system

Condition: ready for operation (used), functionality: fully functional, travel distance X-axis: 3,085 mm, travel distance Y-axis: 1,385 mm, travel distance Z-axis: 180 mm, controller model: Xylog, milling spindle speed (max.): 18,000 rpm, TECHNICAL DETAILS X-axis working area: 3,085 mm Y-axis working area: 1,385 mm Z-axis working area: 180 mm Programmable X-axis speed: 50 m/min Programmable Y-axis speed: 45 m/min Fodpfjyf Ekkox Advofu Programmable Z-axis speed: 22.5 m/min Drilling unit Vertical spindles: 10 Horizontal spindles X-axis: 2 Horizontal spindles Y-axis: 2 Motor power: 2.2 kW Speed: 4,000 rpm Milling unit Electrospindle: 10 HP Speed: 18,000 rpm Engraving unit Motor power: 2.2 kW Speed: 6,000 rpm Worktable Number of worktables: 6 Vacuum suction cups: 18 Loading supports: 4 Vacuum pump Flow rate: 100 m³/h MACHINE DETAILS Control system: Xylog Installed power: 17/20 kW Compressed air: 6/7 bar Weight: 3,000 kg EQUIPMENT Automatic lubrication

Condition: ready for operation (used), functionality: fully functional, overall weight: 5,000 kg, working width: 1,300 mm, workpiece height (max.): 130 mm, TECHNICAL DETAILS Working width: 1,300 mm Maximum working thickness: 130 mm Ffodpfx Ajyf Eh Nedvju Minimum working thickness: 1 mm Conveyor belt feed speed: 5/25 m/min MACHINE DETAILS Installed power: 32 kW Compressed air: 7 atm Dimensions & Weight Dimensions (L x W x H): 4,400 x 2,500 x 1,600 mm Weight: 5,000 kg EQUIPMENT Cross belt - Motor: 15 Hp - Electronic speed controller with display Transversal belt - Motor: 15 Hp - Electronic speed controller with display Transversal sanding belt size: 1,350 x 150 mm Chevron belt size: 5,510 x 140 mm Belt blower Fixed table and moving head for inline processing Rotary blower for panel cleaning Vacuum table Belt cleaning brush Infeed roller conveyor Extraction ports: No. 2 diameter 200 mm – No. 2 diameter 150 mm – No. 2 diameter 100 mm

Condition: ready for operation (used), functionality: fully functional, feed rate X-axis: 12 m/min, edge thickness (max.): 10 mm, overall weight: 1,530 kg, rotational speed (max.): 12,000 rpm, tool diameter: 80 mm, TECHNICAL DETAILS Panel height: 1,060 mm Maximum edge thickness: 10 mm Minimum panel length: 140 mm Minimum panel width: 85 mm Feed speed: 12 m/min Sanding Unit Motor power: 2.4 HP Speed: 12,000 rpm Tool diameter: 80 mm Extraction port diameter: 60 mm Gluing Unit Glue pot capacity: 2 kg Glue application roller diameter: 25 mm Pressure roller cutter, large roller diameter: 100 mm Pressure roller cutter, small roller diameter: 80 mm End Trimming Unit Motor power: 1.07 HP Maximum tool diameter: 140 mm Extraction port diameter: 80 mm Milling Unit Motor power: 0.87 HP Tool diameter: 70 mm Extraction port diameter: 80 mm Scraper Unit Extraction port diameter: 60 mm Joint Scraper Unit Extraction port diameter: 60 mm MACHINE DETAILS Fedpfx Adoyf Ed Revefu Compressed air connection: 7 bar Dimensions & Weight Dimensions (L x W x H): 3,900 x 1,000 x 1,600 mm Weight: 1,530 kg EQUIPMENT Electronic control panel with USB port Sintra software Touch probe devices Vertical and front touch probe devices with rotating discs Removable panel support arm

Condition: not inspected (used), functionality: unexamined, feed rate X-axis: 30 m/min, edge thickness (max.): 25 mm, overall weight: 3,500 kg, rotational speed (max.): 12,000 rpm, TECHNICAL DETAILS Edge thickness min: 0.6 mm Edge thickness max: 25 mm Coil material thickness min: 0.3 mm Coil material thickness max: 3 mm Panel height min: 10 mm Panel height max: 60 mm Panel width min: 70 mm Feed speed: 8-30 m/min Extraction port diameter: 120 mm Blade diameter: 140 mm Blade spindle speed: 12,000 rpm Milling unit Milling unit tool diameter: 80 mm Milling unit motor power: 0.75 kW Milling unit spindle speed: 12,000 rpm Chamfering unit Chamfering tool diameter: 80 mm Chamfering motor power: 0.75 kW Chamfering spindle speed: 12,000 rpm Rounding unit Rounding unit motor power: 0.35 kW Rounding unit spindle speed: 12,000 rpm Sanding machine Oscillating sanding motor power: 1.5 kW Oscillating sanding speed: 1,400 rpm Brushing unit Brushing unit motor power: 0.3 kW Brushing unit speed: 1,450 rpm Compressed air requirement: 6 bar MACHINE DETAILS Dimensions & weight Dimensions (L x W x H): 8,200 mm x 1,500 mm x 1,650 mm Weight: 3,500 kg EQUIPMENT Fully automatic edge banding machine Sanding unit Processing of wood, veneer, PVC, ABS, and furniture edges CE certification Automatic pressure beam lifting Controlled guidance prior to sanding Group of 2 sanding units Ffodpfoyf Ebvox Adveu Glue pot with pre-melting unit Pneumatic pressure rollers Soundproof safety enclosure Tilting end trimming unit Edge sanding unit Feed speed variator
