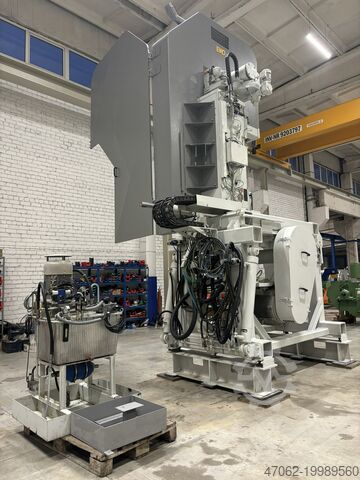

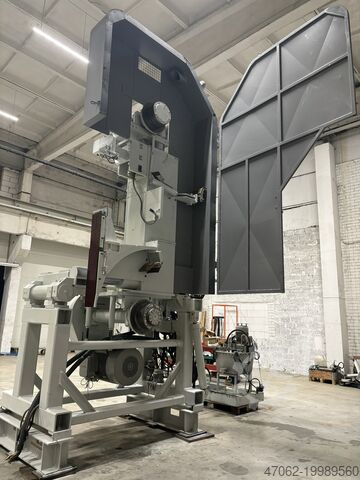

EWD bandsaw with 1800 mm wheel diameter

Condition: ready for operation (used), Year of construction: 2006, operating hours: 17,716 h, functionality: fully functional, machine/vehicle number: 0144, travel distance X-axis: 1,200 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 675 mm, controller model: Heidenhain iTNC 530, TECHNICAL DETAILS X-axis travel: 1,200 mm Y-axis travel: 600 mm Z-axis travel: 675 mm Work spindle speed: 30 - 8,000 rpm Tool holder: ISO B 40 Table size: 1,220 x 620 mm Isdpfxsx Trpqs Ahuotb T-slots: 18 T-slots: 5 x 18 mm T-slot spacing: 100 mm Table load capacity: 1,700 kg Control system: Heidenhain iTNC 530 Feed rate X / Y / Z: 3,000 mm/min Rapid traverse X,Y / Z: 24 / 20 m/min MACHINE DETAILS Voltage: 3 x 400 V AC + PE, 50/60 Hz Control voltage: 24 V DC Connected load: 16 kW Weight: 8,000 kg Operating hours Control on: 44,842 h Machine on: 36,513 h Program run: 15,882 h Drives on: 31,655 h Spindle on: 17,716 h

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 220.242, cutting length (max.): 4,300 mm, saw blade diameter: 350 mm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Cutting Data Nominal cutting length: 4,300 mm Maximum saw blade diameter (S): 350 mm Scoring blade diameter (V): 300 mm Maximum saw blade projection above table (U): 95 mm Stack Height and Panel Thickness Maximum stack height (P): 80 mm Minimum panel thickness (P): 3 mm Strip Aligner Minimum aligning force: 300 N Maximum aligning force: 990 N Additional Specifications Maximum clamp opening (K): 90 mm Working height: 970 mm Overall height: 2,020 mm Machine Accuracy Positioning accuracy: ± 0.1 mm (measured at feed-in) Cutting straightness: ± 0.1 mm over 3 m cutting length Electrical Power and Speeds Main saw motor power: 15 kW Saw carriage forward speed: 5 – 120 m/min Saw carriage return speed: 120 m/min Feed-in forward speed: up to 80 m/min (Europe 25 m/min EN 1870-13) Feed-in return speed: up to 80 m/min EQUIPMENT Strip aligner Label printer Optimization software HPO/F N5 Iodpox Sqpmefx Ahujtb

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, machine/vehicle number: 0-250-05-2654, travel distance X-axis: 3,950 mm, travel distance Y-axis: 1,943 mm, travel distance Z-axis: 400 mm, controller model: HOMATIC-2000 IPC, No reserve price – guaranteed sale to the highest bidder! The machine is equipped with a C-axis! TECHNICAL DETAILS Travel distances X-axis: 3,950 mm Y-axis: 1,943 mm Z-axis: 400 mm Ijdpfxjx Sqm Ss Ahustb Vertical drilling unit X-direction Drill spindles: 16 Z-stroke: 60 mm Drilling depth: max. 38 mm Rotational direction: clockwise/counterclockwise Speed: 1,500 - 5,900 rpm Drive: 1.5 kW Drill chuck: d= 10 mm Total drill length: 70 mm Drill diameter: max. 20 mm (15 spindles), 1 spindle up to 25 mm, max. 35 mm (1 reinforced spindle) Spindle spacing: 32 mm (15 spindles) Spindle type: individually controllable Extraction: central Vertical drilling unit Y-direction Drill spindles: 15 Z-stroke: 60 mm Drive: 1.5 kW Rotational direction: clockwise/counterclockwise Speed: 1,500 - 5,900 rpm Drill chuck: d= 10 mm Drilling depth: max. 38 mm Total drill length: 70 mm Drill diameter: max. 20 mm, 1 spindle up to 25 mm Spindle spacing: 32 mm (15 spindles) Spindle type: individually controllable Arrangement: Y-direction Horizontal drilling unit X-direction Drill spindles: 4 Drilling depth: max. 38 mm Drilling height Z-direction: 38 mm Rotational direction: counterclockwise Speed: 4,800 rpm Drill chuck: d= 10 mm Total drill length: 70 mm Drill diameter: max. 20 mm Spindles: individually controllable Horizontal drilling unit Y-direction Drill spindles: 2 Drilling depth: max. 38 mm Drilling height Z-direction: 38 mm Rotational direction: clockwise Speed: 4,800 rpm Drill chuck: d= 10 mm Total drill length: 70 mm Drill diameter: max. 20 mm Spindle type: individually controllable Router motor Drive power: 7.5/10 kW (S1/S6 duty cycle) Speed range (stepless): 750 - 18,000 rpm Cooling: liquid recirculation cooling Bearings: hybrid bearings (ceramic) Extraction: central Tool changer magazine Magazine positions: 30 tool positions Tool weight: max. 5 kg Tool change time: approx. 8 - 10 seconds MACHINE DETAILS Control: HOMATIC-2000 IPC Liquid recirculation cooling: 18,000 l/min Power: 7.5 / 10 kW S1/S6 operation EQUIPMENT Integrated CNC axis (360° rotational) Torque support Main spindle (motor power 7.5 / 10 kW, HSK F63) Workpiece support system 1,500 mm Workpiece console K-table 1,500 mm Gantry extension Y-direction 120 mm Compressed air connection strip with quick couplers Extraction hood for additional router motor Router 5 kW with Hydro quick-release clamping system Left-side safety guard with door Safety tread mat 3,250 mm Control cabinet left Note: For further details regarding the machine’s equipment, please refer to the attached documents.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2008, operating hours: 42,663 h, controller model: MMC PLC, bending force (max.): 320 t, working width: 4,100 mm, stroke length: 265 mm, throat depth: 400 mm, TECHNICAL DETAILS Press force: 320 t Bending length: 4,100 mm Travel X-axis: 600 mm Travel R-axis: 250 mm Travel Z-axis: 2,900 mm Stroke: 265 mm Throat depth: 400 mm Distance between uprights: 3,750 mm Installation height: 550 mm Table width: 60 mm MACHINE DETAILS Controlled axes: Y1, Y2, X, R, Z1, Z2 Control system: MMC PLC Oil capacity: 600 l Dimensions & Weight Dimensions (L x W x H): 5,000 x 2,300 x 4,020 mm Weight: 29,000 kg Operating hours: 42,663 h EQUIPMENT Hydraulic crowning Side safety fences Rear safety guard Itjdpfx Ahox I Hzweuob FIESSLER light barrier Note: The machine is sold without tooling.

Condition: ready for operation (used), functionality: fully functional, punching force: 22 t, sheet thickness (max.): 6 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,270 mm, workpiece weight (max.): 150 kg, Punching and nibbling machine with TRUMALIFT Sheetmaster! TECHNICAL DETAILS Press force: 220 kN Max. sheet thickness: 6.4 mm Travel path X-axis: 2,500 mm Travel path Y-axis: 1,270 mm Positioning speed X-axis: 90 m/min Positioning speed Y-axis: 60 m/min Positioning speed simulation: 108 m/min Positioning speed rotary axis: 360°/sec Punching diameter: 76.2 mm Iedpfx Ajx I Hh Rshuetb Minimum programmable increment: 0.01 mm or 0.01° Workpiece weight: 150 kg Tool stations: 15 pcs Tool change time: 1.5 - 6.5 sec MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 6,400 x 5,800 x 2,100 mm Machine weight: approx. 11,050 kg EQUIPMENT Multitool control "Softpunch" function Pneumatic follow-up cylinders Small parts sensor for programmable part chute Parts box for finished parts Chip conveyor with container Scratch-reduced processing Air-cushioned mounting Additional clamping bridge Prepared for TRUMALIFT SheetMaster TRUMALIFT Sheetmaster for workpieces up to 2,500 x 1,250 mm Alignment system for loading stack with spreader magnets Manually movable scrap grid system

Condition: ready for operation (used), Year of construction: 2001, operating hours: 62,769 h, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 8 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, TECHNICAL DETAILS Sheet thickness: 8 mm Punching force: 220 kN Travel X-axis: 3,000 mm Travel Y-axis: 1,500 mm MACHINE DETAILS Control: Siemens Machine weight: approx. 17,500 kg Iodpfxjx I E Eze Ahujtb Operating hours: 62,769 h EQUIPMENT Scraper position change monitoring Thread forming Marking – quick beading Slitting Multishear Multibend Backgauge repositioning Roller tools Setup cassettes Ball transfer table

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2001, control type: NC control, working width: 2,520 mm, sheet thickness (max.): 4 mm, overall weight: 3,720 kg, TECHNICAL DETAILS Sheet width: 2,520 mm Sheet thickness: 4 mm Upper beam stroke: 250 mm Folding beam adjustment: 80 mm MACHINE DETAILS Control type: NC Dimensions & Weight Dimensions (L x W x H): 3,150 x 805 x 1,425 mm Machine weight: approx. 3,720 kg Itodpox I Eqqefx Ahusb Upper beam drive power: 2.2 kW Folding beam drive power: 3.0 kW EQUIPMENT Foot switch Electric backgauge Sharp-edge rail

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, sheet thickness (max.): 38 mm, overall weight: 3,500 kg, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, TECHNICAL DETAILS Cutting range for steel: 1–38 mm X-axis travel: 3,000 mm Y-axis travel: 1,500 mm MACHINE DETAILS Cutting medium: HiFocus 161i Control system: MicroStep Total power requirement: 6 kA Isdpjx I Ehpjfx Ahujtb Machine weight: approx. 3,500 kg EQUIPMENT Kjellberg plasma power source HiFocus Plus 161i

Condition: ready for operation (used), Year of construction: 1991, functionality: fully functional, working width: 1,500 mm, sheet thickness (max.): 1 mm, TECHNICAL DETAILS Sheet width: 1,500 mm Itedpfjx I Egrjx Ahujb Sheet thickness: 1.5 mm

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 460 mm, travel distance Z-axis: 460 mm, controller model: OSP-P200M, rotational speed (max.): 15,000 rpm, TECHNICAL DETAILS Iedpfx Ahox I Ecyeujtb Travel X-axis: 762 mm Travel Y-axis: 460 mm Travel Z-axis: 460 mm Spindle speed range: 50 - 15,000 rpm Rapid traverse X-axis: 40 m/min Rapid traverse Y-axis: 40 m/min Rapid traverse Z-axis: 32 m/min Tool magazine: 32 positions MACHINE DETAILS Control: OSP-P200M Main drive motor: 22 kW Dimensions & Weight Required space (L x W x H): 2,850 x 2,810 x 2,750 mm Machine weight: 7,200 kg EQUIPMENT Chip conveyor Internal coolant supply Standard filtration unit
