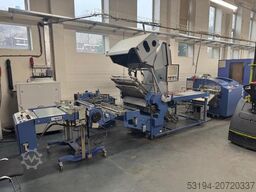

MBO Web In-line cutting + folding line

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: 7024NL256160890J, spindle speed (max.): 10,000 rpm, travel distance Y-axis: 200 mm, rotational speed (max.): 4,000 rpm, bar diameter (max.): 80 mm, distance between centers: 700 mm, Condition: Ball screw drives in X, Y, and Z axes replaced; major maintenance package carried out approx. one year ago (machine has not been in operation since)! TECHNICAL DETAILS Distance between centers: 700 mm Spindle speed range: 1 - 4,000 rpm Tool spindle speed: 10,000 rpm Bar capacity: 80 mm Mounting: MT5, revolving tailstock Without center Turret: 12 stations, bolt-on turret Overhang for driven tools: ±100 mm Assemblies: Integrated MK4 bearing for live center Chip and coolant system: Scraper-type chip conveyor with magnetic separator, discharge height approx. 1,000 mm Coolant system: high pressure 5 bar, pump 800 W, delivery rate 20 l/min Coolant shower at chuck, including high-performance pump Compressed air blow-off system for tool holder sleeves Compressed air blow-off system for tailstock live center Line filter for coolant system MACHINE DETAILS Control: M730UM, CELOS - ERGOline Touch Total power: 18.5 / 18.5 / 15 kW (25% duty cycle / 50% duty cycle / continuous) Tool spindle power: 5.5 / 5.3 / 7 kW (3 min / 5 min / continuous) EQUIPMENT Interface for oil mist separator (diameter: 150 mm) Signal beacon: red, yellow, green, blue Nedpfx Aey A Icrskyocr EtherNet/IP interface for automation Robot interface for portal robot DMG Mori Seiki Transformer: 45 kVA, three-phase autotransformer X-axis direction ISO Note: The machine is supplied without a chuck, tool pre-setter, or workholding devices.

Condition: ready for operation (used), Year of construction: 2005, operating hours: 1,476 h, functionality: fully functional, machine/vehicle number: 174275, travel distance X-axis: 1,050 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, controller model: Mazatrol 640M, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Ncjdpfx Akoy Am Ndoyer Travel X-axis: 1,050 mm Travel Y-axis: 510 mm Travel Z-axis: 510 mm Spindle speed: 12,000 rpm Number of tool changer positions: 30 Table size: 1,700 x 750 mm MACHINE DETAILS Spindle motor power: 18.5 kW Control: Mazatrol 640M Weight: 7,100 kg Operating hours Counter 1: 43,723 h Counter 2: 1,476 h EQUIPMENT Chip conveyor

Year of construction: 2001, condition: ready for operation (used), functionality: fully functional, punching force: 1,000 t, operating speed: 93 mm/s, stroke length: 55 mm, table length: 1,100 mm, table width: 800 mm, machine/vehicle number: 100597, TECHNICAL DETAILS Press force: 10,000 kN Table surface (W x D): 1,100 x 800 mm Stroke range: 15 - 55 mm Clearance at max. stroke: 28 - 98 mm Puzzle thickness: up to 3 mm Format width (max.): 1,100 mm Punching speeds Upwards: 47.8 mm/s Downwards: 93.7 mm/s Punching: 0.28 mm/s Hydraulic unit Type: 250 Dimensions (L x W): 1,310 x 910 mm Oil capacity: 670 l Unit weight: 1,000 kg Oil weight: approx. 550 kg Weight with oil fill: approx. 1,550 kg Automatic punching table Type: 355 Table top size (W x D x thickness): 1,000 x 700 x 10 mm Hardness: 62 HRC Surface finish: 7 MACHINE DETAILS Electrics Operating voltage: 400 V Frequency: 50 Hz Rated machine current: 50 A Incoming line protection: 63 A Control voltage: 230/24 V Rated power: approx. 30 kW Nedpjy Ampdjfx Akyocr Protection class: IP 54 Power requirement: approx. 8 kW Pneumatics Operating pressure: 6 bar Dimensions & Weight Puzzle disassembler dimensions (L x W x H): 3,150 x 1,620 x 2,900 mm Working height: approx. 1,700 mm Total weight: 33,000 kg Weight of puzzle disassembler: approx. 1.8 t Noise level: < 70 dB(A)

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, input voltage: 400 V, total height: 2,200 mm, total length: 7,500 mm, total width: 1,500 mm, overall weight: 4,000 kg, TECHNICAL DETAILS Overall height: 2,200 mm Overall length: 7,500 mm Overall width: 1,500 mm MACHINE DETAILS Weight: 4,000 kg Year of manufacture: 2007 Voltage: 400 V Power consumption: 46 A Fuse: 63 A Transport dimensions: 7,500 mm x 1,500 mm x 2,200 mm (L x W x H) Transport weight: 4,000 kg Nodpfjy Akytjx Akyocr EQUIPMENT Tools included: Yes (for 1st, 3rd, 4th, 5th, 7th, and 8th unit) Tools included: No (for 6th unit)

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 241306, saw blade diameter: 500 mm, cutting height (max.): 170 mm, cutting width (max.): 395 mm, power: 7.5 kW (10.20 HP), borehole diameter: 30 mm, TECHNICAL DETAILS Max. cutting width: 395 mm Max. cutting height: 170 mm Saw blade diameter min.: 490 mm Saw blade diameter max.: 500 mm Nodpfxoy Akvnj Akyjcr Saw blade bore diameter: 30 mm Feed table length: 5,640 mm Output table length: 1,180 mm Feed speed: Automatic MACHINE DETAILS Voltage: 400 V Power consumption: 16.5 A Fuse: 32 A Power: 7.5 kW Transport weight: 800 kg Transport packages: 3 EQUIPMENT Automatic feed system

Condition: ready for operation (used), Year of construction: 2018, machine/vehicle number: P0220118, functionality: fully functional, pressing force: 9 t, number of cylinders: 6, workpiece length (max.): 2,500 mm, workpiece width (max.): 1,300 mm, workpiece height (max.): 200 mm, Equipment: CE marking, TECHNICAL DETAILS Max. workpiece length: 2,500 mm Njdpfxjy Akuks Akyecr Max. workpiece width: 1,300 mm Max. workpiece height: 200 mm Number of cylinders: 6 Total working pressure: 90,000 N Working pressure: 294,200 N/m² MACHINE DETAILS Dimensions & weight Dimensions (L x W x H): 3,000 x 2,070 x 1,670 mm Unladen weight: 4,000 kg EQUIPMENT CE marking

Condition: ready for operation (used), functionality: fully functional, total length: 4,400 mm, total width: 1,400 mm, number of cylinders: 8, TECHNICAL DETAILS Number of levels: 1 Number of cylinders: 8 MACHINE DETAILS Type of heating: Oil Machine dimensions (L x W): 4,400 x 1,400 mm Ncodpey Akihjfx Akyer EQUIPMENT Glue roller Infeed/Outfeed

Condition: ready for operation (used), Year of construction: 2011, machine/vehicle number: 5/1-107, functionality: fully functional, total height: 1,730 mm, total length: 6,100 mm, total width: 1,440 mm, Equipment: CE marking, The machine has the following configuration: 1. Pre-milling unit (tools included) 2. Glue application unit 3. Pressure rollers (tools included) 4. End trimming unit (tools included) 5. Not specified (tools included) 6. Corner rounding unit (tools included) 7. Radius scraping unit (tools included) 8. Not specified (tools included) 9. Flat scraping unit (tools included) MACHINE DETAILS Number of units: 9 Voltage: 400 V Power consumption: 21.9 A Main fuse: 50 A Dimensions Dimensions (L x W x H): 6,100 x 1,440 x 1,730 mm Transport packages: 1 Nodpfx Ajy Akgtskyscr EQUIPMENT CE marking

Condition: ready for operation (used), Year of construction: 2012, machine/vehicle number: AA2-002032, functionality: fully functional, operating hours: 9,974 h, overall weight: 7,450 kg, feed length X-axis: 5,020 mm, feed length Y-axis: 1,680 mm, feed length Z-axis: 250 mm, TECHNICAL DETAILS X-axis travel: 5,020 mm Y-axis travel: 1,680 mm Z-axis travel: 250 mm Number of axes: 5 Software: SCM XILOG MAESTRO Control systems: SCM PRISMA K, SCM TTS System, SCM TecPad, MORBIDELLI TV Matic, SCM PRO-SPACE, SCM RAPID 12, SCM RAPID 24 Tool changer: 36 positions Ncjdpfxoy Akgas Akyer Drilling units: 24 x vertical MACHINE DETAILS Machine dimensions (LxWxH): 2,400 x 8,000 x 2,400 mm Total weight: 7,450 kg EQUIPMENT - Vacuum pump with 250 m³/h capacity - Liquid-cooled milling spindle

Condition: ready for operation (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: AB/222595, total width: 1,950 mm, total length: 2,300 mm, total height: 1,850 mm, empty load weight: 1,240 kg, Equipment: CE marking, MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 2,300 x 1,950 x 1,850 mm Ncedpfxsy Akdxe Akysr Unladen weight: 1,240 kg Voltage: 400 V Power consumption: 10 A EQUIPMENT CE marking
