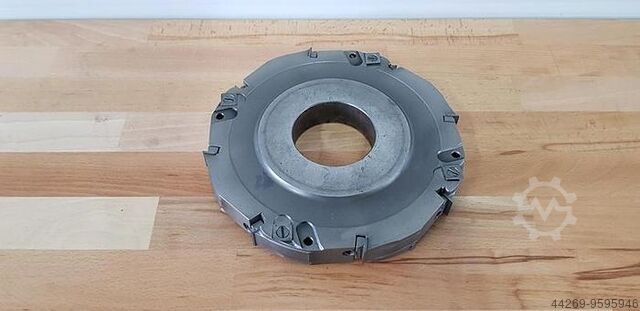

Mortising tools

Condition: not inspected (used), Year of construction: 2008, operating hours: 32,164 h, functionality: unexamined, machine/vehicle number: 3201250, sheet thickness steel (max.): 2 mm, sheet thickness aluminum (max.): 3 mm, workpiece length (max.): 2,695 mm, workpiece width (max.): 1,524 mm, No minimum price – guaranteed sale to the highest bidder! Placing a bid obligates you to collect the item between 23/03/2026 and 27/03/2026! The machine is also equipped with a cutting function (see pictures)! TECHNICAL DETAILS Maximum tensile strength stainless steel: 600 N/mm² Sheet thickness stainless steel: 0.5 mm – 1.25 mm Typical sheet thickness stainless steel: 1.0 mm Maximum tensile strength steel: 410 N/mm² Sheet thickness steel: 0.5 mm – 2.0 mm Typical sheet thickness steel: 1.5 mm Maximum tensile strength aluminium: 265 N/mm² Sheet thickness aluminium: 0.5 mm – 3.0 mm Typical sheet thickness aluminium: 1.5 mm Sheet dimensions Length: 405 mm – 2,695 mm Width: 190 mm – 1,524 mm Maximum diagonal: 2,800 mm Maximum centering dimension: 2,500 mm MACHINE DETAILS Hydraulic System Ljdpfxeycquco Aaqjrh Base machine oil capacity: approx. 500 dm³ Shear lift table oil capacity: approx. 20 dm³ Cooling System (Closed) Cooling unit R81: approx. 175 liters Cooling unit R101: approx. 260 liters Service Connections Mains voltage: 400 V Frequency: 50/60 Hz Connection cross-section: 4 × 25 mm² Pre-fuse: 80 A Average current: 42 A Power consumption: 24 kW Control voltage: 24 V AC/DC Industrial PC / Monitor / Power supply units: 220 V AC Open Cooling System Cooling water requirement: approx. 2.0 m³/h Max. inlet temperature: 20 °C Compressed Air Required pressure: 6 – 12 bar Max. air consumption at 6 bar: approx. 2,275 Nl/min Dimensions & Weight Required space (L × W × H): approx. 18,000 × 11,500 × 3,500 mm Transport width: Up to approx. 3,000 mm Total weight (without oil): approx. 27,760 kg Heaviest component (bending machine): approx. 20,040 kg Operating hours: 32,164 h Robot Manufacturer: KUKA Model: KR 150 L110-2 2000 Year of manufacture: 2008 Weight: 1,285 kg Note: Robot has been modified for use with a magnetic lifter SCOPE OF DELIVERY Available manuals Various spare parts in wooden crates

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2020, operating hours: 1,200 h, laser power: 3,000 W, laser wavelength: 1,080 nm, sheet thickness (max.): 20 mm, sheet thickness aluminum (max.): 6 mm, workpiece weight (max.): 1,000 kg, No reserve price – guaranteed sale to the highest bidder! By placing a bid, you are obligated to collect the item within the specified period, no later than 08.03.2026! TECHNICAL DETAILS Lsdpfxsyi E N Us Aaqsrh Maximum sheet size: 3,000 mm x 1,500 mm Laser power: 3,000 W Laser wavelength: 1,080 nm Maximum sheet thickness: 20 mm Maximum steel thickness: 20 mm Maximum aluminium thickness: 6 mm Maximum brass thickness: 5 mm Maximum copper thickness: 5 mm X-axis travel: 3,050 mm Y-axis travel: 1,550 mm Positioning speed: 72 m/min Positioning accuracy X and Y axes: 0.05 mm/m Repeatability: 0.01 mm Maximum workpiece weight: 1,000 kg MACHINE DETAILS Input voltage: 380 V Input frequency: 50 Hz Type of input current: Three-phase Dimensions & Weight Overall length: 6,200 mm Total weight: 6,500 kg Laser hours: 1,200 h EQUIPMENT Cooling unit Raycus laser source Raytools autofocus cutting head Fuije servo motors Windows computer with CypCut software Lifetime license for installed software

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 516220V00303, Year of construction: 2019, operating hours: 6,025 h, load capacity: 1,600 kg, lifting height: 3,180 mm, free lift: 150 mm, mast type: duplex, fork length: 1,200 mm, TECHNICAL DETAILS Load capacity: 1,600 kg Load center: 500 mm Load distance: 374 mm Wheelbase: 1,319 mm Free lift: 150 mm Lift height: 3,180 mm Fork length: 1,200 mm Fork thickness: 40 mm Fork width: 80 mm Fork arm length: 800 mm Fork carriage width: 980 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 2,661 x 1,099 x 2,160 mm Weight: 3,125 kg Lift mast height extended: 3,742 mm Overhead guard height: 2,035 mm Seat height: 1,058 mm Coupling height: 473 mm Axle load with load front/rear: 4,160 / 565 kg Axle load without load front/rear: 1,500 / 1,625 kg Mast type: Duplex Battery voltage/capacity: 48 V 625 Ah Operating hours: approx. 6,025 h EQUIPMENT Charger Replacement battery Side shifter Ledpfx Aasyh Htvjqjrh Heated seat Blue Spot front and rear 2x LED headlights front, 1x rear Front windscreen with wiper Heater Panoramic roof Digital display Interior mirror Operating manual Note: The seat is worn.

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 460045, spindle speed (max.): 5,000 rpm, overall weight: 7,500 kg, controller model: SIEMENS SINUMERIK 840D, Equipment: chip conveyor, TECHNICAL DETAILS Turret Number of spindles: 2 Number of turrets: 3 Number of positions turret 1: 10 Number of positions turret 2: 10 Tool holder: VDI 25 Lower turret head Number of positions: 10 Rotational speed: 6,000 rpm Power of driven tools: 8 kW Main spindle C-axis (resolution): 0.001° Max. spindle speed: 5,000 rpm Lredpfoyhn Nzox Aaqeh Spindle power: 27 kW MACHINE DETAILS Control: SIEMENS SINUMERIK 840D Connection: 50 Hz 3x 400 V Total power requirement: 43 kW Dimensions & Weight Dimensions (L x W x H): 3,200 x 2,100 x 2,100 mm Machine weight: 7,500 kg EQUIPMENT Chip conveyor Foot pedal

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1987, machine/vehicle number: 87'2294, controller model: Cybelec S-DNC-8879-PS, bending force (max.): 81 t, throat depth: 255 mm, working length: 2,050 mm, TECHNICAL DETAILS Pressing force: 800 kN Working length: 2,050 mm Clearance between uprights: 2,050 mm Frame throat depth: 255 mm Ram stroke, working stroke: 215 mm Max. installation height: 390 mm Powered backgauge: 500 mm Working speed, pressing: 8 mm/s Working speed, return: 60 mm/s MACHINE DETAILS Control: Cybelec S-DNC-8879-PS Connection: 50 Hz 3x 380 V Motor power: 6 kW Dimensions & Weight Lodpfx Aoyhn H Hjaqorh Dimensions (L x W x H): 3,700 x 2,000 x 3,400 mm Machine weight: 6,700 kg EQUIPMENT Set of bending rails Set of gooseneck rails

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 95428, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 1,600 kg, workpiece length (max.): 1,200 mm, TECHNICAL DETAILS X-axis travel: 600 mm Y-axis travel: 400 mm Z-axis travel: 450 mm Table length: 750 mm Table width: 600 mm Maximum workpiece length: 1,200 mm Maximum workpiece width: 850 mm Maximum workpiece height: 400 mm Maximum workpiece weight on table: 1,600 kg Tool changer (number of tools): 24 Maximum electrode weight: 100 kg MACHINE DETAILS Connection: 50 Hz 3x 400 V Lodpfsyhn Hgjx Aaqorh Dimensions & weight Dimensions (L x W x H): 3,150 x 2,750 x 2,960 mm Machine weight: approx. 4,500 kg EQUIPMENT C-axis Tool holder system EROWA Fire suppression system Lamp

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 0244, center height: 175 mm, grinding length: 1,000 mm, center width: 1,000 mm, grinding diameter: 348 mm, controller model: GE FANUC Series 18-T, TECHNICAL DETAILS Centre Height: 175 mm Centre Distance: 1,000 mm Max. Grinding Diameter: 348 mm Grinding Length: 1,000 mm Max. Workpiece Weight Between Centres: 250 kg Grinding Wheel Diameter: 500 mm Grinding Wheel Width: 100 mm Grinding Wheel Peripheral Speed: 45 m/s Longitudinal Slide Travel: 1,400 mm Longitudinal Slide Feed Rate: 8,000 mm/min Cross Slide Travel: 340 mm Cross Slide Swivel Range: +9/-9° Cross Slide Feed Rate: 8,000 mm/min Workpiece Spindle Head Max. Speed: 1,000 rpm Lredpfsyhn Epex Aaqoh Swivel Range: +30/-45° Tailstock Quill Taper: 4 MT Tailstock Quill Travel: 50 mm Connection: 50 Hz, 3x 400 Volt Grinding Spindle Motor: 15 kW MACHINE DETAILS Control: GE FANUC Series 18-T Connection: 50 Hz, 3x 400 Volt Grinding Spindle Motor: 15 kW Total Power Requirement: 27 kW Apparent Power Requirement: 16 kVA Dimensions & Weight Dimensions (L x W x H): 4,410 x 3,550 x 1,900 mm Machine Weight: approx. 5,100 kg EQUIPMENT Plunge Grinding MARPOSS Measuring Head Set of Grinding Wheels

Condition: ready for operation (used), Year of construction: 1987, functionality: fully functional, machine/vehicle number: 7791, overall weight: 5,000 kg, workpiece height (max.): 25 mm, workpiece diameter (max.): 60 mm, TECHNICAL DETAILS Workpiece diameter: 5 - 60 mm Lrjdpfx Asyhn Dlsaqeh Max. workpiece height: 1 - 25 mm Number of grinding heads: 2 Configuration: Double-sided (top, bottom) Grinding wheel outside diameter: 457 mm Grinding wheel speed: 24 m/s MACHINE DETAILS Voltage: 380 V Grinding motor power: 2 x 15 kW Dimensions & weight Dimensions (L x W x H): 4,000 x 3,000 x 2,700 mm Machine weight: approx. 5,000 kg

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 164, travel distance X-axis: 250 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 300 mm, controller model: GE FANUC Series 16i-M, spindle speed (max.): 14,000 rpm, TECHNICAL DETAILS X-axis travel: 250 mm Y-axis travel: 200 mm Z-axis travel: 300 mm Number of axes: 3 Max. spindle speed: 14,000 rpm Table length: 400 mm Table width: 250 mm Number of T-slots: 3 Distance between T-slots: 80 mm T-slot width: 14 mm Tool magazine capacity: 48 Tool holder: HSK E40 Working feed rate: 20 m/min Rapid traverse: 30 m/min Max. feed force: 3,700 N MACHINE DETAILS Control: GE FANUC Series 16i-M Lsdpjyhnzkefx Aaqerh Resolution: 1 µm Compressed air supply: 6 bar Electrical connection: 50 Hz 3x 400 Volt Spindle drive power: 10.4 kW Total power requirement: 18 kVA Dimensions & Weight Dimensions (L x W x H): 2,100 x 1,630 x 2,265 mm Machine weight: approx. 1,700 kg Required floor space: approx. 2 m² EQUIPMENT Vice: Jaw width 100 mm Set of tool holders Coolant system Lighting

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: 2010407, travel distance X-axis: 320 mm, travel distance Y-axis: 320 mm, travel distance Z-axis: 320 mm, controller model: HEIDENHAIN iTNC 530, spindle speed (max.): 40,000 rpm, TECHNICAL DETAILS Travel distance X-axis: 320 mm Travel distance Y-axis: 320 mm Travel distance Z-axis: 320 mm Lrjdpfx Aeyhnygoaqsh Number of axes (simultaneous): 5 Max. spindle speed: 40,000 rpm Max. workpiece length: 150 mm Max. workpiece width: 150 mm Max. workpiece height: 150 mm Max. workpiece weight on table: 20 kg A-axis: 360° B-axis swivel range: +/- 115° Number of tools in tool changer: 60 Tool holder: ISO V 30 Feed rate: 60,000 mm/min Rapid traverse: 60 m/min MACHINE DETAILS Control system: HEIDENHAIN iTNC 530 Connection: 50 Hz 3x 400 Volt Spindle motor: 11 kW Total power consumption: 35 kW Dimensions & Weight Dimensions (L x W x H): 2,700 x 2,400 x 2,900 mm Machine weight: approx. 6,000 kg EQUIPMENT Set of tool holders Coolant unit Chip conveyor Lighting Coolant/mist extraction Switch cabinet air conditioning Status indicator lamp
