Paint finishing system

Powder Coating Plant With Conveyor

Condition: new, functionality: fully functional, Year of construction: 2025, Box Type Electrostatic Powder Coating Oven: Length: 500cm, Width: 250cm, Height: 300cm - Powder Coating Booth with Filter: Length:300cm, Width:220cm, Height:270cm Hpodpfx Asv Nvndohzsa - Electrostatic Powder Coating Equipment: Model: HMK MULTICOLOR, Type of Use: Manual

Condition: excellent (used), Year of construction: 1995, Combination Unit: Manufacturer: GSG Feeder: Type: 840.02-027 Crusher Descaler: Type: 663.02-017 Wire Range: Ø5.5-16mm For wire rod with approx. 40-60 daN/mm² strength Crushing and Bending Rollers: Carbide Inserts Adjustment with 0.37 kW - 1.15 A gear motor Brush Drive with 0.25 kW gear motor, n=293 rpm Connection Voltage: 380-420 V 50 Hz Dry Coating Unit: Type: BSG/T Filling: Calcium Stearate (e.g., Traxit Type: D S 51 E) Stearate Consumption: approx. 350 g per t of wire Drawing Speed: max. 15 m/s Electrical Power: 2x 0.55 kW gear motors Cassette: 2 slots (supplied with 1x roller block + 1x cassette) Type: PKG/T (TS) Cleaned rolled wire Wire strength approx. 40–60 daN/mm² Wire range max. inlet diameter 9.5mm, finished diameter 3.5–8.5mm Roll dimensions min. Ø115mm, max. Ø125mm, Bore diameter Ø82mm, width 15–25mm Cooling pin diameter 25mm Cooling water consumption approx. 600 l/h Drawing machine: Manufacturer: Koch Type: KHZ 5000 Year of manufacture: 1993 Serial number: 13.821 Number of draws: 1 draw per block Drawing drum: Ø700mm Tensile force: mechanical 5000 N Hodpfx Aer Nfvmehzjpa Wire material: mild steel wires Run-in strength: approx. 40 – 45 daN/mm² Maximum drawing range: Inlet diameter 5.0 – 8.5mm Cross-section reduction: 20 x 25% (mechanical gradation) Drawing speed: up to max. 7.0 m/s Brake: Twiflex, type: MRB Drive: AC motor/frequency converter, Siemens PN=110 kW, n=1485 rpm Spooler: Manufacturer: Koch Type: KHS 1250 Year of manufacture: 1993 Factory No.: 13741 Wire diameter: 5 – 8.5 mm Strength: approx. 55 – 70 daN/mm² Winding speed: V=7 m/s, adapted to the drawing machine Filling weight: approx. 3000 kg Spool drive motor: Three-phase motor with external fan Type: 1 PQ 6253 – 6 AA 70- Z A 15 + K 20 + C 14 + H 46 P=37 kW, n=1000-2000 rpm, IP54, design B3 Laying drive motor: 66-671U, 1.5 kW, 170 V, 9.8 A, 1680 rpm, IP 44, B5-200 With Attached tachometer generator TG 20, 20 V / 1000 rpm With attached spur gear SK 32, i=57.53, design B6 Hydraulics: Hydraulic excavator type: H13 AK Pneumatics: Twiflex disc brake type: MRB Pneumatic cylinder type: SPWG 28032-25mm stroke Dimensions: 3100 x 3000 x 1700 mm (L x W x H) without counterweight

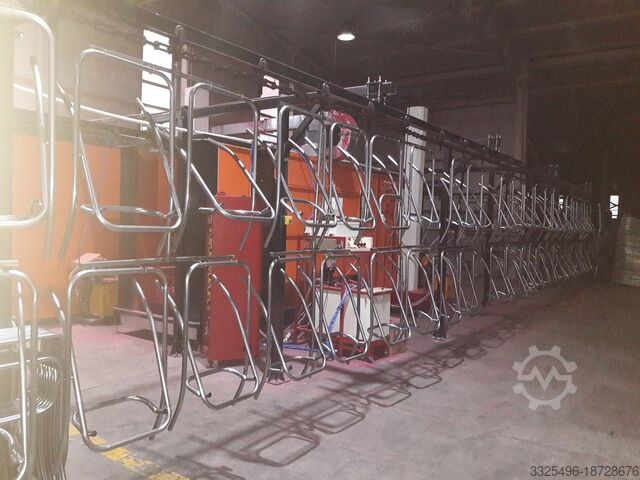

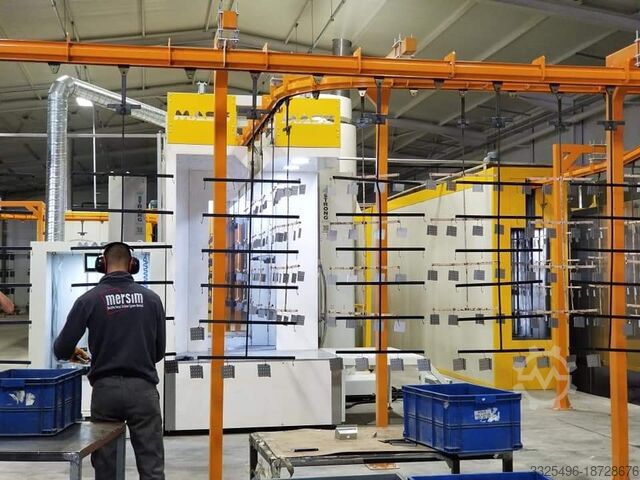

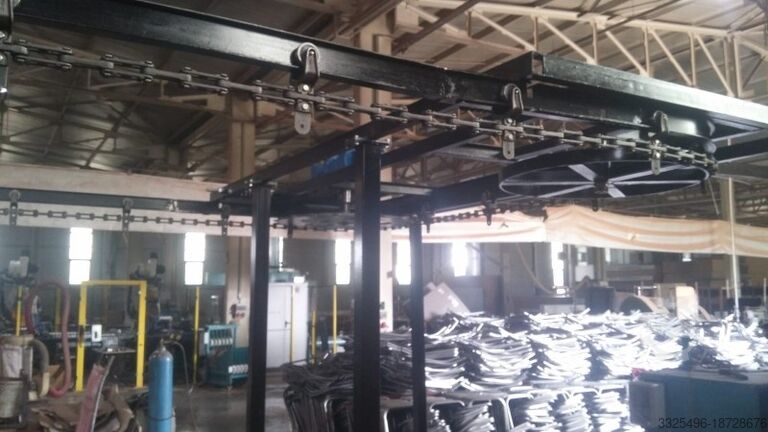

Condition: used, Powder Coating Plant - Automatic The plant moves with conveyor system. The material to be powder coated is hung on the line, the system automatically follows the steps below and powder coats the material after cleaning it. Hpedpfov Npa Hex Ahzja The best project suitable for the existing facility is made. Special design is made according to the customer's product and needs.

Condition: excellent (used), Year of construction: 1979, Rope Production line / Strand Rewinding line REDAELLI Line STABILISED CONCRETE PRE-STRESSING STRAND 3-wire and 7-wire strands which use with beams covering long spans, bridge elements, large pre-stressed elements, e.g. floor elements, piles, pre-tensioned and post-tensioned structures. - Year -1979/2005 - Pay of spool size - 800x900 mm - ⁠Range of strand production : - 3/8 - 1/4 - ⁠1/2 - 5/16 - ⁠6/10-7/16 - ⁠7/10-9/16 - Coil Weight - 4.000 kg Hsdpfxst Iq Hbe Ahzopa - ⁠speed - 40-60 m/min. - ⁠High carbon steel wire - ⁠PC Stand size: - ⁠6.4,6.9,9.3,21.5 mm - ⁠Electrical supply - 400 kW Line Consists : Wire Pay Of Wisting Unit Furnace Cooling System Traction Rollers Winding the Rope

Condition: used, Year of construction: 2016, functionality: fully functional, machine/vehicle number: 430/16, Powder Coating Line (Pass-through Polymerization Oven for Powder Paint, complete with Conveyor System and Dual Paint Booth) Basic technical data of the oven: - Max. external dimensions (L x W x H): 9.6 m x 6.6 m x 2.5 m - Weight: approx. 9,000 kg - Max. operating temperature: 220°C - Max. burner power / GZ50/: 2 x 160 kW - Fan motor power: 24 kW - Power supply: 3 x 400 V +N +PE, 50Hz Maximum workpiece dimensions: - L = 2.0 m - H = 1.0 m - W = 0.6 m Included with the machine: Hjdpfx Aju Hib Nohzspa Complete technical documentation + parts lists. The oven is integrated with an overhead conveyor system by JOKŚ. The conveyor system includes 42 m of tracks, along with a drive system and lubrication system; control system with speed regulation in the range of 0.5–1.5 m/min. APAR AR200 speed recorder, LG iG5A series inverter, EATON MFD-AC-CP4 manual power/communication module, MFD-CP4, MFD-80. Manual powder coating booth; pass-through, two-station. Paint access windows on opposite sides, offset. Max. dimension of painted workpiece: - L = 2.0 m - H = 1.0 m - W = 0.6 m A linear overhead transport system runs through the center of the booth. The booth includes 3 tanks adapted for powder recovery/color change, filtration system based on cartridge filters. End tanks equipped with screens.

Condition: new, Year of construction: 2025, functionality: fully functional, Full Robotic Powder Coating Plant Length: 30 Mt Height: 350 Mt Our experienced team prepares special design and special sizes for each project. powder coating plant. Please contact us for detailed information Conveyor system A conveyor system is a common piece of mechanical handling equipment that moves materials from one location to another. Conveyors are especially useful in applications involving the transport of heavy or bulky materials. Conveyor systems allow quick and efficient transport for a wide variety of materials, which make them very popular in the material handling and packaging industries. They also have popular consumer applications, as they are often found in supermarkets and airports, constituting the final leg of item/ bag delivery to customers. Many kinds of conveying systems are available and are used according to the various needs of different industries. There are chain conveyors (floor and overhead) as well. Chain conveyors consist of enclosed tracks, I-Beam, towline, power & free, and hand pushed trolleys. Care and maintenance Hedpfx Aov Nvtgshzepa A conveyor system is often the lifeline to a company's ability to effectively move its product in a timely fashion. The steps that a company can take to ensure that it performs at peak capacity, include regular inspections and system audits, close monitoring of motors and reducers, keeping key parts in stock, and proper training of personnel. Increasing the service life of a conveyor system involves: choosing the right conveyor type, the right system design and paying attention to regular maintenance practices. A conveyor system that is designed properly will last a long time with proper maintenance. Overhead conveyor systems have been used in numerous applications from shop displays, assembly lines to paint finishing plants and more. Industries where used Conveyor systems are used widespread across a range of industries due to the numerous benefits they provide. Conveyors are able to safely transport materials from one level to another, which when done by human labor would be strenuous and expensive. They can be installed almost anywhere, and are much safer than using a forklift or other machine to move materials. They can move loads of all shapes, sizes and weights. Also, many have advanced safety features that help prevent accidents. There are a variety of options available for running conveying systems, including the hydraulic, mechanical and fully automated systems, which are equipped to fit individual needs.
