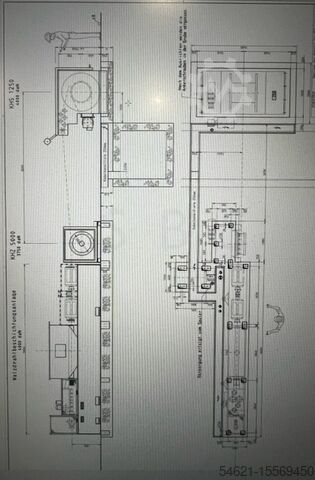

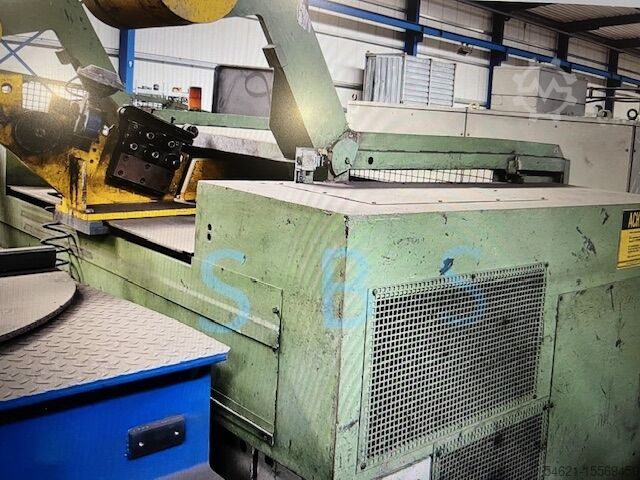

Wire drawing machineKOCH
KHZ 5000
Machine data
- Machine type:
- Wire drawing machine
- Manufacturer:
- KOCH
- Model:
- KHZ 5000
- Year of construction:
- 1995
- Condition:
- excellent (used)
Price & Location
- Location:
- Splitska 25 A, 31400 Đakovo, HR
Details about the offer
- Listing ID:
- A155-69450
- Update:
- 09.06.2025
Description
Manufacturer: GSG
Feeder: Type: 840.02-027
Crusher Descaler: Type: 663.02-017
Wire Range: Ø5.5-16mm
For wire rod with approx. 40-60 daN/mm² strength
Crushing and Bending Rollers: Carbide Inserts
Adjustment with 0.37 kW - 1.15 A gear motor
Brush Drive with 0.25 kW gear motor, n=293 rpm
Connection Voltage: 380-420 V 50 Hz
Dry Coating Unit: Type: BSG/T
Filling: Calcium Stearate (e.g., Traxit Type: D S 51 E)
Stearate Consumption: approx. 350 g per t of wire
Drawing Speed: max. 15 m/s
Electrical Power: 2x 0.55 kW gear motors
Cassette: 2 slots (supplied with 1x roller block + 1x cassette)
Type: PKG/T (TS)
Cleaned rolled wire
Wire strength approx. 40–60 daN/mm²
Wire range max. inlet diameter 9.5mm, finished diameter 3.5–8.5mm
Roll dimensions min. Ø115mm, max. Ø125mm,
Bore diameter Ø82mm, width 15–25mm
Cooling pin diameter 25mm
Cooling water consumption approx. 600 l/h
Drawing machine:
Manufacturer: Koch
Type: KHZ 5000
Year of manufacture: 1993
Serial number: 13.821
Number of draws: 1 draw per block
Drawing drum: Ø700mm
Tensile force: mechanical 5000 N
Wire material: mild steel wires
Run-in strength: approx. 40 – 45 daN/mm²
Maximum drawing range: Inlet diameter 5.0 – 8.5mm
Cross-section reduction: 20 x 25% (mechanical gradation)
Drawing speed: up to max. 7.0 m/s
Brake: Twiflex, type: MRB
Drive: AC motor/frequency converter, Siemens
PN=110 kW, n=1485 rpm
Spooler:
Manufacturer: Koch
Type: KHS 1250
Year of manufacture: 1993
Factory No.: 13741
Wire diameter: 5 – 8.5 mm
Strength: approx. 55 – 70 daN/mm²
Winding speed: V=7 m/s, adapted to the drawing machine
Chjdor Nfvmjpfx Abwec
Filling weight: approx. 3000 kg
Spool drive motor: Three-phase motor with external fan
Type: 1 PQ 6253 – 6 AA 70- Z A 15 + K 20 + C 14 + H 46
P=37 kW, n=1000-2000 rpm, IP54, design B3
Laying drive motor: 66-671U, 1.5 kW, 170 V, 9.8 A, 1680 rpm, IP 44, B5-200
With Attached tachometer generator TG 20, 20 V / 1000 rpm
With attached spur gear SK 32, i=57.53, design B6
Hydraulics: Hydraulic excavator type: H13 AK
Pneumatics: Twiflex disc brake type: MRB
Pneumatic cylinder type: SPWG 28032-25mm stroke
Dimensions: 3100 x 3000 x 1700 mm (L x W x H) without counterweight
