Trailer
Schlittenanhänger 20 S
Machine data
Price & Location
- Seller location:
- Alexander-Baumann-Str. 70, 74078 Heilbronn, Germany
Technical details
- First registration:
- 05/2025
- Equipment:
- ABS
Details about the offer
- Listing ID:
- A188-24461
- Reference number:
- 1801014
- Update:
- 26.11.2025
Description
Dimensions and Weights
Reference length external approx. 7,055 mm
Overall width approx. 2,500 mm
Ride height loaded approx. 1,150 mm
Roller track length approx. 6,890 mm
Wheelbase 5,240 mm
Unladen weight (complete) approx. 3,460 kg
Technically possible gross weight approx. 20,000 kg
Permissible gross weight approx. 18,000 kg
Payload approx. 14,540 kg
Designed to accommodate containers from 5,000 to 7,000 mm in length according to DIN 30722.
Technical modifications subject to change.
Chassis

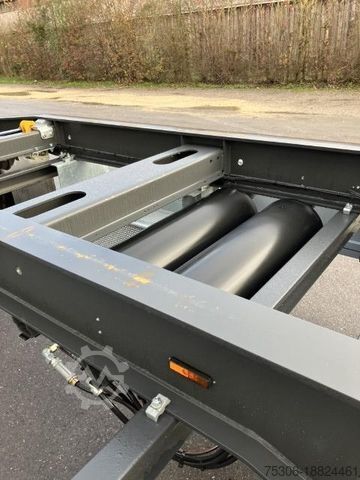

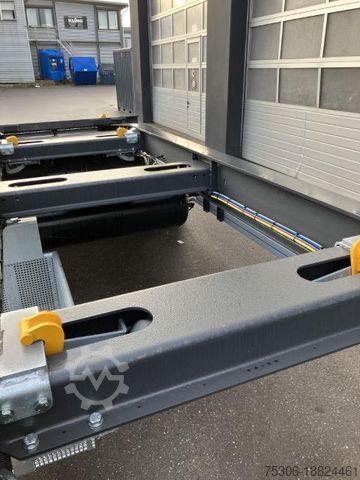

Chassis construction made from welded I-beams in QSTE steel
4 pneumatically operated container locks and adapter sled lock.
Side underrun protection closed as per RL 89/297/EEC (Position 2)
Spare wheel carrier in basket design for 2 spare wheels including fastening kit for 1
Turntable

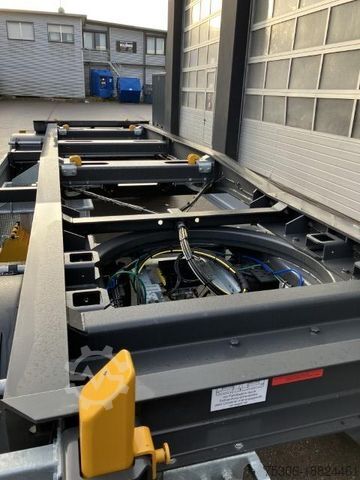

Turntable 980 FM including ball bearing slewing ring 90/1100/22 (low maintenance).
Drawbar
Drawbar 2600/980/100/30 with inclined towing eye and height adjustment (tension spring with turnbuckle)
Drawbar with DIN towing eye inner Ø=40mm, outer Ø=110mm, thickness 30mm
Axles
2 x 10 t axles for 19.5" disc brakes, brand at manufacturer's discretion.
Brake disc diameter approx. 370 mm, wheel mounting with central alignment according to DIN 74 361 part 3.
Brake System
Pneumatic brake system according to EU directive with Duomatic coupling head
Conventional air suspension system,
EBS type 4S/3M, electronic braking system with ROLL Stability, double diaphragm spring brake cylinders on the rear axle, release valve for separate release of spring parking brake.

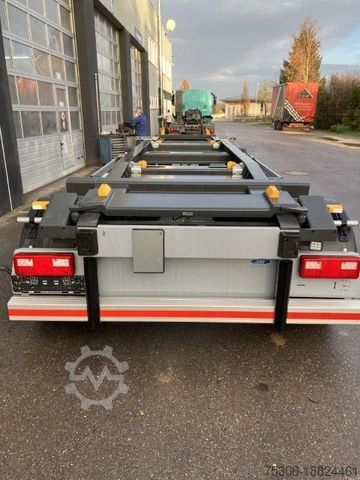

Lighting System
24-volt full LED lighting system as per RL 76/756/EEC with multi-chamber light and license plate illumination integrated into lamp panel, brand at manufacturer’s discretion
1 x 15-pin socket
6 LED side marker reflectors with flashing function
2 LED front marker lights (white)
2 separate LED lane lights at rear
1 LED reversing lamp

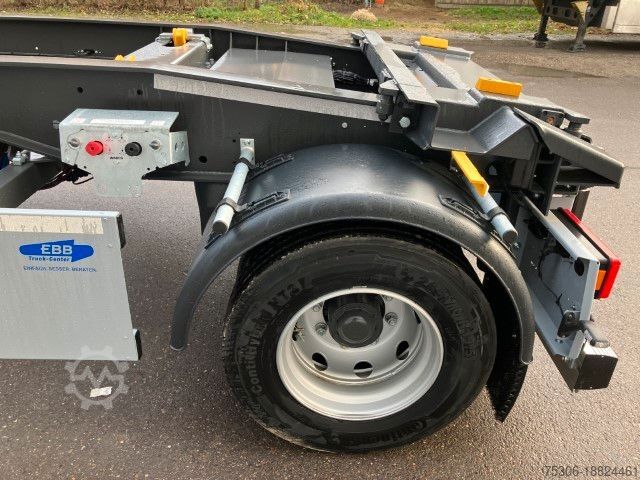

Wheels/Tires
Regional transport tires, tire brand at manufacturer’s discretion
8 x 265/70R19.5 (7.5x19.5) steel wheels ET 138, wheel nuts untreated. Incl. tire pressure monitoring
Rear Underrun Protection
Rear underrun protection made from aluminum. Two vertical Delta-style impact guard profiles provide rear protection during loading and unloading.
Accessories
4 plastic fenders, half-shell design, front and rear, single wheel fenders
4 anti-spray mud flaps, neutral
1 lockable plastic toolbox
1 wheel chock with holder
1 license plate bracket
1 A-sign for waste transport
1 hanging mesh box (Pos. 3)
2 container guides
3 small EBB stickers (Pos. 4)
Bdjdpfx Asv Ttkqjf Hek
The listing was translated automatically. Translation errors are possible.
