Plasma cutting machine

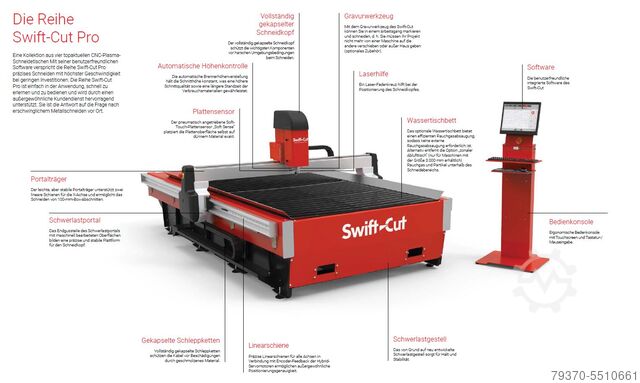

Swift-Cut Pro3000WT MK5 SOFORT VERFÜGBAR

Condition: used, Year of construction: 2018, operating hours: 16,700 h, functionality: fully functional, We are selling our plasma cutter from MicroStep. If you are interested in the machine, we would be happy to provide you with detailed specifications. Below is the scope of supply as per our original order confirmation: 1. The MasterCut Compact Series | Guide Machine Technical Data: Machine designation: MasterCut Compact 3001.15Prk Machine number: 2534 Cable drag chain side: left Working area: 3,000 x 1,500 mm Permissible sheet thickness: robust design for materials up to 100 mm thick Guides/Drives: high-quality linear guides with backlash-free dual drive Axis control: digital, maintenance-free AC servos with IRC Positioning speed: up to 40,000 mm/min Measuring system: IRC 2500 (incremental encoder) MicroStep® CNC control system iMSNC with integrated network card Ihedpfx Aow I Sunohuot One LCD control unit on the gantry Laser pointer with automatic offset transfer iMSNC® Module | Expert system iMSNC® Module | CNC program loading assistant - Page 2 of 3 - iMSNC® Module | Automatic mechanical probing calibration "THC" module | Automatic height control via arc voltage 2. Cutting table with zoned fume extraction | 3,000 x 1,500 mm 3. Grid cover for cutting table | 3,000 x 1,500 mm 4. USB 3.0 interface for storage device 5. MicroStep RemoteDiagnostics® remote maintenance module 6. Fully automatic torch support 7. HiFocus 161i neo plasma source from KJELLBERG with automatic gas console and Contour Cut Speed technology 8. Module for automatic gas console control HiFocus 161i neo 9. CNC interface for HiFocus 161i neo | Integration into CNC system 10. TEKA Eco75 filtration system - 7.5 kW with control unit 11. TEKA pre-separator TK-FVS 7000 - 12000 12. Remote control for the filtration system 13. Second hard drive with mirrored data (RAID system) 14. "MasterCut" plasma rotator with fully automatic support 15. ACTG® - Automatic calibration unit for the beveling system 16. ACTG® Calibration Report 17. "AsperWin Basic" CAM software for programming (single-user license) 18. "AsperWin BevelCut" module for bevel cutting (single-user license)

Condition: new, table width 3000 mm table length 1500 mm burner heads 1 Control CNC feed 20.000 mm/min total power requirement 15 kVA dimensions of the machine ca. 4,5 x 2,5 m * Heavy machine bed with precision guides for quiet movement machine * A ball bearing cross carriage for height adjustment with 400mm vertical Hub * Thermal separation of the drive and cutting areas ensures the highest precision Ijdpfx Aepm U U Nshuoht * Automatic height finding and torch height control during cutting * Torch holder with collision protection and automatic shutdown in the event of a collision * Installation or implementation of the machine using the plug & play method with a forklift, Ant or crane possible * 3-sided accessibility to cutting area through boom design SATOTEC suction table: The SATOTEC table system is characterized by a stable table construction max. cutting thickness of 150 mm. For cutting a workpiece thickness of 150 mm, oxyfuel cutting technology is required. The workpiece support frame has interchangeable ones placed at a 45° angle and 3 mm thick flat iron slats. The distance between the slats is 50 mm. Power source Kjellberg Q1500: * Precise plasma cutting of all electrically conductive materials from 0.5 to 60 mm both dry and under water * Recommended cutting range from 0.5 to 40 mm * Maximum piercing thickness 30 mm, increase possible with ProPierce Technology * Marking, notching and punching, including coated metallic materials * Inverter power source with digitally controlled, fully electronic process flow * Integrated cooling with partially automated filling and emptying Gas control: Fully automatically controlled, processor-controlled plasma all-gas console Q- Gas for cutting all metals Lantek Expert Cut Inside: CAD/CAM module integrated in the machine control Extraction TEKA EcoCube 5.5 kW Medium to be filtered: dry, fat-free or oil-free dust/smoke Filter area: 100 m² (4 cartridges of 25 m²) Filter cartridge: BIA M, Type Nano Degree of separation: 99% (according to BGIA test certificate) Filter control: automatic filter cleaning, PLC Fan performance: 4500 m³/h Motor power: 5.5 kW Connection voltage: 400V/50 Hz or 480V 60Hz. Current consumption: 11.5 A Current type: 3Ph+N+PE Fan structure: on the system, including silencer duct bend, right side Motor control: frequency converter Noise level: 75dB(A) + max 10 dB(A) with cleaning pulse Intake port: NW 250 mm via intake duct, left side Exhaust: via silencer duct bend Dimensions (W x D): approx. 800 x 800 mm System color: - Fan housing: Light gray - Cartridge housing: RAL 5007 brilliant blue Special equipment: - Locking hooks and toggle locks - Compressed air connection and condensate drain each mounted with one Bulkhead fitting - Compressed air connection with hose nozzle d=8mm - Provide the system with grounding bolts - Cable in UL version - EATON frequency converter on the left in the attached control cabinet

Condition: as good as new (ex-display), functionality: fully functional, TECHNICAL DATA: Technical characteristics NOVA F 520 Working width [mm] 520 Total length of tables [mm] 2750 Input table length [mm] 1550 Output table length [mm] 1200 Knife shaft diameter [mm] 120 Shaft speed rpm 5000 Knife dimensions (4 pcs) [mm] 35 x 3 x 520 Aluminum planer guide [mm] 1200 x 190 Planer guide inclination ° 90 - 45 Ihsdjqw Uyfepfx Ahuet Working table height from the floor [mm] 845 Exhaust connection diameter [mm] 120 Max. Removal [mm] 8 Engine power kW (HP) 5 (7) ----- Additional built-in options: * Spiral head "XYLENT"

Condition: new, Year of construction: 2024, CNC plasma/gas cutting machine PCO-3015-AG The machine was engineered and manufactured in Poland. Working parameters: - XY operating range (working area): 1520 x 3100mm - Clearance between table and gantry: 240 mm - Maximum cutting tube height: 200 mm - Idle speed (Cutting speed depends on the capacity of the plasma source and the thickness of working material.): 25000 mm/min. - Compatible with Hypertherm Powermax 45-125, and Hypertherm MAXPRO200 plasma sources. Structure specifications: - Length: 3650 mm - Width: 2280 mm Ihjdpfx Aheh E Sgtoujt - Height: 1500 mm - Total mass: 1200.0 kg - Maximum load: 2500.0 kg - Adjustable support legs: 6 pcs Easy application of metal sheets The entire gantry and the head are designed to travel out of the working area. This makes applying large sheets of metal easy. Systems GCS – Gas Cutting System – An integrated oxy-fuel system that can cut sheets up to 150mm thick. THC – Torch Height Controller – An integrated cutting height control system that automatically adjusts the distance between the torch and the material based on the analysis of variations in the source voltage. AMS – Align Material System – Automatically corrects the angle data input of the material in relation to the table. View and challenge the machine Join us for a unique demonstration where a qualified Otinus technician will show you the full functionality of the machine. In addition, you will be able to try out how the machine will perform against your needs. You can provide technical drawings and sample material. Optional extra - Otinus Academy This is a constantly growing e-learning platform created for Otinus brand's Clients. By purchasing this machine you will gain a one year access to online courses that will allow you to effortlessly train a new employee or refresh the knowledge from training! Optional extra - on-site installation and operational training - 1 day, (up to 8 hours) - installation of the machine and training on using the controller. Consultation with a specialist Optional extra - consultation with a specilist - Telephone: 7.30 a.m. to 9 p.m. CET (Mon-Sat) - package of 8 hours to be used within 12 months. - Online: from 7.30 a.m. to 2.30 p.m. CET (Mon-Fri) - package of 8 hours to be used within 12 months. Optional extra - access to Otinus Academy courses - MyPlasm - 12 month access - LibreCad - 12 month access

Condition: new, Year of construction: 2024, PLASMA BURNER MODEL MTX 1500/3000 Construction: steel+aluminum Overall dimensions: 3350/2200/1300 Working area: 3100/1520/140 XY axis drive double-sided gate drive: 4Nm stepper motors with gears, gear rails class accuracy 8 Z axis drive: stepper motor ball screw Travel speed: up to 25m/min Z axis control system: THC My plasm system Collision system to protect the torch from damage Linear guides: TBI Automatic material detection system Power supply: 240V Permissible load: 1700kg Total weight: 1200kg net INCLUDED: - control panel -water table -replaceable grate -control software in German, English, Polish -Declaration of Conformity CE - DTR Ijdpfsrb Dyzjx Ahueht It is possible to select the appropriate Hypertherm cutter to meet individual customer needs.

Condition: new, Year of construction: 2023, laser power: 4,000 W, We have been trading YAWEI fiber laser machines for over 7 years. We take care of the entire service. All you need is gas and electricity, we take care of the rest. We have already installed 300+ fiber lasers from YAWEI across Europe. Ihodpoqgcthofx Ahuet Here we offer a new stock machine YAWEI fiber laser machine type HLF1530. Power: 4kW FE up to 20mm / VA up to 15mm / CU up to 6mm Sheet format: 3000 x 1500mm automatic changing table with light barriers Precitec Auto Focus Procutter cutting head MAX Photonics resonator with 4kW and German on-site guarantee Siemens DsL touchscreen control with LAN/USB Siemens drives THK tours Small parts conveyor belt Ball transfer table for scratch-free and easy sheet metal handling 24 month guarantee CAD/CAM software Installation Delivery (within Germany) training CE certification The machine is a stock machine. An identically constructed one can be tested under power at any time Give us a call !

Condition: used, functionality: fully functional, power: 4 kW (5.44 HP), Equipment: CE marking, centralized greasing system, cooling unit, documentation/manual, dust extraction, emergency stop, fume extraction, nozzle changer, safety light barrier, Bystronic Laser Cutting Machine Model BySprint Pro 3015 4 kW For further information, please contact us Isdpfxjx T A Rlo Ahueht
