Laser zero joint shaped part bevelled edges

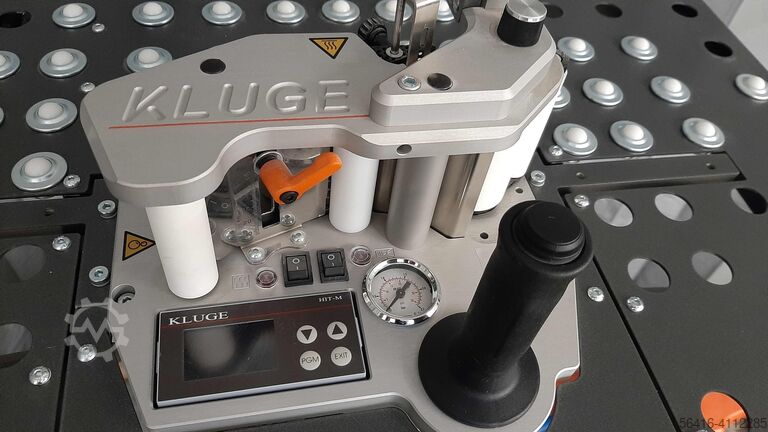

Mafell Kluge HIT M

Micro-stationary system for the production of a zero joint - jointless optics as if from a single casting

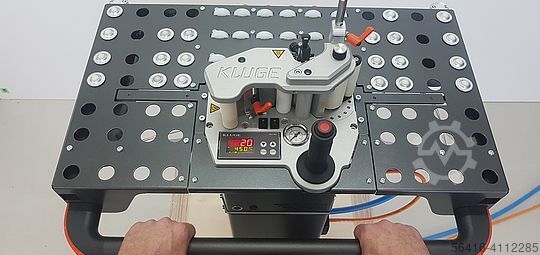

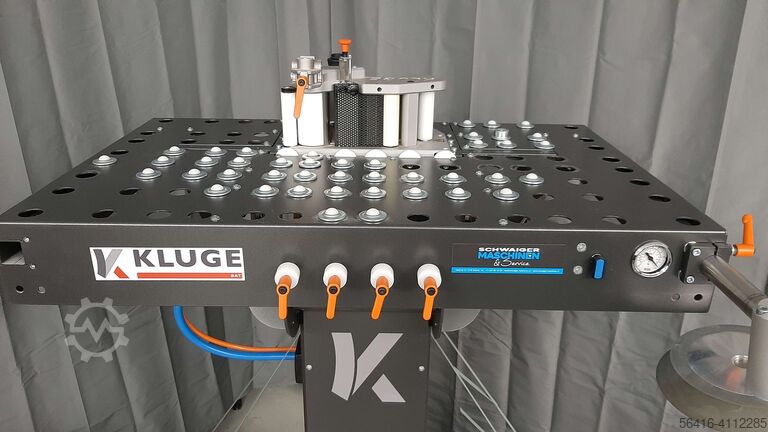

A machining table is also available as an option
- Heating time:ᐸ30Sekunden
- max. edge height 65mm (option 103mm), max. edge thickness 3mm
- Processing of so-called "laser edges" (co-extruded and post-coated edges, as well as old-classically pre-coated EVA hot-melt adhesive edges)
- higher heat resistance and water resistance
- perfectly straight, inclined, curved and round panel materials as well as moulded parts can be processed.
- sloping cut surfaces of up to 55° (installation in the available table)
- high process reliability & lower follow-up costs;
- no glue change necessary = almost no set-up costs;
- no burning of the glue;
- no glue residue on the workpiece

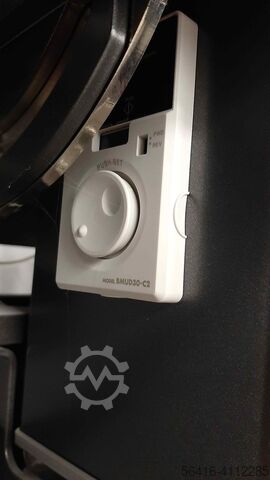

- Infinitely variable feed speed from 1 to 5.5 m/min.
- continuously adjustable hot air up to 520°C
- 230VoltAC, 4m connection cable, compressed air hose
- 3,05kW
- low air requirement, assembly compressor is sufficient

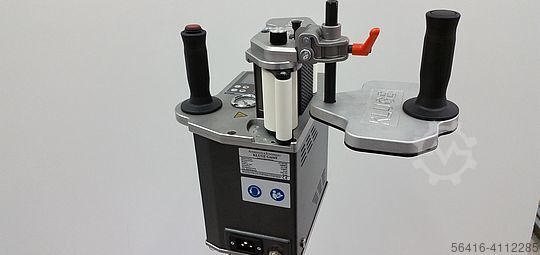

The zero joint unit can be used mobile as well as micro-stationary!
Optimal e.g. for larger moulded parts and for use on the construction site. For this purpose, a Systainer with an additional supply line for electricity and compressed air is included in the scope of delivery.
Kdodpfx Aed St R Sefpeu

The system is also available for retrofitting in an edge banding machine (Hot air, Airtec) - please ask us
