Metal part spray washer

Magido / Glogar L90

Year of construction: 2026, condition: new, Parts cleaning system, spray cleaning system, type L90 Automatically operating hot water parts washing machine with automatic basket drive via geared motor, stainless steel washing pump (manufacturer: Lowara), circulating 3-sided spray system (from below, from the side, and from above) with stainless steel nozzles. - Basket diameter: 790 mm - Usable height: 500 mm - Max. loading weight: 150 kg - Spray pressure: 3 bar - Tank volume: 105 liters - Heating: electrically adjustable (RT - 90°C) Kedpshgh I Ssfx Ai Rsdr System dimensions (L x W x H): 1,150 x 1,250 x 1,900 mm Empty weight: approx. 220 kg Wash cycle timer freely adjustable via Omron timer (minutes and hours) Complete cleaning machine (internal components and external housing) made of stainless steel 1.4301 Water circulation and loading basket made of stainless steel 1.4301 Insulation of the complete system (tank and cabin) made of stainless steel 1.4301 Mechanical lid locking Bath cover with fine filter (2,000 microns) Suction filter as pump protection Operating hour counter Steam extraction including condensate return Preparation for later installation of an oil separator The parts washing machine is in new condition and has never been used. OTHER BASKET DIMENSIONS AVAILABLE UPON REQUEST!!!

Year of construction: 2025, condition: as good as new (ex-display), functionality: fully functional, Connection: 3.55 kW / 230 V / 50 Hz External dimensions (WxDxH): 945 x 830 x 1025 mm Kdjdpfx Aexiwc Soi Ror External dimensions (WxDxH, open): 945 x 830 x 1640 mm Weight: 60 kg Basket diameter: 600 mm Useful height: 380 mm Pump pressure: 2.2 bar Spray volume: 4,200 l/h Load capacity: 100 kg The soiled item to be cleaned is placed in the rotating wash basket and the lid is closed. After setting the desired washing temperature and time, the unit is switched on and the cleaning solution in the tank is heated. Inside the closed machine, the basket rotates at a constant speed around its own axis. The pump system draws the cleaning solution from the wash tank and feeds it through 6 stainless steel spray pipes equipped with overlapping flat jet nozzles. The item is thoroughly sprayed from all sides with hot solution during even rotation of the basket, which is driven by the jet action. After the cleaning cycle is complete, the unit shuts off automatically. Advantages: - 1 horizontally mounted pump - Flow rate: 70 L/min - 3 three-dimensional stainless steel spray pipes - Robust stainless steel construction - Additional small parts cleaning basket made of stainless steel (Ø 170 mm) - Rotating stainless steel wash basket driven by water jet - Steam extraction - Stainless steel perforated plate with filter inlets above the wash tank - Water shortage safety device

Condition: new, Year of construction: 2025, Manual operation with our ultrasonic cleaning technology, analog control panel, and temperature control via a digital thermostat. Functions from the PRO series can be added as optional features. We offer volumes from 60 to 7,500 liters to meet all requirements. Tank capacity: 110L External dimensions: 1970x670x970mm Usable dimensions of the tank: 550x350x250mm Kdsdpfx Aijf Hqavo Rer Ultrasonic frequency: 40kHz Ultrasonic power: 1000W

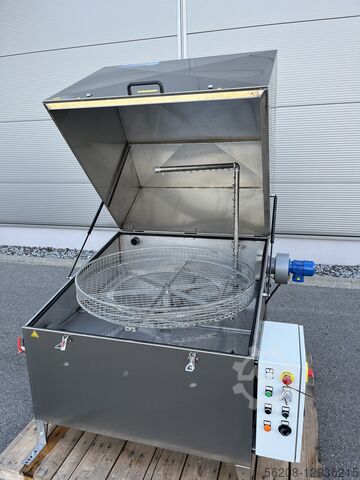

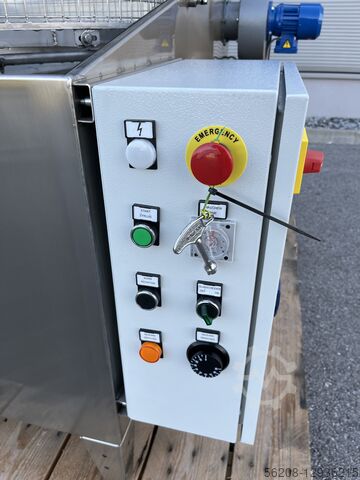

Condition: new, Year of construction: 2026, Spray cleaning system type SM11 solid designed parts cleaning system with basket drive by gear motor, made of stainless steel 1.4301, - 3-sided arranged nozzle system made of stainless steel incl. stainless steel flat and spot blasting nozzles - autom. steam exhaust fan - coarse filter (removable basket) in the return line - oil skimmer for bath maintenance - timer for washing time setting - electronic lid monitoring - stainless steel wash pump (fab. Ebara) - level sensors / dry run protection - drain nozzle with ball valve Kdjdjpm Ha Dspfx Ai Rjr - basket diameter: 1.100 mm - useful height: 700 mm - max. loading weight: 250 kg - spraying pressure: 3 bar - tank capacity: 260 liters - heating: electrically adjustable (RT - 75°C) - Connected load (electrical): approx. 12,5 kW - plant dimensions (WxDxH): 1.500 x 1.600 x 2.500(h) mm (with open lid)
