Tool Room Milling Machine - Universal

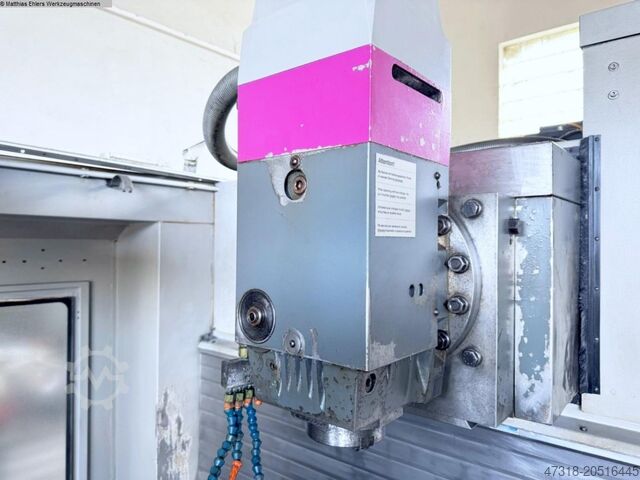

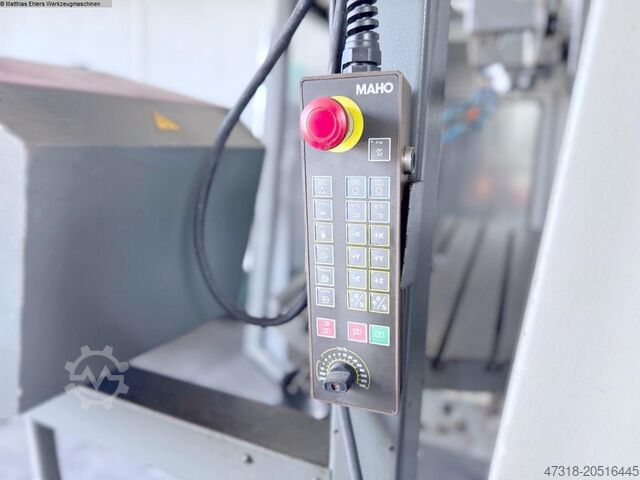

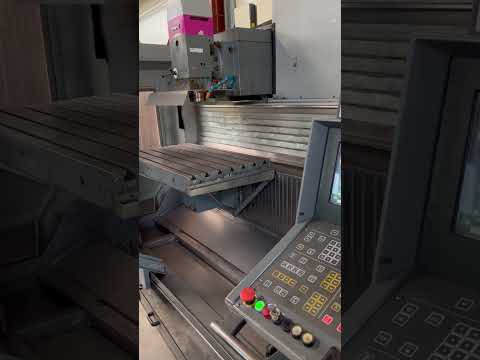

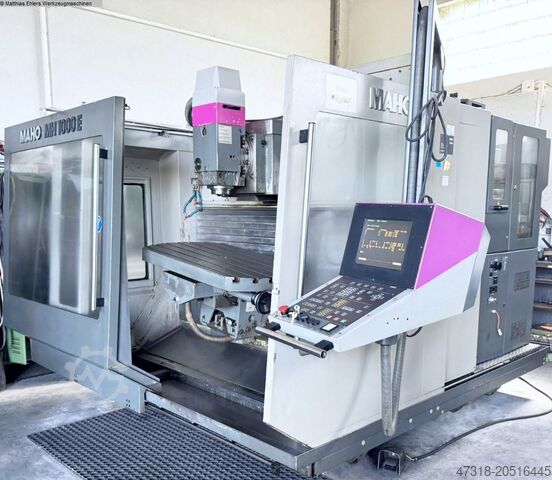

MAHO MH 1000 E

Condition: used, Year of construction: 2006, x-travel 880 mm y-travel 630 mm z-travel 630 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 Nm tool taper HSK-A 63 swivellable B: +30° / -120 ° table surface area Ø 700 / 1.250 x 700 mm max. table load 650 kg rotatable C: 360 ° number of toolpositions 2x16 pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool weight 8,0 kg max. tool length 315 mm feed speeds max. 30.000 mm/min rapid traverse 30 m/min total power requirement 48 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 4,5 x 4,0 x 2,6 m 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 monoBLOCK - NC-Rotary Table (C-Achse) integrated in rigid-table Chsdpfx Acsyackde Dea - Swivel-Milling-Head (B-Achse)

Condition: used, Univ. universal tool milling machine DECKEL, type FP 1 Machine no. 52185, year of manufacture 1968 Travel distances: X: 300 mm, Y: 150 mm, Z: 340 mm Table size: 600 x 250 mm Spindle mount: SK 40 - S20 x 2 Spindle speed: 40-2000 rpm, 16 steps Motor power: 1.0 and 1.4 kW, pole-shifting Power connection: 380 volts, 50 Hz - Feed in the X and Z axes - Two motor speeds and 8 gear stages - Quill travel on the vertical milling head: 60 mm - Fixed tilting table - Coolant system in the machine base - Adjacent control cabinet - Counter holder with counter bearing for horizontal milling, SK 40 Space requirement L x W x H: 1200 x 1100 x 1600 mm Weight: approx. 1000 kg Chjdpfx Acsdzqb Se Dja Very good condition

Condition: used, Year of construction: 2007, x-travel 880 mm y-travel 630 mm z-travel 630 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 Nm tool taper HSK-A 63 swivellable B: +30° / -120 ° table surface area Ø 700 / 1.250 x 700 mm max. table load 650 kg rotatable C: 360 ° number of toolpositions 2x16 pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool weight 8,0 kg max. tool length 315 mm feed speeds max. 30.000 mm/min rapid traverse 30 m/min total power requirement 48 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 4,5 x 4,0 x 2,6 m 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 monoBLOCK Chsdpfsyaci Tjx Ac Dea - NC-Rotary Table (C-Achse) integrated in rigid-table - Swivel-Milling-Head (B-Achse)

Condition: used, Universal Tool Milling Machine MAHO Type MH 800 P with digital readout and HEIDENHAIN TNC 121 contouring control . 80983 Year of manufacture: 1982 Machine overhauled by MMD in 2008, subsequently used only occasionally in the workshop of an electronics company. Travel X: 700 mm, Y: 450 mm, Z: 500 mm Table size: 1050 x 627 mm Spindle taper: ISO 40 Spindle speed: 40–2000 rpm, 18 steps Feed X, Z-axis: 10–500 mm/min, stepless Feed Y-axis: 5–250 mm/min, stepless Rapid traverse X, Z-axis: 1.4 m/min Rapid traverse Y-axis: 0.7 m/min Quill vertical travel: 100 mm Cedjv Amryopfx Ac Deha Quill feed, vertical: 0.02 / 0.03 / 0.05 / 0.08 / 0.12 / 0.2 mm/rev Quill horizontal travel: 100 mm Spindle drive: 5.5 kW Power supply: 380 Volt, 50 Hz, 10 kW - NC contouring control HEIDENHAIN TNC 121 - Vertical milling head with automatic quill feed 0.02–0.2 mm/rev (6 steps) - Hydro-mechanical tool clamping - Coolant system integrated in the machine base - Universal rotary table, 360° rotatable, tilts and swivels 30°, 225 mm cross adjustment - Rotary table with direct indexing 72 x 5° and indirect indexing via index plate 1:120 = 1 rev = 3° - Swiveling control panel - Central lubrication - Operating manual - Machine mounted on steel plate L x W x H 1400 x 1000 x 50 mm = 550 kg Space requirements L x W x H 2650 x 2000 x 2450 mm Weight: 3700 kg + 550 kg steel plate Total weight: 4250 kg (actual) Very good condition

Condition: new, Year of construction: 2026, Machine Features Automatic feed in the X, Y, and Z axes ensures precise machining of materials in three dimensions. Rapid traverse for all axes, along with stepless feed adjustment, enables efficient operation for a wide range of tasks. Digital display and user-friendly Schneider Electric control panel provide intuitive control over the machining process. Technical Specifications Table dimensions: 1600 × 360 mm Maximum table travel (X/Y/Z): 1300 × 300 × 420 mm Table T-slots (quantity / width / spacing): 3 / 14 mm / 95 mm Maximum table swiveling angle: ±45° Table feed speed: X/Y: 25–800 mm/min Z: 8–267 mm/min Spindle taper (vertical / horizontal): 7:24 ISO 50 / 7:24 ISO 50 Distance from table center to column surface: 230–530 mm Distance from spindle to table surface: 0–420 mm Distance from vertical front spindle plane to table surface: 150–570 mm Cjdpeg Nghtjfx Ac Djha Spindle speeds (vertical / horizontal): (12) 60–1750 / (12) 58–1800 rpm Horizontal spindle motor power: 5.5 kW Vertical spindle motor power: 4.5 kW Table feed servodrive: 2.36 kW / 15 Nm Machine dimensions: 2550 × 2161 × 2102 mm Weight: 2885 kg Additional Equipment 3-axis digital readout Servodrive Long arbor ISO 50 / 27 mm and ISO 50 / 32 mm ISO 50 / MT4 reducer ISO 50 arbor with ER32 collets: 4, 6, 8, 12, 16, 18, 20, 26 mm Lighting Cooling system Central lubrication system Table feed for X, Y, and Z axes Complete service tool kit EC Declaration of Conformity Operating manual Our UWF 150S SERVO milling machine with a swiveling table is the perfect solution for demanding machining tasks, delivering reliability, precision, and high performance. Discover new possibilities in industry with our advanced technologies and robust construction.

Condition: used, Universal Milling Machine DECKEL Type FP 1 Universal milling machine Machine No. 2101 – Year of manufacture: 1979 Manual travel X: 300 mm, Y: 160 mm, Z: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 – S20x2 Spindle speed: 40–2000 rpm, 16 steps Feed X and Y axes: 5 to 500 mm/min Rapid traverse: 1200 mm/min Motor power: 1.5 and 1.9 kW, pole-changeable Electrical connection: 380 Volt, 50 Hz - Stepless feed in X and Z axes - Spindle speed via 2 motor speeds and 8 gear steps - Quill movement at the vertical milling head: 60 mm - Vertical milling head can be swiveled and extended horizontally by 100 mm - Fixed angle table 600 x 210 mm Chodpfxer U St Uo Ac Dsa - Coolant system integrated in the machine base - Standalone control cabinet - Original chip tray for mounting on the machine base - Electrical schematic available Required space (L x W x H): 1350 x 1100 x 1700 mm Weight: 770 kg Good condition

Condition: good (used), Year of construction: 2006, Parts shown by hand not come. Csdpfxezk U Uno Ac Djha Machine is in good working condition.

Condition: ready for operation (used), Year of construction: 2001, Control system: Heidenhain TNC 430 MillPlus, length: 4073mm, width: 3323mm, height: 2375mm, weight: approx. 9.5t, an on-site inspection is possible. Csdpfxezk Naxs Ac Doha

Condition: ready for operation (used), Year of construction: 1994, functionality: fully functional, A used CNC jig boring machine SIP 640 FANUC control Cedey R Nnlepfx Ac Deha Includes 80 tool holders Disassembly and loading are the responsibility of the buyer.

Condition: used, Control cabinet - cooling device, control cabinet air conditioner, distribution cabinet, heat exchanger, wall-mounted cooling device, control cabinet cooler -Manufacturer: Siemens, heat exchanger control cabinet cooling device from milling machine MAHO MH 800C -Type: 8ME 7874-DR Chedpfxeq T T Nzj Ac Doa -Voltage: 230V -Power consumption: 170W -Dimensions: 415/130/H725 mm -Weight: 14.2 kg
