Universal Milling Machine

MAHO MH 400 P

Condition: used, Year of construction: 1984, travel distance X-axis: 400 mm, travel distance Y-axis: 375 mm, travel distance Z-axis: 250 mm, Maho MH400P Milling Machine Year of manufacture: 1984 The Heidenhain path control is inactive. The machine has been converted to conventional operation – all functions except for the path control work flawlessly. Equipped with SINO digital readout on 3 axes. The spindle runs very smoothly, guides show minimal wear. X travel: 400 mm Y travel: 375 mm Z travel: 250 mm Table size: 205 x 800 mm T-slots: 4 x 45 14 H7 Spindle speeds: 50 – 3150 rpm Tool holder: SK40 Dodpjxltwwofx Aghjku Quill stroke: 50 mm Hydraulic tool clamping Hydraulic axis clamping Feeds X + Z axis: 5.0 – 1000 mm/min Feed Y axis: 5.0 – 670 mm/min Rapid traverse: 2.4 / 1.6 m/min Inching feed: 1/100 Central lubrication Spindle drive: 2.2 kW Electrical documentation available Weight: 950 kg Dimensions: approx. 1.20 x 2.00 x 1.85 m (LxWxH)

Condition: ready for operation (used), Year of construction: 1990, Immediately available from university: Tool milling machine Maho Model MH 400 P Year of manufacture: 1990 Heidenhain TNC 135 Table 690 x 270 mm Travel with feed 360/200/375 mm Travel with handwheel 400/250/375 mm SK 40 Hydraulic tool clamping Spindle speed 40 – 2500 rpm, stepless Feed X and Z axis 5 – 1000 mm/min, stepless Feed Y axis 5 – 670 mm/min, stepless Rapid traverse 1.2 m/min Drive 2.2 kW Conventional handwheels for X/Y/Z axis Coolant system Tool holders Vice Djdpfx Aexldypsgheku Weight 1,000 kg Price: EUR 4,500 plus VAT ex location

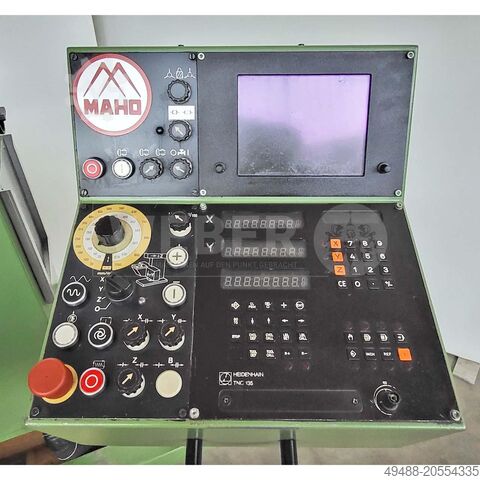

Condition: used, Year of construction: 1986, x-travel 400 mm y-travel 375 mm z-travel 250 mm table-size 600 x 300 mm Dkjdpfx Aexc Nwnoghsu quill stroke 50 mm spindle taper ISO 40 spindle turning speed range 50-400 , 400 - 3150 U/min CNC-control TNC 135 voltage 380 V / 50 Hz feeds X+Z = 5 -1000 mm/min rapid traverse X+Z = 2,4 m/min feeds Y = 5 -670 mm/min rapid traverse feeds Y = 1,6 m/min measuring system resolution capability 0,005 mm total power requirement 3,7 kW weight of the machine ca. 0,9 t dimensions of the machine ca. 1,9 x 1,8 x 1,70 m • HEIDENHAIN TNC 135 control,

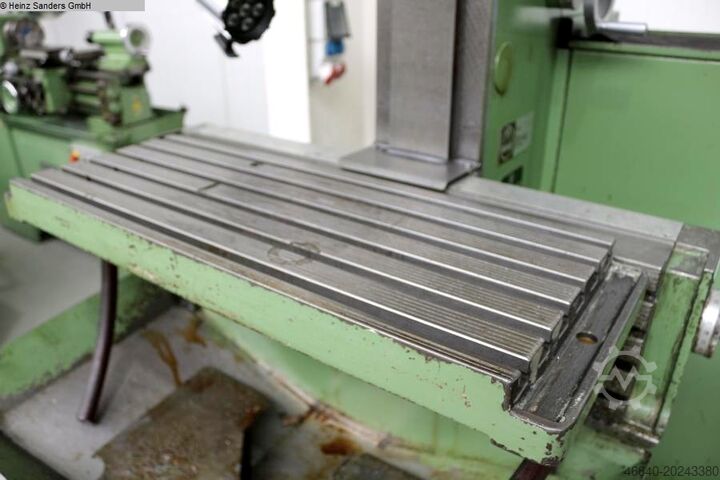

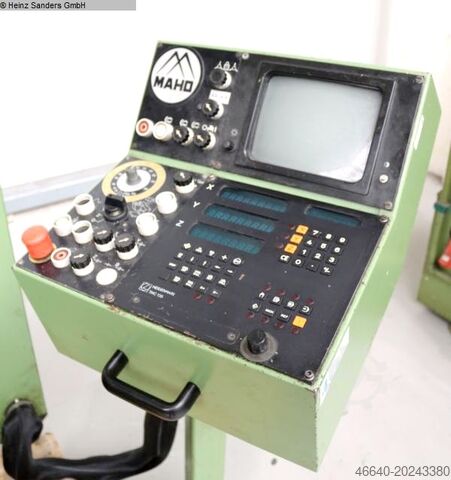

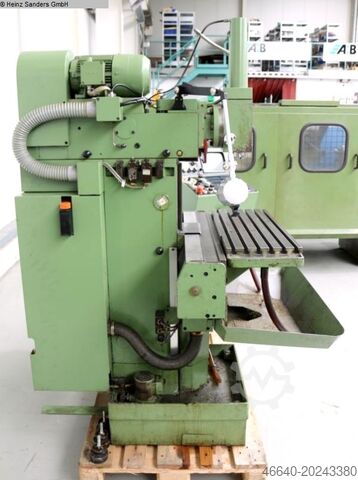

Condition: used, x-travel 400 mm y-travel 375 mm z-travel 250 mm table-size 205 x 800 mm T-slots 4 x 45 14 H7 speeds 50 - 3150 U/min tool taper 40 ISO quill stroke 50,0 mm Feeds X + Z Axis 5.0 - 1000 mm/min Feeds Y Axis 5.0 - 670 mm/min rapid traverse 2.4 / 1.6 m/min control Heidenhain total power requirement 5.1 kW weight 950 kg range L-W-H 1860 x 1790 x 1750 mm Machine from a vocational training center In good condition (!!) Equipment: - MAHO universal tool milling/drilling machine - HEIDENHAIN "TNC 135" positioning/path control * 3-axis manual data input control * Programmable by the machine operator * Convenient and easy operation - Electric motor-driven feed rates in all axes (X/Z/Y) * X and Z axis: 5.0 - 1000 mm/min with rapid traverse of 2.4 m/min * Y axis: 5.0 - 670 mm/min with rapid traverse of 1.6 m/min - Tiltable milling head to both sides - Tiltable T-slot universal table - Vertical clamping range - Continuously variable speed adjustment - Manually extendable spindle sleeve - Hardened and ground guideways - Electro-hydraulic tool clamp - Coolant system - Front coolant tank - Original operating instructions Djdpfexab Rzex Agheku * Special accessories included: - 1x RÖHM "RB 110" hydraulic vise - 1x WALTER "UTA 150 E" dividing head - 1x drawer cabinet with numerous accessories (!)

Condition: used, Universal tool milling machine, milling machine MAHO type MH 400 P Mach. No. 41364, year of manufacture 1981 Control Heidenhain TNC 125 (active digital) Dodpfx Agjf A Srzjhjku Travel paths with feed X: 360 mm, Y: 200 mm, Z: 375 mm Travel paths with handwheel X: 400 mm, Y: 250 mm, Z: 375 mm Table size 690 x 270 mm Spindle mount ISO 40 Tool clamp hydraulic Spindle speed 40 - 2500 rpm, continuously variable Feed X and Z axis 5 - 1000 mm/min, continuously variable Feed Y axis 5 - 670 mm/min, continuously variable Rapid traverse X + Z = 1.2 m/min., Z = 0.8 m/min. Spindle displacement vertical 50 mm Spindle drive 2.2 kW Power supply 380 volts, 50 Hz - conventional handwheels for X, Y, Z - electrical control cabinet fixed to the machine - coolant system in the machine base - vertical milling head with drilling spindle - counter bearing for horizontal milling - operating instructions Space requirement L x W x H 1700 x 1100 x 1820 mm Weight approx. 900 kg good condition
