Used measuring machines for sale (526)

Condition: used, machine/vehicle number: 684, Load capacity: 1000 kg Nljdpfx Agedqw R Relsf Graduation reading: 100 g Platform size: 1250 x 950 mm Platform height above floor: 230 mm Platform height with elevation from the underbody: 540 mm Space required: 1250 x 1160/1250 x 1900/2180 mm Weight: 270 kg

Condition: good (used), Year of construction: 2006, voltage 110 - 230 V frequency 50 - 60 Hz Power connection 0,5 kVA weight 150 kg dimensions of the machine ca. 1,0 x 0,8 x 1,75 m Stick blade profile control unit - Control via PC control with Windows XP operating system - Digital drive amplifiers, linear motors and measuring systems Nledpfx Aeymfz Sjgljf - Fully automatic position determination of the cutting edges and axis position of the stick blade - Measurement of almost all single-part and continuous processes required for spiral bevel gears and hypoid gears - Machine concept designed for the shortest set-up and changeover lines and maximum measuring accuracy - Combination probe for measuring tip and surface measurement - Integrated drawer for accessories - Keyboard integrated in flat drawer - Operating elements and PC protected against unauthorized access with lockable cabinet element

Condition: good (used), Year of construction: 2002, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Mounting cone for cutter heads Nominal diameter Ø 58,227 mm travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in high gear cutting quality and a long service life can only be achieved with precisely can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented Nlodpjw N S E Asfx Aglsf by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

Condition: new, Product description: The EPS LINEAR automatic length stop system, which can be easily mounted on a new or existing machining center. This system allows products made of various materials and with different lengths to be measured quickly, easily, and accurately. EPS LINEAR is a length stop system that is widely used in the wood, plastics, aluminum, and light steel industries. The system is very easy to operate and accepts inputs in millimeters and/or tenths of a millimeter. The system can be installed either to the left or right of the machining center. The system is available from 1 meter and can be extended up to 14 meters. Specifications of the EPS LINEAR: Speed: up to 40 meters/minute. Holding force: 1800N Accuracy: +/- 0.10 mm Voltage: 230V, control voltage 24V Buttons: Start, Stop, reference, measure probe on/off, button for parameters Displays: actual value, desired value Nedetd Tndepfx Aglslf Emergency stop: this button immediately stops the EPS LINEAR Screen: touchscreen with large indicators and a clear layout of buttons Attachment: very easy to switch on and off for short pieces Software: fully proprietary, kept up to date in-house Components: industrial components and maintenance-free Cables: cables, including cable track, are supplied up to a maximum of 14 meters. Our advertisements have been prepared with the utmost care; typographical and specification errors are reserved.

Condition: good (used), Micrometer screw, outside micrometer screw, precision micrometer screw Nlsdpfx Ast Uwyhoglsf -Manufacturer: KS, Micrometer: Precision micrometer screw -Measuring range: 500-600 mm -Reading: 0.01 mm -Locking device -Standard: TGL 150 46 -other sizes: also available -Dimensions box: 880/545/H50 mm -Weight: 6.2 kg

Condition: ready for operation (used), Year of construction: 2007, Available immediately ex-works: CNC vertical balancing machine TIRA Type KV 10 Year of manufacture 2007 Rotor mass 1 – 10 kg Njdpfx Aezwucxsglelf Rotor height up to 400 mm Rotor diameter up to 400 mm Max. balancing speed up to 2000 rpm Max. display sensitivity (gmm) 0.5 Drive power 2.2 kW Weight 1500 kg Price: EUR 3,000.00 + VAT, ex-works

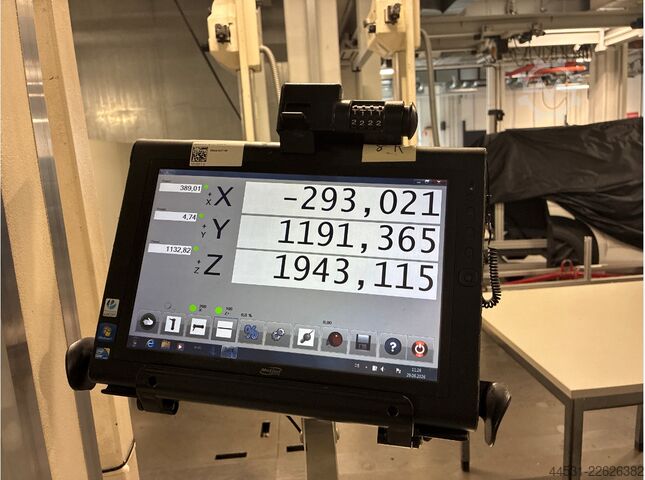

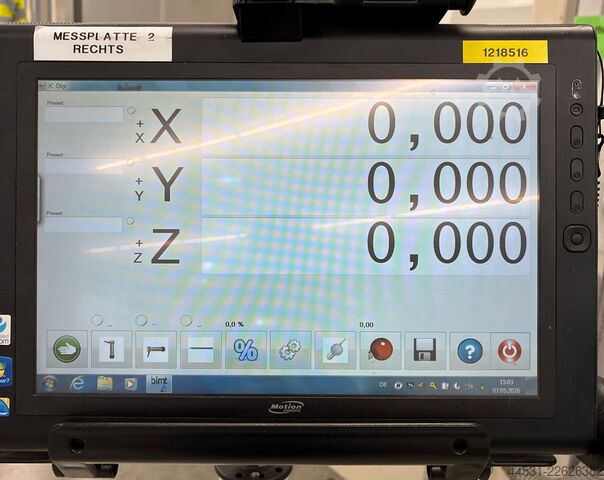

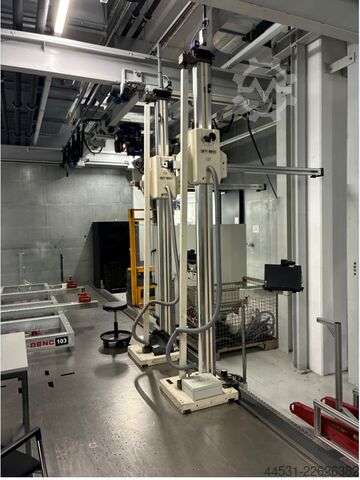

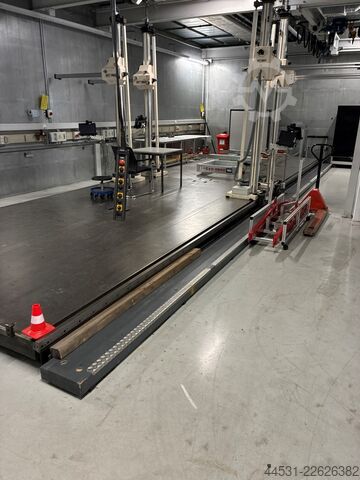

Condition: ready for operation (used), Year of construction: 1990, Immediately available from prototype construction: Coordinate measuring machine, Zett Mess Plates and 4 measuring beams, manufactured in 1990 Electronics and measuring system newly installed in 2020 Nlsdpfx Agezwucrelof Plate dimensions: 12,000 x 3,100 mm Measuring range X/Y/Z: 12,000 / 3,100 / 2,500 mm Service from the successor company, Zett Mess, is available All accessories included Price: Euro 27,500.00 plus VAT, ex works

Condition: new, functionality: fully functional, After the highly successful introduction of the V-Line height gauges, Trimos has developed a new instrument in its height gauge range: the V8. The mechanical design and scope of delivery of the V8 are identical to those of the V9. It features the same characteristics that have made the V9 model so successful: extreme precision and repeatability, high resolution, and Swiss Made finish. A particular highlight of this new model is the specialized fine adjustment handle. Trimos developed this fine adjustment in response to specific applications requiring precise adjustment of the carriage position. Like its predecessors, the V8 guarantees extremely simple operation with outstanding robustness, flexibility, and high precision. The large two-line "Black Mask" display of the V8 offers exceptional contrast in all lighting conditions. The display features functions that are directly accessible and represented by easy-to-understand symbols. Measuring ranges from 400 to 1100 mm Specialized fine adjustment handle Manual displacement Exceptional level of precision Wide selection of accessories All adjustments possible without tools RS232 and USB interfaces Wireless data transmission (optional) V8 Models: V8 – 400 Measuring range (mm): 406 Measuring range with extension (mm): 724 Accuracy (µm): 1.2 + L(mm)/1000 Repeatability (µm): 0.4 (Ø: 1) Deviation of front squareness (µm): 5 Resolution (mm): 0.0001 Measuring force (N): 0.75 ÷ 1.5 Battery autonomy (h): 12 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 22 V8 Models: V8 – 700 Measuring range (mm): 710 Measuring range with extension (mm): 1028 Accuracy (µm): 1.2 + L(mm)/1000 Repeatability (µm): 0.4 (Ø: 1) Deviation of front squareness (µm): 8 Resolution (mm): 0.0001 Measuring force (N): 0.75 ÷ 1.5 Battery autonomy (h): 12 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 25 V8 Models: V8 – 1100 Measuring range (mm): 1109 Measuring range with extension (mm): 1427 Accuracy (µm): 1.2 + L(mm)/1000 Repeatability (µm): 0.4 (Ø: 1) Nlodpfxjw R Nvhj Aglof Deviation of front squareness (µm): 11 Resolution (mm): 0.0001 Measuring force (N): 0.75 ÷ 1.5 Battery autonomy (h): 12 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 34

Condition: new, functionality: fully functional, The Trimos V2 height gauge embodies Swiss precision, durability, and simplicity. Developed for professionals worldwide, it ensures accurate and straightforward measurement. Effortless Simplicity The user-friendly interface of the V2 provides quick access to essential measurements, ensuring efficiency and accuracy. Built for Durability Engineered to Swiss standards, it withstands tough conditions, making it a reliable tool for any task. Uncompromising Quality As a Trimos product, the V2 combines traditional craftsmanship with modern technology, guaranteeing outstanding performance. Intuitive and Intelligent Features The intuitive user interface streamlines navigation, while Smart Reverse simplifies diameter measurement with precision and ease. Seamless Connectivity USB and RS232 interfaces allow for easy data transfer. Njdpow R D Tbofx Agljlf Warranty and Maintenance With a two-year warranty, extendable to four years, the V2 is designed for longevity and straightforward maintenance. Versatile Measuring Ranges Available in 400 mm and 700 mm versions for various applications. Reliable Support The dedicated Trimos team ensures you maximize the V2’s potential from the very start. The V2 is more than just a measuring instrument – it is a reliable partner that meets the highest professional standards. Models: V2 – 400 Measuring range (mm): 406 Accuracy (µm): 8 Repeatability (µm): 3 (Ø: 5) Resolution (mm): 0.001 Measuring force (N): 0.75 ÷ 1.5 (electronically adjustable) Protection class: IP67 Interfaces: USB / RS232 Air cushion: No Max. manual adjustment speed (mm/s): 1000 Operating temperature (°C): +10 ÷ +40 Relative humidity: 5 ÷ 75% (non-condensing) Weight (kg): 21 Models: V2 – 700 Measuring range (mm): 710 Accuracy (µm): 8 Repeatability (µm): 3 (Ø: 5) Resolution (mm): 0.001 Measuring force (N): 0.75 ÷ 1.5 (electronically adjustable) Protection class: IP67 Interfaces: USB / RS232 Air cushion: No Max. manual adjustment speed (mm/s): 1000 Operating temperature (°C): +10 ÷ +40 Relative humidity: 5 ÷ 75% (non-condensing) Weight (kg): 24

Condition: new, functionality: fully functional, The V3 height measuring instrument has been engineered for the most demanding workshop environments. Manufactured entirely in Switzerland, it guarantees a robust, precise, and reliable product in the long term. For over 40 years, Trimos has pursued a philosophy of providing user-friendly instruments that are highly efficient on the shop floor. The display unit offers functions that are directly accessible and represented by easy-to-understand symbols. This enables straightforward and rapid operation, even by untrained personnel. The large two-line "Black Mask" display delivers exceptional contrast under all lighting conditions—a unique feature in the market. The V3 height gauge is the entry-level model among Trimos universal height measuring instruments. It fully benefits from technological developments incorporated in higher-end models. It is a rugged and easy-to-use device, equipped with all essential functions required for workshop use. Measuring ranges: 400 and 700 mm Extremely easy to use Electronically adjustable measuring force Battery autonomy: 40 hours (lithium-ion batteries) Standard probe up to 400 mm Comprehensive range of accessories All adjustments tool-free RS232 and USB interfaces V3 Model: V3-400 Measuring range (mm): 407 Application range (mm): 508 Accuracy (µm): 7 Repeatability (µm): 2 (Ø: 4) Deviation of frontal perpendicularity (µm): 10 Resolution (mm): 0.001 Measuring force (N): 0.75 ÷ 1.5 Battery autonomy (h): 40 Nlsdsw R Eacopfx Aglef Interfaces: USB / RS232 Air cushion: No Weight (kg): 21 V3 Model: V3-700 Measuring range (mm): 711 Application range (mm): 812 Accuracy (µm): 7 Repeatability (µm): 2 (Ø: 4) Deviation of frontal perpendicularity (µm): 15 Resolution (mm): 0.001 Measuring force (N): 0.75 ÷ 1.5 Battery autonomy (h): 40 Interfaces: USB / RS232 Air cushion: No Weight (kg): 24

Condition: new, functionality: fully functional, Discover ultimate precision with the Trimos V4 height gauge, meticulously manufactured in Switzerland to deliver long-lasting performance in demanding workshop environments. Our commitment to quality spans over 50 years, providing instruments that excel in user-friendliness and production efficiency. Thanks to complete Swiss manufacturing, the V4 guarantees robustness, precision, and enduring reliability—making it ideal for the most challenging shop floor conditions. The user-friendly display unit features easily accessible functions represented by universally understood symbols. Its large, dual-line ‘Black Mask’ display delivers outstanding contrast in any lighting conditions, setting it apart in the market. Nledpfxjw R Ntgs Aglef Building upon the success of the V3, the V4 height gauge extends capabilities with a second probe and an air cushion for effortless movement across the measuring table. The ergonomic handle is equipped with programmable function keys, enabling quick access to frequently used features and ensuring efficient operation for both skilled and untrained personnel. Explore the extensive range of accessories that enhance the adaptability of the Trimos V4 height gauge to your specific measurement requirements. Invest in precision, reliability, and efficiency—choose Trimos for an outstanding metrology experience. Measuring ranges: 400 and 700 mm Exceptionally easy to use Electronically adjustable measuring force Battery life: 20 hours (lithium-ion battery) Standard probe up to 400 mm Comprehensive range of accessories All settings adjustable without tools RS232 and USB interfaces Wireless data transmission (optional) V4 Models: V4 – 400 Measuring range (mm): 407 Application range (mm): 719 Accuracy (µm): 2.5 + L/250 Repeatability (µm): 2 (Ø: 3) Deviation of frontal squareness (µm): 9 Resolution (mm): 0.001 Measuring force (N): 0.75 ÷ 1.5 Battery life (h): 20 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 21 V4 Models: V4 – 700 Measuring range (mm): 711 Application range (mm): 1023 Accuracy (µm): 2.5 + L/250 Repeatability (µm): 2 (Ø: 3) Deviation of frontal squareness (µm): 13 Resolution (mm): 0.001 Measuring force (N): 0.75 ÷ 1.5 Battery life (h): 20 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 24

Condition: new, functionality: fully functional, Models V7: V7 – 400 Measuring range (mm): 407 Measuring range with extension (mm): 719 Accuracy (µm): 2 + L(mm)/400 Repeatability (µm): 1 (Ø: 2) Deviation of frontal squareness (µm): 5 Resolution (mm): 0.0001 Measuring force (N): 0.75 ÷ 1.5 Operating time (h): 12 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 22 Models V7: V7 – 700 Measuring range (mm): 711 Measuring range with extension (mm): 1023 Accuracy (µm): 2 + L(mm)/400 Repeatability (µm): 1 (Ø: 2) Deviation of frontal squareness (µm): 8 Resolution (mm): 0.0001 Measuring force (N): 0.75 ÷ 1.5 Operating time (h): 12 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 25 Models V7: V7 – 1100 Measuring range (mm): 1110 Measuring range with extension (mm): 1422 Accuracy (µm): 2 + L(mm)/400 Repeatability (µm): 1 (Ø: 2) Deviation of frontal squareness (µm): 11 Resolution (mm): 0.0001 Measuring force (N): 0.75 ÷ 1.5 Operating time (h): 12 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 34 Models V7: V7 – 1800 Measuring range (mm): 1810 Measuring range with extension (mm): 2122 Accuracy (µm): 2.5 + L(mm)/300 Repeatability (µm): 1 (Ø: 2) Deviation of frontal squareness (µm): 25 Resolution (mm): 0.0001 Measuring force (N): 0.75 ÷ 1.5 Operating time (h): 12 Njdpfxow R Nu Dj Agljlf Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 41

Condition: new, functionality: fully functional, The V9 height gauge is designed for the most demanding users. Laboratories and workshops where measurement reliability is critical will appreciate its exceptional precision and 'Swiss Made' build quality. Metrological performance was at the core of the development of this height gauge. No compromises were made regarding precision and repeatability, which is why several design features—particularly the probe—differ from other models. The display, which is based on a fully tactile interface, offers a level of user-friendliness previously unseen in a vertical measuring instrument. The menus and displayed functions follow a rigorously consistent design philosophy, enabling high efficiency even in complex tasks such as programming, 2D mode, angle measurements, or statistical analysis of results. The V9 models are equipped with a revolutionary displacement handwheel, allowing the user to select between manual and motorized displacement mode. Measuring ranges: 400 to 1100 mm Exceptional precision Electronically adjustable measuring force Manual or motorized movement 2D, programming, statistics Comprehensive range of accessories All settings tool-free RS232 and USB interfaces Wireless data transmission (optional) Models V9: V9 – 400 Measuring range (mm): 406 Measuring range with extension (mm): 724 Accuracy (μm): 1.2 + L(mm)/1000 Repeatability (μm): 0.4 (Ø: 1) Frontal squareness deviation (μm): 5 Resolution (mm): 0.0001 Measuring force (N): 0.75 ÷ 1.5 Autonomy (h): 12 Interfaces: USB / RS232 Air bearing: Yes Weight (kg): 21 Models V9: V9 – 700 Measuring range (mm): 710 Measuring range with extension (mm): 1028 Accuracy (μm): 1.2 + L(mm)/1000 Repeatability (μm): 0.4 (Ø: 1) Frontal squareness deviation (μm): 8 Resolution (mm): 0.0001 Measuring force (N): 0.75 ÷ 1.5 Autonomy (h): 12 Interfaces: USB / RS232 Air bearing: Yes Weight (kg): 24 Njdpfx Ajw R Nv Ioglolf Models V9: V9 – 1100 Measuring range (mm): 1109 Measuring range with extension (mm): 1427 Accuracy (μm): 1.2 + L(mm)/1000 Repeatability (μm): 0.4 (Ø: 1) Frontal squareness deviation (μm): 11 Resolution (mm): 0.0001 Measuring force (N): 0.75 ÷ 1.5 Autonomy (h): 12 Interfaces: USB / RS232 Air bearing: Yes Weight (kg): 33

Condition: new, functionality: fully functional, The V6 height measuring instrument is the successor to the legendary V+ line, which has sold thousands of units to workshops worldwide and is well-known for its ease of use and high quality. Trimos was the first company to introduce vertical measuring devices to the market over 50 years ago. The V6 consolidates the extensive know-how acquired over the years. Its highly readable display and user-friendly features offer exceptional operating comfort. But that’s not all: the V6 is equipped with a revolutionary displacement handwheel, allowing the user to choose between manual or motorized movement of the measuring carriage. Each mode delivers uncompromised performance: users preferring manual operation will experience no difference compared to classic manual instruments, and the same applies to motor-driven movement. This innovation eliminates the need to make a difficult choice at purchase and allows several potential users to operate the same device efficiently. The V6’s design, with its lateral probe, revives a longstanding Trimos tradition: enabling measurements with long, robust probes that guarantee excellent repeatability. Measurement ranges: 400, 700, and 1100 mm Extremely easy to use Electronically adjustable measurement force Manual or motorized operation Standard probes up to 400 mm Comprehensive accessory range All adjustments possible without tools RS232 and USB interfaces Optional wireless data transmission Extended warranty V6 Models: V6 – 400 Measuring range (mm): 407 Extended measuring range (mm): 719 Accuracy (µm): 2 + L(mm)/400 Repeatability (µm): 1 (Ø: 2) Deviation of frontal squareness (µm): 5 Resolution (mm): 0.0001 Measurement force (N): 0.75 ÷ 1.5 Operating autonomy (h): 12 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 21 V6 Models: V6 – 700 Measuring range (mm): 711 Extended measuring range (mm): 1023 Accuracy (µm): 2 + L(mm)/400 Repeatability (µm): 1 (Ø: 2) Deviation of frontal squareness (µm): 8 Resolution (mm): 0.0001 Measurement force (N): 0.75 ÷ 1.5 Operating autonomy (h): 12 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 24 Nsdpfxjw R Nuqj Agljlf V6 Models: V6 – 1100 Measuring range (mm): 1110 Extended measuring range (mm): 1422 Accuracy (µm): 2 + L(mm)/400 Repeatability (µm): 1 (Ø: 2) Deviation of frontal squareness (µm): 11 Resolution (mm): 0.0001 Measurement force (N): 0.75 ÷ 1.5 Operating autonomy (h): 12 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 33

Condition: new, functionality: fully functional, V1: This model elevates the fundamental features of the V1 to a new level and is aimed at users seeking to expand their measurement capabilities. In addition to bidirectional measurement, which enhances versatility without the need for additional accessories, the V1+ is also perfectly suited for diameter measurements, both internal and external. It is further equipped with advanced fine adjustment and a constant measuring force, both of which are crucial factors for improving measurement accuracy and repeatability. V1+: This model expands upon the core features of the V1 and is designed for those looking to broaden their measurement capabilities. Alongside bidirectional measurement, which increases versatility without extra accessories, the V1+ is also ideal for diameter measurement, both internally and externally. Additionally, it features enhanced fine adjustment and a constant measuring force, both critical for ensuring improved measurement accuracy and repeatability. Models V1: V1 – 300 Measuring range (mm): 306 Accuracy (mm): 0.018 Repeatability (mm): 0.010 Resolution (mm): 0.01 Battery life (h): 2000 Max. travel speed (mm/s): 1500 Weight (kg): 7 Models V1: V1 – 600 Measuring range (mm): 611 Accuracy (mm): 0.030 Nedpfx Agjw R Dynoljlf Repeatability (mm): 0.010 Resolution (mm): 0.01 Battery life (h): 2000 Max. travel speed (mm/s): 1500 Weight (kg): 8 Models V1+: V1+ – 300 Measuring range (mm): 306 Accuracy (mm): 0.015 Repeatability (mm): 0.005 (Ø: 0.01) Resolution (mm): 0.001 Measuring force (N): 3 Battery life (h): 2000 Max. travel speed (mm/s): 1500 Weight (kg): 7 (steel base) / 13.4 (granite base) Models V1+: V1+ – 600 Measuring range (mm): 611 Accuracy (mm): 0.025 Repeatability (mm): 0.005 (Ø: 0.01) Resolution (mm): 0.001 Measuring force (N): 3 Battery life (h): 2000 Max. travel speed (mm/s): 1500 Weight (kg): 8 (steel base) / 15 (granite base)

Condition: new, functionality: fully functional, The V5 height measuring instrument is the successor to the legendary V+ series, of which thousands of units have already been sold to workshops worldwide and which is renowned for its user-friendly operation and high quality. Trimos was the first company to launch vertical measuring devices over 50 years ago. The V5 series consolidates the know-how accumulated over these years. Its highly legible display and intuitive functions provide exceptional ease of use. But that's not all: the V5 is equipped with a revolutionary displacement handwheel that allows the user to choose between manual and motorized movement of the measuring slide. Both modes are uncompromising—users who prefer a manual instrument will notice no difference compared to a classic manual device, and the same applies to the motorized movement. This innovation eliminates the need for a tough purchasing decision and enables multiple potential users to operate the same instrument. The V5's design, featuring lateral probe holders, revives a long-standing Trimos tradition: they allow measurements with long, robust probes, ensuring excellent repeatability. Measuring ranges: 400, 700, and 1100 mm Extremely user-friendly Electronically adjustable measuring force Manual or motorized displacement Standard probes up to 400 mm Wide selection of accessories All settings adjustable without tools RS232 and USB interfaces Wireless data transmission (optional) V5 Models: V5 – 400 Measuring range (mm): 407 Nlsdpfx Asw R Nt Tjgljf Measuring range with extension (mm): 719 Accuracy (µm): 2.5 + L(mm)/400 Repeatability (µm): 2 Frontal squareness deviation (µm): 5 Resolution (mm): 0.0005 Measuring force (N): 0.75 ÷ 1.5 Battery life (h): 12 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 21 V5 Models: V5 – 700 Measuring range (mm): 711 Measuring range with extension (mm): 1023 Accuracy (µm): 2.5 + L(mm)/400 Repeatability (µm): 2 Frontal squareness deviation (µm): 8 Resolution (mm): 0.0005 Measuring force (N): 0.75 ÷ 1.5 Battery life (h): 12 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 24 V5 Models: V5 – 1100 Measuring range (mm): 1110 Measuring range with extension (mm): 1422 Accuracy (µm): 2.5 + L(mm)/400 Repeatability (µm): 2 Frontal squareness deviation (µm): 11 Resolution (mm): 0.0005 Measuring force (N): 0.75 ÷ 1.5 Battery life (h): 12 Interfaces: USB / RS232 Air cushion: Yes Weight (kg): 33

Condition: excellent (used), Year of construction: 2010, Diebold Tool Presetter VEG 400 For measuring the lengths and radii of milling, turning, and boring tools - Easy to use - Robust design for use directly at the machine - Universally adjustable - Rotatable spindle made of stainless steel - Reference values for diameter and length on the spindle - Outstanding concentricity accuracy - Measurement accuracy less than 0.02 mm - Digital display with a resolution of 0.01 mm - Data output ports - Includes a shipping box for self-adhesive labels for tool marking - Lockable fine adjustment for precise positioning of measurement values - Adaptable to all taper sizes and cylindrical holders Technical data: Nedpfxsx Nq Hts Aglolf - Dimensions (L x W x H): 350 x 175 x 730 mm - Measuring range: Length: 410 mm, Diameter: 240 mm - Weight: 22 kg - Color: Red RAL 3003 - Spindle run-out: less than 0.005 mm - Measuring accuracy: less than 0.02 mm Top condition - from a school setting Location: available from stock 54634 Bitburg - Immediately available -

Condition: ready for operation (used), Year of construction: 2017, total height: 2,800 mm, overall weight: 7,500 kg, table load: 1,200 kg, number of axes: 3, This Coord3 ARES NT was manufactured in 2016. Ideal for precision measurement tasks, this CMM machine offers reliable performance for quality control in various industries. Contact us for more information. Dimensions Nodpfxozvv Exo Aglolf Machine Depth 4500 mm

Condition: ready for operation (used), Year of construction: 2014, travel distance X-axis: 700 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 700 mm, number of axes: 3, This 3-axis Hexagon Global 07.10.07 was manufactured in 2014. A cmm machine with a measuring range of X=700 mm, Y=1000 mm, Z=700 mm, ideal for precise dimensional verification. If you are looking to get high quality measuring capabilities consider the Hexagon Global 07.10.07 machine we have for sale. Contact us for more information. Machine Benefits Technical Machine Benefits • Dc800c control system Nedpjzvv Duofx Aglolf Extra Information Machine still under power

Condition: ready for operation (used), Year of construction: 2009, total height: 4,260 mm, travel distance X-axis: 5,000 mm, travel distance Y-axis: 2,500 mm, travel distance Z-axis: 1,200 mm, number of axes: 3, This 3-axis measuring machine was manufactured in 2009. The SHIN NIPPON KOKI MM 2500-5012 offers expansive dimensions and capabilities, with an effective distance between columns of 3500mm and axis movements of 5000mm on the x-axis, 2500mm on the y-axis, and 1200mm on the z-axis. It features a maximum feed rate of 10,000 mm/min, supported by AC servo motors, ensuring precise and rapid positioning. The expansive measuring range makes the SHIN NIPPON KOKI MM 2500-5012 machine we have for sale ideal for large-scale precision measurements. For more information on this highly capable machine, please contact us today. Nledpezvvvqjfx Aglof Additional equipment • software Camio studio Machine Benefits Technical Machine Benefits • Maximum feed: 10. 000 mm/min • Axis feed motors: ac servo motors • Effective distance between columns 3500mm Dimensions Machine Depth 1400 mm

Condition: ready for operation (used), Year of construction: 2020, travel distance X-axis: 25,000 mm, CMM machine manufactured in 2020. This KEYENCE WM c3000 includes a measuring range of up to 25 m and operates within a temperature range of 0 to 40°C. The delivery scope features a camera tripod, laser scanner, handheld tactile probe unit, and various measuring tips. If you are looking to get high-quality measurement capabilities, consider the KEYENCE WM c3000 machine we have for sale. Contact us for further details. • Input Voltage: 24 V DC • Input Current: 1.7 A Nlsdpszggw Tofx Aglef • Measuring Range: Up to 25 m • Operating Temperature Range: 0 to 40°C • Interface Ports: USB, Power Input • X-axis Travel: 25,000 mm • Y-axis Travel: 12,500 mm • Z-axis Travel: 12,500 mm • Measurement Volume: 25 m × 12.5 m × 12.5 m • Calibration Date: March 03, 2022 Scope of Delivery / Included Components: • Camera tripod with black carrying bag • Stand / Base • Laser scanner (WM-P6200 compatible series) and handheld tactile probe unit in a heavy-duty rolling hard-shell transport case • Component accessory box with various measuring tips/styli • Position-tracking magnets for reference points and calibration • Power supply units (AC adapters) and connection cables • Calibration Certificate (2022) • Operating Manual – Short Version • Operating Manual – Full Version • Printed technical documentation / instruction manuals

Condition: used, Technical details: x-axis: 1000 mm z-axis: 600 mm diameter: - mm measuring range Y-axis: 972 mm interface: RS-232 tool taper: - weight: 40 kg power consumption: 100 Watt Floor Space WxD: 1,2 x 0,8 m Mitutoyo Linear Height 600 Height Gauge with Wenzel Precision Granite Surface Plate (Optional) The granite surface plate is not included in the sale but can be purchased separately. For sale is a high-quality Mitutoyo Linear Height 600 digital height gauge, designed for accurate 2D measurement tasks in quality control, toolmaking, manufacturing and inspection departments. Mitutoyo Linear Height 600 ·Precision digital height measuring instrument ·Measuring range: 600 mm ·RS232 data output ·Made in Japan ·High accuracy and repeatability ·Ideal for quality assurance and manufacturing environments Measurement Capabilities ·Height measurements ·Internal and external dimensions ·Hole center distances ·Center point determination ·Step measurements ·Diameter measurements ·2D measurement applications ·Angle measurements (with optional accessories) Optional: Wenzel Precision Granite Surface Plate ·Size: 1000 × 630 mm ·Manufacturer: Wenzel Precision Nodpfxezbqypo Aglolf ·Inspection date: 07.11.1989 ·Permissible flatness deviation: 0.008 mm ·Measured flatness deviation: 0.005 mm ·Weight: approx. 280 kg An excellent solution for toolrooms, quality control laboratories, precision engineering and manufacturing facilities. *

Condition: used, Technical details: Length: 1000 mm width: 630 mm height: 150 mm height over floor: 890 mm weight of the machine approx.: 250 kg space requirements of the machine approx.: 2,5 m x 2,2 m m WENZEL Precision Granite Surface Plate 1000 × 630 mm WENZEL granite surface plate 1000 × 630 mm with minor edge chips and signs of use (see photos). A WENZEL granite surface plate measuring 1000 × 630 mm (typically approx. 150 mm thick) is a high-precision inspection and measuring surface made from natural hard stone (granite). Nlodpjzb Ux Asfx Aglef WENZEL Metrology is internationally recognized for manufacturing extremely stable, low-distortion granite surface plates used as stress-free reference surfaces in metrology laboratories, quality control departments, toolrooms, and precision manufacturing environments. *

Condition: like new (used), Year of construction: 2024, functionality: fully functional, Very precision machine nearly no used after purchasing. Nodpfxozvh Eko Aglslf

Condition: excellent (used), Year of construction: 2009, 3D coordinate measuring machine Measuring range X/Y/Z: 440 x 500 x 410 mm Measuring uncertainty X/Y/Z: 2.5 + 3.9L/1000 µm Maximum table load: 227 kg Njdpjzvhrdefx Aglolf Total weight: 293 kg
