Used Clutch Gear for sale (9,005)

Condition: refurbished (used), workpiece weight (max.): 40,000 kg, table diameter: 2,500 mm, spindle speed (max.): 100 rpm, spindle speed (min.): 10 rpm, grinding spindle motor power: 24,000 W, outer diameter: 3,000 mm, overall weight: 40,000 kg, GEAR HOBBING MACHINE PFAUTER model P3001 New Siemens PLC with touch panel Spindle diameter: 2,500 mm Maximum workpiece diameter: 3,000 mm Maximum module: 25, in a single pass on C45 steel with a tensile strength of approximately 60 kgf/mm² Minimum number of teeth: 25 Maximum axial travel: 1,200 mm Table bore diameter: 500 mm Number of T-slots on the table: 12 Maximum table load: 40 tons Maximum gear hob diameter: 450 mm Lodpfxe Adua Ue Ahasah Tangential travel of the gear hob: 300 mm Gear hob rotation speed: 10–100 rpm, continuously variable across three ranges Main motor power (DC): 24 kW Weight: approximately 40,000 kg Complete with: - New electrical panel - Internal gear hobbing head complete with gears, worm gears, and modules – overhauled - Overhauled ball screw - Overhauled guides - Tool holder slide - Double worm gear - Tool loading hoist - Tailstock - Hydraulic table clamping USED MACHINE, OVERHAULED

Condition: used, total height: 1,900 mm, total width: 2,200 mm, total length: 1,500 mm, Year of manufacture: 1959 Colour: Blue Empty weight: 2.500 kg Price: On request - Year: 1959 - Documentation available: Yes - Serial number: 80 - Drive system: Conventional - Power [kW]: 5.0 Lajdezkui Sspfx Ahaoh - Transport dimensions: 1500mm x 2200mm x 1900mm (l x w x h) - Transport weight [kg]: 2500kg - Transport packages [pcs.]: 3 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

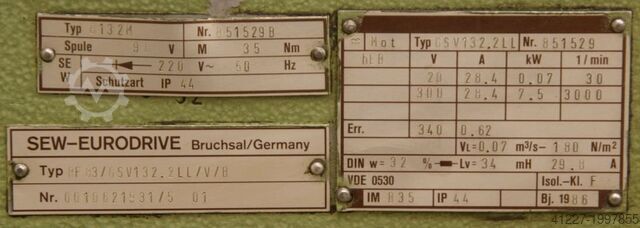

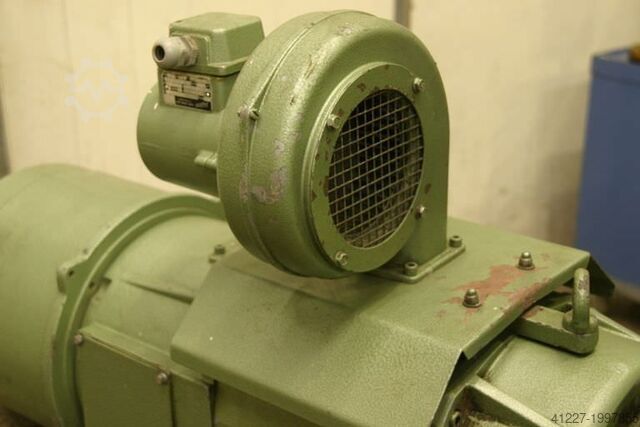

Condition: good (used), Year of construction: 1986, DC motor, servo motor, gear motor, electric motor, direct current gear motor -Speed: 30-3000 rpm -Power: 0.07-7.5 KW -Construction: B5 -Diameter shaft: Ø 50 mm -Protection class: IP 44 -Number: 1x motors available -Price: per piece -Dimensions: 1160/370/H530 mm -Weight: 222 kg Lodpfxeb R Ua Uj Ahasah

Condition: good (used), I am selling this machine, equipped, already disconnected, stored in stock. Video of the machine can be sent. max. wheel diameter 710 mm max. module 10 Lodpfx Ahstuipmsajah Spindle speed : 700-2800 1/ min. Machine weight : 13,500 kg

Condition: used, Year of construction: 2015, overall weight: 16,000 kg, total height: 2,200 mm, total length: 4,410 mm, total width: 2,600 mm, GROB C6-A – Cold Rolling Machine Technical Data: Gear Module: up to approx. 2.3 Gear Diameter: approx. 8–80 mm Max. Clamping Diameter: approx. 315 mm Power: 25 kW Weight approx.: 16,000 kg Lasdpfxoz E Ra He Ahaoh Dimensions (LxWxH) approx.: 4410 x 2600 x 2200 mm Year of construction: 2,015 Terms of payment: 100% prepayment before pick-up Terms of delivery: From foundation under power: No

Condition: used, operating hours: 19,000 h, gearing type: automatic, color: other, Year of manufacture: Aug 2017 Year of construction: 2017 Axle 1: left 5 mm right 5 mm Laedozu Rt Ujpfx Ahaoh Axle 2: left 18 18 mm right 18 18 mm Axle 3: left mm right mm

Condition: used, Year of construction: 2008, max. wheel diameter 700 mm max. module 10 (18) Lodpfx Ahoyv Ipfeajah min. module 1 table diameter 530 mm Table speed max. 350 1/min Distance of shafts 50 - 680 0 workpiece weight 4.000 kg Axial travel 1.000 mm tangential adjustment 300 mm pivoting angle + / - 45 Grad power capacity 32 kW spindle turning speed range 3.500 - 12.000 U/min tool diameter 320 mm total power requirement 80 kW weight of the machine ca. 25,00 t

Condition: used, Year of construction: 2003, Liebherr LC120 Gear Hobbing Machine 3mm maximum hobbable module 1,500 rpm maximum hob speed90mm maximum hob diameter 200mm maximum hob lenght 45 hob head swivel angle 4 mimimum number of teeth 120mm maximum workpiece diameter Ledpfx Ajz Stlashajah 250mm maximum axial travel 145mm table diameter 250rpm maximum table speed 17kN load capacity 30mm tailstock travel 17,000mm/min rapid traverse 13kN tailstock holding force 775879h working hours

Condition: excellent (used), I am selling this machine, connected, can be tested. Max. workpiece diameter ..... 1600 mm Module ..... 16 - Laodev Nqppspfx Ahaeh Power of the main electric motor ..... 12 kW Dimensions l x w x h ..... 4300 x 2000 x 3170 mm Machine weight ..... 18500 kg Can send a video of the machine, via whatsapp.

Condition: used, Year of construction: 2023, max. wheel diameter 200 mm gear width 60 mm max. module 5 min. module 2 workpiece weight max. 6,0 kg total power requirement 4 kVA weight of the machine ca. 0,5 t dimensions 1,35 x 1,55 x 1,7 m Less used Gear deburing machine - 3-jaw chuck ZG 125 - One twist in 5- 120 sec. - After test maybe modil 1,25 possible - Working Unit 1, milling function Laedpfx Aozy Satshaoh - Working Unit 2, brush function - dust collector - automatic mode

Year of construction: 1990, condition: excellent (used), functionality: fully functional, hydrostatic gear box suitable for BIHLER RM 40, tested. Lsdpfxez S T Tde Ahajah

Condition: new, Spur gear chain hoist Yalelift 360, lifting capacity 2000 kg, lifting height 3 m, with lifting hook · The 360° rotatable hand chain guide allows the chain hoist to be used in all positions and from all angles. · The increased flexibility in positioning due to the 360° rotatable chain guide means that the operator is no longer forced to work in the danger zone of the load, as was previously the case. · The new, patented braking system guarantees high operational safety and low maintenance requirements. · Higher load capacities available on request. · Further technical characteristics subject to verification: yes Number of chain strands: 1 Lifting capacity: 2000 kg Lifting height: 3 m Design: with lifting hook Weight at normal lifting height: 20 kg Laodpfxo Ab I Ite Ahash

Condition: used, functionality: fully functional, Maximum working diameter: 2100 mm Laodpfjylprfjx Ahaoh Table size: 1800 mm Minimum diameter: 200 mm Maximum number of teeth: 45 Max. module: 20 Weight: 40 tons

Condition: used, Year of construction: 1983, max. wheel diameter 1500 mm gear width 550 mm max. module 25 min. module 2 workpiece weight max. 6000 kg max. number of teeth 432 min. number of teeth 12 table diameter 990 mm grinding wheel size 400 mm total power requirement 75 kW weight of the machine ca. 20,5 t With tailstock max. wheel dia. 1250mm, without tailstock 1500mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team Laedpfxjyq Szae Ahash

Condition: refurbished (used), Year of construction: 2027, functionality: fully functional, rotary table diameter: 1,200 mm, position of the milling head: Schwenkbar (45°), table diameter: 1,200 mm, total length: 5,250 mm, gear diameter: 1,250 mm, total height: 4,420 mm, total width: 4,700 mm, input frequency: 50 Hz, type of input current: three-phase, spindle speed (max.): 160 rpm, spindle speed (min.): 20 rpm, travel distance X-axis: 700 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 1,000 mm, overall weight: 22,000 kg, distance table to spindle center: 780 mm, tool diameter: 260 mm, controller manufacturer: Siemens Sinumerik ONE, drive type: Sinamics S120, control type: CNC control, Equipment: documentation/manual, rotational speed infinitely variable, A ZFWZ 10 module for large gears up to 1250 mm in diameter and module 22, which was completely overhauled in 2009 by SerWeMa and converted to a Siemens Sinumerik ONE with six CNC axes. The machine is in operational condition in our hall in Chemnitz: you can inspect it while it is running, we can mill your own sample part on request, and you can pick it up from us. No delivery time, no risk. Sold by Serwema Retrofit Solutions, the company that carried out the overhaul, owns the module drawing archive, and knows the machine inside and out. Lasdpfxez E Hy Aj Ahaoh The ZFWZ 10 is the classic Chemnitz gear hobbing machine for gearbox construction, crane and conveyor technology, mining, and heavy machinery construction: heavy cast iron bed, 1200 mm table, milling head with ±45° swivel range. It mills spur and helical gears up to module 16 in hobbing and up to module 22 in single indexing. With 1000 mm of axial travel between the cutter axis and the table surface, long shafts and large workpieces can be securely clamped. The Sinumerik ONE controls all six axes with an electronic gear train; the SerWeMa gear software guides you through workpiece and tool data via masks, without requiring programming. Technical data: max. workpiece diameter 800/1250 mm, table diameter 1200 mm, distance between cutter axis and table axis 80–780 mm, distance between cutter axis and table surface 350–1350 mm, max. module 16/22, max. cutter diameter 260 mm, max. cutter length 350 mm, tangential travel 250 mm, cutter speed 20–160 rpm, swivel angle ±45°. Installation dimensions approx. 5.25 × 4.7 × 4.42 m, weight approx. 22 t. Equipment: Siemens Sinumerik ONE control with six CNC axes, machine enclosure, magnetic chip conveyor, central and loss lubrication, hydraulic unit, coolant system, operating manual. We offer the conversion to Siemens Sinumerik ONE with Sinamics S120 and a new control cabinet, either before delivery or later at your plant – then with a guarantee on the new electrical equipment. Also optional: sample part milling in our plant, geometry acceptance according to DIN, installation and commissioning at your site, operator training. Spare parts and service are provided from a single source, worldwide, even after the purchase.

Condition: refurbished (used), Year of construction: 2027, functionality: fully functional, position of the milling head: Schwenkbar (45°), table diameter: 4,000 mm, total length: 13,300 mm, gear diameter: 5,000 mm, total height: 5,700 mm, total width: 7,500 mm, input frequency: 50 Hz, workpiece diameter (max.): 5,000 mm, type of input current: three-phase, milling length: 600 mm, spindle speed (max.): 125 rpm, spindle speed (min.): 10 rpm, travel distance X-axis: 2,750 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 1,750 mm, overall weight: 115,000 kg, distance table to spindle center: 3,300 mm, controller manufacturer: Siemens Sinumerik ONE, drive type: Sinamics S120, control type: CNC control, Equipment: documentation/manual, The ZFWZ 5000 originates from Modul's Chemnitz gear machining division and is completely overhauled and delivered with a Siemens Sinumerik ONE control system by Serwema Retrofit Solutions, the company that houses the Modul drawing archive. Proven kinematics, new electrical system, new drives, new safety technology: you get the performance of a new machine at a fraction of the price and with a delivery time of twelve months. The machine mills external gears, both straight-toothed and helical, up to a module of 40 in hobbing and up to a module of 50 in single-indexing. With the internal milling attachment, internal gears are produced for gear rings of large roller bearings, rotary couplings, and planetary hollow gears, as used in wind power, mining, crane, and shipbuilding technology. Workpieces up to 5000 mm in diameter can be accommodated on the 4000 mm table, the milling head pivots by ±45°, and the 82 kW drive power at the milling head allows for roughing with high chip volume as well as finishing with precision. Technical data: max. workpiece diameter 5000 mm, table diameter 4000 mm, distance from milling spindle axis to table axis 300–1800 mm, distance from milling spindle axis to table surface 550–3300 mm, max. milling cutter diameter 500 mm, max. milling cutter length 600 mm, tangential travel 600 mm, milling cutter speed 10–125 rpm, drive power of milling head 82 kW, swivel angle ±45°. Installation dimensions approx. 13.3 × 7.5 × 5.7 m, weight approx. 115 t. Lasdpfxez Etmpe Ahaoh The machine is delivered with a new Siemens Sinumerik ONE control system and Sinamics S120 drives, the latest Siemens generation with full availability of spare parts and support, in an air-conditioned switch cabinet of our own manufacture. The user-friendly interface makes setup and programming possible without in-depth G-code knowledge. The geometry acceptance is carried out according to the manufacturer's standard or DIN, with a protocol, jointly with you in Chemnitz. The scope of delivery also includes a machine safety fence with state-of-the-art safety technology, a new paint finish in RAL 5015/7035, a magnetic chip conveyor, circulation and loss lubrication, a hydraulic unit, a coolant system, and the operating manual.

Condition: used, operating hours: 21,822 h, gearing type: automatic, color: other, Year of manufacture: Aug 2015 Year of construction: 2015 Lsdezvfyfopfx Ahajah Axle 1: left 22 mm right 22 mm Axle 2: left 26 -26 mm right 26-26 mm Axle 3: left mm right mm

Condition: new, Spur gear chain hoist Yalelift 360, lifting capacity 5000 kg, lifting height 3 m, with lifting hook · The 360° rotatable hand chain guide enables the use of the chain hoist in all positions. · The increased flexibility in positioning, due to the 360° rotatable chain guide, means that the operator is no longer forced to work in the hazardous area of the load, as was previously the case. Ledpfx Aj Ab I I Hjhaoah · The new, patented braking system guarantees high operational safety and low maintenance requirements. · Higher lifting capacities available upon request. · Further technical characteristics require verification: yes Design: with lifting hook Weight at standard lifting height: 38 kg Number of chain strands: 2 Lifting height: 3 m Lifting capacity: 5000 kg

Condition: used, operating hours: 28,191 h, gearing type: automatic, color: other, Year of manufacture: Apr 2012 Year of construction: 2012 Axle 1: left 8 mm right 8 mm Laodpfx Aoy Engcohajh Axle 2: left 10 mm right 10 mm Axle 3: left mm right mm

Condition: new, Spur gear chain hoist Yalelift 360, lifting capacity 3000 kg, lifting height 3 m, with load hook * The 360° rotating hand chain guide enables the use of the chain hoist in all positions and orientations. * The increased flexibility in positioning due to the 360° rotating chain guide means that the operator is no longer forced to work in the danger zone of the load, as was previously the case. * The new, patented braking system guarantees high operational safety and low maintenance requirements. Laedpfx Ahs Ab I Iysajh * Higher load capacities available upon request. * Further technical characteristics require verification: yes Load capacity: 3000 kg Design: with load hook Weight at normal lifting height: 29 kg Lifting height: 3 m Number of chain strands: 1

Condition: used, Year of construction: 2004, Technical details: max. wheel diameter: 130 mm gear width: 25 mm module max. : 3 module min. : 0,5 control: Siemens 840D work-spindle diameter: 85 mm strokes - infinitely variable: 500 - 2500 Hub/min stroke: 30 mm total power requirement: 48 kVA weight of the machine ca.: 11,5 t space requirements approx. LxWxH: 4,7 x 3,0 x 3,3 m Equipment: -Counterholder with tip -chip conveyor -hydraulically operated counterholder arm and linear guides Laedpfx Ahovi Ninoajh i.D. *

Condition: used, operating hours: 27,315 h, gearing type: automatic, color: other, Year of manufacture: Apr 2012 Year of construction: 2012 Lsdpfxjzvax As Ahasah Axle 1: left 10 mm right 10 mm Axle 2: left 12 12 mm right 12 12 mm Axle 3: left mm right mm

Condition: used, gearing type: automatic, color: other, Year of manufacture: Apr 2011 Year of construction: 2011 Axle 1: left 10 mm right 10 mm Lsdpfsy Ennaex Ahasah Axle 2: left 12 12 mm right 12 12 mm Axle 3: left mm right mm

Condition: good (used), Gear Hobbing Machine Strausak 30 Workpiece diameter for manual loading: Ø 35 mm Workpiece diameter for magazine loading: Ø 15 mm Workpiece diameter for fully automatic loading: Ø 10–12 mm Maximum hobbing length: 12 mm Plunge feed at 42% of longitudinal feed: 22 mm Plunge feed at 25% of longitudinal feed: 14 mm Module in steel max.: 1.0 mm Module in non-ferrous metals max.: Solid material ø26 / ø35 mm Selectable number of teeth: 5–390 Cutter speeds: 1160–8550 rpm Plunge feeds per workpiece revolution: 0.0325–0.273 mm Longitudinal feeds per workpiece revolution: 0.033–0.65 mm Cutter diameter: 8–24 mm Machine weight: 600 kg Main motor: 0.8 HP at 3000 rpm Hydraulic motor: 0.25 HP at 1500 rpm Coolant motor: 0.25 HP at 1500 rpm Ledpfxjx Dxu Se Ahaoah No guarantee is given for the accuracy, completeness or timeliness of the information provided.

Condition: used, operating hours: 24,159 h, gearing type: automatic, color: other, Year of manufacture: Apr 2011 Year of construction: 2011 Axle 1: left 12 mm right 12 mm Lasdpfx Ahoy Uw Aljaeh Axle 2: left 18-18 mm right 18-18 mm Axle 3: left mm right mm
