Used Trumpf Trumpf Trupunch 5000 S12 for sale (3,084)

Condition: excellent (used), Year of construction: 2023, Laser Welding Robot Manufacturer: TRUMPF Model: TruLaser Weld 5000 (LR03) Year of construction: CW 51/2023 – Commissioned: 2024 4,000-watt solid-state (fiber) laser Operating hours: as new, used ADVANCED EQUIPMENT: 30 m LLK (laser light cable) TruDisk 4001 (solid-state, fiber) with 1 LLK-A, 1 unit, incl. chiller, incl. safety package for laser welding Workpiece Processing: Rotary module for shielding gas guidance FusionLine FusionLine combination nozzle Positioners: Rotary-tilt positioner with endless rotation Zero-point clamping system for rotary-tilt positioner Safety cabin extended to 4,800 x 4,800 mm (front x side) Data transmission: OPC UA for Machine Tools Basic (license may be required) EQUIPMENT: Machine: Collision protection KUKA Robot KR 70 Machine status indicator light Compressed air and shielding gas supply Machine designed for ambient temperatures up to 45°C Welding optics Perlator nozzle Welding optics BrightLine Scan Motorized focus adjustment Welding process visualizer Process gas at welding optics Linear nozzle Process gas and crossjet programmable Operation / Programming: KUKA smartPAD Production plan Touch panel with 21.5'' TFT color display Touchpoint user interface Data transfer: USB interface RJ-45 network interface Central Link Remote support interface Online update manager Safety: Work area monitoring Workpiece Processing: Forming gas Further Optional BASE EQUIPMENT: Automatic sliding door Compact dust extractor with 3,000 m³/h Support arm for operator panel Axis adjustment set Robot elevation (extended standard) Data usage agreement TECHNICAL DATA: Type: High Accuracy Robot Number of axes: 6 Rated payload: 70 kg Repeatability: +/- 0.05 mm Rotary-tilt positioner Max. working area: 2,000 x 1,000 mm x 1,200 mm Max. load: 500 kg Rotary table Max. working area: 2,350 mm (diameter) Max. working area (height): 1,150 mm Max. load (per side): 250 kg Rotary changer with turnover axis Max. working area (turnover drum diameter): 1,200 mm Max. working area (length): 2,600 mm Max. load (per side): 750 kg Turnover positioner Max. working area (turnover drum diameter): 2,000 mm Max. working area (length): 4,000 mm Max. load (per side): 1,000 kg Compact rotary changer with 3D clamping plate (rectangular) Max. working area (diameter): 3,000 mm Max. working area (height): 1,250 mm Max. load (per side): 600 kg Max. permissible mass moment of inertia: 600 kg*m² Giedow U Ezzjpfx Ahzsw Rotary changer rotation range: +/- 180° Rotary changer rotation time (for 180°): 3.7 s Insert height: 830 mm Compact rotary changer with vertical rotary axes: Max. working area (diameter): 3,000 mm Max. working area (height): 1,250 mm Max. load (per side): 600 kg Max. permissible mass moment of inertia ring indexing table: 600 kg*m² Rotary changer rotation range: +/- 180° Rotary changer rotation time (for 180°): 3.7 s Vertical rotary axis rotation range: +/- 190° Max. permissible mass moment of inertia vertical rotary axis: 359 kg*m² Insert height: 885 mm Compliance with CE and EU Machinery Directive must be verified by the buyer upon recommissioning if applicable. Original price: over EUR 580,000 This used machine can be inspected under operating conditions. All information provided without guarantee – sale excludes all warranties and liability. Subject to prior sale.

Condition: used, Year of construction: 2018, controller model: , _____ Description: Year of manuf. : 2018 Control : Technical data Year of manufacture:2018 Pressing force approx.:3200 kN Folding length approx.:4420 mm Control system:TASC 6000 Projection:420 mm Gsdpfx Ajyy Hgqshzoiw Free upright clearance approx.:3680 mm Usable installation height approx.:615 mm Machine weight approx.:23400 kg Equipment :- Sturdy machine frame :- Press beam, stress relieved with high bending strength :- Spherical bearing of the press beam (inclined position) :- Electro-hydraulic top drive with 4-cylinder technology :- Optical set-up and positioning aid :- Generous edge clearance :- Flat front covers :- Block hydraulics :- Electronic pressure compensator :- Measuring system with glass scale and deflection compensation :- Hydraulic oil in the machine (lifetime lubrication) :- Oil cooler :- Control cabinet cooling via air-to-air heat exchanger :- Modern machine design Extended equipment :- 6-axis backgauge system :- Hydraulic upper tool clamping :- CNC crowning :- Work area lighting front and rear BendMaster (150) :- Sturdy base body and manipulator in cast aluminium construction :- Load capacity 150 kg, plate plus gripper :- Low floor track in welded construction :- Sheet sensor for contour detection :- Rotary feed-through for easy gripper change :- Gripper coupling on BendMaster :- Sensors for 4-axis backgauge system :- Electric drives :- Double sheet detection :- Regripping station NC :- Vacuum generation for suction gripper :- Platform (300 mm) for the bending press Extended BendMaster equipment :Extended BendMaster equipment - Track extension to 12 m :- Sensor system for 6-axis back gauge :- Gripper changing console :- Vacuum gripper, undefined :- Modular vacuum gripper with separation (material for 3 grippers) :- Gripper coupling :- Tong gripper :- Sheet removal station with linear axis :- Side door on right for safety fence

Condition: like new (used), Year of construction: 2022, functionality: fully functional, punching force: 18 t, working range: 2,500 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, Used Trumpf TruPunch 3000 S20 with Sheet Master Compact sheet load and unload for sale Technical data TruPunch 3000 medium format (S20) Dimensions, weights Width 6282 mm Depth 6548 mm Height 2195 mm Weight with all units 10700 kg Control, hardware, electrics Hard disk type SSD Number and size of the hard disc 2 GB x 120 GB Hard disk memory for customer programmes 10 GB Screen Touch screen Screen size 21.5 in Interface USB Network connection RJ45 Control type Bosch CML75 Operating system Windows 10 IoT Axis data X/Y/C axis drive NC-controlled, maintenance-free three-phase current servo motors Punching head drive Electric drive Maximum axis speeds - X axis 90 m/min Maximum axis speeds - Y axis 60 m/min Maximum axis speeds - Simultaneous 108 m/min Maximum axis speeds - C axis (punching) 350 rpm Maximum axis speeds - C axis (tapping) 350 rpm Maximum punching stroke rate (E = 1 mm) 800 1/min Maximum marking stroke rate 1000 1/min Precision - Positioning deviation Pa +/- 0.1 mm Precision - Position range Ps +/- 0.03 mm Precision - Smallest programmable increment 0.001 mm Working range and workpiece size Maximum sheet thickness 6.4 mm Maximum workpiece weight 150 kg Working range - X axis 2500 mm Working range - Y axis 1250 mm Punch-specific data Maximum punching force 180 kN Maximum presser foot force 20 kN Maximum tool size, punching (outer circle) 76.2 mm Maximum tool size, forming (outer circle) 101.6 mm Single tool changing time 2.8 s MultiTool changing time 0.5 s Number of linear magazine stations 20 pieces Number of tools when using MultiTool / clamps 18 pieces - 180 pieces Loading / part removal Maximum part size, part removal flap, punching 400 mm x 600 mm Flap size (X x Y) 400 mm x 1250 mm Maximum part size, fixed chute, punching 180 mm x 180 mm Connected loads, ambient temperature Pressure range, compressed air connection minimum (same direction) / maximum (static) 7 bar / 14 bar Painting Main colour white, NCS S 0505-R80B Secondary colour blue, RAL DESIGN 250 20 20 Switch cabinet/periphery grey, RAL 7040 SheetMaster Compact 2500 x 1250 mm (AK05) General Maximum Y1 axis traverse speed (suction frame) 27 m/min Maximum Y2 axis traverse speed (unloading cart) 18 m/min Maximum Z axis traverse speed 20 m/min Y/Z axis drive Asynchronous motors controlled by frequency converter Loading Maximum sheet size 2500 mm x 1250 mm Minimum sheet size 1000 mm x 1000 mm Minimum sheet thickness 1 mm Maximum sheet thickness 6.4 mm Maximum sheet weight 160 kg Unloading Minimum sheet thickness 1 mm Maximum sheet thickness 6.4 mm Maximum sheet weight 160 kg Maximum stack height 190 mm Gisdjykt N Sopfx Ahzew Painting Main colour white, NCS S 0505-R80B Secondary colour blue, RAL DESIGN 250 20 20

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, TRUMPF TruBend Cell 5000 – Robotic Bending Cell | Year 2015 TruBend 5130X Press Brake BendMaster Robotic Bending System Control System: TASC 6000 (robot and press are programmed via the machine interface) Press Brake Specifications: Gisdexdfqmjpfx Ahzow Press force: 130 tons Bending length: 3,250 mm Year of manufacture: 02.2016 More information and video available on request ...

Year of construction: 2008, condition: good (used), Example advertisement! Machine is not for sale. Operating hours: 27,301 h (laser on) | 10,406 h (beam on) Weight: approx. 17,700 kg Dimensions: 18,000 x 9,000 x 2,800 mm (length x width x height) Permissible dimensions of workpieces: Max. material thickness, structural steel: 8.0 mm Max. material thickness, stainless steel: 5.0 mm Max. material thickness, aluminum: 4.0 mm Max. finished part length: 3,000 mm + option for extending the unloading table by 1,000 mm Giedpehmu R Dsfx Ahzow

Year of construction: 2008, condition: ready for operation (used), A CNC laser cutting system Trumpf including RotoLas and Liftmaster is available. Laser source: TruFlow 5000, laser type: CO2 laser, laser power: 5000W, travel X/Y/Z: 3000mm/1500mm/115mm, max. material thickness structural steel/stainless steel/aluminium: 25mm/25mm/15mm, positioning accuracy: +/-0.1mm, repeatability: +/-0.03mm, max. axis speed: 200m/min, max. simultaneous speed: 300m/min. Machine dimensions X/Y/Z: approx. 11100mm/4600mm/2400mm, weight: approx. 12000kg, operating hours: 55462h, laser hours: 24430h, beam hours: 12742h. Hours status as of 01/2026. Documentation available. On-site inspection is possible. Expected to be available from January 2027. Giodpsx Tumxefx Ahzow

Condition: excellent (used), Year of construction: 2017, operating hours: 3,200 h, pressing force: 130 t, Space requirement: 11,500 mm x 10,000 mm + Increased installation height/lift + 230 mm + 4-axis backgauge system + Rear work area lighting + Front work area lighting - TruBend documentation Automation BendMaster (60) Giedpjxayl Defx Ahzsw Standard equipment: BendMaster - Sturdy base frame and manipulator made of cast aluminum construction - Load capacity 60 kg, sheet plus gripper - Low-level floor track in welded construction - Sheet sensor for contour detection - Rotary feedthrough for quick gripper change Gripper coupling on the BendMaster - Sensor system for 4-axis backgauge system - Electric drives - Double sheet detection - NC regrip station - Vacuum generation for suction grippers Control - TRUMPF PC control with operator terminal - Teleservice via internet - Convenient operation: screen, mouse, keyboard Safety - Safety fence with access door Special equipment + Track extension to 10 m + Gripper change console + Modular vacuum gripper without separation (materials for 3 grippers) + Modular vacuum gripper with separation (materials for 3 grippers) + Clamp gripper with rotary axis + Sheet removal station with linear axis + Additional pallet for sheet removal station + Right-hand side door for safety fence (or left-hand side in combination with ToolMaster) Machine - Robust machine frame entirely in steel construction - Press beam - Spherical mounting of pressure beam with inclined position - Electro-hydraulic upper drive system with 4-cylinder technology - Optical set-up and positioning assist with control valves - Generous free space for bending - Flat front covers - Block hydraulic system - Electronic pressure gauge - Measuring system with glass scale and spring-back compensation - Hydraulic oil in machine (lifetime lubrication) - Oil cooler - Electrical cabinet cooling via air-to-air heat exchanger - Modern machine design Backgauge System - 2-axis backgauge system, X and R axes Tool Clamping - Hydraulic upper tool clamping - Lower tool holder, hydraulic clamping, hardened - Lower tool displacement, 2 positions, pneumatic Crowning - CNC crowning Control - TRUMPF TASC 6000 - Graphical workshop programming - Windows XPe (embedded), Pentium 4 with 2.8 GHz clock speed - 2 GB RAM - 15-inch touch screen - Network capability - Teleservice via internet Operation - Control panel with LCD keypad and foot switch - Communication rail - MobilControl Safety - Standard safety equipment - CE marking

Condition: ready for operation (used), Year of construction: 2001, operating hours: 62,769 h, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 8 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, TECHNICAL DETAILS Sheet thickness: 8 mm Punching force: 220 kN Travel X-axis: 3,000 mm Travel Y-axis: 1,500 mm MACHINE DETAILS Control: Siemens Machine weight: approx. 17,500 kg Operating hours: 62,769 h EQUIPMENT Scraper position change monitoring Thread forming Marking – quick beading Slitting Multishear Multibend Backgauge repositioning Godpfx Ahsx I E Ezozsiw Roller tools Setup cassettes Ball transfer table

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 6 mm, workpiece length (max.): 3,000 mm, workpiece width (max.): 1,500 mm, TECHNICAL DETAILS Working area: 3,000 x 1,500 mm Max. punching force: 220 kN Max. sheet thickness: 6 mm MACHINE DETAILS Dimensions & Weight Dimensions: 7,500 x 7,500 x 2,500 mm Approx. machine weight: 17,500 kg Gedpfoxhfnaox Ahzeiw

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2014, operating hours: 8,416 h, laser power: 3,200 W, sheet thickness steel (max.): 10 mm, sheet thickness aluminum (max.): 4 mm, pipe diameter (max.): 152 mm, working length: 6,500 mm, TRUMPF Tube Laser Cutting System with LoadMaster Tube 6.5 m and extensive additional equipment! TECHNICAL DETAILS Maximum tube diameter: 152 mm Maximum working length: 6,500 mm Material thickness (steel): 10 mm Material thickness (stainless steel): 5 mm Material thickness (aluminum): 4 mm Laser power: 3,200 W MACHINE DETAILS Control system: SIEMENS Sinumerik 840D SL Operating hours: 24,428 / 8,416 h EQUIPMENT - LoadMaster Tube 6.5 m with bundle magazine - Robust machine frame with integrated laser unit - Feed station with self-centering clamping jaws - Raw material tube support with automatically retractable pipe rests - Through-feed chuck with self-centering parallel clamping rollers - High-precision drives - Discharge station for finished workpieces up to 3 m in length - Tube support for finished parts with extendable guide rollers - Scrap conveyor with collection bin - Enclosed beam guide - NitroLine - FocusLine - Laser power control - Programmable cutting gas pressure - Automatic power on/off - Ergonomic control panel with touch color screen - Work area illumination - High-frequency excitation - Maintenance-free turbo radial blower - TASC 3 laser control - Laser logbook function - Cooling unit - Single cutting head strategy Gsdsygu Tkspfx Ahzoiw - Lens cutting head, 155 mm focal length - ControlLine - Simple operation - Online support - Diagnostic functions - Integrated technology data - Remote service via internet - RJ45 network interface and USB port - CE marking - Multi-beam light barriers - Monitoring system for gas pressure, temperature, and cooling water, among others - Compact dust extraction system - Protective enclosure with polycarbonate (Makrolon) panels - Jaw sets with clamping range 20–85 mm and 85–152 mm - Quick-change forming shells for round tubes up to 152 mm - Quick-change forming shells for rectangular tubes (up to a circumscribed circle of 85 mm) - Quick-change forming shells for rectangular tubes (up to a circumscribed circle of 170 mm) - Guide rollers for round and rectangular tubes - SeamLine Tube with inner seam detection - Adaptive clamping technology – feed station, small circumscribed circle - Adaptive clamping technology – feed station, large circumscribed circle - Adaptive clamping technology – through-feed chuck, small circumscribed circle - Adaptive clamping technology – through-feed chuck, large circumscribed circle Note: The machine will be dismantled on 02/03/2026 and can be inspected under power until then.

Condition: used, Year of construction: 2001, operating hours: 13,030 h, machine/vehicle number: 090038, punching force: 2,200 t, We are offering our Trumatic 5000R laser punch press for sale. The machine is used and in very good condition. Gijdpfxounh D De Ahzsw Basic data from the type plate: Max cutting force: 220 kN Type 9121 No. 090038 Year of manufacture: 2001, spare parts Network: 400 V/50 Hz Connected load: 29kVA Supply voltage: 400V Control voltage: 24V= Necessary protection: 3x50A Compressed air connection: 7-14 bar Machine weight: 17500kg Main features of the machine: - Tool rail - 21 tools and 4 handles - working area 3070x1660mm - max. sheet thickness 8mm - Rotation axis of the tool head C1 and C2 - Forming function - Thread function - Multibend function - Pneumatic press - automatic sliding of the details 500x500mm - water-cooled servomotors Additional equipment of the machine: - light barrier Softpunch function - Details slide sensor - Device for blowing out small details - System for chip extraction - Separate lubrication of punching and threading tools Number of NC units: 13030h We sell machines without tools. Machine regularly maintained by authorized Trumpf service with original spare parts, last machine maintenance on 21.02.2024r.

Condition: excellent (used), Year of construction: 2013, operating hours: 8,500 h, stroke length: 445 mm, number of axes: 6, Number of axes: 6 Pressing force: 3,200 kN Max. machining length: approx. 440 cm Weight: 22,800 kg Max. load capacity: 150 kg Runway length: 12 meters Godjwxwwdjpfx Ahzjiw

Condition: ready for operation (used), Year of construction: 2018, punching force: 17 t, sheet thickness (max.): 6 mm, number of axes: 3, This 3-axis TRUMPF Trupunch1000 S05 was manufactured in 2018. It features a working area of 2500 x 1250 mm and is equipped with maintenance-free three-phase motors. The machine includes a linear magazine with 20 stations for clamps and tools, and an electro-hydraulic punching head with programmable features. If you are looking to get high-quality punching capabilities, consider the TRUMPF Trupunch1000 S05 CNC punching machine we have for sale. Contact us for further details. - Working Area: 2500 x 1250 mm (Medium Format)- Drives: Maintenance-free three-phase motors- Frame: C-frame- Tool Storage: Linear magazine with 20 stations for clamps and tools- Clamps: 2 hydraulic sheet clamps- Punching Head: Electro-hydraulic punching head, rotating mono-tool adapter, programmable stripper position, tool length compensation, slug extraction- Functions: Forming, MultiTool, MultiBend, Thread forming with tap breakage control, Signing / fast beading- Control: TRUMPF control based on Rexroth IndraMotion MTX- Interface: USB interface, RJ45 network connection, Wireless Operation Point (VOS basis)- Table Type: Ball table with brush inserts- Safety: CE marking, multi-beam light barriers, rapid drive shutdown- Frequency: 50 Hz- Voltage: 400 V- Included Accessories: 18 original Trumpf tool cassettes (including 10 RTC-cassettes 2017 with die plates from original order), extensive selection of punching tools, and a Trumpf "quicksharp" punch grinding machine (YOM 89) Giedpszc R Ensfx Ahzew

Condition: new, Heidenhain ROD 436 5000 27S12-03 . 376 836-39 SN 36514027D, unused in opened original packaging, 100% functional, scope of delivery as shown in photos. Gedpfx Ahjy Nqrcezjiw

Condition: new, Siemens 7ME6910-2CA10-1AA0 SITRANS F M MAG 5000 SN: N1S1250013, unused in opened original packaging, 100% functional, scope of delivery as per photos. Gisdpjy Nr S Djfx Ahzew

Condition: new, Heidenhain ROD 436 5000 27S12-03 . 376 836-39 SN 23898517B, unused, 100% functional, scope of delivery as per photos Gsdpfxsy Nqq So Ahzoiw

Condition: new, Heidenhain ROD 426 5000 27S12-03 rotary encoder. 376 846-L1 serial number 74559410B - unused! - Godpfxsy Nqqxj Ahzeiw

Condition: ready for operation (used), Year of construction: 1998, operating hours: 30,430 h, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 6 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, punching diameter: 76 mm, TECHNICAL DETAILS Pressing force: 220 kN Sheet metal thickness - max.: 6.4 mm Punching diameter: 76.2 mm Travel distance X-axis: 2,500 mm Travel distance Y-axis: 1,250 mm Positioning speed X-axis: 90 m/min Positioning speed Y-axis: 60 m/min Positioning speed (simulation): 108 m/min Positioning speed (rotary axis): 360 °/sec Workpiece weight: 150 kg Smallest programmable path dimension: 0.01 mm or 0.01° Tool stations: 15 Tool change time: 1.5 - 6.5 sec MACHINE DETAILS Dimensions: 6,400 x 5,800 x 2,100 mm Machine weight approx.: 11,050 kg Gisdpfszk A Ntsx Ahzew Operating hours: 30,430 h

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2007, machine/vehicle number: A0250A0472, laser power: 5,000 W, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,000 mm, TECHNICAL DETAILS Travel range, X-axis: 4,000 mm Travel range, Y-axis: 2,000 mm Laser power: 5,000 W MACHINE DETAILS Mains voltage: 400 V / 50 Hz Connected load: 105 kVA Control voltage: 24 V DC Required fuse rating: 3 x 160 A Compressed air connection: 7 to 10 bar Nitrogen connection N₂: 30 bar Godpfozkr T Uex Ahzsiw Oxygen connection O₂: 20 bar

Condition: used, Year of construction: 2001, 2001 Trumpf TrumaBend V85S CNC Press Brake Pressing Force 850kN. Length Capacity 2,550mm. Distance Between Columns 2,260mm. Maximum Stroke 365mm. Maximum Operating Pressure 340 bar. Brake Time 74m/sec. Safety Distance 189mm. S/No. 884337 (2001). With Light Safety Guards & Pendant Control. Weight 9,950kg. Gjdjzk I Uuopfx Ahzoiw

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, pressing force: 85 t, stroke length: 445 mm, overall weight: 8,600 kg, operating pressure: 300 bar, control voltage: 24 V, TECHNICAL DETAILS Press force: 850 kN Stroke: 445 mm Operating pressure: 300 bar Dwell time: 95 ms Dwell distance at 220 mm/s: 10 mm Dwell distance at 160 mm/s: 8.5 mm MACHINE DETAILS Safety clearance: 190 mm Voltage: 3 x 400 V Rated current: 24.0 A Frequency: 50 Hz Connected power: 17.0 kVA Control voltage: 24 V Compressed air connection: 6 bar Gedpfx Aozlc Ryohzjiw Dimensions & Weight Dimensions (L x W x H): 2,500 x 1,500 x 2,000 mm Machine weight: 8,600 kg Note: The operating hours can be found in the last image.

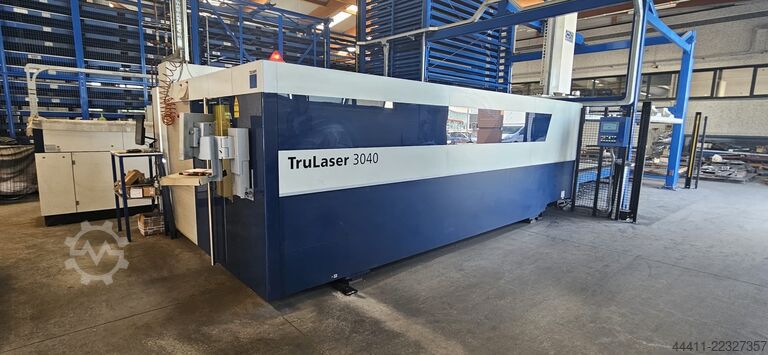

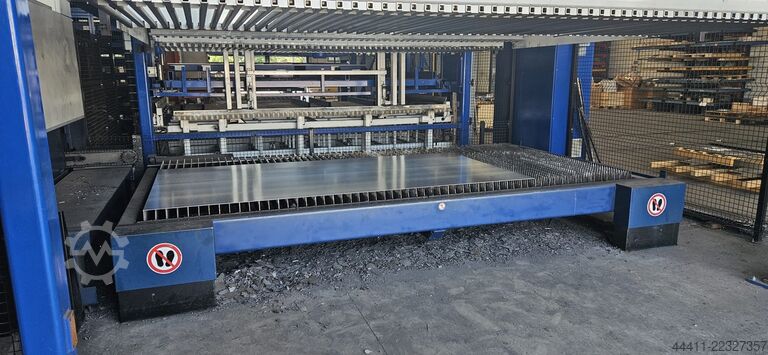

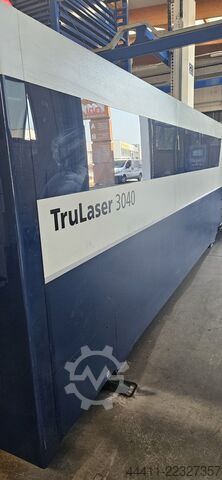

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2017, laser power: 6,000 W, CNC laser cutting machine TruLaser 3040 Fiber (L50) 6000 Watt X working area max.: 4000 mm Y working area max.: 2000 mm Z working area max.: 115 mm Control system: Siemens Sinumerik 840D SL Laser power: 6000 Watt Operating hours: 32408 hours Laser beam on: 18138 hours Sheet metal thickness, steel max.: 25 mm Sheet metal thickness, stainless steel max.: 25 mm Sheet metal thickness, aluminum max.: 20 mm Sheet metal thickness, copper max.: 8 mm Giodpfx Aezlpb Sohzsw Standard equipment Standard features Machine - Closed machine frame - Integrated cabinet with roller shutter - Torque drive in combination with linear direct drives - Closed beam guidance via laser light cable (LLC) - Cooling unit - Integrated control cabinets with interior lighting - Automatic sheet metal changer in longitudinal direction - 19" touch color screen - Longitudinal conveyor belt - Work area lighting - Positioning laser diode - Spray device - PierceLine - FocusLine - NitroLine - PlasmaLine - Automatic nozzle cleaning - Transport and assembly device TRUMPF Laser - Solid-state laser TruDisk 3001 with one LLC outlet - Excitation via pump diodes - Laser power control Cutting head - Universal cutting unit - Single cutting head strategy - Protective glass against lens contamination - Condition monitoring of the protective glass - ControlLine: Height control and sheet edge detection Control system - Control system SINUMERIK 840D SL - Simple workshop programming - TruTops Laser via network access - Fast reproduction - Integrated technology data - Automatic shutdown - Programmable cutting gas/pressure selection - ContourLine - FastLine - FlyLine - AdjustLine - Teleservice via Internet Data transmission - USB interface - RJ-45 network connection - Wireless Operation Point (basis for Visual Online Support) Safety - CE marking - Light barriers - Multi-chamber extraction system - Compact dust extraction system - Machine enclosure, certified viewing window, door on the right - Sliding roof - Nozzle changer - CoolLine

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2020, laser power: 6,000 W, CNC Laser Cutting System TruLaser 3040 Fiber (L81) 6000 Watt X Working area max.: 4000 mm Y Working area max.: 2000 mm Z Working area max.: 115 mm Control system: Siemens Sinumerik 840D SL Laser power: 6000 Watt Operating hours: 18581 hrs. Laser beam on: 13125 hrs. Sheet metal thickness steel max.: 25 mm Sheet metal thickness stainless steel max.: 25 mm Sheet metal thickness aluminum max.: 25 mm Sheet metal thickness copper max.: 10 mm Standard Equipment Machine: Working area: 3000 x 1500 mm Closed machine frame Cooling unit for machine and laser (water-air) Longitudinal conveyor Motion unit for highly precise machining Work area lighting Position laser diode Spray device Automatic nozzle cleaning Gantry drive in combination with linear direct drives Integrated control cabinets Integrated cabinet Closed beam guidance via laser light cable (LLK) Machine status indicator Machine ambient temperature 5 to 35 °C Laser: Excitation via pump diodes Laser power control Cutting head: 1-cutting head strategy Universal cutting head with adaptive lens system Protective glass Online condition monitoring of the protective glass Control system: Fast reproduction Control system SINUMERIK 840D SL Ergonomic control panel with 21.5″ wide-screen multi-touch color display Integrated technology data Copper cutting package • Cutting data O2 and N2 Brass cutting package • Cutting data N2 Automatic shutdown Programmable cutting gas / pressure selection Microweld Remote support interface Multi-sheet processing (• Not possible in combination with automation) Condition Guide Functions: AdjustLine ControlLine FastLine FlyLine NitroLine PierceLine (• Additionally available from TruDisk 6001: Regulation and monitoring of the piercing process) FocusLine Data transmission: Giodpjzln Udofx Ahzow USB interface RJ-45 network interface Central Link Online Update Manager • Automatic download of updates via remote support connection • Installation of the updates when the machine is switched on or by the customer or by TRUMPF service • To use, the Online Update Manager must be activated; deactivation is possible at any time by the customer. Safety: CE marking Light curtains Multi-chamber extraction system Machine enclosure with certified viewing pane, door on the right Extended Standard Equipment: Compact dust collector Sliding roof Automatic pallet changer in the longitudinal direction Support rails made of structural steel External solid-state laser TruDisk 3001 with 1 LLK output Power supply for TruDisk via the machine - External solid-state laser TruDisk 6001 - BrightLine fiber - Nozzle changer - Copper cutting package - Brass cutting package - Mobile Control App - Viewing pane, door on the left - HighSpeed Eco - RCI interface - CoolLine - DetectLine

Year of construction: 2017, condition: ready for operation (used), A Trumpf CNC 2D solid-state laser cutting machine is available. Laser source: Trumpf TruDisk 4001, laser power: 4kW, wavelength: 1030nm, working dimensions X/Y: 3000mm/1500mm, Z-axis travel: 75mm, max. workpiece weight: 900kg, max. simultaneous traverse speed: 140m/min, max. mild steel thickness: 25mm, pallet changers: 2. Machine dimensions X/Y/Z: approx. 8300mm/6800mm/2300mm, weight: approx. 7750kg. Documentation available. An on-site inspection is possible. Expected to be available starting 2027. Gedpjzk Nbcsfx Ahzjiw

Condition: excellent (used), Year of construction: 2010, Tekol / Trumpf Laser Welding System Tekol LAP S4 with TRUMPF TruPulse 44 and TBH GL230 Extraction Unit Description: For sale is a professional laser welding system Tekol LAP S4 equipped with an integrated TRUMPF TruPulse 44 pulsed Nd:YAG laser and TBH GL 230 extraction and filter unit. This system is an enclosed precision laser welding station designed for fine, pinpoint, and low-distortion welding of metal components. The pulsed laser enables highly controlled heat input, clean weld spots, and reproducible results. Ideal for precision engineering, toolmaking, repair welding, prototyping, and small series production. Enclosed safety housing with protection system, control panel, rotary indexing table, and extraction/filter system. Technical Data – Tekol LAP S4 Operating voltage: 400 V ~ N / PE Mains type: 3~ 400 V, 50 Hz Nominal current: 32 A (approx. 22.5 kVA) Control voltage: 24 V DC Dimensions: Length: approx. 1330 mm, Depth: approx. 1300 mm, Height: approx. 2030 mm Weight: Machine: approx. 800 kg Travel: X-axis: approx. 160 mm Y-axis: approx. 100 mm Z-axis: approx. 100 mm Rotary indexing table: 2-station Technical Data – Laser TRUMPF TruPulse 44 Laser type: Nd:YAG pulsed laser Wavelength: 1064 nm Max. average power: 42 W Min. pulse power: 201 W Max. pulse power: up to 3 kW Pulse duration: 0.2 – 50 ms Max. pulse energy: 30 J Max. pulse frequency: up to 900 Hz Gijdozizpcspfx Ahzow Beam parameter product: 16 mm·mrad Technical Data – Extraction Unit TBH GL 230 Voltage: 230 V / 50–60 Hz Power: 0.36 kW Free-blowing air volume: approx. 390 m³/h Effective air volume: approx. 330 m³/h Max. negative pressure: 4000 Pa Sound level: approx. 51 dB(A) Weight: approx. 40 kg Multi-stage filter system: - Pre-filter - Particle filter - Activated carbon filter Total weight approx. 900 kg Condition: used Scope of supply: (see photos) - Tekol LAP S4 laser welding system - TRUMPF TruPulse 44 laser unit - TBH GL 230 extraction unit - Documentation / folders / data carriers - Keys and accessories as shown (Specifications and technical details are subject to change and errors!) If you have further questions, please feel free to contact us by phone.
