Used Weiler Matador Vs2 for sale (251)

Condition: excellent (used), Year of construction: 2001, Length:1200mm Giodpfxsx Tp Dxe Alxjt Width:800mm Height:1200mm Weight:290kg

Condition: excellent (used), Year of construction: 2003, column diameter: 400 mm, drill diameter: 65 mm, Drilling ; Tapping in all directions Can be moved in 7 axes Fast preparation, accuracy and performence on heavy and bulky parts. Field using Turbines, Generators, Compressors, Steel Construction, Boilers Gjdpfxsyub Spo Alxeit Containers, Chemoical equipment, furnces of cement work and shipbuilding Arm Length: 2070mm Max. drill Ø cast: 65mm Max. tap Ø: 48M Stroke pinole: 350mm Max. distance spindle - table:1550mm Min. distance spindle - table:305mm Speeds / ranges: 900Rpm Spindle Taper: 5ISO/Bt/Mk Column sleeve: 400mm Power: 4kW Max. drill Ø steel: 50mm Length: 3500mm Width: 1325mm Height: 3400mm Weight: 6570kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: ready for operation (used), Year of construction: 2002, operating hours: 33,908 h, functionality: fully functional, CNC – Lathe Manufacturer: WEILER Model: E 35 D Year of manufacture: 2002 Technical data Brand: WEILER Model: E35 D Year: 2002 Gijdpfx Alsy R Uukjxjt Center distance: 950 mm Center height: 200 mm Turning diameter over bed: 410 mm Spindle bore: 54 mm Max. turning diameter: approx. 260 mm Spindle speed: 20 – 3000 rpm Power: 10 kW Dimensions: approx. L 2.60 x W 1.60 x H 1.70 m Weight: approx. 2.5 t Equipment • Operating manual • Coolant system • 3-jaw chuck • Collet chuck adapter All information subject to change without notice. A demonstration under power is possible at any time in our exhibition hall.

Condition: like new (used), Year of construction: 2015, GDW LZ 280 VC Lathe GDW LZ 280 VC with GDW digital display, year of manufacture 2015, in very good original condition. The machine comes from the special construction division of a renowned German engineering company. CE-compliant!! Technical Data: Year of manufacture: 2015 📐 Working Area & Dimensions • Center height: 165 mm • Distance between centers: 670 mm • Swing over bed: 330 mm • Swing over cross-slide: 190 mm • Bed width: 220 mm • Machine weight: approx. 1,100 kg • Footprint (L x W x H): approx. 1,570 x 1,035 x 1,800 mm ⚙️ Main Spindle & Drive • Speed range: 30 – 5,000 rpm (infinitely variable) • Drive power: 7.0 kW to 7.5 kW • Spindle bore: 43 mm • Spindle nose: DIN 55027 (size 5) 🛠️ Carriage & Tailstock • Cross slide travel: 165 mm • Top slide travel: 115 mm • Swivel range of top slide: +75° / -65° • Tailstock taper: MT 3 About the Machine: The GDW LZ 280 VC is the smallest machine in the GDW range. It is a lathe designed for the highest demands, featuring stepless speed control, constant cutting speed, and an impressive 7.5 kW drive power (at 40% duty cycle). This compact powerhouse excels in environments where space is at a premium but maximum precision is required, such as optics workshops, electrical and automotive workshops, laboratories, and even in Formula 1. Offered here is a GDW LZ 280 VC lathe with GDW digital display, year 2015. This lathe is in very good original condition. It comes from a company where it was only used occasionally for special construction projects. The machine features a very user-friendly control system. The guideways are regularly lubricated via central lubrication. The GDW LZ 280 VC has been mechanically and electrically tested by us. Take the opportunity to inspect and test the GDW LZ 280 VC under power on site. Gijdpoy Sbqnjfx Alxjt You can find more lathes from reputable manufacturers on our website.

Condition: used, Year of construction: 2000, functionality: fully functional, Lead and feed screw lathe Make: Weiler Model: Condor B Year of manufacture: 2000 Technical data Manufacturer: Weiler Model: Condor B Year: 2000 Centre height: 165 mm Centre distance: 750 mm Spindle bore: 40 mm Swing over bed: 330 mm Swing over cross slide: 185 mm Spindle speeds: 45 – 2800 rpm Longitudinal feed: 0.015 – 3.7 mm/rev Metric thread pitches: 0.18 – 28 mm Main drive motor: 1.5 / 3 kW Dimensions (LxWxH): approx. 1.83 x 0.90 x 1.30 m Weight: approx. 1020 kg Equipment includes: - 3-axis Heidenhain digital readout - 3-jaw chuck - Operating manual - Collet chuck - Tool holder All information subject to change; no liability assumed. Godoy Ryvajpfx Alxoit A demonstration under power is possible at any time in our showroom.

Condition: good (used), Weiler lathe Giedpfx Aljl Ayd Rsxjt Turning diameter bed: 280 mm Turning diameter support: 180 mm Turning length: 800 mm Spindle bore: 24 mm Speed max: 1600 RPM Diameter faceplate: 140 mm Included tools and coolant pumpe Dimensions: 156x70x133 cm LxWxH

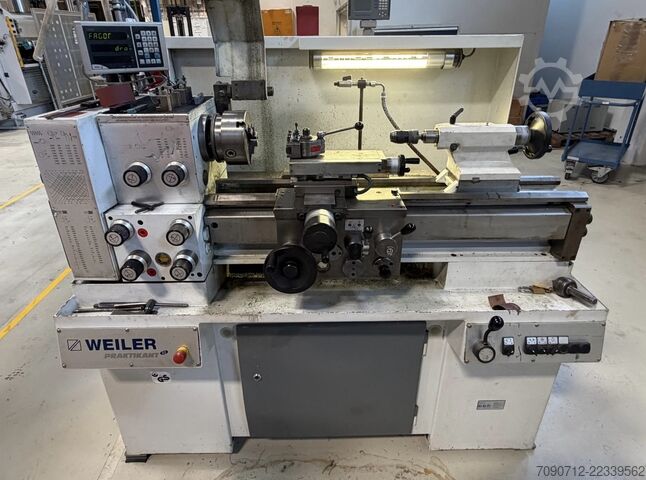

Condition: good (used), Year of construction: 1992, Centre lathe WEILER Type: PRAKTIKANT 160 B, Year of manufacture 1992, equipped with 3-axis digital readout Heidenhain, 160 mm RÖHM chuck, Multifix B tool holder, tailstock with centre, collet clamping device with collets from 1 to 29.5 mm, coolant system. Turning diameter over bed: 320 mm Turning diameter over cross slide: 198 mm Turning length: 650 mm Spindle bore: 40 mm Spindle speed: 96 – 2500 rpm Further data see machine card. Guideways are in good condition, machine documentation available. Giedpfjy Rpr Rex Alxjt

Condition: good (used), functionality: fully functional, used 6-position turret tool changer for Weiler 260 Giedpfjy Rx I Ijx Alxjt

Condition: good (used), Year of construction: 1996, functionality: unexamined, turning diameter over cross slide: 700 mm, turning length: 2,000 mm, turning diameter: 700 mm, spindle bore: 106 mm, spindle speed (max.): 1,800 rpm, For sale: 1 unit used lead- and feed-screw lathe Manufacturer: Weiler Werkzeugmaschinen Model: E70 Year of manufacture: 1996 Technical data: Centre height: approx. 355 mm Swing over bed: approx. 700 mm Godpfxjy R Dyvj Alxeit Swing over cross slide: approx. 420–450 mm Distance between centres: 2000 mm Spindle bore: 106 mm Including the illustrated documentation, chip conveyor and Sauter tool holder. The machine can be inspected at our warehouse in 09599 Freiberg.

Condition: reconditioned (used), Year of construction: 1989, Universal lead and spindle lathe Make: WEILER Model: Condor B Year of manufacture: 1989 - overhauled newly painted RAL 7035 light gray Mach. No.: 1401 with guarantee Accessories: - 3-A digital display FAGOR Innova 30i T, new - Chuck protection hood with electrical fuse, new Giodpfx Aog R S Rcslxot - Quick-change tool holder base body size B - Bed stop - Coolant device - Chip back wall - Operating instructions -used, as seen -

Condition: reconditioned (used), Year of construction: 1977, Engine Lathe Brand: WEILER Model: MDU 260 Year of manufacture: 1977 – workshop tested Machine no.: 14942 Centre height: 125 mm Spindle bore: 28 mm Accessories: - Electrically operated chuck guard - 3-jaw chuck Ø 140 mm incl. set of turning jaws incl. set of boring jaws - 4-jaw chuck Ø 140 mm incl. set of turning jaws incl. set of boring jaws - Safety chuck key - Manual clamping device - Collet set W28 (366E) - Set (25 pcs.) collets W28 (366E) from 1.0-25.0 mm in 1.0 mm steps - Fixed centre for headstock W28 (366E) - Quick-change toolholder Gedpfexv A I Tox Alxsit Body size A - Operating manual Used as seen, without warranty The machine is technically in accordance with the state of the art of its year of manufacture.

Condition: refurbished (used), Year of construction: 2007, Universal lead and feed spindle lathe Make: WEILER Model: Primus VC Year of manufacture: 2007 - overhauled newly painted RAL 7035 light gray Mach. no.: CK17 Center height: 140 mm Center width: 500 mm Spindle bore: 40 mm with guarantee geometric acceptance with test report Accessories: - 3-A digital display SIEMENS - Chuck protection hood with electrical protection - Drive motor braked - Quick-change tool holder base body size A - Bed stop - Covered lead and feed spindle - Chip rear wall Gjdpfx Alsv D Ip Nexjit - Pull-out chip tray - Operating instructions - Used, as seen -

Condition: reconditioned (used), Year of construction: 1990, Universal lead and feed spindle lathe Make: WEILER Model: Praktikum 160 B Year of manufacture: 1990 - overhauled newly painted RAL 7035 light gray Mach. no.: 90-160-2054 Center height: 160 mm Center width: 650 mm geometric acceptance with test report Accessories: - 3-axis digital display FAGOR Innova 30i T - covered lead and feed spindle - braked drive motor - coolant system - electrically secured chuck protection hood - quick-change tool holder size A - simple bed stop - chip back wall - operating instructions with guarantee Giedpfx Ajhy Tdyelxjt used as seen The machine is technically corresponding to the state of the year it was built.

Condition: reconditioned (used), Year of construction: 1974, Universal lead and spindle lathe Make: WEILER Model: Commodor Year of manufacture: 1974 - overhauled newly painted RAL 7035 light gray Mach. no.: 0068 Gisdpfjmgaddsx Alxst Center height: 180 mm Center width: 1000 mm Spindle bore: 56 mm with guarantee geometric acceptance with test report Accessories: - 3-axis digital display FAGOR Innova 30i-T new - Chuck protection hood with electrical protection - Quick-change tool holder size B - simple bed stop - Coolant device - Operating instructions - used, as seen -

Condition: good (used), Centre height: 125 mm Distance between centres: 800 mm Max. turning diameter over bed/over slide: 280/245 mm Spindle mount, thread according to DIN 800 Spindle bore: 24 mm Infinitely variable spindle speeds: 26 - 2000 rpm 36 longitudinal feeds: 0.019 - 0.528 mm Metric thread pitches: 0.25 - 6 mm 44 inch threads: 4 - 112 TPI Electrical connection: 380 V, 0.7/1.4 kW Required space: Gsdpfx Asyu R H Nelxeit Approx. weight: 500 kg

Condition: ready for operation (used), Year of construction: 1999, travel distance X-axis: 230 mm, travel distance Z-axis: 950 mm, controller manufacturer: SIEMENS, controller model: Sinumerik 810D, number of axes: 2, Horizontal turning machine manufactured in 1999. This Weiler E35 D features a Siemens Sinumerik 810D control with Weiler D1 user software and a 12.1-inch TFT color flat screen. It includes a coolant unit with a flow rate of 30 l/min and a tool holder for quick-change operations. If you are looking to get high-quality turning capabilities, consider the Weiler E35 D machine we have for sale. Contact us for further details. • Control: Siemens Sinumerik 810D with Weiler D1 user software • Display: 12.1-inch TFT color flat screen • Operating voltage: 400 V • Control voltage: 24 V • Connected load: 14 kW • Nominal current: 26 A • Frequency: 50 Hz Godpjy Nlvcjfx Alxjit • Main fuses: 35 A • Coolant unit: 30 l/min at 0.4 bar • Tool holder: Multifix quick-change size B • Features: Teach-in functions; graphic-supported contour programming; V-24 interface; electronic handwheel for manual contour following Additional equipment • Included accessories: 1 change holder; fixed center point; spindle plug; key set; manuals; chip protection wall; movable splash guard; chuck guard with limit switch monitoring • Optional equipment included: Fixed steady rest with roller jaws (12–150 mm); adjustable hollow spindle stop; lever-operated collet chuck for DIN 6343-48 (173E) Technical Specification Counter Spindle No Driven Tools No

Condition: excellent (used), Year of construction: 2004, Weiler Primus VC Giodpfjy I U Dyjx Alxet Lathe Primus VC with Heidenhain digital readout, year of manufacture 2004, in excellent original condition. The machine comes from the prototype workshop of a renowned German mechanical engineering company. CE compliant! Technical Data: Year of manufacture: 2004 Weiler Primus VC Center height: 140 mm Center distance: 500 mm Spindle bore: Ø 40 mm Tailstock taper: MT3 Quill stroke: 85 mm Thread types: Metric, Inch, Module, Diametral Pitch Metric thread pitches: 0.25 – 8 mm Spindle brake: switchable Voltage: 400 V Dimensions: approx. 1.50 x 1.00 x 1.50 m (L x H x W) Weight: approx. 700 kg Additional equipment and accessories: Heidenhain control panel, chuck guard, leadscrew and feed shaft cover, emergency stop, operating manual, CE conformity declaration About the machine: The Weiler Primus VC is the smallest machine in the Weiler range. The Weiler Primus VC is a lathe for the highest demands: with stepless speed control, constant cutting speed, and a powerful 4 kW drive (40% duty cycle). The compact machine of great quality is found wherever maximum precision is required in limited spaces: such as in optical, electrical, and automotive workshops, laboratories, and even Formula 1. Offered here is a Weiler Primus VC lathe with Heidenhain digital readout, year of manufacture 2004. This lathe is in excellent, original condition. It comes from an operation where it was lightly used only for prototype construction. Very easy-to-use controls. The guideways are regularly lubricated via central lubrication. The Weiler Primus VC has been mechanically and electrically tested by us. Take the opportunity to view and test the Weiler Primus VC under power at our site. Further lathes from well-known manufacturers can be found on our website.

Condition: good (used), Year of construction: 1991, Machine type Lathe - cycle-controlled Manufacturer WEILER Type E30 year of construction 1991 Control Weiler Country of origin Germany Additional information Cycle-controlled lathe WEILER - E30 Technical details Turning diameter max. 330 mm Turning length 750 mm Weiler control Center height 165 mm Swing diameter over bed 330 mm Max. turning diameter over facing slide 160 mm Godpfxjr Dvqze Alxeit Face slide travel 180 mm Longitudinal bed slide travel 395 mm Main spindle: Speed range - main spindle 1 - 4,500 min/-1 Drive power - main spindle 9 / 11 kW Max. Torque 165 Nm Spindle head DIN 55027 / 5 Spindle diameter in front bearing 70 mm Spindle bore 40 mm Usable bar diameter ( - ) mm Tool holder: Type MultiFix Turning tool shank cross-section 20 x 20 mm Tailstock: Quill stroke 110 mm Quill diameter 50 mm Tailstock holder MK 3 Feed rates: Rapid traverse max. 10 m/min Feed force 6 / 3 kN Feed range 0 - 20 mm/-1 Thread cutting: metric 0.1 - 400 mm Inch 1/4 - 56 G/1" Module 0.125 - 28 mm.II DP 1 - 224 G/".II Number of threads max. 50 Total power requirement 10 kVA Machine weight approx. 1.5 t Space requirement approx. 2.8 x 2.0 x 2.0 m

Condition: excellent (used), turning diameter over bed 260 mm spindle passage 28 mm turning length 300 mm centre height 130 mm Giedpfx Ajy Ivdzolxst turning speeds 125 - 2800 U/min total power requirement 3 kW weight of the machine ca. 0,8 t dimensions of the machine ca. 1,4 x 0,6 x 1,4 m

Condition: ready for operation (used), L&Z Lathe WEILER LZ 330 incl. new 3-axis digital readout (from educational facility) Godpfx Aoy Id Uhelxeit - "NEW" 3-axis digital readout - Center height 165 mm - Swing over bed 330 mm - Turning length 800 mm - Spindle speed range (gearbox) 25–2800 rpm - Automatic longitudinal/cross feeds - New Multifix toolpost with holders - Three-jaw chuck - Collet system with 20 collets - Original copy attachment - Various accessories - Documentation Dimensions (LxWxH): 1.8x0.7x1.6 meters / Weight: 800 kg Errors and omissions excepted.

Condition: ready for operation (used), Year of construction: 2008, spindle speed (max.): 2,500 rpm, travel distance X-axis: 340 mm, travel distance Z-axis: 2,000 mm, spindle motor power: 20,000 W, controller manufacturer: SIEMENS, controller model: Sinumerik 810D, number of axes: 2, Horizontal turning machine manufactured in 2008. This Weiler E50x2000 features a center distance of 2000 mm and a swing over bed of 570 mm. It has a spindle bore of 83 mm and a maximum torque at the spindle of 1600 Nm. Fully overhauled in 2026, it includes significant upgrades for enhanced performance. If you are looking to get high-quality turning capabilities, consider the Weiler E50x2000 machine we have for sale. Contact us for further details. • Control system: Weiler D3 with Siemens Sinumerik 810D • Center distance: 2000 mm Gisdpfxjy H E Aks Alxst • Center height: 280 mm • Swing over bed: 570 mm • Swing over cross slide: 340 mm • Cross slide travel: 340 mm • Bed slide guide length: 560 mm • Spindle head: DIN 55025, size 8 • Spindle bore: 83 mm • Main spindle internal taper: Metric 90 • Main drive power: 20 kW (60% duty cycle); 17 kW (100% duty cycle) • Maximum spindle torque: 1600 Nm • Speed range: • Gear stage 1: 1–625 rpm • Gear stage 2: 4–2500 rpm • Tailstock quill diameter: 80 mm • Tailstock quill stroke: 200 mm • Tailstock quill taper: Morse taper 5 • Tool holder system: Multifix size C or Parat size 3 • Availability: machine available soon • Overhaul: will be fully overhauled in 2026 • Hardening and grinding of all bed guides; grinding of tailstock guides • Overhaul of complete bed and cross slide assembly (grinding/scraping of all guideways) • Renewal of bed slide sliding lining • Renewal or relining of keyways and lower guides • Installation of a tool system on a console (Multifix C or Parat Gr.3) • Overhaul of complete spindle housing assembly • Regrind main spindle (internal/external taper and face) • Renewal of main spindle bearings • Renewal of X-axis ball screw drive incl. bearings • Renewal of Z-axis ball screw drive incl. bearings • Overhaul of tailstock quill and bore; replacement of spindle and nut • Renewal of all guideway wipers • Replacement of all drive belts • Cleaning and testing of main spindle motor • Overhaul of existing safety devices • Replacement of defective rotary, rocker, and limit switches • Replacement of spindle and handwheel encoders • Cleaning and testing of the central lubrication unit • Replacement of movable cables and coolant hoses in the work area/to the monitor • Replacement of the membrane keypad (monitor) • Renewal of the energy chains • Painting in standard colors (standard texture) • DGUV and high-voltage testing with test report • Data backup of machine parameters/software • Geometric acceptance testing according to DIN 8605 Additional equipment • Chip conveyor: used unit included • Optional accessory: additional chip conveyor availableThe machine will be overhauled in July the pictures are only refreneces of how it would look like. Technical Specification Counter Spindle No Driven Tools No

Condition: used, Year of construction: 1999, turning length: 1,000 mm, turning diameter: 500 mm, spindle bore: 80 mm, spindle speed (max.): 2,500 rpm, capacity 1000x570 mm, spindle bore 80 mm, Multifix turret, Siemens control Gisdpsy E Hvvjfx Alxjt

Condition: ready for operation (used), Year of construction: 2005, L & Z Lathe / WEILER DA 210x1000 / With new 3-axis digital readout - Year of manufacture: 2005 - CE marking - Guideways in good condition - FULL TECHNICAL DATA SEE PHOTOS - Three-axis digital readout "NEW" Gsdpfx Alsy H Ikqoxeit - Quick-change collet system incl. 79 collets (173E) - Multifix base holder with inserts - 3-jaw chuck - Electrical chuck guard - Additional sliding guard - Coolant system - Drill chuck / live center - Chip guard rear wall - Work light - Complete documentation Dimensions: LxWxH 2.8x1.2x1.8 meters / Weight 1600 kg Errors / input mistakes excepted.

Condition: excellent (used), Year of construction: 2020, Steady rest for WEILER E40 and E50 lathe In very good condition. Giedpfjtx Avkjx Alxst Price for E40 steady rest: €2,500 Price for E50 steady rest: €2,850 Clamping range: 10 – 150 mm.

Condition: new, Year of construction: 2025, - New machine - Precision lathe with automatic cycle control, for chuck and shaft machining. Brand: WEILER | Model: E 120 x 4500 | Year of manufacture: 2025 The precision giant. A powerful and energy-efficient production lathe with optimum accessibility. The machine for heavy workpieces. Maximum cost-effectiveness from turning to milling. Gijdpfxey Hfy Aj Alxot Precise and universally applicable, it impresses with: - State-of-the-art control and drive technology - Extremely simple operation and programming - Highest accuracy - Longevity - User-friendly ergonomics TECHNICAL DATA / ACCESSORIES, EQUIPMENT: Control system: Weiler cycle control ONE 1 (Siemens) Working range: - Centre height: 600 mm - Swivel diameter over bed: 1.200 mm - Swivel diameter over cross slide: 830 mm - Centre distance: 4.500 mm Extensive, high-quality equipment. Sales within Germany include a 24-month warranty. No guarantee is given as to the completeness and accuracy of the technical specifications or the equipment. - Subject to prior sale - Detailed technical data sheet and information on the equipment available on request.
