Used Hole Punch for sale (4,713)

Year of construction: 2015, condition: ready for operation (used), functionality: fully functional, GBC Magnapunch Pro punching machine Operation: foot pedal or table switch Working width: 356 mm Formats: up to DIN A4 (oversized) Productivity: up to 49,000 sheets per hour Power supply: 230 V / 50 - 60 Hz Kjdpey Tm Arefx Agpsdl Dimensions: 510 x 450 x 270 mm (D x W x H) Weight: 50.3 kg

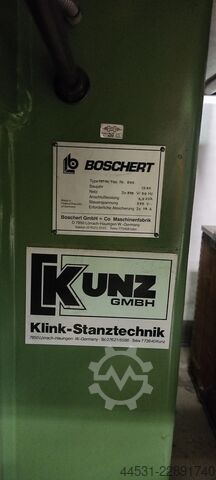

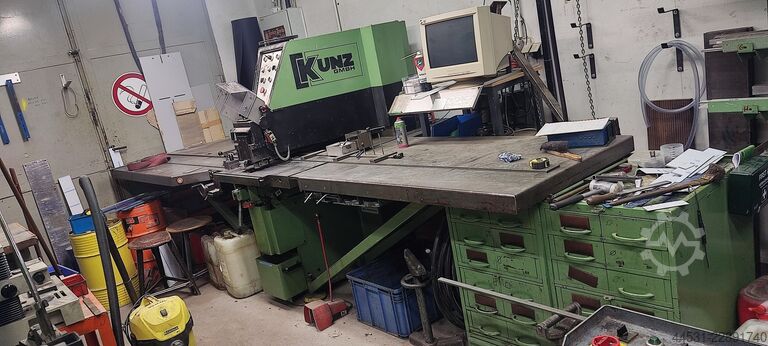

Year of construction: 1995, condition: ready for operation (used), Immediately available at location: Boschert punching nibbling machine Type KST 40 / 750 PowerLine digital Year of manufacture 1995 Press force 40 tons Stroke height 40 mm Punch diameter max 105 mm Sheet thickness max 10 mm Extension tables left and right Quick-change system Ksdpfx Ajy Tmtksgpsdl Digital backgauge system x-axis 0 – 1500 mm left y-axis 0 – 750 mm Tools Weight 3 tons At the price of Euro 2,000.-- plus VAT ex location.

Condition: used, Used machine Used Ganner Compact 30 line boring machine Equipment and technical data: 2 drilling beams with 15 spindles each Pitch 32 mm Position adjustment drilling unit 0 - 650 mm Distance between the rows of drill holes at least 190 mm Spindle speed 2800 rpm Ksdpfxjwhuh Ss Agpsdl Motor power 2 x 0.75 kW Clamping height of the workpieces max. 70 mm Working height 850 mm Compressed air connection 6 bar Availability: by arrangement Location: Solingen

Condition: used, Semi-automatic table punching machine Kdodpfx Ajy Tzdkegpsl Working width max. 340 mm Punching thickness up to 3.5 mm (recommended 2.0-2.5 mm) Mechanical cycle rate up to 1,200 per hour Tools: 2:1, 6.0 mm, Ø 2:1, 6 x 6 mm, Square

Condition: used, Year of construction: 1981, machine/vehicle number: 800 02 81 46, type of input current: three-phase, Specialized EDM drill (eroding machine / hole starter EDM machine) Ksdoy Su Iyspfx Agpsdl This machine is primarily used in metalworking as a hole starting EDM machine or for spark eroding the removal of broken tools (such as taps, drills, or reamers) from valuable workpieces. This is done with extreme precision without damaging the surrounding thread or material.

Condition: excellent (used), Year of construction: 2010, Helmerding Press Type: KDH 315/2100/2 Pressing force: 3,150 kN Stroke height: 40–200 mm Strokes per minute: 20–100 min⁻¹ Ram adjustment: 120 mm Shut height: 500 mm Table size: 2,000 x 1,200 mm Ram surface: 2,000 x 1,100 mm Machine weight: 44,000 kg Kdsdpoy Tqahefx Agpjl Helmerding Roller Feeder Type: EWH 800/150 Strip width: 100–800 mm Strip thickness: 0.5–6.0 mm Helmerding Straightening Machine Type: R-70/800/9-S Strip width: 100–800 mm Strip thickness: 0.5–5.0 mm Roll diameter: 70 mm Number of straightening rolls: 9 pcs Helmerding Decoiler Type: HE-4/800/MOT/HYD Strip width: 100–800 mm Max. coil weight: 4,000 kg Coil inner diameter: 508 mm Coil outer diameter: 1,000–1,600 mm

Condition: excellent (used), Year of construction: 2001, Kaiser Punching Press Model: KSTU 4000-25-6P Press force: 4,000 kN Table size: 2,500 x 1,250 mm Ram surface: 2,500 x 1,100 mm Shut height: 700 mm Ram stroke: 40-250 mm Ram adjustment: 200 mm Strokes per minute: 20-100 1/min Control: Siemens S7 Kjdpey Tp U Dofx Agpodl Required space: 4.8 x 3.2 x 4.8 m (LxWxH) Weight: 78,000 kg PBK Straightening Machine Strip width: 120 - 800 mm Strip thickness: up to 6.0 mm ARKU Decoiler Load capacity: 8,000 kg

Condition: excellent (used), Year of construction: 2001, HELMERDING Press KDH 400/2600/2 Pressing force 4,000 kN Kdodjy Tp Uqopfx Agpel Stroke rate 15-60 strokes/min Stroke adjustment 80-250 mm Ram adjustment 175 mm Installation height 550-800 mm Table surface 2,500x1,600 mm Ram surface 2,500x1,400 mm Pass-through hole in the press table 1,300x800 mm Weight 106,000 kg Strip feed system EWH 600/150 Strip width 80-600 mm Strip thickness 0.6-6.0 mm Max. coil weight 7,500 kg Transfer system GT-X500-Y200-Z100 DX stroke (feed) 578 mm DY stroke (closing) 300 mm DZ stroke 600 mm Z adjustment (table bottom edge) 50-650 mm Clearance 400-1000 mm

Condition: excellent (used), Year of construction: 2005, Manufacturer: Helmerding Presse Kdjdpfx Asy Tp Uksgpel Press force: 5,000 kN Stroke adjustment: 97–400 mm Strokes per minute: 10–80 1/min Tool installation height: 800 mm Ram adjustment: 200 mm Ram area: 3,000 x 1,400 mm Table area: 3,000 x 1,400 mm Motor power: 90 kW Press weight: 120,000 kg Including transfer and coil line.

Condition: excellent (used), Year of construction: 1999, Manufacturer: Müller Weingarten Press Type: HUQ 630.40 Pressing force: 6,300 kN Table area: 4,000 x 1,600 mm Ram area: 4,000 x 1,600 mm Ram stroke: 124-400 mm Kedpfx Aoy Tp Udogpjdl Ram adjustment: 200 mm Strokes per minute: 10-60 1/min Tool change system: tool change cart Including transfer and ARKU strip feeding line

Condition: used, Year of construction: 2001, Rotary die-cutting machine, model BRS-320-D20-U800, with accessories Production direction: right to left Strip infeed basket with strip guide Driven feed, lower roller driven Upper roller adjustable manually Kdjdpsy Szlxefx Agpol Internal lateral strip guides 2 rotary die-cutting heads, quick-change system, many adjustment options 4 rotary die-cutting stations, for changing Strip outfeed basket Scrap conveyor Wheel displacement for transferring material from the machine line to rollers Protective covers with safety interlocks Includes die-cutting tools Includes control system and operator panel Includes electrical documentation Includes original documentation All plug connections use Harting connectors This machine was used to punch C-rails and DIN rails from 2-3 mm sheet metal. It operated flawlessly in production at the customer's plant until it was dismantled. We can provide support for integrating the machine into an existing profiling system or other applications.

Condition: used, Rotary punching machine, model BRS, with accessories Production direction: left to right Strip infeed basket with strip guide Kdodpfxjy Syivo Agpol Driven feed, driven lower roller Upper roller adjustable manually Internal lateral strip guides 2 rotary punches, numerous adjustment options Strip outfeed basket Scrap conveyor belt Wheel displacement for transferring material out of the production line to rolls Protective covers with safety interlocks Including punching tools Including control system and operating panel Including electrical documentation The machine was used to punch C-rails and hat sections from 2 mm sheet metal. It operated flawlessly in the customer's production facility until it was dismantled. We can provide support for integrating the machine into an existing profiling system or other equipment.

Condition: used, Year of construction: 2024, Dowel Hole Drilling Machine GANNOMAT "DB 21400V, 3Ph, 50Hz / 1.5 kW" complete in standard configuration, equipped with: - Fully automatic electronic control with pulse operation via foot pedal for clamp-drill-release sequence, including electrical skip operation. - Automatic return of the drilling unit after reaching the preset drilling depth. - Automatic drilling depth extension for end-face drilling. This saves the need to adjust the drilling depth when switching from flat-face to end-face drilling (+10 mm, e.g., with dowel length 35 mm, flat-face drilling depth 14 mm, end-face drilling depth 24 mm). - 1 drilling beam with 21 spindles, 32 mm pitch, 1.5 kW motor (drilling feed 0-70 mm). Includes 21 quick-change chucks (Ganner system) for easy drill bit changeover. - Easy pivoting of the drilling unit from 0° to 90°, assisted by gas cylinders. - 1 clamping beam movable on Y-axis with 3 pneumatic clamping cylinders, for workpieces up to max. 80 mm height. Ideal fence system consisting of: - 1 stop ruler, 1800 mm, for shelf drilling (aluminum profile 40x40 mm) with 3 drop-in stops. - Quick-change system, easily switchable from right to left stop for mirrored drilling of shelves in carcass construction; also suitable for line boring in system 32. - Side stops and position adjustments, as well as drilling height position, via mechanical digital counters on the support table. - Side stops can be easily folded away for fastest set-up change from carcass to frame or line drilling. - Clamping arms for the clamping beam enable line boring positions up to max. 300 mm. - Optimized three-stage tool system. Includes 1 set of dowel drill bits: - 5 carbide dowel bits, Ø 8x77 mm, right - 4 carbide dowel bits, Ø 8x77 mm, left Basic machine Dowel Hole Drilling Machine GANNOMAT "DB 21400V, 3Ph, 50Hz / 1.5 kW" complete in standard version, equipped with: - Fully automatic electronic control with pulse operation via foot pedal for clamp-drill-release, electrical skip operation. - Automatic return of the drilling unit after reaching the preset drilling depth. Kdsdpfx Agexnlflepel - Automatic extension of drilling depth for end drilling saves the need to adjust depth when switching from flat to end drilling (+10 mm, e.g. for dowel length 35 mm, flat-side depth 14 mm and end-side depth 24 mm). - 1 drilling beam with 21 spindles, 32 mm pitch, 1.5 kW motor (drilling feed 0-70 mm). Includes 21 quick-change chucks (Ganner system) for easy drill changeover. - Easy pivoting of the drilling unit from 0° to 90°, gas spring assisted. - 1 clamping beam, Y-axis adjustable, with 3 pneumatic clamps for workpieces up to max. 80 mm high. - Ideal stop system comprising: - 1 stop ruler, 1800 mm, for shelf drilling (aluminum profile 40x40 mm) with 3 drop-in stops, quick-change system, easily switched from right to left for mirrored shelf drilling in carcass constructions, also usable for line boring in system 32. - Side stops and adjustable positions, as well as drill height position, via mechanical digital counters on the support table. - Side stops can be folded away easily for shortest retool time from carcass to frame and line boring operations. - Clamping arms for the clamp beam suitable for line-boring positions up to max. 300 mm. - Three-stage optimized tool system. Extraction funnel, dust tested, Ø 120 mm 1 set for line boring in system.

Condition: used, Year of construction: 1997, operating hours: 50,161 h, machine/vehicle number: 080163, Trumatic 600L 1600 for sale. Punching part is in good condition. Laser part needs to be looked after Ksdpfx Asu Hxmzegpodl

Condition: used, Year of construction: 2013, Punching capacity 220 kN laser capacity in Watt 4000 travel -x axis 2500 mm travel -y axis 1250 mm Cutting capacity structural steel 8 mm Cutting capacity stainless steel 8 mm Cutting capacity aluminum 6 mm workpiece weight 280 kg weight of the machine ca. 24.000 kg dimensions 10130 x 8898 x 2328 mm Kdodpfxey D T S Uo Agpjl Includes DORNER 2200 Series conveyor belt Operating hours: - Approx. 7,880 h Standard equipment: - Travelling ball-bearing tables - Linear magazine for tool stations and clamping jaws - 22 tool stations, 3 clamping jaws - Foot switch for closing the jaws - Flap for stamped parts 500 x 500 mm incl. sensor - Chip container - 2 good parts containers (stamping and laser side) - Initial fill of hydraulic oil - FocusLine - NitroLine - FastLine - Additional Xp and Yp axes - Ejection cylinder for laser parts - High-speed flap for laser parts 500 x 500 mm incl. sensor - Liftable laser cutting table - Liftable laser cutting table - Slag cone detection TRUMPF Laser: - CO2 laser TruFlow 2700 incl. LensLine and optimized StandBy - Maintenance-free turbo radial blower - High-frequency excitation - TASC laser control Cutting head: - Lens cutting head with 170 mm lens - Universal quick-change device (UTI) with bus connection - ControlLine Punching head: - Electro-hydraulic punching head - Hydraulic single-tool holder with 360° rotation - Programmable hold-down device (active/passive/re-adjustment) - Tool length compensation - Spray lubrication for punch - Punching scrap extraction - Level monitoring for thread forming and tool lubrication Control system: - Open control system based on Rexroth IndraMotion MTX - 15" TFT color screen - Teleservice via the Internet - Automatic shutdown - Production plan Data transfer - USB interface - RJ45 network connection Safety: - CE marking - Dual-beam safety light curtains - Emergency stop

Condition: good (used), Year of construction: 2000, Punch press Manufacturer: EHT Ksdpeul S Eaefx Agpjdl Type: Strippit 1500/30 Year of manufacture: 2000 CNC control: Fanuc Working area without repositioning: 2500 x 1500 mm Maximum material thickness: 8 mm Punching force: 30 tons Turret with 46 tool stations, including 4 indexing stations, size D 3 programmable clamps Metal table Used exclusively in single-shift operation Includes tools from WILSON TOOL 19526

Condition: good (used), Year of construction: 1985, FOR SALE: Automatic Stamping and Bending Machine BIHLER RM-30 High-performance equipment for the automatic production of complex metal parts from wire or strip material. Identification and Brand Brand: BIHLER (Otto Bihler Maschinenfabrik, Germany). Model: RM-30. Year of manufacture: 1985. Machine number: 23589. Technical Specifications (Model RM-30) Maximum strip width: 32 mm. Maximum wire diameter: 3 mm (mild steel). Feed length (standard): Up to 120 mm. Nominal press force: 70 kN (7 tons). Production speed: Adjustable, up to 350 parts/minute (depending on complexity). Number of slides: Up to 5 standard bending units. Equipment and Configuration Control system: Separate control panel with user interface. Kodpfx Aey Shgpegpjdl Kinematics: Radial cam drive for maximum precision and repeatability. Press unit: Integrated for cutting, punching, or marking operations prior to bending. Safety: Machine equipped with protective guards and emergency stop. Advantages Versatility: Enables the production of highly complex parts in a single cycle. Bihler reliability: Renowned worldwide for robust construction and long-lasting mechanical components. Precision: Ideal for the electronics, automotive, and connector industries.

Condition: new, Year of construction: 2024, TP turret punch presses With Durma TP series punch presses, you can achieve top quality with precise and fast turret, improved hydraulics and 3 automatic index stations. With movable platen, part unloader, automatic clamps, Cad/Cam software and control unit, Durma turret punch presses are easy to use. With automation systems that increase both work safety and productivity, user safety is also increased while reducing wasted time. Punching force: 30 tons Kdjdpfog Admfsx Agpel Working area: 3.000+R x 1.500 mm X-axis movement: 3.000+R mm (repositioning) Y-axis movement: 1.500 mm Y-axis speed: 60 m/min X-axis speed: 70 m/min speed combined X+Y: 92 m/min max. stroke rate (in 1 mm steps, 1 mm sheet thickness): 1,100 1/min max. stroke rate (in 25 mm steps, 1 mm sheet thickness): 325 1/min max. marking speed: 1.200 1/min. main cylinder stroke: 40 mm max. punching stroke: 25 mm max. cutting capacity with fixed tool station steel: 6 mm max. cutting capacity with fixed tool station NiRo: 3 mm max. cutting capacity with index station Stah: 3 mm max. cutting capacity with index station NiRo: 1,5 mm Tool changer (27 stations without tool and holder): 11 x A-station fix: 0,8-12,7 mm 11 x B-station fix: 12,8 - 31,7 mm 2 x C-station fixed: 31.8 - 50.8 mm 1 x D station fixed: 50.9 - 88.9 mm 3 x D-station index: 50.9 - 88.9 mm Positioning accuracy: +/- 0.1 mm Repeating accuracy: +

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, The mortising machine is used to create the counterpart for the tenon. Kdsdpfx Ajy Tmrtjgpjl

Condition: good (used), functionality: fully functional, Year of construction: 2013, AVAILABLE FROM October 2026 Punching force: 220 kN Laser power in watts: 4000 Travel range - x: 2500 mm Travel range - y: 1250 mm Cutting capacity in structural steel: 8 mm Cutting capacity in stainless steel: 8 mm Cutting capacity in aluminum: 6 mm Workpiece weight: 280 kg Machine weight approx.: 24,000 kg Dimensions: 10130 x 8898 x 2328 mm Includes DORNER 2200 Series conveyor belt Operating hours: - Approx. 7,880 h Standard equipment: - Traveling ball-bearing tables - Linear magazine for tool stations and clamping jaws - 22 tool stations, 3 clamping jaws - Foot switch for closing the jaws - Flap for stamped parts 500 x 500 mm incl. sensor - Chip container - 2 good parts containers (stamping and laser side) - Initial fill of hydraulic oil - FocusLine Kdedoy Tm Dpopfx Agpel - NitroLine - FastLine - Additional Xp and Yp axes - Ejection cylinder for laser parts - High-speed flap for laser parts 500 x 500 mm incl. sensor - Liftable laser cutting table - Slag cone detection TRUMPF Laser: - CO2 laser TruFlow 2700 incl. LensLine and optimized StandBy - Maintenance-free turbo radial blower - High-frequency excitation - TASC laser control etc.

Condition: good (used), functionality: fully functional, Year of construction: 2000, Punching force, max.: 220 kN Sheet metal length: 2500 mm Sheet metal width: 1250 mm Laser power in watts: 3000 Sheet metal thickness: 8 mm Max. workpiece weight: 230 kg Ksdpey Tl U Hjfx Agpedl Machine weight, approx.: 23,000 kg Operating hours: - Laser on-time: 87,583 h - Beam on-time: 13,564 h

Condition: used, Used machine Used row drilling machine of the company Ganner type RB 107 Kodpfx Asw I Unwegpedl serial no.: 121627 Motor power: 1,5 kW Motor speed: 2800 rpm 1 drill beam with 26 spindles, center distance 32 mm 3 hold-down devices 1 foot switch Availability: short term Location: Röllbach

Condition: used, functionality: fully functional, Year of construction: 1989, machine/vehicle number: 4867, Pressta Eisele Stamping Machine HE 40 S Price: 2,000 Euros Kodpfx Agsy Tizkjpedl

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, Slot drilling machine, like new, hardly used. Kdodpfxoy Tk Ufe Agpol

Condition: used, functionality: fully functional, machine/vehicle number: 0171793397124, input voltage: 220 V, input frequency: 50 Hz, used Muhr & Bender HIW 550/510 Kdsdpfx Agjy Tivuopol Price negotiable
