Used Mas-Kovosvit Radial Drilling Machine for sale (67,346)

Condition: used, Year of construction: 1978, machine/vehicle number: 78004, type of input current: three-phase, We are offering this used Csepel 12UH/1600 radial drilling machine, year of manufacture 1978. Pedpfxeyh Uaqj Ag Dsgk Model: 12UH/1600 Serial number: 78004 Power type: 3~ Wiring diagram no.: 358000 If you have any questions or require further information, please feel free to send us a message or give us a call.

Condition: like new (used), Donau Donauflex 135 High-Speed Radial Drilling Machine Manufacturer: Donau Pgsdpfx Ajyucahog Dsk Model: Donauflex 135 Year of manufacture: 2020 Condition: Very good, used but like new Available immediately from stock.

Condition: good (used), Year of construction: 2003, functionality: fully functional, drilling capacity: 40 mm, quill stroke: 200 mm, quill diameter: 80 mm, Machine configuration • Work table 1200 x 750 mm with 5 T-slots • Arm travel 1050 mm • Drilling spindle SK 40 with tool clamping device • Infinitely variable spindle speed programming • Stepless quill feed via three-phase servomotor • 2 T-slots 18 mm at the rear of the machine base • 2 T-slots 18 mm on the left side of the machine base • Thread cutting device • Central lubrication • Coolant system • Machine lamp • CE marking • Safety device Dimensions and Travel Ranges Tool holder SK 40 Column diameter mm 195 Table size mm 1200 x 750 Number of T-slots 5 Distance between T-slots mm 125 Quill travel (Z-axis) mm 200 Column travel (W-axis) mm 410 Distance spindle lower edge – table top min mm 70 / max mm 680 Distance spindle lower edge – floor min mm 970 / max mm 1580 Drilling radius mm 540 - 1590 Working table height mm 900 Machining Capacities Drilling capacity solid St 60 Ø 40 GG 22 Ø 50 Thread cutting St 60 M 36 GG 22 M 42 Main Spindle Drive AC motor, frequency controlled kW 5.5 @ 100% duty cycle Speed range: min⁻¹ 15 - 2800 Torque Nm max. 250 Constant from min⁻¹ 15 – 2000 Feed Drives X-axis AC servo motor kW 0.25 Y-axis AC servo motor kW 0.25 Z-axis AC servo motor kW 4.50 W-axis AC servo motor kW 2.50 Rapid traverse speeds (X/Y/Z): m/min 7.5 / 7.5 / 5 Rapid traverse speed (W): m/min 3 Pgedpfjyuqmijx Ag Dek Feed rate stepless mm/min 5 – 2000 Accuracy Positioning accuracy X, Y axes over 1200 mm mm ± 0.075 Electrical Data Operating voltage / frequency V / Hz 400 / 50 Control voltage V 24 Hydraulic unit for clamping kW 0.75 Total connected load kVA 13.0 Weight Danumeric 440 (without packaging) with table 1800 x 600 mm kg 2800 CNC Control Axes: 4 (X, Y, Z, W), expandable Processor: 32-bit CPU Screen: TFT flat screen, backlit, easily readable from all sides, 215 x 160 mm Position indication: Cartesian or polar, values absolute or incremental Units: mm or inch or in degrees Interpolation: 2 axes (X, Y) Technology database: Tool management, tool suggestions by machining operation, material-dependent cutting data suggestions Tool management: up to 500 tools Subroutine technology: yes Machining Cycles Standard software options: Conversational programming, 38 zero point offsets, rotation and mirroring, teach-in for X,Y,Z axes, program re-start with selectable functions for targeted entry Zero point determination: Cycles for zero point determination by manual probing of the workpiece for: - arbitrarily mounted rectangular parts - arbitrarily mounted round parts - alignment of cast and flame-cut parts - angular position detection for round parts by probing reference edges or surfaces Test graphic: Graphical display of drilling patterns.

Condition: used, bore capacity in steel (diameter) 40 mm arm length 1600 mm Pgsdpfsyrtxvsx Ag Dsk bore capacity in cast iron 60 mm spindle diameter 85 mm tool taper MK 5 speeds 24 - 1050 U/min feeds 0,06 - 1,0 mm/U column diameter 345 mm vertical adjustment of the arm 900 mm thread cutting attachment ja Boring motor 5,5 kw total power requirement 7,5 kW weight of the machine ca. 4000 kg dimensions of the machine ca. 2,5 x 1,0 x 2,99 m Radial drilling machine - Mounting cube 750 x 500 x 500 mm - Digital display for boom travel - Coolant system - Good condition

Condition: like new (used), functionality: fully functional, throat depth: 1,200 mm, We offer this Bergonzi TR 40 radial drilling machine, year of manufacture unknown. MC4 Reach 1200 In truly like-new condition. Runs smoothly, a very tidy machine. Podpfx Asynw Adsg Dogk If you have any questions or would like more information, please feel free to send us a message or call us.

Condition: used, Year of construction: 1976, arm length 1450 mm Psdpfxjyn R N Dj Ag Degk taper MK 4 Cube ja weight of the machine ca. 3 t

Condition: new, Year of construction: 2026, functionality: fully functional, New KAO MING hydraulic radial drilling machine, year of construction 2026. Specifications: Maximum distance between spindle center and column face: 1250mm Minimum distance between spindle center and column center: 360mm Column diameter: 350mm Column height: 2685mm Base floor space: 2035x840mm Total floor space: 2335x1140mm Base height: 188mm Spindle head longitudinal travel: 890mm Vertical arm travel: 700mm Spindle travel: 300mm Spindle taper: MK5 Table work area: 1393x820mm Main spindle motor: 3.7kW (5hp) Spindle speeds: 25–1310rpm (12 steps) Feed range: 0.06mm/rev to 1.12mm/rev (12 steps) Drilling capacity in cast iron: 60mm Pgjdeykkhxepfx Ag Djk Drilling capacity in steel FC20/S45C: 50mm Weight: 3460kg

Condition: good (used), Year of construction: 1983, functionality: fully functional, Caser F50 radial drilling machine with quick-change chuck MK3. Psdpoyrytysfx Ag Degk

Condition: used, Year of construction: 1983, bore capacity in steel (diameter) 50 mm arm length 1250 mm workpiece height max. 1500 mm bore capacity in cast iron 60 mm threading . diameter of quill . mm spindle taper MT 5 turning speeds 28-2.500 U/min Max. drilling capacity taper: Diameter: 50 mm Max. spindle-to-table distance: 1500 mm Min. spindle-to-table distance: 320 mm Travel spindle: 310 mm KW: ??4 Podpfjyqv Ukex Ag Dsgk Volts: 400 Machine number: 869 Included: Clamping cube 1000x750x500 mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, bore capacity in steel (diameter) 32 mm arm length 640 mm workpiece height max. 950 mm bore capacity in cast iron 50 mm threading . spindle taper MT 4 turning speeds 88-1500mm (6x) U/min Max. spindle-to-table distance: 950 mm Min. spindle-to-table distance: 220 mm Quill stroke: 220 mm KW: ??1.5 Volts: 380 Machine number: 9028 Included: Clamping cube 600 x 445 x 380 mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. Podpfoyqvzkjx Ag Djgk We look forward to your visit. Your Markus Hirsch Team

Condition: used, bore capacity in steel (diameter) . mm arm length . mm workpiece height max. . mm The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity Pedpfxeyqvyae Ag Dogk More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: refurbished (used), functionality: fully functional, table length: 1,200 mm, table width: 500 mm, spindle mount: MK 3, height adjustment type: electric, Donau DR23 Radial Drilling Machine – Robust Quality Machine For sale is a reliable Donau DR23 radial drilling machine, ideal for workshops, metalworking, or industrial applications. The machine impresses with its sturdy design, high precision, and versatile applications for drilling, countersinking, and thread cutting. Details: Pedpfx Agjyrtkxo Degk Manufacturer: Donau Model: DR23 Radial drilling machine overhauled by Vaumtec Quick-change chuck Stable cast construction Adjustable arm for flexible machining of large workpieces Suitable for steel, aluminum, and other metals Forward and reverse rotation

Condition: ready for operation (used), Donau Danumeric 440 Radial Drilling Machine Drilling capacity (steel): Ø 40 mm Thread cutting: up to approx. M36 (depending on material) Tool holder: SK 40 Spindle speed: approx. 15 – 2,800 rpm (infinitely variable) Feed: infinitely variable approx. 5 – 2,000 mm/min Quill stroke (Z): 200 mm Column stroke (W): 410 mm Arm traverse: 1,050 mm Drilling radius: approx. 540 – 1,290 mm Arm swivel range: approx. 330° Column diameter: 195 mm You are welcome to arrange a viewing. Pgodpfx Agoyrdc Se Dok We can also organize affordable shipping for you! You will receive a proper invoice. For international customers, a net invoice can be issued (a valid VAT ID number is required). Interim sale reserved. Visit our shop and take a look at our other offers. All company names and trademarks mentioned are the property of their respective owners and are used for identification and description purposes only. Technical data may vary and errors in the item description are reserved.

Condition: good (used), Year of construction: 1998, DONAU DANUMERIC 440, year of manufacture 1998 Technical specifications: - Table 1800 x 600 mm, 4 T-slots - Drilling radius 540 – 1590 mm Pgodpfsyplb Rex Ag Dsk - Spindle taper SK40 - Speed range 15 – 2800 rpm - Motor power 5.5 kW - Weight approx. 2,800 kg

Condition: good (used), Csepel radial drill Type: RF50/1600 Arm lenght: 1600 mm Max drilling capacity: 50 mm Max spindle speed: 2000 1/min Height of the machine: 2830 mm Machine lenght: 2190 mm Machine depth: 950 mm Weight: 3050 kg Pgedpfx Agoyubmtj Djk Under power in our warehouse.

Condition: new, functionality: fully functional, input voltage: 400 V, type of input current: three-phase, tool diameter: 60 mm, spindle mount: MK 5, rotational speed (max.): 2,000 rpm, rotational speed (min.): 38 rpm, overall weight: 3,800 kg, Equipment: CE marking, The RD 1600 VARIO radial drilling machine is a professional device for drilling holes in metal, wood, and other materials. Thanks to its high power and robust design, it ensures fast and precise drilling even under the most demanding conditions. The powerful 4.0 kW motor is equipped with a frequency inverter and offers a wide speed range of 38–2000 rpm. The arm, spindle head, and column each feature independent hydraulic clamping. The worktable measures 1740 x 980 mm, and the machine is equipped with automatic spindle feed, a coolant system, and motorized arm height adjustment. Maximum drilling capacity is 60 mm; tapping capacity up to M46. Standard features include stepless speed control with readout on a digital display, high spindle alignment with automatic brake, arm, head, and column all fitted with independent hydraulic clamps, a solid base suitable for machining large workpieces, and a massive, ground column ensuring smooth arm movement. The arm's motorized lifting function allows for series production without changing the spindle position. Control panel buttons allow locking/unlocking the head and column either together or individually. The arm guides are hardened and ground, and the machine's perfect balance ensures ideal feed of the spindle. Ideal for drilling, counterboring, reaming, and tapping. Technical specifications Maximum drilling capacity: 60 mm Maximum tapping capacity: M46 Spindle taper: MT5 Minimum spindle speed: 38 rpm Maximum spindle speed: 2000 rpm Spindle speed change—number of ranges/stepless: Stepless (38–275, 275–2000) Drive method: Gearbox Automatic spindle feed range: (8) 0.06–1.00 mm/rev Min. spindle/column distance: 350 mm Max. spindle/column distance: 1600 mm Spindle/table distance: 165–750 mm Min. spindle/base plate distance: 665 mm Max. spindle/base plate distance: 1250 mm Vertical travel of arm with head: 585 mm Horizontal travel of drilling head: 1250 mm Quill stroke: 325 mm Column diameter: n/a Cube table size: 750 x 500 x 500 mm Base plate working area: 1740 x 980 mm Motor power: 4 kW Voltage: 400 V Dimensions (W x D x H): 2600 x 1100 x 2770 mm Weight approx.: 3800 kg Scope of delivery Cube table MK 5 / B 16 drill chuck Reduction sleeves MK 5/4, MK 4/3, MK 3/2 LED lighting Filled with Shell Tellus 46 oil Coolant system Inverter Digital speed readout Lifting motor Hydraulic motor Guarding Service tools Legally required safety guards Complete operation and maintenance documentation (Polish DTR) Pgsdpfoytfxkex Ag Dsk CE certificate 24-month full warranty without extra charges

Condition: repair required (used), STANKO 2 A 554 The machine is in perfect working condition except for the clamping of the boom lifting device and is currently still in operation. The clamping would have to be reassembled and readjusted, all parts are present. For safety reasons, the boom is secured with a tensioning strap, the clamp for the lift is in clamped condition. Pjdpfstpu Tqox Ag Dsgk Technical data: - Drilling capacity 60 mm - Projection 1600 mm - Drill spindle holder MK 5 - Drill spindle stroke 390 mm - Spindle speed, 20 steps 20 - 2000 rpm - Clockwise and counter-clockwise rotation - Feed rate, 12 steps 0.056 - 2.5 mm/rev - Drive 400 V / 12.8 kW - Clamping of the arm and drilling unit electromechanical - Distance machined machine bed - drilling quill - min. approx. 900 mm - max. approx. 1600 mm - usable machine bed with 4 T-slots 950 x 1700 mm - Coolant device - Cube table - Space requirement approx. W 2600 x H 3000 x D 1000 mm - Weight approx. 4500 kg

Condition: new, Year of construction: 2024, Power: 1.35kW Speed range: 230 - 3100 rpm Speed steps: 9 Spindle holder: MK-2 Drilling stroke: 85 mm Spindle projection: 140 - 540 mm Table size: Table size: 500 x 740 mm / 250 kg load capacity Pgjdpfxouix Sge Ag Dek Head inclination: 90° left / 45° right Column diameter: 80 mm Quick-action chuck: 1 - 16 mm Weight: 240 kg

Condition: good (used), Year of construction: 1999, functionality: fully functional, drilling capacity: 40 mm, quill stroke: 200 mm, quill diameter: 80 mm, • Worktable 1200 x 750 mm with 5 T-slots • Arm travel 1050 mm • Drill spindle Morse taper 4 • Infinitely variable speed control • Infinitely variable quill feed • Thread cutting device • 2 T-slots (18 mm) each, machine base rear and left • Machine lamp • Central lubrication • Table surface machined on all sides • Safety guard on drill • Coolant system Dimensions and Travel Tool holder MT 4 Column diameter mm 195 Table dimensions mm 1200 x 750 Number of T-slots 5 T-slot spacing mm 125 Quill stroke mm 220 Column stroke mm 450 Distance spindle nose to table min. mm 40 max. mm 710 Distance spindle nose to base plate min. mm 840 max. mm 1510 Drilling radius min. mm 540 max. mm 1590 Working table height mm 900 Machining Data Drilling capacity solid material St 60 Ø 45 mm GG 22 Ø 55 mm Thread cutting St 60 M 36 GG 22 M 45 Main Spindle Drive Pjdpfoynt Ucox Ag Dogk AC motor, frequency-controlled kW 5.5 at 100% duty cycle Speed range rpm 15 - 2800 Torque Nm max. 250 Constant from rpm 15 - 200 Feed Drives Feed, stepless mm/rev 0.02 - 0.7 Feed force N 12,000 Electrical Data Operating voltage / frequency V / Hz 400 / 50 Control voltage V 24 Total connected load kVA 9.3 Weight DANUFLEX 145 (without packaging) with 750 x 1200 mm table kg 2,600 Documentation Operating manual, incl. Lubrication and hydraulic diagram Electrical schematic

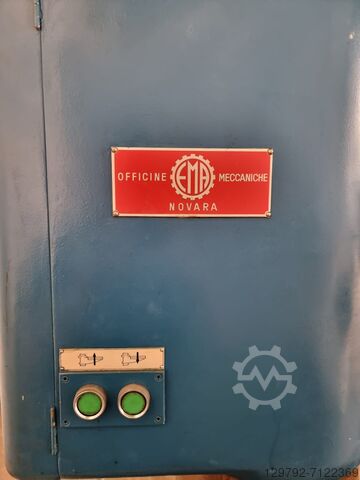

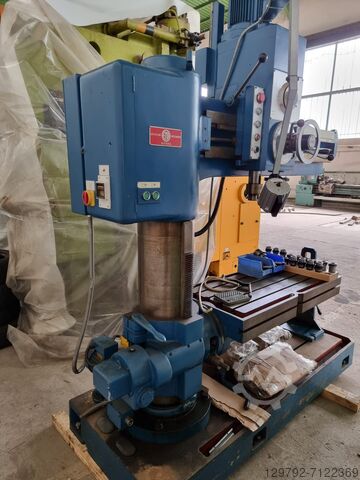

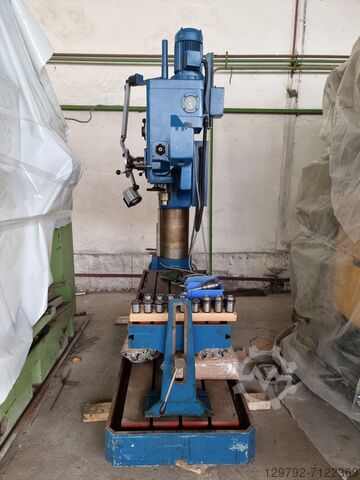

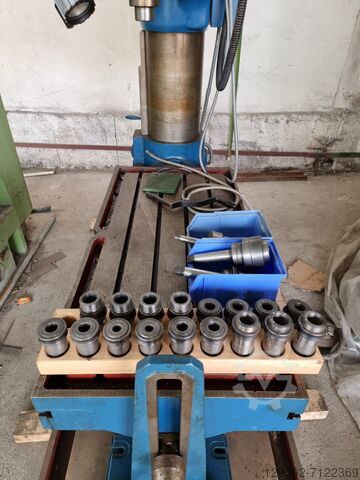

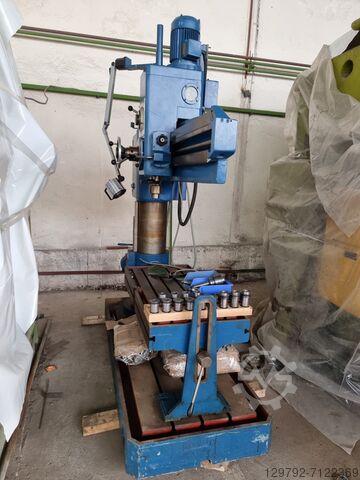

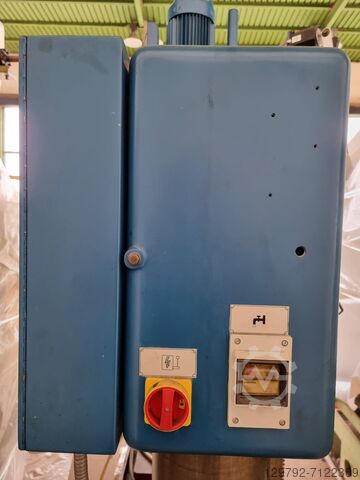

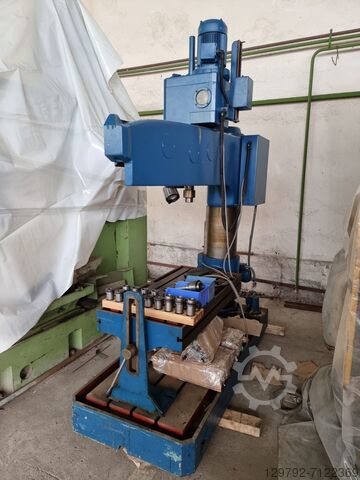

Condition: excellent (used), Radial Drilling Machine EMA - arm lenght - 1220 mm - bore capacity in steel (diameter) - 50 mm Pgodpfeh Hnrbex Ag Dsk - dimentions: 200X77X240, weight: 2250 kg - accessories included Made in Italy

Condition: excellent (used), Radial drilling machine Brand: UCIMU Model: MS R1200 Voltage: 380V three-phase Dimensions: 210cm x 90cm x 248cm Dimensions of the vertical row: 55 cm Dimensions of the horizontal row: 76 cm Pgjdpfx Asi If I Rog Dek

Condition: good (used), Year of construction: 2000, machine/vehicle number: 152362081, functionality: fully functional, throat depth: 2,700 mm, spindle diameter: 110 mm, sheet thickness steel (max.): 100 mm, spindle speed (max.): 1,800 rpm, spindle speed (min.): 9 rpm, Radial drilling machine MAS U 1000 Podperwxpfefx Ag Djgk Year of construction 2000 Conventional / digital control With face plate 1,000 mm and tool package Viewing is possible at any time by arrangement. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: Radial drilling machine MAS | MAS1000 | U1000

Condition: good (used), Year of construction: 1971, Webo BR 35 V / 1250 Radial Drilling Machine Working Area Distance from spindle to column: smallest 280 mm / largest 1250 mm Distance from spindle or drilling distance to table top: smallest 0 mm / largest 900 mm Distance from spindle to base plate: smallest 200 mm / largest 1400 mm Drill diameter: smallest 860 mm / largest 2800 mm Swivel range: 2,200 mm / clamping diameter approx. 240 mm Clamping area: upper 650 x 500 mm / side 770 x 500 mm Drill spindle diameter 40/85 mm Speed: 30 - 1800 rpm Year of manufacture: 1971 For further technical data, please refer to the machine card. Item condition: used, immaculate, and well maintained. Auction items: Only the Webo BR 35 V / 1250 without the reversible clamp shown. This can be purchased individually or as a bundle in our other auctions. Financing through our bank is also possible. komplett-konzept.leasingo.de Psdpfx Agsihfw Nj Dogk You can find more metalworking machines – new and used – in our shop! International shipping costs on request!

Condition: used, Radial drilling machine CSEPEL type RFh 75 / 1500 Machine no. No. 13704 Year of construction 1985 Drilling capacity in steel Ø 75 mm Drilling capacity in cast iron Ø 90 mm Spindle holder MK 5 Nominal throat depth 1500 mm Largest projection of the spindle 1500 mm (to the column) Smallest projection of the spindle 440 mm (to the column) Distance spindle nose - clamping surface 370 - 1700 mm Cantilever height adjustment 950 mm Table size / clamping surface 1800 x 1100 mm Column diameter 450 mm Pinol stroke 380 mm Spindle speed 19-1900 rpm 21 steps Feed rate 0.047-2mm/rev. 12 steps Motor power 11 kW Mains connection 380 Volt, 50 Hz, 15 kW - Clockwise/anticlockwise rotation of the drilling spindle via hand lever switch - Hydr. gear shift for spindle speed and feed speed - Hydro-mechanical central clamping - Motorized boom height adjustment - Without coolant device - Machine light - Operating instructions Space requirement: Length 2720 mm x width 1170 mm x height max. 3770 mm Transport height with motor on the column: 3500 mm Transport height without motor on the column: 3250 mm Psdpslhwr Rjfx Ag Dsgk Weight: 6.3 tons good condition

Condition: new, neu ca. 6 Monate ab Auftragse Taiwan 39200 € 748.72 € 50 mm MK 5 350 - 1.600 mm 56 - 1.450 (12) U/min Stahl/Guß: M40/M50 2670 mm 1120 mm 2410 mm 3300 kg 465 - 1.420 mm 0,06 - 0,2 (3) mm/min 3.7 kW 320 mm 270 mm 2.550 x 970 x 200 mm 1,5 kW 630 x 500 x 500 mm 2760 mm 0,75 kW Pjdpfxeynmt Ss Ag Dsgk left/right rotation automatic feed drilling depth limit manual headstock adjustment with hydraulic clamping electric height adjustment of extension arm andhydraulic clamping hydraulicclamping of swivel movement of extension arm central operation panel on the front side power load readout for drilling spindle hand wheel for spindle fine feed coolant equipment machine lamp box table machine and equipment according to the CE-regulations operating manual in GERMAN and ENGLISH
