Used Vertical Broaching Machine 16To for sale (66,370)

Year of construction: 2012, condition: ready for operation (used), functionality: fully functional, machine/vehicle number: BCOR12150, BIESSE BREMA EKO 902 CNC and vertical dowel insertion machine for reduced cycle times Equipment Features - Clamping grippers measure the thickness to adjust drilling depth - Laser-based measuring system for detecting the front and rear panel edges - Length tolerance compensation correcting the workpiece length in X - 5-position tool changer - Drilling head with individually retractable spindles and grooving saw - Diameter: 120 mm - Gluing and dowel insertion units mounted on Y and Z axes Options - 4.5 kW electrospindle; 18,000 rpm - Special drilling unit for hinges Pedpfjw Nytnjx Aflsgp Technical Data - Panel length: 160 - 3200 mm - Panel width: 35 - 900 mm - Panel thickness: 8 - 80 mm - X/Y/Z axis speed: 100 / 60 / 30 m/min - X axis travel: 3200 mm - Y axis travel: 900 mm - Main spindle power: 4.5 kW - Number of controlled axes: 3 axes - Number of drilling spindles: 20 - Number of tool positions: 5

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, travel distance X-axis: 1,450 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 750 mm, DAHLIH VERTICAL MACHINING CENTRE MODEL MCV 1450 CONTROL FANUC 50 TAPER SPINDLE TABLE SIZE 1600 X 800 TRAVELS - 1450 X 750 X 750 MM TABLE LOAD 2000 KGS GEARED HEAD SPINDLE MOTOR 15 KW Pjdpfxoznm Uuj Aflegp ATC MACHINE WEIGHT 14.5 TON

Condition: excellent (used), Year of construction: 2012, travel distance X-axis: 610 mm, travel distance Y-axis: 460 mm, travel distance Z-axis: 450 mm, table width: 450 mm, table length: 800 mm, spindle speed (max.): 8,000 rpm, Model: 610L Control: Fanuc Series Oi-MC Year: 2012 Table Area: 800 x 450mm ‘X’ Axis: 610mm ‘Y’ Axis: 460mm ‘Z’ Axis: 450mm Spindle Taper: BT 40 Spindle Speeds: 8000 RPM Carosel 12 Station Tool Changer Dimensions: 2200 x 2300 x 2300mm high Pedpoy N Uh Uofx Afljgp Weight: 3400 KGS

Condition: excellent (used), Year of construction: 2016, 2016 Hurco VM10Ui CNC 5-Axis Integrated Trunnion Vertical Machining Centre Table Ø200mm (6 'T' Slots). Maximum Table Load 150kg. Axis Travel 'X'=530mm, 'Y'=410mm, 'Z'=480mm, 'A'=+30°/-110°, 'C'=360°. Rapid Traverse 'X,Y,Z'=28m/min, 'A & C'=25rpm. Spindle Nose to Table Min/Max 36mm/520mm. Maximum Spindle Speed 12,000RPM. Spindle Power 7.5kW.Spindle Taper BT40. 24 Position ATC. Maximum Tool Ø89mm, Maximum Tool Length 250mm, Maximum Tool Weight 7kg. S/No. H-VU0284 (2016/11). With Coolant System, Auger Conveyor, Renishaw Laser Tool Setter, Signal Tower & Handwheel. Weight 3,360kg. Pgjdpezn Nu Dsfx Aflsp

Condition: used, Year of construction: 2015, Mazak Vertical Centre Smart 530C CNC Vertical Machining Centre with Mazatrol Matrix 2 Control. S/No. 259026 (2015), Table Size 1300mm x 550mm, Spindle Speed Max 12,000rpm, 30 Tool Drum Type ATC Fitted with Various Tool Holders and Renishaw Probe, CAT40 Spindle Taper, LNS Turbo MH500 Swarf Conveyor, Machine Weight 6800kg, User Manual on CD. Country of Origin: United Kingdom Location: These lots are located in Gateshead, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described. Psdeznllxjpfx Aflegp

Condition: used, Year of construction: 2015, Mazak Vertical Centre Smart 530C CNC Vertical Machining Centre with Mazatrol Matrix 2 Control. S/No. 264426 (2015), Table Size 1300mm x 550mm, Spindle Speed Max 12,000rpm, 30 Tool Drum Type ATC Fitted with Various Tool Holders and Renishaw Probe, CAT40 Spindle Taper, LNS Turbo MH500 Swarf Conveyor, Machine Weight 6800kg, User Manual on CD. Country of Origin: United Kingdom Pgsdpfsznlllox Afljp Location: These lots are located in Gateshead, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Condition: used, Year of construction: 2003, functionality: fully functional, Equipment: chip conveyor, documentation/manual, Mori Seiki Machining Center Model NV5000A/40 Year 2003 Chip Conveyor ✅ Pgodpszqbm Djfx Aflep Spindle ✅ Table ✅ Without Ball Screw ❌ Without CNC Drives ❌ The machine is missing the ball screw and the CNC drives; other than that, the spindle and table are present; the machine is otherwise complete.

Condition: used, Year of construction: 1994, Bridgeport VMC560/22 Vertical Machining Centre, S/No. 35149 (1994) with Heidenhain Control, 22 Position ATC. Country of Origin: United Kingdom, Qty of BT40 Tool Holders. Country of Origin: United Kingdom Pedpeznkm Uofx Aflsgp Location: This lot is located in Burton-on-Trent, UK. A charge of £250 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

Condition: used, Year of construction: 2004, Hurco VMX24S Vertical Machining Centre with Hurco Ultimax Control, Table size 760mm x 510mm, 24 ATC, BT 40 Tooling, 8000rpm, Travel X=610mm Y= 508mm Z= 610mm, Coolant Tank. S/No. H-2S061 (2004) Podsznkmnopfx Afljgp Location: This lot is located in Burton-on-Trent. A charge of £350 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

Condition: excellent (used), Year of construction: 2001, functionality: limited functionality, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 510 mm, input voltage: 400 V, Equipment: documentation/manual, kONDIA B 640 4-axis machining center Table: 800 x 400 X-axis travel: 600 mm Y-axis travel: 400 mm Z-axis travel: 510 mm Spindle speed: 6000 rpm Podpfx Aezp Hfveflegp 4th axis: SPIRSIN, 170 Ø Control: FAGOR 8055 Tool capacity: 22 Tool holder: ISO 40 Electronic handwheel Through-tool coolant Machine dimensions (width x length x height): 1950 x 2123 x 2875 Weight: 3600 kg

Condition: used, Year of construction: 1999, functionality: fully functional, Equipment: chip conveyor, documentation/manual, Machining Center 3-Axis X, Y, Z Mori Seiki Psdpfx Afszp E E Iolegp Model MV-653/50 Year 1999 CNC Fanuc MSG-803 Phase 3

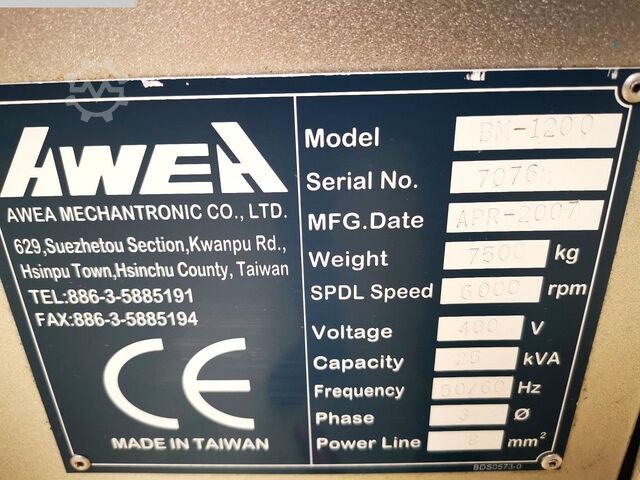

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 7076, travel distance X-axis: 1,200 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, controller model: Heidenhain iTNC 530, spindle speed (max.): 6,000 rpm, TECHNICAL DETAILS Travel range X-axis: 1,200 mm Travel range Y-axis: 600 mm Travel range Z-axis: 600 mm Pgsdpszqcu Njfx Aflep Work table Table surface area: 1,300 × 600 mm Maximum table load: 1,200 kg Distance from table to spindle bottom edge: 125–725 mm Spindle and tool holder Maximum spindle speed: 6,000 rpm Spindle shank: SK 50 Spindle motor power S1: 10 kW Feeds and rapid traverses Feed rate: 1 – 10,000 mm/min Rapid traverse X-axis: 20 m/min Rapid traverse Y-axis: 20 m/min Rapid traverse Z-axis: 15 m/min Tool changer Number of tool positions: 24 Maximum tool diameter: 80 mm Maximum tool diameter with free adjacent positions: 150 mm Maximum tool length: 250 mm Maximum tool weight: 8 kg MACHINE DETAILS Control system type: CNC Control: Heidenhain iTNC 530 Internal coolant supply: 20 bar Total power consumption: 25 kVA Dimensions & Weight Machine dimensions: 3,600 × 2,300 × 3,000 mm Machine weight: approx. 7,500 kg EQUIPMENT CNC path control Heidenhain iTNC 530 Electronic handwheel Spindle oil cooler 24-position double-arm tool changer Preparation for hydraulic machine vise Preparation for 3D measuring probe Chip conveyor Coolant system with internal coolant supply Machine documentation

Condition: ready for operation (used), Year of construction: 2005, operating hours: 23,335 h, functionality: fully functional, travel distance X-axis: 1,040 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, controller model: Heidenhain iTNC 530, spindle speed (max.): 8,000 rpm, TECHNICAL DETAILS TRAVEL RANGES X-axis: 1,040 mm Y-axis: 600 mm Z-axis: 500 mm WORK TABLE Table surface: 1,250 × 600 mm Table load: max. 600 kg SPINDLE AND TOOL HOLDER Tool holder: SK 40 Spindle speed: 1–8,000 min⁻¹ Spindle torque S1/S6: 140/200 Nm Spindle motor power at 100/40 % duty cycle: 13/19 kW FEEDS AND RAPID TRAVERSES Feed rate range: max. 40,000 mm/min Rapid traverse X- and Z-axis: max. 70 m/min Rapid traverse Y-axis: max. 40 m/min TOOL CHANGER Tool positions: 30 Tool diameter: max. 100 mm Tool diameter with free adjacent positions: max. 140 mm Tool length: max. 300 mm Tool weight: max. 7 kg COOLANT SUPPLY Internal coolant supply through the spindle: 20 bar OPERATING HOURS Power-on hours: 70,278 h Spindle hours: 23,335 h MACHINE DETAILS MACHINE DATA Machine type: Vertical machining center Manufacturer: Deckel-Maho DMG Type: DMC 104 V linear Year of manufacture: 2005 Control type: CNC Control: Heidenhain iTNC 530 Total power consumption: 39 kVA Machine weight: approx. 8,900 kg EQUIPMENT Psdjzqcucspfx Aflogp CNC control Heidenhain iTNC 530 Electronic handwheel Heidenhain HR 410 Motor spindle with increased torque Direct path measuring system in the Y- and Z-axis Preparation for measuring probe 30-position tool changer Rotoclear Production package 2 Internal coolant supply through the spindle Coolant system with paper band filter Blow-through air through the spindle center, selectable via M-function Chip conveyor Machine bed flushing Linear drive in the X-axis Operating mode 4 for program testing with extended manual intervention Machine documentation

Condition: excellent (used), Year of construction: 2011, operating hours: 2,450 h, travel distance X-axis: 6,000 mm, travel distance Y-axis: 12,001,400 mm, travel distance Z-axis: 18,001,790 mm, controller manufacturer: Heidenhain, controller model: iTNC 530, workpiece weight (max.): 3,000 kg, total height: 4,700 mm, total length: 12,700 mm, total width: 7,800 mm, rotary table diameter: 2,200 mm, rotational speed (max.): 200 rpm, overall weight: 57,000 kg, spindle speed (max.): 8,000 rpm, operating hours of spindle: 2,450 h, coolant supply: 40 bar, number of slots in tool magazine: 60, tool length: 460 mm, Equipment: chip conveyor, documentation/manual, CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 6000 Y-axis travel mm: 1200/1400 Z-axis travel mm: 1800 (H) / 1790 (V) C-axis degrees: 360º (0,001) A-axis degrees: ±180° B-axis degrees: ±180° Rapid traverse m/min: 30 Worktable Table dimensions mm: 6000x1235 Milling/turning table nc: Table dimensions mm: Ø2200 Max. workpiece weight kg: 3000 Table rotation speed rpm: 200 max. torque Nm: 4600 Spindle Spindle speed rpm: 8000 Spindle drive power kW: 33/24 (40%ED/cont) Spindle torque Nm: 382/278 (40/100%ED) Cooling Cooling through the Spindle Center bar: 40 Tank capacity: 900 Tool system Tool holder: HSK-A 100 Tool magazine slots: 60 With free neighboring places mm: 200 With occupied neighboring places mm: 104 Max. Tool Length mm: 460 Max tool weight kg: 25 Chip-to-chip time s: 9.8 Podpfx Afozb H Tfslsgp Equipment Electronic Handwheel Chip conveyor Infrared probe Internal cooling lubricant supply Rinsing gun Operating mode 4 blowing air through spindle center selectable via M-function Workarea light DXF import function Paper band filter Automatic door Indexing Head Set Up for Shaft Machining Axles can be hydraulically locked using the M function Machine running times Under power: 29447 Spindle Working: 2450 Basic machine dimensions / weight Length mm: 12700 Width mm: 7800 Height mm: 4700 Weight kg: 57000

Condition: like new (used), Year of construction: 2022, operating hours: 4,747 h, functionality: fully functional, machine/vehicle number: 329760, travel distance X-axis: 1,050 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 510 mm, This machine can still be inspected while powered on at the factory. It has very few operating hours and is in like-new condition. Pjdpfxszpzq Hs Aflegp Used CNC vertical machining center, Manufacturer: MAZAK Model: VCN 530 C SmoothG Machine number: 329760 Operating hours: 4747 The tools, fixtures, and vise are not included in the scope of delivery. You will find the order confirmation and machine specifications in the attachment.

Condition: excellent (used), Year of construction: 2020, Maximum turning diameter 3800 mm Maximum swing diameter 3800 mm diameter of spindle flange 1900 mm control Siemens 840 D sl Table rpm 100 1/min Maximum speed of driven tools 6000 1/min x-travel 2800/3200 mm z-travel 1000 mm Feed - X 20 m/min feed capacity - x 22 kN tool taper CAPTO C8 total power requirement 280 kVA dimensions of the machine ca. 10,4 x 6.3 x 5,7 m weight of the machine ca. 155 t Equipment/Accessories: - 2 tool changers, each with 60 positions Podpfjzpzbljx Aflegp - 2 x chip conveyors - Coolant system, 6 bar - High-pressure cooling, 70 bar - Knoll paper belt filter - 12-jaw balancing chuck, RÖHM - internal coolant supply - Hydraulic unit - Automatic door - Electric handwheel - Technical documentation

Condition: excellent (used), Year of construction: 2018, Hartford LG-500 Vertical Machining Centre Year: 2018 (only 400 working hours) Pgodpfxjwif R Te Aflop Model: LG-500 Control: Hartford Plus 3 Table Size: 620 x 420mm Table Load: 300 kgs Axis Travels X/Y/Z: 620 / 420 / 450mm Spindle Nose to table: 100 – 550mm Spindle Taper: 40 INT Spindle Speeds: 12,000 RPM 12 station ATC Machine as new

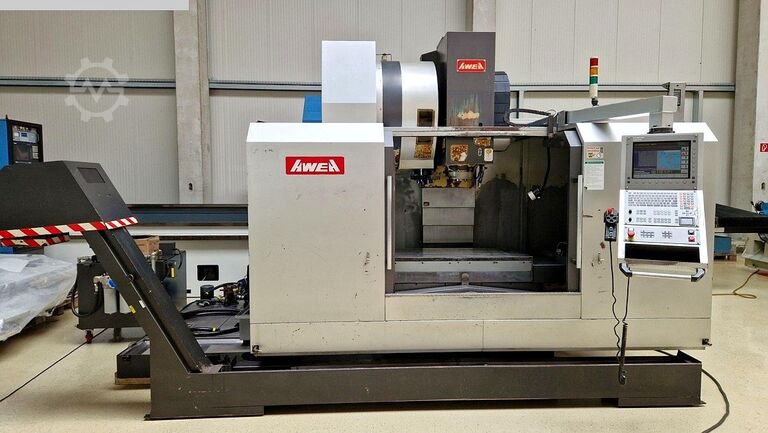

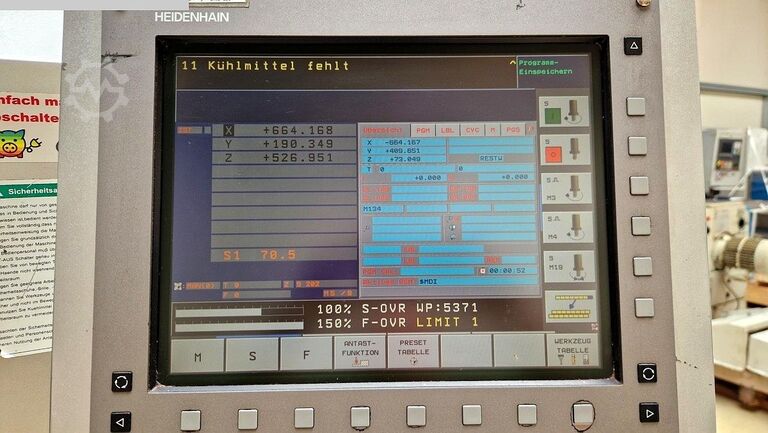

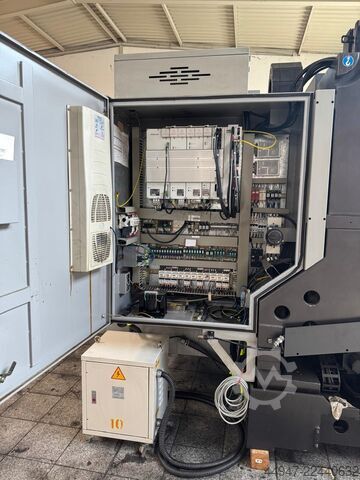

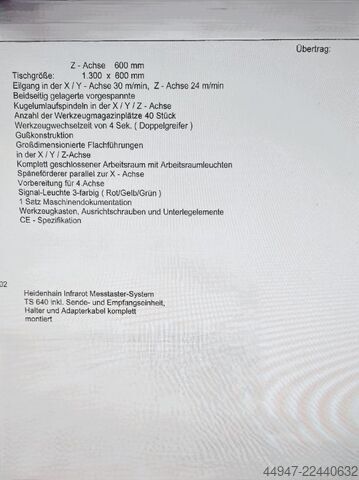

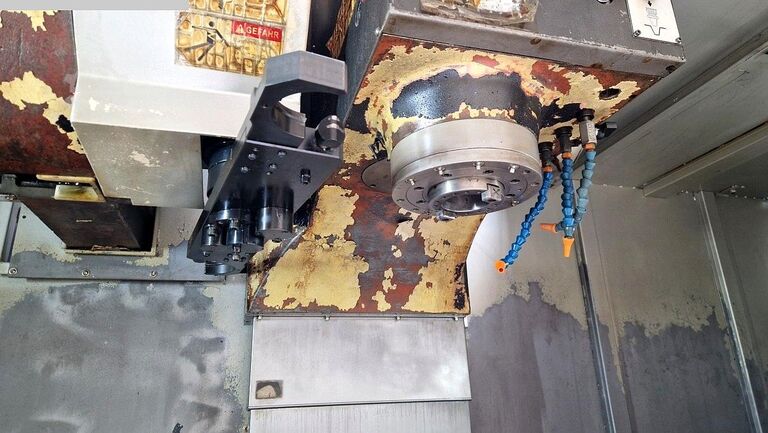

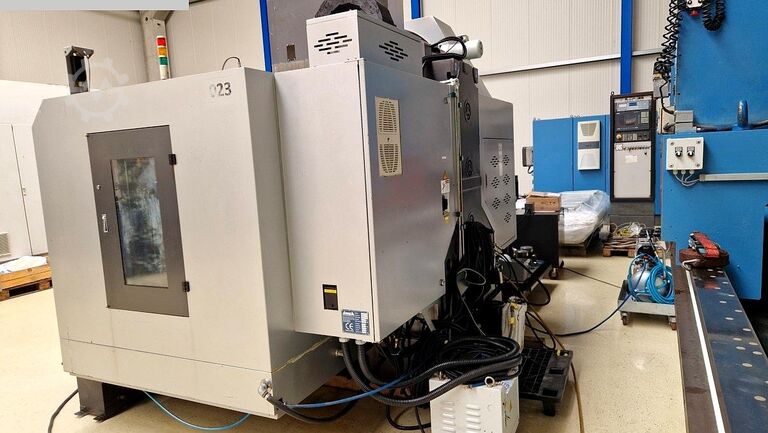

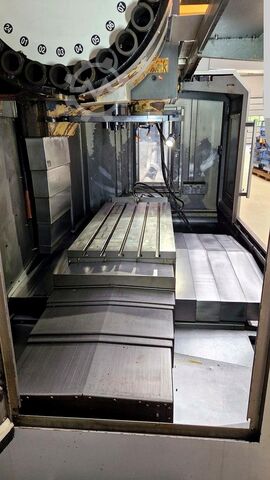

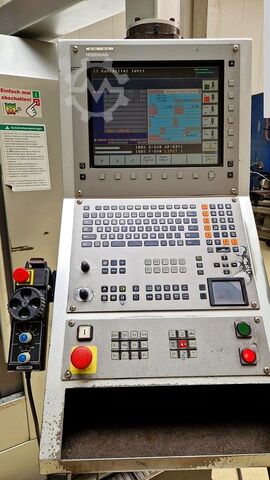

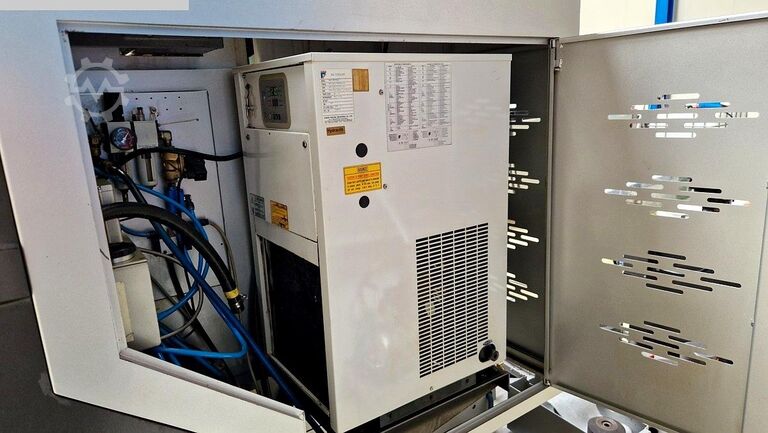

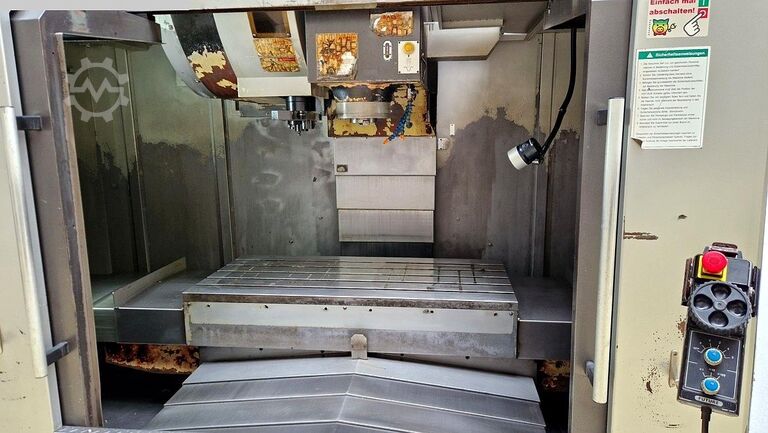

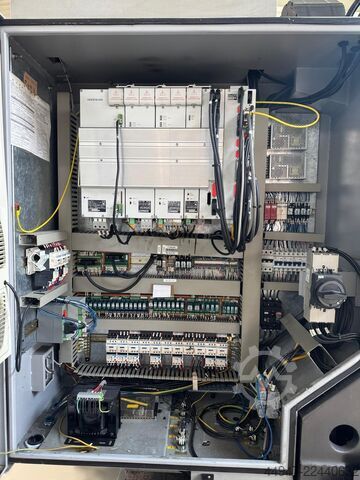

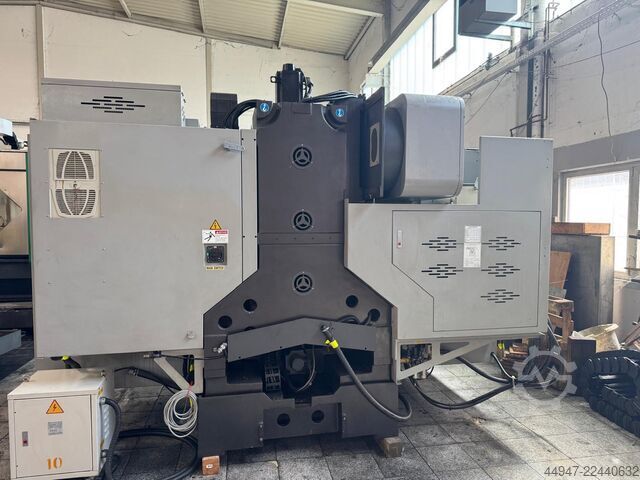

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, Equipment: chip conveyor, documentation/manual, For sale is an AWEA BM-1200 CNC-controlled vertical machining center, manufactured in 06/2008. The machine is equipped with a Heidenhain iTNC 530 CNC control system and features an automatic tool changer with 40 tool positions. In addition, the machine is equipped with internal coolant / cooling through the spindle, a high-pressure coolant system, and a chip conveyor. Technical data / equipment: Manufacturer: AWEA Mechatronic Co., Ltd. Model: BM-1200 Serial number: 8015 Date of manufacture: 06/2008 Control system: Heidenhain iTNC 530 15" TFT color display Tool holder: BT40 Spindle speed: 50 – 12,000 rpm Spindle power: 21 / 15 kW Direct drive spindle Travel X-axis: 1,200 mm Travel Y-axis: 600 mm Travel Z-axis: 600 mm Pedpfx Afezp Iz Ejlogp Table size: 1,300 x 600 mm Rapid traverse X/Y: 30 m/min Rapid traverse Z: 24 m/min Tool magazine: 40 positions Tool change time: approx. 4 seconds Dual gripper Internal coolant / cooling through the spindle, Type A High-pressure coolant pump 20 bar Additional coolant tank Two switchable filter cartridges Chip conveyor parallel to the X-axis Heidenhain infrared probe system TS 640 Signal light 3-color Red/Yellow/Green Completely enclosed work area with work area lighting Machine documentation available Toolbox Alignment screws and washers CE specification Weight according to nameplate: approx. 7,500 kg Voltage: 400 V Connected load: 25 kVA Frequency: 50/60 Hz 3 phases Condition: The machine is in used condition but is complete and well-maintained. Inspection and test run possible by arrangement.

Condition: like new (used), Year of construction: 2017, operating hours: 16,595 h, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 800 mm, workpiece length (max.): 2,000 mm, workpiece width (max.): 130 mm, workpiece height (max.): 800 mm, workpiece diameter (max.): 1,300 mm, workpiece weight (max.): 3,500 kg, spindle speed (max.): 10,000 rpm, spindle nose: ISO 50, number of slots in tool magazine: 60, VERTICAL MACHINING CENTER (DOUBLE COLUMN) WELE TECHNICAL SPECIFICATIONS Brand: Wele Model: RB-212 Year: 2016 CNC: Heidenhain iTNC 530 Table: 2000 x 1100 mm Travel X / Y / Z: 2120 x 1200 x 800 mm Table load capacity: 3500 Kg ISO 50 taper - 10,000 rpm Internal coolant system (air / coolant): 40/80 Bar Distance between columns: 1,300 mm Option to purchase a second electrospindle (separate price) Manual handwheel Blum TS50 probe Spindle and X/Y axis bearings replaced at 9108 hours Headstock power control module Preventive maintenance up to date, oil, filters, and coolant changes are carried out according to the manufacturer’s recommendations or based on usage. Pgedszqbu Uopfx Afljp

Condition: used, WILLEMIN MACODEL 508S2 is a vertical machining center delivering high precision, accuracy and reliability. Working capacities: 6 axes; rotary table Ø180 mm, table load max 15 kg; travels X400 Y200 Z385 mm; B -100/+30°; resolution 0.0001. Main specs: spindle HSK E40 50–42000 rpm; spindle power 10/15 kW; torque 8/12 Nm; rapid traverse 60 m/min; acceleration 10 m/s²; air 6 bar; supply 3×400V 50Hz; total power 35 kVA; weight ≈5000 kg. Equipment: BLUM 3D Z‑MT tool setter, Renishaw OMP400 probe, Donaldson oil‑mist extractor, Turbo Separator filter, automatic central lubrication. Achieves tight tolerances for automotive, watchmaking, aerospace, medical and machine‑tool sectors. Pjdpezqbhuofx Afljgp

Condition: used, Year of construction: 1997, functionality: fully functional, ++++ SPECIAL OFFER: €3,500 ++++ Wemas VZ 1000, Year of manufacture: 1997, Control system: Heidenhain TNC 407, Pgsdpfxozpwkcs Afljp Travel range X/Y/Z: 1016/610/660 mm, 4 axes, Tool changer with 20 positions, Tool holder: SK 40, Spindle speed up to 6,000 rpm, Table size: 1300 x 600 mm, Cooling system, High-pressure cooling system (IKZ) defective, Operating hours: 43,000

Condition: used, Year of construction: 1997, functionality: unexamined, Bridgeport VMC 600 vertical machining centre Pgedpfjzmaf Rjx Aflep Year (1997) with GE Fanuc Series O-M control, 22 ATC, Cromar swarf conveyor

Condition: used, Year of construction: 2009, CNC series 245 A 3l T R DH, control system, manufacturer: Siemens, type: Sinumerik 840D SL, 2 spindle units (1x external type WMZ; 3x internal, manufacturer: GMN, type HSX 150-24.000/23 with tool holder HSK 63; grinding spindle turret), 2 cross slides, 2x C-axis, 2x magnetic chucks Ø 800 mm, workpiece Ø max. 1,000 mm, workpiece length max. 400 mm, spindle speeds max. 1,000 rpm, table travel X1/X2 axis 885 mm, table travel Z1/Z2 axis 1,000 mm, 4 table levelers, electronic balancing system MPM, coolant system, manufacturer: Liqui, type KSS system MTBF V500, MW250, capacity 1,900 l, band filter, temperature control, manufacturer: Hyfra, chip conveyor, switchgear and control cabinets, platform, table system, 5-piece, 3 drawer cabinets, 5 drawers, contents: setup tools, machine accessories. Pgsdpfxozgvlys Afljp

Condition: used, Year of construction: 2016, functionality: fully functional, travel distance X-axis: 1,100 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, controller manufacturer: Heidenhain, controller model: iTNC 530, overall weight: 7,000 kg, spindle speed (max.): 15,000 rpm, operating hours of spindle: 3,680 h, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, MTcut V110, 15th unit Year of manufacture: 2016 Heidenhain iTNC 530 control system 60-position tool changer, SK40 Chip conveyor Pgodpozphdaefx Afljp Total operating hours: 22,580

Condition: used, Year of construction: 1999, functionality: fully functional, travel distance X-axis: 508 mm, travel distance Y-axis: 406 mm, travel distance Z-axis: 508 mm, total height: 2,500 mm, total length: 2,200 mm, total width: 2,000 mm, spindle speed (max.): 7,500 rpm, spindle motor power: 11,200 W, spindle nose: SK 40, number of spindles: 1, number of slots in tool magazine: 21, input voltage: 400 V, type of input current: three-phase, Equipment: documentation/manual, For sale is a robust and proven vertical CNC machining center, a Fadal VMC 2016L, equipped with the popular and easy-to-maintain Fadal CNC 88HS control. A real highlight: The machine is equipped with a fully integrated 4th axis (Fadal VH65 rotary table). The machine can be inspected and demonstrated with short notice. The original manuals and complete technical documentation are available. Target group: Sale exclusively to commercial businesses (B2B). Pgsdezpwcrepfx Afljp Warranty exclusion: The sale is made ex works with complete exclusion of any warranty, guarantee, or liability for defects by the seller. Sold as is, with all faults. The buyer expressly waives any claims for reduction, conversion, or damages. Handling & Transport: Dismantling, professional transport securing (blocking the axes), disconnecting the utilities (power/pneumatics), loading, and transport are all at the buyer's expense and risk (sale from foundation/location). The description of the machine serves only for general identification and does not constitute a warranty in the legal sense. The information is not claimed to be complete. Subject to changes, errors, and prior sale. All information without warranty.
