Used Albrecht Drill Chuck Mk3 for sale (8,463)

Condition: used, Year of construction: 2019, - Magazine loading system - Clamping table for frame parts - 3 horizontal, longitudinal drilling units from the rear - 4 vertical drilling units from above 1 Drilling machine Manufacturer: KOCH Type: BL 2500 NC select line - used - Year of manufacture: 2019 Workpiece dimensions Workpiece length 150 - 2500 mm Workpiece width 20 - 300 mm Workpiece thickness 10 - 50 mm Material: Solid wood Magazine loading system 1 with workpiece return. Workpiece insertion via 2 parallel-controlled servomotors. The number of workpieces in the magazine depends on the workpiece weight. Manual workpiece insertion Clamping table for frame parts 1 Iiodpfx Aszuynhjn Hsf By inserting 3 support segments into the longitudinal drilling units, workpieces can be inserted manually and clamped with clamping cylinders and templates. This also allows for special workpiece dimensions. Work cycle triggering via 2 manual controls on the swappable control panel. 3 horizontal, longitudinal drilling units from the rear Construction width 160 mm Drilling motor 2 kW Longitudinal adjustment (X) with LCD display Vertical adjustment (Z) With dust extraction 4 vertical drilling units from above (supported on one side in a linear guide) Adjustable over the entire working width (X), reading LCD display. Adjustable in working depth (Y), reading LCD display One vertical clamping cylinder mounted directly on the unit Counterpieces for through-holes are available as an option. Drilling motor 1.5 kW at 50 Hz Drilling stroke 50 mm Speed 2,800 rpm Total drill length 70 mm With 4 rotary indexing heads with quick adjustment (for vertical drilling units) with fixed stops at 0 and 90 degrees Positioning control KOCH NUMERIC Basic 1 Positioning control with Beckhoff C6920 industrial PC Intel Celeron 2.2GHz CPU 2.5 320GB HDD 1x RS232, 2x USB, 1x Ethernet available 15-inch touch panel Operating system Windows 7: English User interface in English Input of all machine commands via the touch panel Software is prepared for an online connection. The configuration of the online connection (network) and commissioning are carried out by the customer or their software company. USB port on the PC 4 x Dynamic NC axis (with bearing control) for Z axes Connection data 1 Electrical connection 400 V, 50 Hz, 3 phases Voltage fluctuations max. + 6 % to - 10 % If protected by an RCD (residual current device) on the customer's side, an all-current sensitive (R CCB, Type B) RCD with a rated residual current of /= 300 mA must be used. Air connection 7 bar Dust extraction air velocity min. 30 m/s Note: The technical data and descriptions are a transcript of the original order confirmation. The data is for informational purposes only and is not binding.

Condition: used, Year of construction: 2018, operating hours: 500 h, Throughfeed machining, workpiece machining from below, and automatic workpiece return to the operator. 3 controlled axes: X axis - uninterrupted workpiece transport via DDT (double dynamic transport system) with a brushless motor Y axis - drilling head travel Z axis - drilling - Double "0" reference: new laser generation for detecting the start and end of the workpiece. The program can adjust the drilling from below to achieve perfect alignment in vertical and horizontal workpieces. The laser consists of a transmitter and receiver to avoid errors with dark edge materials. - Side stops with rollers consisting of a fixed and a movable part, mechanical digital readout with automatic alignment to the 0 stop for removal of up to 3 mm on the 0 line - Constant side pressing device for precise positioning on the 0 line. - Rear workpiece outlet - Automatic 4-position tool changer - No workpiece length limitation - Monitor LCD TFT 19" 5/4 - Industrial PC - Operator interface WSC with Lister, parametric tool, and parametric setup - Graphical programming CAD TPA EDI32, basic version - USB port - Storage of all files - Macro programming - Import DXF files Technical data Number of independent, vertical spindles: 12 Number of independent, horizontal spindles on the X axis: (2+2) Number of horizontal drilling spindles on the Y axis: (2+2) 1 saw (Ø 100mm) Electric spindle 5 kW with ISO30 taper (RPM 12000-24000) Max. workpiece weight: 80 kg Max. workpiece dimensions: X unlimited, Y 1200 mm, Z 50 mm Min. workpiece dimensions: X 270, Y 185 (70op), Z 4 mm Feed rate: 25m/min Spindle speed: 3500 RPM Max. horizontal tool Ø 12mm Max. drilling depth horizontal on the X and Y axis 30mm Max. drilling depth vertical: 45 mm Max. vertical tool Ø 35mm Iijdpfx Aozuxdbon Hef Air consumption 2000 m3/h Extraction speed 30 m/s Extraction nozzle 2xØ. 100mm + 1xØ.50 mm Motor: 1.7 kw Compressed air: 7 bar Max. air consumption: 60 nlt/min CE STANDARDS - Office software - license - Adjustable zero point for 4-sided formatting - CE compliant - Status: 05/28/2026: approx. 500 operating hours and a new PC has been installed.

Condition: used, Year of construction: 2012, - Work area: X: 9000 mm / Y: 2700 mm - Gantry 1: 5-axis milling spindle 20/26 kW - 32-position tool changer - Gantry 2: 2x13 spindle drilling unit Technical data - Heavy-duty gantry system with 2 gantries - Gantries with drives on both sides (gantry drive) - CNC control SIEMENS 840D sl / PCU 50 with NCU 730 - Operator panel OP 15 with 15" display, mounted on a guide rail along the longitudinal axis Work area / machinable cube size with tool length/diameter of 160 mm - X-axis: 9000 mm with both gantries - Y-axis: 2700 mm - Z-axis: (Standard cube size 420 mm) - Customer-specific design for workpiece thicknesses up to 60 mm - 5-axis head Equipment, Gantry 1 - 1 universal head for 5-axis milling - Milling spindle power: 20/26 kW (S1/S6) - Speed adjustable up to 24,000 rpm - Water-cooled Iodpfezuw Ixox An Hoif - Tool interface HSK F63 for automatic tool changes - Thread cutting is possible! - 1 chain-type tool magazine with 32 positions - With rotary gripper for fast tool changes - Magazine fixed on the operator side Equipment, Gantry 2 - 2 head mounting brackets - Equipped with 2 heavy-duty multi-spindle drilling units each - With common dust extraction hood - Each drilling unit with 13 drilling spindles (total of 26 drilling spindles) - Individually selectable vertically - Arrangement in an L-shape - 2 angled drilling spindles adjustable from 0 - 25° - 1 right, 1 left, each approx. 2.2 kW, n= 2800 rpm - Drill chuck collet Rego Fix ER 25 M Machine table - Base frame with linear guide - 12 table traverses on a linear guide for positioning in the X-direction, individually driven and positionable via NC drives - Vacuum supply integrated into the table traverse - Each traverse is individually vacuum-monitored and linked to the machine control system Workpiece infeed function - 1 belt conveyor consisting of 4 belt strands - Width 40 mm, each traverse with lifting devices - Lifting device NC-controlled - Stroke 110 mm (+10 mm, -100 mm) - The machine should be installed in a foundation pit of approx. 300 mm - Vacuum pump Bush type: Mink MM 1322 - Suction capacity 250 m³/h - With intermediate tank 500 l for rapid vacuum generation - 2 chip transport belts under the machining area for the removal of chips and/or small swarf up to a size of max. 100 x 100 x 100 mm - Automatic central lubrication Work safety - Moving protective cabin on both gantries - Protective cabin with safety bumpers and safety light curtain system on the operator and rear sides (due to automatic table adjustment)

Condition: new, diameter 400 mm amount 1 STK weight 70 kg 4-jaw lathe chuck, presumably from Homge Iiodpfezu Tgkex An Hjf -> Made of solid, precision-machined steel and designed for use on heavy-duty lathes. The robust construction ensures high clamping forces, concentricity, and secure workpiece clamping even under demanding machining conditions. The total weight is 70 kg, which is why it should only be handled using suitable lifting equipment. -> Diameter 400 mm — generously sized clamping surface for a wide range of workpiece sizes -> Four-jaw clamping system — individually adjustable jaws for precise alignment -> Max. speed 630 min?¹ — suitable for heavy-duty machining tasks -> High-strength steel body — low vibration, durable, dimensionally stable -> Concentrated guide grooves — ensure concentricity and reliable power transmission -> Serrated clamping jaws — high holding force for various workpiece shapes -> Weight 70 kg — requires a crane, hoist, or suitable lifting device -> Industrial design — designed for continuous operation and heavy loads

Year of construction: 1985, condition: used, Drilling process: single-lip gundrilling, operating method: rotating tool, number of working spindles: 1, nominal drilling depth: approx. 750mm, drilling range for solid drilling in steel: approx. 30mm, drilling range for counterboring in steel: approx. 40mm, spindle drive: 11kW, max. spindle speed range I: 1800rpm, max. spindle speed range II: 5700rpm, max. feed rate range I: 320mm/min, max. feed rate range II: 160mm/min, rapid traverse: 3.5m/min, clamping table X/Y: 420mm/1280mm, cross-slide table manually operated, max. transverse travel: 400mm, table clamping surface X/Y: 600mm/600mm, high-pressure coolant system for deep-hole drilling oil with 1000l coolant tank, flow rate: approx. 2-94l/min, max. pressure at max. flow rate: 45bar, pump power: 11kW, separate control cabinet. The machine underwent an extensive partial overhaul in 2018, during which the machine was disassembled and cleaned, all guideways and support surfaces were ground and partially scraped, motors were inspected and fitted with new bearings, the drilling spindle was fitted with new bearings, the ball screw incl. nut was replaced, the pump motor was overhauled, the wiper set was replaced, and the machine was repainted and all functions were checked and rectified. Including extensive accessories. Documentation available. Inspection possible by arrangement. Iijdpfx Ajzu Szyjn Hef

Condition: ready for operation (used), Year of construction: 2012, WAGNER PRC 40 – Outrigger drilling machine / Radial drilling machine - Year of manufacture: 2012 - CE marking - COMPLETE TECHNICAL DATA – SEE PHOTO - Automatic feed - Morse taper MK 4 - Speed range: 25-2000 RPM - Coolant system - Rotary table - Documentation Dimensions: L x W x H 2.5 x 1.1 x 2.65 meters / Weight: 3500 kg Iedpfx Anszi Av Do Hoif Errors and omissions excepted.

Condition: used, Year of construction: 2018, total height: 1,800 mm, total length: 1,750 mm, total width: 1,800 mm, Colour: Grey Empty weight: 975 kg - Year: 2018 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 173180025 - Main motor power [kW]: 3 - Working range X [mm]: 3000 - Working range Y [mm]: 3000 - Working range Z [mm]: 50 - Horizontal drilling unit: Yes - Horizontal drilling spindles [pcs]: 4 - Vertical drilling unit: Yes - Saw unit present: Yes - Voltage [V]: 400 - Current consumption [A]: 3 - Transport dimensions: 1750mm x 1800mm x 1800mm (l x w x h) - Transport weight [kg]: 975kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Iedpfeyf Hc Iex An Heif Yorick Diebels

Condition: used, Year of construction: 2015, total height: 1,850 mm, total length: 2,300 mm, total width: 1,950 mm, Colour: White Empty weight: 1.240 kg - Year: 2015 - Documentation available: No - CE marking present: Yes Isdszavvgepfx An Heif - CE certificate present: No - Serial number: AB/222595 - Main motor power [kW]: 2.2 - Number of controlled axes [pcs]: 12 - Working range X [mm]: 3050 - Working range Y [mm]: 800 - Working range Z [mm]: 60 - X-axis max stroke [mm]: 1040 - Y-axis max stroke [mm]: 1030 - Z-axis max stroke [mm]: 100 - Number of milling spindles [pcs]: 8 - Spindle diameter [mm]: 10 - Min. spindle speed [rpm]: 1000 - Max. spindle speed [rpm]: 4000 - Horizontal drilling unit: Yes - Horizontal drilling spindles [pcs]: 6 - Max. drilling depth [mm]: 18 - Vertical drilling unit: Yes - Vertical drilling spindles [pcs]: 8 - Max. drilling depth [mm]: 30 - Saw unit present: Yes - Safety feature: - Voltage [V]: 400 - Current consumption [A]: 10 - Transport dimensions: 2300mm x 1950mm x 1850mm (l x w x h) - Transport weight [kg]: 1240kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: good (used), Year of construction: 1987, travel distance X-axis: 11,500 mm, travel distance Y-axis: 4,500 mm, travel distance Z-axis: 2,000 mm, feed length W-axis: 1,600 mm, x-travel 11,500 mm y-travel 4,500 mm w-axis 1,600 mm z-axis 2,000 mm Spindle diameter 200 mm Rotary table 3,000 x 4,000 mm Bed length of rotary table 4,600 mm Tool holder SK50 Iiodpfozvb Aiox An Hof Workpiece weight on rotary table 80 t Total power requirement 83 kW Additional information incl. 15 plates

Condition: good (used), Year of construction: 1983, Spindle diameter: 200 mm Machining width: 6000 mm Machining height: 3150 mm Max. machining depth: 1985 mm Slide cross section: 530 x 550 mm Table load capacity: 20 t Plate field size: 11200 x 5550 mm Tool holder: SK 60 Machine weight approx.: 173 t Isdpfxszvby Uj An Hsif Additional information: - Additional equipment: large and small angular heads - Listing No.: 22979 - The table is model S20 MP, size: 2200 x 2500 mm - The machining width on the X-axis of the machine is 6000 mm - Including 6 plates measuring 5600 mm x 1850 mm

Condition: good (used), Year of construction: 1999, Drilling capacity in steel (diameter): 60 mm / MK5 Quill stroke: 310 mm Spindle speed: 28...2500 rpm Iiedpfxozvby Ie An Hof Table size: 1470 x 986 mm Total power requirement: 4 kW Machine weight approx.: 4.6 t

Condition: used, Year of construction: 2021, Bauer Maschinenbau Bohrmax Z40, Section Drill & Milling Machine, Overall Table Length 4350mm, 4 Sections 1050mm Long, Penta NC V2 Programme Control, 10 Tool ATC, CAT 40 Spindle, 11kw Power, Travels X Axis = 4000mm, Y Axis = 580mm, Z Axis = 700mm, Drilling Capacity 3 - 40mm, Drilling Speed Range 140 - 2300rpm, Rapid Traverse X = 24m/min, Y & Z = 7.5m/min, Table Width 560mm, Underside of Tool Holder to Table 700mm, Motor 7.5kw. S/No. 21-0156 (2021) Iiodezr Ix Aepfx An Hof Location: These lots are located in Burton-on-Trent, UK. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser.

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, Urban ESB 500 corner and scissor drilling unit with drill heads for Siegenia fittings Isdpjyza Dfsfx An Hsif

Condition: like new (used), Year of construction: 2022, functionality: fully functional, mount diameter: 38 mm, clamping range: 38 mm, Reishauer clamping device, base unit, basic chuck FK 38 suitable for Reishauer gear grinding machine, fits on the spindle for grinding machines RZ 150 / RZ160 / RZ 260 Iijdpfx Anowzkcxs Hof clamping diameter 38 mm for n max. = 3,000 rpm balanced with clamping stroke control / 3-point support check and media passage for additional functions: clamping / air system check / clamping stroke monitoring incl. assembly and operating instructions, as well as Reishauer wooden transport container as new – hardly used, from our stock 2 units available Price negotiable Our asking price is €3,990.00 net, ex works, plus packaging costs. All technical specifications are subject to printing errors and changes. We only sell to countries within the European Union.

Year of construction: 1999, condition: used, Max. drilling diameter in steel, strength 600MPa: 50mm, max. drilling diameter in cast iron, strength 250MPa: 60mm, max. boring diameter (with guide) in steel, 600MPa: 200mm, max. thread in steel, 600MPa: M50x1.5, max. thread in cast iron, 250MPa: M60x2, spindle reach: 320-1250mm, pitch circle of holes: 1208-3039mm, distance from spindle axis to base plate: 320-1380mm, max. arm height adjustment: 750mm, max. drill carriage travel on arm: 930mm, arm swivel range: +/-180°, spindle head diameter: 75h6, spindle diameter at front bearing: 55mm, length: 2900mm, width: 1120mm, height: 3271mm, weight: 4.2t, with documentation. An on-site inspection is possible. Iijdpfx Aezuzzien Hsf

Condition: ready for operation (used), Column drilling machine / GILLARDON GB 20 from a university - Stepless speed control - Adapted for MK 3 - Drilling capacity in steel max. 30mm - Arm length 285mm - Drilling stroke 150mm - Table clamping surface 400x400mm - Table height adjustment approx. 650mm - Drilling depth stop - Analog speed indicator - Emergency stop - Work light - Foot switch Iiedpfx Ajzuz Iion Hof - Documentation Dimensions: L x W x H 0.7 x 0.6 x 1.8 meters / Weight 650 kg Errors and omissions excepted.

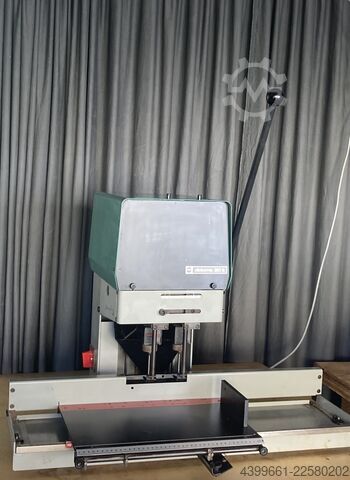

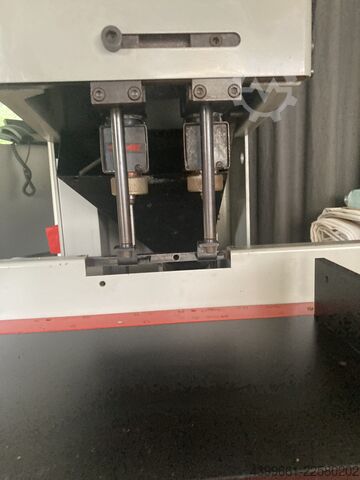

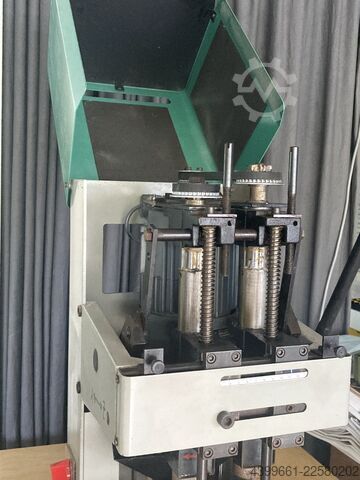

Condition: used, Year of construction: 1990, functionality: fully functional, type of input current: AC, input voltage: 220 V, overall weight: 65 kg, total height: 65 mm, total length: 87 mm, total width: 58 mm, number of spindles: 2, 2-spindle paper drilling machine. Isdpfx Aozvc Umen Heif

Condition: used, Vitap's smart solution for through-hole drilling and grooving with automatic return to the operator. Three controlled axes: - X-axis – continuous workpiece transport via a patented belt system. - Y-axis – drilling head movement, guided by rack and pinion. - Z-axis – drilling, guided by ball screw. The fewer limitations, the greater the progress! Iijdpfxjzutqis An Hsf With our machine, we do not impose any limits on workpiece length. Simple TPA programming: - You can position the holes individually. - The machining operations are displayed on a virtual workpiece. - If the workpiece dimensions change, the holes can be automatically adjusted. Office software license – Power lies in tranquility. - Perhaps you have better ideas in a quieter environment? This allows you to make better use of the flexible CAD system. - With this license, you can write programs where they are developed and discussed, in the office. Color LCD TFT 19" 5/4 screen USB port for loading programs from any office workstation 3 password-protected access levels (operator, supervisor, assistance) Technical data: - 9 vertical spindles, individually controllable - 2+2 horizontal drilling spindles in X - 1+1 horizontal drilling spindles in Y - 1 grooving saw unit (saw blade diameter 100 mm) - Max. workpiece thickness 50 mm - Max. workpiece weight 50 kg - Max. workpiece size: X unlimited, Y 920 mm, Z 50 mm - Min. workpiece size: X 270 mm, Y 150 mm, Z 10 mm - Workpiece transport speed: 25 m/min - Spindle speed 3,600 rpm - Max. horizontal drilling depth, X and Y axes 30 mm - Max. vertical drilling depth 45 mm - Max. vertical tool diameter 35 mm - Max. horizontal tool diameter 12 mm - Motor power 1.7 kW - CE standard

Condition: used, Speed / U/min. Arm length / mm Motor output / kW Isdpfx Ansithz Ue Hoif

Condition: used, bore capacity in steel (diameter) // mm throat / mm Iiedpfx Asxn Aqren Hsf bore stroke / mm ABARBOGA MASKINER GSMK6012 Drill press WITHOUT VISE

Condition: good (used), Interchangeable jaws, top jaws, three-jaw chucks, segment jaws, clamping jaws, stepped block jaws, stepped top jaws, block jaws, base jaws, 4-jaw set Isdezucb Rjpfx An Hsif -Top jaws: 4-piece hard rotary jaw set -Jaw width: 18 mm -Dimensions: see photo technical drawing -Overall dimensions: 60/70/H47 mm -Total weight: 0.9 kg

Condition: good (used), Interchangeable jaws, top jaws, three-jaw chucks, segment jaws, clamping jaws, stepped block jaws, stepped top jaws, block jaws, base jaws, 4-jaw set -Top jaws: 4-piece hard rotary jaw set -Jaw width: 18 mm -Dimensions: see photo technical drawing -Overall dimensions: 60/75/H48 mm -Total weight: 1 kg Iiodpfx Anszub D Rs Hsf

Condition: used, diameter 200 mm Iiodpfx Aney S Dt So Hef boring diameter 40 mm - /

Condition: used, Year of construction: 2000, number of spindles / bore capacity in steel (diameter) / mm bore stroke / mm Iiodpfx Anoy S Dm Ss Hjf BD13M – 5-Spindle Gang Drill / Bench Drill

Condition: used, diameter 400 mm hollow 100 mm chuck width 180 mm weight ca.50 kg Iodsy S Dnpepfx An Hjif Diameter: Ø250mm Passage: approx. 100mm Chuck width: 180mm Weight: 50kg
