Used Cnc Lathe, Y-Axis for sale (28,091)

Condition: used, MHP MT 80 CNC Heavy Duty Lathe Lhsdpezu Nihefx Agtsk Fanuc OTA CNC Control Swing over the bed 600mm Diameter Swing over the cross slide 400mm Diameter Z-Axis 1200mm X- Axis 300mm Chuck to Tail Stock (Effective) 1200mm Turning Diameter Between centres (Max) 500mm Chuck Max Component Weight 385kg Spindle Nose A2-8 Spindle Speed Programmable 25-350mm 3 Jaw Chuck Size 35mm HP 40 Tail Stock Quill Diameter 100mm Quill Taper MT5 Bore Through Spindle 90mm Bar Capacity 80mm Duplicate 12 Station Turret Swarf Conveyor Weight: 8500kg

Condition: excellent (used), Year of construction: 2017, operating hours: 2,728 h, Doosan Puma GT2100 CNC Slant Bed Lathe With Doosan-Fanuc I Series Control With Samchully MH-208 V1 Ø203mm 3 Jaw Power Chuck. Maximum Swing Ø600mm. Maximum Swing Over Cross Slide Ø390mm. Maximum Turning Ø390mm. Maximum Turning Length 562mm. Bar Capacity Ø65mm. Axis Travel 'X'=230mm, 'Z'=580mm. Rapid Feedrates 'X'=24m/min, 'Z'=30m/min. Spindle Nose A2-6. Maximum Spindle Speed 4,500rpm (18.5kW Motor). 12 Station Turret. Programmable Tailstock Travel 580mm, Tailstock Quill Ø80mm, Quill Travel 80mm, Taper MT4. Tool Shank 25 x 25mm. S/No. ML0228-001618 (2017). Note: Low Running Hours 2,728. Lhedpfxszt R Uco Agtek With Coolant System, Tool Setter, Parts Catcher, Ø165mm Collet Unit, Foot Switch, Quantity Of Assorted Hard/Soft Jaws & Manuals. Approx Dimensions L2,940 x W1,632 x H1,700mm. Weight 3,500kg.

Condition: used, Year of construction: 2007, operating hours: 9,546 h, functionality: fully functional, machine/vehicle number: R2EVO401, turning diameter over cross slide: 210 mm, turning length: 500 mm, turning diameter: 210 mm, spindle bore: 45 mm, rapid traverse X-axis: 20 m/min, rapid traverse Z-axis: 24 m/min, overall weight: 2,600 kg, Equipment: documentation/manual, EMCO 45 E45 with bar feeder EMCO Compact Load The machine is in good condition, complete with manual, and is fully functional. The machine can be inspected in Span until August 28, 2026; the loading date is scheduled for September 2, 2026. Sale due to replacement investment in a new CNC lathe. Control system: Siemens 810D Turning length with chuck: 500 mm Max. turning diameter between centers: 210 mm Bar diameter: 45 mm Rapid traverse rates: 24/20 m/min Spindle stock: DIN 55026/KK5 12-position tool turret VDI-30 6 powered stations C-axis Tailstock with hydraulic quill, MK-4 Power chuck Röhm KFD-HE 170/3 Lsdpfxezlihlo Agtohk Removal and loading of the machine will be carried out by Hametec; the loading date is September 2, 2026. The buyer is responsible for arranging transport.

Condition: used, Year of construction: 2012, - Machining area: 5300x1400 mm - Main spindle replaced 3 years ago - 18-position tool changer Technical data Machining area - In the X direction: 5300 mm - In the Y direction with main spindle + WZ-0: 20 mm: 1400 mm - In the Y direction with drilling unit: (all vertical drills) 890 mm - Single-position machining: X = 2 x 2550 mm - Free space in the center: X = 200 mm - Alternating field machining: X = 2 x 2250 mm - Free space in the center: 800 mm Lhodszuw Rtjpfx Agtek 1 automatic tool/adapter changer magazine - Arrangement: mounted on the support, moving in the X direction - Disc changer with 18 magazine positions Guidance system - All axes are equipped with pre-tensioned, surface-hardened precision roller guides. Central lubrication - Manual central lubrication for all main axis linear guides and Z ball screw. 1 vacuum pump, 90 m3/h Console table consisting of: - 2 work piece stops fixed on the right and 2 on the left in the X direction, for movement in the Y direction - 10 adjustable support arms in the X direction, each with a rear stop - All stops are controlled by the program - The suction plates are fixed via the patented 2-circuit clamping system, eliminating the need for hoses. - 8 smooth support rails, automatically retractable - 2 push buttons for the workpiece clamping/releasing function Additional 2nd vacuum pump, 90 m3/h 1 additional central stop row, for centering workpieces Chip conveyor 1 main spindle - Drive power: 10.0 kW in S-6 operation - 7.5 kW in S-1 operation - Tool holder: HSK F63, taper diameter = 38 mm, similar to DIN 69893 - Speed range: infinitely variable RPM, programmable 1 centrally integrated CNC axis, rotating 360 degrees - for all adapter units, with torque support on the main spindle and pneumatic interface 1 vertical drilling unit l14 with 6 spindles, horizontal and attachment unit for a dado cutter - Horizontal drilling units with 2 outputs each Attachment unit for a dado cutter - Swivel range: 0 or 90° Control system ICOS CNC Modern, powerful PC-based control system with: - User-friendly interface with Windows standards - Trajectory control of all servo axes - Job list / order processing - IMA backup and recovery system on two hard drives - Uninterruptible power supply (UPS) IMAWOP software package - for dialog-oriented creation of CNC machining programs - - 3D view and basic simulation of the programmed workpiece, the suction cups and consoles including tool and adapter display.

Condition: ready for operation (used), Year of construction: 2003, operating hours: 28,000 h, functionality: fully functional, turning diameter: 309 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 89 mm, travel distance Z-axis: 406 mm, controller model: Fanuc Typ 18i-T, TECHNICAL DETAILS Maximum turning diameter: 309 mm Spindle speed range: 25 – 6,000 rpm Travel in X-axis: 89 mm Lhodpfszu Rz Esx Agtek Travel in Z-axis: 406 mm Collet diameter: 42 mm MACHINE DETAILS Control system model: CNC Fanuc Type 18i-T Spindle motor drive power: 11 kW Operating hours: 28,000 h Machine weight: approx. 5,000 kg EQUIPMENT C-axis Y-axis 12-station turret VDI 30 Powered tools at each station Power chuck, diameter 140 mm Hydraulic steady rest Workpiece collection system Chip conveyor Coolant system

Condition: repair required (used), Year of construction: 2009, 5-axis CNC machining center – universal – Manufacturer: RÖDERS Machine model: RXP 800 DS Year of manufacture: 2009 Lhjdpfx Aszt Rd Degtsk TECHNICAL DATA Travels - X-axis (mm): 475 - Y-axis (mm): 600 - Z-axis (mm): 400 - A-axis (swivel table): +/- 95 - C-axis (rotary table): 360 EQUIPMENT FEATURES + RC 4 automation + Chip conveyor

Condition: ready for operation (used), Year of construction: 2003, operating hours: 4,256 h, functionality: fully functional, turning length: 570 mm, turning diameter: 176 mm, travel distance X-axis: 245 mm, travel distance Z-axis: 570 mm, controller model: MSG-805 V, TECHNICAL DETAILS Lhedpfx Agszul Tvstsk Turning diameter: 176 mm Turning length: 570 mm Swinging diameter: 510 mm Machining diameter: 420 mm Travel X-axis: 245 mm Travel Z-axis: 570 mm Rapid traverse X/Z-axis: 24 m/min Spindle bore: 43 mm Spindle speed: 60–6,000 rpm Tailstock diameter: 85 mm Tailstock travel: 120 mm MACHINE DETAILS Control system: MSG-805 V Total power requirement: 5.5 kW Dimensions & Weight Footprint: approx. 2,000 × 1,700 × 1,800 mm Machine weight: approx. 3,400 kg Operating hours: 4,256 h EQUIPMENT Integrated CNC control system Inductively hardened flat guides for bed and cross slide Continuously variable AC main spindle drive Programming of constant cutting speed Integrated cold light Power meter for main spindle drive Operator controls for automatic and manual operation CNC programming and control panel Tailstock with hydraulically actuated quill, MK 4 Continuously variable quill pressure Programmable actuation of the tailstock quill via toggle switch and M function High-dynamic three-phase servomotors for X and Z axes Backlash-free, pre-tensioned precision ball screws for X and Z axes Automatic central lubrication with electrical monitoring Coolant system with tank, pump, lines, and nozzle Electric 12-station turret system MORI SEIKI Automatic direction logic on the turret Direct coolant supply through the turret disk Fixed hydraulic unit for power chuck Full enclosure of the work area Front sliding door with large viewing window Electrical preparation for chip conveyor Electrical equipment according to VDE 0113 Data interface V.24 / RS-232-C Mounted control cabinet Freestanding transformer: 400 V / 200 V

Condition: good (used), Year of construction: 2012, operating hours: 7,360 h, Doosan Lynx 220B CNC Slant Bed Lathe With Doosan-Fanuc I Series Control With Ø135mm Collet Chuck. Maximum Swing Ø510mm. Maximum Swing Over Cross Slide Ø290mm. Maximum Turning Ø320mm. Maximum Turning Length 305mm. Bar Capacity Ø51mm. Axis Travel 'X'=175mm, 'Z'=330mm. Rapid Feedrates 'X'=30m/min, 'Z'=36m/min. Spindle Nose A2-6. Maximum Spindle Speed 5,000rpm (15kW Motor). Spindle Nose A2-6. Spindle Through Bore Ø61mm. 12 Station Turret. Tailstock Quill Ø80mm, Quill Travel 80mm, Taper MT4. Tool Shank 25 x 25mm. Boring Bar Sleeve Ø40mm. S/No. ML0014-005414 (2012). Low Running Hours 7,360. Lhjdozt R U Nspfx Agtek With Coolant System, Tool Setter, Parts Catcher, Seoam CAH-08 3 Jaw Power Chuck, Tailstock, Foot Switch, Quantity Of Assorted Hard/Soft Jaws & Manuals. Approx Dimensions L2,325 x W1,600 x H1,600mm. Weight 2,900kg.

Condition: used, Year of construction: 1997, functionality: fully functional, turning diameter over cross slide: 450 mm, turning length: 420 mm, turning diameter: 350 mm, spindle speed (max.): 4,000 rpm, travel distance X-axis: 180 mm, travel distance Z-axis: 420 mm, overall weight: 3,500 kg, KEGAI TUR-15 Lhjdpfxjzvmyte Agtjk Manufacturer: Ikegai Model: TUR-15 Machine Type: CNC Turning Center Year: 1997 CNC Control: Fanuc Series 18-T Drives: Fanuc Alpha Series Number of Axes: 2 Swing Over Bed: Approx. 450 mm Maximum Turning Diameter: Approx. 350 mm Maximum Turning Length: Approx. 410–420 mm X-Axis Travel: Approx. 170–200 mm Z-Axis Travel: Approx. 420 mm Chuck: 8" Hydraulic Chuck Spindle Nose: A2-6 Spindle Bore: Approx. 57–61 mm Bar Capacity: Approx. 45–51 mm Spindle Speed: Up to 4,000 rpm Spindle Motor Power: Approx. 11 kW / 15 HP Turret Capacity: 12 Stations Tailstock: Included Chip Conveyor: Included Machine Dimensions: Approx. 2,440 × 1,470 × 1,575 mm Machine Weight: Approx. 3,300–3,700 kg

Condition: used, Daewoo Puma 12S-3A CNC Turning Centre Year: 1996 Fanuc Series O-T CNC Control C-Axis Spindle Live Tooling 12 Station Servo Turret Hydraulic Chuck Lsdpfx Aszrt Dwsgtohk Swing Over Bed: 570 mm Maximum Turning Diameter: 430 mm Maximum Turning Length: 770 mm Serial Number 3P100044 90 mm Bar Capacity 91 mm Spindle Bore A2-8 Spindle Nose Spindle Speeds: 25–3,000 rpm 18.5/22 kW AC Spindle Motor X Axis Travel: 260 mm Z Axis Travel: 800 mm Rapid Traverse: X 20 m/min, Z 24 m/min Automatic Lubrication Coolant System Swarf Conveyor Fully Enclosed Splash Guarding

Condition: used, Year of construction: 2018, Delivery time approx. 5 months. Machine from educational use – TOP condition, low hours (edging unit unused). No tools included. Dismantling, delivery, assembly, commissioning, and training not included in the price. Includes Maestro 3D and Pro View. MORBIDELLI P200 Working area X-Y: 3,110 x 1,620 mm, workpiece height Z180 mm Edge banding made for you: The CNC machining center is equipped with a comprehensive selection of edge banding tools to meet any woodworking requirement. MAIN ADVANTAGES · High performance with the advanced H80C edge banding unit, 8,000 rpm drilling spindles. The most robust spindle technology on the market, offering over 1,000 maintenance-free operating hours. · Better equipped: Suction cups can be disabled and configured via the FLEX worktable to optimally adapt the machine to requirements. · Easier, more intuitive programming thanks to the integrated CAD-CAM module for edge banding technologies “MAESTRO EDGE”. · Easier operation: The lowered frame ensures the worktable is always accessible. The control cabinet and vacuum pump are integrated, and in the PRO SPACE configuration, no safety barriers are needed. Lhedozvhlkspfx Agtjk Base structure: The base frame is a monolithic construction made from thick-walled steel, reinforced across the entire machine bed with welded square plates for exceptional rigidity. The bed’s shape, with a wide base, is the secret to lasting precision and stability. The load-bearing structure consists of a particularly robust, monolithic steel base, heavily ribbed and highly stiffened; the extra-wide support was specially designed to give the machine maximum stability, ensuring lasting precision regardless of operating conditions—with no need for floor anchoring. The base provides a large, solid support for the moving gantry: the working unit is thus equipped with a balanced, stable, and resilient support capable of handling the highest loads, ensuring top-quality performance and greater accuracy. The moving gantry is made from a robust single piece anchored to the base, sliding along top-quality prismatic guides with recirculating ball carriages. The working unit is attached and moves along the Y and Z axes on prismatic guides with recirculating ball carriages. Movement of the lower carriage (X-axis) and the working unit along the moving carriage (Y-axis) is enabled by rack-and-pinion transmission with helical teeth. This design results in greater tooth-on-tooth engagement, delivering higher acceleration and greater speed along the X and Y axes. The specially designed helical gearing ensures reduced wear on mechanical components and quieter operation. The vertical Z-axis is driven by a ball screw, ensuring perfect balance with dynamic loads and smooth acceleration and deceleration. The main milling unit is directly coupled to the Z-axis carriage for maximum finishing quality.

Condition: used, Year of construction: 2016, Technical details: turning diameter: 26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2016 Machine was only used for reworking, i.e. only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading belt Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. transmit function Adjusting microscope 16x magnification Coolant supply through the spindle clamping cylinder, Sealing air, Speed increase of the motor spindle to 8. 0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Knoll Compact coolant device Knoll MBE interface Small fire extinguishing system Kraft & Bauer Network interface for teleservice Ledpfxowbgcne Agtshk A total of 2 similar machines are available - package sale possible Please, contact us for getting more information and pictures on mail(at) or subject to sale and mistakes *

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, WE OFFER AN SPINNER CNC TURNING AND MILLING LATHE. Lsdpfx Aszbvthjgtshk MACHINE IS COMES FROM 1.ST OWNER , MAKING PARTS FOR DOORS, WINDOWS-SMALL PARTS MACHINE COMEST WIT ALL TOOLINGS, BAR FEEDER IS NOT INCLUDED MACHINE WILL BE AWAILIBLE IMEDIATELY DIRECT FROM THE PRODUCTION.

Condition: used, Year of construction: 1990, functionality: fully functional, turning length: 250 mm, turning diameter: 160 mm, travel distance X-axis: 100 mm, travel distance Z-axis: 290 mm, The machine is fully workable but the sub spindle is out of order and the Tool Eye is manual swivable Mazatrol T 32-2 CNC control main spindle: collet chuck device 8-fold revolver bar loading device Lsdpfx Agjzmfdxstehk Technische Daten / technical details: max. Drehdurchmesser / max. turning diameter 160 mm max. Schwingdurchmesser / max. rotary diameter 300 mm Drehlänge / turning length 250 mm X-Weg / X-travel 100 mm Z-Weg / Z-travel 290 mm Durchlass / spindle hole 40 mm Drehzahl / spindle speed 45-4500 UpM /rpm Gewicht der Maschine / weight 3500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, WE OFFER AN VERY NICE CONDITION MACHINE WEEKE OPTIMAT BP 140 MACHINE COMES FROM A FIRST OWNER AND ONLY ONE PERSON WORKING ALL TIME ON MACHINE. VERY GOOD CONDITION AND GOOD OPORTUNETEY TO BUY AN VERY NICE MACHINE. MACHINE IS READY TO WORK INCLUDES SAFETY CARPET VACUM PUMP Lhedpfevkklgsx Agtek DOCUMENTATION MACHINE IS READY TO WORK WE CAN SHIP MACHINE WORLDWIDE

Condition: used, Year of construction: 2013, Technical details: turning diameter: 38 mm Article: CNC lathe Manufacturer: Hanwha Type: STL38H Year of construction: 2013 Control: Siemens 840SL for 8 axes Main spindle: max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48 Counter spindle: max. pick-up diameter: 38mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42 Tool turret: n max. 6,000 rpm Power max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120 Bar feeder FMB Turbo 5-55 High-pressure station SFB-301 eco 150bar Please, contact us for getting more information and pictures on mail(at) or Ledpetv Sdfjfx Agtshk *

Condition: like new (used), Year of construction: 2022, MAZAK QUICK TURN 250MY SmoothG Max. turning diameter: 380 mm Max. turning length: 504 mm Max. milling speed: 5,000 rpm Max. spindle speed: 4,000 rpm Max. bar diameter: 80 mm The machine is equipped with: - CNC control: Mazatrol SmoothG - KITAGAWA 3-jaw chuck, BB-210, diameter 254 mm Lsdpfxszk I Tqe Agtehk - Tool Eye - C-axis - Y-axis - Interface for bar feeder - Automatic parts catcher - NC tailstock - Reinforced coolant pump - Chip conveyor - 8 pcs. fixed tool holders - 2 pcs. powered tool holders The machine has only 900 hours of pure machining time!!!

Condition: good (used), Year of construction: 2003, *Description* ROSILIO TBI 280, a 2-axis CNC lathe in good overall condition. This robust 2200 kg machine is ideal for subcontracting and small production runs. User-friendly FAGOR 8055TC-A control system with a color screen. The machine is well-maintained and can be viewed in operation. *Technical Specifications* - *Make / Model*: ROSILIO TBI 280 - *Year*: 2003 - *Serial Number*: CNC 0315063 - *Numerical Control*: FAGOR 8055TC-A - *Type*: 2-axis X-Z CNC Lathe - *Weight*: 2200 kg - *Dimensions*: L 2.0 m x W 1.45 m x H 1.8 m - *Voltage*: 400V 3-phase - 50/60Hz - *Installed Power*: 15 KVA - *Air Pressure*: 6 kg/cm² *Equipment* - Fagor 8055TC control panel with electronic handwheel - Coolant system Lodszt Tk Hopfx Agtshk - Hydraulic system - Automatic lubrication pump - Complete electrical cabinet

Condition: ready for operation (used), Year of construction: 2021, operating hours: 15,000 h, functionality: fully functional, Equipment: documentation/manual, 2021 Star SR32 JII Type A (15,000 hours) 4m FMB Turbo 3-36, Hydrajet UB20 High Pressure Coolant, LNS Swarf Conveyor, FireTrace Suppression, JBS Guide Bush System, Fully inspected & serviced, 30 Day Warranty # Star SR-32JII CNC Sliding Head Lathe Machine Hours: Approx. 15,000 hours Maximum Machining Diameter: Ø32 mm standard / Ø34 mm optional CNC Control: Fanuc 32i-B ## Machine Configuration * Twin-spindle CNC sliding head lathe * Main spindle and sub-spindle * Main and sub-spindle full C-axis control * Gang-type tooling system * Cross-working driven tooling * Back-working tooling * X1, Y1, Z1, C1, X2, Z2 and C2 controlled axes * Type B configuration additionally incorporates Y2 control on the back-working unit ## Main Spindle * Maximum spindle speed: 8,000 rpm * Spindle motor: 7.5 kW continuous / 11 kW short-time rating * Maximum headstock stroke: 320 mm * Full C-axis contouring capability ## Sub-Spindle * Maximum spindle speed: 8,000 rpm * Spindle motor: 3.7 kW continuous / 5.5 kW short-time rating * Full C-axis contouring capability * Maximum chucking diameter: Ø32 mm / Ø34 mm optional ## Main Tooling * 6 × turning tool positions * Tool size: 16 mm square * 5-spindle sleeve holder * Maximum drilling capacity: Ø13 mm * Maximum tapping capacity: M12 × P1.75 ## Cross-Working / Driven Tooling Configuration options include: * 3 × ER20 cross-milling positions + 2 cartridge-type positions * Or 6 × ER16 cross-milling positions * Maximum milling capacity: Ø10 mm * Maximum driven tapping capacity: M8 × P1.25 * Cross-milling spindle speed: 6,000 rpm * Cartridge-type driven tooling speed: up to 8,000 rpm * Driven-tool motor: 2.2 kW continuous / 3.0 kW short-time rating ## Back-Working * Maximum chucking diameter: Ø32 mm / Ø34 mm optional * Maximum front ejection length: 125 mm * Maximum projecting component length: 45 mm * Back-working tool positions: * 6 positions – Type A * 8 positions – Type B * Stationary drilling capacity: Ø13 mm * Driven drilling capacity: Ø8 mm * Stationary tapping capacity: M10 × P1.5 * Driven tapping capacity: M6 × P1.0 * Maximum back-working driven-tool speed: 6,000 rpm ## Rapid Traverse * X1 / X2 / Y1 / Z1 / Z2: 35 m/min * Y2: 24 m/min on applicable Type B machines ## Ancillary Equipment Included * 4 metre FMB Turbo 3-36 Magazine Bar Feeder * Hydrajet UB20 High-Pressure Coolant System * LNS Swarf Conveyor * FireTrace Automatic Fire Suppression System * JBS Guide Bush System Lhsdpozuxfrefx Agtsk ## Machine Condition & Support * Approx. 15,000 operating hours * Fully inspected and serviced * Supplied ready for production * 30 Day Warranty * Warranty valid within the UK only ## General Specification * Coolant tank capacity: 255 litres * Approximate machine dimensions: 2,690 × 1,345 × 1,780 mm * Approximate machine weight: 4,100 kg * Power requirement: 8.8 kVA * Maximum sound pressure level: 77 dB

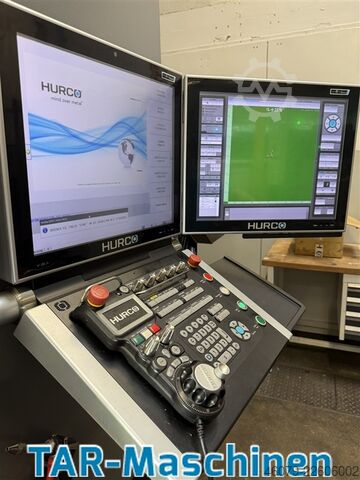

Condition: used, Year of construction: 2022, Technical details: turning diameter: 336 mm turning length: 216 mm weight of the machine ca.: 8,3 t Article: CNC multi-axis lathe Manufacturer: Hurco Model: TMX 8MYSi Year of manufacture: 2022 CNC multi-axis lathe Excerpt from manufacturer’s specifications: Working area: Max. turning diameter: 336 mm Max. swing diameter: 560 mm Main spindle specifications: Max. speed: 4,500 rpm Chuck diameter: 210 mm Tie-bar diameter: 64.5 mm Counter-spindle specifications: Max. speed: 6,000 rpm Tool turret with driven tools Bar-Loading Magazine: SAMSYS M3000 (2022 model) Lodpfx Agezv Rgwstshk HYDAC Cooler The machine can be visited under power. The tool configuration included in the scope of delivery may differ from the images Please, contact us for getting more information and pictures on mail(at) or *

Condition: used, Year of construction: 2012, Technical details: turning diameter: 420 turning length: 1230 mm swing over bed: 700 mm swing diameter over slide rest: 550 mm centre distance: 1390 mm y-axis: +/- 60 mm turning speeds: 3500 1/min turret (x-stations): 12 power capacity: 22 / 18,5 kW : 1 / 12 x BMT rapid traverse x + z axis: 20 / 24 m/min : 76 mm total power requirement: 50 kVA weight: 7,8 t dimensions of the machine ca.: 4,10 x 2,05 x 2,21 m CNC lathe with Y-Axis and driven tools, C-axis, tool eye, hydraulic 3-chaw-juck D= 250 mm, reinforced pump 15 bar, pressure-compensated clamping cylinder , Lsdet Acy Aspfx Agtjhk 2 step clamping pressure, prepared for steady (without steady), progr. tailstock (dragging device), live tool device (3,7 kW, 3.000 rpm), chipconveyor, 1 pcs. live tool included approx. 15.500 working hours *

Condition: ready for operation (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: 1 770 58 449, turning length: 740 mm, turning diameter: 160 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 1,500 rpm, travel distance X-axis: 280 mm, travel distance Z-axis: 1,130 mm, spindle motor power: 30,000 W, rapid traverse X-axis: 30 m/min, rapid traverse Z-axis: 60 m/min, rotational speed (min.): 1,500 rpm, rotational speed (max.): 4,500 rpm, total height: 2,950 mm, total length: 4,350 mm, total width: 2,550 mm, feed length X-axis: 280 mm, feed length Z-axis: 1,130 mm, feed rate X-axis: 30 m/min, feed rate Z-axis: 60 m/min, type of input current: three-phase, torque: 191 Nm, overall weight: 12,000 kg, chuck outer diameter: 215 mm, spindle nose: A6, mount diameter: 40 mm, Technical data UNIVERTOR AS90/400 (German) Manufacturer: J.G. WEISSER SÖHNE GmbH & Co. KG Type: UNIVERTOR AS90/400R RT General features: Machine type: Horizontal shaft turning center with pick-up loading Area of application: Complete machining of shafts and rotationally symmetrical components Loading: Integrated pick-up automation Processing types: Green turning, hard turning, roughing, finishing Tool carrier: 12-way turret with electric drive (VDI 40) Additional options: Driven tools, rotary turning, NC-adjustable steady rest, measuring probe Main spindle: Spindle bearing diameter: 90 mm Lhedpjvw Slhjfx Agtjk Spindle flange: A6 according to DIN 55026 Drive power (100/40% ED): 18/23 kW or 23/30 kW Nominal speed: 1,500 rpm Maximum speed: 4,500 rpm Torque (100/40% duty cycle): 115/146 Nm or 151/191 Nm Travel paths & axes: Max. turning diameter: 160 mm Max. chuck diameter: 215 mm Center distance: Max. 740 mm Travel paths X/Z axis: 280 mm / 1,130 mm Max. feed force X/Z (40% duty cycle): 10 kN / 8 kN Max. travel speed X/Z: 30 m/min / 60 m/min Tailstock: Pressure force: 850 daN Center center holder: MK4 Max. speed: 4,500 rpm Dimensions & weight: Machine dimensions (L×W×H): 4,350 × 2,550 × 2,950 mm Weight: 12,000 kg

Condition: ready for operation (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: 1 790 58 450, turning length: 990 mm, turning diameter: 160 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 1,500 rpm, travel distance X-axis: 280 mm, travel distance Z-axis: 2,400 mm, spindle motor power: 30,000 W, rapid traverse X-axis: 30 m/min, rapid traverse Z-axis: 100 m/min, rotational speed (min.): 1,500 rpm, rotational speed (max.): 4,500 rpm, total height: 2,950 mm, total length: 5,550 mm, total width: 2,550 mm, feed length X-axis: 280 mm, feed length Y-axis: 2,400 mm, feed rate X-axis: 30 m/min, feed rate Z-axis: 100 m/min, type of input current: three-phase, torque: 191 Nm, overall weight: 16,000 kg, chuck outer diameter: 215 mm, spindle nose: A6, mount diameter: 40 mm, Equipment: documentation/manual, rotational speed infinitely variable, Manufacturer: J.G. WEISSER SÖHNE GmbH & Co. KG Type: UNIVERTOR AS90/650RT General features: Machine type: Horizontal shaft turning center with pick-up loading Area of application: Complete machining of shafts and rotationally symmetrical components Loading: Pick-up automation Processing types: Green turning, hard turning, roughing, finishing Tool carrier: 12-way turret with electric drive (VDI 40) Additional options: Driven tools, rotary turning, NC-adjustable steady rest, measuring probe Main spindle: Spindle bearing diameter: 90 mm Spindle flange: A6 according to DIN 55026 Drive power (100/40% ED): 18/23 kW or 23/30 kW Nominal speed: 1,500 rpm Maximum speed: 4,500 rpm Torque (100/40% duty cycle): 115/146 Nm or 151/191 Nm Travel paths & axes: Max. turning diameter: 160 mm Max. chuck diameter: 215 mm Center distance: Max. 990 mm Travel paths X/Z axis: 280 mm / 2,400 mm Max. feed force X/Z (40% duty cycle): 10 kN / 8 kN Max. travel speed X/Z: 30 m/min / 100 m/min Tailstock: Pressure force: 850 daN Centering center holder: MK4 Lsdpsvxf U Eofx Agtjhk Max. speed: 4,500 rpm Dimensions & weight: Machine dimensions (L×W×H): 5,550 × 2,550 × 2,950 mm Weight: 16,000 kg

Year of construction: 2009, condition: ready for operation (used), A CNC flatbed lathe Optimum is available. Swing diameter over bed/slide: 280mm/170mm, center distance: 700mm, spindle bore: 27mm, speed: 4000rpm, travel X/Z: 165mm/660mm, feed X/Z: 2m/min/3m/min, tool stations: 4, quill stroke: 85mm. Machine dimensions X/Y/Z: approx. 2000mm/750mm/1550mm, weight: approx. 450kg, control: Siemens Sinumerik. Documentation available. An on-site inspection is possible. Ljdpfxeyyplie Agtohk

Year of construction: 2011, condition: ready for operation (used), A CNC universal lathe is available. Swing diameter over bed/facing slide: 680mm/465mm, max. turning diameter: 465mm, max. turning length: 1050mm, travel X/Z: 300mm/1050mm, rapid traverse: 20m/min, speed: 3250rpm, tool positions: 12, tool holder: VDI40. Machine dimensions X/Y/Z: approx. 3300mm/1950mm/2500mm, weight: approx. 7500kg. Documentation available. An on-site inspection is possible. Lhodpfszdkpbsx Agtsk
