Used Kunkel Hydr. Horizontal Bending Machine for sale (68,710)

Condition: new, Year of construction: 2025, control type: NC control, actuation type: hydraulic, power: 8 kW (10.88 HP), STANDARD EQUIPMENT Welded steel construction body Three-roll drive by motor Shafts made from special high-strength, hardened, and ground material Horizontal and vertical working positions Hardened standard roll sets Movable control panel separate from the body Manually adjustable mechanical side guides with 3-way movement Precise bending with motor brake Digital displays (2 units) OPTIONAL EQUIPMENT Pipe and profile bending roll sets Optional 2-axis hydraulic side guides Automation with NC control TECHNICAL SPECIFICATIONS Roll Shaft Diameter: 100 mm Roll Diameter: 315 mm Gsdjw Smi Ijpfx Alxeub Working Speed: 7 m/min Motor Power: 7.5 kW Length: 2000 mm Width: 1450 mm Height: 1700 mm Weight: 3650 kg

Condition: new, Year of construction: 2025, control type: NC control, actuation type: hydraulic, number of rollers: 3, roller (bottom) diameter: 250 mm, roller (top) diameter: 250 mm, side roll diameter: 200 mm, roller length: 2,550 mm, sheet thickness (max.): 10 mm, STANDARD EQUIPMENT - Steel construction main frame - Hydraulic top roll opening head - Movable control panel - Motor-driven central rolls - Hydraulic up-down movement for rear and lower rolls Gedpew Slcgsfx Alxsub - Precision bending with braked main motor - Cone bending and pre-bending system - Lower and upper rolls driven by planetary gearbox - Rear roll ball system facilitating sheet movement - Compliance with EU safety directives - High-strength forged steel rolls manufactured from SAE 1050 (CK45) certified steel - Hardened shafts - Digital indicators (2 units) - User manual OPTIONAL EQUIPMENT - Overhead crane (elevator) for supporting large diameter bending - Hydraulic side supports for large diameter bending - Ground and polished rolls - Wire grooves at roll ends - NC control unit - Dual speed operation - Infinitely variable speed adjustment - Ejector system - Hydro-motor option TECHNICAL SPECIFICATIONS Bending length: 2550 mm Pre-bending: 6/8 mm Bending: 8/10 mm Top & Bottom Roll Diameter: 250 mm Side Roll Diameter: 200 mm Min. Bending Diameter: 375 / 1250 mm Motor Power: 7.5 + 1.5 kW Bending Speed: 5 m/min Tank Capacity: 25 l Length: 4500 mm Width: 1200 mm Height: 1370 mm Weight: 4800 kg

Condition: new, Year of construction: 2025, control type: NC control, actuation type: hydraulic, power: 4 kW (5.44 HP), STANDARD EQUIPMENT Welded steel construction body Three-rolls driven by motors Hardened and ground shafts made from special high-strength material Horizontal and vertical working positions Hardened standard rolls Movable control panel separate from machine body Three-way adjustable mechanical manual side supports Guodpfxow Smhwe Alxsb Precise bending with braked motor Digital displays (2 units) OPTIONAL EQUIPMENT Rolls for pipe and profile bending Optional two-axis hydraulic side supports Automation with NC control TECHNICAL SPECIFICATIONS Upper Shaft Diameter: 60 mm Lower Shaft Construction: 50 mm Roll Diameter: 180 mm Working Speed: 6 m/min Motor Power: 3.75 kW Length: 1200 mm Width: 850 mm Height: 1200 mm Weight: 955 kg

Condition: new, Year of construction: 2025, control type: NC control, actuation type: hydraulic, number of rollers: 3, roller (bottom) diameter: 250 mm, roller (top) diameter: 250 mm, side roll diameter: 200 mm, roller length: 3,100 mm, sheet thickness (max.): 9 mm, overall weight: 5,400 kg, STANDARD EQUIPMENT Steel construction main frames Hydraulic upper roll opening head Movable control panel Motor-driven central rolls Hydraulic up/down movement for rear and bottom rolls Precision bending with braked main motor Cone bending and pre-bending system Upper and bottom rolls driven by planetary gearbox Rear roll ball support system for easier sheet movement Compliance with EU safety directives High-strength, forged steel rolls manufactured from SAE 1050 (CK45) certified steel Hardened shafts Digital readouts (2 units) Operator's manual OPTIONAL EQUIPMENT Overhead crane (elevator) for support in large diameter bending Hydraulic side supports for support in large diameter bending Ground and polished rolls Wire grooves on roll ends NC control unit Dual-speed operation Infinitely variable speed adjustment Ejector system Hydraulic motor option TECHNICAL DATA Bending Length: 3050 mm Pre-bending: 5/7 mm Bending: 7/9 mm Top & Bottom Roll Diameter: 250 mm Side Roll Diameter: 200 mm Min. Bending Diameter: 375 / 1250 mm Motor Power: 7.5 + 1.5 kW Godpfjw Slbvsx Alxjub Bending Speed: 5 m/min Tank Capacity: 25 L Length: 5000 mm Width: 1200 mm Height: 1370 mm Weight: 5400 kg

Condition: excellent (used), functionality: fully functional, Year of construction: 1996, working width: 6,000 mm, sheet thickness aluminum (max.): 4 mm, sheet thickness steel (max.): 3 mm, Equipment: documentation/manual, The face design of the segmental machine structure and the swing-mounted bending beam on the kinematic mechanism enable the bending of various complex shapes from steel and aluminum sheet with a maximum bending angle of 145 degrees and a maximum upper beam stroke of 200 mm. Guodpfx Aoxflfmelxob The machine is controlled by a three-axis programmable controller, allowing operation in three modes: Manual, single – includes one program consisting of a single bending stage and one backgauge setting, which can be repeated any number of times. The program comprises 60 programmable blocks, each containing 10 bends and backgauge positions. The machine can bend steel sheet up to 3 mm thick and aluminum up to 4 mm. The hydraulic oil has been replaced and the entire control system has been renewed.

Condition: new, functionality: fully functional, Year of construction: 2025, throat depth: 400 mm, warranty duration: 24 months, Model: GB-4016E Bending pressure (KN): 400 Bending length (mm): 1600 Distance between columns (mm): 1320 Maximum opening height (mm): 430 Slider stroke (mm): 180 Throat depth (mm): 400 X-axis stroke (mm): 400 X-axis speed (mm/s): 400 R-axis stroke (mm): 140 R-axis speed (mm/s): 200 Guedpfswzqx Hsx Alxsb Z-axis stroke (mm): 1040 Z-axis speed (mm/s): 400 Machine power (kw): 17.2 Dimensions (mm): 2090*1265*2290 Weight (kg): 3500

Condition: excellent (used), functionality: fully functional, Year of construction: 2020, roller diameter: 60 mm, working width: 1,050 mm, sheet thickness (max.): 1 mm, roll metal bending machine Isitan 1050 X 1.2mm Manual 3 roll Bending Machine, excellent condition for sale manufacturer: Isitan 1050X1.2 Gusdpfjwk Rlxex Alxsb max sheet width: 1050mm max sheet thickness: 1.2 mm Wire grooves at the ends of the rollers Conical bender roller diameter: 60mm Upper roller removable for easy workpiece removal machine dimensions: length: 130cm height: 100cm width: 65cm weight: 240kg

Condition: good (used), Year of construction: 1988, functionality: fully functional, WE OFFER AN POWERFULL MANDREL TUBE BENDING MACHINE IT CAN WORK UP TO 110mm tubes bending. MACHINE CAN BE AS WELL RETROFFITTED TO A CNC CONTROL...WITH ADDITIONAL SEVERAL SERVO MOTORS, TO ROTATE HEAD AND MOVE FORWARD. IT HAS CLAMPING SISTEM AND ALL RAILS SAM AS FULL CNC. Machine comes with a lot of tools accessoriess. Machine just turn on and work, ready for operation, Tools from 60 up to 100mm 6 SETS OF TOOLINGS INCLUDED + MANY ACCESSORIESS AND TOOLS We can organize transport and loading. Gsdpfsvk I Thjx Alxeub

Condition: repair required (used), Year of construction: 2014, machine/vehicle number: AA2/002546, number of slots in tool magazine: 24, overall weight: 6,600 kg, table length: 5,200 mm, table width: 1,300 mm, TECHNICAL DETAILS Table length: 5,200 mm Table width: 1,300 mm Number of milling spindles: 1 Type of milling table: Beam table Tool changer positions: 24 MACHINE DETAILS Voltage: 400 V Current consumption: 64 A Dimensions & Weight Dimensions (L x W x H): 10,300 x 2,450 x 2,800 mm Net weight: 6,600 kg Transport packages: 1 EQUIPMENT Drilling tool Vacuum pump Tools Godpfx Aey Nybtjlxoub Becker Vtlf 250 vacuum pump: - Year of manufacture: 2008 - Main motor power: 5.5 kW - Connection diameter: 70 mm - Oil-free: Yes Note: The machine requires repair. There is an issue with the CAN bus system.

Condition: ready for operation (used), Year of construction: 2014, machine/vehicle number: 89867, functionality: fully functional, travel distance X-axis: 3,765 mm, travel distance Y-axis: 1,875 mm, travel distance Z-axis: 324 mm, number of slots in tool magazine: 12, overall weight: 4,000 kg, TECHNICAL DETAILS Working area X-axis: 3,765 mm Working area Y-axis: 1,875 mm Working area Z-axis: 324 mm Table length: 3,600 mm Table width: 1,800 mm Tool holding system: HSK-F63 Tool changer positions: 12 positions MACHINE DETAILS Number of milling spindles: 1 piece Weight: 4,000 kg Transport packages: 1 piece EQUIPMENT Flat table BiesseWorks system/software Safety mat Drilling tool included Saw unit included Labelling machine Gedpfx Asy Nxybjlxsub Loading system Unloading system

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 669, travel distance X-axis: 560 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, controller model: MSC 502, rotational speed (max.): 12,000 rpm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel X-axis: 560 mm Travel Y-axis: 510 mm Travel Z-axis: 510 mm Distance spindle center to table: 50 – 650 mm Distance spindle nose to table center: 100 – 610 mm Main Spindle Max. speed: 12,000 rpm Drive power: 22 / 18.5 kW Tool holder: MAS BT-40 Spindle bearing diameter: 70 mm Pallet Changer Number of pallets: 2 Pallet size: 400 x 400 mm Max. workpiece diameter: 580 mm Max. workpiece height: 650 mm B-Axis Switching time 90°: 2.5 sec Pallet changeover time: 6.0 sec Tool Changer Number of tool positions: 60 Max. tool diameter: 80 mm Max. tool diameter with adjacent magazine slots free: 125 mm Max. tool length: 300 mm Max. tool weight: 8 kg Tool-to-tool change time: 1.5 sec Chip-to-chip change time: 3.7 sec Rapid traverse (X/Y/Z): 32 m/min Feed rate: 1 – 24,000 mm/min Jog feed rate: 0 – 1,260 mm/min MACHINE DETAILS CNC control: MSC 502 Gusdpfx Aljy R U Ecexjb Total power requirement: 63 kVA Dimensions & Weight Footprint approx.: 5.5 x 4.5 x 2.7 m Machine weight approx.: 9.0 t EQUIPMENT Documentation Chip conveyor Cooling device High-pressure coolant system Internal coolant supply Tool magazine: 60 positions Pallet changer Pallets: 2 Signal lamp B-axis Hydraulic unit Spindle oil cooler Note: Shaft for loading must be provided by the buyer.

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 730 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, workpiece weight (max.): 300 kg, spindle speed (max.): 12,000 rpm, The machine spindle was recently replaced. The corresponding report can be provided upon request. TECHNICAL DETAILS Travel X-axis: 730 mm Travel Y-axis: 510 mm Travel Z-axis: 510 mm Rapid traverse X-axis: 50 m/min Rapid traverse Y-axis: 50 m/min Rapid traverse Z-axis: 40 m/min Table width: 500 mm Table height: 870 mm Table length: 500 mm Table load capacity: 300 kg Rotary table diameter: 500 mm Rotational speed (max.): 1,200 rpm Spindle speed (max.): 12,000 rpm Guedpfx Aljy N N Sujxsb Spindle interface: HSK-A63 Workpiece height (max.): 450 mm Workpiece weight (max.): 300 kg Tool length: 300 mm Tool diameter: 125 mm Tool weight: 8,000 g Number of tool magazine slots: 180 MACHINE DETAILS Control unit: Siemens 840 D Total weight: 14,800 kg Incoming voltage: 400 V EQUIPMENT Mori Seiki tool application manual KNOLL FKA/500 band filter system + 3 filter rolls Filtermist FX5000 emulsion extraction unit Renishaw OMP60 3D probe Chip conveyor Spindle chiller Documentation + circuit diagrams

Condition: good (used), Year of construction: 2004, functionality: limited functionality, travel distance X-axis: 560 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 625 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, controller manufacturer: Okuma, controller model: OSP-E100M, workpiece length (max.): 600 mm, workpiece width (max.): 710 mm, workpiece weight (max.): 400 kg, total height: 2,760 mm, total length: 4,535 mm, total width: 2,415 mm, table width: 400 mm, table length: 400 mm, table load: 400 kg, overall weight: 10,000 kg, spindle speed (max.): 8,000 rpm, distance table center to spindle nose: 710 mm, spindle motor power: 15,000 W, spindle nose: BT40, number of spindles: 1, number of slots in tool magazine: 40, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, rotational speed infinitely variable, Okuma Space Center MA400HA Horizontal Machining Centre Machine Type: CNC Horizontal Machining Centre Year: 2004 Control: OSP-E100M Axes: 4 No. of Pallets: 2 Condition: Good - There is an issue with the pallet changer. Includes Cromar Swarf Conveyor Coolant Filtration System Technical Specifications Pallets: 2 Size of Pallets: 400 x 400mm X Axis Travel: 560mm Y Axis Travel: 610mm Z Axis Travel: 625mm B Axis Travel: 360 Deg Rapid Traverse: 60m/min Spindle Centre to Pallet Top: 50 - 660mm Gjdpfxswcd Evo Alxjub Spindle Nose to Pallet Centre: 85 - 710mm Max Pallet Load: 400kg Max Workpiece Dimensions: 600 x 710mm Tool Pockets: 40 Spindle Taper: BT40 Spindle Power: 15kW Spindle Speed: 8,000rpm Machine Dimensions: 4535 x 2415 x 2760mm Machine Weight: 10,000kg Notes: *Specifications are given in good faith but not guaranteed*

Condition: good (used), Year of construction: 1985, FOR SALE: Automatic Stamping and Bending Machine BIHLER RM-30 High-performance equipment for the automatic production of complex metal parts from wire or strip material. Identification and Brand Brand: BIHLER (Otto Bihler Maschinenfabrik, Germany). Model: RM-30. Year of manufacture: 1985. Machine number: 23589. Technical Specifications (Model RM-30) Maximum strip width: 32 mm. Maximum wire diameter: 3 mm (mild steel). Feed length (standard): Up to 120 mm. Nominal press force: 70 kN (7 tons). Production speed: Adjustable, up to 350 parts/minute (depending on complexity). Number of slides: Up to 5 standard bending units. Equipment and Configuration Control system: Separate control panel with user interface. Kinematics: Radial cam drive for maximum precision and repeatability. Press unit: Integrated for cutting, punching, or marking operations prior to bending. Safety: Machine equipped with protective guards and emergency stop. Advantages Versatility: Enables the production of highly complex parts in a single cycle. Bihler reliability: Renowned worldwide for robust construction and long-lasting mechanical components. Precision: Ideal for the electronics, automotive, and connector industries. Guodpfx Aey Shgpjlxsb

Condition: used, Year of construction: 2009, travel distance X-axis: 1,250 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, Offered here is a used machining center from the manufacturer Deckel Maho DMG. The machine is powered up and can be inspected at our facility. Free loaded on truck Manufacturer: DMG Deckel Maho Model: DMC 125 H duoBlock Year of manufacture: 2009 Control: Siemens 840 D Solutionline (PCU 50) Technical data: Travel distances X-, Y-, Z-axis: 1250 x 1000 x 1000 mm Feed rate X-, Y-, Z-axis: 20 - 60,000 mm/min Rapid traverse X-, Y-, Z-axis: 60 m/min B-axis travel: 360 x 0.001° B-axis feed rate: 10,800 °/min Max. rotation of table plate: 30 rpm Spindle speed: 20 - 8,000 rpm Gear stages: 2 Max. workpiece diameter: 1250 mm Max. workpiece height: 1580 mm Clamping surface: 800 x 800 mm Max. workpiece weight: 1,500 kg Weight of pallet: 570 kg Max. permissible weight difference for pallet loading: 1,000 kg Tool holder: SK 50 according to DIN 69871 Max. tool length: 650 mm Tool magazine: 120 positions Transport dimensions: 6,500 x 3,000 x 3,200 mm Transport weight of machine (without magazine or other accessories): approx. 20,000 kg Guodpjw Ew T Ssfx Alxeb Space requirement: approx. 7,000 x 6,000 mm Total machine weight: 24,000 kg Accessories: Chip conveyor with coolant tank Coolant system 4x machine pallets Tool magazine Oil mist extraction Various new spare parts: 1x Length measuring system Y-axis (new) 1x Lubrication unit 230V 0.12 30 bar (new) 1x ZAHNRADP-AGG*MKF1-KW2-20036 (new) 1x Cyclo gearbox *F1C-A25 (new) 1x Conversion kit power module (new) 1x Lifting devices for the machine

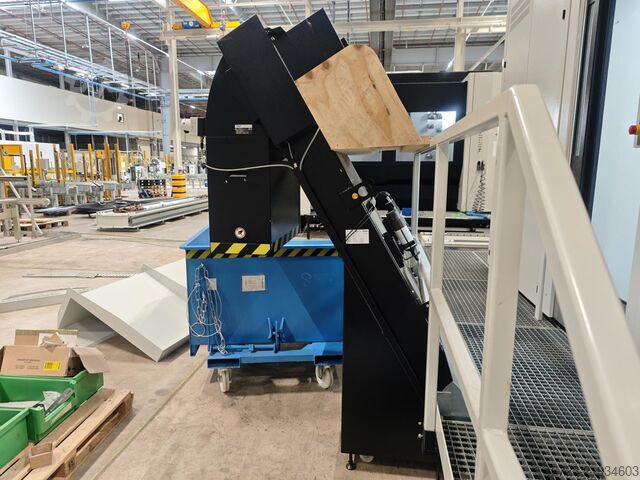

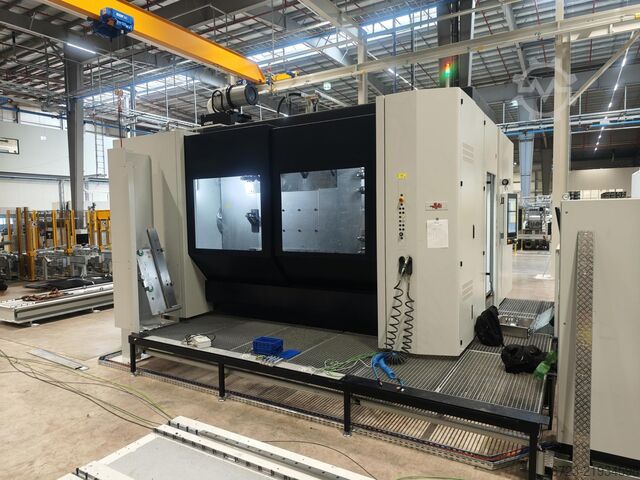

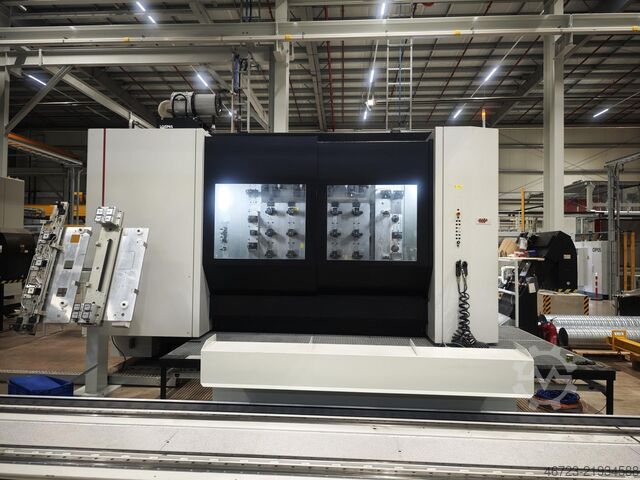

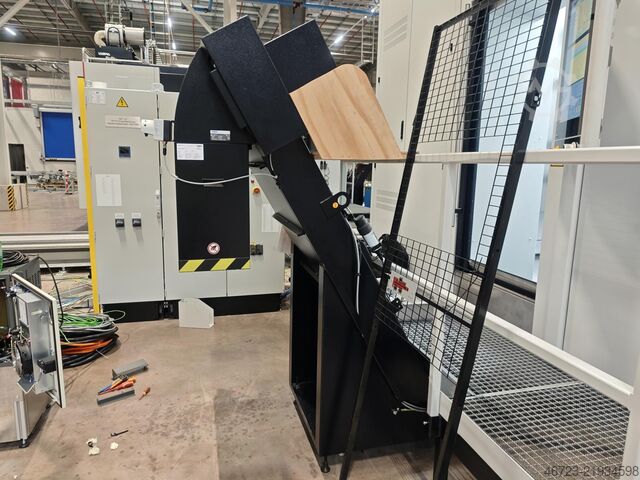

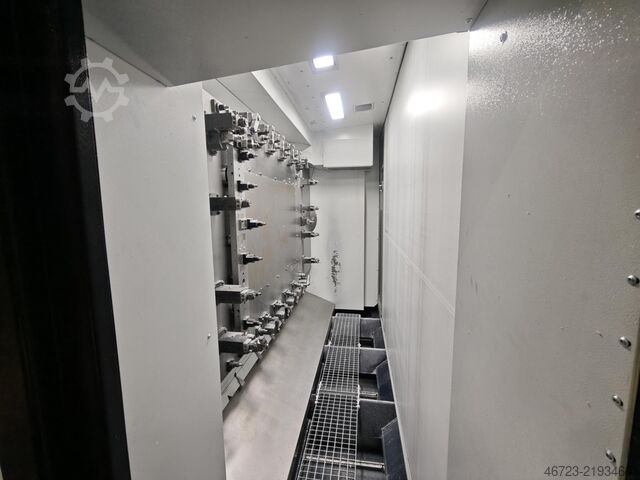

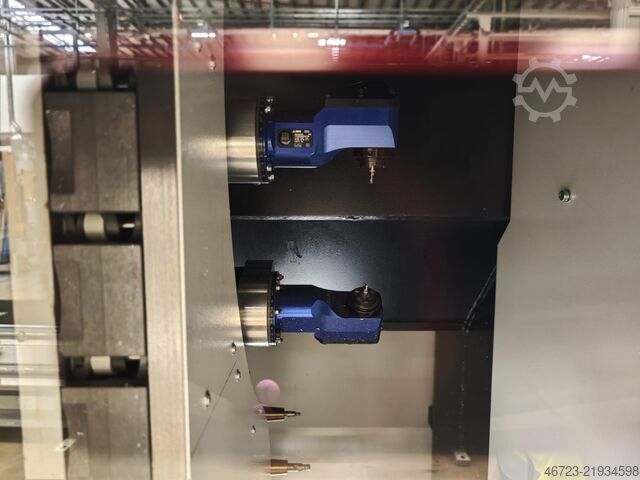

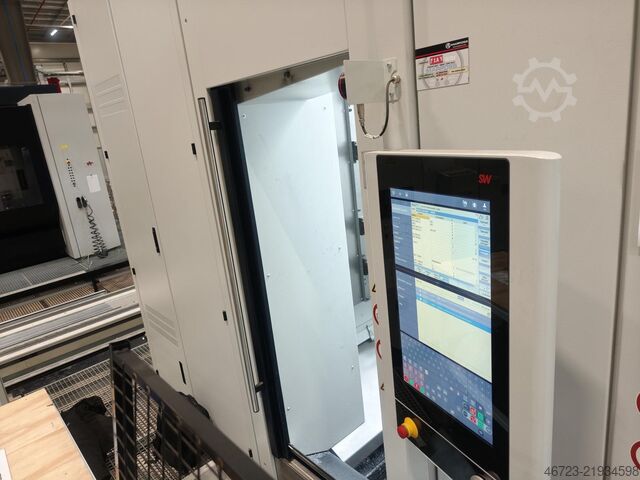

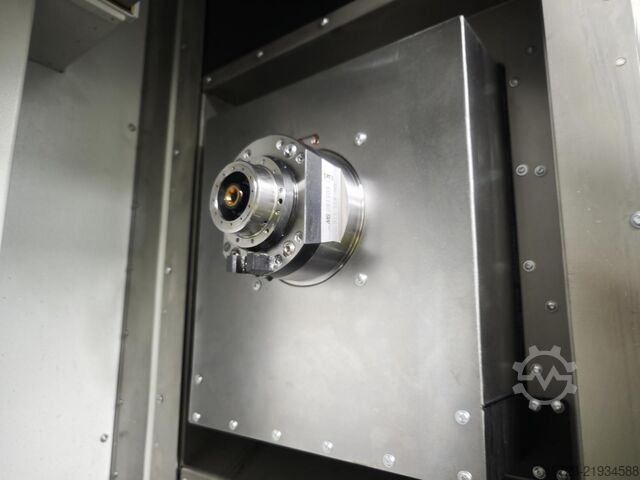

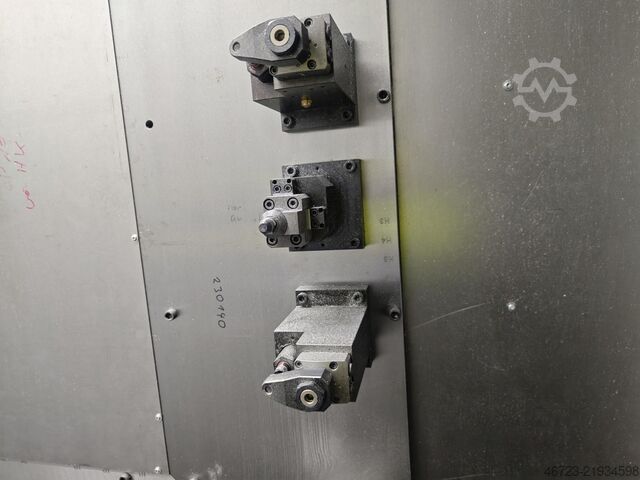

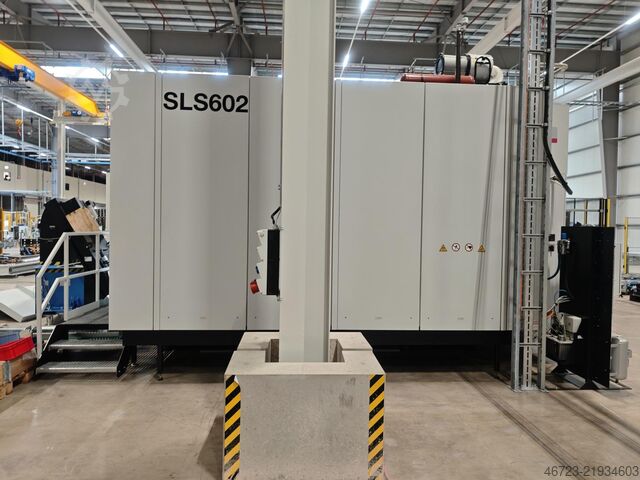

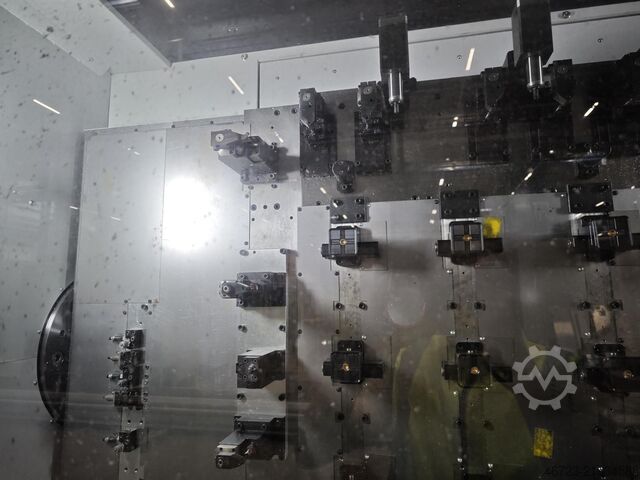

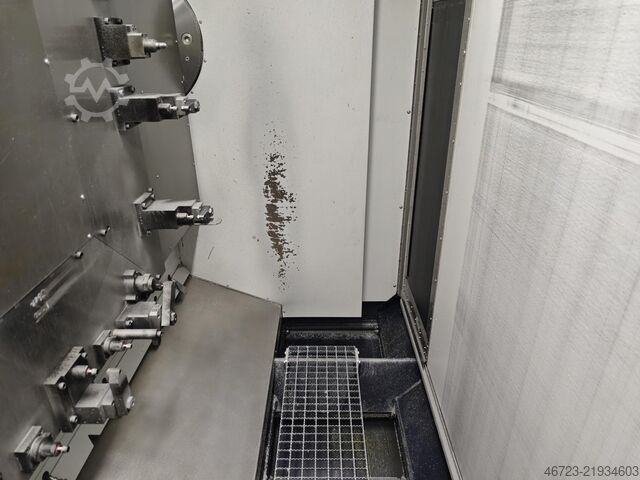

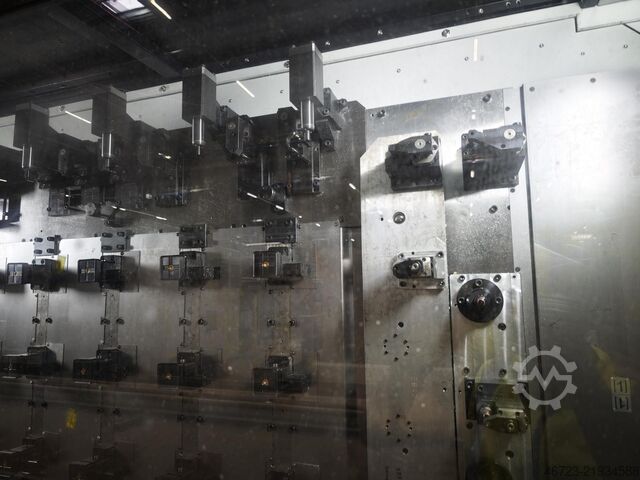

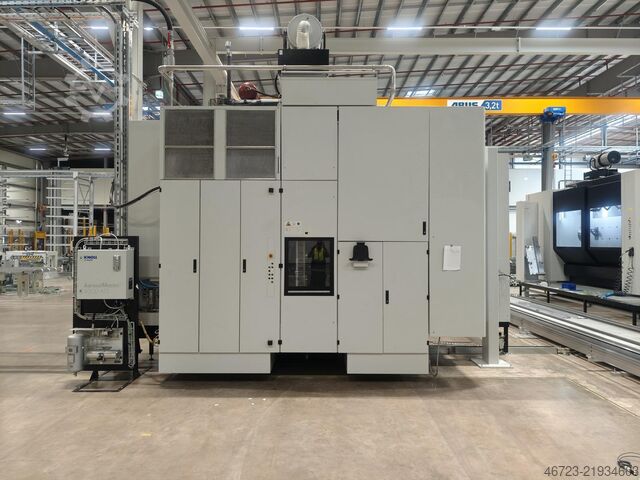

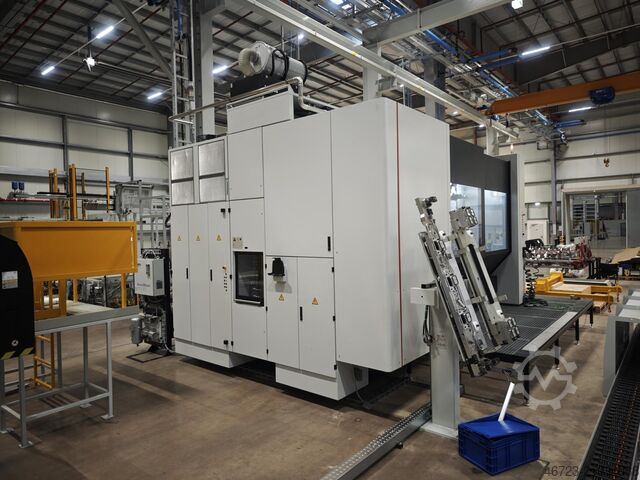

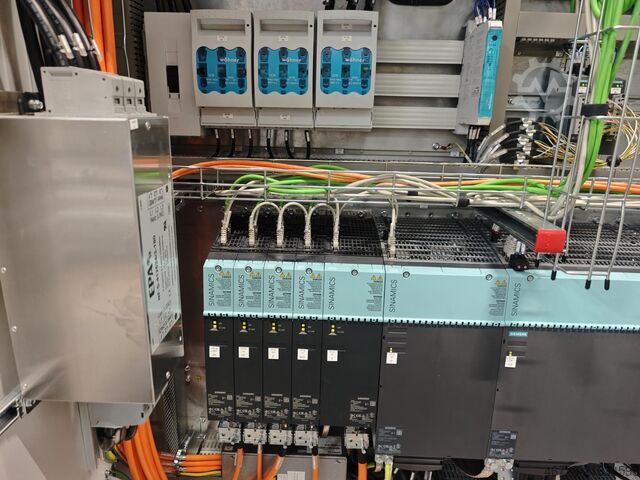

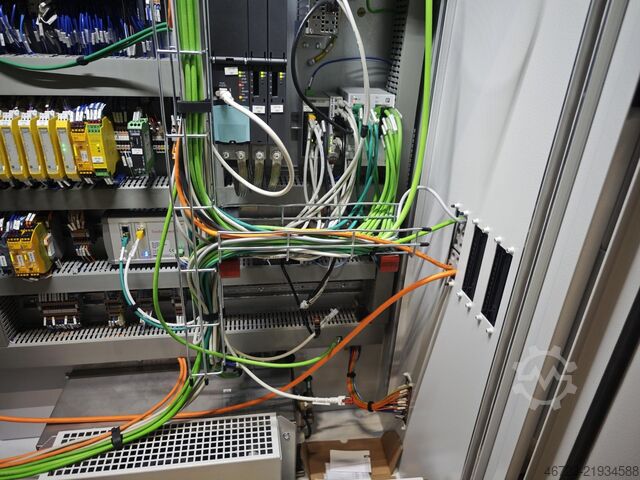

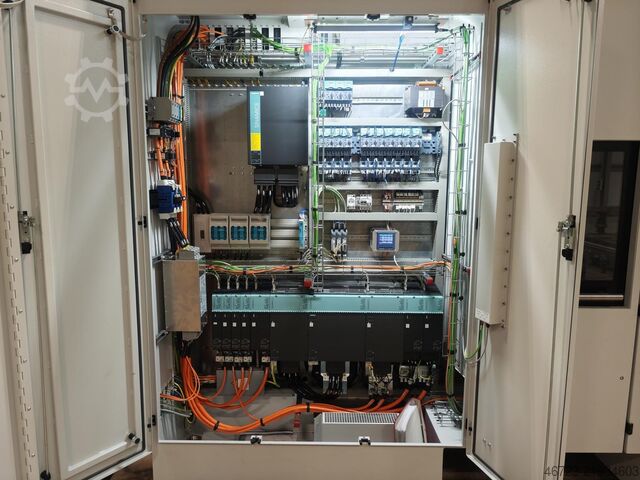

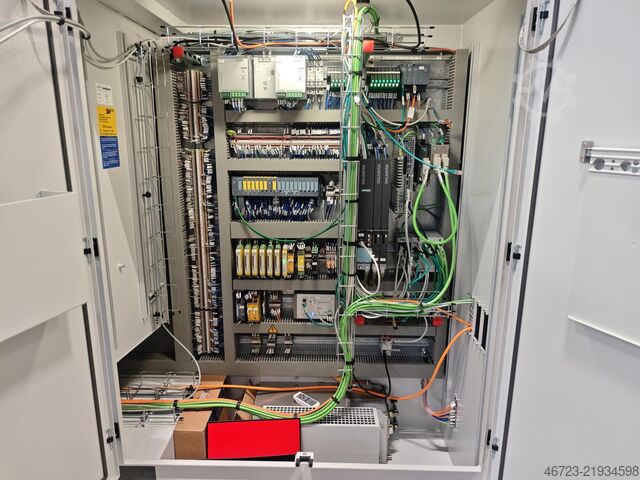

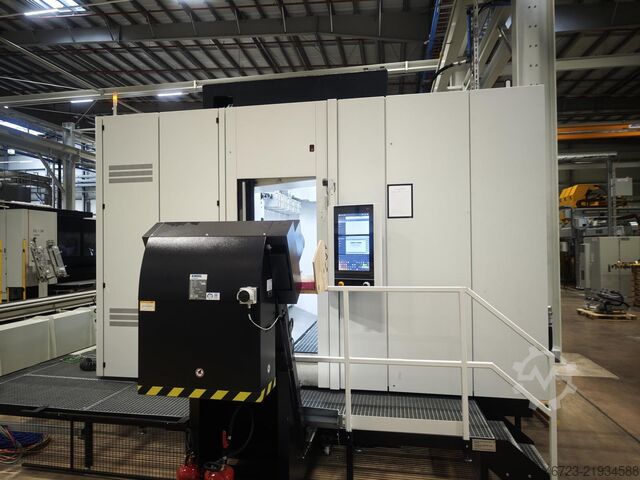

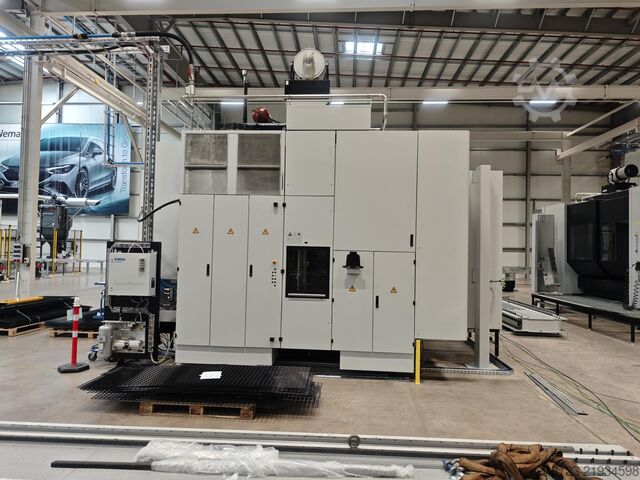

Condition: used, Year of construction: 2023, operating hours: 1,178 h, functionality: unexamined, machine/vehicle number: 6000050, total height: 3,400 mm, total length: 8,000 mm, total width: 6,000 mm, overall weight: 27,523 kg, number of spindles: 1, Equipment: chip conveyor, Installation dimensions: 8000 x 6000 x 3400 mm Weight: 27,500 kg Operating hours: 1,178 h KNOLL aerosol extraction system AerosolMaster 4000 ATS S/N 1599507 Year of manufacture: 2023 Chip conveyor KNOLL 750 K-1 S/N 1627885 Year of manufacture: 2023 Guedpfx Aljy Spu Ijxeb

Condition: used, Year of construction: 2023, operating hours: 4,058 h, functionality: unexamined, machine/vehicle number: 6000027, total height: 3,400 mm, total length: 8,000 mm, total width: 6,000 mm, overall weight: 27,523 kg, number of spindles: 1, Equipment: chip conveyor, Installation dimensions: 8000 x 6000 x 3400 mm Weight: 27,500 kg Operating hours: 4,058 h KNOLL aerosol extraction system AerosolMaster 4000 ATS Serial No.: 1580193 Gsdpfx Alsy Spunjxsub Year of manufacture: 2022 Chip conveyor KNOLL 750 K-1 Serial No.: 1579461 Year of manufacture: 2022

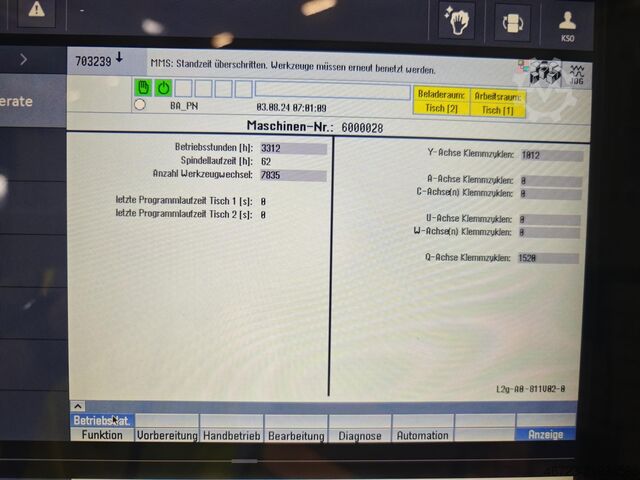

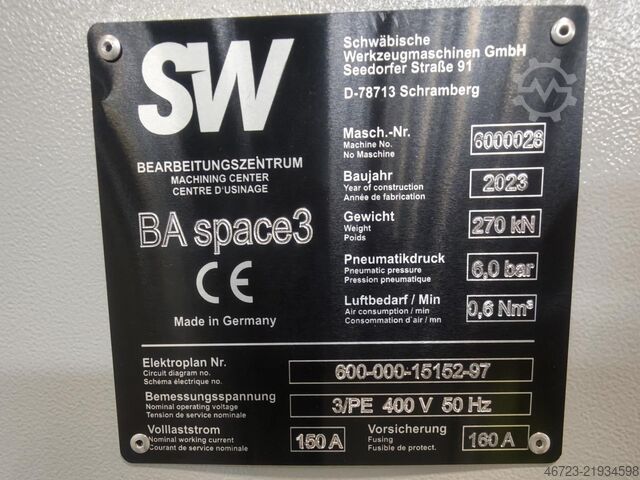

Condition: used, Year of construction: 2023, operating hours: 3,312 h, functionality: unexamined, machine/vehicle number: 6000028, total height: 3,400 mm, total length: 8,000 mm, total width: 6,000 mm, overall weight: 27,523 kg, number of spindles: 1, Equipment: chip conveyor, Installation dimensions: 8000 x 6000 x 3400 mm Weight: 27,500 kg Operating hours: 3,312 h KNOLL aerosol extraction unit AerosolMaster 4000 ATS Gsdpfx Aley Spuhoxoub S/N 1577134 Year of manufacture: 2022 Chip conveyor KNOLL 750 K-1 S/N 1585685 Year of manufacture: 2022

Condition: used, Year of construction: 2023, operating hours: 1,621 h, functionality: unexamined, machine/vehicle number: 6000047, total height: 3,400 mm, total length: 8,000 mm, total width: 6,000 mm, overall weight: 27,523 kg, number of spindles: 1, Equipment: chip conveyor, Installation dimensions: 8000 x 6000 x 3400 mm Weight: 27,500 kg Operating hours: 1,621 h KNOLL aerosol extraction system AerosolMaster 4000 ATS S/N 1623285 Year of manufacture: 2023 Chip conveyor KNOLL 750 K-1 Gedpfxoy Spt Ro Alxjub S/N 1627884 Year of manufacture: 2023

Condition: used, Year of construction: 2023, operating hours: 2,594 h, functionality: unexamined, machine/vehicle number: 6000030, total height: 3,400 mm, total length: 8,000 mm, total width: 6,000 mm, overall weight: 27,523 kg, number of spindles: 1, Equipment: chip conveyor, Installation dimensions: 8000 x 6000 x 3400 mm Weight: 27,500 kg Operating hours: 2,594 h KNOLL aerosol extraction system AerosolMaster 4000 ATS S/N 1580192 Year of manufacture: 2022 KNOLL chip conveyor 750 K-1 Guedpey Sptwjfx Alxjb S/N 1591356 Year of manufacture: 2023

Year of construction: 2020, condition: like new (used), horizontal glass washing and drying machine made in China . max. working width : 2000 mm min. glass size : 400 x 400 mm glass thikness : 3 - 25 mm working speed : 1 - 10 m/min. blower power : 15 Kw total power : 42,5 Kw brushes : 3 pairs Guedpfx Aley R Dw Ioxsb bristle diameter of hard brush : 0,25 mm bristle diameter of soft brush : 0,08 mm brush shaft diameter : 75 mm roller diameter : 75 mm water tank : 4 units air knives : 2 table height : 900 +/- 50 mm net weight : 4300 kg machine sizes : L = 5680 mm , W : 4744 mm , H : 3287 mm

Condition: like new (used), Year of construction: 2023, Mandrel Bending Machine S4501 ----- For the production of tube geometries with bending radii from 1.5xD → Maximum bending capacity, tube 42.4 x 3.25 mm (steel max. Re 240 N/mm²) Guodpfjtr U Hlsx Alxjb → Maximum bending capacity, tube 30 x 30 x 3 mm → Maximum bending capacity, tube 42.4 x 2 mm (stainless steel 0.2 260 N/mm²) → Total connected load 3 kW → Tube loading length approx. 1.5 m Robust and durable steel construction. Maintenance-free servo drive for the bending, feed, and rotation axes. The control system's touch display ensures easy and intuitive programming and operation. Once the tube is loaded, it is fixed in place by the chuck in the carriage, enabling precise tube positioning and the production of dimensionally accurate geometries. Standard features include tube geometry verification before the bending process: if the bending operation is initiated at an incorrect position, the machine will not grant approval, reliably preventing operator errors. Optional features offer greater convenience, increase output, and therefore improve the machine's efficiency. Data exchange with the optional TBS-3D tube calculation software (PC version) is performed via USB stick or network. Existing tube geometries can be imported into the software. Standard equipment: → Servo drive for bending axis, 1.5 kW → Adjustable rotation speed → Left-hand bending direction → Bending angle resolution 0.1° → Maximum bending radius 120 mm → Bending shaft diameter 50 mm → Servo drive feed → Servo drive rotation → Three-jaw chuck for securing the tube in the carriage → Pneumatic tool retraction Hydraulics: → Hydraulic tube clamping with adjustable clamping pressure → Programmable early mandrel retraction PLC Control System: → 10" color touchscreen → ETH 10/100, X2X Link, 2x USB → Foot pedal operation → Data transfer via LAN network or USB → Material database Unique graphical programming: simple geometries can be calculated directly on the machine. After inputting length and angle, the control automatically calculates the feed values and bending angles. Power supply: 400V 16A Dimensions: L: 2.3 m x W: 1 m x H: 1.4 m Weight: approx. 1200 kg

Condition: used, Year of construction: 2017, pipe diameter (max.): 80 mm, mandrel length: 4,500 mm, Mandrel bending machine S8004 ----- For the production of dimensionally accurate pipe geometries with bending radii of up to 1.5XD → maximum bending performance pipe 76 x 4 mm (400 N/mm²) → maximum bending performance pipe 60 x 60 x 3 mm (400 N/mm²) → maximum bending performance pipe 76 x 2.9 mm (stainless steel) → total connected load 7 kW → pipe length 4.5 mtr Robust and durable steel construction in a force-locking connection - no construction susceptible to torsion due to, for example, the split construction of the bending head and mandrel carrier. Maintenance-free electromechanical drive of the bending axis. The touch display of the control enables simple and intuitive programming and use of the system. After the pipe has been pushed on, it is fixed in the carriage by the chuck. This enables the pipe to be positioned precisely and thus the creation of dimensionally accurate geometries. The standard also includes checking the pipe geometry before the bending process: If the bending process is started in the wrong position, the machine does not give permission for this. This prevents incorrect operation. Optional additional features provide more convenience and increase the output and thus the efficiency of the system. Data is exchanged from the optional pipe calculation program TBS-3D (PC version) via USB stick or via FTP access from the computer to the machine control system. USB or LAN connectors (RJ45) are available as standard. Existing pipe geometries can be converted quickly and easily, for example, using the STEP format. Gedpfx Asttah Rslxsub Standard equipment: → Electromechanical drive of the bending axis 4 kW → Speed 2.9 rpm (=17°/sec.) → Bending direction left → Bending angle resolution 0.1° → Max. bending radius 200 mm → Bending shaft diameter 50 mm → Electronic length measurement ±0.1mm → Electronic twist measurement ±0.1° → Manual stop system (overtravel stops in length) → Manual locking system (15° in twist) → Three-jaw chuck for locking the pipe in the carriage → External control panel PLC control: → Touchscreen 10.1" → ETH 10/100, X2X Link, USB → Foot switch operation → Data transfer via network (W)LAN or USB → Material database Unique graphic programming: Simple geometries can be calculated directly on the machine. The control calculates the feed values directly after entering the length and angle and the bending angles. Hydraulics: → Hydraulic power 3 kW → Hydraulic pipe clamping with adjustable clamping pressure → Programmable early mandrel retraction Options (can be ordered as additional equipment): → Variable bending speed using frequency converters or servo motors → Automatic tool retraction (manual or controlled) → Pneumatic chuck → Automatic mandrel lubrication → Pneumatic stop system (length + twist) → Mobile version (rollers) → Radius extension Pictures show new machine

Condition: good (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 1,400 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,350 mm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 50 m/min, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, controller manufacturer: Mori Seiki (Fanuc), controller model: MSX-701 (Fanuc 31i), workpiece height (max.): 1,450 mm, workpiece diameter (max.): 1,450 mm, workpiece weight (max.): 2,200 kg, total height: 3,850 mm, total length: 7,200 mm, total width: 4,300 mm, spindle speed (max.): 8,000 rpm, coolant supply: 70 bar, type of input current: AC, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Offered here is a machining center from the manufacturer Mori Seiki. The machine is fully functional, in good condition, and can be inspected and tested at our facility. Manufacturer: Mori Seiki Gjdpfx Aleyrdn Uoxjub Model: NH8000 DCG Year of manufacture: 2008 Control unit: MSX 701-III Technical specifications: Travel distances X-Y-Z: 1400 x 1200 x 1350 mm B-axis: 0.001° Feed rate X, Y, Z: 50,000 mm/min Rapid traverse X, Y, Z: 50 m/min Pallet size: 800 x 800 mm Number of pallets: 2 Pallet change time: 16 s Max. workpiece weight: 2200 kg Max. workpiece diameter: 1450 mm Max. workpiece height: 1450 mm Spindle speed: 8000 rpm Spindle power: 37 kW Tool holder: HSK-A100 Tool magazine: 60 positions Tool change time: 1.9 s Distance between pallet surface and spindle center: 100–1300 mm Distance between pallet center and spindle nose: 100–1450 mm Total power consumption: 86 kVA Machine dimensions: approx. 7200 x 4300 x 3850 mm Transport dimensions machine: approx. 7000 x 3400 x 3300 mm Machine weight: approx. 30 t Total weight incl. magazine and accessories: approx. 37 t Scope of delivery includes: 1x Mori Seiki NH8000 DCG machine 1x Matrix tool magazine 1x chip conveyor 1x coolant system 1x transformer Various tool holders

Condition: good (used), Year of construction: 1999, overall weight: 2,900 kg, total length: 1,800 mm, total width: 1,900 mm, total height: 2,200 mm, Length:1800mm Width:1900mm Height:2200mm Weight:2900kg Gusdpfxjycu E Ej Alxjb
