Used Thread Tapping Center for sale (15,865)

Condition: excellent (used), Year of construction: 2019, operating hours: 2,100 h, functionality: fully functional, turning length: 3,028 mm, turning diameter over cross slide: 690 mm, turning diameter: 650 mm, spindle bore: 166 mm, DOOSAN PUMA 5100 XLMB CNC LATHE FANUC CONTROL 32i B YEAR 11/2019 , INSTALLED 2020 SWING OVER BED 900 MM SWING OVER SADDLE 690 MM MAX TURNING LENGTH 3028 MAX TURNING DIA 650 MM HYD CHUCK 550 MM DIA X 362 Z 3150 C 360 INDEXING 0.001 12 STATION TURRET Pedpfjznu Dqjx Aflogp BORING BAR 60 MM MAX RPM 1500 BAR CAPPACITY 166.37 MM TAILSTOCK - QUILL 120 DIA - NO 6 MT LIVE TOOLING SWARF CONVEYOR TOOL PRESETTER COOLANT SYSTEM HYD STEADY IS THERE BUT NOT FITTED TO MACHINE FULL LOAD 82 AMPS NETT WEIGHT 13.2 TON

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, travel distance X-axis: 1,450 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 750 mm, DAHLIH VERTICAL MACHINING CENTRE MODEL MCV 1450 Psdpfxjznm Uuo Aflogp CONTROL FANUC 50 TAPER SPINDLE TABLE SIZE 1600 X 800 TRAVELS - 1450 X 750 X 750 MM TABLE LOAD 2000 KGS GEARED HEAD SPINDLE MOTOR 15 KW ATC MACHINE WEIGHT 14.5 TON

Condition: excellent (used), Year of construction: 2012, travel distance X-axis: 610 mm, travel distance Y-axis: 460 mm, travel distance Z-axis: 450 mm, table width: 450 mm, table length: 800 mm, spindle speed (max.): 8,000 rpm, Model: 610L Control: Fanuc Series Oi-MC Year: 2012 Table Area: 800 x 450mm ‘X’ Axis: 610mm ‘Y’ Axis: 460mm ‘Z’ Axis: 450mm Spindle Taper: BT 40 Spindle Speeds: 8000 RPM Carosel 12 Station Tool Changer Dimensions: 2200 x 2300 x 2300mm high Pgodpfx Aoy N Uh Ujflop Weight: 3400 KGS

Condition: excellent (used), Year of construction: 2016, 2016 Hurco VM10Ui CNC 5-Axis Integrated Trunnion Vertical Machining Centre Table Ø200mm (6 'T' Slots). Maximum Table Load 150kg. Axis Travel 'X'=530mm, 'Y'=410mm, 'Z'=480mm, 'A'=+30°/-110°, 'C'=360°. Rapid Traverse 'X,Y,Z'=28m/min, 'A & C'=25rpm. Spindle Nose to Table Min/Max 36mm/520mm. Maximum Spindle Speed 12,000RPM. Spindle Power 7.5kW.Spindle Taper BT40. 24 Position ATC. Maximum Tool Ø89mm, Maximum Tool Length 250mm, Maximum Tool Weight 7kg. S/No. H-VU0284 (2016/11). Podezn Nu Dspfx Afljgp With Coolant System, Auger Conveyor, Renishaw Laser Tool Setter, Signal Tower & Handwheel. Weight 3,360kg.

Condition: excellent (used), functionality: fully functional, spindle bore: 40 mm, turning length: 1,016 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 67 rpm, Colchester Master 2500 40" between centres Spindle speeds 30-2500rpm Pgodozphivjpfx Aflep Imperial dials 2 axis DRO Coolant pump and system Morse taper 3 tailstock Spindle bore 40mm Quick change tool post Comes with 4 jaw 10" 3 jaw with reverse jaws 8" 12" face plate Drive dog plate 4 x quick change tool holders

Condition: used, Year of construction: 2012, number of axes: 5, working width: 1,240 mm, working length: 3,060 mm, Equipment: CE marking, TECHNICAL DETAILS Machining process: Drilling, Milling Pgjdpozmvqvefx Aflep Working area X-axis: 3,060 mm Working area Y-axis: 1,240 mm Max. panel thickness: 200 mm Number of working areas: 2 Table type: Flat table Table design: Nesting Table length: 3,060 mm Table width: 1,240 mm Number of controlled axes: 5 Drilling unit Number of drilling units: 1 Installation position: Top Vertical drilling spindles: 12 Horizontal drilling spindles X-direction: 4 Horizontal drilling spindles Y-direction: 2 Total number of drilling spindles: 18 Milling spindle Number of milling spindles: 1 Installation position: Top Controlled axes: 5 Spindle cooling: Liquid cooling Grooving unit Number of grooving units: 1 Installation position: Top Design: Fixed grooving unit Grooving direction: X-direction MACHINE DETAILS Power of main electrospindle: 8.5 kW Power of milling spindle motor: 8.5 kW Control system: PC Control Programming software: Xylog Plus Number of vacuum pumps: 1 Suction capacity per pump: 250 m³/h EQUIPMENT CE marking Front safety mats 16-position tool magazine on the machining head Automatic tool changer Vacuum suction cups for workpiece fixing The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photo documentation and technical/commercial documents with a descriptive character. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 6487

Condition: good (used), Colchester Master 2500 In good condition. Includes some accessories. Psdpfxozp U Aps Afljgp Transport can be arranged.

Condition: excellent (used), spindle bore: 36 mm, total length: 1,600 mm, total width: 700 mm, total height: 1,400 mm, spindle speed (max.): 3,550 rpm, Weiler Matador VS1 in very good condition. Pgsdpfx Afjzp Uzlolsp Includes accessories as shown in the pictures. Transportation can be arranged.

Condition: used, Year of construction: 2003, functionality: fully functional, Equipment: chip conveyor, documentation/manual, Mori Seiki Machining Center Model NV5000A/40 Year 2003 Chip Conveyor ✅ Spindle ✅ Table ✅ Without Ball Screw ❌ Without CNC Drives ❌ Pgsdpfozqbm Djx Aflop The machine is missing the ball screw and the CNC drives; other than that, the spindle and table are present; the machine is otherwise complete.

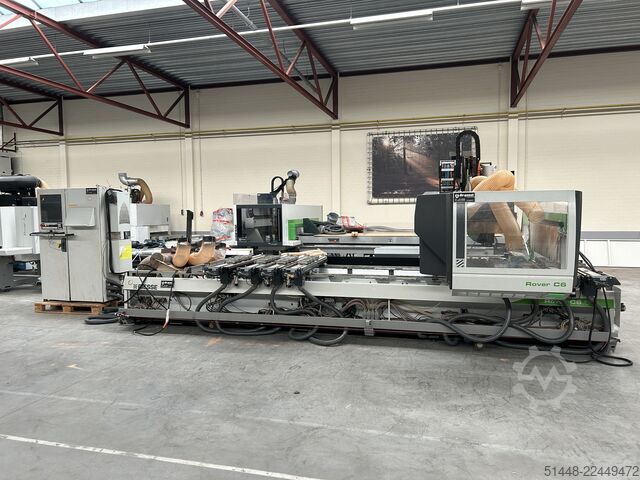

Condition: used, Year of construction: 2010, power: 17.1 kW (23.25 HP), input voltage: 400 V, input current: 44 A, input frequency: 50 Hz, travel distance X-axis: 4,320 mm, travel distance Y-axis: 1,326 mm, travel distance Z-axis: 170 mm, number of axes: 5, number of slots in tool magazine: 33, overall weight: 6,700 kg, Equipment: CE marking, Biesse Rover C 6.50 Config. 3 CNC machining centre 5-Axis Description Numerically controlled machining center ROVER C 6.50 Working fields - configuration 3 :X = 4600 mm; Y = 1535 mm; Z = 275 mm CE Safety devices 8 ATS panel supports - L = 152 5 mm - 32 sliding bases Automatic positioning of 8 panel supports and sliding bases (EPS X-Y ) Belt conveyor for the removal of chips and off-cuts Pneumatic locking system divided in 2 work areas in X 8 rear reference stops with a stroke of 115 mm 8 Stops with a stroke of 140 mm positioned at 1175 mm (L= 12 80 - 1525 - 1800 mm) 4 Side stops with a stroke of 140 mm (2 Lh + 2 Rh) inclusive of the pneumatic system. 4 removable central stops with a stroke of 140 mm (2 Lh + 2 Rh) incl. of the pneumatic system Sensor for the detection of lowered stops Pneumatic system for lifting bar supports with double pneumatic stroke 6 lifting bar supports with double pneumatic stroke (H=74mm)uniclamps Vacuum system for a 250 m3/h pump 1 x 250 m3/h rotary veins vacuum pump for standard vacuum system Podezqdmaopfx Afljgp Composition C3-A1 Operating unit with 5 interpolating axes Prearrangement for the assembly of chip deflectors with pneumatic or inductive sensor on a 5-axes operating unit Composition C3-P2 Chain tool changer with 33 places at 120 mm center distance Iron gripper on chain toolchanger for chip deflector compatible with 5-axes electrospindle RH Chip deflector for 5-axes operating unit Liquid cooling unit for liquid cooled systems Automatic lubrication system Software update from BiesseWorks Basic machine to BiesseWorks Advanced machine CE (Despite our great care all changes, mistakes in technical data, prices and all information is subject to (typing) errors. No guarantee on printed data! Availability subject to prior sales). (Trotz größter Sorgfalt bleiben Änderungen, Irrtümer bei technischen Daten, Preisen und allen Angaben (Tipp-)Fehler vorbehalten. Keine Gewähr auf gedruckte Daten! Verfügbarkeit vorbehaltlich Zwischenverkauf). Prices excl. advertisement cost MachineSeeker / Preise exkl. Inserierungskosten MaschinenSucher Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

Condition: ready for operation (used), CTX 320 2004 With many tools Hainbuch collet set, 6 Live tools 6000 RPM Bar 68,5mm center distance 600 turning over bed, slide: 400, 300 Travel Z,X 450,210 Turret 12 station 5000RPM Weight 4500kb 3905x1553x1830 Podpfezqakusx Afljgp Ask for film

Condition: used, Dean Smith & Grace Type 13 - 1SB Lathe, Overhead Guards, Swivel Toolpost Turrret, 30" Travel, 6" Swing Over Bed, 6 DI Camlok (No Chuck), Spindle Speeds 16.8 - 750rpm (High & Low), Screw Cutting Chart. S/No. 31613 1 - 58. Country of Origin: United Kingdom Pedpfoznkp Asx Aflegp Location: This lot is located in Burton-on-Trent. A charge of £100 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

Condition: excellent (used), Year of construction: 2001, functionality: limited functionality, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 510 mm, input voltage: 400 V, Equipment: documentation/manual, kONDIA B 640 4-axis machining center Table: 800 x 400 X-axis travel: 600 mm Y-axis travel: 400 mm Z-axis travel: 510 mm Podezp Hfvspfx Aflegp Spindle speed: 6000 rpm 4th axis: SPIRSIN, 170 Ø Control: FAGOR 8055 Tool capacity: 22 Tool holder: ISO 40 Electronic handwheel Through-tool coolant Machine dimensions (width x length x height): 1950 x 2123 x 2875 Weight: 3600 kg

Condition: used, Year of construction: 1999, functionality: fully functional, Equipment: chip conveyor, documentation/manual, Machining Center 3-Axis X, Y, Z Mori Seiki Pgsdpfxjzp E E Io Aflep Model MV-653/50 Year 1999 CNC Fanuc MSG-803 Phase 3

Condition: good (used), Year of construction: 2004, For sale CNC Horizontal Machining Center HELLER MCH 250 with Robot (YASKAWA GP50 Robot) – Siemens 840D 4-axis For sale, a high-productivity production cell / robotic island including a HELLER MCH 250 horizontal machining center with pallet changer, fully automated with a YASKAWA Motoman GP50 loading/handling robot and its secure loading cell. Complete set, ideal for high-volume production, intensive machining of automotive, aerospace, or precision mechanical parts with automated operation / without human presence. 1. Specifications of the HELLER MCH 250 Machining Center: Brand: HELLER (Gebr. Heller Maschinenfabrik GmbH) Model: MCH 250 Year of manufacture: 2004 Numerical Control (CNC): SIEMENS Sinumerik 840D Order / serial number: 32-46258 Power supply: 400 V / 50 Hz / 123 A Included equipment: 4 axes Podpfezpzyzox Afljgp Automatic pallet changer Large capacity tool magazine (chain / upper matrix type) Chip conveyor with KNOLL high-pressure filtration / coolant unit 2. Specifications of the YASKAWA Loading Robot: Brand: YASKAWA Electric Corporation Robot Model: MOTOMAN-GP50 Type: YR-106VX50-A00 Year of manufacture: August 2018 Load capacity (Payload): 50 kg Robot weight: 570 kg Robot cell equipment: Specific gripper / clamp Gravity-fed / drawer part station / storage unit Complete protective enclosure with housing and CE safety grilles Machines disconnected and sold as is.

Condition: not inspected (used), Year of construction: 1984, spindle bore: 81 mm, turning length: 2,000 mm, capacity: 2000 x 725 mm diameter on transverse slide: 400 mm spindle bore: 81 mm Pjdpfx Ajzpza Ioflegp weight: 3100 kg

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 7076, travel distance X-axis: 1,200 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, controller model: Heidenhain iTNC 530, spindle speed (max.): 6,000 rpm, TECHNICAL DETAILS Travel range X-axis: 1,200 mm Travel range Y-axis: 600 mm Travel range Z-axis: 600 mm Work table Table surface area: 1,300 × 600 mm Maximum table load: 1,200 kg Distance from table to spindle bottom edge: 125–725 mm Spindle and tool holder Maximum spindle speed: 6,000 rpm Spindle shank: SK 50 Spindle motor power S1: 10 kW Feeds and rapid traverses Feed rate: 1 – 10,000 mm/min Rapid traverse X-axis: 20 m/min Rapid traverse Y-axis: 20 m/min Rapid traverse Z-axis: 15 m/min Tool changer Number of tool positions: 24 Maximum tool diameter: 80 mm Maximum tool diameter with free adjacent positions: 150 mm Maximum tool length: 250 mm Maximum tool weight: 8 kg MACHINE DETAILS Control system type: CNC Control: Heidenhain iTNC 530 Internal coolant supply: 20 bar Total power consumption: 25 kVA Pjdpfxszqcu Nj Aflogp Dimensions & Weight Machine dimensions: 3,600 × 2,300 × 3,000 mm Machine weight: approx. 7,500 kg EQUIPMENT CNC path control Heidenhain iTNC 530 Electronic handwheel Spindle oil cooler 24-position double-arm tool changer Preparation for hydraulic machine vise Preparation for 3D measuring probe Chip conveyor Coolant system with internal coolant supply Machine documentation

Condition: ready for operation (used), Year of construction: 2005, operating hours: 23,335 h, functionality: fully functional, travel distance X-axis: 1,040 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, controller model: Heidenhain iTNC 530, spindle speed (max.): 8,000 rpm, TECHNICAL DETAILS TRAVEL RANGES X-axis: 1,040 mm Y-axis: 600 mm Z-axis: 500 mm WORK TABLE Table surface: 1,250 × 600 mm Table load: max. 600 kg SPINDLE AND TOOL HOLDER Tool holder: SK 40 Spindle speed: 1–8,000 min⁻¹ Spindle torque S1/S6: 140/200 Nm Spindle motor power at 100/40 % duty cycle: 13/19 kW Podpfxozqcuce Aflogp FEEDS AND RAPID TRAVERSES Feed rate range: max. 40,000 mm/min Rapid traverse X- and Z-axis: max. 70 m/min Rapid traverse Y-axis: max. 40 m/min TOOL CHANGER Tool positions: 30 Tool diameter: max. 100 mm Tool diameter with free adjacent positions: max. 140 mm Tool length: max. 300 mm Tool weight: max. 7 kg COOLANT SUPPLY Internal coolant supply through the spindle: 20 bar OPERATING HOURS Power-on hours: 70,278 h Spindle hours: 23,335 h MACHINE DETAILS MACHINE DATA Machine type: Vertical machining center Manufacturer: Deckel-Maho DMG Type: DMC 104 V linear Year of manufacture: 2005 Control type: CNC Control: Heidenhain iTNC 530 Total power consumption: 39 kVA Machine weight: approx. 8,900 kg EQUIPMENT CNC control Heidenhain iTNC 530 Electronic handwheel Heidenhain HR 410 Motor spindle with increased torque Direct path measuring system in the Y- and Z-axis Preparation for measuring probe 30-position tool changer Rotoclear Production package 2 Internal coolant supply through the spindle Coolant system with paper band filter Blow-through air through the spindle center, selectable via M-function Chip conveyor Machine bed flushing Linear drive in the X-axis Operating mode 4 for program testing with extended manual intervention Machine documentation

Condition: excellent (used), Year of construction: 2015, Mikron HPM 800U HD 5 axis Vertical Machining Centre, with 7 pallet changer (2015) Traverses XYZ: 800 x 800 x 550mm, 500 x 500mm table, Pgodpfxozm Ticj Aflsp A axis -91 / + 121 degrees, C axis, 360 degrees, Heidenhain TNC530, Spindle Speed 20,000rpm, 36kW Spindle Motor, HSK A63 Spindle Taper, 165 tools, swarf conveyor, through spindle coolant,

Condition: like new (used), functionality: fully functional, * Mori Seiki NMV 5000 DCG. * Year: 2008. * Equipment value, including zero points, chucks, BT taper chucks, turning tool chucks, and pallets: 50,000–55,000 euros. * 5-axis continuous machining center. * High-precision Heidenhain linear guides. * Interface for connecting a pallet loader and robot. * Table with turning function. * Independent high-pressure cooling system at 40 bar. * Spindle oil cooling system. * BT 40 tool magazine. * Magazine capacity: 60 tools. * Maximum tool diameter: 125 mm. * Maximum tool length: 300 mm. * Maximum tool weight: 8 kg. * Travel on the X-axis: 730 mm. * Travel on the Y-axis: 510 mm. * Travel on the Z-axis: 510 mm. * Table with turning function. * Maximum workpiece diameter in turning mode: 450 mm. * Maximum turning diameter in turning mode: 700 mm. * Mori Seiki Mapps 4 conversational control. Psdezp Emfepfx Aflogp * Spindle speed: 20,000 rpm. * Spindle motor power: 18.5 / 15 kW. * Maximum cutting torque: 135 Nm. * C-axis table: 360,000 x 0.001 * B-axis rotation: +160 / -180 * Rapid traverse X/Y/Z: 50 / 50 / 50 m/min * Renishaw tool measurement system. * Renishaw workpiece measurement system. * Automatic zero-point adjustment. * Automatic cutting power control. * Program memory: 2 MB. * Dynamic zero-point correction (up to 8 points). * Pre-check of tool availability. * Custom macro (999 variables). * Rear chip conveyor. * Tool life management (128 x 2 groups). * Electrical transformer. * Documentation, parts list, electrical diagrams, programming, and instruction manual. * Weight: 13,500 kg. * Machine is currently in operation. * Available for inspection by an authorized Mori Seiki technician. * Immediate delivery, subject to immediate sale.

Condition: excellent (used), Year of construction: 2011, operating hours: 2,450 h, travel distance X-axis: 6,000 mm, travel distance Y-axis: 12,001,400 mm, travel distance Z-axis: 18,001,790 mm, controller manufacturer: Heidenhain, controller model: iTNC 530, workpiece weight (max.): 3,000 kg, total height: 4,700 mm, total length: 12,700 mm, total width: 7,800 mm, rotary table diameter: 2,200 mm, rotational speed (max.): 200 rpm, overall weight: 57,000 kg, spindle speed (max.): 8,000 rpm, operating hours of spindle: 2,450 h, coolant supply: 40 bar, number of slots in tool magazine: 60, tool length: 460 mm, Equipment: chip conveyor, documentation/manual, CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 6000 Y-axis travel mm: 1200/1400 Z-axis travel mm: 1800 (H) / 1790 (V) C-axis degrees: 360º (0,001) A-axis degrees: ±180° B-axis degrees: ±180° Rapid traverse m/min: 30 Worktable Table dimensions mm: 6000x1235 Milling/turning table nc: Table dimensions mm: Ø2200 Max. workpiece weight kg: 3000 Table rotation speed rpm: 200 max. torque Nm: 4600 Spindle Spindle speed rpm: 8000 Spindle drive power kW: 33/24 (40%ED/cont) Spindle torque Nm: 382/278 (40/100%ED) Cooling Cooling through the Spindle Center bar: 40 Pgodezb H Tfepfx Aflop Tank capacity: 900 Tool system Tool holder: HSK-A 100 Tool magazine slots: 60 With free neighboring places mm: 200 With occupied neighboring places mm: 104 Max. Tool Length mm: 460 Max tool weight kg: 25 Chip-to-chip time s: 9.8 Equipment Electronic Handwheel Chip conveyor Infrared probe Internal cooling lubricant supply Rinsing gun Operating mode 4 blowing air through spindle center selectable via M-function Workarea light DXF import function Paper band filter Automatic door Indexing Head Set Up for Shaft Machining Axles can be hydraulically locked using the M function Machine running times Under power: 29447 Spindle Working: 2450 Basic machine dimensions / weight Length mm: 12700 Width mm: 7800 Height mm: 4700 Weight kg: 57000

Condition: ready for operation (used), functionality: fully functional, turning diameter over cross slide: 660 mm, turning diameter over bed slide: 900 mm, turning length: 2,000 mm, spindle speed (max.): 710 rpm, overall weight: 7,000 kg, Poreba TPK 90A1/2M Chuck 800 mm Pgsdpfxjwbd Dvo Aflep 2000mm between Centres Swing over bed 900 mm Swing over saddle 660 mm Spindle Speed 710 rpm Weight 7000 kg approx.

Condition: used, Year of construction: 2015, functionality: fully functional, overall weight: 24,000 kg, sheet thickness steel (max.): 60 mm, cutting length (max.): 6,000 mm, cutting width (max.): 2,540 mm, drill diameter: 40 mm, FICEP TIPO B254 - CNC PUNCHING, DRILLING & THERMAL CUTTING CENTER | YEAR 2015 The Ficep Tipo B254 is a CNC-controlled punching, drilling and thermal cutting center for the complete processing of steel plates and flat products in a single pass. Punching, drilling, countersinking, tapping, marking and thermal cutting via plasma and oxy-fuel are carried out on one machine without intermediate handling. CONDITION Used - technically sound. The machine is currently in productive operation and CAN BE INSPECTED UNDER POWER (by appointment). Handover as preferred: directly from ongoing production (cleaned and serviced) or - at additional cost - reconditioned by ASM. Details on the technical condition are disclosed individually upon serious interest. FUNCTION & APPLICATION The system combines three processing units in one CNC-controlled line: hydraulic punching unit (1000 kN), drilling head (20.1 kW) and thermal cutting unit with plasma torch (Hypertherm HPR 260) plus oxy-fuel torch. All processes run via the Mitrol CNC as automated machining cycles; the machine processes steel plates up to 2540 x 6000 mm. Typical applications: structural steel fabrication, structural engineering and prefabrication of gusset plates, end plates and connection plates. TECHNICAL DATA - Machine type: Automatic CNC punching and thermal cutting system for plates - Year: 2015 | Serial number: 34201 | Machine weight: 24,000 kg - Working height: approx. 1,090 mm | Max. positioning weight (plate): 5,000 kg - Max. plate size: 2540 x 6000 mm | Min. plate width: 508 mm Pgsdpfx Afexn T H Doljp - Punching force: 1000 kN | Stripping force: 100 kN | Punching tools: 8 - Max. punch diameter: 32 mm | Max. punching thickness: 20 mm - Drilling heads: 1 | Drilling tools per head: 8 - Max. drilling diameter: 40 mm | Max. drilling thickness: 100 mm - Spindle power: 20.1 kW | Max. spindle speed: 4000 rpm - Plasma torches: 1 | Oxy-fuel torches: 1 | Plasma source: Hypertherm HPR 260 - Max. plasma cutting thickness: 35 mm (pierce start) / 60 mm (edge start) - Max. longitudinal feed speed: 30 m/min - CNC control: Mitrol CNC (master/slave), online remote diagnostics - Processes: punching, drilling, countersinking, tapping, milling, marking, scribing, oxy-fuel and plasma cutting Min. plate length, max. overall material thickness and cross positioning speed are confirmed during inspection. SCOPE OF DELIVERY - 1 x Ficep Tipo B254 plate processing center (year 2015) - 1 x Hydraulic punching unit 1000 kN with 8-position tool changer - 1 x Drilling unit 20.1 kW with 8-position tool changer - 1 x Plasma cutting torch | 1 x Oxy-fuel cutting torch - 1 x Hypertherm HPR 260 plasma cutting system - 1 x Marking unit (configuration to be confirmed during inspection) - 1 x Chip conveyor - 1 x Donaldson Torit dust extraction system | 1 x Punching tool set LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM) specializes in Ficep structural steel machines. Further Ficep machines on request. CONTACT / INQUIRY Arrange a viewing under power | Price on request | Request a callback. Sale exclusively to commercial customers (B2B).

Condition: good (used), Year of construction: 1997, spindle bore: 62 mm, turning diameter over bed slide: 440 mm, turning diameter over top slide: 230 mm, turning length: 2,000 mm, total length: 3,500 mm, total width: 700 mm, total height: 1,500 mm, spindle speed (max.): 2,000 rpm, Centre lathe ZMM Sliven - CU 400 MACH-ID 9758 Make: ZMM Sliven Type: CU 400 Year: 1997 Pgsdpezpwixjfx Aflep DBC Turning Length: 2000mm Swing over bed Ø: 440mm Swing over cross slide Ø:230mm Swing in the gap Ø: 620mm Spindle bore: 62mm Spindle power: 8kW Bed width: 360mm Tailstock spindle Ø: 70Ø Stroke pinole: 180mm Spindle taper: 5Mk Speeds / ranges: 2000Rpm Length: 3500mm Width: 700mm Height: 1500mm Weight: 2600kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: new, thread dia. bis M 36 turning speeds max. 150 U/min thread M5 - M36 working area 2050 Rmax. work height max. 900 mm table surface area 700 x 900 mm oil volume 100 l engine output 4.0 kW weight - pallet system 320 kg equipment: - electro-hydraulic tapping machine - Large working range (max. radius 2050 mm) * Smooth swivel movement, e.g. due to built-in gas pressure dampers - Mobile machine base frame * Oil tank hydraulic unit integrated in the base frame * Hydraulic pressure gauge Pjdpfxsy Umd Eo Afljgp - Vertical / horizontal thread cutting possible - Connection cable with 16A plug * Special accessories included in the scope of delivery : - Tap quick-change inserts according to "DIN 376" . M05 / M06 / M08 / M10 / M12 / M14 / M16 / M18 / M20 / M 22 . M27 / M30 / M33 / M36 - Infinitely variable speed adjustment incl. digital display - Minimum quantity lubrication (spray oiler/compressed air) - T-slot clamping table - Tapping head can be fixed with magnetic quick-action insert
