Used Alleen Bradley Control Accessories for sale (59,996)

Condition: good (used), Year of construction: 2010, functionality: fully functional, Technical details turning diameter 475 mm turning length 830 mm control HEIDENHAIN MANUALplus 620 swing diameter over slide rest 260 mm centre distance 1000 mm spindle bore 70 mm spindle turning speed range 1 - 3000 U/min feeds - cross 0,001 - 1000 mm/U feeds - longitudinal 0,001 - 2000 mm/U rapid travel - longitudinal/face 10 / 5 m/min tailstock quill diameter 70 mm tailstock quill stroke 120 mm tailstock quill taper MT 5 Credpozr Hdqefx Aqtjf main drive (40 % ED) 25 kW weight of the machine ca. 2,9 t Additional information * Control HEIDENHAIN MANUALplus 620 * DXF conversion software (processing of contours in DXF format from CAD drawings) * Ethernet and USB interfaces inside the control cabinet * Coolant system (frequency-controlled), 1–4 bar * Glass scale for direct position measurement on the X and Z axes * 4-position PARAT quick-change tool holder, size 2 * Roller guide for easier movement of the tailstock * 2 movable safety doors * Main motor fan control, temperature-controlled, for particularly quiet environments such as laboratory workshops and schools

Condition: good (used), Year of construction: 2006, Switch-on hours (date 18. May 2026): 28.970 h Technical details turning diameter 570 mm turning length 1000 mm control WEILER D3 (SINUMERIK 810 D powerline) swing diameter over slide rest 325 mm Swing in gap 600 mm length of gap 140 mm spindle bore 83 mm spindle diameter in front bearing 120 mm face stroke 340 mm longitudinal stroke 1100 mm workpiece weight max. 1200 kg spindle turning speed - stepless 1 - 2500 rpm transmission ratio 2 rapid travel - longitudinal/face 10 / 5 m/min main drive motor (60/100 % ED) 20 / 17 kW tailstock quill diameter 80 mm tailstock quill stroke 200 mm tailstock quill taper MT 5 Codpfx Aezcmccoqtsrf weight of the machine ca. 3,8 t dimensions of the machine ca. 2,95 x 1,90 x 1,82 m * Control WEILER D3 * Chip conveyor * 4-station toolholder PARAT with several inserts * 3-jaw chuck SCHUNK ROTA-S plus 315-92

Condition: good (used), Crane remote control, radio receiver, receiver, crane radio remote control, radio control system, radio remote control, radio remote control, crane radio system -Manufacturer: HBC radiomatic, crane radio transmitter receiver Cedpfx Aezrvkgoqtjrf -Type: FSE 514 -Scope of delivery: as shown in the pictures -Price/Fee: complete -Transport dimensions: 400/300/H60 mm -Weight: 2.7 kg

Condition: good (used), Control cabinet, distribution cabinet, switch cabinet, baying cabinet, server cabinet, electrical cabinet -Manufacturer: Ecoair, control cabinet test field on mobile base -Type: 10 outlets -Switching capacity: Outputs 1-5 max. 11 kVA / Outputs 6-10 max. 7 kVA -Features: see photos -Dimensions: 2075/1000/H2150 mm Crodpfx Aqszrufvjtjf -Weight: 373 kg

Year of construction: 2018, condition: excellent (used), Vötschtechnik ClimeEvent C/340/70/5 Climate Testing Chamber Manufacturer: Vötschtechnik GmbH Type: ClimeEvent C/340/70/5 Year of Manufacture: 2018 Machine Type: Climate Testing Chamber / Temperature Testing Chamber Test Chamber Volume: approx. 340 liters For sale is a used Vötschtechnik ClimeEvent C/340/70/5 climate testing chamber with touchscreen control. The testing chamber was developed for professional temperature and climate testing and is ideally suited for environmental simulations, material testing, quality assurance, research, as well as development and stress tests. Technical Data: Type: ClimeEvent C/340/70/5 Test Chamber Volume: approx. 340 liters Temperature Range: -70 °C to +180 °C Temperature Change Rate (Heating): approx. 7 K/min Temperature Change Rate (Cooling): approx. 7 K/min Max. Heat Compensation: approx. 3000 W Temperature Deviation (Time): ±0.1 to ±0.5 K Temperature Homogeneity (Spatial): ±0.5 to ±1 K Temperature Gradient: ≤2 K Climate Range (Temperature): +10 °C to +95 °C Dew Point Range: -3 °C to +94 °C Humidity Range: 10 to 98 % RH Humidity Deviation (Time): ±1 to ±3 % RH Temperature Deviation (Climate Mode): ±0.1 to ±0.3 K Temperature Homogeneity (Climate Mode): ±0.5 to ±1 K Refrigeration System: Refrigerant: R449A / R23 Refrigerant Quantity: 2.50 kg / 0.75 kg Electrical Data: Power Connection: 3/N/PE AC 400 V ±10 % / 50 Hz Rated Power: 9 kW Rated Current: 20 A Sound Pressure Level: approx. 57 dB(A) Dimensions: External Dimensions (H × W × D): approx. 1830 × 900 × 1890 mm Internal Dimensions (H × W × D): approx. 750 × 580 × 765 mm Weight: approx. 650 kg Equipment: Touchscreen Control Stainless Steel Interior Large Viewing Window Interior Lighting Crjdpfx Aqozrwyiotsf Water-Cooled Version Side Cable Entry Multiple Shelf Levels Ethernet Interface USB Interface Accessories as Shown in Pictures Shipping Data: Shipping Dimensions (H × W × D): approx. 1830 × 900 × 1890 mm Shipping Weight: approx. 650 kg Condition: Used Optical condition as shown in pictures. Scope of Delivery: Vötschtechnik ClimeEvent C/340/70/5 Climate Testing Chamber Accessories as Shown in Pictures For the safety of our customers, the following work will be carried out on the offered climate chambers in advance: • Functional check and replacement of necessary components • Refilling with legally compliant refrigerant if necessary • Leak test with certificate • Documented test run after successful inspection. Availability: upon agreement. Scope of delivery as pictured. Subject to change, errors and prior sale.

Condition: good (used), Control load switches, RCBOs, motor protection switches, reversing switches Csdpfx Aob A I Sieqtorf -Type: CG8 D-V226-602 FS1 -without: gearshift knob -Price: per piece -Number: 22 switches available -Weight: 0.6 kg

Year of construction: 2018, condition: excellent (used), Vötschtechnik ClimeEvent C/340/70/5 Climate Testing Chamber Manufacturer: Vötschtechnik GmbH Type: ClimeEvent C/340/70/5 Year of Manufacture: 2018 Machine Type: Climate Testing Chamber / Temperature Testing Chamber Test Chamber Volume: approx. 340 liters For sale is a used Vötschtechnik ClimeEvent C/340/70/5 climate testing chamber with touchscreen control. The testing chamber was developed for professional temperature and climate testing and is ideally suited for environmental simulations, material testing, quality assurance, research, as well as development and stress tests. Technical Data: Type: ClimeEvent C/340/70/5 Test Chamber Volume: approx. 340 liters Temperature Range: -70 °C to +180 °C Temperature Change Rate (Heating): approx. 7 K/min Temperature Change Rate (Cooling): approx. 7 K/min Max. Heat Compensation: approx. 3000 W Temperature Deviation (Time): ±0.1 to ±0.5 K Temperature Homogeneity (Spatial): ±0.5 to ±1 K Temperature Gradient: ≤2 K Climate Range (Temperature): +10 °C to +95 °C Dew Point Range: -3 °C to +94 °C Humidity Range: 10 to 98 % RH Humidity Deviation (Time): ±1 to ±3 % RH Temperature Deviation (Climate Mode): ±0.1 to ±0.3 K Temperature Homogeneity (Climate Mode): ±0.5 to ±1 K Refrigeration System: Refrigerant: R449A / R23 Refrigerant Quantity: 2.50 kg / 0.75 kg Electrical Data: Cjdpfezrtz Aox Aqterf Power Connection: 3/N/PE AC 400 V ±10 % / 50 Hz Rated Power: 9 kW Rated Current: 20 A Sound Pressure Level: approx. 57 dB(A) Dimensions: External Dimensions (H × W × D): approx. 1830 × 900 × 1890 mm Internal Dimensions (H × W × D): approx. 750 × 580 × 765 mm Weight: approx. 650 kg Equipment: Touchscreen Control Stainless Steel Interior Large Viewing Window Interior Lighting Water-Cooled Version Side Cable Entry Multiple Shelf Levels Ethernet Interface USB Interface Accessories as Shown in Pictures Shipping Data: Shipping Dimensions (H × W × D): approx. 1830 × 900 × 1890 mm Shipping Weight: approx. 650 kg Condition: Used Optical condition as shown in pictures. Scope of Delivery: Vötschtechnik ClimeEvent C/340/70/5 Climate Testing Chamber Accessories as Shown in Pictures For the safety of our customers, the following work will be carried out on the offered climate chambers in advance: • Functional check and replacement of necessary components • Refilling with legally compliant refrigerant if necessary • Leak test with certificate • Documented test run after successful inspection. Availability: upon agreement. Scope of delivery as pictured. Subject to change, errors and prior sale.

Condition: excellent (used), Brüel & Kjær LDS Dactron LASER USB LAS 200 Shaker Control System Manufacturer: Brüel & Kjær / LDS Dactron Type: LASER USB LAS 200 Machine Type: Shaker Control System / Vibration Testing Controller For sale is a used Brüel & Kjær LDS Dactron LASER USB LAS 200 Shaker Control System, including a USB license dongle and documentation. The system was developed for controlling electrodynamic vibration testing systems and is suitable for vibration tests, resonance tests, random tests, shock tests, and endurance tests in research, development, and quality assurance. Crodpfx Aqszrtylstof Technical Data: Model: LAS 200 Type: LASER USB Power Supply: 100–240 V AC Mains Frequency: 47–63 Hz Power Consumption: 1 A 8 analog input channels (BNC) 2 output channels (Drive / COLA) USB interface Digital I/O Master/Slave interfaces Emergency Stop connector Software Configuration: Random Sine on Random Random on Random Swept Sine Resonance Search, Track and Dwell Sine Oscillator Classical Shock Shock Response Spectrum Long Time History Enabled Options: Automatic Drive Notching / Limiting Real Time Data Exchange High Frequency Control Amplifier Controller Calibration: Calibrated: 09/12/2023 Due date according to sticker: 09/11/2024 Dimensions: Controller (W × D × H): approx. 430 × 350 × 90 mm Weight: approx. 6–8 kg Equipment: USB license dongle Power cable Documentation as shown in the pictures USB interface 8 measuring inputs Digital I/O Master/Slave interfaces Shipping Data: Dimensions: approx. 430 × 350 × 90 mm Weight: approx. 6–8 kg Condition: Used Optical condition as shown in the pictures. Calibration sticker is present. Scope of Supply: Brüel & Kjær LDS Dactron LASER USB LAS 200 Shaker Control System USB license dongle Power cable Documentation as shown in the pictures Note: The license keys visible on the documents have been obscured for data protection and security reasons. Availability: by arrangement. Scope of supply as shown in the pictures. Subject to change, errors and prior sale.

Condition: new, Wittenstein MASR238A-100L-006SF-ET0HSB-NNN Cyber Motor / Servo Motor, external rotor, 240-100, serial number: 2426819 – unused, in good condition, 100% functional. Scope of delivery as shown in the photos. PLEASE NOTE: Please request a separate quote for packaging and shipping costs! Codpozr Ddbefx Aqtjrf

Condition: ready for operation (used), Bosch adapter plate with sensor connection for Bosch SE-LB3.075.030-00.000 / rotary encoder ERN 221.2133-1000 motor, used, in good condition, 100% functional, scope of delivery as shown in the photos. Cedpfx Aszr Dc Deqterf

Condition: new, Power contactor, 55 kW, screw-mounted 3RT1054-1NP36 Cjdpfx Aozr T Shjqtjrf SIEMENS

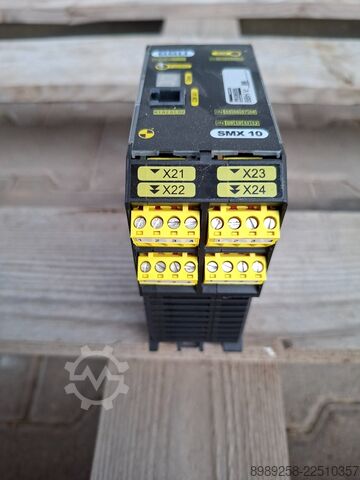

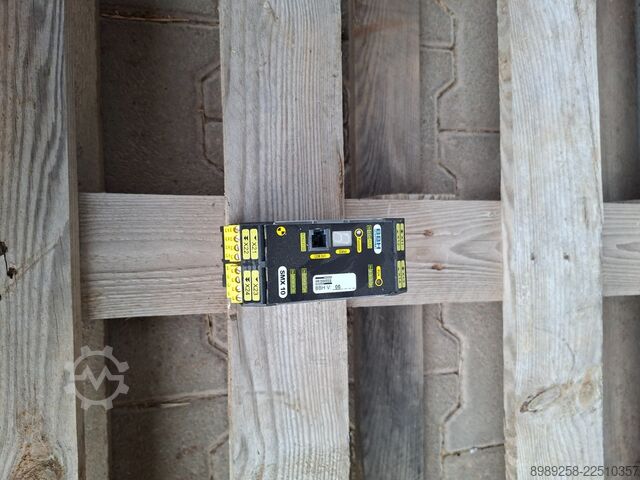

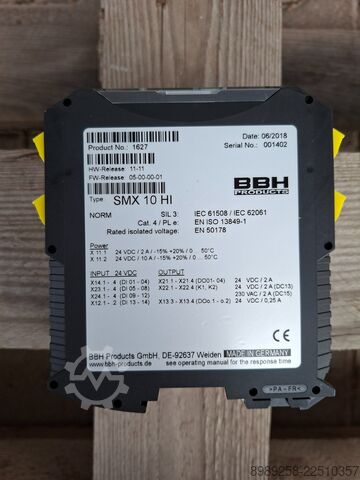

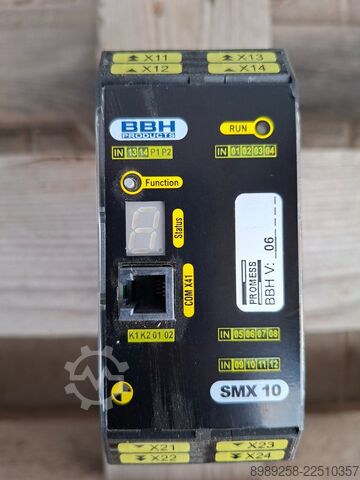

Condition: used, “functionally tested; item comes from the dismantling of equipment from an automotive supplier” Quantity available: 12 Manufacturer: BBH Products GmbH Model: SMX10HI Type: Safety controller (compact design) Cjdpfszr T Ezox Aqtjrf Supply voltage: 24 V DC Function: Safety monitoring of axes, safety doors, emergency stop Interfaces: safe inputs, relay outputs Approval: EN ISO 13849-1, SIL 3, PL e

Condition: good (used), Forklift battery charger, industrial charger, forklift battery charger, industrial charger, charger for scrubber dryer -Manufacturer: Gansow, charger for scrubber-dryer -Type: E 24/24 DIGI-CONTROL Cedpfx Aqozrlydotsrf -Input voltage: 230 V 50 Hz -Power: 24 V / 24 A -Dimensions: 340/250/H225 mm -Weight: 12.1 kg

Condition: used, This listing is for the Broadley James Flow Controller S/601. Crsdpsyw Iwfefx Aqtsf The unit is in full working condition and ready for immediate use. This precision gas flow controller is designed for demanding bioprocessing environments. It features a clear digital interface for accurate monitoring and control of flow rates, ensuring optimal conditions for cell culture and fermentation. Robust and dependable, it integrates seamlessly into existing laboratory workflows

Condition: used, functionality: fully functional, mileage: 404,355 km, power: 338 kW (459.55 HP), first registration: 10/2023, fuel type: diesel, overall weight: 8,523 kg, axle configuration: 4x2, wheelbase: 375 mm, color: white, gearing type: automatic, emission class: euro6, Year of construction: 2023, number of cylinders: 6, cubic capacity: 13,000 cm³, steering wheel position: left, Equipment: full service history, power assisted steering, Features Adaptive Cruise Control. Cabin: CR (air comfort suspension). Tilting: mechanical. Batteries 210 Ah (rear position). Alternator charge 150 A. Engine DC13 175 460 hp EURO 6. Gearbox: G33CM. Advanced Emergency Braking AEB, Auxiliary brakes, Retarder type R4100D, Exhaust brake control Side Collision Avoidance Support Driver attention support Driver comfort Air-conditioning system, automatic Seat with armrest adjustable shock absorber driver side Seat with armrest adjustable shock absorber passenger side Bed upper lower and upper width 800mm. Night heater WTA cab heater 3kW. Storage rear lower, driver side - refrigerator. Technical specifications Continental VDO 4.1 smart tachograph version 2 - legal demand from 21/08/2023 Front tyres 315/70R22.5. Rear tyres 315/70R22.5. Fifth wheel Jost JSK37C-Z, height 150 mm *STGO with axle/GVW design weights only. Drive Axle Ratio 2.31 Fuel volume left side 825 dm3. Fuel volume right side 395 dm3. AdBlue tank capacity 150 l, right Fuel tank material aluminium. Speed limitation legal 90 km/h. Technology Infotainment system 2 DIN with 5 inch screen (Advanced) FMS, Fleet Management System preparation Gateway Crsdjzf N Ryspfx Aqtjf Exterior Headlamps LED (automatic). Daytime running light function LED and position lamps. Fog lamp front type LED 3 diodes Roof air deflector adjustable Door window air deflector Tyres Information Front left - 13 mm Front right - 12 mm Rear left inner - 14 mm Rear left outer - 15 mm Rear right inner - 14 mm Rear right outer - 15 mm

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, operating hours: 443 h, Format 4 panel saw, model Kappa 550 e-motion - 10 kW, 3 speeds 3000/4000/5000 rpm - Year of manufacture: 2017 - Vorritzer operating indicator - Rip fence 3200 mm, swiveling 90°–45°, 2 fence jaws - Extension table 1250 x 650 mm - Sliding table „X-Roll“, cutting length 3200 mm, scoring shoe - Position-controlled parallel fence with digital display in the control panel at eye level, cutting width 1250 mm - Upper guard, hood for 90° cuts, and hood for miter cuts, height-adjustable and can be swiveled away from the work area Crodpfxow Tfahs Aqtsf - e-motion control system, 15" color screen, touch function, control panel at eye level. USB interface and preparation for network connection, adjustable and can be swiveled away from the work area - Saw blade diameter 250–550 mm, cutting height max. 202 mm - Position-controlled height adjustment & angle adjustment 0°–46° - Circular saw with table extension up to 1200 mm behind the saw blade axis, steel powder-coated - Weight: 1300 kg - Vorritzer operating indicator - Total operating hours: 443.47 h Price ex works Transport possible for an additional charge!

Condition: new, functionality: fully functional, Year of construction: 2026, load capacity: 2,500 kg, Accessories Csdpszd H Nqsfx Aqtsrf Condition: New Technical Condition: New Description: Manitou 180° Swivel Fork Carrier – More flexibility on every construction site. Welcome to today's product highlight: the Manitou 180° Swivel Fork Carrier. This intelligent attachment significantly expands the application possibilities of your Manitou telehandler and ensures maximum efficiency in handling pallets and long materials. The swivel fork carrier enables a 90-degree rotation to the left and 90 degrees to the right. This allows loads to be positioned precisely without constantly having to realign the machine. This is especially beneficial on tight construction sites, between buildings, or in hard-to-reach areas, as it saves valuable time and increases safety. Whether it's sandwich panels, drywall, wood, or steel structures – long loads can be easily transported lengthwise and placed exactly where they are needed. Even pallets that are not optimally aligned can be easily corrected. Another advantage: positioning materials through window openings or narrow passages becomes significantly easier. The driver does not have to constantly move the machine but can align the load directly using the rotating function of the fork carrier. This saves travel distances, reduces fuel consumption, and increases productivity on the construction site. With a load capacity of up to 1,500 kilograms, the Manitou Swivel Fork Carrier is suitable for most daily material transport tasks on construction sites and in industrial applications. Typical applications include roofing and facade work with sandwich panels, drywall construction, wood and steel construction, and all applications where long or bulky loads need to be moved safely. The Manitou 180° Swivel Fork Carrier offers a perfect combination of flexibility, precision, and productivity. Less maneuvering, faster workflows, and more efficient material logistics make it an indispensable tool for modern construction sites.

Condition: excellent (used), Year of construction: 2007, 1 used, very well-maintained high-performance cycle turning machine with FAGOR 8055 TC-A, 8-position tool turret BARUFFALDI VDI 40, pneumatic 3-jaw front chuck SCHUNK ROTA TP 315-105, constant cutting speed, 2 steady rests (small + large), and chip conveyor. Manufacturer: MICROTURN, Origin Taiwan Model: Challenger BNC 26160X Year of manufacture: 2007 Technical data: Center height 350 mm Distance between centers 4000 mm Swinging diameter over bed 690 mm Swinging diameter over cross slide 450 mm Swinging diameter in the gap 870 mm Spindle speeds 0 – 2400 rpm Spindle bore 82 mm Spindle motor 15 / 22 kW Machine dimensions + chip conveyor L x W x H 7350 x 2450 x 2050 mm Machine weight 6,800 kg Accessories / Special features: • Cycle control FAGOR CNC 8055 TC-A with alphanumeric keyboard o LCD color monitor o Graphical simulation of cycles o 2 electronic handwheels • Pneumatic 3-jaw front chuck SCHUNK ROTA TP 315-105, Ø 315 mm • 8-position tool turret BARUFFALDI TB 160-8/12, VDI 40 • Hinged chip conveyor • 2 fixed steady rests (1 x small, 1 x large) • Automatic lubrication of the headstock • Automatic lubrication of the longitudinal and cross slides • Tailstock with hydraulically actuated quill • Coolant system • CE compliant Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany Crodozfqdnepfx Aqtef

Condition: used, Vibratory bowl feeder / Sorting unit / Bowl feeder / Vibratory feeder RNA Vibrating bowl, sorting unit / Screw feeding with vibratory feeder for screwdriving technology Feeding system, feeder unit Manufacturer: RNA Rhein-Nadel Automation GmbH Type: SRC-N 250-2L Serial no.: Year of manufacture: approx. 2000 Bowl diameter bottom: 300 mm Bowl diameter top: 350 mm Bowl inner height: approx. 25 mm Sorting track width: approx. 30 mm Overall height (drive + bowl with sorting track): 380 mm Vibration frequency: 100 Hz / 6000 rpm Mains connection: 230 Volt, 50 Hz - The feeder was used for supplying automotive blade fuses Space requirements: Ø x H: 420 x 390 mm Weight of bowl feeder: 52 kg Linear feeder / Vibratory feeder / Sorting unit Manufacturer: RNA Rhein-Nadel Automation GmbH Type: SLL 400-400 Serial no. 00835 Year of manufacture: approx. 2000 Maximum rail length: 700 mm Useful load: approx. 1.5 to 2 kg Vibration frequency: 100 Hz / 6000 rpm Mains connection: 220 Volt, 50 Hz - Oscillating plate L x W x H 400 x 65 x 12 mm - Mounted track length 530 mm - Overall height with oscillating plate 145 mm Space requirements: L x W x H: 580 x 120 x 400 mm Weight of linear feeder: 20 kg Control unit for vibration drives, control device, regulator, controller for vibratory feeders / sorting unit / bowl feeder / vibrating bowl / vibratory conveyor Cjdpfx Aeuzn Nnsqterf Manufacturer: RNA Rhein-Nadel Automation GmbH Type: ESK-N80 / ESG 90 Mains connection: 0 ... 208 V eff (230VAC motor operation) at 230V mains 0 ... 98 V eff (115VAC motor operation) at 115V mains Output voltage: 0...208 V (eff.) adjustable, (230 V mains) Number of power outputs: 2 Output 1: Bowl feeder, linear feeder max. 10A adjustable Output 2: Bowl feeder, linear feeder max. 6A adjustable Total load current: 16 A eff Sensor inputs: 1 Number of enable inputs: 1 (24V DC) Sensor supply: 24V DC, max. 60 mA Sensor delay ON: 0 ... 8 sec. Sensor delay OFF: 0 ... 8 sec. Power output connection: Hirschmann 7-pin - Two power outputs - Sensor amplifier with independently adjustable time stages (on/off) - Soft start (internally adjustable) - External enable input 24VDC Space requirements: L x W x H: 260 x 190 x 140 mm Weight of controller: 3.6 kg All units tested and in good condition.

Year of construction: 2018, condition: used, We are selling a new unused but defective tool magazine with tool changer for a Makino PS 95. Codjvfdvbopfx Aqtorf The magazine body was broken in two parts with a crane hook during unloading of the machine from its transport box. Also some tool pots are damaged. Can be repaired or used as spare parts *

Condition: used, Year of construction: 2008, turning diameter 280 mm turning length 600 mm control Fanuc Series 32i-Model A Cjdpszrzw Sofx Aqtjrf Turning diameter: 280 mm Turning length: 600 mm

Condition: used, Year of construction: 2007, Number of working hours 20456 h spindle hours 75180 h control FANUC 310 i Crsdpfxsydfq Ie Aqtjf chuck diameter 175 mm turning speeds 5.000 min-1 weight of the machine ca. 8800 kg dimensions of the machine ca. 4500 x 1990 x 2300 mm Number of controlled spindles (C axes): 2 Number of controlled axes: 8 Number of channels: 3 Max. bar diameter: 65 mm Bore in tie rod: 75 mm Chuck diameter: 175 mm Spindle nose: 140 mm Max. speed: 5,000 rpm Nominal torque: 191 Nm Nominal power: 20 kW DATA FOR THE W2 AXIS OF THE COUNTER SPINDLE Stroke: 690 mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 2,400 N X1 AXIS DATA Stroke: 165 mm Rapid traverse: 40 m/min Max. acceleration: 10 m/s² Nominal force: 2,400 N Z1 AXIS DATA Stroke: 678 mm Rapid traverse: 30 mm Max. acceleration: 5 m/s² Nominal force: 5,000 N Y1 AXIS DATA Stroke: 80(+50/-30) mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 5,000 N X2 AXIS DATA Stroke: 165 mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 5,000 N Number of tool stations: 12 Tool holder diameter: 30 mm Driven stations: 12 mm Max. speed of driven tools: 4,000 rpm

Condition: used, Year of construction: 2008, chucking diameter 200/250/315 mm bar material dia. 65/90 mm spindle bore 79/100 mm control Siemens 840D powerline weight of the machine ca. 6 t dimensions of the machine ca. 4350x2460x2080 m Working area Circulation dia. above bed slide way cover: 680mm Circulation dia. above cross guide cover: 565 mm Facing traverse: 324 mm Longitudinal path: 600 mm Main spindle Spindle nose dia: 170 h5 / 220 h5 mm Bar dia. Max: 65 / 90 mm Spindle nose dia. in front bearing: 120 / 150 mm Spindle boring: 79 / 110 mm Chuck dia: 200 / 250 / 315 mm Drive rating S1 100% duty cycle: 25 / 33 kW Rotational speed range: 5000 / 4000 r.p.m Max. torque S1 100% duty cycle: 270 / 375 Nm Salient rotational speed: 900 / 850 r.p.m C axis (main spindle) Rotational speed: 250 r.p.m Stopping torque: 200 Nm Division accuracy: 0,025 deg. Compound slide X/Z/Y Facing traverse X: 260 / 1852 mm Longitudinal path Z: 635 / 6202 mm Ball spindle Z (dxh): 40x15 mm Vertical path Y: ±40 mm Ball spindle Y (dxh): 40x5 mm Rapid traverse speed X/Y/Z: 60/15/45 m/min Feed force X/Y/Z: 3,5/7/7 kN Tool holder Number of tool stations: 12 Tool mounting cylinder shaft (DIN 69880): 40 mm Tool disk, axial tool holder pitch circle dia: 370 mm Number of driven tools: 12 Drive rating max. 100% duty cycle: 4,9 kW Torque 100% duty cycle: 10,5 Nm Rotational speed range: 4500 r.p.m Tailstock Tailstock traverse path: 580 mm Tailstock force: 8 kN Tailstock mounting: MT 5 Rapid traverse speed Z2: 6 m/min Part accuracy for positioning: =/< 10 mm Hydraulic Csdoya Iirjpfx Aqtsrf Contents: 40 l Pump capacity: 2,2 kW Max. pressure: 80 bar Pressure for clamping unit, tailstock: 10-60 bar Coolant unit Contents: 210 l Pump capacity: 1,7 kW Feed rate at 6 bar: 20 l/min Electrical energy requirement Connected rating: 50 kVA Operating voltage: 400 V Frequency: 50 Hz Fuses (slow blow/VDE 0100) perm: 80 A Voltage fluctuations at 400 V: 6% - 10% Machine dimensions Dimensions (LxWxH) with chip conveyor: 4350/2460/2080 mm Weight without chip conveyor/chip bath: ca. 6.000 kg Workplace based constant noise pressure level: - (DIN 45635 part 1-04.85 (ISO 3740-1980), measured as a chip removing cycle as per DIN 45635 part 1601-07.78): 77 db (A) - in idle running as per DIN 45635 part 1601-07.78: 78 db (A)

Condition: used, Year of construction: 2008, bar material dia. 65 mm turning speeds 5.000 min-1 Number of working hours 34979 h spindle hours 72260 h control FANUC 310 i weight of the machine ca. 8800 kg dimensions of the machine ca. 4500x1990x2300 mm Number of controlled spindles (C axes): 2 Number of controlled axes: 8 Number of channels: 3 Max. bar diameter: 65 mm Bore in tie rod: 75 mm Chuck diameter: 175 mm Spindle nose: 140 mm Max. speed: 5,000 rpm Nominal torque: 191 Nm Nominal power: 20 kW DATA FOR THE W2 AXIS OF THE COUNTER SPINDLE Stroke: 690 mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 2,400 N X1 AXIS DATA Stroke: 165 mm Rapid traverse: 40 m/min Max. acceleration: 10 m/s² Nominal force: 2,400 N Z1 AXIS DATA Stroke: 678 mm Rapid traverse: 30 mm Max. acceleration: 5 m/s² Nominal force: 5,000 N Y1 AXIS DATA Stroke: 80(+50/-30) mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 5,000 N X2 AXIS DATA Stroke: 165 mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 5,000 N Number of tool stations: 12 Tool holder diameter: 30 mm Crodsyat Hvopfx Aqtef Driven stations: 12 mm Max. speed of driven tools: 4,000 rpm Translated with (free version)

Condition: used, Hydraulic pump: Technical data: Cjdpfx Aszry D Dsqtsrf - Oil capacity: 160 L, - Engine: EMOD Type 132S/2, 5.5 kW, - Engine: LS 160 L-4, 15 kW,
