Used Esterer Frame Saw for sale (12,807)

Condition: new, Year of construction: 2025, functionality: fully functional, total length: 1,000 mm, total width: 600 mm, total height: 1,400 mm, cutting range round steel at 45°: 90 mm, cutting height (max.): 105 mm, saw drive: 4,700 W, empty load weight: 200 kg, COSEN CIRCULAR SAWS MANUAL MC-315 These circular saws are new in the COSEN portfolio, and are available in manual, which means you have to pull the lever down to cut. Technical features: Compact, pedestal-mounted, hand-operated circular saws can be easily handled in the workshop or even on factories. Hand-operated vise Heavy duty motor Robust construction Low voltage on/off switch 45° and 90° bevel cutting Two cutting speeds Electric coolant pump with tank COSEN MC-315 CURRENT POWER: 400V DISC DIAMETER: 315 mm MOTOR CAPACITY: 4.7 kW DIMENSIONS: 1000 x 600 x 1400 mm WEIGHT: 200 kg RPM 45/90 RPM MAXIMUM CUTTING CAPACITY ROUND MATERIAL 90°: 105 mm; 45°: 90 mm SQUARE MATERIAL 90°: 85 x 85 mm; 45°: 80 x 80 mm RECTANGULAR MATERIAL 90°: 120 x 60 mm; 45°: 90 x 60 mm Price is EXW (Stock Europe), Include loaded on truck. Transport, installation, commissioning, training, and yearly service contracts are available upon request for an additional fee. Installation and training is always done by our high qualified Service team in 3 locations in Europe. Netherlands, Germany, Romania. Hsdpfov R Dxajx Al Sel

Condition: new, Year of construction: 2025, functionality: fully functional, type of input current: three-phase, cutting height (max.): 250 mm, total height: 1,052 mm, total length: 1,751 mm, total width: 1,100 mm, empty load weight: 528 kg, cutting range round steel at 45°: 230 mm, cutting range square steel at 45°: 230 mm, saw drive: 1,500 W, 250 x 460 mm Metal Cutting Semi-Auto Horizontal Scissor Type Mitering Band Saw Machine SH-460M 250 x 460 mm Industrial-Use Semi-auto Swivel Frame and Bed miter Band Saw is a heavy-duty swivel frame and bed miter design with a capacity of 250mm (10"). Key features included in this robust machine allow for the use in mass production environments as well as tool room applications. Specifically designed bed and swivel allow users to easily and accurately set angles. Standard Features A 2 hp motor, heavy-duty reducer. The 4-speed transmission is equipped with the best worm gear speed reducer. Built-in hydraulic unit includes hydraulic motor, pump, and hydraulic tank to offer the convenience of raising the saw head automatically after cut-off. A work height selector is located over the hydraulic cylinder and is used to adjust the blade to minimum clearance height over the work. Specially designed heavy-duty cast iron swivel center features straight and miter cuts from 90 to 60 deg (backwards) with quick setting and precise positioning. Rigid guide arms with carbide blade guides. Secure clamping via a dependable manual lead screw system with anti-slip hand wheel. Integral Coolant System. Blade brush to remove chips from blade gullet. Down feed rate & cutting pressure control. Easy blade change with front access at waist level. Hjdsv R Dt Depfx Al Ssl Adjustable material stop. Bi-metal saw blade. Tools, leveling pads. An Additional wire brush. Operation & parts manual. Optional Accessories Infinitely variable blade speed. 1M or 2M Roller table. Type of Saw: Horizontal Automation: Semi-Automatic Miter: Single Miter Production Line: Horizontal-Mitering; Horizontal-Pivot: Capacity-Max. Height (mm): ≦230 Capacity-Max. Width/Throat (mm): ≦460 Capacity-Round (mm): 250 Blade / Circular Saw Width (mm): 27 Blade Speed Min.~Max. (M/min): 24~87 Angle of swivel Min.~Max. (ﾟ): 0~60 Price is EXW (Stock Europe), Include loaded on truck. Transport, installation, commissioning, training, and yearly service contracts are available upon request for an additional fee. Installation and training is always done by our high qualified Service team in 3 locations in Europe. Netherlands, Germany, Romania.

Condition: used, Year of construction: 2005, Used machine Hsdpfx Alewqifke Ssl Year of manufacture: 2005 Condition: Guides slightly worn, only suitable for rough cutting Equipment and technical data: - Cutting length: 4300 mm - Max. passage height: 2200 mm - Max. trimming height: 2100 mm - Max. scoring height vertical: 2100 mm - Cutting depth: 80 mm - Motor: 5.5 kW - Saw blade speed: 4500 rpm - Saw blade diameter: 300 mm - Extraction: 2 x 100 mm - Compressed air consumption: 60 NL/min Dimensions: 5620 x 1480 x 2990 mm Availability: short-term Storage location: Flörsheim

Condition: excellent (used), Year of construction: 2000, machine/vehicle number: 6034 104 018, functionality: fully functional, Kasto fully automatic band saw machine HBA 660 AU/A6 Hjdpoy H Ihpjfx Al Sjl Specification Serial number: 6034104 018 Capacity: ø660 mm Square capacity: 660 x 660 mm Single cut: 20 mm Feed length: 500 mm Saw blade: 8585 x 1.6 x 67 mm Saw motor: 7.5 kW Total motor power: 17 kW/50 A Year of manufacture: 2000 Length: 2400 mm Width: 4100 mm Height: 2520/2800 mm Weight: 5600 kg Information Driven roller table, 3° table inclination optimises sawing of flat and square material. Different quantities and lengths in the same program. Including roller conveyors and saw blades.

Condition: used, total height: 1,950 mm, total length: 900 mm, total width: 800 mm, Weight: 150 kg - Documentation available: No - CE certificate present: No - Serial number: 69770 - Saw direction: vertical - Wheel diameter [mm]: 350 - Max. saw width to column [mm]: 350 Hsdpfxjy Hufnj Al Sol - Max. cutting height [mm]: 300 - Table length [mm]: 450 - Table width [mm]: 450 - Band saw thickness [mm]: 1 - Voltage [V]: 400 - Fuse [A]: 16 - Transport dimensions: 900mm x 800mm x 1950mm (l x w x h) - Transport weight [kg]: 150kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

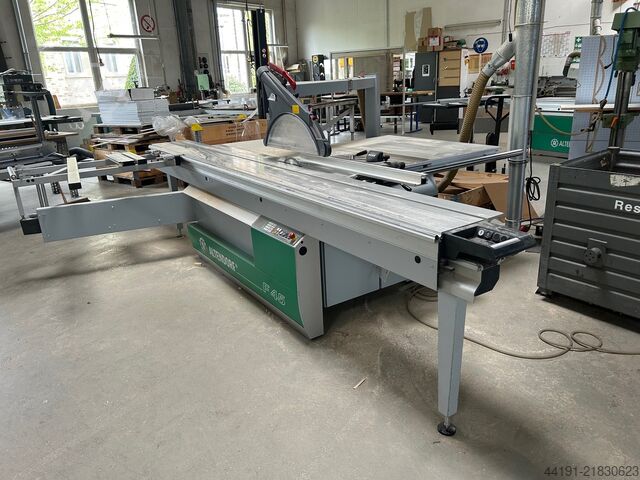

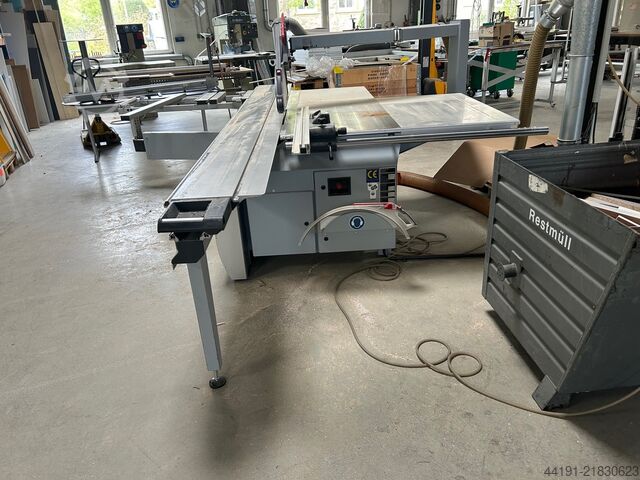

Condition: used, Panel saw ALTENDORF F45 - used - double roller carriage, tilting, parallel fence with fine adjustment, outrigger table, table extension, anodized aluminium, table width extension, anodized aluminium, mitre fence, overhead guard, narrow and wide ----- Technical specifications ----- Tilting range: 45°, Carriage length: 2,500 mm, Cutting width: 800 mm, Max. saw blade Ø: 450 mm, Motor power: 5.5 kW, Extraction nozzle Ø: 80 / 120 mm Hsdpfx Alew Nv I Ue Sol

Condition: used, Panel Saw ALTENDORF F45 -used- Double roller carriage, Scoring unit, Rip fence with fine adjustment, Support table, Hydraulic height adjustment, Hydraulic tilting adjustment, Digital tilt angle display, Speed display, Table extension, aluminium anodized, Hedpfew Nx A Isx Al Sol Table width extension, aluminium anodized, Angle/miter fence, Overhead guard, narrow and wide, Automatic brake, Dust tested ----- Technical Data ----- Tilting range: 45°, Carriage length: 3,200 mm, Cutting width: 1,300 mm, Cutting height: 125 mm, Max. saw blade Ø: 400 mm, Speeds: 3,000/4,000/5,000/6,000 rpm, Motor power: 5.5 kW, Weight: 1,040 kg

Condition: excellent (used), Panel saw STRIEBIG COMPACT TRK 5207 C - used - Welded frame with extremely high rigidity, automatically retracting support grid, stable locking of the saw carriage at top and bottom, control panel at eye level ----- Technical data ----- Cutting length: 4,600 mm Cutting height: 2,070 mm Cutting depth: 60 mm Hodowyap Eopfx Al Sjl Saw blade diameter: 250 mm Motor: 3 kW Extraction connection diameter: 100 mm Required space (LxWxH): 5,716 x 1,500 x 2,814 mm Weight: 850 kg Quality information: - Folding support rails renewed - Fence bars renewed / overhauled - Complete basic inspection performed - Complete basic cleaning - Electrical system checked - Immediately ready for operation

Condition: excellent (used), Panel Saw ELCON ADVANCE 215 DSX-A - used - Hedsyq Rwyepfx Al Sol Automatic clamp system for trimming the lower edge, Pneumatically retractable support grid, Sturdy locking positions for the saw carriage at the top and bottom, Electrically monitored locking for vertical cuts, Retractable riving knife for cut-outs, Control panel positioned at eye level, Digital display at the longitudinal stop, Digital display for horizontal cuts, Scoring saw unit with counter-rotation, TRK extraction system, Certified dust extraction, Strip cutting device ----- Technical Data ----- Cutting length: 6,300 mm, Cutting height: 2,100 mm, Edging height: 2,000 mm, Cutting depth: 80 mm, Saw blade Ø: 300 mm, Motor: 4 kW, Extraction port Ø: 200 mm, Compressed air: 6-8 bar, Required space (LxWxH): 7,700x2,000x3,000 mm Quality Information: - Guide rails renewed - Complete basic inspection - Thorough cleaning - Electrical system checked - Immediately ready for operation

Condition: good (used), Metal band saw, fully automatic, band saw machine, band saw, vertical band saw, horizontal band saw, hydraulic horizontal band saw machine, automatic band saw, automatic metal band saw -Manufacturer: MEP, Horizontal band saw, Automatic band saw -Drive: 4.4/5.7 kW -Cutting data flat 90°: 320 x 200 mm -Cutting data for 90° square: 250 mm -Cutting data flat 45°: 240 x 200 mm -Cutting data for 45° square: 210 mm Hsdjy Hu H Eepfx Al Sol -Saw blade speed: 2x speeds -Saw blade: 3150 mm -Coolant system -Transport dimensions: 3 meters -Weight: 1300 kg

Condition: used, Year of construction: 2008, KALTENBACH KKS 400 E HYDRAULIC METAL CIRCULAR SAW MAKE KALTENBACH, MADE IN GERMANY MODEL KKS 400 E YEAR 2008 SAW BLADE DIAMETER Up to 400.0 mm CUTTING CAPACITY AT 90 DEGREES ROUND: 130.0 mm SQUARE: 120.0 mm FLAT: 305.0 x 40.0 mm or 240.0 x 85.0 mm CUTTING CAPACITY AT 45 DEGREES ROUND: 130.0 mm FLAT: 245.0 x 30.0 mm or 180.0 x 70.0 mm Hsdpfsy D I Nnox Al Sol MILTER ADJUSTABLE LEFT - RIGHT 0 – 90 DEGREES INFINITELY VARIABLE SAW BLADE FEED RATE 0 – 10 m/min SAW BLADE CUTTING SPEED 13 / 26 m/min SAW DRIVE 400 V / 1,7 / 2.6 kW HYDRAULIC DRIVE 400 V / 0.75 kW PLUS 2 SETS OF LOADING RACK

Condition: good (used), Year of construction: 2018, functionality: fully functional, Horizontal panel saw / Horizontal beam saw with lift table loading Manufacturer: SCM / Gabbiani Model: Gabbiani ST 115 Year of manufacture: 2018 Horizontal pressure beam saw with rear lift table loading, previously used in a parquet factory. Cutting length approx. 3200 mm Cutting depth on the lift table approx. 1850 mm Max. stack height on the lift table (with supports) approx. 600 mm Saw blade projection 115 mm Variable saw carriage speed: 0 - 135 m/min Variable pusher speed: 0 - 70 m/min Main saw motor approx. 9 kW Main saw blade speed: 3900 rpm Saw blade diameter: 400 mm Scoring saw motor approx. 1.8 kW Hodpfx Aley H Up Hj Sol Scoring saw speed: 6300 rpm Scoring saw blade diameter: 160 mm 6 clamps (3 of which include a front aligner) 2 air-cushion tables, each with blower Voltage: 400 V, 3-phase, 50 Hz, 43 A Approximate weight: 5500 kg

Condition: good (used), Year of construction: 2013, functionality: fully functional, power: 66 kW (89.73 HP), Equipment: CE marking, Horizontal thin-cut band saw with 3 stations Make: Allwin Model: AW-400-3 Hedpfey H Uniex Al Ssl Year of manufacture: 2013 Horizontal thin-cut block band saw with 3 stations, previously used in parquet production. Suitable for individual lamella cuts. Max. cutting height approx. 300 mm Max. cutting width approx. 400 mm Approx. 22 kW / 30 HP per station

Condition: good (used), Year of construction: 2005, - Description: see data sheets - CE Hjdpfx Aljy H I A He Sol

Condition: used, Year of construction: 1983, Used machine Year of manufacture: 1983 Equipment and technical data: - With 45° tiltable saw blade - Sliding carriage and swivel arm - Machine table 700 x 680 mm Hjdpfxjy Ih R Hs Al Sol - Height to table top approx. 900 mm - Height adjustment of circular saw blade approx. 55 mm - Max. circular saw blade diameter: 315 mm - Circular saw blade bore: 30 mm - Maximum cutting height with 315 mm saw blade: approx. 85 mm - Cutting width: approx. 400 mm - Maximum cutting length in front of the saw blade when using the sliding carriage: approx. 925 mm - Sliding carriage table size: 780 x 340 mm - Motor: 3 kW - 2870 rpm - Saw shaft speed: approx. 4600 rpm - Weight: approx. 216 kg Availability: short-term Location: 63934 Röllbach

Condition: used, Year of construction: 2014, Used machine Year of manufacture: 2014 with electric height and tilt adjustment for the main saw blade, dimension input via keyboard digital display for tilt angle and cutting height CE version Cutting length 3800 mm with center and end position locking Cutting width 1300 mm DIGIT-X with digital display and fine adjustment Hodpfx Aloy Ih T Uj Sel Saw blade diameter max. 550 mm Motor 5.5 kW VARIO AKE clamping system with automatic brake and digital speed display On/off switch on the double roller carriage Table extension 840 mm Angle/miter fence Availability: short notice Location: Flörsheim

Condition: used, Year of construction: 2007, functionality: fully functional, Horizontal Bandsaw Manufacturer: KALTENBACH Model: KBS 620 DG Year: 2007 Technical Data Manufacturer: Kaltenbach Model: KBS 620 DG Year of manufacture: 2007 Working range: 620 x 350 mm Working range (round): 360 mm Saw band dimensions: 6175 x 41 x 1.3 mm Cutting speed: 15-90 m/min Saw band inclination: 3° Feed rate: 0 - 300 mm/min Saw dimensions: L 3.0 x W 1.2 x H 2.10 m Hodpfxjy H D Ras Al Ssl Roller conveyor size: L 8.6 x W 1.1 m (incl. stop) Weight: approx. 2.6 t Equipment • Roller conveyor with CNC length measurement system, L = 8600 mm • CNC stop travel 7200 mm • Minimum quantity lubrication • Laser cutting line indicator • Automatic saw blade cleaning • CNC control Kaltenbach AS620 • CNC stop control EPS 80 • Automatic vertical hold-down • Automatic horizontal hold-down All information without guarantee. A demonstration is available at any time in our showroom.

Condition: excellent (used), Year of construction: 2004, Manufacturer: KASTO Hodpfxsygl Thj Al Ssl Model: KASTOtec A4 Year of manufacture: 2004 Specification HIGH-PERFORMANCE BANDSAW Cutting capacity round 90°: 430 mm Cutting capacity flat 90°: 430 x 430 mm Feed range: 0–600 mm Multi-feed range: 0–9999 mm Min. cutting length: 35 mm Max. cutting speed: 12–120 m/min Saw blade dimensions: 6830 x 41 x 1.3 mm Power: 7.5 kW 4 m material feed conveyor 4–5 new saw bands included in delivery.

Condition: excellent (used), Machine available from mid/end of June. Further information to follow. Hedpfxsy Hl Nwj Al Sel

Condition: used, Year of construction: 1991, Saw unit: tiltable 45° Carriage length: 1200 mm Max. saw blade diameter: 250 mm Max. blade protrusion at 90°: 75 mm Saw blade bore: 30 mm Motor power: 2.2 kW Control panel: below on the machine housing Height adjustment: manual Tilt adjustment: manual Tilt angle display: scale Cutting width adjustment: manual Cutting width display: scale Weight approx.: 150 kg Storage location: Hodpfx Aley Igqxj Sjl

Condition: reconditioned (used), Year of construction: 1994, functionality: fully functional, Motor power 50Hz 3~ 400V 5.5kW Sliding table 2800 mm Hsdpey Icbgofx Al Sjl without scoring saw Digital angle adjustment display Digital speed display Hydraulic lifting / lowering / tilting Cutting width 1005 mm Manual parallel fence LAP laser system Mitre fence (small) Saw blade diameter 250 - 450 mm

Condition: good (used), Station 1: Cutting components to length Station 2: End face drilling at grid dimensions 27, 32, or 60 mm, to a depth of 95 mm Hsdpfx Alsy Hv Uqo Sel Station 3: End face drilling with an additional bore or cleaning out the bores from Station 1 Station 4: Deflection testing

Condition: good (used), Station 1: Cutting components to length Station 2: Face-drilling in standard grid dimensions of 27, 32, or 60 mm, to a depth of 95 mm Hedoy Hv Nuopfx Al Sel Station 3: Face-drilling an additional hole or blowing out the drillings from station 1 Station 4: Checking for deflection

Condition: used, Year of construction: 2008, functionality: unexamined, overall weight: 5,950 kg, working range: 4,500 mm, type of input current: three-phase, working height: 105 mm, We offer this used Gabbiani Galaxy 105T BR panel saw, year of manufacture 2008. Hodpfxoy Hccbs Al Ssl Brand: Gabbiani Macchine Type: SEZ. MÖN. MT Model: GALAXY 105T BR Year of manufacture: 2008 Serial number: GA1/002979 Weight: 5,950 kg Voltage: 400 ~3/N V Current: 44 A Frequency: 50 Hz Short-circuit current (Icc): 10 kA If you have any questions or would like more information, please feel free to send us a message or call us.

Condition: like new (used), Year of construction: 2024, functionality: fully functional, power: 5.5 kW (7.48 HP), cutting height (max.): 150 mm, cutting width (max.): 1,300 mm, height adjustment type: electric, actuation type: electric, Equipment: CE marking, documentation/manual, For sale is an Altendorf WA 80 panel saw in like-new condition. The original purchase price was over €20,000 (net). Installed options: + 5.5 kW main motor (7.5 HP) with 3 speeds (M51061) + Scoring unit with electric height adjustment (M24040) + Adjustable mitre fence with crosscutting length up to 3,500 mm (M44054) + Rip fence 1,300 mm with fine adjustment (M44071) Technical specifications: + Year of manufacture: 2024 + Motor output: 5.5 kW + Voltage: 400 V / 50 Hz Hjdpfsy H Iptox Al Sol + Cutting width right: 1,300 mm + Sliding table: 3,000 mm double-roller carriage with locking mechanism + Electrically adjustable height and tilt (0–46°) + Digital tilt angle display + Max. saw blade diameter: 450 mm + Max. saw blade projection: 150 mm + Scoring blade: Ø approx. 120 mm + Extraction connection: Ø 120 mm Condition: Like new – barely used Fully functional and ready for immediate use No defects Inspection and test run possible at any time Ideal for carpentry, joinery, or a demanding workshop Price: €13,250 net Location: 39340 Haldensleben
