Used Reform Flat Grinding Machine for sale (67,162)

Condition: good (used), Year of construction: 2013, TOYODA (JTEKT) GL32M-63 CNC UNIVERSAL CYLINDRICAL GRINDER Equipped with: CBN Grinding Wheel Flagging Steady Rest Workhead Mounted Rotary Dresser Marposs P3SE System Monitoring Toyoda In Process Gaging Marposs E20N Acoustic Controller Air Gap Eliminator Workpiece Collision Control Coolant Pumps W/Magnetic Separator Pendant Control RH Workhead with Center LH Workhead with Center Work Rests Worklight Light Curtains Stacklight Extra Wheels Specifications: Dedportrzpofx Aktjkn -Grind Center to Floor: 1,000 mm -Swing Over Table: 320 mm -Distance Between Centers: 630 mm -Grinding Diameter Range: 10 - 150 mm -Floor Space (Base machine w/auxiliary equipment): 3,400 x 5,000 mm -Net Machine Mass (approx.): 10,500 kg Grinding Wheel: -Type: CBN Wheel -Wheel Size (OD): 350 mm -Maximum Wheel Width: 60 mm -Surface Speed: 120 m/s Wheelhead: -Spindle Bearing: TOYODA STAT Bearing -Slide: V and Flat -Feed System: Ballscrew -Rapid Feed (on diameter): 30 m/min -Minimum Incsrement (on diameter): 0.0001 mm Workhead: -Type: Dead Spindle -Work Speed (Max): 500 rpm -Center Taper: MT #4 Footstock: -Type: Hydraulic -Taper Compensation: Manual -Maximum Center Retraction: 60 mm -Center Taper: MT #4 Motors: -Wheel Drive Motor: 15 kW, Belt-Drive -Wheelhead Feed Servomotor: 1.3 kW Tank Capacities: -Wheel Spindle Lubrication Oil: 80 L -Hydraulic/Lubrication Oil: 20 L

Condition: used, Year of construction: 2012, Control Siemens 840 D weight of the machine ca. 13,5 t dimensions of the machine ca. 7m x 4m x 2,75m m Accessories: Coolant tank Grinding wheels Various spare parts Operating and maintenance instructions CE conformity Dimensions: 7x4x2.75 m ( LxWxH) TECHNICAL DATA: Dkedpexh Rqtsfx Akten Workpiece data: max. outer diameter: 250 mm with max. grinding wheels Ø 450 mm max. diameter to be machined over table: 375 mm Profile depth for dressable grinding wheels: 40 mm max. workpiece length: 3,600 mm max. distance between centers (1): 2,800 mm max. bevel angle: +/- 90° Number of teeth of the workpiece: 1 - 999 max. weight of the workpiece: 250 kg Working area: Center distance between workpiece and tool spindle: 355-170 mm Radial travel: 185 mm Axial travel: 3,000 mm Swivel angle: +/- 90°

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, grinding length: 500 mm, grinding width: 250 mm, total height: 1,800 mm, total length: 2,250 mm, total width: 1,400 mm, feed rate X-axis: 25 m/min, grinding wheel diameter: 205 mm, table length: 500 mm, type of input current: three-phase, table width: 250 mm, grinding wheel width: 19 mm, spindle speed (max.): 2,900 rpm, overall weight: 1,350 kg, grinding spindle motor power: 1,500 W, rotational speed (max.): 2,900 rpm, grinding spindle speed: 2,900 rpm, power: 1.5 kW (2.04 HP), grinding wheel speed: 2,900 rpm, input voltage: 400 V, disc diameter: 205 mm, Metallkraft FSM 2550 Surface Grinder Machine Type: Surface Grinder with NC Controlled Vertical Feed Year: 2018 Control: NC Control Dkedpfjv Iq Shex Aktjn Condition: Very Good Includes NC Controlled Vertical Feed Table Enclosure Guard Electro-Magnetic Chuck Wheel Dresser Coolant Equipment Halogen Light DRO Auto-Lube Technical Specifications Grinding Wheel Diameter: 180 to 205mm Grinding Wheel Width: 19 to 13mm Grinding Wheel Bore: 31.75mm Spindle Speed: 2900rpm Table Dimensions: 500 x 250mm X Axis Travel Speed: 5-25m/min Drive Motor Power: 1.5kW Electrical Connection: 400V/3Phase/50Hz Machine Dimensions: 2250x1400x1800mm Machine Weight: 1350kg Notes: *Specifications are given in good faith but not guaranteed*

Condition: good (used), Year of construction: 1979, functionality: fully functional, machine/vehicle number: 1054, grinding length: 400 mm, grinding width: 150 mm, Table length: 400mm Table width: 150mm Maximum cutting length: 400mm Maximum grinding width: 150mm Maximum workpiece weight: 75kg Distance spindle to table: 400mm Table speed 1-24 m./min. Sharpening stone diameter: 25mm Spindle speed: 900 – 4500 rpm. Year of construction: 1979 Dksdpfx Aor Eq U Sekton

Condition: ready for operation (used), Year of construction: 1989, functionality: fully functional, center height: 315 mm, workpiece weight (max.): 2,500 kg, grinding length: 2,000 mm, center width: 2,000 mm, grinding wheel diameter: 750 mm, grinding diameter: 630 mm, distance between centers: 2,000 mm, workpiece diameter between centers: 630 mm, workpiece length between centers: 2,000 mm, grinding spindle motor power: 22 W, The machine is in good technical condition. Middle repair in 2012. Dksdpfjzcatnox Akten Testing after previous agreement.

Condition: ready for operation (used), Year of construction: 1971, functionality: fully functional, grinding length: 400 mm, grinding width: 250 mm, grinding height: 275 mm, grinding wheel diameter: 250 mm, grinding wheel width: 30 mm, ELB - Surface grinding machine, Model: SW 4 VA I, year of manufacture: 1971, grinding area: 450 x 250 x 275 mm, grinding wheel: 250 x 30 x 51 mm Dkjdpfxjyzfals Akton ACCESSORIES: Coolant tank with pump, electro-magnetic chuck 450 x 250 mm, leveling feet

Condition: ready for operation (used), Year of construction: 1988, Horizontal surface grinding machine Okamoto Type PSG 63 – UAN Year of manufacture: 1988 Grinding length: 600 mm Grinding width: 320 mm Dedpfx Aszb Dd Ijktekn Max. workpiece height: 500 mm Table travel (longitudinal): 750 mm Table travel (cross): 340 mm Grinding wheel diameter: 350 mm Grinding wheel width: 40 mm Spindle speed: 1500 rpm Rapid vertical feed: 400 mm/min Power: 3.7 kW Automatic feed Magnetic chuck Coolant system Weight: 2500 kg Price: EUR 2,000—plus VAT, ex location

Condition: ready for operation (used), Year of construction: 2020, Immediately available ex location: Horizontal surface grinding machine, make Holzmann Model SPM 30 FUM Year of manufacture: 2020 Grinding length: 400 mm Grinding width: 200 mm Djdpfx Aszb Ddzoktskn Table: 600 x 300 mm Automatic feed Magnetic chuck Coolant system Weight: 2 t Offered at a price of EUR 2,250 plus VAT ex location.

Year of construction: 2022, condition: new, Robot - Belt Grinding Machine is a belt grinding machine for robotic machining with a contact wheel for grinding parts made of aluminum, steel, brass and zinc die casting. Technical data: Contact wheel: max. Ø 400 mm grinding belt length: 3500 mm grinding belt width: max. 150 mm Djdegxug Nspfx Aktskn Suction connection: Ø 160 mm dimensions (LxWxH ): 900 x 700 x 1800 mm Weight: approx. 350 kg Electrical connection: 3 x 400 V, 4 kW Compressed air connection: 6 - 8 bar Noise level: > 85 dB(A) spindle diameter: 35 mm Belt grinding unit for grinding belts max. 150 mm x 3500 mm length with pneumatic belt tensioning, belt tear control, 4 kW drive power, frequency controlled, for contact wheels max. DM 350 mm x 150 mm, drive and deflection rollers

Year of construction: 2022, condition: new, Robot - Belt Grinding Machine is a belt grinding machine for robotic machining with a contact wheel for grinding parts made of aluminum, steel, brass and zinc die casting. Technical data: Contact wheel: max. Ø 400 mm grinding belt length: 3500 mm Dedpfx Aogxug Tsktekn grinding belt width: max. 150 mm Suction connection: Ø 160 mm dimensions (LxWxH ): 900 x 700 x 1800 mm Weight: approx. 350 kg Electrical connection: 3 x 400 V, 4 kW Compressed air connection: 6 - 8 bar Noise level: > 85 dB(A) spindle diameter: 35 mm Buffer: 50 mm Belt grinding unit for grinding belts max. 150 mm x 3500 mm length with pneumatic belt tension, belt tear control, 4 kW drive power, frequency controlled, for contact wheels max. DM 350 mm x 150 mm, drive and deflection rollers, with buffer 50 mm

Year of construction: 2021, condition: new, for grinding belts max. 80 mm x 2000 mm length with 3 kW drive power, for contact wheel max. diameter 80 mm x 80 mm Dksdpfx Aegxuhmoktjn

Year of construction: 2023, condition: new, We sell a new double belt grinder. The contact wheels can be purchased in different dimensions. Dodpek D Ex Tjfx Aktjkn Technical data: Weight: approx. 350 kg Electrical connection: see type plate of the respective drive motor Compressed air connection: 3 - 8 bar Noise level: > 85 dB(A) Contact wheels: max. Ø 350 mm x 110 mm grinding belts: max. 120 mm x 3500 mm length Suction connection: Ø 160 mm If you have any further questions, please do not hesitate to contact us!

Year of construction: 2022, condition: new, Robot - Belt Grinding Machine is a belt grinding machine for robotic machining with a contact wheel for grinding parts made of aluminum, steel, brass and zinc die casting. Technical data: Contact wheel: max. Ø 400 mm grinding belt length: 3500 mm grinding belt width: max. 150 mm Suction connection: Ø 160 mm dimensions (LxWxH ): 900 x 700 x 1800 mm Weight: approx. 350 kg Electrical connection: 3 x 400 V, 4 kW Compressed air connection: 6 - 8 bar Dksdpfx Aogxug Eekten Noise level: > 85 dB(A) spindle diameter: 35 mm Belt grinding unit for grinding belts max. 150 mm x 3500 mm length with pneumatic belt tensioning, belt tear control, 4 kW drive power, frequency controlled, for contact wheels max. DM 350 mm x 150 mm, drive and deflection rollers With top roller for free belt grinding

Condition: good (used), HR 4 automatic polisher Manufacturer: Hau With 4 working spindles. 1 spindle is used for loading and unloading, two work spindles are in constant use. Dksdpfjqmfv Dox Aktsn

Condition: good (used), Year of construction: 1982, 1 used surface and guideway grinding machine Manufacturer: ELB Model: SWDE 30 U CNC Year of manufacture: 1982 / 1999 Control type: CNC Control: Mitsubishi 520 Location: NRW Country of origin: Germany Delivery time: short notice Delivery terms: ex stock TECHNICAL DATA Grinding length: 3000 mm Grinding width: 900 mm Workpiece height: 600 mm Electromagnetic chuck: 3000 x 900 mm Pole pitch: 18 mm Grinding wheel dimensions: Ø 500 x 100 mm Control: Mitsubishi 520 Dkedpfx Akjynglbotjn Total power requirement: 18.5 / 5.5 kW Machine weight approx. 19 t Space requirement approx. 9 x 4.5 x 3.5 m Shipping dimensions approx. 13 x 2.5 x 3.5 m

Condition: used, Year of construction: 2020, functionality: fully functional, For sale is a KNUTH RSM 1000 C cylindrical grinding machine in very well-maintained and fully functional condition. Dkjdezb Ag Iepfx Aktsn The machine comes from a working production facility and is in very good optical and technical condition. It is ideally suited for precise grinding operations in metalworking, toolmaking, manufacturing, and industry. Technical data: * Manufacturer: KNUTH * Model: RSM 1000 C * Machine type: Cylindrical grinding machine / Precision grinding machine * Year of manufacture: 2020 * Condition: very well-maintained / fully functional * Application area: Metalworking, toolmaking, precision manufacturing * Location: Meinerzhagen

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, grinding length: 1,000 mm, grinding width: 600 mm, Perfect PFG60100AHR surface grinder year of manufacture: 2005 magnetic table: 1000 x 600 mm max. grinding area: 1000 x 600 mm variable magnetic force Dsdpezbrpfsfx Aktskn automatic feed coolant/filter tank 5 grinding wheels and various grinding stones documentation machine is powered on for inspection

Condition: used, Year of construction: 2004, Lot consists of: (1) CNC Horizontal Double-Disc Surface Grinder Technical Details: grinding wheel diameter x width 762 x 220mm, MARPOSS E3 in-process measuring system, CNC FANUC 210i-MB, 400V 50Hz 97kW, weight approx. 13 tons Dkjdpoym Tuasfx Akten

Condition: refurbished (used), Year of construction: 2023, operating hours: 3,000 h, functionality: fully functional, center height: 180 mm, workpiece weight (max.): 200 kg, grinding length: 1,000 mm, center width: 1,000 mm, grinding wheel diameter: 500 mm, total width: 2,600 mm, total length: 4,700 mm, total height: 2,200 mm, grinding diameter: 300 mm, workpiece weight between centers: 200,000 g, type of input current: three-phase, workpiece diameter between centers: 300 mm, workpiece length between centers: 1,000 mm, grinding wheel width: 100 mm, spindle speed (max.): 1,200 rpm, spindle speed (min.): 10 rpm, feed length X-axis: 320 mm, feed length Z-axis: 1,100 mm, feed rate X-axis: 1,000 m/min, feed rate Y-axis: 1,500 m/min, grinding spindle speed: 1,700 rpm, overall weight: 7,500 kg, pivoting range: 30 °, warranty duration: 12 months, year of last overhaul: 2023, input frequency: 50 Hz, rapid traverse X-axis: 1,000 m/min, rapid traverse Z-axis: 1,500 m/min, input voltage: 400 V, Schaudt PF43 U1000, manufactured in 1994, retrofitted (premium refurbished) by GSN in 2023. Siemens Sinumerik 840 D SL control system. Low operating hours, approximately 3000 hours since the retrofit. MK4 workpiece spindle, MK4 tailstock. Grinding travel: 300mm Workpiece length, including clamping devices, at maximum grinding travel: 450mm Grinding wheel dimensions: 500x100mm Bore diameter: 203.2mm Dkodpfx Ajzcfnqokten Controlled workpiece circumferential speed (WUG) SUG external cylindrical grinding spindle: 45m/s Freely positionable, automatic B-axis Machine with new, fully enclosed splash guard GSN measuring head Diatronic 22 including C2 and W axes/turret Touch probe sensor with hydrophone (water jet) including collision monitoring Tailstock retrofitted with automatic cylinder error compensation Clamping/unclamping adjustable via hydraulic clamping device Upgrade to a 15" screen on the control panel NEW PRICE GROSS 2023: €407,432.20 plus additional tools, etc.

Year of construction: 1978, condition: ready for operation (used), A Reishauer thread and worm grinding machine is available. Grinding length: 450mm, center distance: 700mm, workpiece diameter range: 3mm-200mm, workpiece spindle bore: 38mm, thread pitch: 0.3mm-80mm, max. lead angle: +/-25°, grinding wheel bore: 160mm, speed: 1900rpm. Machine dimensions X/Y/Z: approx. 2600mm/1800mm/1600mm, weight: approx. 3500kg. An on-site inspection is possible. Dksdpfxozb Nlqj Akton

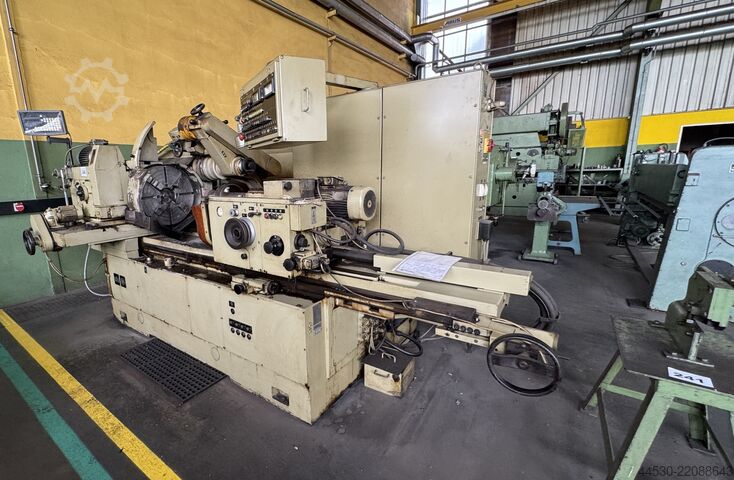

Condition: good (used), Year of construction: 1986, grinding depth: 315 mm, Inner diameter: 20…400 mm Grinding depth: 315 mm Internal grinding spindle speeds, stepless: 2,640…16,500 rpm Workpiece spindle speed: 40…400 rpm Table feed rate: 0.1…8 m/min Rapid traverse: 10 m/min Table travel: 630 mm Total power requirement: 16 kW Machine weight approx.: 5.8 t Additional information: Grindable diameter within workpiece guard: internal 20…400 mm; external 500 mm Max. workpiece diameter in workpiece guard: 500 mm Max. grinding depth: 315 mm Grindable taper angle: 60° Internal grinding spindle speeds: 2,640…16,500 rpm Dedozcc Tdopfx Aktskn Drive power for face grinding attachment: 4 kW Drive power for workpiece motor: 1.5 kW Workpiece spindle speeds: 40…400 rpm Table speed: 0.1…8 m/min Rapid traverse: 10 m/min Table travel: 630 mm Max. distance from workpiece spindle flange to grinding spindle carrier: 1,250 mm

Condition: ready for operation (used), Year of construction: 2023, centerless grinder grinding wheel: 500 x 150 x 305 mm inspection wheel: 300 x 150 x 127 mm Dodpozbb Anjfx Aktokn capacity: diameter 5-80 mm weight: 3650 kg

Condition: used, Year of construction: 1970, functionality: fully functional, machine/vehicle number: M14L/8034, Offer Number: M14L/8034 Machinetype: thread rolling machine - flat die Info: vibratory feeder Make: HILGELAND Type: TR6V Dkedpowi Tc Refx Akten Constr. year: 1970 diameter range: 10-20 mm shaft length under head: 16-180 mm max. thread length: 105 mm output pieces/min: 100 Location: In our warehouse

Condition: good (used), functionality: fully functional, Jung F40 sinusoidal magnet, 300 x 150 mm cooling water tank Dedpfx Akozbbklstokn 9x grinding disc documentation the machine is powered on for inspection.

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, Jung JF 520 D year of manufacture 1988 magnet 500 x 175 mm max. grinding area 600 x 220 mm variable speed variable magnetic field strength automatic start diaform coolant/filter tank 3 x flange 1 x clamp Dksdpfxezba Ngo Aktsn documentation machine is powered on for inspection
