Used Schaublin Cnc Lathe for sale (11,761)

Condition: good (used), Year of construction: 2020, functionality: fully functional, machine/vehicle number: 00320002700, spindle bore: 91 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 307 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 1,240 mm, total height: 2,500 mm, total length: 6,000 mm, total width: 2,200 mm, overall weight: 8,000 kg, controller manufacturer: SIEMENS, controller model: SINUMERIK 840 D, input voltage: 400 V, input frequency: 50 Hz, input current: 99 A, workpiece length (max.): 1,225 mm, nominal power (apparent): 65 kVA, workpiece diameter (max.): 480 mm, workpiece weight between centers: 500 g, operating hours of spindle: 1,103 h, Equipment: chip conveyor, documentation/manual, DMG MORI CLX 550 CNC lathe Hodpjzxy R Rsfx Anyou - Bed inclination: 45° - Bed diameter: 700 mm - Max. slide diameter V1 to V3: 500 mm - Max. workpiece diameter: 480 mm, in the front workpiece diameter: 320 mm - Distance between centers: 1450 mm - Y-axis travel: 120 mm (+- 60 mm) - Z3-axis travel: 1200 mm - Spindle height from axis to ground: 1043 mm - Main spindle, bar capacity: 80 mm - Bar diameter: 81 mm - Front bearing diameter: 130 mm - Resolution axis C1: 0.001° - The machine has a tailstock - Distance between two spindle centers: 1495 mm - Z1 axis travel: 1200 mm - Max. workpiece length: 1140 mm - Max. workpiece diameter: 450 mm - Bar capacity of the tailstock: 50 mm - Bore diameter of the tailstock: 73 mm - Bar diameter: 52 mm The machine is equipped with a tailstock (fitted with a three-jaw chuck SMW AUTOBLOK, diameter: 210 mm), as well as a 12-position tool turret, including powered tool stations, and an SMW AUTOBLOK three-jaw chuck, diameter: 250 mm. It also includes a chip conveyor, filter extraction, and documentation and CDs. FCA D-73529 Schwäbisch Gmünd - loaded onto a truck

Condition: used, Year of construction: 2015, operating hours: 21,934 h, CMZ TC 35 Y-800 Swing over bed / carriage: 920 / 745 mm Maximum turning diameter: 550 mm Distance spindle – tailstock: 866 mm Travel X / Y / Z / B: 310 / +80 / −60 / 800 / 803 mm Rapid traverse X / Z / B: 30 m/min Rapid traverse Y: 15 m/min Main spindle: Maximum speed: 3,000 rpm Power: 45 / 39 kW at 1,500 / 1,273 Nm Hedpfx Anjymc Troysu Bearing outer / inner: 240 / 160 mm Spindle bore: 106 mm Bar capacity: 95 mm Chuck diameter: 315 mm Tailstock: Quill diameter / stroke: 110 / 150 mm Travel: 800 mm Tool turret: 12 positions, all with driven tools Maximum speed: 4,000 rpm Power: 16 kW Maximum torque: 75 Nm CNC control: FANUC 32i TB Voltage: 400 V / 50 Hz Connected load: 65 kVA Dimensions: approx. L x W x H 3 x 2 x 2.2 m Weight: approx. 8.3 t Operating hours: approx. 21,934 hrs Scope of supply: Bar feeder BREUNING IRCO ILS-MUK 10016-II, year 2015 Coolant unit

Condition: used, Brand: GEMINIS Model: GHT4 G2 720 x 3000 Cnc: FAGOR 8055 Distance between points 3,000 mm Diameter over bed 720 mm Diameter over carriage 470 mm Bed width 550 mm Hedpfey R Evxsx Anyju Rapid traverse X axis 8 m/ min Rapid traverse Z axis 8 m/ min Spindle speeds 0-1600 Number of automatic head ranges 2 Main motor power 20 kW Spindle nose type DIN- 55027-11 MULTIFIX quick change tool holder Quill travel 104 mm Tailstock quill diameter 100 mm Tailstock quill traverse 200 mm Quill tailstock MORSE 6

Condition: excellent (used), Year of construction: 2025, spindle bore: 44 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 200 mm, travel distance Z-axis: 300 mm, spindle motor power: 7,500 W, total height: 1,800 mm, total length: 2,500 mm, total width: 1,300 mm, quill diameter: 32 mm, overall weight: 3,500 kg, CNC Lathe with c-axis QuickTech - T6 MILL Max. turning Ø: 400mm X-Axis: 200mm Z-Axis: 300mm Hsdpsz Hvlkofx Anysu Spindle bore: 44mm Speedrange: 5000Rpm Spindle power: 7.5kW ATC / revolver: 12 Speed live tools:4000Rpm Pinole taper: 4Mk Stroke pinole: 70mm Quill Ø: 32mm Length: 2500mm Width: 1300mm Height: 1800mm Weight: 3500kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), Year of construction: 2006, Turning diameter: 650 mm Turning length: 1,500 mm Total power requirement: 33 kW Center distance: 1,500 mm Swing diameter over bed: 650 mm Swing diameter in recess: 670 Turning diameter: 650 mm Turning length: 1,500 mm Total power requirement: 33 kW Center distance: 1,500 mm Swing diameter over bed: 650 mm Swing diameter in recess: 670 mm Swing diameter over face slide: 260 mm Face slide travel: 380 mm Main drive Drive power AC motor - 40/60/100% duty cycle: 33/27/22 kW Hedsz Er T Uopfx Anysu Spindle box Spindle bore diameter: 106 mm Spindle diameter in front bearing: 140 mm Speed range (V constant): 1 - 2,000 rpm Cross slide Feed range, face: 0.001 - 1,000 mm/rev Feed range, face, optional up to: 5,000 mm/rev Feed range, longitudinal and thread pitch: 0.001 - 2,000 mm/rev Feed range longitudinal and thread pitch, optional up to: 13,000 mm/rev Feed force flat: 9,000 N Feed force longitudinal: 12,000 N Automatic tool turret Number of tool stations: 12 With tool drive for 6 stations Tool holder system (DIN69880) VDI40 Equipment SIMENS SINUMERIK 840D sl (Shop Turn with manual functions) COMBI control station C-axis with drilling, milling, and engraving cycles Residual material detection and machining – during roughing and contour pockets MULTIFIX C forne setup Three-jaw chuck SMW AUTOBLOK: HI-GRIP HGF260-81-3 Oil emulsion mist filter for work area extraction: MAHLE LTA600

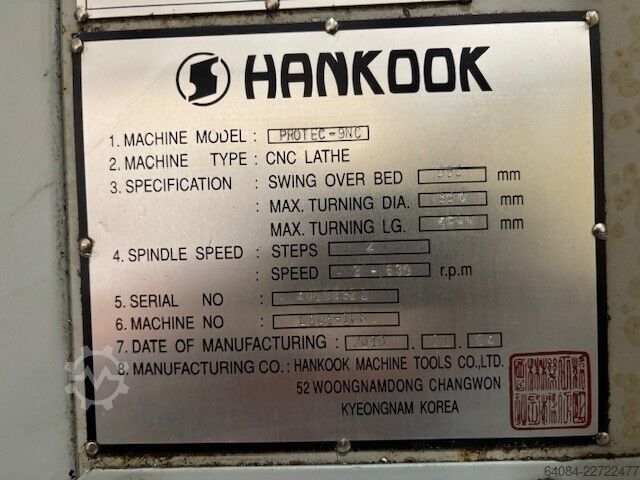

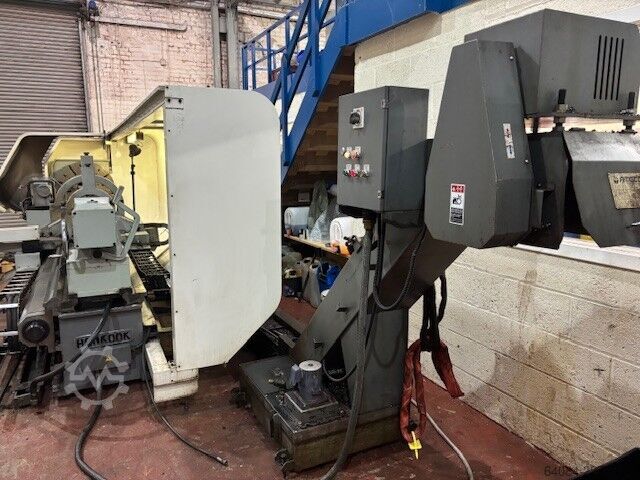

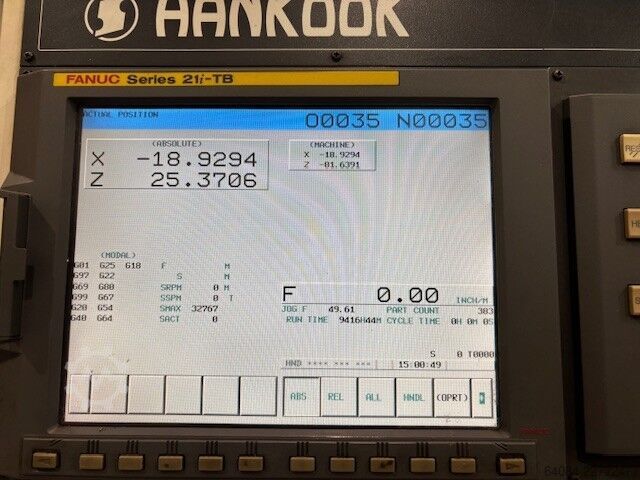

Condition: ready for operation (used), Year of construction: 2010, operating hours: 9,416 h, functionality: fully functional, turning diameter over cross slide: 950 mm, turning length: 4,000 mm, turning diameter: 950 mm, spindle bore: 254 mm, spindle speed (max.): 630 rpm, spindle speed (min.): 2 rpm, travel distance Z-axis: 4,000 mm, Hankook Protec 9NC Hollow Spindle Oil Country Lathe Model: Protec 9NC Control: Fanuc 21i-TB Year: 2010 Spindle Bore: 254mm Capacity: 950 x 4000mm Swing Over Cross Slide: 630mm Spindle Speeds: To 630 RPM (2 Ranges) Main Motor: 37 KW Machine With: Double 4 Jaw Manual Chucks (front or rear) Duplomatic 8 Station Turret 2 x Fixed Steadies Hsdozzq Sqjpfx Anyju

Condition: good (used), Year of construction: 1987, Machine is in good working condition. Hodpfx Aoz Arxzjnyou Parts shown by hand not come.

Condition: good (used), Cazeneuve CNC lathe with NUM CT200 control and tailstock. Hjdpfx Anozndv Noyju

Condition: used, TECHNICAL DETAILS - Number of axes : 10 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 10 [mm] - Max. machining length : 100 [mm] - Spindle speeds : 14000 [rpm] - Spindle power : 10.1 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 10 [mm] - Spindle speeds : 14000 [rpm] - Spindle power : 7 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 8 GUIDE BUSH HOLDER 2 - Number of positions : 8 - Number of motorized positions : 4 - Live tools speed : 12000 [rpm] END ATTACHMENT - Number of positions : 3 - Number of motorized positions : 3 - Live tools speed : 12000 [rpm] SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 9000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 1850X1140 [mm] - Machine height : 1800 [mm] - Machine weight : 1650 [kg] MACHINE HOURS - Number of working hours : 31340 [h] EQUIPMENT - CNC : Fanuc 31i-B5 - Interface : Ethernet / RS232 / USB / PCMCIA - 3 colors status lamp - Rotating tool motor on : S2,S3,S5 Hedpfxez Hqr Eo Anyou - Rotating guide bush - Parts catcher - Ejection of workpiece - Coolant tank * with high-pressure pump : HP MÜLLER CL2 80 [bars] - Bar loader : IEMCA ELITE 112/33 - Oil mist extractor : ELBARON - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: good (used), Year of construction: 2016, 300mm turning diameter, 510mm turning length, Y axis +/- 52.5mm, 600mm swing, 65mm bar capacity, spindle speed 4,500rpm , 24 station turret, 15kW spindle motor, Hodpfx Anszzwgneyou milling 6000rpm, C axis 0.001 degrees, sub-spindle speed 6,000rpm, Y axis +/- 52.5mm, Doosan FANUC-i control, tailstock, coolant, tool setter, parts catcher, 3 jaw chuck.

Condition: used, Year of construction: 2023, turning diameter 380 mm turning length 1000 mm control Mazatrol SmoothG max. swing diameter over bed 695 mm Standard machining diameter 276 mm bar material dia. max. 80 mm x-axis 234 mm rapid traverse X-axis 30 m/min y-axis 100 mm rapid traverse Y-axis 21 m/min z-axis 1090 mm rapid traverse Z-axis 33 m/min w-axis 1050 mm rapid travel W 30 m/min turning speeds 35 - 4000 U/min spindle nose A2-8 spindle bore 91 mm Motor output (30-min. rating) 26/22 Max. Torque 465 (15% ED) Nm turning speeds 35 - 6000 U/min spindle nose A2-5 Motor output (25%ED) 11 Max. Torque 90 (15% ED) Nm Milling spindle speeds ( driven tools) 5000 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40% ED) kW Milling spindle power 3,7 kW Numbers of tools 12 (angetrieben) Tool cross section (outside) 25 qmm Boring bar- Ø 40 mm Drill- Ø 20 mm Mill- Ø 20 mm Tap- Ø M20 x 2,5 coolant tank 270 l Chuck diameter main spindle 10 '' Chuck diameter counter spindle 8 '' total power requirement 37 kW weight of the machine ca. 6,6 t dimensions of the machine ca. 3,6 x 2 x 1,9 m Machine in standard configuration, equipped with the following optional equipment: Air blast through the turret Hsdpezzd Rtjfx Anyou Automatic operator door – opening and closing Air blast system at the main spindle chuck Chip conveyor High-pressure coolant system, 15 bar Robot interface (ADVANCE / Ethernet/IP) C-axis on the sub-spindle, input resolution (contour/indexing): 0.0001° Additional push buttons on the CNC control panel Sub-spindle tailstock function Rectangular 3-colour LED signal light Preparation for oil mist extraction, mechanical flange only, Ø 98 mm Absolent 10C oil mist extraction system Preparation for bar feeder Overload monitoring system Drilling cycle with torque-dependent chip breaking Engraving function Thread re-cutting function All dimensions, weight and performance specifications are non-binding. Used machine – sold without warranty.

Condition: used, Year of construction: 2010, control FANUC Series 31i-MODEL A max. turning diameter 230 mm max. turning length 230 mm x-axis 165 mm y-axis 100 mm z-axis 700 mm rapid traverse (x/z) 20/40 m/min Spindle speed - main spindle 5.000 U/min drive capacity - main spindle 22 kW Torque – Main Spindle 208 Nm Spindle speed - counter spindle 5.000 U/min Drive power - sub spindle 22 kW Feed size 8" spindle nose A2-6 Hjdpfx Aoz Dby Uenyou bar passage 65 mm number of tool places 2 x 12 Pos. Rotary tool 6.000 U/min weight approx. 9.000 kg rated capacity 75,21 kVA In our assessment, the machine is in good used condition and can be inspected under power by appointment. A wide range of accessories is available: static and driven tool holders. Technical features & accessories: - Bar loader Accessories, tools, and work-holding devices shown are included in the scope of delivery only if specified in the additional information. Subject to change, errors in technical data and specifications, and prior sale.

Condition: not inspected (used), Year of construction: 1990, functionality: limited functionality, turning length: 600 mm, spindle speed (min.): 4,000 rpm, spindle bore: 65 mm, type of input current: three-phase, total height: 270 mm, total length: 5,000 mm, total width: 220 mm, overall weight: 4,000 kg, No. 202 Monforts RNC 4 without tailstock Machine No. 13772 Serial No. 11914 Control: GE Fanuc Tool turret: SAUTER turret ø40 • Type 0.5.801.020; • ID No. 070615; • Commercial No. 14-89.44436/7 without chuck without tools Accessories: Chip conveyor KS Kabelschlepp Year of manufacture: 1990 Item No. 3046 ----- 201 Monforts RNC 4 with tailstock Machine No. 137xx Serial No. 119xx Control: GE Fanuc Monforts Control System F SAUTER turret ø 40mm • Type 0.5.801.020; • ID No. 070615; • Commercial No. 14-89.44436/7 without chuck, without tools Accessories: with tailstock Chip conveyor KS Kabelschlepp Year of manufacture: 1990; Item No. 3254 ----- Technical data: RNC 4, RNC series Control: Fanuc 10 T Monforts Control F Max. turning length 600 mm / 1000mm Machine Ø over bed 420 mm Max. swing diameter over cross slide 280 mm Tool turret stations 12 VDI Spindle flange according to DIN 55026 A 6/A 8 Spindle Ø in front bearing 130 mm Material passage through the spindle 65 mm Speed range basic version 5-4000 rpm Tool turret, 12 tool positions: Total power requirement: 22 kW Machine weight approx.: 4 t Hodpfezypb Uex Anyou Space requirement approx.: m The machines have not been in production for several years and were intended to be used as a source of spare parts. The batteries for the control system were replaced regularly. Both machines will be sold as a package. The machine is still connected to the power supply, and the control system starts up without any problems.

Condition: used, Year of construction: 2007, spindle speed (max.): 6,000 rpm, overall weight: 2,500 kg, Fanuc 21T Spindle bore: 42 mm 12-position turret Hedpoznlaiefx Anyju X: 130 mm, Z: 280 mm Weight: 2500 kg

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, spindle bore: 56 mm, spindle speed (max.): 4,000 rpm, overall weight: 1,450 kg, For sale is a high-precision, cycle-controlled lathe, a WEILER CONDOR VC plus, manufactured in 2013. The machine is in fully functional and extremely well-maintained condition and comes with a very extensive set of accessories (pictures of the machine in use are included). Technical data & equipment: Manufacturer / Model: WEILER CONDOR VC plus Year of manufacture: 2013 Center height: 180 mm Distance between centers: 800 mm Swing over bed: 360 mm Spindle bore: Ø 56 mm Spindle speed: continuously variable up to 4,000 rpm Operating voltage: 400 V Connected load: 12.5 kVA Machine weight: approx. 1,450 kg Digital display / control: WEILER VC plus screen electronics Accessories & scope of delivery (as shown in the pictures): - 1x steady rest (fixed rest) - Extensive Multifix quick-change tool holder set - Large selection of chuck jaws (hard & soft) - Three-jaw chuck mounted - Splash guard / protective cover Upon request, transport and loading can be arranged throughout Europe for an additional fee. Prices plus VAT. Inspection is possible by appointment. Contact us, our team will be happy to assist you. Trade-in or exchange possible! Machine purchase / sale BUYING / SELLING PRODUCTION & METALWORKING MACHINES, ETC. Do you need a high-quality but affordable metalworking machine for your production? Or do you want to sell yours? Hsdpfxoz Dwtwo Anysu For more information or contact options, please visit our website.

Condition: used, Year of construction: 2018, operating hours: 6,600 h, functionality: fully functional, Hyundai Wia E160A 2-axis CNC lathe Year: 2018 Fanuc I series control Max. turning diameter: 280 mm Max. turning length: 300 mm Spindle bore: 45 mm Chuck: 170 mm 12-tool turret Tool probe Tailstock Documentation Hsdpfx Anszz N Iksysu Chip conveyor

Condition: good (used), Year of construction: 2014, 1 used 1 CNC turning machine Manufacturer: Saeilo Contour Model: ACE-15MC Type: LT-2XL500M Year of manufacture: 2014 with Sinumerik 828D BASIC T control system Hedpovzkw Rofx Anyou Technical data: Max. turning diameter: 270 mm Max. turning length: 425 mm Bar diameter: 51 mm Spindle speed: 5000 rpm Number of tool positions: 12 Tool holder: VDI 30 Main drive power: 12/18 kW Travel distances X/Z axis: 183/500 mm Dimensions L x W x H without chip conveyor: 2600 x 2100 x 1800 mm Machine weight (net): approx. 4000 kg Equipment: Powered tools C axis

Condition: used, Year of construction: 1995, overall weight: 5,500 kg, center distance: 650 mm swing over bed: 520 mm bar capacity: 78 mm Hedpfx Aez Eaiqsnyou tool turret: 10 tools maximum spindle speed: 3500 rpm weight: 5500 kg

Condition: used, Year of construction: 2023, machine/vehicle number: 1811058641, No minimum price – guaranteed sale to the highest bidder! The machines are still assembled but disconnected from the power supply. An 11-ton forklift is available on-site for loading. For sale is a wire erosion machine manufactured by WEISSER, model: Univertor 8C. TECHNICAL DETAILS Three-phase operating voltage: 400 V AC Hodpfxszy Ukhj Anyou Frequency: 50 Hz Total connected load: 34 kVA Control voltage: 24 V DC Magnet voltage: 24 V DC Rated machine current: 49 A Main connection fuse: 100 A Short-circuit withstand current: 50 kA

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: 12081614, type of input current: three-phase, overall weight: 3,300 kg, Title: 5-Axis CNC Machining Center ARIX V450, Year 2012, Functional/In Operation Condition: Functional, in operation Year of Manufacture: 2012 Location: West Saxony Price: Negotiable Technical Data: Manufacturer: ARIX CNC Machines Co., Ltd. (Taiwan) Type: V450 (Mini High Speed Machining Center) Serial Number: 12081614 Control: ARIX CNC (Fanuc-compatible) 5-Axis Version (4th/5th axis rotary table) Travel: X 450 mm / Y 350 mm / Z 400 mm Spindle Power: 7.5 kW Tool Magazine: 20 positions (cone magazine) Connection: 400 V, 3-phase, 6 kVA Weight: approx. 3,200 kg Hjdpfx Aozyktfjnyeu Operating Hours: Not documented Description: For sale is a compact 5-axis CNC machining center, ARIX V450, manufactured in 2012, with ARIX CNC control. The machine features a cone magazine with 20 tool positions and is designed for the precise complete machining of smaller to medium-sized workpieces in 5 axes. The machine is functional and currently in operation. Operating hours are not documented. Inspection and test run at the location in West Saxony are possible by arrangement. Price: Negotiable Other machines available from site liquidation. Site takeover negotiable. If you have any questions or require further information, please send us a message or call us.

Condition: used, Year of construction: 1990, functionality: fully functional, Fanuc OT control 3 jaw Kitagawa chuck 620mm swing 1000mm between centres 10 station turret Tailstock Hsdozakgtjpfx Anyeu Coolant pump and tank Swarf conveyor

Condition: excellent (used), Year of construction: 2013, XYZ 1630 SLX CNC Lathe New 2013. Swing 400mm x 760mm B.C. Spindle speeds & bore 150- 2500rpm & 54mm. C/w 3jaw chuck, quick change tool-post. Hjdpfx Asz E R N Uenyeu

Condition: excellent (used), Year of construction: 2005, operating hours: 5,423 h, turning length: 510 mm, turning diameter: 356 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 260 mm, travel distance Z-axis: 590 mm, spindle motor power: 15,000 W, total height: 2,230 mm, total length: 3,495 mm, total width: 2,050 mm, overall weight: 5,800 kg, CNC controller: Mitsubishi M-720BM (MAPPS 2) Capacity Hjdeui Ndbjpfx Anyou X-axis travel mm: 260 Z-axis travel mm: 520 C-axis: 360º (0.001°) Turning length mm: 515 Max. turning diameter mm: ø: Ø356 Upper turret Tool holder: 12 Main spindle Speed spindle rpm: 5000 Drive power spindle kW: 15/11 Spindle bore mm: 73 Manufacturer: KITAGAWA Counter spindle Counter spindle travel mm: 525 Equipment Chip conveyor Signal lamp Tool measuring arm Workarea light Working time hours Under power: 7.456 Cutting Time: 5.423 Basic machine dimensions / weight Length mm: 3.495 Width mm: 2.050 Height mm: 2.230 Weight kg: 5.800

Condition: used, Year of construction: 1999, functionality: fully functional, machine with 65mm bar passage C-axis with double turret (upper turret motorized) tailstock bar feeder interface FANUC CNC year 1999 CE standards complete with manuals and tool holder set. Spindle Speed 0-4,000 rpm Spindle Diameter 200 mm (160 mm) X-axis Travel 235 (195+40) mm Z-axis Travel 500 mm Hodpfsz Hn A Uox Anyou Maximum Turning Diameter over Bed 680 mm C-axis 0.01° Turret 12 + 8 Tools Rapid Traverse X 18 m/min Z 24 m/min Number of Tools 12 M + 8 Motorized Tools YES on the upper turret Tool Change Time 0.7 sec Machine Weight 6,500 kg Dimensions (length x width x height) 4000 x 2200 x 2300h

Condition: used, Year of construction: 2016, DOOSAN LYNX 300M Hedpjz E Rv Iofx Anyju YEAR OF MANUFACTURE: 2016 Machine equipped with a C-axis and powered tools. Model: LYNX 300 M, FANUC 0i TF–s control (10.4” LCD display + Manual Guide) Standard equipment: Spindle speed: 3500 rpm Main motor power: AC 15/11 kW Rapid traverse rate (X / Z axes): 24 / 30 m/min Hydraulic 3-jaw chuck, 255 mm Power of tool drive: 5.5 kW (5000 rpm) Max. turning diameter: 370 mm Max. turning diameter over the carriage: 651 mm Max. turning length: 712 mm Spindle bore (max. bar diameter): 76 mm Tool shank cross-section: 25 x 25 mm (Ø40 mm) Number of tool positions: 12 (tool change time: 0.15 s) Tailstock, CE certificate, transformer 2 axial (vertical) powered tool holders + 2 radial tool holders, basic tool holder set Optional equipment: · Chip conveyor · Tool load monitoring system · Preparation for bar feeder · Part catcher (box version) · Automatic tool measuring system · High-pressure coolant system (7 bar) · Oil separator · Three-color status indicator lamp · Fast Ethernet + 2 GB memory in the control
