Used Scm Joinery Machine for sale (64,691)

Condition: used, Used machine Features and Technical Data: Versatile copy router with extremely short setup times, both when switching from manual to automatic operations and when changing between various automatic processes. The automatic template feed (consisting of a central copying roller and a pressure roller) was developed by SCM to automatically guide workpieces attached to a template past the milling tool. The automatic copying and pressure rollers can be removed within seconds. This allows the machine to be available for single and custom manual fabrication. Distance between tool spindle and frame: 915 mm Spindle stroke: 105 mm Codpfx Ajy Ih S Ded Nogt Table stroke: 180 mm Max. clearance between table and spindle: 300 mm Tool holder: MK 2 Spindle speed: 10,000/20,000 rpm Table dimensions with extensions: 1510 x 1170 mm Motor power: 4 kW Motor power template feed: 0.14 kW Template feed speed: 1.5–12 m/min Number of adjustable revolver depth stops: 6 Dimensions approx.: 1690 x 1100 x 1890 mm Weight: 650 kg Availability: short-term Location: 63934 Röllbach

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 480 mm, travel distance Z-axis: 475 mm, table width: 450 mm, table length: 1,200 mm, table load: 400 kg, overall weight: 2,300 kg, We offer this used Abene Machine Ab VHF-360Ti milling machine, year of construction 2011. Serial number: 36120 Year of manufacture: 2011 Heidenhain TNC620-control Table size 1200 x 450 mm Max load 400 kg X-travel 650 mm, Y-travel 480 mm, Z-travel 475 mm Spindle BT40 Main motor 7,5 kW Cgedpfx Adoy Hgnhs Njt Weigth 2300 kg Excellent condition If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: refurbished (used), Year of construction: 2021, functionality: fully functional, machine/vehicle number: AE00002748, 12kN SEMI-AUTOMATIC CAM PRESS Brand: SCM Model: Action E Serial No.: AE00002748 Year: 2021 MAIN ADVANTAGES: - Better pressing quality, uniform across the entire surface to be machined (comb structure) - Parallelism and orthogonality thanks to the use of screws of the appropriate size. Csdpfxewf I Iae Ad Nsgt - Efficient operation with knobs FEATURES: - Machine frame: extra-rigid welded monoblock chassis Movable side work surface (X direction) Movable upper work surface (Y direction) Movement of each support is transmitted via a geared motor. This drives two trapezoidal screws of the appropriate size and equipped with a double chain sprocket (5/8"), a system that achieves the best possible parallelism for the movable supports. - Worktop height from floor: 60 cm - Maximum usable dimensions: 2400 x 1100 (H) x 700 mm - Minimum usable dimensions: 250 x 270 (H) x 250 mm - Maximum horizontal pressure: 1000 kg Positioning speed: 50 mm/sec - Maximum vertical pressure: 1500 kg Positioning speed: 45 mm/sec - Movement achieved by high-precision systems using AC motors. - Power supply: 400 V. Three-phase 50 Hz IN 6 A Installed power: 4 kW - CE marked - Lockable disconnect switch, mushroom stop Dimensions in operating order: x x h. mm Space required around the machine for movement and work: m Transport dimensions (LxWxH): x x h.m Weight: Kg Machine supplied with its manual, spare parts list, and diagrams. Machine serviced, brought into compliance, with quality control and dynamic functional testing. With a 3-month warranty and certificate of compliance. Available from stock, subject to prior sale.

Condition: used, SCM jointer, Italian made 4 traditional knives, wedge-clamped Table combs Width: 410 mm Cgsdpjy Ifglefx Ad Nst Table length: 2600 mm Angled, adjustable fence Brake Well-maintained machine, quiet operation

Condition: used, Year of construction: 2020, max. workpiece length 6360 mm profile spindle 1 Stück main drive 13 kW Control CNC SCM CNC Machining Center ACCORD 40 FX for windows and doors ----- INCLUDES extensive window and door tooling among others (window cutting available upon request!): Wooden windows IV 68, 78, 92 Wooden "style" windows Wood-aluminum windows Front doors Lift-and-slide doors Box windows Machine still in operation, available for viewing! Technical Summary (detailed description available upon request!): ----- - ??Working area X-Y = 6360 x 1905 Z = 350 - Automatic table with 8 support rails MATIC - L1825 - 5-axis spindle MAXI - Prisma T, HSK 63 E, 13 kW - RTCP Setting - Self-calibration system for Prisma work unit - Adjustable chip removal device on the electric spindle - Preparation for "Prisma T-S" angle gearbox - BRC - Working unit: Saw blade for face machining, 1 vertical milling cutter connection 3 vertical, independent drill heads, center distance 32 mm 3 vertical drill heads (not independent), center distance 21.5 mm, for mortise drilling 4 horizontal drill heads (2 per side, not independent), center distance 21.5 mm 2 horizontal milling heads (1 per (Page) - TRC 48 - Rear Tool Magazine 48 tool positions (excluding tool holders) Center-to-center distance between positions: 104 mm Max. tool diameter: 350 mm Max. tool length: 320 mm Max. weight per tool: 10 kg (15 kg with HSK 63 E spindle) Max. total weight on the magazine: 250 kg - MACH 5 - Quick-change system: Allows tool changes on the electric spindle in just a few seconds. - Pendulum operation - Automatic lubrication of the axes - eye-M operating console with integrated PC - Additional fixed control panel - TECPAD - Remote control of machine functions - Clamping jaw preparation H145 for worktable with 8 support rails - Front stop row H110 for worktable with 8 support rails - Rear stop row H110 for worktable with 8 support rails - Suction cup H110 145x145 mm - Swivel suction cup H110 145x55 mm - Swivel suction cup H110 180x65 mm - First side stop row H145 for worktable with 8 support rails Second side stop row H145 for worktable with 8 support rails Clamp H145 with round base Clamp H145 with square base N.6 Lifting devices with double stroke H145 Laser and reference stop H145 for sheet (left) - PRO-SPEED safety system - Maestro CNC - Machine operator interface and programming - Maestro ProView - Simulation software Tools are sold in the condition, scope, and with accessories as they are currently in stock. Note regarding window cutouts, tool drawings, and tool system listings: Cgodpfx Adjy Hl Iyo Njt Engelfried GmbH does not guarantee that the tools actually available correspond to the systems listed and drawn. (Technical specifications according to the manufacturer - without guarantee!)

Condition: used, • Four-sided planer with a classic spindle • Working width up to 240 mm • Working height up to 120 mm • Min. Working height 6 mm • Spindle speed: 6000 rpm Cjdpfxexxkt Ao Ad Nsgt • Infinitely variable feed 5-25 m/min (optionally up to 36 m/min) • Long axial adjustment path on the vertical spindle, up to 80 mm • All tool spindles with independent motors

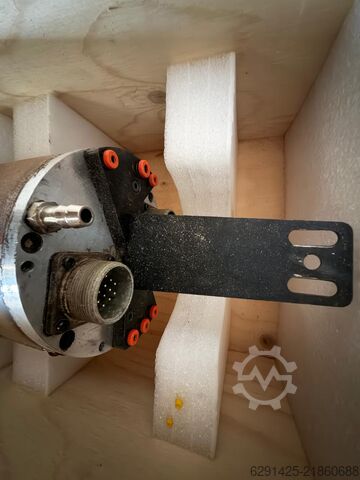

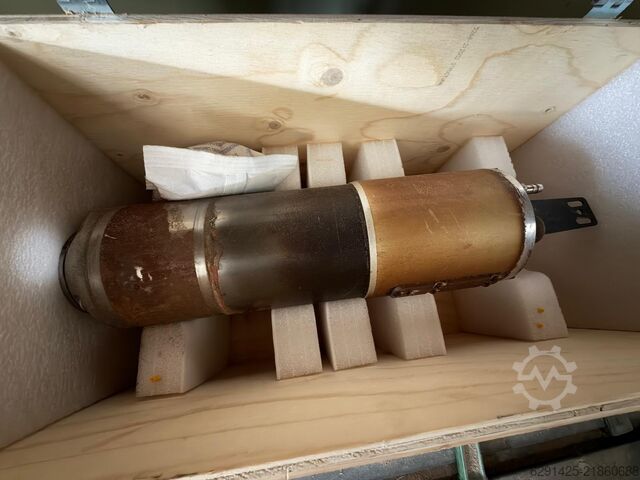

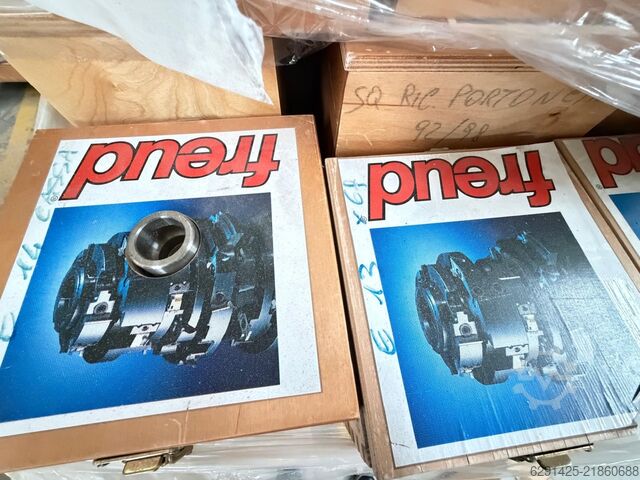

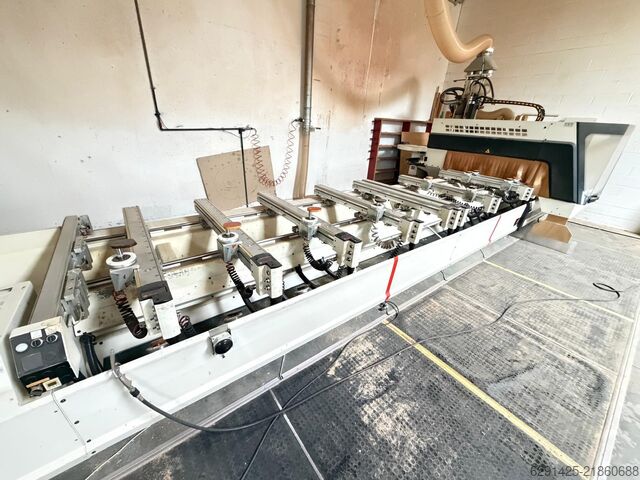

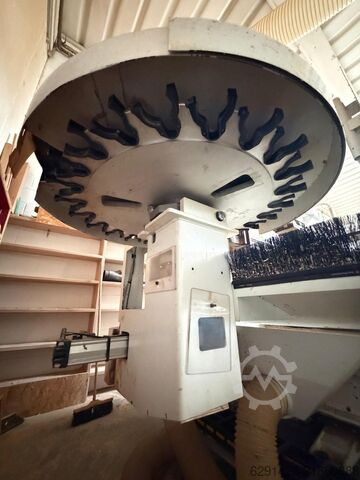

Condition: excellent (used), Year of construction: 2005, Working area X: 6050 mm Working area Y: 1300 mm 4-axis Electrospindle Cjdpfx Aoy Nfmusd Negt Door milling unit Tool changer with approx. 24 positions Worktable with 10 beams Chip conveyor belt Safety mats Weight approx. 6400 kg Includes 16 clamps, suction cups, and Freud cutters for wooden and wood-aluminium profiles 68/82/92, and spare electrospindle Ideal machine configuration for windows, frames, and doors

Condition: ready for operation (used), functionality: fully functional, Very nice Wire-o punching machine. Cedpfxsymn Hwe Ad Negt Electric with foot pedal, max format 710 mm. Punches up to 20 sheets of 80 gsm with square holes. You are of course welcome to test this machine with us. We can arrange transport/packaging for you and load it onto a truck or into a container. Please request a price including transport (location: Netherlands). Kind regards, Henk Hoos.

Condition: ready for operation (used), Year of construction: 2008, machine/vehicle number: A3347169, functionality: fully functional, number of axes: 3, CNC machine SCM, Record 100 AL action line, 3-axis woodworking line, 400V, year of manufacture 16/07/2008, electrical cabinet, control with safety mat, partition wall, working area 305 x 122 cm, total machine dimensions: approx. 565 x 250 x 260 cm, self-dismantling required 3 axes In perfect working condition 1 large vacuum with details of white panel and 1 small vacuum: Year 2019 / N°A3347169 Type VTLF2.250/0-79 Cedpfx Aoxg El Aod Nsgt Frequency 50/50Hz Speed 950/1150min-1 Power required 5.5/6.4kW Inlet capacity 244/286m³/h Max vacuum 200/200mbar Video available.

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, working width: 630 mm, power: 9 kW (12.24 HP), Wide belt sanding machine SCM type Sandya Win. Sanding width 630 mm. Equipped with a combination unit for coarse and fine sanding. Electric drive. Operation possible with 16 amps. Transport within Europe available at competitive rates. Cgedjy Ec Eaepfx Ad Not

Condition: used, Year of construction: 1987, machine/vehicle number: AB-14022, power: 4 kW (5.44 HP), input voltage: 380 V, input current: 9 A, input frequency: 50 Hz, type of input current: three-phase, planing width: 410 mm, number of blades: 2, actuation type: manual, rotational speed (max.): 4,000 rpm, rotational speed (min.): 4,000 rpm, total length of planing tables: 2,000 mm, total width: 400 mm, overall weight: 580 kg, SCM Jointer-Thickness Planer 2000 d.FS Planing width: 400 mm Jointer table: 950 / 950 mm Cutterhead speed: 4000 rpm 3 strip planer knives Planing height: 3 - 200 mm Feed rate: 4.5 / 8 m/min Max. cutting depth: 8 mm Motor: 4 kW / 400 V / 50 Hz Weight approx. 570 kg As inspected, ex location Seevetal Subject to prior sale Cgsdpfxjxnpn Rj Ad Njt

Condition: used, Year of construction: 2005, Working area: X=2970 mm / Y=1725 mm Axis travel speeds: X=60 Y=45 Z=25 m/min Weight: 3200 kg Storage location: Nattheim Cgjdsw Dcccjpfx Ad Nst

Condition: used, Year of construction: 2007, Travel range: X=4400 Y=2195 Z=440 mm Working area in X=3650 mm Y=1560 mm Clearance: 330 mm Electrospindle SCM Power 2000, high speed milling spindle with 13 kW power Rotary axis Vector (C-axis) Cleaning blower for tool on the milling unit Tool holder HSK 63 F Speed range 600 - 24,000 rpm, stepless via inverter Motor power 8.5 kW Tool holders: 6 pcs Tool changer: Rapid 12 (12 positions) Vacuum pump 250 m³/h / 5.5 kW Max. vacuum: 0.9 bar Reference stop at the sides of the table Drilling unit with 11 spindles (7 vertical / 4 horizontal) Control: NUM Series 1000 User interface: XILOG Plus PC Office hardware WINDOWS XP Professional Total connected load: max. 27.5 kW Weight: 5200 kg Storage location: Nattheim Cedpfjw Dcb Sjx Ad Nsgt

Condition: used, Year of construction: 2022, PANEL SAW WITH TILTING SAW BLADE Linvincibile SI 5 KEY FEATURES SLIDING TABLE: GUARANTEED SUPERIOR CUTTING QUALITY OVER THE LONG TERM TELESCOPIC ARM: AN “UNBEATABLE” SMOOTH MOVEMENT SAW UNIT: FOR A PERFECT CUT Technical Data SI 5 Main saw blade diameter (mm): 550 Cutting capacity with extendable fence - with table 3200 mm - with table 3800 mm 3200x3200 3800x3200 Saw blade tilt (degrees): 46 Max. cutting height at 90° (mm): 200 Max. cutting height at 45° (mm): 130 Saw blade speed (rpm): 2500-3500-5000 Scoring blade speed (rpm): 8500 - Extractor port diameter: - on frame - on blade guard 120 100 Main motor power [S6 -40%] Hz50 kW: 7 Scoring motor power [S6 -40%] Hz50 kW: 0.9 Cutting width at rip fence (mm): 1600 Standard equipment and accessories - Optimizer/Process control app for tablets: SCM Thundercut. The app can be downloaded from the App Store or Play Store for tablets compatible with iPadOS or Android. It can be activated via the QR code supplied with the machine. The app enables: * Management of machine fleet and material/panel storage * Creation and editing of projects, importing projects from main furniture design software (file format "cpout"), importing cutting lists * Optimization of cutting lists by selecting one or more proposals from the optimization software integrated into the app * Correct machine settings for each cut, thanks to the simple and intuitive graphics of the 3D sequencer, guiding the operator step by step * Printing barcode labels to identify the various parts, via Bluetooth connection with compatible label printers. - 10-year warranty on the sliding table guide system - Sliding carriage entirely made of aluminum structure with guidance on crimped, hardened and arc-ground steel rails with large contact area - Max. saw blade diameter* up to 450mm with scoring blade mounted* up to 550mm without scoring blade - eye-S 15" electronic control including: * 15" touchscreen monitor * Direct control of the following working axes with manual, semi-automatic, automatic, and incremental modes: - Height adjustment of the main saw blade - Tilt adjustment of the saw unit - Rip fence adjustment - Height and lateral adjustment of the scorer (the scorer is automatically raised to the set position on activation and lowered on deactivation) * Operator assistance functions for complex cuts * Ability to store up to 1000 programs with associated image * Ability to store up to 1000 different tools with associated image * Cutting process management of preloaded parametric machining programs * Environment for creating and storing new sequenced working programs * Automatic import of working dimensions from Thundercut app * USB port * Ready for network connection - Auxiliary function of the electronic control, including: * Determination of correct fence position on rip fence for format processing with tilted saw blade * Determination of correct fence position on rip fence for angle cuts with mitre fence on the work table with or without tilted saw blade - Pivoting control panel above the table - Scoring unit with independent Codoxqtvqjpfx Ad Nogt

Condition: used, Year of construction: 2001, Min./Max. working width (finished size): 23 - 180 mm Min./Max. working height (finished size): 6 - 105 mm Min. workpiece length: 300 mm Feed speed: 6 - 12 rpm Spindle speed: 6000 rpm Spindle diameter: 35 mm Motor power, horizontal spindle: 10 kW Motor power, vertical spindle: 7.5 kW Feed motor power: 1 kW Diameter of feed rollers: 120 mm Extraction port diameter 1 pc: 150 mm Extraction port diameter 2 pcs: 120 mm Weight: approx. 950 kg Storage location: Supplier Cjdpfeym D Eijx Ad Nogt

Condition: excellent (used), functionality: fully functional, edge thickness (max.): 45 mm, total height: 1,650 mm, total length: 2,800 mm, total width: 1,220 mm, overall weight: 660 kg, Equipment: CE marking, documentation/manual, Used edge banding machine after technical inspection. - Italian production - Not repainted - Very good condition - Used edge bander Technical parameters Equipment: - Plate - Glue tank (granulate) - Guillotine – pre-cutting of edge band - Unit for final trimming of edges with saw blade - 2 milling units for top/bottom edge processing - 2 scrapers for removing excess glue - 2 polishers - Max workpiece thickness: 45mm - Min workpiece width: 50mm - Min workpiece length: 150mm Cjdey Iv R Uopfx Ad Negt - Extraction port diameter: 60mm - Compressed air pressure: 6 bar Overall dimensions: - Length: 2800 mm - Width: 1220 mm - Height: 1650 mm - Weight: 660 kg Where can you inspect our machines? JBS MASZYNY STOLARSKIE WOLICA DRUGA 26 23-310 MODLIBORZYCE LUBELSKIE VOIVODESHIP

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: LCS300-4T, CNC machine Elcede, type LCS300-4T, year of manufacture 12/2001, 400/50 Hz, working area 305 x 152.5 cm, machine dimensions 545 x 280 x 233 cm (height), control cabinet 80 x 64.5 x 190 cm (height), PC cabinet 84 x 75 x 198 cm (height), 3x Dietz fans, + cooling unit KKT-krans KLB-S26T-RS, year of manufacture 2001, 400V, 144 x 90.5 x 161 cm (height), 50,640 operating hours, desk with Fukitsu desktop, password Defi123+, desk 170 x 75 x 78 cm (height), in operation. Cgodpfxsy D Hwwj Ad Nst

Condition: ready for operation (used), Year of construction: 2019, operating hours: 3,028 h, functionality: fully functional, machine/vehicle number: type 2016-CV6+3P-1T, workpiece weight (max.): 1,500 kg, CNC machine Milla Plus, Pretek Unico type 2016-CV6+3P-1T, year of manufacture 2019, 400V, 1500 kg, working area 205 x 165 cm, 9 tool changer positions, 3028.2 read operating hours, machine dimensions 324 x 302 x 187 cm (height), PC stand 55.5 x 140 x 172 cm (height), CNC suitability: metal-glass-PVC. 2x vacuum pumps Becker type VTFL2.200/0-79, max 200/200 mbar, mounted in frame 140 x 77 x 174 cm (height). Dena mobile extraction type APL30-500, year of manufacture 2018, motor Esam mdeio jet AAO. Rack 106 x 32.5 x 125 cm (height) with accessories, in operation. Video available. Cjdpjy D Hruefx Ad Negt

Condition: used, Year of construction: 2007, functionality: fully functional, grinding width: 950 mm, grinding height: 170 mm, height adjustment type: electric, type of input current: three-phase, - Italian manufacture - year of manufacture: 2007 - combination sanding shoe TECHNICAL SPECIFICATIONS: - sanding width: 950 mm - sanding height: 4–170 mm - motor power: 11 kW Cedjxdxfqjpfx Ad Nsgt - 1st unit: steel drum with pneumatic engagement - drum diameter: 110 mm - 2nd unit: combination sanding shoe - pneumatic engagement for rubber drum: 78 Shore - shoe with pneumatic adjustment - pneumatic oscillation - air blast for belts - electric height adjustment - two belt speeds: 8.3 m/s and 16 m/s - electronic sanding height positioning - continuously variable feed speed: 4–20 m/min - minimum material length: 500 mm - extraction nozzle diameter: 2 x 140 mm - machine dimensions (L/W/H): 150 x 180 x 210 cm - weight: ~ 1010 kg

Condition: used, machine/vehicle number: 008047, Position 1: Brushing Machines SCM-BRAVOROBOT P1 Position 2: spraying machine SCM-BRAVOROBOT P1 Position 3: Roller Conveyors SCM-BRAVOROBOT P1 Cgsdpfx Aow Idbyed Net Position 4: Compressed Air Dryers SCM-BRAVOROBOT P1 Position 5: Ovens SCM-BRAVOROBOT P1

Condition: excellent (used), SCM jointer 30cm, planing width 30cm, table length 210cm, 3 traditional knives mounted on so-called wedges, 3hp motor, 380V, 130mm extraction port, noise-reducing combs in the table, fence adjustable by angle, very good condition. Cjdpfjy Hp Iwjx Ad Njgt

Condition: used, Year of construction: 1990, Working width: 630 mm Cedpfjyxganjx Ad Negt Planing height: 250 mm Planer shaft: Tersa Number of knives: 4 Height adjustment: electric Planing thickness display: mechanical counter Feed speed: stepless, approx. 6–18 m/min Infeed roller: steel Outfeed rollers: 2 x steel Table rollers: yes, powered Motor power: 5.5 kW Extraction connection: 160 mm Machine length: 1200 mm Machine width: 1200 mm Weight: 1100 kg

Condition: used, Year of construction: 1992, Working width: 520 mm Planing height: 250 mm Cutterhead: strip knives Number of knives: 4 Height adjustment: electric Cgodpsyt E Raefx Ad Nst Planing thickness display: scale Feed speed: 2 speeds Infeed roller: steel Outfeed roller: steel Table rollers: no Motor power: 5.5 kW Extraction port: 140 mm Machine length: 1200 mm Machine width: 1400 mm Weight: approx. 900 kg

Condition: used, Year of construction: 2016, TECHNICAL DATA AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting working area mm 0 x 800/0 x 800 X axis stroke mm 750 Max. travel speed of X-Y axes m/min 25 DRILLING UNIT Vertical spindles Number 7 (4X-4Y one common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed grooving saw (direction) X Grooving saw diameter mm 100 Max. grooving saw thickness mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Grooving saw speed rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air requirement bar 6 Compressed air consumption Nl/cycle 90 Extraction requirement m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 80+80 F10L Drilling unit Includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with one drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. Diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit. Positioning of the workpiece and drive of the work unit: A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the work unit during machining. Movement in the X and Y axes takes place on THK guides with transmission to reinforced toothed rails. Movement in the Z axis is pneumatically controlled on ball-bushing guides with adjustable stop positioning. The positioning of the work units is carried out using technology and drives with DC motors. CNC CONTROL The control system was specially developed for use in drilling and milling machines. CN - 7" color screen with touchscreen function - Alphanumeric keyboard - Self-diagnosis and any error messages or malfunctions that may occur, in the operator's language Programming - Programming via the CN - Automatic optimization of drilling operations - Option of plate zero point shift - Option of saving and importing drilling programs via USB dongle - Option of importing drilling programs from CAD-CAM external software Configuration - User interface in the same language as the instruction manual Graphic representation of the unit configuration Vacuum suction cups "B-Power Vacuum suction cups with double vacuum connection, recommended for particularly porous panels (e.g. MDF light). Machine user interface software Xilog Maestro USB Hardware and software requirements: - Operating system: Windows XP Professional (SP2), Windows Vista or Windows 7 - Processor: Intel compatible, 2GHz min; Multicore processor recommended - Memory capacity: 1GB min., recommended 2GB - Free disk space: 5GB - Graphic card: Compatible OpenGL (The code includes a DVD for installation and a USB key) Xilog Maestro Features Programming - Parametric, graphic programming - Assisted programming with graphic and syntax help for drilling operations - Possibility to create and save machining macros Integrated additional functions - Self-diagnosis and possible error messages or malfunctions, in the operator's language - User interface in Cgodpfx Asvvi I Red Nst

Condition: used, Year of construction: 2018, Startech cn MAIN FEATURES FLEXIBLE AND CUSTOMIZED PRODUCTION COMBINED WITH SPEED AND PRECISION DRILLING FROM ABOVE WITH REFERENCE TO THE TOP OF THE PLATE ALLOWS ABSOLUTELY PRECISION MACHINING NUMERICAL CONTROL WITH 7" COLOR SCREEN: SIMPLE AND INTUITIVE TECHNICAL DATA Startech CN AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting work area mm 0 x 800/0 x 800 X-axis stroke mm 750 Max. travel speed of the X-Y axes m / min 25 DRILLING UNIT Vertical spindles number 7 (4X-4Y one of them common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed groove saw (direction) X Diameter of the groove saw mm 100 Max. thickness of the groove saw mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Speed of the groove saw rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air demand bar 6 Compressed air consumption Nl/cycle 90 Extraction demand m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 120 GENERAL CHARACTERISTICS Universal CNC drilling machine with work table with fixed gantry and movable workpiece for performing the following machining operations: - Vertical drilling on the panel surface - Horizontal drilling on all four sides of the workpiece - Groove Milling with integrated groove saw in the "X" direction. Self-supporting structure. Machine frame made of tubular steel to provide a large base for the work table. The structure is positioned on three self-leveling feet. The electrical control cabinet is integrated into the machine frame. "Easy Motion" central Bakelite support table: - an MDF sector for through-hole drilling, automatically pivoting for horizontal drilling - an infeed roller that facilitates panel loading - a rear roller conveyor that facilitates panel sliding - left and right stops - a central aligner with manual adjustment. The left and right stops are required to drill the two opposite sides of the panel horizontally in the "X" direction. Panel positioning along the X axis is achieved by means of suction cups. Unit support. This is a gantry structure made of tubular steel. The main machining unit is installed on the gantry. F10L drilling unit includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with a single drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit Positioning of the workpiece and drive of the machining unit A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the machining unit during machining. The movement in X and Y axis is carried out on THK guides with transmission on reinforced toothed Movement in Z axis is carried out pneumatically on "ball-bushing" guides with positioning on stop adjustable via the positioning of the working units is carried out via technology and drives with -CONTROL The control was specially developed for use Cjdpfxevwbp Aj Ad Nogt
