Used Servo Drive With Linear Guide for sale (28,187)

Condition: used, Linear drive, linear gear, lifting gear, spindle drive, rodless pneumatic cylinder -Travel: 450 mm -Piston diameter: 25 mm -Dimensions: 40/40/H650 mm -Weight: 1.6 kg Iiedpfx Ajdz U Thsn Hef

Condition: used, Year of construction: 2016, functionality: fully functional, Beckhoff Automation Package – C5102, CP2712, AX5203, CX5020, EtherCAT I/O & TwinSAFE Description For sale is a high-quality Beckhoff automation package from an industrial production facility (year of manufacture 2016). All components come from the same system and were operated together until professionally dismantled. This package is ideal as a spare parts stock, for expanding existing Beckhoff systems, or for rebuilding an EtherCAT controller. Scope of delivery (see numbering in the photos): No. 1 – Beckhoff C5102 Industrial PC Intel Core i7-3610QE 8 GB DDR3 RAM 1 TB SATA hard drive Windows 7 Embedded Year of manufacture 2016 No. 2 – Beckhoff CP2712-1002 Panel PC / Touch Panel 12.1" touchscreen Intel Celeron 1.46 GHz 4 GB RAM Windows 7 Embedded Year of manufacture 2016 No. 3 – Beckhoff AX5203-0000-0200 2-axis servo amplifier EtherCAT 2-axis version Year of manufacture 2016 No. 4 – Beckhoff CX5020 Embedded PC with EtherCAT I/O and TwinSAFE station Beckhoff CX5020 Embedded PC Beckhoff EK1122 EtherCAT Junction Beckhoff EL6900 TwinSAFE Logic Several TwinSAFE modules (including EL1904) Several digital Beckhoff EtherCAT input and output modules Completely assembled EtherCAT I/O station with a total of 24 Beckhoff modules The complete package is preferably sold as a set. Total price: €6,490 (negotiable) Individual components can also be sold separately after consultation. Iiedpfjzrgw Rex An Hof Recommended prices for individual sale: No. 1 – Beckhoff C5102 Industrial PC: €1,990 (negotiable) No. 2 – Beckhoff CP2712 Panel PC: €1,490 (negotiable) No. 3 – Beckhoff AX5203 Servo Amplifier: €1,490 (negotiable) No. 4 – Beckhoff CX5020 EtherCAT/TwinSAFE Station: €2,790 (negotiable)

Condition: used, Year of construction: 2015, functionality: fully functional, Model: OKUMA MULTUS U3000 2SW 1500 (CNC turning and milling center) Control: OKUMA OSP-P300S Turning length: approx. 1,500 mm Max. turning diameter: up to 650 mm Tool system / interface: HSK-A63 Ijdpfx Aszu I U Asn Hjif Main spindle: Drive power: 22 kW Torque: 427 Nm Max. speed: 5,000 rpm (2 gear stages) Spindle nose: Short taper size 6 Spindle front bearing: Ø 120 mm Spindle bore: Ø 80 mm 3. Counter spindle (Okuma motor spindle) Travel: Traversable on the W-axis Drive power: 22 kW Torque: 427 Nm Max. speed: 5,000 rpm Spindle nose: Short taper size 6 Spindle front bearing: Ø 100 mm Spindle bore: Ø 62 mm Tool spindle / Milling spindle (Okuma motor spindle) Drive power: 22 kW Torque: 120 Nm Max. speed: 12,000 rpm Tool holder: HSK-A63 Axes & Travel Ranges C-axis: 360° (Indexing / Positioning in 0.001° increments) Y-axis: Stroke +125 mm / -125 mm (Total stroke 250 mm) B-axis: 240° (Indexing / Positioning in 0.001° increments) Tool magazine & Turret Tool Magazine (ATC): 120 positions Lower turret: 12 stations with direct mounting system "radial" Turret guides: ZB-axis with cylindrical roller linear guide XB-axis with slide guide Coolant supply / Internal coolant supply (ICS): max. 20 bar (including bag filter) External cooling for tool spindle: max. 8 bar Accessories: Short loader LNS Quick Load Seri O III

Condition: used, Harmonic Drive planetary gearbox HPS-180-5-Di- removed from Demag Ergotech El-Exis S 60/370-310 - removed from running machine Iedpfoyxg S Rox An Hsif - fully functionalmanufacturer: Harmonic Drive type: HPS-180-5-Di spare part no.: 12171266

Condition: used, Linear drive, linear gear, screw jack, spindle drive -Manufacturer: ORIGA -Type: P120-25 -Stroke: max. 1310 mm -pneumatic: operated Iiedpfxodl U I Te An Hjf -p max.: 8 bar -Dimensions: 90/90/H1660 mm -Weight: 12 kg

Condition: excellent (used), Belt conveyor 1,34m with drive Length: 134cm width: 50cm Height: 90cm Complete factory closure, large selection of storage platforms, pallet racks, shelf racks, paternosters. High-quality industrial machines, lathes, grinding machines, hand machines Iisdpfohvmlvex An Hef Further articles - new and used - you will find in our shop! International shipping costs on request!

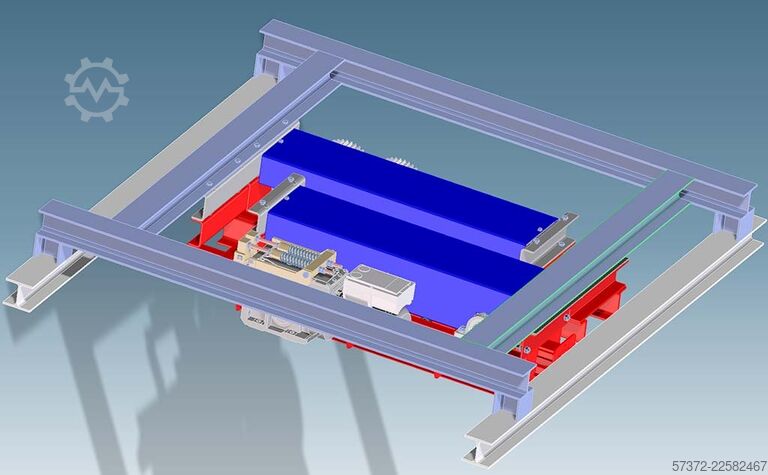

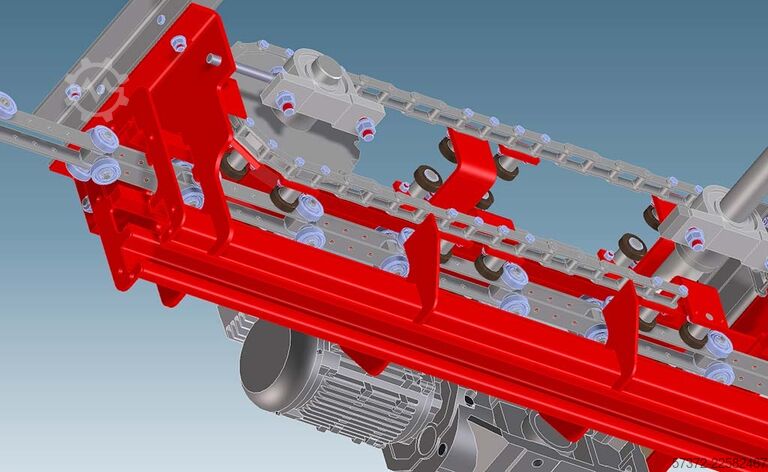

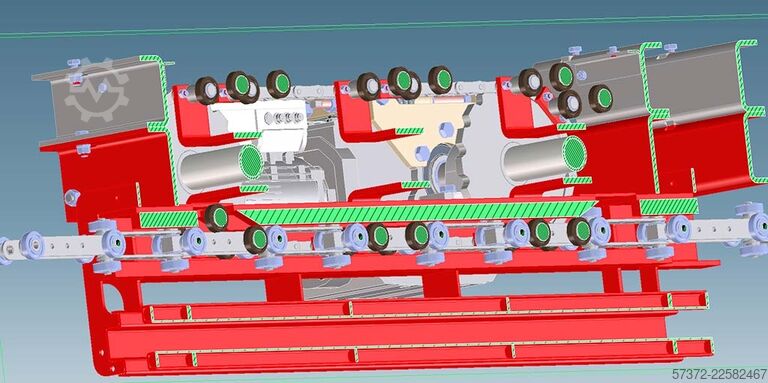

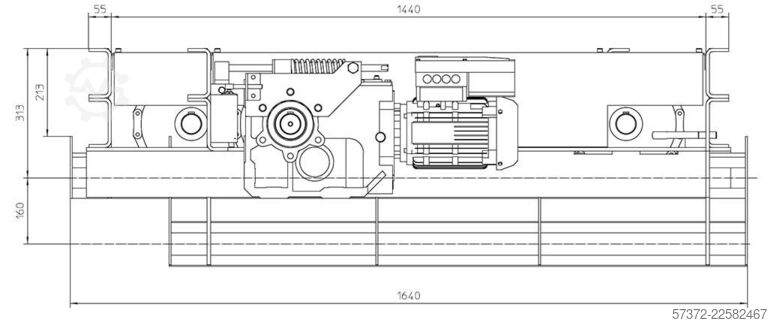

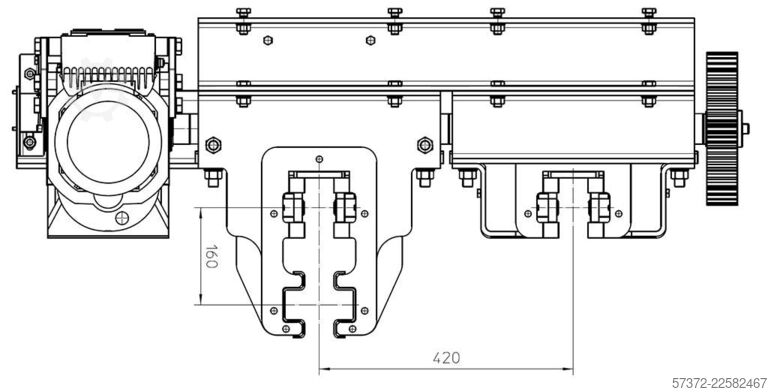

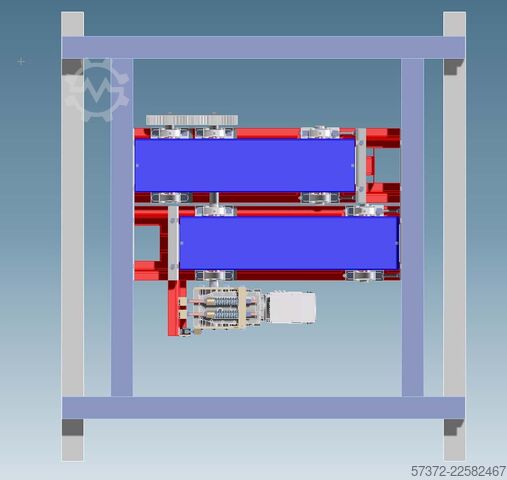

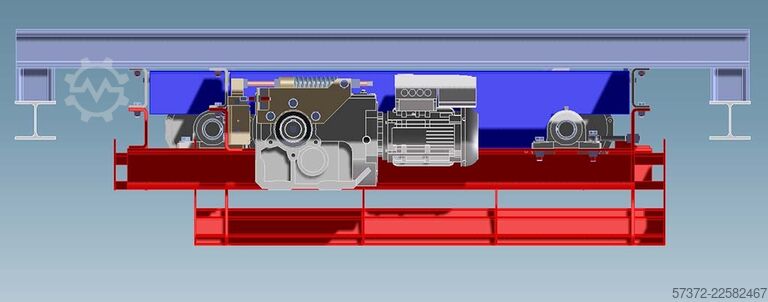

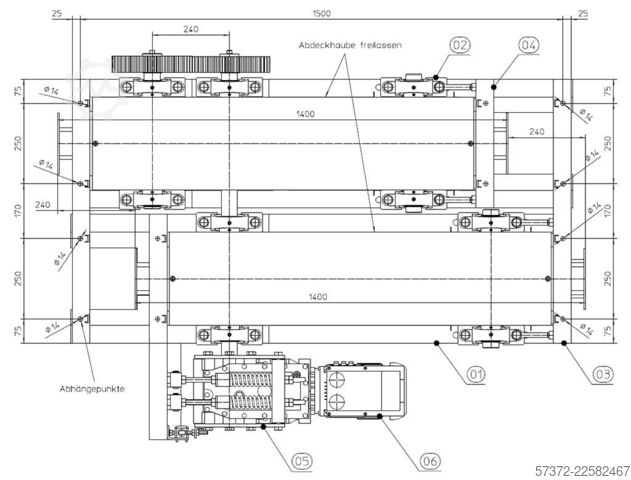

Condition: used, Year of construction: 2021, This is the main drive of a Power+Free conveyor system CSF, the machine is still unused in its original packaging. Assembly: PFC47-N, longitudinal dimension of upper section: 1,440mm, end distance left: 55mm, end distance right: 55mm, vertical dimension to drive/guide level: 313mm, additional vertical dimension: 213mm, vertical dimension below the centerline: 160mm, distance between the shown guide/suspension points: 420mm, additional vertical dimension in front view: 160mm, overall dimension in plan view: 1,500mm, internal/usable length in plan view: 1,400mm, edge distance left/right: 25/25mm, distance between two drive/running gear points: 240mm, lateral partial dimension: 240mm, suspension hole diameter: 14mm, total length of substructure, side view: 1,640mm, overall width: 820mm, with documentation. An on-site inspection is possible, machine not powered. Iiedpfx Anszvghdj Hof

Condition: new, Year of construction: 2025, functionality: fully functional, input voltage: 380 V, input frequency: 50 Hz, stroke length: 200 mm, operating speed: 50 mm/s, reverse speed: 180 mm/s, table length: 3,200 mm, total length: 3,915 mm, total width: 1,605 mm, total height: 2,655 mm, overall weight: 8,000 kg, bending force (max.): 1,000 t, bending angle (max.): 90 °, warranty duration: 24 months, working height: 450 mm, All-Electric Servo Bending Machine Nominal force(KN): 1000 Slider stroke(mm): 200 Throat depth (mm): 360 Isdpjv Hchlsfx An Hoif X-axistravel(mm): 600 R-axistravel(mm): 200 Z-axistravel(mm): 2500 🔹 Smart CNC System – SL100-P with high-end algorithms and 12-inch touchscreen for intuitive operation. 🔹 High-Precision Structure – Finite element analysis (FEA), annealed, and one-time machining for long-term stability and accuracy. 🔹 4-Axis Intelligent Backgauge – AC servo-driven, high-speed positioning with automatic collision avoidance. 🔹 Precision Compensation System – Adjustable convex strips & fine-tuning mechanism for optimal bending accuracy. 🔹 Powerful & Durable Drive – High-torque servo motor, heavy-duty ball screws & sealed protection for longevity. 🔹 Fully Closed-Loop Control – Y1/Y2 magnetic scale feedback, positioning accuracy ±5μm. 🔹 Optimized Electrical System – Closed electrical box, heat dissipation, & neat wiring for reliability and easy maintenance. 🔹 Imported Precision Components – Ball screws & linear guides ensure accuracy without stroke compensation. 🔹 High precision, stability, and smart automation – designed for professional sheet metal bending!

Condition: used, Linear drive, linear gear, lifting gear, spindle drive, rodless pneumatic cylinder -Manufacturer: Hoerbiger ORIGA, rodless pneumatic cylinder -Type: EU/4200 Iiedpfxjf R Iwqs An Hof -Stroke: 1000 mm -Drive: pneumatic -Price: per piece -Number: 2 piece -Dimensions: 1300/70/H100 mm -Weight. 7.7 kg/piece

Condition: excellent (used), Year of construction: 2017, VUTEK H100 3.2m Fast LED Hybrid printer Speed exceeding 450 m²/h Color 6C (white disabled) Roll option 3.2m 2 tables Isdoza U Saspfx An Hsif under efi full service new belt installed on 04-26 via efi Recently, 4 new printheads were replaced (defective solder joints on the nozzles).

Condition: new, ETEL DSC2P154-421-000 Servo Drive 568440-01 SN: 38133969H - Vaux = 24-55VDC / Vpwr = 84-280VAC, unused, 100% functional, delivery as per photos. Iiodpey Np R Refx An Hef

Condition: used, Linear drive, linear gear, screw jack, spindle drive -Pneumatic linear drive -Festo type: DGO -..... -Stroke: 490 mm -Shaft: Ø 22 mm -Dimensions: 42/42/705 mm -Weight: 1.05 kg Iijdpfx Aned Sub Aj Hof

Condition: used, Linear drive, linear gear, screw jack, spindle drive -Manufacturer: ORIGA -Type: P120 SO -Stroke: max. 500 mm -Piston: Ø 40 mm -pneumatically operated -p. Max. Pressure 8 bar Iiedpod At R Sjfx An Hef -Number: 8x cylinders available -Price: per piece -Dimensions: 800/70/H100 mm -Weight: 5 kg

Condition: ready for operation (used), Description: Geiger MiniServo II 1.5, a servo-motorized removal device or sprue picker, specifically designed for use with injection molding machines. The device is used to precisely and quickly remove sprues or small finished parts from the mold and place them in a designated area. Swivel axis (A): 0-105° Removal stroke (X): 300 mm with linear guide and rack and pinion Vertical/lateral stroke (Y/Z): 800 mm linear guide and rack and pinion (part and gripper weight up to max. 1.5 kg) Servo-motorized drive for the main axes Fail-safe mechanism (Y): electromechanical Iedpfx Aszpzhrjn Hsif Sliding console Gripper F Rotary module B (pneumatic) with stop 1 compressed air circuit for the gripper 1 compressed air circuit for the rotary module B 1 vacuum circuit with monitoring Gebtkoy Tn Rdsqqtioiu Programming assistant for programming standard removal sequences with 1 pressure and 1 vacuum circuit Interface connection Euromap 67 (standard) Interface and power cable, 5 m Placement area behind and in front of the machine RAL 9016 white Additional control unit HT7, vacuum circuit, and consoles Input voltage: 230 V Since I was unable to observe the device in operation, I cannot provide any guarantee. According to maintenance records, it is in good condition, but it has experienced occasional malfunctions (1 to 2 times per week). Turning the main switch off and on again would resolve the issue. Therefore, it is not suitable for continuous operation. I am selling it as a spare parts unit for this reason.

Condition: ready for operation (used), Year of construction: 2022, operating hours: 2,044 h, controller manufacturer: SIEMENS, controller model: SINUMERIK 840D sl, laser power: 6,000 W, travel distance X-axis: 3,500 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 115 mm, number of axes: 3, This 3-axis TRUMPF TruLaser 5030 fiber L76 FMC was manufactured in 2022. It features a working format of 3,000 x 1,500 mm and a powerful 6000W solid-state disk laser. The machine includes an automatic longitudinal pallet changer and advanced cutting capabilities, such as adaptive lens systems and automatic nozzle changers. If you are looking to get high-quality fiber laser cutting capabilities, consider the TRUMPF TruLaser 5030 fiber L76 FMC machine we have for sale. Contact us for further details. • Working format/area: 3,000 x 1,500 mm; X 0–3,000 mm / Y 0–1,500 mm / Z 0–115 mm • Machine design: Closed machine frame; gantry drive with direct linear drives; automatic longitudinal pallet changer; integrated control cabinets and storage cabinet; working-area lighting; machine status light; water/air machine and laser chiller; CE compliant; ambient temp 5–35 °C • Dynamics/accuracy: Max simultaneous axis speed 280 m/min; Ps 0.03 mm; Pa 0.05 mm; min programmable increment 0.001 mm • CNC control: Siemens SINUMERIK 840D sl with 21.5" color MultiTouch; MultiTouch HMI; USB and RJ45; integrated technology data; programmable cutting gas/pressure; production planning; multi-sheet processing; automatic shutdown; Remote Support interface; Condition Guide; Cutting Guide; Central Link; Online Update Manager • Laser source: TRUMPF TruDisk 6001 (6 kW) solid-state disk laser; fiber-optic beam delivery; one LLK output; closed beam guidance; high back-reflection resistance; stable output over service life • Cutting head: Universal cutting unit; single cutting-head strategy; adaptive lens system; protective glass with online condition monitoring; auto nozzle centering; collision protection; capacitive height control; automatic focal position; pilot laser • Standard cutting functions: AdjustLine; BrightLine fiber; ControlLine; FastLine; FlyLine; FocusLine; NitroLine; PierceLine; Performance package; Highspeed cutting package; Copper and Brass cutting packages; Micro-weld • Additional cutting package: Highspeed Eco (fusion cutting, medium-thickness stainless steel) with up to 70% cutting-gas reduction and up to 100% sheet throughput increase • Automatic nozzle changer: 21 positions; automatic change/cleaning/re-setting tied to material/process; reduces setup/handling • Drop&Cut: Integrated camera; assigns live image of residual sheet to part geometry; live cutting preview; no separate programming needed for basic use • Process monitoring camera: Front-area monitoring (~2.5 m); remote observation; preliminary result assessment; video stream output to external monitor • Pallet/material handling (machine-integrated): Automatic longitudinal pallet changer; loading/unloading parallel to machining; pallet access from three sides Additional equipment Iodszuzwdjpfx An Hjif • LiftMaster Compact 1530 (AL34) automatic loading/unloading system • Type 1530; max sheet 3,000 x 1,500 mm; min sheet 1,000 x 1,000 mm • Max sheet thickness 25 mm; max sheet weight 900 kg; max unloading weight 900 kg • With rake lifter: max thickness 25 mm; with rake lifter + belt system: max thickness 15 mm • Minimum part size with rake lifter: 150 x 150 mm • LiftMaster equipment/options • Storage connection; extended pallet travel out of machine • Sheet separation device; double-sheet detection; synchronous loading • Thin-sheet separation (0.8–2.0 mm); loading station for 90 mm stack height • Structural-steel loading grippers, 67 mm pitch, replaceable tines

Condition: new, CNC Panel Saw Wehrmann WT-38/1040 New machine For the conventional cutting of workpieces made of wood/wood-based materials with laminate (CLP, HLP), paper, foil or veneer Panel dimensions + data (finished panel): Length: from 140 mm Width: min. (finished dimension) 38+38 mm Width: max. (finished dimension) 520+520 mm (asymmetrical cutting is possible) Thickness: 8 mm - 40 mm Weight: approx. max. 30 kg Workpiece shape: rectangular Basic structure: - User-friendly combination machine with adjustable zero line - All drives and adjustments are servo-controlled - The machining motors are frequency-controlled. - Stable steel welded construction - Workpiece transport is carried out by means of a transport belt and height-adjustable top pressure. Base machine: - Sound-absorbing/protective hood with safety interlock - The required connection nozzles for an external extraction system with an air velocity of min. 28 m/sec. (underpressure 2480PA) - A compressed air connection incl. maintenance unit. - Integrated control cabinet with cooling unit for operating the machine at an ambient temperature of 10 - 45 degrees Celsius - PC control Beckhoff - Safety and protection devices according to CE guidelines - CE marking Feed rate v= 5 - 40 m/min servo-controlled drive Electronic height adjustment of 5 - 45mm adjustable via Beckhoff servo axis Stop ruler made of Teflon on the right side of the machine adjustable via Beckhoff servo axis Infeed ruler on the left with pneumatically sprung unit adjustable via Beckhoff servo axes Machine equipment: Unit 1: Slitting saw, frequency-controlled Milling stand with column guide and connecting plate Motor Perske 4.4 KW 50 Hz 400 Volt 4500 RPM. Tool holder D = 35 keyway External + internal thread right / left, controllable via servo drive, operating in the same direction, not swiveling Iijdjzvdw Nspfx An Hsf with height adjustment via Beckhoff servo axis Lateral adjustment with mechanical digital display Saw blade max. 350 mm without tools Flow-optimized extraction hoods Unit 2: Saw motor, frequency-controlled Milling stand with column guide and connecting plate Saw motor not controllable, operating in the opposite direction Motor Perske 6 KW 50 Hz 400 Volt 5000 RPM. Tool holder D = 35 wedge shaft with external + internal thread right / left Saw blade max. D400 mm without tools with manually adjustable splitting wedge with height adjustment via Beckhoff servo axis Lateral adjustment with mechanical digital display Flow-optimized extraction hoods Beckhoff control technology - PC-based control system with integrated PLC and electronic path control - Virtually unlimited program memory - Operation via keyboard / mouse / touch - Reporting system for operator and error messages - MDE Basic for recording machine data, production time, set-up time, downtime, fault time, quantity and adjustable recording period - Fast data exchange between control and I/O component via EtherCat - Uninterruptible power supply for panel PC - Feed lock for adjacent machines or transport - Powerful panel PC with integrated 15.6 inch display with touch screen, integrated keypad, keyboard and mouse - USB port - Fast EtherCat interface (field bus) - Ethernet network connection RJ45 - Operating system Windows with TwinCat 3 system for real-time control

Condition: refurbished (used), Year of construction: 2020, Machine Type: Cylindrical Grinding Machine Manufacturer: Schaudt Maschinenbau GmbH Model: PS 4 Year of Original Manufacture: 1986 Renovation/Retrofit: 2020 Control System (Post-Retrofit): Siemens CNC SINUMERIK 840D General Specifications Application: External cylindrical grinding Grinding Method: Plunge, traverse, face grinding Control Type: CNC (Siemens retrofit in 2020) Machine Weight: Approx. 3,500 – 4,500 kg Installation Area: Approx. 3.5 m x 2.0 m Workpiece Capacity Center Height: 180 mm Distance Between Centers: 1000 mm (varies by version) Max Workpiece Diameter: 360 mm Max Workpiece Weight: ~150 kg between centers Grinding Spindle Grinding Wheel Diameter: 400 mm Grinding Wheel Width: 50 mm Bore: 127 mm Peripheral Speed: Up to 45 m/s Spindle Drive Power: ~7.5 kW Spindle Speed Range: Up to 1,500 – 2,500 rpm (depending on wheel size) Headstock Type: Fixed or rotating spindle Speed Range (if motorized): ~30 – 500 rpm Taper: MK4 or similar Drive: AC Servo (post-retrofit) Tailstock Type: Manual or hydraulically actuated Quill Stroke: Approx. 50 mm Iiodpfsw Avrzex An Hof Quill Diameter: ~75 mm Axes X-Axis (infeed): CNC-controlled Z-Axis (longitudinal): CNC-controlled Resolution: 0.001 mm Drive Type: Digital servo motors with ball screw Position Feedback: Absolute/Incremental linear encoders Coolant System Coolant Tank Capacity: Approx. 150 – 250 liters Coolant Pump: High-pressure, with filtration system Other Features (Post-Retrofit) Siemens HMI with touch interface Electronic handwheels (MPG) Updated safety system and enclosure New electrical cabinet with ventilation and cooling Optional AE sensor for gap detection or touch dressing

Condition: new, A Drive M642-1340-1208-PZ servo motor, serial number: 2002001, unused, in open original packaging, 100% functional. Scope of delivery as shown in the photos. Iisdpfx Aji D Ewaon Hjf

Condition: new, Indramat DDC01.1-K200A-DL01-01-FW servo drive, unused, in opened original packaging, minor signs of wear, 100% functional. NOTE: Please request a separate quote for packaging and shipping costs! Iisdji Ebdljpfx An Hef

Condition: used, Year of construction: 2005, functionality: fully functional, Equipment: CE marking, HOMAG OPTIMAT BAZ211 VENTURE 20 (Router No. 5) Year of manufacture: 2005 Basic structure and drives • Machine bed: Heavy-duty, stable design with compact linear guides. • X and Y axis drives: Digital AC servo motors and rack and pinion gears with pre-tensioning for backlash-free operation. • Z axis drive: Digital AC servo motor with ball screw; travel range is 535 mm. • Lubrication: Manual central lubrication for all drives and linear guides. Main spindle and C axis • Power: 11 kW in S6 mode (7.5 kW in S1). • Cooling: Liquid-cooled, vector-controlled asynchronous motor. • Speed range: Continuously programmable from 0 to 18,000 rpm. • Tool holder: HSK F63 according to DIN 69893. • C axis: Equipped with an aggregate interface, pneumatic interface, and 3-point support. Clamping system (Cantilever table) • Cantilevers: 6 pieces with a tubeless, dual-circuit vacuum system. • Stops: 6 longitudinal stops in the cantilevers (stroke 140 mm) and 2 adjustable lateral stops. • Suction cup equipment: • 10x dual-action vacuum suction cups (160x115x100 mm), 4 with integrated lift. • 2x dual-action vacuum suction cups (125x75 mm). Iodpozr N H Ujfx An Hsif • Pneumatics: 4 connections with a single-circuit system for mechanical clamps. Workpiece dimensions • Length (X): Max. 3050 mm (individual setup) or 900 mm (shuttle mode). • Width (Y): Max. 1220 mm for milling; max. 1150 mm for all aggregates. • Thickness (Z): Max. 60 mm with standard suction cups; up to 300 mm including fixtures for top-side milling. • Minimum thickness: 12 mm for chamfering, 16 mm for radius milling. Tool changer and accessories • Type: Disc-type tool changer (12 positions) for HSK F63 tools and aggregates. • Diameter capacity: 12x max. 135 mm, or a combination of 6x 180 mm and 6x 85 mm. • Vacuum system: Liquid ring pump with a capacity of 66 m³/h (equivalent to 100 m³/h for vane pumps). Control system (Power Control PC85) • Hardware: Industrial PC (2 GHz) with 512 MB RAM, a hard drive for data and a second for backup (cloning). • Software: • woodWOP: Graphical interface for CNC programming. • woodDesign: 3D interface for furniture design. • woodScout (optional): Graphical diagnostic system. • Communication: Ethernet card and modem for remote diagnostics.

Condition: used, SincoTec Model: POWER FLOW BIAXIAL 125/150 kN ±4000 Nm SincoTec POWER FLOW BIAXIAL 125/150 kN – ±4000 Nm Servo-hydraulic Test Stand Description: For sale is a servo-hydraulic biaxial test stand SincoTec POWER FLOW BIAXIAL. The unit has been used in an industrial environment and was fully functional up to decommissioning. All service and maintenance were professionally performed. Comprehensive technical documentation (operating, assembly, and wiring manuals) is available. The test stand is suitable for tensile/compression tests, torsion tests, and combined loading tests on components and assemblies, e.g. for fatigue, durability, and functional testing. Main technical data for the test stand: - Maximum test force (design): up to ±150 kN - Typical operating rating: 125 kN - Max. torque (torsion): ± 4,000 Nm - Max. linear cylinder stroke: ± 75 mm - Max. rotation angle: ± 50° - Measurement accuracy: Class 1 (DIN EN 10002-3) Test stand dimensions: - Total height: approx. 3,430 mm - Width: approx. 1,480 mm Iiedpfx Anjzimcbs Hef - Depth: approx. 1,180 mm - Max. weight of clamping fixture: 250 kg Hydraulic power unit (included) - Drive power: approx. 152 kW - Flow rate: approx. 260 l/min - Operating pressure: up to 280 bar - Hydraulic oil: HLP ISO VG 46 - Tank capacity: approx. 1,500 liters Power unit dimensions: - Length: approx. 2,714 mm - Width: approx. 1,820 mm - Height: approx. 2,085 mm Electrical data: Control cabinet / test stand - 400 V / 50 Hz - Connection: CEE 5-pin - Fusing: 16 A Hydraulic power unit - 400 V / 50 Hz three-phase current - Direct connection - Fusing: approx. 160 A Scope of delivery: - SincoTec POWER FLOW BIAXIAL servo-hydraulic test stand - Hydraulic power unit - Control cabinet with industrial PC - Measurement and control technology - Technical documentation The machine is structurally rated for up to 150 kN. The 125 kN specification refers to the typical operational configuration. Test stand weight: approx. 4.7 t Important note: “The table shown in the photos is not included in the sale.” Condition: used Scope of delivery: (see photo) (Specifications subject to change and errors excepted!) Further questions can be answered by phone.

Condition: like new (used), Year of construction: 2023, functionality: fully functional, total height: 5,300 mm, ram adjustment: 150 mm, installation height: 570 mm, total width: 3,300 mm, total length: 5,250 mm, pressing force: 250 t, type of input current: three-phase, stroke length: 35 mm, input voltage: 400 V, distance between side stands: 820 mm, overall weight: 58,000 kg, control voltage: 24 V, input frequency: 50 Hz, HR 250/2200 SL – Punching Line (Demonstration and Trial System) Press frame + ram in cast design with optimal damping properties Turnkey complete system for: • Production of electrical sheet metal parts • Flat stamped parts • Flat progressive die-cut parts EQUIPMENT + ACCESSORIES: • Punching machine HR 250/2200 SL [ZEULENRODA] 2,500 kN | Stroke rate 80…250 min-¹ >also available without accessories/peripherals upon request< • Roller feed “push-pull”, [ZEHNDER & SOMMER] • RAZIOL roller strip lubricator • Strip thickness measuring device • Punching package control [UNIDOR / TRsystems] • Unwinding reel 3.0t [KOHLER] • 21-roll fine leveling machine, deburring attachment [KOHLER] • Motorized tool changing system with hydraulic lifting bars + insertion clamp • Scrap and parts removal • Servo punching shear • Control cabinet platform • Operator platform • Soundproof cabin • Safety fence TECHNICAL DESIGN: Stroke rate of the press: 80 - 250 min-¹ Ram stroke: 35 mm Quick lift: 75 mm Installed height: 570 mm at max. stroke (fixed 35 mm) at the bottom, ram adjustment (150 mm) at the top Table surface: 2300 x 1100 mm Clamping plate: 2300 x 1100 mm T-slots DIN 650: 22 mm Table opening: 2020 x 400 mm Ram surface: 2240 x 900 mm Ram stroke, fixed: 35 mm Quick lift: 75 mm Height above floor: 1380 mm (including clamping plate 200 mm) Strip inlet height: 200 - 400 mm (above the clamping plate) Stand opening, side: 820 x 500 mm (W x H) Recommended max. upper tool weight: 2200 kg Recommended upper tool weight: 1950 kg - Control system SIEMENS S7-1500 - 15’’ touch panel + two-hand control panel - Remote maintenance DESCRIPTION: - Press frame in gray cast iron design - Press ram in cast design Iijdezu Ryhopfx An Hsf - Direct drive with electro-pneumatic clutch-brake combination - Fully eccentric two-point eccentric shaft, forged - Power transmission via two connecting rod joints - Roller guide, 8-fold for precise ram guidance - Rotating mass balancer - Ram weight compensation by means of pneumatic bellows cylinder - Quick Lift 75 mm (quick lift function for fast tool access) - Condition monitoring (forces, temperatures, lubrication, pneumatics)

Condition: new, Indramat DDC1.2-N200A-DL01-01-FW servo drive, unused, in opened original packaging, 100% functional. Iedpfx Anji Ebd Te Hjif

Condition: used, Year of construction: 2016, machine/vehicle number: 0-261-20-8714, functionality: fully functional, Equipment: CE marking, documentation/manual, KDF 860 Edition, serial no. 0-261-20-8714, year 2016 Feed speed 8–20 m/min, rounding 20 m/min, workpiece width 70 mm, (8–22), minimum workpiece length 140 mm, CONFIGURATION: - Pre-milling - Spray separator - EVA adhesive application with QUICKMELT top preheating, Second glue pot A12 EVA (white glue) - Infrared workpiece heating - Side pressure (4 rollers; The first pneumatical) - Trimming with SOFTTOUCH function (smooth unit start-up); straight/angle trimming, exact/with overlap - Multifunctional multi-profile milling unit (R1 + R2 + chamfer); servo-adjustment - 2-motor SERVOTRIM rounding unit—controlled by linear motors on both axes, feed rate up to 20 m/min, soft-touch function for gentle contact of the unit with the workpiece, 4x servo-adjustment - Profile scraper unit – 4x servo-adjustment, dual-profile (R1 + R2) profiling guides with 0.01 mm step - Flat scraper unit, - Spray cleaner - Brushes, - Motorized beam lift, - Motorized infeed fence, - Full automation, - POWERTOUCH control system, - moveable workpiece support, - loading guide for narrow parts Iisdpfxozuxh Hs An Hsf - upper belt pressure

Condition: new, Year of construction: 2024, functionality: fully functional, Discover the powerful Durma press brake at our demonstration center in Saerbeck. Iiodpfstr Dk Ejx An Hsf As a manufacturer, we offer you maximum precision and efficiency with a capacity of 3050 mm in length and 175 tons. Benefit from our comprehensive all-in-one service: We take care of transportation, installation, commissioning and offer you a one-year warranty as well as fast and reliable service. Visit us and see the quality and versatility of this first-class machine for yourself. Standard equipment Capacity (length - ton) 3050mm - 175t Installation height 530mm Outreach 450mm Stroke 265mm Servo drive Y1, Y2, X - 3 axles Control unit - DT 15 Manuel F. AKAS FPSC safety system CE-Fiessler Akas Servo motor backgauge & linear guide & Ball screw system Manual crowning European tool holder Sliding front arms Options - DELEM 69S control unit (3D control) -Motorized crowning - 6 axes X=650mm Y1, Y2, X ,R , Z1, Z2 (6 axes controlled press brake) press brake) -Lower tool European M.460R.85 -European upper tool P135.75.R08
