Used Through-Hole Machining Center for sale (75,366)

Condition: good (used), Year of construction: 2016, machine/vehicle number: 302.11.021.16, functionality: fully functional, operating hours: 573 h, power: 12 kW (16.32 HP), input voltage: 400 V, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,670 mm, travel distance Z-axis: 500 mm, workpiece length (max.): 3,300 mm, workpiece width (max.): 1,250 mm, workpiece height (max.): 150 mm, number of axes: 4, number of slots in tool magazine: 12, For sale is our FORMAT4 profit H200 13.33, manufactured in 2016. The CNC machine was primarily used in our carpentry shop for furniture and interior design and has relatively few operating hours. Equipment includes: * 4-axis CNC * Additional swivel unit * Tool changer * Console table with vacuum clamps * Vacuum pump included * Operator station incl. PC and handheld device * Includes tool set * Only 572 operating hours The machine is being sold due to the closure of our carpentry shop for health reasons. Gjdpsz Imtnofx Afusbu It is currently connected and ready for operation and can be inspected and tested by appointment. Location: 48308 Senden Dismantling, loading, and transport are the responsibility of the buyer and will be carried out at their own expense. Price: €37,000.00 net, negotiable / €44,030.00 gross, including 19% VAT. An invoice with VAT will, of course, be issued.

Condition: like new (used), Year of construction: 2013, functionality: fully functional, travel distance X-axis: 700 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 560 mm, torque: 115 Nm, controller manufacturer: Fanuc, total height: 2,750 mm, total length: 2,200 mm, total width: 2,360 mm, table width: 500 mm, table length: 900 mm, table load: 500 kg, overall weight: 6,400 kg, spindle speed (min.): 50 rpm, spindle speed (max.): 12,000 rpm, spindle motor power: 15,000 W, Year of manufacture: 2013 CNC Fanuc TABLE Table size: 900 x 500 mm Five T-slots: 18 H 8 mm Maximum permissible weight on the table: 500 kg WORKING CAPACITY X-axis: 700 mm Y-axis: 530 mm Z-axis: 560 mm Spindle nose – table surface distance: 150 / 710 mm Spindle axis – column surface distance: 550 mm SPINDLE Spindle diameter: 70 mm Spindle taper connection Big Plus: ISO 40 DIN 69871 Spindle speed: 50/12,000 rpm Spindle motor: 15/11 kW Gedpjzr Uq Ssfx Afujbu Maximum torque: 115 Nm FEED RATES Rapid traverse rates for X/Y/Z axes: 32 m/min Working feed rates: 20 m/min TOOL MAGAZINE Number of tools: 30 Tool taper: ISO 40 Maximum tool diameter (without adjacent tools): 76 / 125 mm Maximum tool weight: 7 kg MACHINE DIMENSIONS Height: 2,750 mm Footprint: 2,200 x 2,360 mm Weight: 6,400 kg Machine complete with: •Presetter •Probe •Vise •Tool cabinet •Instruction manuals and CE declaration

Condition: used, Year of construction: 2007, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, controller manufacturer: Fanuc, controller model: 21iMB, workpiece height (max.): 950 mm, workpiece diameter (max.): 900 mm, total height: 3,400 mm, total length: 4,800 mm, total width: 3,430 mm, table load: 1,000 kg, overall weight: 18,000 kg, spindle speed (max.): 8,000 rpm, spindle motor power: 54 W, number of slots in tool magazine: 40, Equipment: chip conveyor, Fanuc 21iMB X/Y/Z axis: 800/800/800 mm NC table accuracy: 0.001 degrees 2 pallets, 630 x 630 mm Maximum pallet load: 1000 kg Workpiece size (diameter x height): max. 900 x 950 mm Spindle speed: 8000 rpm Gedpfx Aoz Iyvvofusbu Spindle drive: 66 / 54 kW Tool holder: SK50 Tool changer: 40 stations Maximum tool weight: 20 kg Tool diameter x length: 125 x 450 mm Feed rate: 50000 mm/min Rapid traverse: 50 m/min Machine dimensions (L x W x H): 4800 x 3400 x 3400 mm Machine weight: 18000 kg Chip conveyor, coolant system, extraction system

Condition: excellent (used), Year of construction: 2017, operating hours: 14,000 h, functionality: fully functional, travel distance X-axis: 760 mm, travel distance Y-axis: 460 mm, travel distance Z-axis: 460 mm, SPINNER VC 750 – Year of manufacture 2017 Manufacturer: SPINNER Type: VC 750 Machine type: Vertical CNC machining center Control system: Siemens Sinumerik 840D sl / ShopMill Axes: 3 Working area: Travel in X-axis: 760 mm Gbjdpfx Afoz Rzzyouou Travel in Y-axis: 460 mm Travel in Z-axis: 460 mm Table clamping area: 900 × 410 mm Max. table load: 350 kg Stiens Werkzeugmaschinen Main spindle: Max. spindle speed: 12,000 rpm Tool holder: SK 40 Spindle drive: approximately 11 kW or 17/10 kW, depending on the configuration Rapid traverse rate X/Y/Z: 36 m/min Industry Pilot Tool changer: Tool positions: 24; also 32 in certain configurations Tool changer: Dual-arm rapid tool changer Max. tool diameter: approx. 130 mm Max. tool length: approx. 200 mm Max. tool weight: approx. 8 kg Stiens Werkzeugmaschinen Machine data: Machine weight: approximately 3,300–4,000 kg, depending on the configuration Dimensions: approximately 2,590 × 1,700 × 2,825 mm (without considering different accessory configurations) Coolant system and chip conveyor

Condition: used, Year of construction: 1990, operating hours: 70,042 h, functionality: fully functional, machine/vehicle number: 120035, travel distance X-axis: 1,200 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, total height: 2,645 mm, total length: 3,560 mm, total width: 2,840 mm, overall weight: 11,000 kg, Equipment: chip conveyor, Control system: 432, software version 700 (4th axis = rotary table) 60-position tool changer (tool length/diameter/weight = 315 mm/125 mm/10 kg) Clamping surface of the CNC rotary table: D1000 x 820 mm Table load capacity: 1000 kg Travel distance, longitudinal (X-axis): 1200 mm Travel distance, transverse (Z-axis): 600 mm Travel distance, vertical (Y-axis): 600 mm Spindle mount: ISO40 Spindle speed, continuously variable in 2 ranges: 20-6300 rpm Feed rates, X, Y, and Z axes: 1-4000 mm/min Rapid traverse, X and Z axes: 12 m/min Rapid traverse, Y axis: 10 m/min Gbodpfoz Ngqqsx Afuou Feed rate, rotary table movement (B-axis): 1-1500 °/min Rapid traverse, rotary table movement: 10 rpm Spindle drive: 15 kW Total connected load: 40 kVA Weight, approx.: 11000 kg Space requirement, approx. (L x W x H): 3560 x 2840 x 2645 mm Technical data subject to change without notice. Errors and prior sale excepted.

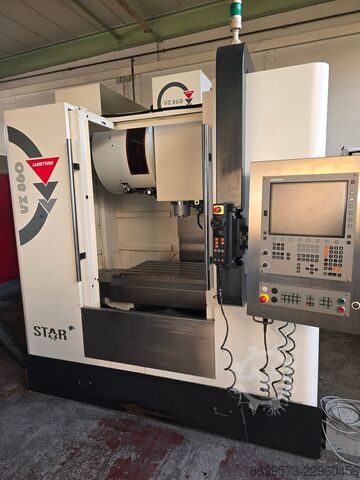

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, travel distance X-axis: 860 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 600 mm, controller manufacturer: Heidenhain, controller model: iTNC 620, table width: 560 mm, table length: 910 mm, overall weight: 4,500 kg, spindle speed (max.): 9,000 rpm, number of spindles: 1, number of slots in tool magazine: 24, Equipment: chip conveyor, Manufacturer: Wemas Model: VZ860Star Year of manufacture: 2009 Control system: Heidenhain 620 Travel distances XYZ: 860/600/650 Tool changer: 24 positions Spindle speed: 9,000 RPM Weight: approx. 4,500 kg Tool holder: SK40 Sale is only to commercial businesses, without warranty or guarantee. Free on board (FOB). Gbjdjz R Amkspfx Afusu

Condition: used, Year of construction: 2003, functionality: fully functional, Sale only within the EU. Gsdez N Eakepfx Afusbu Without the pneumatic tensioning device! Dismantling and loading will be carried out by the seller. Transportation will be handled by the buyer.

Condition: good (used), Year of construction: 2011, XYZ: 760 x 610 x 610mm, Table 900 x 600mm, 21kW, Heidenhain TNC530, 12000 rpm, 30 station ATC, BT40 taper, Gbsdpfxjz Rz Nqo Afusu swarf conveyor, through spindle coolant,

Condition: excellent (used), The used MASTERWOOD TF 100 2.0 CNC machining center is designed for continuous processing. Its features include ball screw spindles on all axes, a pick-up tool changer, and a sawing unit for grooving in the X-direction. A sensor for panel measurement is also included. Drilling and Sawing Unit: The drilling unit features ten vertical drilling spindles. It is complemented by two horizontal twin drilling spindles in the X-direction and one horizontal twin drilling spindle in the Y-direction. The sawing unit has a saw blade diameter of 120 mm and is used for grooving in the X-direction. A new set of drill bits and a new saw blade for the sawing unit are included. Tool Change and Machine Construction: The pick-up tool changer offers six tool positions. The automatic central lubrication system and the integrated control cabinet are part of the machine equipment. A network card for remote maintenance is installed. The dust extraction port has a diameter of 150 mm, and the required compressed air connection is 6 to 8 bar. Workpiece Data and Options: The maximum workpiece length in the X-direction is specified as unlimited. In the Y-direction, the maximum workpiece length is 1,000 mm, and the specified maximum workpiece thickness is 60 mm. Processing for Clamex and door processing are optional. Condition: The MASTERWOOD TF 100 2.0 is offered as a tested used machine and is immediately ready for use. Quality Information: - Complete basic cleaning Gbedpfx Afey Eylweueu - Electrical system checked - Pneumatic system checked - Adjusted according to manufacturer’s specifications - Immediately ready for use

Condition: used, Year of construction: 1990, functionality: fully functional, machine/vehicle number: 254002, type of input current: three-phase, overall weight: 130 kg, input voltage: 380 V, number of spindles: 8, input frequency: 50 Hz, Schleicher frame dowel hole drilling machine DBH 600, Drilling motor 1.5 kW, 380 Volt, 50 Hz, Drilling stroke 0 - 130 mm, Special drilling gear with 3 rows and 8 spindles, 1 clamping cylinder, Special stop system for Gsdpfsz Nkutex Afuebu window frames and window mullions Weight approximately 130 kg as is, at the Seevetal location, excluding transport, EXW (Ex Works), subject to prior sale.

Condition: used, Year of construction: 2023, operating hours: 2,594 h, functionality: unexamined, machine/vehicle number: 6000030, total height: 3,400 mm, total length: 8,000 mm, total width: 6,000 mm, overall weight: 27,523 kg, number of spindles: 1, Equipment: chip conveyor, Installation dimensions: 8000 x 6000 x 3400 mm Weight: 27,500 kg Operating hours: 2,594 h KNOLL aerosol extraction system AerosolMaster 4000 ATS Gedpfx Aozbt D Dsfuebu S/N 1580192 Year of manufacture: 2022 KNOLL chip conveyor 750 K-1 S/N 1591356 Year of manufacture: 2023

Condition: used, Year of construction: 2008, We offer this used BIESSE SKIPPER 130 throughfeed machining center, year of construction 2008. Manufacturer: BIESSE Model: SKIPPER 130 Year of construction: 2008 Condition: used Category ID: 2074 Gsdpfx Afez H Sf Tjusbu Type ID: 151 Type: throughfeed machining center If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: used, Year of construction: 2008, functionality: fully functional, 5-Axis Simultaneous Machining Center MAZAK Variaxis 630-5X II T with Turning Function and Top Specification. Control: MAZATROL Matrix Year of manufacture: 2008 Travel - X: 630 mm Travel - Y: 765 mm Travel - Z: 600 mm a-axis: +30 ~ -120° c-axis: +/- 360° Max. machining diameter: 730 x 500 mm Max. work height: 500 mm Number of tool changer positions: 80 Tool holder: SK40 Max. spindle speed: 18,000 rpm Max. rotary table speed: 1,100 rpm Rotary table diameter: 630 mm Swing diameter of workpiece: 730 mm Accessories: - Chip conveyor and tank - ICS (internal coolant supply) - Showa oil mist extraction unit - Renishaw probe The following features/options are available: - Linear scale system for X and Y axes - Tool magazine for 80 tools - Air blow unit at the workpiece - Oil mist extraction unit CRK 1500K - Coolant temperature control - Flood coolant 4.5 bar - Workpiece rinsing system - High-pressure coolant through the spindle 70 bar - Pressure switch for coolant supply through the spindle - Chip conveyor ejection right (Consep) - MAZAK Monitoring System B incl. Renishaw probe MP10 - Preparation for visual tool identification system - Detachable electronic handwheel - Milling spindle synchronous tapping Gsdpfxsx Db D Aj Afusbu - Tool tip inspection for 5-axis simultaneous machining - Tool radius compensation 5-axis - EIA dynamic tool compensation 2 (incl. 1) - Max. program memory 8 MB - Rapid traverse – constant tilt angle during movement - MAZACC-3D high-speed software package - Form compensation for rotary axes - Ethernet operation capability - High-precision control for finishing operations - Cylinder interpolation G07.1 - Signal light (3-color LED) - 3-jaw chuck 21" - Additional work area lighting The machine is in very good condition and can be inspected under power at its current location.

Condition: new, Year of construction: 2025, table length: 900 mm, table width: 450 mm, number of spindles: 1, spindle speed (min.): 8,000 rpm, table load: 500 kg, VMC 650 CNC machining center, milling machine with CNC system VMC 650 machining center is a multifunctional equipment that allows you to perform milling, drilling, thread cutting, and turning operations in automatic mode (if these options are available in the machine). The VMC 650 milling machine can have 16- or 24-position tool magazine. Depending on the customer's wishes, the milling machine can be equipped with a GSK, Siemens or Fanuc CNC system. It is possible to optionally add a Y-axis drive. As a very convenient additional option, we recommend installing a chip conveyor that will save you time when working with the equipment. Technical parameters: Worktable size 900x450mm Maximum workpiece weight 500 kg Movement along the axes X/Y/Z 800/450/500 mm Maximum distance from the spindle to the table surface 120-620 mm Motor power 5.5-7.5 kW Maximum spindle speed 8000 rpm Spindle type BT40 Positioning accuracy ±0.008/300 mm Repeatability ±0.005 mm Machine dimensions 300022752550 mm Machine weight 4000 kg Gedpfjxc I Dgsx Afusbu It is also possible to supply CNC milling machines, machining centers with other table sizes: VMC 850 table 1000x500 mm VMC 855 table 1000x550 mm VMC 1060 table 1200x600 mm VMC 1160 table 1200x600 mm VMC 1275 table 1300x700 mm VMC 1370 table 1400x700 mm VMC 1580 table 1600x800 mm VMC 1680 table 1700x800 mm VMC 1890 table 2000x900 mm

Condition: used, Year of construction: 2006, operating hours: 39,500 h, functionality: fully functional, machine/vehicle number: 15425021604, travel distance X-axis: 1,035 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 510 mm, nominal power (apparent): 35 kVA, controller manufacturer: Heidenhain, controller model: iTNC 530, total height: 2,700 mm, total length: 2,800 mm, total width: 2,800 mm, table length: 1,200 mm, rotational speed (min.): 12,000 rpm, overall weight: 5,000 kg, spindle speed (max.): 12,000 rpm, operating hours of spindle: 16,075 h, number of slots in tool magazine: 30, input voltage: 400 V, type of input current: DC, Equipment: documentation/manual, DMG Deckel Maho DMC 1035 V vertical machining center, year of manufacture 2006 The machine has only processed plastics – in good condition! Year of manufacture: 2006 Machine number: 15425021604 Condition: Good Delivery terms: Free loading onto truck Location: 72178 Waldachtal Gbedpfxjz I Dl Ie Afueu !!!!!The machine must be collected on 21.10.2026! We can offer transport if required!!!!! Payment terms: Payment in advance – by bank transfer Internal number: 180-1 Can be inspected while powered on: Yes Technical data: - Operating hours (machine on): approx. 39,447 h (will increase slightly) - Spindle hours: 16,075 h (will increase slightly) - Tool holder: SK40 - Max. spindle speed: 12,000 rpm - Tool magazine: 30 positions - Table dimensions: 1200 x 560 mm - Control system: Heidenhain iTNC 530 - Travels X / Y / Z: 1035 / 560 / 510 mm - 400 V / 50 Hz / 35 kVA Scope of delivery: - Manuals and documentation - Wireless measuring probe Heidenhain TS640 - Handwheel - Programmable 4th axis Lehmann - Angle plate - Manual dividing head - Swivel vice Note: The vices on the machine table and the tool holders in the magazine are not included in the scope of delivery! Dimensions & weights: - Installation dimensions L x W x H approx.: 2800 x 2800 x 2700 mm - Weight approx.: 5000 kg If you have any questions or would like to arrange a viewing, please do not hesitate to contact us! Additional information: ►If required, we can offer transport to the destination. ►The quoted price is net, plus VAT. ►The goods are sold with exclusion of all warranties. ►Technical data without guarantee. ►Subject to prior sale. ❗The goods are sold exclusively to businesses❗

Condition: like new (used), Year of construction: 2015, operating hours: 500 h, functionality: fully functional, * Okuma Millac 852V II / 50. * Machine in excellent condition with very few cutting hours. * High metal removal rate machine. * Box guideways on all axes. * Quadruple box guideway system on the Y-axis. * Extremely rigid structure. * Oil-fed guideway lubrication system with automatic machine stop. * Renishaw tool probe. * BT 50 spindle taper. * High-torque 18.5 kW motor. * Cutting torque: 580 Nm. * Chip evacuation capacity: 540 cm³/min. * Okuma IGF OSP300 automatic conversational programming system. * Automatic force control and tool usage monitoring. * Parametric automatic tool anti-collision system. * Communication ports: USB, PCMCIA card, and RS-232. * Tool life management and usage tracking. * Automatic control of torque and tool stress. * Table dimensions: 2,200 x 850 mm. * Maximum load capacity: 2,500 kg. * Spindle speed: 6,000 rpm. * X-axis travel: 2,050 mm. * Y-axis travel: 850 mm. * Z-axis travel: 750 mm. * Spindle oil cooler. * Rapid traverse speed: 20,000 mm/min. * 36-tool magazine. Gbedpfjz Nc Rljx Afueu * Tool change time: 0.5 seconds. * Chip-to-chip time: 5 seconds. * Independent Knoll coolant system (70 bar pressure). * 30-micron particulate filter system. * LTA mist filtration system. * Rear-mounted hinge-type chip conveyors. * Machine currently in production. * Inspectable by a qualified official Okuma technician. * Condition: Like new. * Extensive BT 50 tooling/holder package. * Includes electrical transformer, documentation, parts list, electrical schematics, and programming/operation manuals. * Machine weight: 20,500 kg. * Immediate delivery available (subject to prior sale).

Condition: used, HolzHer 7023 K CNC machining center Year of manufacture: 2008 Gjdpfjz Nh Tgjx Afusbu Power supply: 3 x 400 V Traversing system (beams and suction cups) with 6 beams, Tool magazine for 12 positions, 3-axis milling motor, Drilling head, Horizontal milling motor (for doors).

Condition: like new (used), Year of construction: 2023, Haas TM2-P Year: 2023 X-1016, Y-406, Z-406 RPM: 6,000 Gbedpfezua Hwex Afusu BT 40 WIPS HSM 4th axis connection Very few operating hours Like new!

Condition: good (used), Year of construction: 2012, Haas VF-2SSYT Year of manufacture: 2012 Spindle speed: 12,000 RPM CT40 taper Tool Set Carousel (TSC) Workpiece Probe System (WPS) Renishaw probing system 4th axis, wired Gbjdjz Ihc Rjpfx Afuou Video available!

Condition: good (used), Year of construction: 2013, total length: 3,990 mm, total height: 2,500 mm, total width: 2,280 mm, overall weight: 8,500 kg, INGERSOLL CM SYSTEMS AOHD AGILE OIL HOLE DRILL Equipped with: Siemens 840D Control (2) Drill Heads 20-Tool Rack HSK 50A Taper (2) 7" 3-Jaw Chucks (2) Tailstocks (2) Steady Rests Chip Auger Chip Conveyor Mist Collector Hydraulic System Q R 2 Lube System Air Compressor Specifications: Maximum Length: 1050 mm (41.3") Minimum Length: 180.0 mm (7.1") Maximum Stroke: 250.00 mm Maximum Main Journal Diameter: 115.0 mm (4.5") Maximum Pin Journal Diameter: 100.00 mm (3.9") Maximum Swing Diameter: 250.0 mm (9.84") X-Axis Travel: 1450 mm (57.1") Y-Axis Travel: 150 mm (5.9")W/HSK 50 Z-Axis Travel: 305.0 mm (12.0") A-Axis Travel: 360 Degree Gbsdjrtrx Rspfx Afuou B-Axis Travel: 90 Degree Feed Rate (Z): 1 m/min Maxim (40"/min max) Position Accuracy of X,Y,Z Axes: .010 mm (.00039") Position Accuracy of A & B Axes: .03 Degree Position Repeatability of X,Y,Z Axes: .005 mm (.0002") Position Repeatability of A & B Axes: .005 Degree Spindle Power: 5.5 kW (7.5 hp) Spindle Speed: 0-6,900 RPM Tool Adaption: HSK 50E or A Tool Storage (ATC): 20 Total - 10 Per Spindle W/HSK 50 Lubrication - Slides & Ball Screws: Automatic Central Lubricator Approximate Floor Space (LxWxH): 4.0 x 2.3 x 2.5 m (13.1 x 7.5 x 8.2 Ft) Approximate Machine Weight: 8,500 kg (18,740 #)

Condition: like new (used), Year of construction: 2023, functionality: fully functional, Travel (X/mm) 760 Travel (Y/mm) 460 Travel (Z/mm) 460 Control System Type Siemens Sinumerik Tool magazine Yes Number of tool magazine positions 24 Spindle connection ISO 40 Gbedpoz Rnngsfx Afuju

Condition: like new (used), Year of construction: 2006, operating hours: 671 h, functionality: fully functional, total height: 2,992 mm, total length: 3,980 mm, total width: 2,580 mm, overall weight: 8,500 kg, operating hours of spindle: 671 h, number of slots in tool magazine: 48, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, We offer this as new Quaser MV154 APC/P vertical machining center, year of construction 2006. The machine has 9039 power-on hours, but only 671 spindle-hours, this has been confirmed in the parameters aswell. The machine has seen very little usage. When i bought this machine the linear guides for the X & Y axis was worn out as they had not been lubricated properly and with the incorrect grease. These have been swapped for brand new ones, aswell as most of the air and coolant hoses. All the lubricating lines for the X & Y guides and ballscrews have also been renewed. There are some tools in the 48 tool magazine aswell. It also has a 3D Taster. The chip conveyor also has new bearings and seals. Gbodpfx Afjzxz Dfjuou Two Hilma vices could also come with the machine. I have done a ballbar test and checked the machine to be in great working order. The size of the machine also makes transportation easy, as it will fit inside a standard curtain semitrailer. If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, This vertical machining center, including the "Clamex unit," is for sale and has seen only a few hours of operation. The machine is being sold because we have switched to a nesting machine. In 2021, the machine was upgraded with a more powerful vacuum pump (16.3 m³). The machine also includes various vacuum clamps; we purchased several larger plates in addition to the standard equipment. Workpiece size: X = 200 - 3200 mm (longer with additional support) Y = 70 - 1200 mm (= max. opening) Material thickness: Z = 8 to 70 mm Max. contour milling dimension in X-direction without clamping: X = 1500 mm Max. contour milling dimension in Y-direction: Y = 985 mm, less milling cutter radius Max. drilling dimension horizontally in X-direction: H = 1168 mm Z-axis stroke: Z = 240 mm Maximum programmable speed: Vector speed: 68 m/min X = 25 m/min, Y = 60 m/min, Z = 20 m/min Milling spindle 7830, power: 7.5 kW (S6), air-cooled with HSK-F 63 tool holder n(max.) = 1000 - 24,000 min-1, continuously adjustable with collet chuck with HSK shank, ceramic ball bearing (hybrid bearing), tool weight max. 6 kg (incl. holder) Tools: max. Ø 110 mm, tool length max. 80 mm Tool changer 7887, 6-position magazine - pick-up system, pneumatic, max. Ø tool: Ø 110 mm Maximum tool weight: > 5 kg per tool or 30 kg when fully loaded Can be equipped with collet chuck with HSK shank Tool changer 7874, 1-position aggregate magazine, swiveling in X and Y directions, only for special bevel gear 7869 with HSK holder Vertical spindles can be activated individually Arrangement in L-shape, 5 in X and 4(5) in Y direction 32 mm grid Max. drill diameter: 35 mm Total drill length: 70 mm from mounting end (depending on plate thickness) Spindle extension stroke: 70 mm Direction of rotation: alternating right/left n(max.) 1000 - 4400 min-1, continuously adjustable Holder: M 10 thread - parallel seat 11 mm without tool, without holder 6 horizontal spindles 2 double drilling spindles in X-direction 1 double drilling spindle in Y-direction Holder: M 10 thread, parallel seat 11 mm Total drill length max. 63 mm from mounting end without tool, without holder Sawing unit Integrated sawing unit for sawing/grooving in X-direction n(max.) 1000 - 5650 min-1, continuously adjustable Tool holder: A max Ø = 120 mm, I Ø = 20 mm, B = max. 4.0 mm 4-axis “CLAMEX” tool set - Incl. original tool set consisting of 2 pcs. P-system slot milling cutter, DP (diamond) 100.4x7x30mm, Z3, NLA 4/6,6/48mm 1 pc. Milling arbor for P-system slot milling cutter S20x50mm, d=30, L=102, DTK 48mm 1 pc. Milling arbor for P-system slot milling cutter S16x55mm, d=30, L=68, DTK 48mm Gbodpfx Aoz In Ugjfusu 1 pc. CNC drill 6mm for Clamex P, L= 57.5 / shank 10x27 / left 1 pc. Adapter for drill with shank d= 10 mm (left) 1 pc. Collet DIN 6388 form B, double slit, size 25 Clamping diameter 20, for HSK-F 63 holders

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, Travel ranges: X = 1000 mm, Y = 850 mm, Z = 950 mm Gjdpfez Ri I Usx Afuobu Horizontal milling and drilling operations Multi-sided machining in conjunction with a rotary table as the 4th axis Dual pallet changer, 2 x 630 x 630 mm 100-position tool changer, automatic workpiece measuring probe Glass scales in all axes, laser tool measurement SK 40 with 10,000 rpm and 40 bar internal coolant

Condition: good (used), Year of construction: 2019, operating hours: 18,400 h, functionality: fully functional, travel distance X-axis: 2,600 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 700 mm, workpiece length (max.): 2,600 mm, workpiece width (max.): 700 mm, total height: 2,700 mm, total length: 6,335 mm, total width: 4,600 mm, table load: 1,500 kg, overall weight: 16,000 kg, spindle speed (min.): 15,000 rpm, spindle speed (max.): 20 rpm, operating hours of spindle: 11,370 h, coolant supply: 40 bar, spindle nose: SK40, number of slots in tool magazine: 30, Equipment: chip conveyor, documentation/manual, Travel ranges & dynamics • X-axis: 2,600 mm • Y-axis: 700 mm • Z-axis: 700 mm • Rapid traverse rate / feed rate: 40 m/min Work table (fixed table) Gbsdpfx Ajz Indhefusu • Clamping area: 2,900 x 700 mm • Max. table load: 2,150 kg Milling spindle (standard configuration) • Max. speed: 15,000 rpm • Drive power (40% duty cycle): approx. 18.9 – 20 kW • Tool holder: SK 40 Tool magazine • Tool positions: 30 • Max. tool length: 300 mm
