Used Vdf Lynette for sale (267)

Year of construction: 1996, condition: ready for operation (used), We have spare parts for the CNC lathe VDF Boehringer cm180. The following parts are available: Turret head, price: €1500 Tailstock, price: €1000 Headstock, price: €3000 Ball screw for X and Z axes, price: €1000 Axis motors for X and Z, price: €3000 Main spindle motor, price: €3250 Hodpfx Aogqurbeamonr Hydraulic system, price: €1200 Chuck, 250mm, with clamping system, price: €1800

Condition: ready for operation (used), turning diameter over cross slide: 800 mm, turning diameter: 800 mm, turning diameter over bed slide: 560 mm, Center Lathe VDF V6 Distance between centers: 5000 mm Turning diameter: Hnedpfxjxpillo Aamjr Over guides: 800 mm Over carriage: 560 mm Spindle speed: 560 rpm Motor power: 11 kW Accessories: Steady rests: 330 mm and 420 mm

Condition: good (used), Year of construction: 1972, functionality: fully functional, machine/vehicle number: 70.1025.002302, turning diameter over cross slide: 280 mm, spindle bore: 52 mm, turning diameter: 485 mm, center height: 232 mm, center width: 360 mm, turning length: 1,600 mm, total length: 3,350 mm, total width: 1,100 mm, total height: 1,400 mm, spindle speed (max.): 2,240 rpm, spindle speed (min.): 11 rpm, overall weight: 2,500 kg, workpiece weight (max.): 500 kg, Offered for sale is a VDF 48S Boehringer lead and feed screw lathe with accessories in good condition. Manufacturer: VDF Boehringer Göppingen Model: 48S Machine no.: 70.1025.002302 Year of manufacture: approx. 1972 Centre height: 232 mm Centre distance: 1600 mm Swing over bed: 485 mm Swing over cross slide: 280 mm Spindle bore: 52 mm Hodpfxjx Nqkls Aamonr Spindle speeds: 11.2 - 2240 rpm Total power requirement: 7.5 kW Machine dimensions (L x W x H): approx. 3.35 x 1.10 x 1.40 m Weight: approx. 2,500 kg

Condition: used, Year of construction: 2000, greates pass round over bed 520 mm swing diameter over bed slide 480 mm turning length 3000 mm control 840 D SIEMENS number of tools 12 Driven tools - quantity 6 spindle bore 103 mm c-axis ja 0 Scope of delivery of the basic machine: SINUMERIK 840 D 3 controlled axes Rotation Ø over bed 520 mm Turning Ø over bed slide 480 mm Tool carrier with 12 cylindrical shank holders Ø 50 mm 1-stage AC main drive, 53 kW, 50 % ED Speed range 30 - 3000 min-¹ Main spindle head size 8 Clamping door for clamping devices chip conveyor THREE-DIMENSION 3000 mm 12 cylindrical shank holders DIN 69880-50x78 of which 6 positions can be equipped with driven tools, Power 6 kW at 60 % ED, speed range 20-2500 min-¹ 2 gear stages C-AXLE Speed range 0-20 min-¹ Max. Angle specification 9999.999° Working range according to work area diagram Hjdjwp S Sqopfx Aamonr POWER CHUCK 3 NHF 315-82 A8 FABR. FORKARDT with centrifugal force compensation, Outer Ø 315 mm, bore Ø 82 mm, with hard top jaws, ground, rod material Ø max. 63 mm including draw tube and attachment

Condition: ready for operation (used), Swing over bed 570mm Distance between centers 1800mm Turning length 1500mm Center height 280mm Swing over slide 365mm Spindle bore 62mm Spindle speeds 11,2-2240 rpm Hnedpfx Aefmd Dhoamjr MARCELS MASCHINEN CH

Condition: used, Year of construction: 2002, turning diameter 820 mm turning length 2.000 mm control SIN 810 D center height over square guideway 400 mm turning diameter over slide rest 500 mm x-travel 540 mm z-travel 2.100 mm feed x/z-axis 0,01 - 50 mm/min rapid traverse X-axis 5,00 m/min rapid traverse Z-axis 10,00 m/min feeding force facing 12.500 N power feed longitudinal 20.000 N spindle turning speed range 6,4 - 1.600 U/min spindle turning speed - gearbox stage 1 6,40 - 376 1/min. spindle turning speed - gearbox stage 2 27,40 - 1.600 1/min. power capacity at 60% / 100 % load 46,00 / 37,00 KW max. torque at 60% / 100% load 5.073 / 4.069 Nm constant cutting rate 1 - 9.999 m/min. spindle head DIN 55027 - Size 11 spindle diameter in front bearing 170 mm spindle bore 128 mm tailstock quill taper MT 6 diameter of quill 125 mm quill stroke 280 mm thread pitch 0,1 - 400 mm total power requirement 35,00 kW weight of the machine ca. 11,00 t Hnjdpfew Dvipox Aamor dimensions of the machine ca. 6,00 x 3,00 x H2,60 m SIEMENS Sinumerik 810D mcontrol, chip-conveyor, tail stock, dust exhauster, 2 pc. steady rest. Machine can be inspected under power.

Condition: used, Year of construction: 1979, functionality: fully functional, turning diameter: 640 mm, center height: 320 mm, turning length: 2,000 mm, Leadscrew and feedshaft lathe VDF with digital readout, powered top slide, 3-axis feed with rapid traverse, 3-jaw chuck, faceplate, Multifix toolholder with 5 inserts. Hnjdpfx Aaexz Edzsmjr

Condition: excellent (used), Year of construction: 1975, functionality: fully functional, turning diameter: 840 mm, feed length Z-axis: 6,000 mm, bed width: 560 mm, Turning diameter in gap: 1,040 mm, VDF Heidenreich & Harbeck Gildemeister M820x6000 Machine prfessionally refurbished, inspected and tested, very good working condition. BASIC TECHNICAL PARAMETERS: Swing over bed: Ø 840 mm Swing over cross slide: Ø 520 Hnjdsuq A Icepfx Aamjr Swing in the gap: Ø 1040 mm Length of gap: 390 mm Distance between centres: 6000 mm Width of bed: 560 mm EQUIPMENT INCLUDED INTO THE PRICE: Digital readout Sony for X and Z axis Central lubrication system for logitudinal support Safety guard on chuck, tool post and rear cover on support Ligtening, cooling pump and emergency stop button ADDITIONAL EQUIPMENT: Steady rest range 20-300 mm 4-jaw turning chuck Ø 800 mm Machine located in central Poland, ready for checking. Perfect condition.

Condition: excellent (used), Year of construction: 1993, functionality: fully functional, turning diameter over cross slide: 710 mm, turning length: 2,000 mm, turning diameter: 1,000 mm, spindle bore: 128 mm, rapid traverse X-axis: 5 m/min, rapid traverse Z-axis: 2 m/min, rotational speed (min.): 6 rpm, rotational speed (max.): 1,600 rpm, total height: 2,250 mm, total length: 5,800 mm, total width: 2,005 mm, quill travel distance: 280 mm, quill diameter: 125 mm, swing diameter over cross slide: 710 mm, torque: 4,260 Nm, overall weight: 10,100 kg, Equipment: documentation/manual, - Swing diameter over bed: 1000 mm - Swing diameter over cross slide: 710 mm - Feed rate in X, Z axes: 0.01–50 mm/rev - Feed speed in X/Z axes: 5/2.5 m/min - Rapid traverse in X/Z axes: 10/5 m/min - Feed force in X/Z axes: 20,000/12,500 N - Constant cutting speed: 1–9999 m/min - Distance between centers: 3300 mm - Faceplate diameter: 900 mm - 3-jaw chuck diameter: 500 mm - Bed width: 560 mm Hodjya Dz Dopfx Aamjnr - Cross slide travel: 540 mm - Top slide travel: 250 mm - Metric thread pitch: 0.1–400 mm - Spindle nose: KK 11 DIN 55027 - Number of motor gear stages: 2 - Spindle speed range (first gear): 6.3–360 rpm - Spindle speed range (second gear): 28–1600 rpm - Spindle bearing diameter (front): 170 mm - Spindle bore diameter: 128 mm - Spindle internal taper: 136 metric - Tailstock quill diameter: 125 mm - Tailstock quill stroke: 280 mm - Tailstock quill internal taper: Morse 6 (MK6) - Cross slide dimensions (L x W): 1005 x 320 mm - Top slide width: 200 mm - Tool cross-section per DIN 770: 40 x 25 mm - Main drive power (60%/100% duty): 46/37 kW - Main drive torque (60%/100% duty): 5300/4260 Nm - Total power requirement: 60 kVA - Power supply: 400 V - Control cabinet dimensions (L x W x H): 1800 x 500 x 1600 mm - Machine dimensions (L x W x H): 5800 x 2005 x 2250 mm - Machine weight: approx. 10,100 kg CNC controller: SIEMENS SINUMERIK - Toolholder: MULTIFIX type D - AC servo drives - Reliable stepless AC main drive - Work area lighting

Condition: used, swing diameter / mm total power requirement / kW weight of the machine ca. / t Hnodpjy Surljfx Aamsr

Condition: used, swing diameter / mm total power requirement / kW Hnodjy Suk Uopfx Aamjr weight of the machine ca. / t

Condition: used, swing diameter / mm total power requirement / kW weight of the machine ca. / t Center height: approx. 280mm dimension Hsdpfjia Rrksx Aamjnr Length: 1300mm Width: 300mm Height: 560mm Weight: 265kg

Year of construction: 1987, condition: used, centre height 390 mm passage of steadyrest 220 mm chucking diameter 400 mm Hedpfx Aohgw Uxjamjnr total power requirement / kW

Year of construction: 1984, condition: ready for operation (used), Control system: Philips B2T, machine currently not operational, partially dismantled, the fan of the main spindle motor has been completely renewed, the main drive and the mechanical assemblies (headstock, turret, ball screw) are intact, the Z-axis motor is defective and has already been professionally removed, the hydraulic clamping cylinder requires repair or must be replaced. An on-site inspection is possible. Hnjdpfx Aasy Uyf Nomsr

Year of construction: 1985, condition: ready for operation (used), Voltage: 380V, current consumption: 125/118A, control system: Philips B2T 6, equipment: hydraulically actuated turret vorhanden, enclosed working area with slant bed geometry, hydraulic clamping system, piping, condition: fully functional, very good mechanical condition, visually well maintained, partially overhauled, tool turret: angular position encoder completely renewed, turret indexes absolutely faultlessly and precisely according to the data sheet, CNC control system: power supply professionally overhauled, main spindle drive: power section/drive completely overhauled, with power chuck and base jaws. An on-site inspection is possible. Hsdpfx Aaoy U Nqnemenr

Condition: good (used), Year of construction: 1954, Ref. -No.: 10576 Manufacturer: VDF WOHLENBERG Type: VDF Year of construction: 1954 Type of control: Konventionell Control: n/a Storage location: Halberstadt Country of origin: Germany Machine-No.: 27XXX Turning Length: 4000 mm Hnodpexmd U Asfx Aamer Spindle Diameter: Ø 80 mm Faceplate Speeds I: 355 RPM Turning diameter over cross slide: Ø 1000 mm Max. Turning diameter: Ø 1250 mm

Condition: excellent (used), Year of construction: 1985, Control: Philips B2T Swinging diameter: 640 mm Machining diameter, longitudinal: 550 mm Machining diameter on the turret: 450 mm Turning length: 1000 mm Spindle speed: 2,240 rpm Spindle bore: 103 mm 12-position turret, VDI 60 Hnodezpy Rropfx Aamer Chip conveyor

Condition: used, SMW Steady Rest Type SLU-X1-ms including mounting bracket for CNC lathe DMG Mori CTX 500 Condition: Used Hjdpeyx U H Aefx Aamenr Features: Housing: fully sealed Safety: integrated safety valve Stroke control: prepared for end position monitoring Lubrication: connection for central lubrication (oil or grease) Technical Data Centering range (without chip guard): Ø 4 - 64 mm Centering range (with 3-piece chip guard): Ø 11 - 64 mm Operating pressure (min./max.): 8 / 35 bar Max. clamping force per roller: approx. 400 daN Centering accuracy: 0.02 mm (across the entire range) Repeatability: 0.005 mm Weight approx. 12 kg

Condition: used, Electric Motor – Foot-mounted Motor Manufacturer: Bauknecht Type: KS 5.5 Application: VDF Lathe Serial Number: 316769 Power: 4 kW Connection: 230 / 380 V Speed: 1,440 rpm Shaft diameter: 30 mm Pulley diameter: 115 mm Mounting surface: 215 x 295 mm Weight: 60 kg Dimensions: 200 x 300 x 200 mm Hedpfx Aajwv Hx Semjnr Condition: Used

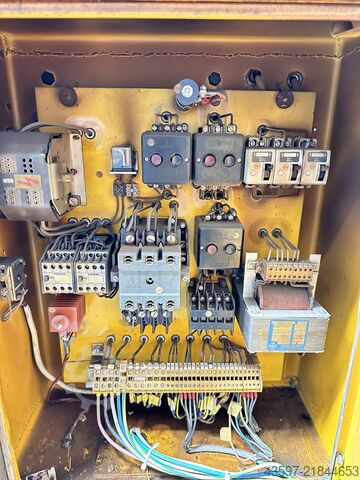

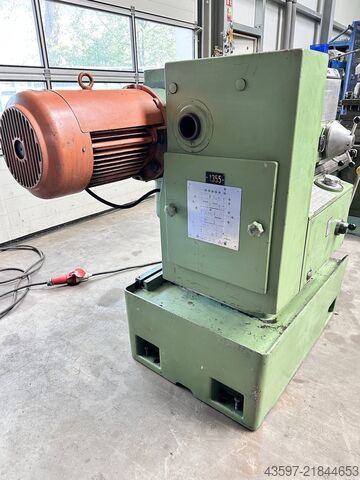

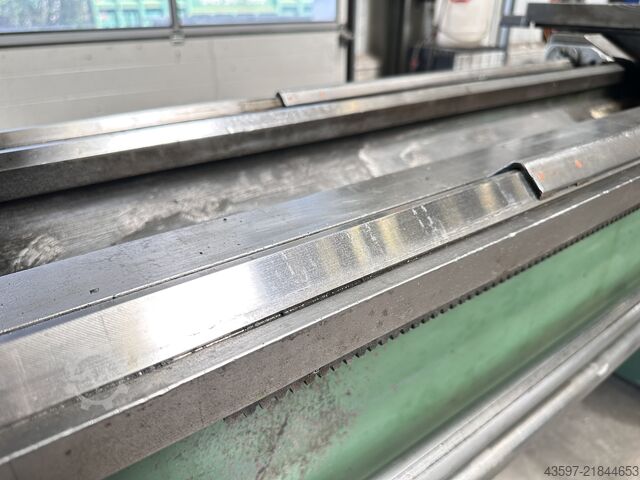

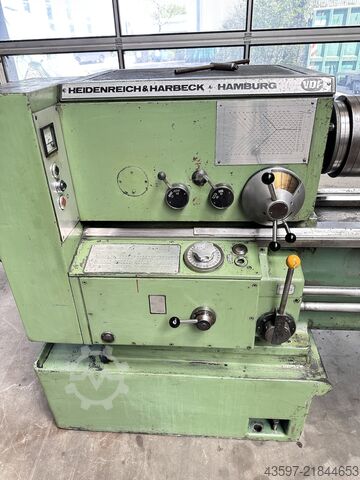

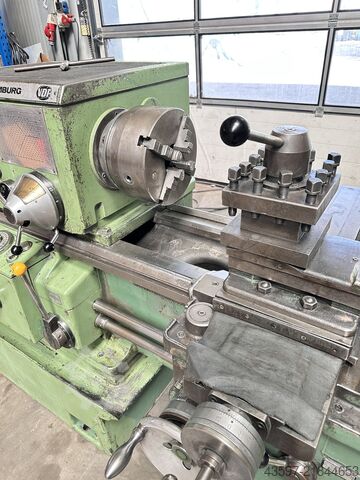

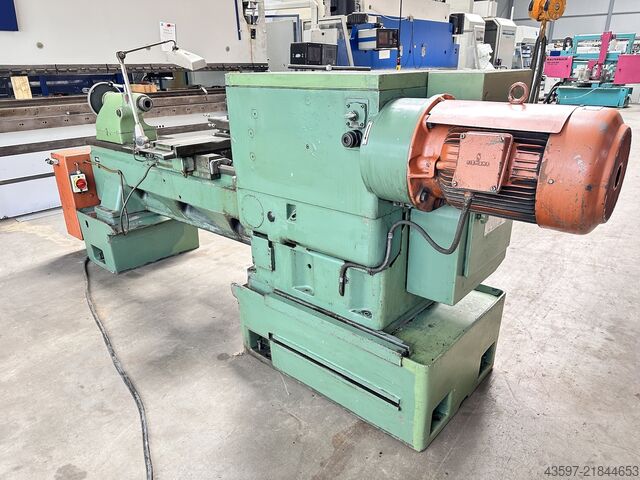

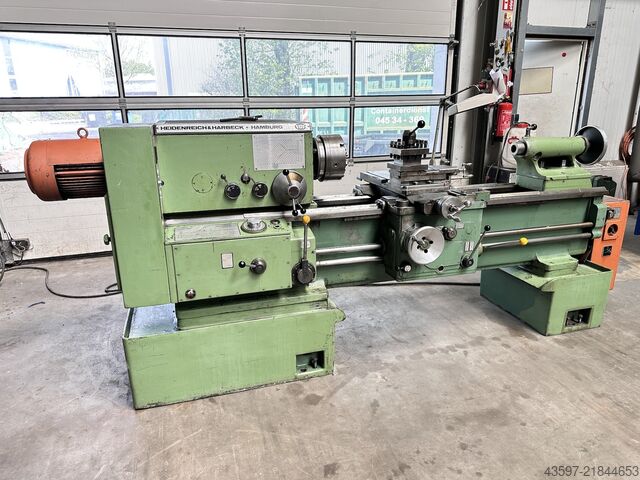

Condition: used, functionality: fully functional, Leadscrew and feed shaft lathe Manufacturer: Heidenreich & Harbeck, Type VDF V3 Technical Data Brand: Heidenreich & Harbeck Type: VDF V3 Year of manufacture: unknown Control: conventional Centre distance: 1000 mm Swing diameter over bed: 520 mm Spindle bore: 63 mm Dimensions: L 3.40 x W 1.10 x H 1.40 m Machine weight: approx. 3.5 t Equipment - 4-jaw chuck Röhm, diameter 250 mm All information provided without guarantee. A power-on demonstration is possible at any time in our showroom. Hedpfxoy Iyzqs Aamonr

Condition: excellent (used), Year of construction: 1978, Machinetype: chain link fence machine Double spiral Manufacturer : WAFIOS Type: VDF80 Hjdpfxsvdtaas Aamonr Constr. year: 1978 wire diameter: 1,6-3,8 mm mesh width: 20-80 mm working width: 2000 mm capacity: 160 m²/h

Condition: good (used), amount 1 STK Heckert Lynette / Safety guard suitable for Heckert machines Hedpfsy Ty Alex Aamsnr

Condition: used, swing diameter 475 mm centre height 510 mm width 110 mm loading area 360x310 mm Hnedpfx Asyqux Ijamjr diameter of quill 80 mm bearing diameter 75 mm Wheel width 36,5 mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, swing diameter 436 mm total power requirement . kW weight of the machine ca. . t dimensions of the machine ca. . m It is a unit price. There are 6 pieces available. The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More Hnsdpfxjyqvxco Aamsr than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Steady rest, steady for lathe, travelling type for mounting on lathe carriage. Centre height: approx. 200 mm. Machining diameter: 90 mm. Steady rest base: 60 x 45 mm, Ø 16 mm. Hole spacing: 208 mm. - 2 adjustable bronze guide shoes. Net weight: 6.5 kg. Good condition. Hedpsxw Rc Ijfx Aamonr
