Used Balance for sale (884)

Condition: new, Dynamic Hard-bearing Balancing Machines of the 9D716 series have originally been designed to meet the needs of a wide range of customers. They are undoubtedly the best solution if you need to balance a wide range of rotor types, weights and sizes. This has led to their use in a wide range of industries. The machines have many unique technical solutions that allow you to set up and balance complex rotors in the shortest possible time without losing the accuracy of the unbalance detection. MACHINE HIGHLIGHTS • The specially designed rollers use advanced patented Exact Barrel grinding technology and are mounted on precision bearings. • The monolithic design of the supports and base eliminates vibration losses during balancing by reducing the number of "oscillating system" elements. • Allows large initial unbalances to be measured without destroying the machine, and rotor unbalance to be corrected directly on the machine. • The low natural resonance frequency of the supports allows the rotor to be balanced at low speeds. • The width of the support rollers and roller block allows the installation of rotors with very short rotor bearing journals. The modular design allows rotors with unusual configurations to be mounted using spacers or tools. • The height of the roller block is adjustable, allowing rotors with different journal diameters to be balanced and the rotor to be centred during machine set-up. • The unique "Micro-Tuning" technology eliminates the effects of axial slippage during rotation. • The belt drive has a patented "long stroke" design that allows any rotor to be rotated using only two drive belts. • The frequency converter drive provides smooth acceleration and deceleration of the electric motor and infinitely variable speed control of the rotor. MACHINE DESIGN OPTIONS • Axial drive that uses a cardan shaft. Capable of transmitting high torque from the electric motor to the rotor. This type of drive is used for parts with high aerodynamic resistance or special design features (e.g. augers). • Drilling module for unbalance correction of the rotor without removing it from the machine. Convenient to use to increase the productivity of the operation. • Extended machine bed. The base of the machine can be made for any length of rotor. In our practice we have had machines for rotors of 12 metres in length. MEASUREMENT AND CONTROL • We make balancing easier - the main advantage of our balancing systems. • The balancing process is displayed in real time and the unbalance behaviour of the rotor is monitored on the screen to achieve the best possible result. • The maximum sensitivity of the machine at any moment of operation, the set-up and calibration of the machine is carried out by the operator himself. • Free from the influence of external vibration factors on the measurement result, it has a high degree of protection against various types of interference. • World-leading functionality and accuracy. SPECIFICATIONS Weight range of balanced rotors 5 - 500 kg Maximum rotor diameter (above the bedding) 1300 mm Diameter of rotor support journals 30 - 180 mm Distance between centres of rotor support journals 200 – 2000 mm Support type Rollers Transmission element for rotor rotation Belt / Cardan Minimum achievable residual specific unbalance 0.4 g.mm/kg Rotor speed range 300 – 1500 rpm Kodsn Hwqvepfx Ai Rsdr Electric motor power 4.0 kW Parameters of the supply network 380V, 3 Ph, 50Hz

Condition: new, Turbocharger core balancing machine DBST-20 Low-speed turbocharger core balancing machine meets the needs of turbocharger repair workshops. Machine is used for balancing common truck and passenger car turbos. It is multi-functional and universal, so it is suitable for many large turbochargers of special vehicles, railroad and marine turbines, and even for industrial turbochargers of gas and diesel power plants. The DBST-20 is used for balancing common truck and car turbochargers. It is multifunctional and universal, so it is suitable for many large turbochargers of special vehicles, railway and marine turbines, and even industrial turbochargers of gas and diesel power plants. This stand allows for the final balancing of cartridges due to the specific design features of large turbines. The stand is used for balancing turbocharger cartridges at low speeds, as well as for checking turbocharger cartridge oil leaks. This is a larger version of the DBST-10 model that our company has developed specifically for large turbochargers weighing up to 30 kg. HIGHLIGHTS High accuracy of determining the unbalance of the rotor (0.4 g ∙ mm / kg). Reinforced torsional vibration suspension - high accuracy of vibration transmission, quality balancing results. Mounting the cartridges on their standard surfaces (as on the engine) allows the installation of almost all turbochargers. Wide range of accessories and adapters for installing any kind of turbos. Includes adapters for installing turbochargers with lower oil inlet. Ksdsn Nxcfopfx Ai Rsdr Oil system with oil heating allows to recreate similar conditions to the real one during balancing. 3-stage system of oil filtration allows to eliminate an unbalance directly on the machine by portable grinders. The measuring system displays the balancing process in real time and monitors the rotor unbalance behaviour on the screen to achieve the best possible result. Rotor adjustment and machine calibration are performed by the operator, ensuring maximum machine sensitivity at all times. Safe turbo shaft speed allows risk-free quality running-in of assembled cartridges, which significantly increases cartridge reliability after repair. KEY FEATURES • High accuracy 2 plane balancing • Truck and car turbocharger balancing • Any turbocharger can be installed • All type turbocharger adapters included • Quick and easy turbo core installation • Balancing speed up to 10 000 rpm • Fast oil heater and temperature regulation • 3-stage oil filtration • Real-time unbalance measurement • Calibration of the machine by the operator • Industrial fanless touch screen PC control system • Creation and printing of reports on turbocharger balancing SPECIFICATIONS Maximum turbocharger weight 30 kg Maximum turbocharger diameter 300 mm Maximum turbocharger length 300 mm Maximum rotation speed 10 000 rpm Minimum achievable residual specific imbalance, 0,4 g mm/kg Pneumatic system operating pressure 0,6 – 0,8 MPa Power supply 220V, 1Ph, 50Hz Power input 1,5 kW Dimensions 1120 х 780 х 1350 mm Weight 285 kg

Condition: new, workpiece weight (max.): 10,000 kg, rotor diameter: 2,500 mm, Horizontal soft-bearing Balancing machines 9K719 with load capacity from 100 to 10000 kg are designed for high-precision balancing of rotors of electric motors, pumps, compressors, blowers and exhausters, gearboxes, turbines of power engineering. Self-aligning rollers ensure proper rotor alignment, simplifying setup and reducing balancing time. Combined Drive System has a unique configuration with two axial drives and a belt drive mounted on a single bed. Overall, this machine is highly versatile and effective in balancing various types of rotors, making it ideal for repair and production shops. HIGHLIGHTS • Soft-Bearing System: This system ensures linear sensitivity across the entire speed range during balancing. The result is exceptionally high balancing accuracy, achieving up to 0.04 g·mm/kg across all rotor mass ranges. • Self-Aligning Roller Cassette automatically adjusts to the rotor along two axes, eliminating the need for precise centering. This design reduces machine setup time and, consequently, the overall time required for balancing. • Wide Contact Area Rollers: The cylindrical rollers provide a broad contact surface, preventing scoring or deformation of the rotor's support surfaces. This is crucial when balancing heavy rotors for extended periods, minimizing the risk of damage due to prolonged contact or improper loading. • Combined Drive System: Rotors of relatively low mass can be driven by “belt drive”, which makes the machine more versatile and allows balancing a very wide range of parts. Heavy rotors are rotated by "axial drive" using a cardan shaft. Ksdpfjwdgptjx Ai Rodr • Rotor Jacks: Specialized loading devices can be integrated to ensure smooth and precise rotor placement onto the roller supports. This minimizes the risk of damage to the delicate roller assembly, particularly when handling heavy or sensitive rotors. • High balancing accuracy due to automatic calibration of the balancing machine directly for each rotor by determining the influence coefficients. Its ease of use, high measurement accuracy, and integrated specialized features enable balancing professionals to achieve outstanding results in the shortest possible time. • The frequency converter drive provides smooth acceleration and deceleration of the electric motor and infinitely variable speed control of the rotor. • No need for special foundations and vibration isolation, no need to fix the machine to the floor. SPECIFICATIONS Weight range of balanced rotors 100 - 10'000 kg Maximum rotor diameter (above the bedding) 2500 mm Distance between centres of rotor supports 400 – 5600 mm Support type Rollers Transmission element for rotor rotation Belt / Cardan Minimum achievable residual specific unbalance 0.4 g*mm/kg Rotor speed range 300 – 1000 rpm Electric motor power 30 kW Parameters of the supply network 380V, 3 Ph, 50Hz Do you need a machine for a different load capacity, diameter or length? We manufacture balancing machines for every needs. Please contact us to get the best offer! 👇

Condition: new, workpiece weight (max.): 3 kg, rotor diameter: 400 mm, rotor length: 300 mm, High-Precision Rotor Balancing for Small Batch Production. The 9A710 balancing machine excels at balancing various rotor designs up to 3 kg. Its exceptional accuracy and high sensitivity allow you to detect and correct even the slightest imbalances. This makes it ideal for single-piece and small-batch production, ensuring smooth operation of your rotors. Key benefits: • High precision: Detects minute imbalances for optimal performance.   • Wide application: Handles diverse rotor designs within the weight limit.   • Simple & reliable: User-friendly design ensures long-term operation. • Increased productivity: Streamlines balancing processes in small-scale settings. Originally designed for small-batch production, the 9A710's versatility makes it a valuable asset in repair shops as well. This machine is perfect for balancing: • Small motors & generators • Shafts for various mechanisms • Impeller fans & pumps • Precision machine tool components • Rotating drive elements ! Upgrade your balancing capabilities and achieve exceptional results with the 9A710. SPECIFICATIONS Weight range of balanced rotors 0.03 - 3 (5) kg Maximum rotor diameter (above the bedding) 400 mm Distance between centres of rotor supports 4 – 300 mm Support type Prisms Transmission element for rotor rotation Belt Minimum achievable residual specific unbalance 0.1 g*mm/kg Rotor speed range 600 – 3000 rpm Electric motor power 0.09 kW Parameters of the supply network 220V, 3 Ph, 50Hz Do you need a machine for a different load capacity, diameter or length? Kodju Urwgjpfx Ai Rsdr We manufacture balancing machines for every needs. Please contact us to get the best offer! 👇

Condition: ready for operation (used), Elaso EB 5004 Eltrobalance balancing unit with key, without connection cable, serial number: 11-850, used, good condition, 100% functional, scope of delivery as shown in the photos. Kjdpfxex Eq I Ns Ai Rodr

Condition: ready for operation (used), Elaso EB 5003 Eltrobalance balancing unit with key, without connection cable, serial number: 11-850, used, in good condition, 100% functional, scope of delivery as per photos. Kedex Eq I Aopfx Ai Rsdr

Condition: used, Year of construction: 2007, Technical data: Kdsdpfx Aior Dg Hzs Rsr Cable extension: 2000 mm Lifting height: 2000 mm Load capacity: 22 - 32 kg Weight: 13.5 kg Description: - Secure suspension of device and supply cable - In a “weightless” state - Constant tensile force - Tear-resistant steel cable

Condition: excellent (used), 3-phase follow-up controller for asymmetrical load (current controller for constant voltage) Additional data: see photos of the nameplates Kdjdpfextu Tijx Ai Rsr

Condition: good (used), Year of construction: 2002, LANDIS 3SE 14"x 60"ANGLEHEAD CNC GRINDER REBUILT BY LANDIS & TOOLED 2002 Equipped with: NEW FANUC CONTROL 2007 2-Axis Template Truform Servo Step Profile 30 Degree 30" Wheel Kdedpfortr Easx Ai Rsr Dead Headstock Table Traverse Marposs E39 Marposs Table Gauge Lateral Locator 3-Gauge TIR Gauge Steady Rests Wheel Balance Servo Motor-Traverse Stepping Motor Mist Collector Specifications: Swing: 14" Center Distance: 60" Motor: 1200 rpm Motor Pulley Diameter: 7.031" Spindle Pulley Diameter: 6.5" New Wheel Diameter: 30" Worn Wheel Diameter: 22" Max. Wheel: 8500 sfpm Max. Workhead: 333rpm X-Axis Ball Screw Pitch: 5mm per rev. X-Axis Total Stroke: 14.74" X-Axis Motor Pully Wheel Feed Diameter: 3" X-Axis Ball Screw Pulley Diameter: 3" Z-Axis Ball Screw Pitch: 10mm per rev. Z-Axis Total Stroke: 72.88" Z-Axis Motor Pulley Diameter: 3" Z-Axis Ball Screw Pulley Diameter: 6" Total Stroke: +/-2mm Total Marposs Voltage Output: =/-10vdc Dresser One Revolution of the Stepping Motor: .045" Diamond One Revolution of the Stepping Motor: .005" Weight: 25,000 lbs.

Condition: new, Year of construction: 2024, functionality: fully functional, machine/vehicle number: M22-0012, mandrel length: 1,800 mm, mandrel diameter: 1,500 mm, type of input current: AC, total width: 1,800 mm, roll diameter: 1,500 mm, overall weight: 3,000 kg, product width (max.): 1,800 mm, input voltage: 480 V, General Features The single-shaft slitter rewinder uses independent presses for accurate, safe rewinding. Unwinder A shaft-less unwinder allows floor-level reel loading and dual rotation directions. Pneumatic-mechanical chucks secure the reels. Rollers and Alignment Aluminum rollers enhance durability and lightness. An automatic web aligner centers the master reel using edge detection. Tension and Cutting Control AC motors, load cells, and diameter calculation control unwind tension. The shear-type cutting group features 14 circular blades with pneumatic supports and has a quick-change counter-blade shaft. Curved rollers and suction nozzles manage cut separation and scrap removal. Rewinding Presses and Holding Steel, molybdenum-coated presses ensure longevity. Motorized tips enable automatic reel positioning. Rewinding Control A steel pressure roller—pneumatically operated with a proportional valve—sets pressure. Rewinding torque is managed via operator panel controls. A pneumatic clamp and two AC motors balance tension. Discharge and Safety Systems A hydraulic shovel and pusher facilitate reel discharge. The area is secured by a safety barrier. Kdsdpoy Ufgrefx Ai Rjr Control and Automation System AC motors and vector drives (SIEMENS) with proprietary software handle diameter calculation and torque control. All functions are accessible via a touch terminal with PLC communication.

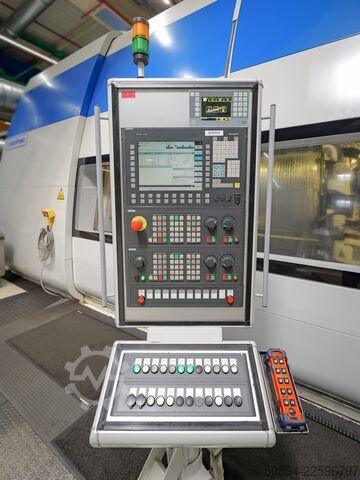

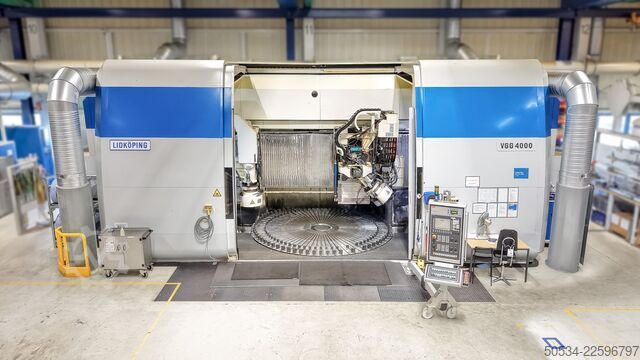

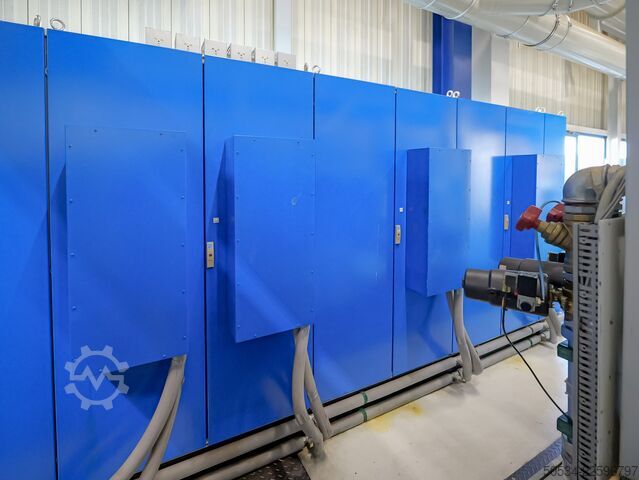

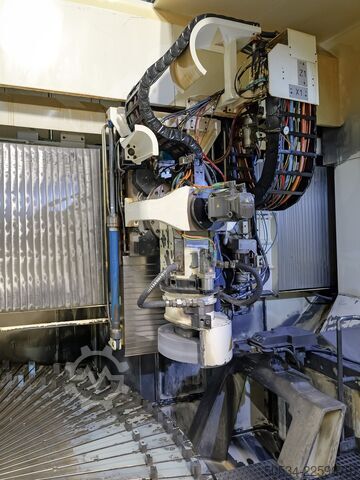

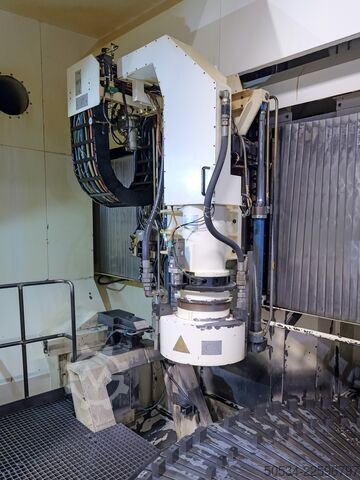

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Machining diameter: 4,200 mm Machining height: 550 mm Diameter of magnetic chuck: 4,000 mm Max. speed of rotary table: 13 min-1 Control system: SIEMENS SINUMERIK 840D PL RIGHT GRINDING HEAD Swiveling range, external: 50° Swiveling range, internal: 47° Max. grinding wheel diameter: 610 mm Max. grinding wheel height: 255 mm Max. workpiece height: 550 mm Travel – X: 2,820 mm Travel – Z: 820 mm Rapid traverse X + Z axes: 10,000 mm/min LEFT GRINDING HEAD Max. grinding wheel diameter: 610 mm Kdedpfezvxg Sex Ai Rsr Max. grinding wheel height: 255 mm Max. workpiece height: 540 mm Travel – U: 2,870 mm Travel – W: 790 mm Rapid traverse U + W axes: 10,000 mm/min GRINDING WHEEL MAGAZINE Right magazine: Number: 5 Left magazine, number: 4 DIMENSIONS AND WEIGHTS Machine weight: approx. 143,000 kg Machine dimensions (L x W x H): approx. 13,400 x 8,945 x 4,250 mm ACCESSORIES - Automatic grinding wheel changer, left (4) & right (5) - Automatic dressing unit for both grinding heads, MARPOSS P7 - Various grinding wheels and arbors - Oil mist emulsion extraction system - Automatic balancing device - Hydrostatic guidance in all machining axes DESCRIPTION The machine is in exceptionally good condition and has only been used for the highly precise finishing of large bearings for offshore wind turbines. The machining process included grinding the inner and outer diameters, as well as the highly precise raceways of the rolling bearings. The machining results achieved demonstrate the machine's outstanding performance. Inner and outer diameters with a workpiece diameter of up to 4,000 mm were ground within a tolerance of ±20 µm. A profile accuracy of 2–3 µm was achieved for the raceways.

Condition: good (used), functionality: fully functional, “Steinert NES 150 220 E 5009” for Sale Manufacturer: Steinert Kdjdpfx Aiszvbvis Rer Type: NES 150 220 E 5009 Belt widthness: 1.500 mm (New belt) With new control-unit. Overhauled, balanced, sandblasted and painted.

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, turning diameter: 1,270 mm, spindle speed (max.): 6,000 rpm, spindle speed (min.): 5 rpm, spindle motor power: 30,000 W, rotational speed (min.): 5 rpm, rotational speed (max.): 6,000 rpm, total height: 5,000 mm, total length: 8,000 mm, workpiece weight (max.): 6,000 kg, torque: 190 Nm, overall weight: 22,000 kg, spindle nose: HSK100, Equipment: documentation/manual, rotational speed infinitely variable, For sale is a high-quality CNC carousel turning, drilling, and milling center from the German manufacturer Konrad Seidler from Neuss – Holzheim, model: MINIMAX 1800, manufactured in 2013. The machine comes from its first owner and was used in a single-shift operation in our own production facility. After the commissioning of a new manufacturing solution, the machine was decommissioned, extensively overhauled, and has only been used to a limited extent since then. The machine is in fully functional, operational, and regularly maintained condition. An inspection and a test run under power can be arranged at any time. It is particularly worth mentioning the extensive general overhaul of the drilling/milling spindle in 2025, which brought a major wear component of the machine back to as-new condition. Highlights: • Turning, drilling, and milling center in one machine • Year of manufacture: 2013 • Siemens 840D SL CNC control • SINAMICS 120 drive technology • Tool changer with 16 positions • HSK100 tool holder • Faceplate load: 6,000 kg • Faceplate speed: 5–500 rpm • Milling spindle up to 6,000 rpm • High-pressure coolant system: 30 bar • Chip conveyor • Walk-in work area • First owner • Extensive documentation available • Available for immediate delivery General Overhaul 2025 In 2025, the installed Capellini high-performance spindle (HSK100, 6,000 rpm) was completely overhauled by a specialist company (Deuschle). Excerpt of the work performed: • Measurement of all components on a measuring machine • Renewal of precision bearings (FAG / SKF / GMN / NSK) • Renewal of the HSK100 clamping system • Replacement of Balluff sensors • Refurbishment of the spindle shaft using laser welding and grinding • Renewal of all wear parts • Fine balancing according to ISO 1940 • System balancing of the complete spindle assembly • Adjustment of the bearing intermediate rings • Final acceptance including test report Technical Data Control: Siemens 840D SL Drives: SINAMICS 120 Turning diameter: 500–1,270 mm Faceplate load: 6,000 kg Faceplate speed: 5–500 rpm Drilling/milling spindle: 30 kW Kodpjzhlbmsfx Ai Redr Torque: 190 Nm Drilling/milling spindle speed: 2–2,500 rpm (max. 6,000 rpm) Tool holder: HSK100 Tool changer: 16 tools Coolant system: 6 bar / 30 bar high pressure Chip conveyor: Cross conveyor, discharging to the left Discharge height: 1,200 mm Machine weight: approx. 22,000 kg Enclosure: Double sliding door, walk-in work area Documentation available: • Operating manuals • Installation documents • Electrical diagrams (partly) • Documentation of machine components • Documents for the control system • Documents for the chip conveyor • Other original documents from commissioning Sale ex works, excluding loading. The buyer organizes the truck crane and the transport. If you have any questions or need more information, please send us a message or call us.

Condition: ready for operation (used), Year of construction: 2021, operating hours: 280 h, spindle speed (max.): 5,000 rpm, travel distance X-axis: 165 mm, travel distance Y-axis: 50 mm, travel distance Z-axis: 700 mm, spindle motor power: 11,000 W, controller manufacturer: FANUC, number of axes: 4, This 4-axis Hyundai Wia LM 1800TTSY horizontal turning machine was manufactured in 2021. It features a slant bed lathe with main and counter spindle, two turret heads, and Y-axis with driven tools. Equipped with a Fanuc F31i A control, it supports a turning diameter of 230 mm and a length of 673 mm. If you are looking to get high quality turning capabilities consider the Hyundai Wia LM 1800TTSY machine we have for sale. Contact us for more information. Additional equipment • USB interface • Three-colour signal light • 1 set of soft jaws • CHIP CONVEYOR HS with lateral ejection • Transformer incl. cable • Manual compressed air gun • Bar feeder interface // Bar loader interface • Parts catcher main spindle • Parts unloader: Parts unloading system for the counter spindle incl. parts conveyor belt • Workpiece ejector / Workpiece drm: 230 mm / Workpiece X: 673 mm Machine Benefits Technical Machine Benefits • Linear (z) and flat-guided (x/y) 45 degree • Turning Ø: 230 mm // turning length: 673 mm • Chuck size both spindles: 8 inch (~210 mm) • Turret c-axis, 0. 001° // turret y-axis, +- 50 mm - upper turret • Driven tools: 5000 rpm, 5. 5 kw • 1 x axially driven tools // 1 x radial driven tools • Automatic tool probe • Coolant tank 270 litres // standard coolant nozzle • Internal cooling 30 bar • 30 bar coolant pump (60hz) Extra Information Strongly reduced interference contour Better workpiece accessibility Workpiece stabilization through axial pull against workpiece stop Chuck Type: SPANNTOP mini Chuck Model: Axzug Chuck Size: 65 Short Taper Standard: DIN ISO 702-1 Kdjdpfx Aijzvv Dzj Rer Short Taper Size: Size 6 Length of Clamping Device: 155.00 mm Frontal Diameter: 111.00 mm Maximum Outer Diameter: 165.00 mm Clamping Position: 65.00 mm Clamping Device Thread: M102x1.5 Basic Stop Design: Clamped Actuation Type: Power-actuated Additional Chuck Options: Yes Front Stop Mounting: Yes Balance Quality: 4.0 Pull Tube Adapter according to Drawing For Clamping Device [ZCHN]: A054288.0009C Connection [of Clamping Device]: Internal Thread Clamping Device Thread Designation: M102x1.5 Clamping Device Thread Length: 17.00 mm Thread Position Clamping Device: 65.00 mm Maximum Actuation Force: 65.00 kN Machine Manufacturer: Hyundai WIA Machine Designation: LM1800TTSY-HSP Connection [of Pull Tube]: External Thread Thread Designation: M74x1.5 Thread Length: 40.00 mm Front Position Pull Tube: 57.50 mm Stroke of Clamping Cylinder: 17.50 mm Spindle Bore Diameter: 76.00 mm Pull Tube Inner Diameter: 66.00 mm SPANNTOP mini Axfix 65 KK6 Chuck Type: SPANNTOP mini Chuck Model: Axfix Chuck Size: 65 Short Taper Standard: DIN ISO 702-1 Short Taper Size: Size 6 huck Type: SPANNTOP mini Chuck Model: Axfix Chuck Size: 65 Short Taper Standard: DIN ISO 702-1 Short Taper Size: Size 6 Length of Clamping Device: 138.00 mm Frontal Diameter: 119.00 mm Maximum Outer Diameter: 167.00 mm Clamping Position: 50.00 mm Clamping Device Thread: M94x1.5 Basic Stop Design: Clamped Actuation Type: Power-actuated Additional Chuck Options: Yes Front Stop Mounting: Yes Balance Quality: 4.0 Pull Tube Adapter according to Drawing For Clamping Device [ZCHN]: A071618.0004C Connection [of Clamping Device]: Internal Thread Clamping Device Thread Designation: M94x1.5 Clamping Device Thread Length: 17.00 mm Thread Position Clamping Device: 50.00 mm Maximum Actuation Force: 45.00 kN Machine Manufacturer: Hyundai WIA Machine Designation: LM1800TTSY-GSP

Condition: used, Seven Pfaff industrial sewing machines are available. 1) 2 × Pfaff 1183 industrial sewing machines, one with drive and one without drive, stitch type: lockstitch 301, needle system: DBx1/134R, needle size: 60Nm-90Nm, max. stitch length: 4.5mm, max. sewing speed: 5500stitches/min, needle bar stroke: 32mm/36mm, presser foot clearance: 9mm-13mm, working space X/Y: 260mm/125mm, sewing head dimensions X/Y/Z: approx. 550mm/180mm/300mm, sewing head weight: approx. 30kg. 2) Pfaff 563 industrial sewing machine with drive, stitch type: lockstitch 301, max. sewing speed: 5500stitches/min, max. stitch length: 3.5mm/4.5mm, needle system: 134, needle size: 60Nm-100Nm, needle bar stroke: 33mm, balance wheel diameter: 65mm. 3) Pfaff 134 industrial sewing machine without drive, single-needle flatbed version with horizontal rotary hook, needle system: 134, working space X/Y: 295mm/140mm, max. sewing speed: approx. 3150stitches/min, forward and reverse sewing possible. 4) 3 × Pfaff 463 industrial sewing machines. In total, five machines with drive and two machines without drive are available. An on-site inspection is possible. Kdsdpfx Aozvy E Nsi Ror

Condition: new, Perfectly built to optimise grinding and accuracy efficiency. Auto cross with hydraulic longitudinal. Manual vertical axis. Table longitudinal travel by sensor and solenoid valve - continuous lubrication. Specification Perfect D4080AH Saddle type surface grinder Table size 400 x 800mm Max. Grinding surface 400 x 800mm Max. distance centre of spindle to table 500mm (Option: 650mm) Table speed 5 ~ 25m/min Table guideway V & Flat way Auto. Cross feed increment approx. 0.5mm ~ 20mm Rapid power cross feed approx. 1100mm/min (60Hz) 900mm/min (50Hz) Cross feed on hand wheel 1 rev 5mm 1 gra 0.02mm Rapid power head elevation 550mm/min (60Hz) 450mm/min (50Hz) Vertical feed with MPG 1 rev 2mm 1 gra 0.01mm Auto down feed (Option) 0.001mm ~ 0.999mm/time Wheel speed 60Hz/50Hz 1750rpm (60Hz) 1450rpm (50Hz) Wheel dimensions 406 x 50 x 127mm Spindle motor 5HP Hydraulic pump motor 2HP Auto. Cross feed motor 1/5HP Standard Equipment Grinding wheel and wheel flange Flange extractor Wheel balancing arbor and base Wheel dresser with diamond Levelling screws and plates Tool box and tools Working light Manual AD5 Automatic downfeed control Magnetic chuck and demagnetiser Kdodpfx Aijnzh Uio Rsr Coolant system with paper filter

Condition: ready for operation (used), Year of construction: 1988, functionality: fully functional, Stationary reciprocating compressor with a balanced horizontal configuration. Three-stage, double-acting design with intercooler, crossheads and circulating-water cooling. Capacity: 17.88 m³/min. Discharge pressure: 16 bar. Speed: 721 rpm. Crankshaft power input: 199.4 hp. Serial No.: 21968. Kdedszvcfropfx Ai Ror

Condition: used, Year of construction: 2007, Working area: 2780 x 1140 mm (vertical milling) 2500 x 950 mm (horizontal drilling) X-Y travel: 2980 x 1271 mm Z-axis travel: 200 mm Passage height: 180 mm The structure of the base body is a monolithic construction made of thick-walled steel. It is stiffened by welded triangular plates across the entire machine bed, making it extremely stable. The triangular shape used for load-bearing parts, with a large base, is the secret to ensuring lasting precision and stability. The machine layout allows the user optimal workflow despite minimal space requirements. The base body constructed in this way therefore offers the machining unit a balanced and secure base with particularly good load distribution. The mobile unit carrier is made of a solid monoblock. It is positioned in the X direction on prismatically ground guides via recirculating ball slides. On this mobile unit carrier, the working unit is mounted on prismatic, ground guides and the recirculating ball slide. Description of the units and accessories (basic) Drilling unit: Drilling head with 10 + 4 spindles · 6 individually accessible vertical spindles in X · 4 individually accessible vertical spindles in Y · 2 horizontal spindles in X (1 + 1) · 2 horizontal spindles in Y (1 + 1) · Speed: 4,000 rpm · Power: 2.2 kW · Grid: 32 mm · Drill chuck: M 10 with 11 mm fitting · Extraction nozzle: D = 160 mm Vertical milling unit (position 2) · Tool chuck HSK 63F · Speed 1,500 - 24,000 rpm continuously adjustable via inverter · Motor power 4.4 kW (6 HP) from 12,000 rpm (S1) · Right-hand / left-hand rotation · Ceramic bearings · Scope of delivery: 4 tool chucks (right) without collet chuck · Tool changer · Side-mounted tool magazine 7-way (TR7) with full encapsulation to prevent chipping · 7 tool positions for HSK 63F tool holder arranged in a row · maximum tool diameter D=120 mm · maximum weight per holder 4.5 kg · maximum tool weight of all tools 20 kg (TR7) · angular gears can be accommodated Horizontal milling unit (position 1) Horizontal unit with two opposite outputs for milling and grooving. · Speed 9,000 - 18,000 rpm continuously variable via inverter · 1 output for collet 3-20 mm (ER 32) · 1 output for saw/collet 3-12 mm (ER20) (For saw D = 120 mm / bore 50 mm) · Motor power 3 kW (4 HP) · Max. tool diameter front milling: 20 mm · Max. tool length front milling: 110 mm · Max. tool diameter rear milling: 12 mm · Max. tool length rear milling: 80 mm · Max. saw blade diameter: 100 mm · Bore saw blade (ER 32): 50 mm · Mandrel diameter saw blade (ER 20): 12 mm Work table The work table is designed to guarantee the operator maximum freedom of movement. The vacuum quick clamping system ensures maximum flexibility with precise positioning and optimal grip of the workpieces. · 4 supports 900 mm continuously adjustable in X · 8 vacuum suction cups round D = 110 mm continuously adjustable in Y (2 per support) · 2 stops in X (1 x left / 1 x right) · 1 stop in Y per support (total 6) · The retractable reference stops are controlled via CNC. · Scope of delivery: 4 plug-on adapters for suction cups · Pendulum machining standard (2 working areas) Axis movement The drive system in X, Y and Z is carried out via ground ball screws of the highest precision class. The ball drive screw of the X-axis is located exactly in the center Kdodsx Twdyepfx Ai Rjr

Condition: used, Year of construction: 2006, * Work area: 2,650 x 1,240 mm * X-Y travel: 2,995 x 1,385 mm * Z-axis travel: 200 mm * Clearance height: 180 mm C-axis deactivated - 3-axis machine The structure of the base body is a monolithic construction made of thick-walled steel. It is reinforced throughout the machine bed by welded triangular plates, making it extremely stable. The triangular shape used for the supporting parts, with a large base, is the key to long-lasting precision and stability. The machine's layout allows the user an optimal workflow despite minimal space requirements. The base body, constructed in this way, provides the machining unit with a balanced and secure base with particularly good load distribution. The mobile unit carrier is made from a solid monoblock. It is positioned in the X-direction on prismatically ground guides via ball screw slides. The machining unit is, in turn, attached to the mobile unit carrier on prismatic, ground guides and the ball screw slide. Description of units and accessories (base) Drilling unit: Drilling head with 12 + 6 spindles * 7 individually selectable vertical spindles in X * 5 individually selectable vertical spindles in Y * 4 horizontal spindles in X (2+2) * 2 horizontal spindles in Y (1+1) * Speed: 4,000 1/min * Power: 2.2 kW * Grid: 32 mm * Drill chuck: M 10 with Morse taper No. 11 Nut saw unit in "X": * Integrated in the drilling head * Nut saw blade with a diameter of up to max. 120 mm Main milling unit (Position 2): * Tool holder HSK 63F * Speed 1,500 - 24,000 1/min, stepless via inverter * Motor power 4.4 kW (6 hp) from 12,000 1/min (S1) * Motor power 6.6 kW (9 hp) from 12,000 1/min (S6) * Right/left rotation * Ceramic bearings * Scope of supply: 4 pcs. tool holder (right) without collet Tool changer R8L Automatic tool changing device for 8 tools. Mounted on the rear unit carrier for quick access to the tools. * Number of tool positions: 8 * Max. tool diameter: 120 mm * Max. weight per tool: 4.5 kg * Max. total weight of all tools: 22 kg * Holder for 1 angular gear * Mounted and moving in X Horizontal milling unit (Position 1) Horizontal unit with two opposite outlets for milling and grooving. * Speed 9,000 - 18,000 1/min, stepless via inverter * 1 outlet for collet 3-20 mm (ER 32) * 1 outlet for saw/collet 3-12 mm (ER20) (For saw D=120 mm / bore 50 mm) * Motor power 3 kW (4 hp) * Max. tool diameter, front milling: 20 mm Kdodpfxjx Twcce Ai Ror * Max. tool length, front milling: 110 mm * Max. tool diameter, rear milling: 12 mm * Max. tool length, rear milling: 80 mm * Max. saw blade diameter: 100 mm * Bore in saw blade (ER 32): 50 mm * Arbor diameter, saw blade (ER 20): 12 mm Work table The work table is designed to guarantee the operator maximum "freedom of movement". The vacuum quick-clamping system offers maximum flexibility with precise positioning and optimal workpiece clamping. * 6 supports 1000 mm, stepless pneumatically adjustable in X * 12 vacuum suction cups, round D = 110 mm, steplessly adjustable in Y (2 pcs. per support) * 2 stops in X (1 x left / 1 x right) * 1 stop in Y per support (total 6 pcs.) * The retractable reference stops are CNC-controlled * Pendulum machining standard (2 working areas) --- other clamping systems are available as optional extras --- Axis movement The drive system in X, Y and Z is via ground ball screws.

Condition: excellent (used), Year of construction: 2005, operating hours: 38,388 h, functionality: fully functional, machine/vehicle number: 019.3784, workpiece weight (max.): 130 kg, grinding length: 1,000 mm, total width: 1,970 mm, total length: 2,735 mm, total height: 1,700 mm, quill travel distance: 35 mm, quill stroke: 35 mm, quill diameter: 50 mm, distance between centers: 1,000 mm, type of input current: AC, spindle speed (max.): 2,110 rpm, spindle speed (min.): 1,670 rpm, grinding spindle speed: 2,110 rpm, overall weight: 3,400 kg, input frequency: 50 Hz, input voltage: 400 V, workpiece spindle speed (max.): 1,000 rpm, STUDER S30-1, manufactured in 2005, machine no. 019.3784 – universal cylindrical grinding machine, hydraulically controlled, for between-centers grinding and external grinding. Well-maintained, original condition, no indication of damage or weld repairs. Included: Original operating manual from Fritz Studer AG (DE/EN/FR, including spare parts catalog and noise measurement report) and EC declaration of conformity, both issued for this machine number. According to this factory documentation, it is the version with a center distance of 1,000 mm. EQUIPMENT - Grinding spindle with external grinding wheel on the left, Ø 400 x 80 x Ø 127 mm, hydrodynamic plain bearings, mounting taper Ø 63 mm - Workpiece spindle, swiveling 0-90°, MK 5, collet chucks W-25, 30-1,000 min-1 continuously variable via frequency converter - Three-jaw chuck mounted, drive for between-centers grinding, centering point in the tailstock - Tailstock MK 3, quill stroke 35 mm, adjustable spindle pressure, fine adjustment for roundness ± 40 µm - Adjustable dressing device on the tailstock (dressing by hand; diamond is a wear part) - Digital display Sony LD10 on swivel arm - Hydraulic unit Wandfluh (CH), coolant supply with filtration and aerosol extraction Ksdpfxezu T Afe Ai Rodr - Machine bed made of mineral cast Granitan S103 - 8 grinding wheel mounting flanges, including one balancing flange IMPORTANT – WHAT IS NOT INCLUDED This machine does NOT have an internal grinding attachment, NO belt spindles, and NO in-process measuring control. The series is prepared for these at the factory, but none of them are installed on this machine; available as accessories from STUDER. Grinding wheels are also not included in the scope of delivery. We only describe what we can document photographically. TECHNICAL DATA (according to the operating manual for this machine) - Center distance 1,000 mm, clamping length 1,030 mm, table stroke 1,050 mm - Max. workpiece weight between centers 130 kg, table swivels 8.5° - X: Rapid traverse 60 mm, plunge depth 3.4 mm in Ø, feed rate 0.012-6 mm/min, incremental feed from 0.001 mm - Z: 50-5,500 mm/min, smallest automatic table stroke 1.5 mm - Grinding spindle 1,670 / 2,110 min-1; machine's power rating: max. 35 m/s, wheel up to Ø 400 mm at 1,671 min-1, up to Ø 316 mm at 2,114 min-1 - Automatic hydraulic grinding cycle: rapid approach, feed 1 and 2, sparking 0-6 s, automatic shut-off - Guaranteed working accuracy (factory specification): straightness 0.0025 mm over 400 mm, 0.004 mm over 650 mm; roundness in external grinding 0.0003 mm - Operating hours 38,388.5 h; connection 400 V / 50 Hz, max. 13 kVA, air 5 bar; noise level ≤ 75 dB(A) - Weight approx. 3,500 kg (factory brochure, 1,000 mm version), footprint approx. 2,735 x 1,970 mm - Center height: will be remeasured and confirmed upon request CONDITIONS Location: 16727 Velten near Berlin. Machine packed on a wooden pallet, delivery 1-2 working days after payment receipt. FCA Velten (Incoterms 2020), loading onto your truck by our staff included. Payment: 100% advance payment. Inspection possible with short notice by appointment. Demonstration and test grinding only by appointment: the machine is disconnected, setup will be carried out by an external service provider; we will agree on the effort and costs in advance. Technical data according to manufacturer's documents and the included operating manual are provided as information; we will confirm individual values during the inspection or upon request. Offer subject to

Condition: used, Year of construction: 2020, controller manufacturer: Sonstige, controller model: WEISS CNC, _____ Description: Year of manuf. : 2020 Control : Sonstige WEISS CNC Centre width : 650 mm In Generel: ear of construction:2020 Control system:WEISS CNC Centre width:650 mm Centre height:200 mm Grinding wheel dimensions:400x60 mm + 500x60 mm Workpiece headstock: Speed:10 -650 rpm Workpiece weight max.:250 (100) kg Sanding diameter max.:390 mm Mounting:MK4 Grinding headstock: Peripheral speed:20 - 50 m/s Grinding disc dimensions right:500 x 60 mm Grinding disc dimensions left:400 x 60 mm X-axis:380 mm Z-axis:700 mm Kdedozvt Iqopfx Ai Ror B-axis:torque motor, infinitely variable Tailstock: Pinole diameter:50 mm Pionole stroke:45 mm Mounting:MK 4 Cylinder fine adjustment:+/- 0.04 mm Equipment: Positioning sensors:Direct scales Grinding spindles:2x grinding spindle (left/right) GAP / Crash Controll:Structure-borne sound (Sensotronik) Balancing:MPM balancing device Workpiece measurement:Marposs PF ME Automation:Robot interface prepared Set-up mode:Electronic handwheel Emulsion mist separator:Mechanical Dresser:For external grinding wheel left/right Accessories:Various grinding discs + flanges

Condition: used, mileage: 85,999 km, power: 78 kW (106.05 HP), first registration: 02/2012, fuel type: diesel, empty load weight: 2,535 kg, maximum load weight: 985 kg, overall weight: 3,500 kg, axle configuration: 4x2, wheelbase: 3,750 mm, fuel: diesel, color: yellow, driver cabin: other, gearing type: automatic, emission class: euro4, suspension: other, total length: 6,783 mm, loading space length: 4,300 mm, loading space width: 2,000 mm, loading space height: 2,100 mm, Year of construction: 2012, construction height: 2,770 mm, Equipment: ABS, central locking, immobilizer system, onboard computer, soot filter, The Iveco Daily 35 S11 C30C offers a robust transport solution and is especially suited for commercial use. Built in 2012, with only 85,999 km on the clock, it features a reliable 2,287 cc diesel engine producing 78 kW (106 hp). The vehicle features an automatic transmission, which further enhances driving comfort. Thanks to its yellow paint finish and green Euro 4 environmental sticker, it can also be used in urban environmental zones. Particularly noteworthy are the summer box body with integrated shelving system and the rear air suspension, which ensure a balanced ride and stable transport. The rearview camera assists the driver during maneuvers. The van is equipped with an emergency seat, underscoring its versatility. The dimensions are 6,783 mm long, 2,177 mm wide, and 2,770 mm high, with a wheelbase of 3,750 mm. With a gross vehicle weight of 3,500 kg, the Iveco Daily is ideal for transporting medium-heavy goods. The vehicle is categorized as a used vehicle, has a previous registration and one previous owner. It is meticulously maintained and offers Kdedpfxjuftwpo Ai Ror numerous loading options to meet business needs. Viewings are possible at any time during the stated opening hours. Sale only to commercial customers (agriculture, freelancers, small and large businesses) or for export. Errors and prior sale excepted.

Condition: used, mileage: 123,759 km, power: 78 kW (106.05 HP), first registration: 09/2012, fuel type: diesel, empty load weight: 2,535 kg, maximum load weight: 965 kg, overall weight: 3,500 kg, axle configuration: 4x2, wheelbase: 3,750 mm, next inspection (TÜV): 07/2026, fuel: diesel, fuel consumption (urban): 9 l/100km, fuel consumption (extra-urban): 7.3 l/100km, fuel consumption (combined): 7.9 l/100km, color: yellow, driver cabin: other, gearing type: automatic, emission class: euro5, suspension: other, number of seats: 2, total length: 6,783 mm, loading space width: 2,000 mm, loading space height: 2,100 mm, Year of construction: 2012, construction height: 2,770 mm, Equipment: ABS, central locking, electronic stability program (ESP), immobilizer system, onboard computer, soot filter, For sale is a reliable and practical Iveco Daily 35 S11 C30C with automatic transmission, first registered in 09/2012, and a mileage of 123,759 km. Equipped with the proven 2.3-litre diesel engine (2,287 cc) and complying with Euro 5 emissions standard, this vehicle offers an excellent balance of performance, economy, and environmental friendliness. Kdsdpfx Aijxu Rcco Ror The automatic transmission ensures a high level of driving comfort, especially in urban traffic and frequent stop-and-go situations. Another highlight is the air suspension, which not only enhances ride comfort but also significantly facilitates loading and unloading. The reversing camera assists with maneuvering and provides added safety in daily operations. The cargo area has already been fitted with a professional shelving system, making this van ideal for tradespeople, service companies, installation firms, or delivery services. The vehicle is therefore immediately ready for use, with no additional modifications required. Sale exclusively to businesses (agricultural enterprises, freelance professionals, small and large commercial operators) or for export. Errors and prior sale excepted.

Condition: used, Year of construction: 2018, Delivery time approx. 5 months. Machine from educational use – TOP condition, low hours (edging unit unused). No tools included. Dismantling, delivery, assembly, commissioning, and training not included in the price. Includes Maestro 3D and Pro View. MORBIDELLI P200 Working area X-Y: 3,110 x 1,620 mm, workpiece height Z180 mm Edge banding made for you: The CNC machining center is equipped with a comprehensive selection of edge banding tools to meet any woodworking requirement. MAIN ADVANTAGES · High performance with the advanced H80C edge banding unit, 8,000 rpm drilling spindles. The most robust spindle technology on the market, offering over 1,000 maintenance-free operating hours. · Better equipped: Suction cups can be disabled and configured via the FLEX worktable to optimally adapt the machine to requirements. · Easier, more intuitive programming thanks to the integrated CAD-CAM module for edge banding technologies “MAESTRO EDGE”. · Easier operation: The lowered frame ensures the worktable is always accessible. The control cabinet and vacuum pump are integrated, and in the PRO SPACE configuration, no safety barriers are needed. Kodpjzvhlkjfx Ai Redr Base structure: The base frame is a monolithic construction made from thick-walled steel, reinforced across the entire machine bed with welded square plates for exceptional rigidity. The bed’s shape, with a wide base, is the secret to lasting precision and stability. The load-bearing structure consists of a particularly robust, monolithic steel base, heavily ribbed and highly stiffened; the extra-wide support was specially designed to give the machine maximum stability, ensuring lasting precision regardless of operating conditions—with no need for floor anchoring. The base provides a large, solid support for the moving gantry: the working unit is thus equipped with a balanced, stable, and resilient support capable of handling the highest loads, ensuring top-quality performance and greater accuracy. The moving gantry is made from a robust single piece anchored to the base, sliding along top-quality prismatic guides with recirculating ball carriages. The working unit is attached and moves along the Y and Z axes on prismatic guides with recirculating ball carriages. Movement of the lower carriage (X-axis) and the working unit along the moving carriage (Y-axis) is enabled by rack-and-pinion transmission with helical teeth. This design results in greater tooth-on-tooth engagement, delivering higher acceleration and greater speed along the X and Y axes. The specially designed helical gearing ensures reduced wear on mechanical components and quieter operation. The vertical Z-axis is driven by a ball screw, ensuring perfect balance with dynamic loads and smooth acceleration and deceleration. The main milling unit is directly coupled to the Z-axis carriage for maximum finishing quality.

Condition: like new (used), Year of construction: 2022, functionality: fully functional, mount diameter: 38 mm, clamping range: 38 mm, Reishauer clamping device, base unit, basic chuck FK 38 suitable for Reishauer gear grinding machine, fits on the spindle for grinding machines RZ 150 / RZ160 / RZ 260 clamping diameter 38 mm for n max. = 3,000 rpm balanced with clamping stroke control / 3-point support check and media passage for additional functions: clamping / air system check / clamping stroke monitoring incl. assembly and operating instructions, as well as Reishauer wooden transport container Kdedpfjwzkcxox Ai Rer as new – hardly used, from our stock 2 units available Price negotiable Our asking price is €3,990.00 net, ex works, plus packaging costs. All technical specifications are subject to printing errors and changes. We only sell to countries within the European Union.
