Used Exner Eccentric Press for sale (12,840)

Condition: excellent (used), Eccentric press Inventory no. 3919 Manufacturer: Weingarten Type: XOR 2 Press force: 75 tons * Stroke adjustment: 10 to 100 mm * Adjustable ram: 60 mm * Installation height: 360 mm * Overhang: 270 mm Ibodezpbviopfx Aifjb * Table area: 630 x 600 mm * Foot-operated * Machine weight: approx. 4500 kg In very good condition.

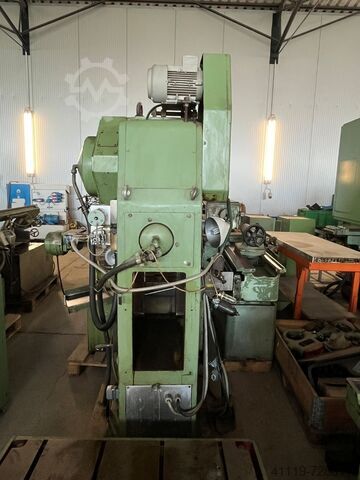

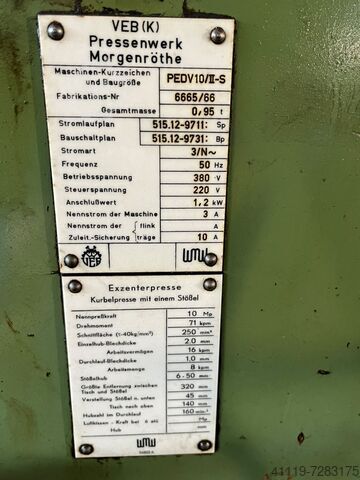

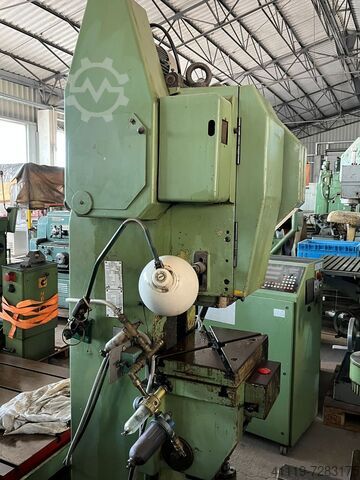

Condition: good (used), Year of construction: 1966, Machine number: 6665/66 Type / Model: PEDV 10/II-S Pressing force: 10 t Table: 450 x 300 mm Ram: 190 x 140 mm Ram stroke: 6 to 50 mm Downward ram adjustment: 45 mm Upward table adjustment: 140 mm Die opening: 140 mm Overhang: 170 mm Maximum distance between table and ram: 320 mm Stroke rate: 160 /min Sheet metal thickness per stroke: 2 mm Sheet metal thickness for continuous stroke: 1 mm Connection: 1.2 kW Accessories/Equipment: Condition: good Weight: 1.0 t Iodpfsh Tktiox Aifsbb Dimensions: 900 x 850 x 2,200 mm

Condition: good (used), Pressing force: approx. 10 tons Table size: 500 x 300 mm (W x D) Pedal size: 110 x 105 mm (W x D) Installation height: approx. 150 mm (large stroke at the top) Stroke: 5...29 mm Pedal adjustment: 25 mm Other • Rotating wedge coupling • Foot release • Control and protective screen as new, only used very little • Without table Iedpjvnrhwofx Aifobb

Condition: good (used), pressing force: 80 t, throat depth: 400 mm, ram adjustment: 80 mm, Capacity: 80 Ton Table surface: 750 x 550 mm Ram Adjustment: 80 mm Stroke length: 8 -112 mm No. of strokes: 78 p/min. Throat: 400 mm Complete with: - Pneumatic clutch - Safety screen Country of origin: Germany Machine LxWxH: 2000 x 1200 x 2900 mm Machine weight: 7000 kg Iedpfxeugtkxj Aifjbb

Condition: used, Year of construction: 1977, pressure 80 t stroke 8 - 112 mm Iodjzrpqmjpfx Aifsbb no. of strokes 65 /min throat 345 mm passage to the back 500 mm dayligth 472 mm table surface area 840 x 610 mm hole in the table 280 / 315 mm table height over floor 800 mm ram surface 650 x 410 mm ram adjustment 71 mm power requirement 13,5 kW Weight 6,10 t dimensions of the machine ca. 1,5 x 1,9 x 3,0 m x m x m with motor with two speeds, pneumatic clutch/brake combination (Ortlinghaus), mechanical overload protection in ram, manual stroke adjustment, motoric ram adjustment, fix table, motoric centralized lubrication, two-hand operation

Condition: used, Year of construction: 1978, pressure 125 t throat 340 mm stroke 20 - 160 mm no. of strokes 55 /min distance table/ram, max. stroke up, adjustment up 480 mm table surface area 1000 x 660 mm table height over floor 730 mm ram surface 600 x 300 mm ram adjustment 75 mm power requirement 8,5 kW weight 7,8 t dimensions (WxDxH) 1,4 x 2,8 x 2,7 m with motor, back gears, pneumatic clutch, mechanical overload protection in ram, manual stroke adjustment, manual ram adjustment, fix table, two-hand and foot operation Ibjdpfx Ajzrpqasifob

Condition: used, Technical details: pressure: 90 t throat: 320 mm no. of strokes: 90 Hub/min daylight dimension : table/slide up: ca. 380 mm Ibedpfx Aisu Nfg Hjfsb ram adjustment: max. 65 mm ram surface area: 600x55 mm clamping plate on table: 800x640x80 mm passage: 260x160 mm adjustment of stroke: 60 fest/fixed mm total power requirement: 5,5 kW weight of the machine approx.: 4500 kg space requirement approx.:: L:1,8xB:0,82xH:2,42 m - single / continous stroke - manual not available - normal maintennance has been executed, overhauled 2010 - at the moment without electric cabinet, without control, without air pressure tank i.D. *

Condition: excellent (used), Eccentric press Inventory no. 3341 Manufacturer: Ter Hart Type: EP 13 * Pressing force: 13 tons * Stroke adjustment: 5 - 50 mm * Adjustable ram: 35 mm * Table dimensions: 330 x 230 mm Isdpfxezi Erhe Aifebb * Installation height: 200 mm * Overhang: 115 mm * Foot/hand operation (guard) * Protective guard (hand) * Weight: 520 kg

Condition: used, Year of construction: 1982, pressure 150 t throat 520 mm stroke 30 - 200 mm no. of strokes 15 - 60 /min distance table/ram, max. stroke up, adjustment up 650 mm table surface area 1600 x 1000 mm hole in the table 1040 x 140 mm table height over floor 1000 mm passage to the back 1000 mm ram surface 1400 x 800 mm ram adjustment 120 mm power requirement 20,0 kW Ibsdpfx Aijzrprkjfeb weight 27,5 t dimensions (WxDxH) 2,3 x 2,75 x 4,5 m with infinitely variable drive, pneumatic clutch/brake combination (make Ortlinghaus), hydraulic overload protection in ram, pneumatic counterbalance in ram, semi-automatic ram adjustment

Condition: ready for operation (used), Year of construction: 2001, MIOS T55, year 2001 MIOS T40, year 2001 Isdozqc Rwspfx Aifjbb

Condition: used, Year of construction: 1980, For sale is a robust mechanical eccentric press / stamping press from the manufacturer MGR. The machine is ideally suited for punching, forming, and pressing operations in the metalworking industry and comes from industrial use. Technical data: Manufacturer: MGR Type: 45R Year of manufacture: 1980 Ibedpfx Aioy Unmbjfob Pressing force: 45,000 kg (45 tons) Stroke: 230 mm Ram stroke: 80 mm Ram adjustable: 55 mm Adjustable stroke: 9 – 120 mm Motor power: 3.5 hp Voltage: 380 V Machine no.: 311860

Condition: good (used), DIGÉP SD63 Eccentric press, 63 ton eccentric press for sale manufacturer: DIGÉP type: SD63 year of manufacture: 1975 – pressing force: 63 t – slider stroke: 10-110 mm – slider adjustment: 70 mm Isdpfx Aijiukrrofsbb – stroke rate max: 60 1/min. - table size: 740x560 – main motor power: 5.5kw 400V 50Hz – total weight: approx. 4200 kg

Condition: excellent (used), Eccentric press Inventory No. 3920 Manufacturer: Rijva Type 504 Press force: 40 tons * Stroke adjustment: 15 to 75 mm * Adjustable ram: 60 mm * Installation height: 310 mm Iodszpbvpopfx Aifsbb * Overhang: 225 mm * Table surface: 570 x 430 mm * Adjustable table * Foot pedal operation * Central lubrication * Machine weight: approx. 2600 kg. In very good condition.

Condition: excellent (used), Used Amada 60ton C frame press for sale SPECIFICATION MODEL TP -60 CAPACITY 60 ton NUMBER OF SLIDE STROKES 50 Hz 45-80 strokes/ minute STROKE LENGTH 120 mm SLIDE ADJUSTMENT 70 mm SLIDE AREA (R-L x F-B) 500 x 400 mm BOLSTER AREA & THICKNESS (R-L x F-B x thickness) 900 x 550 x 80 mm SHUTHEIGHT 370 mm Ibodpfx Aeyk D Dteifjb MAIN MOTOR 5.5 x 4 kWXP AIR PRESSURE REQUIRMENT 5.0 kgf/cm2 MAXIMUM NUMBER OF FLYWHEEL ROTATIONS 1170 r.p.m. MINIMUM AIR PRESSURE FOR CLUTCH ON STOPPING TIME 165 msec BRAKE MONITOR SETTING, DEGREES BEYOND T.D.C. 15 degree SERIAL NO. 07312665 MANUFACTURE DATE 1992.4 MANUFACTURED BY AMADA CO., LTD.

Condition: used, Year of construction: 1990, pressure 125 t throat 360 mm stroke 8 - 140 mm daylight, max. stroke above - ram adjustment above 500 mm ram adjustment 100 mm ram surface 800 x 400 mm Iodpfx Ajyatx Eeifsbb table surface area 1000 x 720 mm clamping plate 990 x 670 mm clamping plate thickness 80 mm no. of strokes 60 Hub/min tool shank hole (depth x diameter) 90 x 50 mm total power requirement 23 A weight of the machine ca. 11 t dimensions of the machine ca. BxTxH 2770 x 2520 x 2950 mm - Hydraulically operated Ortlinghaus clutch-brake combination - Belt drive - Hydraulic overload protection - Hydraulic connecting rod clamping - Motorized tappet height adjustment - Semi-automatic stroke adjustment - Manual TDC correction - Fixed table - Reverse switch (return) - Electric stroke counter - Electric preselection counter - Cam switch mechanism The machine is partially overhauled in-house as follows: - Disassembled, cleaned, and completely technically inspected - New paintwork (also available according to customer specifications) - New seals - New control cabinet with touchscreen, including wiring of the machine - Current press inspection

Year of construction: 1971, condition: good (used), Pressing force: 63 t Iedpfx Aioh N S Sdefobb Table: 660 x 480 mm Slider: 450 x 280 mm Overhang: 250 mm Slider stroke: 16 to 125 mm Sheet thickness, continuous stroke: 3.2 mm Max. distance between table and slider: 417 mm Die opening: 280 x 250 mm Slider adjustment downwards: 70 mm Stroke rate: 80/min Power consumption: 6 kW Accessories/equipment: Condition: good Weight: 5 t Dimensions: 1,500 x 1,600 x 2,700 mm

Condition: used, Year of construction: 1992, pressure 25 t throat 375 mm stroke 8 - 80 mm no. of strokes 120 Hub/min ram adjustment 45 mm table surface area 800 x 580 mm clamping plate 800 x 450 mm ram surface Platte 575 x 220 mm total power requirement 1,5 kW weight of the machine ca. 2,5 t Ibsdjykb Dkspfx Aifsb

Condition: used, Year of construction: 1970, machine/vehicle number: 120895, pressure:63 t throat:250 mm stroke:8 - 100 mm no. of strokes:120 Hub/min table::715 x 500 mm dayligth:330 mm ram adjustment:63 mm clamping plate:700 x 480 mm hole in the table:240 mm Hole in clamping plate:110 mm dimension of ram:450 x 280 mm weight of the machine ca.:5,5 t Iodpfsfx Hv Hjx Aifebb dimensions of the machine ca.:1,2 x 1,7 x 2,7 m hydraulic tilting single column eccentric press, tilting in 4 steps, opening to rear (325 x 500mm) and below (360x160mm) with central lubrication via hand pump, additional clamping plate 700 x 480 x 850 mm, two-hand operation, foot-trip operation possible, operating-mode selector for adjustment of continuous or single stroke, emergency cut-off, piece counter, various accessories

Condition: used, Single-column – Eccentric press RICHTER Type PEKRS 80 Year of manufacture 1970 – Overhauled in 2024 Clamping force 80 tons Reach 350 mm Table size 900 x 650 mm Through-hole in the mounting table Ø 200 mm Ram area 700 x 500 mm Stroke rate 70 strokes/min Stroke adjustment 6 – 100 mm Ram adjustment 85 mm Installation height max. 400 mm Arbor hole Ø 50 mm Table height above floor 810 mm Motor power 8 kW Power connection 400 volts, 50 Hz - Pneumatic clutch-brake combination ORTLINGHAUS - Press safety valve HERION XSz 32 - Pneumatic ram balancing cylinders - Overload protection with shear plate in the ram - Grease central lubrication with hand pump Space requirement L x W x H 1800 x 1250 x 2830 mm Weight 5.7 tons Very good condition Technically overhauled and converted to the latest safety standards with new electrical system Control system rebuilt in 05/2024 – suitable for manual feeding operations – in accordance with DGUV Information 209-030 Press Inspection and Machinery Directive 2006/42/EC Low Voltage Directive 2014/35/EU EN ISO 16092-1: Safety of machinery - Presses - Part 1: General safety requirements EN ISO 16092-2: Machinery - Safety of presses - Part 2: Mechanical presses - Control system with plain text error messages and diagnostic screen for quick fault localization - New electrical cabinet, mounted on the side of the machine - Completely based on SIEMENS, with S7-1200 PROFIsafe PLC and 7" TFT touch display - Two-hand control panel with emergency stop and interlocking - Electric foot switch - Cam mechanism with run-on monitoring - Stroke release via press safety valve HERION XSz 32 with pneumatic pressure gauge Ijdpfji Db Ibox Aifobb - Rewiring of the machine - Updated operating manual The machine is equipped with 6 operating modes: 1 = Setup 2 = Single stroke, two-hand 3 = Single stroke, foot 4 = Continuous operation, foot 5 = Automatic continuous operation 6 = Reverse operation

Condition: used, Year of construction: 1985, Technical details: Ibsdpfx Aeu Nfh Dsifsb pressure: 100 t no. of strokes: 35-100 Hub/min throat: 360 mm ram adjustment: 20-130 mm ram surface area: 750x550 mm clamping plate on table: 1000x640 mm adjustment of stroke: 90 mm passage between the columns longitudinal/sideways: 610x500 / 440x550 mm daylight dimension : table/slide low: 300 mm total power requirement: 17,5 kW weight of the machine ca.: ca,7,0 t dimension machine xH: 1,9x1,4x2,7 m - there are 5 T-slots lengthwise on the ram plate - centre hole = 50mm This press is currently for sale without controls. Optional on customer request completion possible. i.D. *

Condition: good (used), Year of construction: 1983, Rotary indexing table with 12 stations Automatic ejector Three pressing stages Ibedpfx Aslp Nqheifsb Pressing force: 1,000 kN Stroke: 12-120 mm Stroke rate: 30-60 strokes/min Ram adjustment: 80 mm Total weight: 9,500 kg

Condition: used, Single-column – Eccentric press WEINGARTEN Type EV 63 Machine No. 738 / 61 Year of manufacture 1962 Pressing force 63 tons Stroke 260 mm Table area 630 x 530 mm Table opening Ø 210 mm Slide area 315 x 260 mm Adjustable slide stroke 8-100 mm Ibedpsk S Htxsfx Aifjb Slide adjustment 63 mm Tool holder bore Ø 40 mm, with clamping piece Installation height max 450 mm Stroke rate 115 strokes / min Compressed air requirement min. 4.5 bar Motor power 4 kW Power connection 380 Volt, 50 Hz Table height above floor approx. 750 to 900 mm - Electrical stroke release via foot switch or two-hand control - Overload protection by shear plate - Clutch-brake combination by WEINGARTEN friction-thread clutch with top dead center through-drive protection - Front crankshaft support bearing - Press table adjustable in height via 2 threaded spindles - Manual centralized lubrication - Control cabinet positioned beside the press - UVV (German trade association for accident prevention) for manual feeding operations Space requirement L x W x H 1750 x 1600 x 2430 mm Weight 4.5 tons Good condition

Condition: used, Year of construction: 1996, pressure 80 t throat 320 mm stroke 6 - 118 mm no. of strokes 30 - 80 Hub/min ram adjustment 70 mm table surface area 830 x 610 mm ram surface 650 x 400 mm column daylight (nach hinten) 630 mm total power requirement kW weight of the machine ca. 8,1 t dimensions of the machine ca. B 1,2 x T 1,9 x H 3,3 m Furnishing: - with gear transmission - fixed table - automatic stroke adjustment Ibsdpfx Aietycdkefsb - automatic ram adjustment - hydr. Overload - Ejector - Grease central lubrication - Cover plate for drainage hole - Continuous speed control using a frequency converter - Machine is technically checked in our company and receives a new control cabinet with safety controls and touchscreen - current UVV test with braking time measurement

Condition: used, Year of construction: 2004, pressure 25 t throat 375 mm stroke 80 mm no. of strokes 120 Hub/min Iodpfx Aieykb D Dofobb ram adjustment 45 mm total power requirement 3,5 kW weight of the machine ca. 2,8 t

Condition: used, Single-Column - Eccentric Press AMBOLD Type PEEV 25.2 Machine No. 11734 / Year of manufacture: 20 Press force: 25 tons Throat depth: 200 mm Table size: 520 x 400 mm Ram area: 155 x 155 mm Through hole in table: 185 x 155 mm Stroke adjustment: 4–80 mm Ram adjustment distance: 40 mm Max. installation height: 270 mm (maximum stroke at BDC, table at lowest position) Clamping shank bore: Ø 32 mm Table height adjustment: approx. 150 mm Ram strokes: 160 strokes/min Ibedpfetx E N Tox Aifjb Motor power: 2.2 kW Power supply: 400 Volt, 50 Hz - Pneumatic clutch-brake combination ORTLINGHAUS - Press safety valve HERION - Press control PILZ - Electric foot switch and two-hand control - Height-adjustable press table via 2 threaded spindles - Automatic central lubrication VOGEL - UVV according to VBG 7n 5.1 for manual loading - Free-standing control cabinet L x W x H = 600 x 310 x 1500 mm Required space L x W x H: 1450 x 1000 x 1850 mm Weight: 1.9 tons Very good condition
