Used Motan Mill for sale (9,800)

Condition: used, Year of construction: 1998, MORI SEIKI SL-200 SMC, 4- AXIS TURN MILL CENTRE MAKE MORI SEIKI, MADE IN JAPAN MODEL SL-200 SMC YEAR 1998 CONTROL FANUC MSD- 518 (18-T) MAX. TURNING DIA. 390mm MAX. TURNING LENGT 507mm SWING OVER BED 680mm OVER CROSS SLIDE 510mm BAR WORK CAPACITY 51.0mm MAX. SPINDLE SPEED 0--4000rpm Ijdpfxott Da Ie Ab Nsib TURRET 12 stations, ALL DRIVEN stations TAILSTOCK YES SPINDLE BORE 65mm POWER TOOL SPEED (C-AXIS) 67- 3000rpm SPINDLE NOSE A8 (TBC) RAPID TRAVERSE RATE X: 18,000mm/min & / Z: 24,000mm/min ELECTRICAL POWER SUPPLY 37.9kVA MACHINE FLOOR SPACE 2650.0 X 1900.0 mm MASS OF MACHINE 4500 KGS PLUS 4- AXIS MACHINE SUB SPINDLE RENISHAW TOOL SETTING PROBE SWARF CONVEYOR GOOD RANGE OF TOOLING MACHINE MANUALS SWARF BIN MIST EXTRACTOR VERY CLEAN

Condition: good (used), Year of construction: 1989, Universal milling machine Type: LMV Iodpfew Ebhmox Ab Noib Machine No.: 5012 Year of manufacture: 1989 Technical data: Travel distances: longitudinal X-axis 762 mm transverse Y-axis 305 mm vertical Z-axis 406 mm Quill travel 127 mm Spindle mount collet Table size 1067 x 229 mm Speed range 50-3750 rpm in two stages Weight: 1000 kg Equipment:  SONY digital measuring system, 2 axes, X and Y axes  Machine light  Drill chuck 0-13 mm  Collet chuck  Machine vise, jaw width 150 mm  Protective device, electrically protected, type: ZE-FS 30-300, fully assembled  Documentation Condition: good, workshop inspected

Condition: used, functionality: fully functional, Used involute milling cutters, newly ground and coated (6 pieces) Module 14-20 degrees Module 12-20 degrees Iodpfx Aoy S R A Teb Nsib Module 8-20 degrees Module 6-20 degrees Module 0.6-20 degrees Module 0.5-20 degrees

Condition: used, Year of construction: 2008, functionality: fully functional, 5-Axis Simultaneous Machining Center MAZAK Variaxis 630-5X II T with Turning Function and Top Specification. Control: MAZATROL Matrix Year of manufacture: 2008 Travel - X: 630 mm Travel - Y: 765 mm Travel - Z: 600 mm a-axis: +30 ~ -120° c-axis: +/- 360° Max. machining diameter: 730 x 500 mm Max. work height: 500 mm Number of tool changer positions: 80 Iiodpfx Aex Db D Ajb Njb Tool holder: SK40 Max. spindle speed: 18,000 rpm Max. rotary table speed: 1,100 rpm Rotary table diameter: 630 mm Swing diameter of workpiece: 730 mm Accessories: - Chip conveyor and tank - ICS (internal coolant supply) - Showa oil mist extraction unit - Renishaw probe The following features/options are available: - Linear scale system for X and Y axes - Tool magazine for 80 tools - Air blow unit at the workpiece - Oil mist extraction unit CRK 1500K - Coolant temperature control - Flood coolant 4.5 bar - Workpiece rinsing system - High-pressure coolant through the spindle 70 bar - Pressure switch for coolant supply through the spindle - Chip conveyor ejection right (Consep) - MAZAK Monitoring System B incl. Renishaw probe MP10 - Preparation for visual tool identification system - Detachable electronic handwheel - Milling spindle synchronous tapping - Tool tip inspection for 5-axis simultaneous machining - Tool radius compensation 5-axis - EIA dynamic tool compensation 2 (incl. 1) - Max. program memory 8 MB - Rapid traverse – constant tilt angle during movement - MAZACC-3D high-speed software package - Form compensation for rotary axes - Ethernet operation capability - High-precision control for finishing operations - Cylinder interpolation G07.1 - Signal light (3-color LED) - 3-jaw chuck 21" - Additional work area lighting The machine is in very good condition and can be inspected under power at its current location.

Year of construction: 1992, condition: ready for operation (used), A bed milling machine is offered. Spindle drive: 25kW, table clamping surface X/Y: 1250mm/500mm, travel paths X/Y/Z: 1000mm/500mm/600mm, tool holder: ISO 40, feed rate: 0mm - 3000mm/min. Equipped with CNC control, coolant system, electronic handwheel, machine weight: approx. 4200kg, machine dimensions X/Y/Z: approx. 2800mm/2400mm/2500mm. Inspection possible by arrangement. Iisdpfjy Taubox Ab Nsb

Condition: ready for operation (used), A universal milling machine is offered. Travel paths X/Y/Z: 400mm/200mm/400mm, table clamping surface X/Y: 700mm/280mm, tool holder: SK40, speed range: 40rpm - 2000rpm, control system: manual. Equipped with vertical milling head, angle table, spindle guard, coolant system. Weight: approx. 1100kg, overall dimensions X/Y/Z: approx. 1200mm/1100mm/1600mm. Inspection possible by arrangement. Isdpfxjy Tavro Ab Nsib

Condition: ready for operation (used), A universal milling machine is offered. Travel paths X/Y/Z: 400mm/400mm/400mm, table clamping surface X/Y: 700mm/460mm, tool holder: SK40, speed range: 31.5rpm - 3150rpm, control system: CNC (Deckel Dialog 4). Equipped with vertical milling head, angle table, machine vise, coolant system, splash guard tray. Weight: approx. 1650kg, overall dimensions X/Y/Z: approx. 2000mm/1600mm/1900mm. Inspection possible by arrangement. Iedpfx Absy Tav So Nsib

Condition: ready for operation (used), A universal milling machine is offered. Travel paths X/Y/Z: 400mm/200mm/400mm, table clamping surface X/Y: 700mm/280mm, tool holder: SK40, speed range: 40rpm - 2000rpm, control system: 3-axis digital display. Equipped with vertical milling head, machine vise, coolant system, work light. Weight: approx. 1100kg, overall dimensions X/Y/Z: approx. 1200mm/1100mm/1700mm. Inspection possible by arrangement. Iijdpfx Aey Tavxjb Nob

Condition: used, Year of construction: 1983, spindle diameter 160 mm x-travel 9500 mm y-travel 4000 mm z-travel 1000 mm w-travel 700 mm spindle speed: 2,5-1000 U/min control Siemens 840 D power capacity 28 kW spindle taper ISO 50 dimension of the ram 340x340 mm Feed 5000 mm/min rapid traverse 5 m/min The machine was completely overhauled in December 2015The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Ijdpfx Aboy Suiws Noib Your Markus Hirsch Team

Condition: good (used), Year of construction: 2005, operating hours: 9,999 h, functionality: fully functional, SPINNER Werkzeugmaschinenfabrik GmbH Used CNC Lathe Model: SPINNER UP65 Year of manufacture: 2005 Control: Siemens Sinumerik 840 Main spindle + counter spindle Sauter turret with driven tools Operating hours: 80,412 h Accessories: 3 driven tools, 10 standard tools with holders, 8 empty holders CE certified Buffer battery last changed in March Iodpfxsy Sr Iqo Ab Neib No chip conveyor Typical technical specifications of the SPINNER UP65: • Max. turning diameter: approx. 300–400 mm • Max. turning length: approx. 600–1,000 mm • Swing over bed: approx. 500–600 mm • Spindle bore: 65 mm main spindle • Main spindle speed: approx. 4,000–5,000 rpm • Counter spindle speed: up to approx. 6,000–7,000 rpm • Main spindle drive power: approx. 15–22 kW • Turret: Sauter tool turret with driven tools • Tool holder: typically VDI30 • Travel paths: X approx. 200–250 mm, Z approx. 600–1,000 mm • Rapid traverse: X approx. 20 m/min, Z approx. 24 m/min • Control: Siemens Sinumerik 840 • Machine weight: approx. 4,500–6,500 kg Chucks: • Main spindle: Ø160 with Ø81, through bore Ø60 • Counter spindle: Ø160 with Ø43

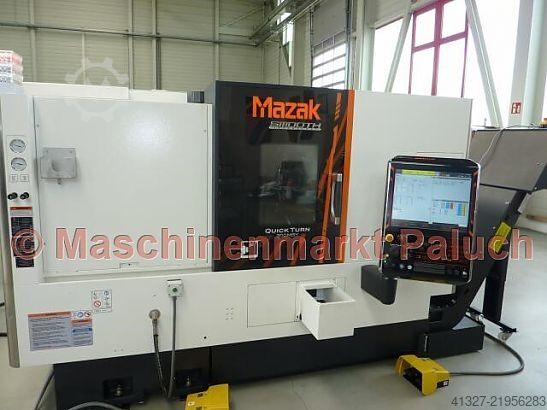

Condition: excellent (used), Year of construction: 2018, MAZAK QUICK TURN 200MSY Max. machining diameter: 380 mm Iijdpsy Tbz Nofx Ab Nsb Max. milling speed: 5,000 rpm Max. spindle speed, main spindle: 5,000 rpm Max. bar diameter: 65 mm The machine is equipped with: - CNC control: Mazatrol SmoothG - Tool Eye - C-axis - C-axis - Y-axis - Automatic parts catcher - Interface for loader magazine - Reinforced coolant pump, 70 bar - Chip conveyor - Standard MAZAK tool package

Condition: new, Year of construction: 2022, functionality: fully functional, HYUNDAI-WIA HD2200Y FANUC 0IT PLUS CNC LATHE WITH Y AXIS. Iiedpfox Th Nyex Ab Nob MACHINE CONSTRUCTION & FEATURES ▪ ONE PIECE HEAVY DUTY CAST IRON BED CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY. ▪ 4,000 RPM MAIN SPINDLE. ▪ 6,000 RPM LIVE TOOLING SPEED. ▪ HEAVY DUTY CUTTING WITH EXCELLENT PERFORMANCE. ▪ WEDGE TYPE Y-AXIS. ▪ 12 STATION HIGH SPEED RIGID SERVO TURRET - BMT55P ▪ HARDENED & GROUND BOX GUIDEWAYS Swing Over the Bed Ø 820 MM Swing Over the Carriage Ø 650 MM Maximum Turning Diameter Ø 300 MM Maximum Turning Length 610 MM Bar Capacity – Main Spindle Ø 65 MM MAIN SPINDLE Chuck Size Ø 8” - 203 MM Spindle Bore Ø 76 MM Spindle Speed (Rpm) 4,000 RPM Motor (Max / Cont.) 18.5 / 15.0 [22.5 / 15.0] KW Torque (Max / Cont.) 206.2 / 125.4 [215.0 / 143.3] NM Spindle Type BELT Spindle Nose A2-6 Travel X 215 MM Travel Y 110 (± 55) MM Travel Z 680 MM Rapid Speed X 24 M / MIN Rapid Speed Y 10 M / MIN Rapid Speed Z 30 M / MIN HARDENED & GROUND BOX GUIDEWAYS Number of Tools 12 [24] Tool Size - OD 25 MM² Tool Size - ID Ø 20 MM Indexing Time 0.2 SEC / STEP Y-Axis Type WEDGE TYPE LIVE TOOL Motor (Max / Cont.) 5.5 / 3.7] KW Milling Tool Speed 6,000 RPM Torque (Max / Cont.) 52.5 / 26.5 NM Collet Size Ø 16 – ER25 Type BMT-55P TAILSTOCK Taper MT 4 Quill Diameter Ø 80 MM Quill Travel 120 MM Travel 680 MM TANK CAPACITY Coolant Tank 200 L Lubricating Tank 2.0 L Electric Power Supply 27 KVA Thickness of Power Cable OVER 25 MM² Voltage 415 V / 50 HZ / 3PH Floor Space (L x W) 3,380 x 1,800 MM Height 1,950 MM Weight 4,700 KGS INCLUDED FACTORY FITTED MACHINE OPTIONS CHIP - BUCKET STANDARD CHIP - CONVEYOR SIDE HINGED HIGH PRESSURE COOLANT SYSTEM 6.0 BAR IN LIEU OF STD CALL LAMP (3 COLOUR) - IN LIEU OF STD BARFEED INTERFACE - MAIN SPINDLE PARTS CATCHER - MAIN SPINDLE 30 KVA TRANSFORMER AND CABLE QUICK TOOL SETTER - AUTO PROGRAMMABLE TAILSTOCK IN LIEU OF STD TURRET UPGRADE - 12 STATION 24 POSITION BMT55P, LIVE TOOLS 6K RPM, 5.5 KW STANDARD FACTORY FITTED MACHINE OPTIONS SPINDLE POSITIONING MAIN - 0.001 DEG INDEX (C1-AXIS) CHUCK CLAMP FOOT SWITCH MAIN SPINDLE 8 INCH 3 JAW HYDRAULIC CHUCK STD INC SET SOFT JAWS - MAIN SPINDLE CHUCK OPEN / CLOSE CONFIRMATION DEVICE MAIN SPINDLE STANDARD HYDRAULIC CHUCKING CYLINDER - HOLLOW 15" MONITOR FOR FANUC HW ENERGY SAVING SYSTEM (HW-ESS) MACHINE GUIDANCE (HW-MCG) SMART GUIDE-I (CONVERSATIONAL PROGRAMMING) COOLANT TANK (SIDE TYPE) STANDARD COOLANT SYSTEM (NOZZLE) STANDARD COOLANT SYSTEM 0.5 BAR STANDARD HYDRAULIC UNIT 35 BAR (30 LITRES) CALL LIGHT (1 COLOUR) FRONT DOOR INTERLOCK TOOLBOX STANDARD TOOLING PACKAGE QUILL TYPE TAILSTOCK WITH STD LIVE CENTER

Condition: new, Year of construction: 2023, functionality: fully functional, HYUNDAI-WIA HD3100YA FANUC 0IT PLUS CNC LATHE WITH Y AXIS MACHINE CONSTRUCTION & FEATURES ▪ ONE PIECE HEAVY DUTY CAST IRON BED CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY. ▪ 3,500 RPM MAIN SPINDLE. ▪ 5,000 RPM LIVE TOOLING SPEED. ▪ HEAVY DUTY CUTTING WITH EXCELLENT PERFORMANCE. ▪ WEDGE TYPE Y-AXIS. ▪ 12 STATION HIGH SPEED RIGID SERVO TURRET – BMT55P ▪ HARDENED & GROUND BOX GUIDE WAYS MACHINE CAPACITIES Swing Over the Bed Ø 800 MM Swing Over the Carriage Ø 670 MM Maximum Turning Diameter Ø 420 MM Maximum Turning Length 760 MM Bar Capacity – Main Spindle Ø 81 MM MAIN SPINDLE Chuck Size Ø 10” - 254 MM Spindle Bore Ø 91 MM Spindle Speed (Rpm) 3,500 RPM Motor (Max / Cont.) 26.0 / 18.5 KW Torque (Max / Cont.) 734 / 522 NM Spindle Type BELT Spindle NoseA2-8 FEED Travel X265 MM Travel Y120 (± 60) MM Travel Z830 MM Rapid Speed X24 M / MIN Rapid Speed Y10 M / MIN Rapid Speed Z30 M / MIN Slide Type HARDENED & GROUND BOX GUIDEWAYS TURRET Number of Tools12 Tool Size - OD25 MM² Tool Size - IDØ 20 MM Indexing Time0.2 SEC / STEP Y-Axis Type WEDGE TYPE LIVE TOOL Motor (Max / Cont.) 5.5 / 3.7 KW Milling Tool Speed 5,000 RPM Torque (Max / Cont.) 70/0 / 35.4 NM Collet Size Ø 16 – ER25 Type BMT-65P TAIL STOCK Taper MT 5 Quill Diameter Ø 100 MM Quill Travelb120 MM Travel b830 MM Voltage 415 V / 50 HZ / 3PH Floor Space (L x W) 3,630 X 1,910 MM Height 1,960 MM Weight 6,200 KGS INCLUDED FACTORY FITTED MACHINE OPTIONS CONVEYOR & CHIP BOX HELICAL INTERPOLATION FUNCTION HIGH PRESSURE COOLANT SYSTEM 20 BAR IN LIEU OF STD CALL LAMP (3 COLOUR) - IN LIEU OF STD Iijdpfxex Thu Nj Ab Neb BARFEED INTERFACE - MAIN SPINDLE PARTS CATCHER - MAIN SPINDLE TRANSFORMER - 415V 3PH 50HZ QUICK TOOL SETTER - AUTO MAIN SPINDLE - 3,500 RPM, 26.0 / 18.5 KW, 734 NM BELT DRIVEN PROGRAMMABLE TAILSTOCK IN LIEU OF STD QUILL FORWARD / REVERSE CONFIRMATION DEVICE QUILL TYPE TAILSTOCK - MANUAL TYPE MT#5 100 MM DIA QUILL, 120 MM QUILL TRAV STANDARD FEATURES SPINDLE POSITIONING MAIN - 0.001 DEG INDEX (C1-AXIS) CHUCK CLAMP FOOT SWITCH MAIN SPINDLE 10 INCH 3 JAW HYDRAULIC CHUCK CHUCK OPEN / CLOSE CONFIRMATION DEVICE MAIN SPINDLE HYDRAULIC CHUCK PRESSURE INTERLOCK - MAIN SPINDLE STANDARD HYDRAULIC CHUCKING CYLINDER - HOLLOW 15" MONITOR HW ENERGY SAVING SYSTEM (HW-ESS) MACHINE GUIDANCE (HW-MCG) PART PROGRAM STORAGE - 2MB SMART GUIDE-I (CONVERSATIONAL PROGRAMMING) STANDARD COOLANT SYSTEM 0.5 BAR STANDARD COOLANT TANK 180 LITRES FULL SPLASH GUARDING SYSTEM CALL LIGHT TOOLBOX TOOLING PACKAGE QUILL TYPE TAILSTOCK 12 STATION BMT65P SERVO TURRET, LIVE TOOLS 5,000 RPM, 5.5 KW, 47.0 NM

Condition: new, Year of construction: 2023, functionality: fully functional, HYUNDAI-WIA SE2200LY WITH FANUC 0i-T PLUS CONTROL CNC LATHE WITH Y AXIS. TURRET UPGRADE - 12 STATION 24 POSITION BMT45, LIVE TOOLS 6K RPM, 2.75 KW MACHINE CONSTRUCTION & FEATURES ▪ 8” STANDARD CHUCK SIZE. ▪ 30° SLANT BED ONE PIECE HEAVY DUTY CAST IRON CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY. ▪ HIGH PERFORMANCE ROLLER LM GUIDEWAYS. ▪ 12 STATION HIGH SPEED RIGID SERVO DRIVEN TOOL TURRET - BMT45. [24 POSITION OPTION] ▪ 4,500 RPM HIGH POWER MAIN SPINDLE. ▪ 30 X 36 M/MIN RAPID TRAVERSE RATES – X & Z AXES. ▪ C-AXIS SPINDLE & WEDGE TYPE Y-AXIS. Swing Over the Bed Ø 600 MM Swing Over the Carriage Ø 600 MM Maximum Turning Diameter Ø 300 MM Maximum Turning Length 508 MM Bar Capacity – Main Spindle Ø 65 MM MAIN SPINDLE Chuck Size Ø 8” - 203 MM Spindle Bore Ø 75 MM Spindle Speed 4,500 RPM Motor (Max / Cont.) 15.0 / 11.0 KW Torque (Max / Cont.) 167 [150.3] NM Spindle Type BELT Spindle Nose A2-6 FEEDS Travel X 210 MM Travel Y 110 (± 55) MM Travel Z 560 MM Rapid Speed X 30 M / MIN Rapid Speed Y 10 M / MIN Rapid Speed Z 36 M / MIN Slide Type ROLLER LM GUIDEWAYS TURRET Number of Tools 12 [24 POSITION INDEX] Tool Size - OD 20 MM² Tool Size - ID Ø 32 MM Indexing Time 0.15 SEC / STEP Y-Axis Type WEDGE TYPE Milling Tool Speed 6,000 RPM Motor (Max / Cont.) 2.75 / 1.85 [2.8 / 3.8] KW Torque (Max / Cont.) 26.2 [27.0] NM Collet Size ER 20 - Ø 13 Type BMT45 HYDRAULIC NC TAIL STOCK (STD. LIVE CENTER) Taper MT#4 Quill Diameter Ø 56 MM Travel 580 MM Coolant Tank 200 L POWER SUPPLY Electric Power Supply 18 KVA Thickness of Power Cable OVER 16 MM² Voltage 415V / 50HZ / 3PH Floor Space (L x W) 2,960 X 1,730 MM Height 1,920 MM Weight 4,200 KGS STANDARD FACTORY FITTED MACHINE OPTIONS Iodpjx Tqkmjfx Ab Njib SPINDLE POSITIONING MAIN - 0.001 DEG INDEX (C1-AXIS) CHUCK CLAMP FOOT SWITCH MAIN SPINDLE 8 INCH 3-JAW HYDRAULIC CHUCK STD INC SET SOFT JAWS - MAIN SPINDLE CHUCK OPEN / CLOSE CONFIRMATION DEVICE MAIN SPINDLE STANDARD HYDRAULIC CHUCKING CYLINDER - HOLLOW 15" MONITOR FOR FANUC FOR STANDARD CNC SPECIFICATION - SEE MANUFACTURER'S BROCHURE HW ENERGY SAVING SYSTEM (HW-ESS) MACHINE GUIDANCE (HW-MCG) MANUAL VIEWER OPERATION MEMO PART PROGRAM STORAGE - 2MB (1,000 REGISTERABLE PROGRAMS) PREMIUM TOOL OPERATION SCHEDULING SMART GUIDE-I (CONVERSATIONAL PROGRAMMING) STANDARD COOLANT SYSTEM (NOZZLE) STANDARD COOLANT SYSTEM 0.5 BAR STANDARD COOLANT TANK 200 LITRES FULL SPLASH GUARDING SYSTEM STANDARD HYDRAULIC UNIT 35 BAR (15 LITRES) CALL LIGHT (1 COLOUR) BACK SPIN TORQUE LIMITER FRONT DOOR INTERLOCK TOOLBOX MAIN SPINDLE - 4,500 RPM, 15.0 / 11.0 KW, 167 NM BELT DRIVEN STANDARD TOOLING PACKAGE - SEE MANUFACTURER'S BROCHURE HYDRAULIC TYPE NC TAILSTOCK - MT#4 56 MM QUILL, STD LIVE CENTER 12 STATION BMT45 TURRET, LIVE TOOLS 6K RPM, 2.75 KW, 26 NM INCLUDED FACTORY FITTED MACHINE OPTIONS CHIP - BUCKET STANDARD CONVEYOR SIDE HINGED HIGH PRESSURE COOLANT SYSTEM 20 BAR IN LIEU OF STD CALL LAMP (3 COLOUR) - IN LIEU OF STD BARFEED INTERFACE - MAIN SPINDLE PARTS CATCHER - MAIN SPINDLE TRANSFORMER - 415V 3PH 50HZ QUICK TOOL SETTER - AUTO QUILL FORWARD / REVERSE CONFIRMATION DEVICE

Condition: used, Year of construction: 1998, functionality: fully functional, Used Soraluce model SP 8000 traveling column CNC bed type milling centre with 2.5° automatic universal milling head, 40-station automatic toolchanger and Heidenhain 426 CB control system. Serial Number: 108540. YEAR OF MANUFACTURE: 1998. TABLE LENGTH 8000 MM TABLE WIDTH 1100 MM COLUMN HORIZONTAL TRAVEL (X) 6500 MM HEAD VERTICAL TRAVEL (Y) 1600 MM RAM CROSS TRAVEL (Z) 1200 MM SPINDLE TAPER BT50 SPINDLE SPEEDS 20 – 2000 RPM SPINDLE MOTOR 22 Kw FEED RATES/MIN 5 – 5,000 MM RAPID TRAVERSE RATE/MIN 15,000 MM AUTO TOOLCHANGER 40 STATIONS ELECTRICAL SUPPLY 415V, 3PH, 50HZ FEATURES AND EQUIPMENT Iiedpfswgd Rgex Ab Nsb Horizontal/Vertical toolchange facility, Operators platform, Head preparation for through tool coolant, Varilock R80, Coolant system with 350 Litre tank and 3 and 8 bars pressure 50 L/Min flow, Electronic handwheel, Sliding splash guard system, Heidenhain linear scales, Linear recirculating slideway system. Eimeldingen 2000mm diameter integrated rotary table with additional frontal tables extensions 5000mm x 1600mm. LENGTH 10,250 MM WIDTH EXCLUDING ADDITIONAL BEDS 4,455 MM HEIGHT 3,800 MM WEIGHT 28,000 KGS

Condition: used, diameter / mm Ijdpfjy Supkox Ab Neib weight / kg Type / 0

Condition: excellent (used), Year of construction: 2024, 3 axes, C-axis with live tooling Specifications: Maximum turning diameter over bed: 400 mm Maximum turning diameter over cross slide: 330 mm Bar capacity: Ø 51 mm Spindle nose: A2-6 Spindle bore: 65 mm Spindle speed: up to 4,500 rpm Spindle motor power: 11/15 kW Spindle bearing diameter: 100 mm X-axis travel: 180 mm Y-axis travel: +/- 40 mm Z-axis travel: 600 mm Rapid traverse: 24 m/min Number of turret tool stations: 12 positions Tailstock quill travel: 500 mm Quill stroke: 60 mm Quill diameter: 60 mm Taper: MT#4 Bed inclination: 30° Guideway type: prismatic guides Machine weight: approx. 4,000 kg Dimensions: 3,525 (with chip conveyor) x 1,851 x H2,020 mm Standard equipment Automatic lubrication system Coolant system Halogen work lamp Chip conveyor (chain type) Programmable hydraulic tailstock 3-jaw chuck Tool holder Siemens 828D CNC control Iiedpfx Absyzfgxj Neb

Condition: excellent (used), Year of construction: 1998, CN Heidenhain TNC 430 PA Maximum spindle torque: 900 Nm Maximum feed force in the X, Y, Z axes: 25,000 N Maximum workpiece weight: 2,500 kg (at 1 m table length) Table dimensions: 1,000 × 14,000 mm Number of T-slots in the table: 7 T-slot width × spacing: 22H7 × 140 mm Longitudinal travel (X): 12,000 mm Cross travel (Y): 1,000 mm Vertical travel (Z): 1,500 mm Horizontal spindle: Minimum distance between the horizontal spindle axis and table surface: 275 mm Maximum distance between the horizontal spindle axis and table surface: 1,775 mm Vertical spindle: Minimum distance between the vertical spindle face and the table: 50 mm Maximum distance between the vertical spindle face and the table: 1,550 mm Spindle taper: ISO 50 Iijdpfx Abjxdwkfe Neb Spindle diameter: 85 mm Tool clamping force in the spindle: 16,500 N Main machine dimensions: Length: 17,850 mm Width: 5,640 mm Width with enclosure: 6,720 mm Height: 4,350 mm Floor space required: 73 m² Total machine weight: approx. 34,000 kg Electrical cabinet weight: approx. 820 kg Mains voltage: 50 V (3 × 400) Total machine power: 100 kVA Fuses to be provided by the customer outside the machine for 400 V Hydraulic unit weight without oil: 150 kg

Condition: used, Year of construction: 2011, Technical details: standard turning dia.: 200 turning length: max. 810 mm control: MSX-701 MAPPS IV greates pass round over bed: 800 mm Max. distance between centres: 1130 mm max. turning diameter: 320 mm max. workpiecediameter: 300 mm bar material dia.: 65 mm Traverse X-Axis 1: 210 Traverse X-Axis 2: 210 mm Traverse X-Axis 3: 210 mm Traverse Y-Axis 1: 110 (+65/-45) mm Traverse Y-Axis 2: 110 (+45,/-65) mm Traverse Z-Axis 1: 300 mm Traverse Z-Axis 3: 300 mm Traverse Z-Axis 2: 810 mm Traverse B-Axis: 870 mm turning speed range - spindle: 5.000 1/min Number of spindle speed ranges: 2 . spindle nose: JIS A2-6 spindle bore: 73 mm spindle bearing diameter: 120 mm C-Axis: 0,001 ° turning speed range - spindle: 5.000 1/min spindle nose: JIS A2-6 spindle bore: 73 mm bar material dia. max: 65/52 mm spindle bearing diameter: 120 mm C-Axis: 0,001 ° Number of Turrets: 3 . Number of tool stations: 16 x 3=48 pos Schank height for square tool: 20 mm Diameter of boring bar: 32 mm Iedpfjy S Tm Usx Ab Neib turret changing time (4-stations): 0,18 sec Number of driven tools: 16 x 3=48 pos max. spindle speed driven tools: 6.000 U/min. Rotary tool machining ability: M16 / Ø16 . rapid traverse X-axis: 30 m/min rapid traverse Y-axis: 20 m/min rapid traverse Z-axis: 50 m/min drive capacity - spindle motor: 25 / 22 kW power capacity - driven tools: 7,5 / 5,5 kW total power requirement: 92,7 kVA weight of the machine ca.: 9,4 t dimensions of the machine ca.: 4,0 x 2,8 x 2,4 m Accerories Chip conveyor Coolantsystem C-axis in main and sub spindle Y-axis 2 x part counter total counter tool setting Overhead partsgripper with conveyor belt. Spindle 1 Chuck SMW KNCS-N 210 / 52 mm Spindle 2 Collet Chuck Hainbuch Spanntop nova Kombi Axfix 65 Robot interface Lehmann Robot with parts belt for feeding and disposal CNC Turning- and Milling Center MORI SEIKI NZ 2000 T3Y2 The NZ2000 T3Y has 2 spindles and 3 turrets, and 2 turrets have the Y-axis function and built-in milling motors. This not only allows synchronized machining using 3 turrets, but also achieves heavy-duty cutting and high-speed machining using rotary tools thanks to the built-in motor turrets. For shaft parts loading and unloading there is a Lehmann Robot conveyor belts for loading and unloading. The machine can also be sold without robot. *

Condition: used, Year of construction: 1998, functionality: unexamined, machine/vehicle number: 3.8009, travel distance X-axis: 10,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 1,200 mm, feed length X-axis: 10,000 mm, feed length Y-axis: 3,500 mm, feed length Z-axis: 12,500 mm, feed rate X-axis: 10 m/min, feed rate Y-axis: 10 m/min, feed rate Z-axis: 10 m/min, spindle speed (min.): 5 rpm, spindle speed (max.): 5,000 rpm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 20 m/min, distance between stands: 2,500 mm, type of input current: AC, spindle motor power: 63,000 W, The machine was originally manufactured in collaboration between Waldrich Coburg and Waldrich Siegen as a heavy-duty CNC portal milling machine for industrial large-part and heavy-duty machining applications. 63 kW milling and drilling unit NC universal milling head B-axis and C-axis Automatic tool changer 60-position tool magazine ISO50 / SK50 Internal coolant system Enclosed work area Heavy-duty industrial design Electronic handwheel Siemens Sinumerik 840D Heavy-duty CNC portal milling machine from Waldrich Siegen for the machining of large and heavy workpieces. The machine comes from an ongoing industrial project / factory closure and is already disassembled or prepared for transport. Particularly interesting for: Heavy-duty machining Large-part machining Iedpfx Abey Sywgj Neib Machine and plant engineering Steel construction Tool and mold making Important note: Due to an urgent factory clearance, the machine must be picked up from Rüsselsheim no later than the end / mid-June. This makes a very attractive special price possible. Sale from location. Subject to prior sale and errors.

Condition: like new (used), Year of construction: 2016, functionality: fully functional, travel distance X-axis: 7,000 mm, travel distance Y-axis: 3,200 mm, travel distance Z-axis: 1,500 mm, total length: 10,500 mm, table length: 6,000 mm, table width: 3,000 mm, total width: 7,475 mm, spindle speed (min.): 2,670 rpm, spindle speed (max.): 18,000 rpm, total height: 5,380 mm, table height: 300 mm, FPT INDUSTRIE DINOMAX 3 MOVABLE BRIDGE MILLING MACHINE TECHNICAL SPECIFICATIONS Brand: FPT Industrie Iiedpfx Abey Ta Tke Neb Model: Dinomax 3 Year: 2016 CNC: Heidenhain TNC 640 Table: 6000 x 3000 X-axis travel: 7000 mm Y-axis travel: 3200 mm Z-axis travel: 1500 mm 40-tool magazine: (25 ISO 50 positions / 15 HSK A63 positions) Pick-up system for tool magazine, 3 positions Internal coolant system, 20 Bar Swarf filter Video surveillance system during machining AutoCal (automatic calibration software) MAPR (ISO 50 measuring and alignment probe) MRLUL (verification laser probe)

Condition: good (used), FOR SALE High-Precision Machining Center SCHAUBLIN 48-V Swiss Quality – Exceptional Precision – Ready for Operation Technical Specifications: Axes Travel (X/Y/Z): 480 x 400 x 430 mm Control: FANUC Series 0i-MD Spindle: High Speed (up to 10,000 – 12,000 rpm) Tool Holder: BT 40 / ISO 40 Table: approx. 600 x 400 mm Manufacturer Data (Source: IMG_8324.jpeg): Model: 48-V CNC Origin: Made in Switzerland Iodpfxoy Sgdtj Ab Nsib Power: 19 KVA / 36A Serial No.: 352251 BT MACHINES PURCHASE AND SALE OF ALL TYPES OF INDUSTRIAL EQUIPMENT ALL TYPES OF MACHINE TOOLS

Condition: good (used), Year of construction: 1965, Model maker milling machine with swivel head, MK 4, rotary table, d. Accessories Ijdpfx Aboq Ixz Rs Nsib Year of construction: 1965 X (mm): 1000 Y (mm): 600 Mounting (iso/mk): 4 Power (kw): 2

Condition: used, Mecof CNC Bed Type Milling Machine x 9000mm Key Specifications Ijdpfx Abjy N Amxe Nsib Manufacturer Mecof Condition Used Stock Number 00265 Table Size 9000 mm × 2200 mm X-Axis Travel 7200 mm Y-Axis Travel 1008 mm Z-Axis Travel 2040 mm Universal Head Heidenhain TNC 426 CNC Control Hand Wheel

Condition: excellent (used), XYZ 1500 Turret Milling Machine (Ex College) 2 Axis Newhall DRO Spindle Taper R8 Spindle speeds to 500 – 3500rpm Table Size 1069 x 228mm X – 610mm Y – 305mm Knee Travel: Z – 362mm 415V Electrics Year 2014 Iiedpfjy N Ak Rsx Ab Nob Serial Number 103080 Stock Number 2867
