Used Peddinghaus Plate Drilling And Flame Cutting Machine for sale (77,181)

Condition: used, Year of construction: 2012, CNC laser cutting machine Manufacturer: Microstep Type: FibreLas MSF 3001.15L Year of manufacture: 2012 CNC control: iMSNC Windows Approximate laser operating hours: 4,000 - 5,000 Laser power: 2.5 kW Working area: 3,000 x 1,500 mm Sheet metal thickness, steel (max.): 15 mm Sheet metal thickness, stainless steel (max.): 8 mm Sheet metal thickness, aluminum (max.): 8 mm Operating temperature: +10 to +30 °C and max. 90% humidity (at 20°C) Extraction duct (left and right): outlet on the left, diameter 250 mm Laser source: IPG Ytterbium laser system YLS 2.5 kW Laser cooler: LC 170.01-A.3.5 Voltage: 400 V / 3-phase / 50 Hz Filter system: TEKA 4H 5.5 kW External dimensions of the complete system: approx. 10,400 x 3,610 mm 3826 Chedpfox Eh Drox Ac Dja

Condition: excellent (used), Year of construction: 2009, Technical specifications: Working length: 1200 mm Max. bending capacity steel: 3 mm Max. bending capacity stainless steel: 2 mm Diameter of upper roller: 100 mm Diameter of lower roller (driven): 300 mm Lower roller made of polyurethane for pre-bending Special height adjustment for lower roller Control panel with digital display CE marking Dimensions (length x width x height): approx. 3500 x 1300 x 1650 mm Weight: approx. 3 tons Chjdpfezq S Acsx Ac Dsa Optional equipment: Holding device The seller is not liable for typographical or data transmission errors. The machine's appearance, technology, and wear and tear are consistent with its age; used machines are sold without any warranty.

Condition: refurbished (used), Year of construction: 2000, functionality: fully functional, drilling capacity: 40 mm, quill stroke: 200 mm, quill diameter: 80 mm, Machine Specification • Work table 1800 x 600 mm with 4 T-slots • Traversing arm travel 1050 mm • Drilling spindle SK 40 with tool clamping device • Infinitely variable speed programming • Infinitely variable quill feed via three-phase servo motor • 2 T-slots, 18 mm, rear side of machine base • 2 T-slots, 18 mm, left side of machine base • Thread cutting unit • Central lubrication • Coolant system • Machine light • CE marking • Safety device • USB interface Dimensions and Travel Ranges Tool holder: SK 40 Column diameter: 195 mm Table dimensions: 1800 x 600 mm Number of T-slots: 4 Distance between T-slots: 125 mm Quill travel (Z-axis): 200 mm Column travel (W-axis): 410 mm Distance spindle nose – table (min): 70 mm Distance spindle nose – table (max): 680 mm Distance spindle nose – floor (min): 970 mm Distance spindle nose – floor (max): 1580 mm Drilling radius: 540 – 1590 mm Working table height: 900 mm Machining Capacities Drilling capacity (solid): St 60: ⌀ 40 mm GG 22: ⌀ 50 mm Tapping: St 60: M36 GG 22: M42 Main Spindle Drive AC motor, frequency controlled: 5.5 kW at 100% duty cycle Speed range: 15 – 2800 rpm Torque: max. 250 Nm Constant torque from 15 – 2000 rpm Feed Drives X-axis - AC servo motor: 0.25 kW Y-axis - AC servo motor: 0.25 kW Z-axis - AC servo motor: 4.50 kW W-axis - AC servo motor: 2.50 kW Rapid traverse (X/Y/Z): 7.5 / 7.5 / 5 m/min Rapid traverse (W): 3 m/min Infinitely variable feeds: 5 – 2000 mm/min Accuracy Positioning accuracy X, Y axis (over 1200 mm): ± 0.075 mm Electrical Data Operating voltage/frequency: 400 V / 50 Hz Control voltage: 24 V Hydraulic unit for clamping: 0.75 kW Total connected load: 13.0 kVA Weight (Danumeric 440, without packaging, with 1800 x 600 mm table): 2800 kg CNC Control Cedpfx Aezrr Uuec Doha Axes: 4 (X, Y, Z, W), expandable Processor: 32-bit CPU Display: TFT flat screen, backlit, easily readable from all sides, 215 x 160 mm Position indication: Cartesian or polar, absolute or incremental Measurement units: mm or inch or degrees Interpolation: 2 axes (X, Y) Technology Database: Tool management, tool suggestions based on machining operation, material-dependent cutting data suggestions Tool management: max. 500 tools Subprogram function: yes Machining Cycles Standard software options: Conversational programming, 38 reference point shifts, rotation and mirroring, teach-in for X, Y, Z, program restart with selectable entry functions Zero point determination: cycles for determining reference points by manual probing of the workpiece for: - Arbitrary clamped rectangular parts - Arbitrary clamped round parts - Centering of cast and flame-cut parts - Angle position detection for round parts by probing reference edges or surfaces Test graphics: Graphical display of drilling patterns

Condition: used, Year of construction: 2011, cutting width (max.): 4,300 mm, air demand: 4.45 m³/h, cutting diameter: 75 mm, Biesse Sektor 450 K1 - 4.300 x 4.400mm Description SIZING CENTRE SEKTOR 450 - K1 / 4300 x 4400 Motor 7,5 kW Scoring unit motor 2,2 kW 1+3 tables Speed 1-120 m/min. Automatic board measuring on Manual cuts and, with OSI Plus option, on Sequences programs Push button for remote control start cycle, complete with emergency stop button. Basic electronic label printer Label printer support stand OS-Labelling - Graphic labeling on the machine with part drawings. QUICK OPTI software for optimization of cutting patterns. On-board version. OSI PLUS interface. Includes: Order management, navigation through tree, advanced simulation, sequence mode, Macro functions for sequences, grooving, function Editor, advanced statistics elaboration, panel and drops stock, technological parameter control system, management of unstrained cuts on the boards. 3 Rounded air cushion unloading table, size 2050 x 620 mm Transfer device for the second air cushion unloading table. (Despite our great care all changes, mistakes in technical data, prices and all information is subject to (typing) errors. No guarantee on printed data! Availability subject to prior sales). Chjdpfx Acjzqcrzo Dsa (Trotz größter Sorgfalt bleiben Änderungen, Irrtümer bei technischen Daten, Preisen und allen Angaben (Tipp-)Fehler vorbehalten. Keine Gewähr auf gedruckte Daten! Verfügbarkeit vorbehaltlich Zwischenverkauf). Prices excl. advertisement cost MachineSeeker / Preise exkl. Inserierungskosten MaschinenSucher Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2010, operating hours: 21,713 h, machine/vehicle number: 007, laser power: 4,000 W, sheet thickness steel (max.): 12 mm, sheet thickness stainless steel (max.): 10 mm, sheet thickness aluminum (max.): 8 mm, travel distance X-axis: 2,520 mm, travel distance Y-axis: 1,550 mm, travel distance Z-axis: 300 mm, No minimum price – guaranteed sale to the highest bidder! The machine was serviced annually (most recently in December 2025) – service records are available. The Laser Turbo-Blower was replaced in 2021. The X-axis and Y-axis were renewed in 2023 with 27,066 operating hours. TECHNICAL DETAILS Travel range X-axis: 2,520 mm Travel range Y-axis: 1,550 mm Travel range Z-axis: 300 mm Travel range B-axis: 17 mm Cutting capacity normal steel: max. 12 mm Cutting capacity stainless steel: max. 10 mm Cutting capacity aluminum: max. 8 mm Laser power: 4 kW Wavelength: 10.6 µm Laser beam diameter at the output of the laser resonator: 27 mm Cutting speed X-axis: 0 to 20 m/min Cutting speed Y-axis: 0 to 20 m/min Travel speed X-axis: max. 80 m/min Travel speed Y-axis: max. 80 m/min Travel speed Z-axis: max. 60 m/min Workpiece weight: max. 330 kg Material size: max. 1,500 × 5,000 mm Table height: 820 mm MACHINE DETAILS Control system: AMNC-F (FS-160I LPB) Chedpezrnhwsfx Ac Dea Minimum unit: 0.001 mm Memory capacity: 10 MB Dimensions & Weight Machine dimensions (L × W × H): 5,745 × 2,630 × 2,151 mm Net weight: 7,700 kg Operating hours (according to the counter) Operating hours: 34,401 h Runtime: 21,713 h Cutting time: 11,111 h EQUIPMENT Loader and unloader Filtration system Manuals

Condition: like new (used), An onion cutter with two serrated blades is an industrial machine specifically designed to cut both ends (root and tip) of an onion simultaneously and with precision. The serrated blades are essential in this application, as they grip the onion’s slippery, fibrous skin without slipping, ensuring a clean cut without crushing the produce. Chsdpfx Aszrglnjc Dja Production figures may vary depending on the format.

Condition: used, Year of construction: 2002, Charmilles Robofil 440-CC Wire-Cut Electro-Discharge Machine. Serial No. 931081 (2002). Country of Origin: Switzerland Please Note: this lot has been professionally decommissioned and secured for transit Location: This lot is located in Birmingham, UK. A charge of £550 for decommissioning and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser. Chodpfx Acoznkk To Dea

Condition: used, Year of construction: 2002, Charmilles Robofil 4030 SI-TW Wire-Cut Electro-Discharge Machine. Serial No. 174621 (2002). Country of Origin: Switzerland Please Note: this lot has been professionally decommissioned and secured for transit Chjdpeznkkmsfx Ac Dja Location: This lot is located in Birmingham, UK. A charge of £550 for decommissioning and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

Condition: excellent (used), Year of construction: 1978, wire diameter range: 4,0 - 10,0 mm cutting length: up to 4.000 mm Chodpezq T Igsfx Ac Dea wire feeding speed: 25 - 90 mtr./min

Condition: used, The GM PN100S model is an automatic core cutter for cores with a maximum length of 100 cm. Chsdpfx Acszq U Uns Dea The device is operated via a touch display. Max. wall thickness: 10 mm Core inner diameter: 25 mm (1") - 120 mm (4.7")

Condition: ready for operation (used), Year of construction: 2002, Professional, heavy-duty version by HANG (German quality) in neat, complete condition. Highly suitable for binderies, printing shops, and print departments. ⸻ Specifications • Brand / Model: HANG 107-30 electronic • Serial number: 102553 • Year of manufacture: 2002 • Number of drilling heads: 4 pieces, individually adjustable • Electronic control, automatic drilling cycle • Power connection: 400V – 50Hz – 6A • CE certification present • Cast iron frame, extremely robust construction • Manual and automatic operation • Adjustable stops with fine adjustment • Machine is mounted on swivel casters (easily movable) ⸻ Condition • Removed from production in working order • Drill spindles and guides run smoothly • No damages, normal signs of use • Immediately ready for operation • Complete, as shown in the photos ⸻ Description The HANG 107-30 is one of the most robust paper drilling machines on the market. Heavier-duty and more professional version than the standard models, thanks to the sturdy drilling heads, automatic drilling cycle, and reliable electronic control system. Perfect for calendar production, book blocks, brochures, index tabs, and more. ⸻ Price 👉 € 3,250 net (0% VAT export possible) Cedpfxjx A Izlo Ac Deha

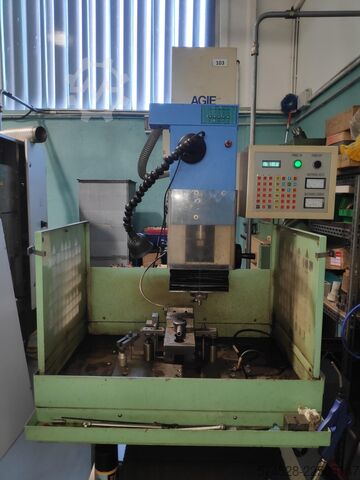

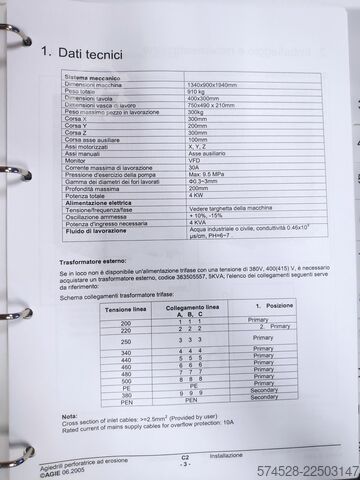

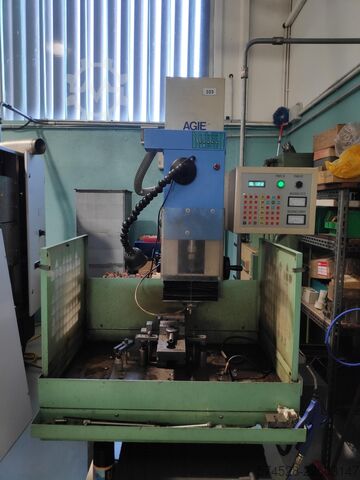

Condition: used, Year of construction: 2005, functionality: fully functional, machine/vehicle number: 072-003, workpiece weight (max.): 300 kg, travel distance X-axis: 300 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 300 mm, total height: 1,940 mm, total length: 1,340 mm, total width: 900 mm, type of input current: three-phase, overall weight: 910 kg, table length: 400 mm, table height: 300 mm, input voltage: 400 V, tank capacity: 20 l, input frequency: 50 Hz, input current: 30 A, Equipment: documentation/manual, Comes with accessories: set of pliers ranging from 1mm to 4mm. Codpfx Acezr D Dnj Dsha

Condition: new, CATALOGUE NUMBER RE060 - New machine TECHNICAL SPECIFICATIONS - Saw blade diameter ⌀250 – 350/30 mm - Scoring blade diameter (works only with blades ⌀300, 350 mm) ⌀120/20 mm - Main motor power 4 kW - Scoring motor power 0.75 kW - Spindle speed 4000 rpm - Scoring spindle speed 8800 rpm - Blade tilting 0 – 45° - Max. cutting length 1600 mm - Rip fence cutting width 1250 mm - Riving knife ⌀350 mm - Spindle flange diameter 87.5 mm - Table fence set at 90° – 45° angle, accuracy ±1° - Max. cutting height with blade ⌀300 mm: 95 mm - Max. cutting height with blade ⌀350 mm: 120 mm - Upper dust extraction port diameter ⌀80 mm - Lower dust extraction port diameter ⌀100 mm Chjdpfszrk N Rox Ac Dsa - Weight 480 kg - Machine dimensions (folded) 2020x3380x1200mm Net price: 16000 PLN Net price: 3800 EUR Net price calculated at the exchange rate of 4.2 PLN/EUR (Price may change with larger exchange rate fluctuations)

Condition: refurbished (used), Year of construction: 2020, functionality: fully functional, The Autobyte 3602D is the automated cutting system for professionals who demand speed, accuracy, and efficiency. Equipped with premium Morso guillotine blades, it delivers perfect 45° corners in wood, plastic, and MDF—consistently, every time. With a capacity of over 500 frames per hour, you can significantly increase your production output. At the same time, you drastically reduce material waste: just 1 mm cutting loss per cut, compared to up to 6 mm with conventional saws. Smart automation features include: Automatic loader handling up to 13 lengths Chodpfxsw U D E Es Ac Dja Precision clamping system for maximum stability Integrated splitter to sort cut pieces and remove waste automatically Full control via a Mitsubishi touchscreen and PLC system, combined with reliable SMC pneumatics. The result: higher output, lower waste, and consistent premium quality—exactly what your production line needs.

Condition: excellent (used), Year of construction: 2006, Ref:11129 . 2006 Perfecta Seypa 92-TVC Guillotine Comprising; Central air table with blower Steel side air tables to left & right Cjdpfx Acszmydyj Djha Electronically controlled 2 speed back gauge Colour display with soft key pad 8000 cut positions with 400 programmes Minimum programme step 1 mm Illuminated cutting area Infra-red light beam guard with FFM Knife change device 2 HSS knives Including tools & manuals. Specification: Cutting width, Max: 92 cm Feed table depth, Max: 92 cm Clamp opening, Max: 13.5 cm Number of cuts : 44/min. (cont. operation).

Condition: new, functionality: fully functional, Year of construction: 2026, Equipment: CE marking, Here, you see a pallet rack system designed for space-saving storage of sheet metal in sizes ranging from 1x2 meters to 6x2 meters. This is a heavy-duty steel welded construction. Storage weight: 3000 kg All shelves are 100% load-bearing. Codpfxjzrgq Re Ac Dsha Easy loading and unloading of sheet metal. Automation connections to laser and punching machines are possible. Advantages at a glance: - Stores 2.5 times more sheet metal than cantilever racks in the same footprint - Neat and organized appearance - No more damaged sheet metal - Large insertion width between the pallet and the frame - Pallets are open on the side, allowing even thin sheet metal to be removed without a crane - Depalletizer can be moved freely (see video) - Standard hot-dip galvanized - CE marking and static calculation - The fire load in the building is reduced as no more pallet wood is required. Request a non-binding offer. The rack system will be manufactured to your required height and length.

Condition: used, Year of construction: 2005, functionality: fully functional, empty load weight: 1,300 kg, Horizontal drilling/pushing rig, complete with numerous extension rods. Bohrtec PZ 120/80. Year of manufacture: 2005. Chodpfxezp Sa Ej Ac Dea Weight: 1300 kg. Pushing force: 1200 kN. Pulling force: 800 kN. Length: 325 cm. Width: 60 cm. 46 x extension rod, 100 cm long, 22 cm diameter. 72 x extension rod, 100 cm long, 6 cm diameter. Crate with couplings and various accessories. See photos. Price net + 21% VAT or net for export. Calling or sending a WhatsApp message is the fastest way to contact us. We speak Dutch. We speak German. We speak English.

Condition: ready for operation (used), Year of construction: 1975, arm 1200MM stroke head on bench 1400MM universal head portable radial Codpfovm Akgox Ac Djha

Condition: used, functionality: fully functional, control type: PLC-controlled, degree of automation: automatic, Equipment: CE marking, CraneMasterStoreLinear S-DOWN 1530: A loading and unloading device offering an efficient connection between the machine and the storage system. It makes the automation of storage, logistics, and loading and unloading of material and cut parts, including the associated offcuts, even more efficient. It offers all the automatic functions expected of a CraneMaster system, such as efficient loading of material from the storage to the cutting machine's pallet, and simultaneous unloading of cut parts to the storage or to a discharge station. The system is recommended for manufacturing and service companies expecting the highest performance, with production ranging from low to medium or high volume. Additional Options: - Automatic sheet separation - Automatic sheet thickness measurement Codpozrfy Dofx Ac Dsha - Anti-collision system - Automatic grate cleaning system - Gripper adjustment system - Additional conveyor for cut parts - Independent control of suction cups - Double the number of suction cups - Precise measurement of the weight of the storage tower eTower 240 sheet storage system – This is an automatic sheet storage system that works with the loading and unloading system of the CraneMasterStore or CraneMasterStoreLinear laser cutting machine. The eTower2 material storage system consists of a storage column, which also functions as a transport column, with an elevator moving within it. The elevator's task is to move shelves between the storage columns and the loading and unloading locations. In addition, the system is equipped with a movable external loading and unloading station.

Condition: repair required (used), Year of construction: 2007, operating hours: 67,367 h, functionality: not functional, machine/vehicle number: W288, repeat accuracy: 0.01 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 200 mm, positioning accuracy: 0.01 mm, workpiece weight (max.): 3,000 kg, type of input current: three-phase, input voltage: 250 V, sheet thickness aluminum (max.): 100 mm, table length: 3,000 mm, operating speed: 6,000 mm/s, table width: 1,500 mm, tank capacity: 5,500 l, pressure: 3,600 bar, positioning speed: 60 m/min, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 2 m/min, table height: 1,000 mm, operating pressure: 3,600 bar, year of last overhaul: 2024, waste water connection: 50 mm, input frequency: 50 Hz, power: 120 kW (163.15 HP), controller manufacturer: Bystronic, control type: CNC control, degree of automation: automatic, actuation type: hydraulic, Equipment: safety light barrier, Bystronic Byjet 3015 Waterjet. This machine has a 3000 x 1500 cutting table up to 200mm thickness, complete with two cutting heads. Chodezlt Ayepfx Ac Dsa The waterjet is powered by a Bypump 50 APC hydraulic unit. This machine was regularly serviced by a Bystronic service engineer. This machine is being sold as as a spare parts machine, but could be easily put back in production. It has a new hydraulic pump fitted shortly before it was taken out of production. It comes complete with a chain conveyor with paddles for the automatic removal of used garnet from the cutting beds. It also comes with an air blower and reservoir tanks for the raising and lowering of the water levels in the cutting bed for reducing the noise levels during the cutting process.

Condition: ready for operation (used), functionality: fully functional, Stack cutter IDEAL 4850-95 EP WITH AUTOMATIC PRESSING AND BACK GAUGE PROGRAM CONTROL 475 mm cutting length | electro-mechanical knife drive | automatic pressing | electrically operated back gauge with “EP” control module | electronic handwheel with continuously adjustable speed for manual back gauge fine adjustment | optical cutting indicator | pressure bar guided on both sides, controllable independently of the knife | precision back gauge spindle | adjustable back gauge rack with fine pitch and plastic sliders | two side guides each on the front and back table | all-steel knife carrier and adjustable knife guides | complete with base frame and paper stacking table | Electronically controlled, pivoting safety device on the front table; transparent safety cover on the back table; main switch and safety lock with key; two-hand cutting release with repeat lock and simultaneous operation control; 24-volt control; patented IDEAL safety drive; automatic knife and pressure bar return from any position; disc brake for immediate knife stop; knife changing device with covered knife edge; knife depth adjustment from the outside; easy knife change from the front, without removing housing parts. Power connection: 230 V / 50 Hz / Dimensions (H x W x D): 1230 x 755 x 970 mm, Weight: 215 kg, Color: pearl grey. Cjdpszqzxgefx Ac Dsha Cutting length 475 mm Cutting height 80 mm Remaining cut 35 mm Feed depth 450 mm Power connection 230 V / 50 Hz Our offers refer to used machines, which may show signs of use (minor scratches or discoloration).

Condition: new, Year of construction: 2026, table length 3000 mm table width 1500 mm burner heads 1 Control CNC workpiece weight 900 kg traversing speed 91 m/min weight 4980 kg dimensions of the machine ca. 5562 x 2270 x 2388 mm Laser cutting machine with manual shuttle table Configuration 1. BodorPower laser source 12 kW 2. Bodor Genius laser cutting head with autofocus 3. Bodor Thinker 3.0 control system 4. Bed made of tenon and mortise structure 5. Bodor servo motor and driver 6. Nitrogen control valve 7. Bodor Lightning perforation technology 8. Automatic layout of residual material 9. 21.5-inch monitor with touch function 10. Automatic adjustment of cutting gas pressure 11. Active anti-collision function 12. Intelligent vibration protection 13. Anti-burn mineral casting 14. Bodor Mango® Ergonomic Remote Control 15. Gas-saving nozzles with stable flow 16. Intelligent maintenance reminder 17. WIFI internet connection 18. Water cooling 19. Extraction system 20. Wear parts set CUTTING CAPACITY: STRUCTURAL STEEL 35 mm STAINLESS STEEL 35 mm Chjdpfxoxv D T Rj Ac Dea ALUMINUM 25 mm OPTIONAL: LANTEK EXPERT II CUT software incl. post-processor

Condition: new, Year of construction: 2026, table length 3000 mm table width 1500 mm burner heads 1 Control CNC workpiece weight 900 kg traversing speed 91 m/min dimensions of the machine ca. 5562 x 2270 x 2388 mm Laser cutting machine with manual shuttle table Configuration 1. BodorPower laser source 6 kW 2. Bodor Genius laser cutting head with autofocus 3. Bodor Thinker 3.0 control system 4. Bed made of tenon and mortise structure 5. Bodor servo motor and driver 6. Nitrogen control valve 7. Bodor Lightning perforation technology 8. Automatic layout of residual material 9. 21.5-inch monitor with touch function 10. Automatic adjustment of cutting gas pressure 11. Active anti-collision function 12. Intelligent vibration protection 13. Anti-burn mineral casting 14. Bodor Mango® Ergonomic Remote Control 15. Gas-saving nozzles with stable flow 16. Intelligent maintenance reminder 17. WIFI internet connection Cedpfx Aswh Ulqjc Doha 18. Water cooling 19. Extraction system 20. Wear parts set CUTTING CAPACITY: STRUCTURAL STEEL 20 mm STAINLESS STEEL 18 mm ALUMINUM 14 mm OPTIONAL: LANTEK EXPERT II CUT software incl. post-processor

Condition: like new (used), Year of construction: 2013, functionality: fully functional, COLLECTIVE LISTING - 3 FICEP EXCALIBUR CNC BEAM DRILLING LINES Three refurbished CNC single-spindle beam drilling lines from the Ficep Excalibur series: two Excalibur 12 (1201 DE, year 2013) and one Excalibur 6 (601 DE, year approx. 2011). Together they form a graduated profile-processing line (up to 1,200 mm and up to 610 mm). EACH MACHINE AVAILABLE INDIVIDUALLY OR AS A PACKAGE. CONDITION & REFURBISHMENT (all three lines) All three machines have been refurbished and inspected by a certified technician, ready for operation. - The exact scope of reconditioning varies per machine and is disclosed individually upon serious interest. - Viewing possible by arrangement (machines reconditioned - no demonstration under power). === MACHINES 1 + 2: FICEP EXCALIBUR 12 / 1201 DE / YEAR 2013 === Two identical lines, serial numbers 33900 and 34062. CNC single-spindle beam drilling line based on the moving-column principle. The moving drill head with direct drive performs drilling, countersinking, tapping, milling and scribing in a single pass. - Profile cross-section: max. 1,200 x 800 mm, min. 50 x 50 mm | length up to 12 m | CE - Profile shapes: I-beams, channels, angles, flat bar, square/rectangular hollow sections - Drill head: 1, direct drive, 19 kW | 180-4,000 rpm | max. drilling diameter 28 mm - Drilling feed: ball screw, servo-driven | CNC axes: 5 - X-axis: travel 0-15,000 mm, 35 m/min | Y-axis: 12 m/min | rack and pinion - Tool changer: 6-position automatic (ATC), HSK A80 - Clamping: hydraulic double-acting | Profile detection: laser, non-contact - Coolant internal (through spindle) and external - Control: Ficep Pegaso CNC (PC/CNC/PLC integrated), remote diagnostics via network - Interfaces: DSTV, DXF, XML (Tekla) | Table: 15 m long, approx. 3,300 mm wide Scope of delivery per line: drilling unit 19 kW | support table with guide rail 15 m | 6-position ATC (HSK A80) | Pegaso CNC | radio remote control | coolant system. === MACHINE 3: FICEP EXCALIBUR 6 / 601 DE / YEAR APPROX. 2011 === Serial number 32754. More compact line with moving drill cabin, workpiece stationary on the clamping frame. - Profile cross-section: max. 610 x 610 mm, min. 30 x 30 mm | I-beam web height up to 610 mm - Max. machining length: 12,000 mm | X-axis traverse 0-12,000 mm, rack and pinion - Profile shapes: I-beams, angles, UPN channels, flat bar, square/rectangular tube - Drilling spindle: 1, 7.5 kW | max. drilling diameter 22 mm | manual change (quick-change chuck) - Operations: drilling, countersinking, tapping (with suitable tooling) - Clamping: double-acting automatic (top/bottom), min. 30 x 30 mm - Control: Mitrol CNC (Ficep Group) Scope of delivery: beam drilling line 601 DE | Mitrol CNC | traverse frame 12,000 mm | length measuring/positioning system X-axis (configuration confirmed during inspection) | automatic clamping system | quick-change chuck. Machine weights, rated voltage and footprint per line follow on request. LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM): specialist for refurbished Ficep structural-steel machinery. Further machines on request. Csdpfx Aov Iamzsc Dsha CONTACT / INQUIRY Price on request - individually or as a package | Viewing by arrangement. Sale exclusively to commercial customers (B2B).

Condition: good (used), Year of construction: 2006, feed length X-axis: 1,650 mm, feed length Y-axis: 1,000 mm, Max. drill Ø steel: 5 - 40mm X - Travel: 1650mm Y - Travel: 1000mm W - Travel: 500mm Table size L x W / or ø:1200 x 1500mm Spindle taper: SK40Mk Speeds / ranges: 4200Rpm Length: 6500mm Chodpfx Acowyup To Dja Width: 3800mm Height: 3400mm Weight: 6500kg
