Used Rbo Panel Turning Device for sale (26,928)

Condition: ready for operation (used), Year of construction: 2008, operating hours: 10,500 h, functionality: fully functional, turning diameter: 630 mm, travel distance X-axis: 580 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 935 mm, controller model: Okuma OSP P200L, TECHNICAL DETAILS Diameter over slide: 630 mm Machining diameter: 630 mm Distance between centers: 900 mm Travel range X-axis: 580 mm Travel range Y-axis: 160 mm Travel range Z-axis: 935 mm Travel range W-axis: 1,000 mm Travel range C-axis: 360° Travel range B-axis: -30° to 195° Main spindle: 3,800 rpm Counter spindle: 5,000 rpm Milling spindle: 6,000 rpm Rapid traverse X-axis: 40,000 mm/min Rapid traverse Z-axis: 40,000 mm/min Rapid traverse Y-axis: 26,000 mm/min Rapid traverse W-axis: 20,000 mm/min Nlodpfx Asy S Swxokujb Rapid traverse C-axis: 200 rpm Rapid traverse B-axis: 30 rpm Tool diameter max.: 90 mm Tool diameter without adjacent tools max.: 130 mm Tool length max.: 300 mm Tool weight max.: 10 kg MACHINE DETAILS Number of axes: 6 Control system: Okuma OSP P200L Dimensions & Weight Footprint: 4,340 × 2,050 mm Height: 2,600 mm Weight: 10,300 kg Spindle hours: 10,500 h EQUIPMENT Documentation/Manual Speed infinitely adjustable Marpos tool sensor Chip conveyor & coolant system with small band filter system ATC 60 system HSKA-63 (60 tools)

Condition: ready for operation (used), Year of construction: 2007, operating hours: 5,426 h, functionality: fully functional, machine/vehicle number: 101098, travel distance X-axis: 400 mm, travel distance Z-axis: 200 mm, workpiece length (max.): 130 mm, TECHNICAL DETAILS Travel range, X-axis: 400 mm Working stroke, X-axis: 150 mm Travel range, Z-axis: 200 mm Chuck diameter: 160 mm Turning diameter: max. 200 mm Machining diameter: max. 130 mm Part length: max. 110 mm Main spindle Spindle flange according to DIN 55026: Size 5 Spindle bearing, diameter front: 80 mm Speed, hybrid bearing: max. 6,000/7,500 rpm Main drive AC asynchronous motor: 1MB200E Indramat Low-voltage technology: Fanuc Power at 100/40 % duty cycle: 16/24 kW Torque at 100/40 % duty cycle: 102/153 Nm Rated speed: 1,500 rpm Feed drive Rapid traverse speed X: 60 m/min Rapid traverse speed Z: 30 m/min Feed force X and Z: 5 kN Ball screw diameter X and Z: 40 mm Acceleration X/Z: 5/5 m/s² Tool holder Cylindrical shank tool holder according to DIN 69880: 12-fold Shank diameter: 40 mm Tool length incl. holder: max. 190 mm Pitch circle diameter: max. 740 mm Pitch circle diameter Lifetool: max. 620 mm Tool holder with driven tools Cylindrical shank tool holder according to DIN 69880: 12-fold Shank diameter: 40 mm Speed: max. 6,000 rpm Rated speed: 3,000 rpm Torque at 10 % duty cycle: max. 37 Nm Torque at 25 % duty cycle: max. 26 Nm Torque at 100 % duty cycle: max. 14 Nm MACHINE DETAILS Nlodoy T Iupspfx Akujb Closed standard automation Number of carrier bars with workpiece diameter 27 mm: 85 Number of carrier bars with workpiece diameter 18 mm: 130 Permissible total load: max. 120 kg Pick-up stroke depressed: 1 mm Pick-up stroke over-depressed EMERGENCY STOP: 5 mm Pick-up spring travel: max. 30 mm Chain length: 162 inches Chain pitch: 25.4 mm Chain tension with 27 carrier bars: 400 N Chain sprocket: Z = 30 Gear ratio: i = 100 Motor revolution/band revolution: 540 Loading time: 2–4 s Electrical equipment Operating voltage: 400–480 V Control voltage DC: 24 V Control voltage AC: 230 V Frequency: 50/60 Hz Connected load: 31 kW Supply line fuse: 50 A Design of the electrical system: VDE 0113 Operating hours: 5,426 h

Condition: ready for operation (used), Year of construction: 2006, operating hours: 91,318 h, functionality: fully functional, machine/vehicle number: 040033, rotational speed (max.): 5,000 rpm, working width: 120 mm, working height: 260 mm, working length: 360 mm, TECHNICAL DETAILS Work area X-axis: 360 mm Work area Y-axis: 120 mm Work area Z-axis: 260 mm Handling area X/Z: 490/260 mm Maximum spindle speed: 5,000 rpm Spindle bore: 65 mm Spindle diameter at front bearing: 110 mm Spindle nose, cylindrical: ∅ 140 mm Feed force X/Y: approx. 8,000/10,000 N Feed force Z: 10,000 N Rapid traverse rate X/Z/Y: approx. 80/40/7.5 m/min Acceleration X/Z/Y: 7 m/s² MACHINE DETAILS Control system: SIEMENS Sinumerik Power at 100% duty cycle ED main spindle: 20 kW Torque at 100% duty cycle ED: 105 Nm Power at 40% duty cycle ED: 27 kW Torque at 40% duty cycle ED: 145 Nm Dimensions & Weight Machine dimensions (L x W x H): 2,430 x 2,000 x 2,850 mm Machine weight: approx. 7,500 kg Rated power: 20 kW Apparent power: 25 kVA Rated current: 36 A Nlodey T Itrepfx Akuob Voltage: 400 V Frequency: 50/60 Hz Operating hours: 91,318 h EQUIPMENT Sliding door: Sheet thickness 5 mm Note: The machine is sold including a small set of accessories!

Condition: ready for operation (used), Year of construction: 2005, operating hours: 91,318 h, functionality: fully functional, machine/vehicle number: 040018, rotational speed (max.): 5,000 rpm, controller model: SIEMENS Sinumerik, working width: 120 mm, working height: 260 mm, working length: 360 mm, TECHNICAL DETAILS Working area, X-axis: 360 mm Working area, Y-axis: 120 mm Working area, Z-axis: 260 mm Handling area, X/Z: 490/260 mm Maximum spindle speed: 5,000 rpm Spindle through-hole diameter: 65 mm Nsdpfx Aoy T Im Ejkuelb Spindle diameter at the front bearing: 110 mm Spindle nose, cylindrical: ∅ 140 mm Feed force, X/Y: approx. 8,000/10,000 N Feed force, Z: 10,000 N Rapid traverse rate, X/Z/Y: approx. 80/40/7.5 m/min Acceleration, X/Z/Y: 7 m/s² MACHINE DETAILS Control system: SIEMENS Sinumerik Power at 100% duty cycle, main spindle: 20 kW Torque at 100% duty cycle: 105 Nm Power at 40% duty cycle: 27 kW Torque at 40% duty cycle: 145 Nm Dimensions & Weight Machine dimensions (L x W x H): 2,430 x 2,000 x 2,850 mm Machine weight: approx. 7,500 kg Rated power: 20 kW Apparent power: 25 kVA Rated current: 36 A Voltage: 400 V Frequency: 50/60 Hz Operating hours: 91,318 h EQUIPMENT Sliding door: Sheet thickness 5 mm Note: The machine is sold including a small set of accessories!

Condition: ready for operation (used), Year of construction: 2004, operating hours: 63,778 h, functionality: fully functional, machine/vehicle number: 06800002061, rotational speed (max.): 6,000 rpm, spindle bore: 56 mm, spindle diameter: 90 mm, empty load weight: 6,000 kg, TECHNICAL DETAILS X-axis travel: 800 mm Z-axis travel: 300 mm Rapid traverse rate X: 100 m/min Rapid traverse rate Z: 45 m/min Chuck diameter: 200 mm Spindle head, flat flange: F140 h5 Spindle diameter in the front bearing: 90 mm Spindle bore: 56 mm C-axis Speed range: 0–100 rpm Torque, holding torque brake: 240 Nm Accuracy in point positioning: < 0.02 degrees Number of tool stations: 12 Cylindrical shank diameter: 40 mm Drive power, 40% duty cycle: 10.8 kW Torque: 28 Nm Speed: max. 6,000 rpm MACHINE DETAILS Power of the three-phase main drive: 25 kW Torque, 100% duty cycle: 160 Nm Speed range: 20–7,000 rpm Electrical data Nlsdoy T Ikkspfx Akujb Power: 25/35 kW Voltage: 400 V / 50 Hz Control voltage: 24 V DC Hydraulics Total capacity: approx. 25 l Pressure: 80 bar Pressure for clamping device: max. 700 bar Coolant system Capacity: approx. 190 l Pump output: 1.7 kW Flow rate at 6 bar: 20 l/min Weight: approx. 6,000 kg Operating hours: 63,778 h Note: The machine is sold including a small set of accessories!

Condition: ready for operation (used), Year of construction: 2002, operating hours: 74,523 h, functionality: fully functional, machine/vehicle number: 06800001121, rotational speed (max.): 6,000 rpm, spindle bore: 56 mm, spindle diameter: 90 mm, empty load weight: 6,000 kg, TECHNICAL DETAILS Travel, X-axis: 800 mm Travel, Z-axis: 300 mm Rapid traverse rate, X: 100 m/min Rapid traverse rate, Z: 45 m/min Chuck diameter: 200 mm Nsdey T Id Dopfx Akuelb Spindle head, flat flange: F140 h5 Spindle diameter at front bearing: 90 mm Spindle bore: 56 mm C-axis Speed range: 0–100 rpm Torque, holding torque brake: 240 Nm Accuracy in point positioning: < 0.02 degrees Number of tool stations: 12 Cylindrical shank diameter: 40 mm Drive power, 40% duty cycle: 10.8 kW Torque: 28 Nm Speed: max. 6,000 rpm MACHINE DETAILS Power of the three-phase main drive: 25 kW Torque, 100% duty cycle: 160 Nm Speed range: 20–7,000 rpm Electrical data Power: 25/35 kW Voltage: 400 V / 50 Hz Control voltage: 24 V DC Hydraulics Total capacity: approx. 25 l Pressure: 80 bar Pressure for clamping device: max. 700 bar Coolant system Capacity: approx. 190 l Pump power: 1.7 kW Flow rate at 6 bar: 20 l/min Weight: approx. 6,000 kg Operating hours: 74,523 h Note: The machine is sold including a small set of accessories!

Condition: ready for operation (used), Year of construction: 2002, operating hours: 77,119 h, functionality: fully functional, machine/vehicle number: 06810000041, rotational speed (max.): 6,000 rpm, spindle bore: 56 mm, spindle diameter: 90 mm, empty load weight: 6,000 kg, TECHNICAL DETAILS Travel X-axis: 800 mm Travel Z-axis: 300 mm Rapid traverse rate X: 100 m/min Rapid traverse rate Z: 45 m/min Chuck diameter: 200 mm Spindle head, flat flange: F140 h5 Spindle diameter at front bearing: 90 mm Spindle bore: 56 mm C-axis Speed range: 0–100 rpm Torque, holding torque brake: 240 Nm Accuracy at point positioning: < 0.02 degrees Number of tool stations: 12 Cylindrical shank diameter: 40 mm Drive power, 40% duty cycle: 10.8 kW Torque: 28 Nm Speed: max. 6,000 rpm MACHINE DETAILS Power of the three-phase main drive: 25 kW Torque, 100% duty cycle: 160 Nm Speed range: 20–7,000 rpm Electrical data Power: 25/35 kW Voltage: 400 V / 50 Hz Control voltage: 24 V DC Hydraulics Total capacity: approx. 25 l Pressure: 80 bar Pressure for clamping device: max. 700 bar Nedjy T Iddspfx Akuelb Coolant system Capacity: approx. 190 l Pump power: 1.7 kW Flow rate at 6 bar: 20 l/min Weight: approx. 6,000 kg Operating hours: 77,119 h Note: The machine is sold including a small set of accessories!

Condition: ready for operation (used), Year of construction: 2007, machine/vehicle number: 5012 EX, functionality: fully functional, cutting width (max.): 3,300 mm, saw blade diameter: 250 mm, total length: 4,200 mm, total width: 1,200 mm, overall weight: 485 kg, TECHNICAL DETAILS Maximum cutting height (horizontal): 1,550 mm Maximum cutting width: 3,300 mm Maximum cutting depth: 55 mm Saw blade diameter: 250 mm Arbor bore for saw blade diameter: 30 mm Nljdpfxjy Tu Dqj Akusb MACHINE DETAILS Voltage: 400 V Fuse: 16 A Power: 3.0 kW Dimensions & Weight Dimensions (L x W x H): 4,200 x 1,200 x 2,450 mm Shipping weight: 485 kg Shipping packages: 1 unit EQUIPMENT CE marking Vertical & horizontal cutting

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, cutting height (max.): 125 mm, cutting width (max.): 4,300 mm, cutting length (max.): 2,200 mm, table length: 2,500 mm, table width: 1,000 mm, No minimum price – guaranteed sale to the highest bidder! The machine must be collected between June 10, 2026, and June 30, 2026! TECHNICAL DETAILS Maximum plate width: 4,300 mm Maximum plate length: 2,200 mm Maximum saw blade overhang: 125 mm Number of grippers: 10 Number of work tables: 4 MACHINE DETAILS Programming software: CADMATIC 4 Control system: WINDOWS XP EQUIPMENT Swiveling unit Lift table Roller feed table Lift table (manufacturer: LAWECO, dimensions: 1,000 x 2,500 mm) Barcode label printer (model: ZEBRA ZT231) Scoring unit The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photo documentation and technical/commercial documents with a descriptive character. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at its destination. Nljdsy Ur Dqopfx Akuob External reference: 8524

Condition: used, machine/vehicle number: 008588, Max. panel width: 1600 mm Max. panel length: 3700 mm Njdpjy In Avefx Akuslb Main saw blade projection: 125 mm No of Grippers: 9 Thin sheet loading: yes

Condition: used, machine/vehicle number: 008589, Max. panel width: 1600 mm Max. panel length: 3700 mm Nodpey In Apefx Akuslb Main saw blade projection: 125 mm No of Grippers: 9 Thin sheet loading: yes

Condition: good (used), Year of construction: 2022, machine/vehicle number: 25666, Equipped with: Hydraulic Unit Sinumerik 840D sl CNC Control Slim Line Operator Panel OP012 W/12 TFT-Color Display Nedpfjy Tybzex Akuolb 19" Machine Control Panel 20 Tool ATC CAPTO C6 Multifunctional Tool Carrier For Turning and Driven Tools One Fixed Tool Unit Assembled To The Compound Slide W/Coolant Thru The Turning And Drilling Tools, Coolant For The Driven Spindle From The Outside Drilling Spindle Additional Drill Spindle For Orientation Chip Conveyor Coolant Equipment -Including piping and shut-off valve and flow control switch -To supply coolant to tools for coolant and flushing through the cutting tools -To supply coolant for flushing the work piece and chuck -To supply coolant for flushing the working area Paper Band Filter Immersion Cooler High Pressure Coolant Pump, 40 Bar Through Tools Flushing Pistol, Hand Held Air Cleaner - Mechanical Separation "Mist Collector" Tool Life Display Remote Diagnostics Signal Lamp Automatic Door For Loading W/Shuttle Load and Unload Shuttle Swivel Loader Automation Cell Tuned for Part Pallet Conveyor For 20 Raw And Finished Parts Pallets Pallets Designed for Part 596500 Handling System SPC Station (Maximum O 270 mm, Maximum H 150 mm, Maximum Wt. 12 kg) NIO Station (Closing forward leading gravity) Skiving Software (Hardware: Software and user surfaces for skiving technology) Measuring Probe (For measuring diameters and length of the workpiece in the machine) Measuring Software for Teeth Measuring (MDK and Flank Line, Software and User) Measuring Program (Automatically measuring program for measure the position of the two gears to each other, after using sister tools) SPC (Every X workpieces the MDK needs to be measured) Tool Changer (Precut, measurer and final cut) Skiving Tool Identification (Hardware, software for the identification of the skiving tool after tool change) Hydraulic Diagrams Coolant Diagrams Lubrication Diagrams Electrical Wiring Diagrams Hardcopy of Diagrams CF Certificates Specifications: Workpiece Spindle: -Speed: 0-7000 l/min -Power: 55,2 - 59,7 kW Tool: Capco C6 Tool Spindle: -Speed: 0-6000 l/min -Power: 29 - 41 kW Machine Weight, Floor Space and Voltage Supply: -Operating Voltage: 400V, 3 Phases, 50 Hz -Control Voltage: 24 V -Lighting Voltage: 240 V, 50 Hz -Floor Space: 2,700 x 2,600 mm -Height: 4,000 mm -Total Weight, Approximate: 16,000 kg Longitudinal, Z-Axis: -Stroke: 800 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Transverse, X-Axis: -Stroke: 900 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Tool Spindle, B-Axis: -Range: -20 / +90 Degree Y-Axis for Spindle Unit: -Stroke: 200 mm -Rapid Rate: 12 m/min -Feed Force: 6 kN C-Axis Main Spindle: -Positioning Accurace: 9" Multifunctional Tool Carrier: -Power: 29 kW at 100% ED -Power: 41 kW at 44% ED -Torque: 141 Nm at 100% ED -Torque: 212 Nm at 44% ED -Spindle Speed: 0-6000 min-1 -B-Axis for Stepless Motion in a Range Of: -20/+90 Degree Tool Magazine: -Maximum Tool Diameter: 100 mm -Approximate Tool Length: 300 mm -Approximate Tool Weight: 12 kg Swivel Loader: -Maximum Workpiece Diameter: 270 mm -Height: 150 mm -Weight: 16 kg

Condition: good (used), Year of construction: 2019, machine/vehicle number: 25667, Equipped with: Hydraulic Unit Sinumerik 840D sl CNC Control Slim Line Operator Panel OP012 W/12 TFT-Color Display 19" Machine Control Panel 20 Tool ATC CAPTO C6 Multifunctional Tool Carrier For Turning and Driven Tools One Fixed Tool Unit Assembled To The Compound Slide W/Coolant Thru The Turning And Drilling Tools, Coolant For The Driven Spindle From The Outside Drilling Spindle Additional Drill Spindle For Orientation Chip Conveyor Coolant Equipment -Including piping and shut-off valve and flow control switch -To supply coolant to tools for coolant and flushing through the cutting tools -To supply coolant for flushing the work piece and chuck -To supply coolant for flushing the working area Paper Band Filter Immersion Cooler High Pressure Coolant Pump, 40 Bar Through Tools Flushing Pistol, Hand Held Air Cleaner - Mechanical Separation "Mist Collector" Tool Life Display Remote Diagnostics Signal Lamp Automatic Door For Loading W/Shuttle Load and Unload Shuttle Swivel Loader Automation Cell Tuned for Part Pallet Conveyor For 20 Raw And Finished Parts Pallets Pallets Designed for Part 596500 Handling System SPC Station (Maximum O 270 mm, Maximum H 150 mm, Maximum Wt. 12 kg) NIO Station (Closing forward leading gravity) Skiving Software (Hardware: Software and user surfaces for skiving technology) Measuring Probe (For measuring diameters and length of the workpiece in the machine) Measuring Software for Teeth Measuring (MDK and Flank Line, Software and User) Measuring Program (Automatically measuring program for measure the position of the two gears to each other, after using sister tools) SPC (Every X workpieces the MDK needs to be measured) Tool Changer (Precut, measurer and final cut) Skiving Tool Identification (Hardware, software for the identification of the skiving tool after tool change) Hydraulic Diagrams Coolant Diagrams Lubrication Diagrams Electrical Wiring Diagrams Hardcopy of Diagrams CF Certificates Specifications: Workpiece Spindle: -Speed: 0-7000 l/min Nlsdpfxey Tybns Akueb -Power: 55,2 - 59,7 kW Tool: Capco C6 Tool Spindle: -Speed: 0-6000 l/min -Power: 29 - 41 kW Machine Weight, Floor Space and Voltage Supply: -Operating Voltage: 400V, 3 Phases, 50 Hz -Control Voltage: 24 V -Lighting Voltage: 240 V, 50 Hz -Floor Space: 2,700 x 2,600 mm -Height: 4,000 mm -Total Weight, Approximate: 16,000 kg Longitudinal, Z-Axis: -Stroke: 800 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Transverse, X-Axis: -Stroke: 900 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Tool Spindle, B-Axis: -Range: -20 / +90 Degree Y-Axis for Spindle Unit: -Stroke: 200 mm -Rapid Rate: 12 m/min -Feed Force: 6 kN C-Axis Main Spindle: -Positioning Accurace: 9" Multifunctional Tool Carrier: -Power: 29 kW at 100% ED -Power: 41 kW at 44% ED -Torque: 141 Nm at 100% ED -Torque: 212 Nm at 44% ED -Spindle Speed: 0-6000 min-1 -B-Axis for Stepless Motion in a Range Of: -20/+90 Degree Tool Magazine: -Maximum Tool Diameter: 100 mm -Approximate Tool Length: 300 mm -Approximate Tool Weight: 12 kg Swivel Loader: -Maximum Workpiece Diameter: 270 mm -Height: 150 mm -Weight: 16 kg

Condition: used, machine/vehicle number: 007668, Max. panel width: 1200 mm Max. panel length: 2400 mm Movement system: suction cups. Nedpfx Asu Huwcskuslb

Condition: used, machine/vehicle number: 007669, Max. panel width: 1200 mm Nsdpfxsu Huv So Akujlb Max. panel length: 2400 mm Movement system: collet

Condition: excellent (used), Year of construction: 2022, Swiss CNC Chucker-Convertible Sliding Headstock Lathe W/ "B" Axis Njdpfjyq S Utsx Akuslb

Condition: excellent (used), Year of construction: 2019, operating hours: 13,000 h, functionality: fully functional, bar diameter (max.): 22 mm, INDEX MS22-8 Mfd. 2019 2 NCU 2 Syncrons 2 Y-Axis Control: Siemens Solution Line Knoll System Bar Feed: IEMCA SIR rack loader (12-ft) Nsdpox H H Nrsfx Akuelb 22,000 on-hours 10,000-15,000 Hours

Condition: excellent (used), Year of construction: 2019, machine/vehicle number: 14974, Tornos MultiSwiss 6x16  Nodjv S H Uyspfx Akuslb CNC Multi-Spindle Screw Machine Mfd. 2019 6 Motorspindles  5,5 kW max. speed 8’000 RPM Spindle capacity 16 mm, Z 50mm stroke (max. parts 40mm). 6 slides X 40mm stroke 1 counter-operation slide, 75mm stroke. Counter spindle with integrated motor 6 kW Max. speed 8’000 RPM, 150mm stroke. Numeric control Fanuc 30i Integrated PC with screen 17” Programming system TB DECO (DCS version) (requires 3003) contact us for more details

Condition: good (used), Year of construction: 2019, machine/vehicle number: 25728, Equipped with: Hydraulic Unit Sinumerik 840D sl CNC Control Slim Line Operator Panel OP012 W/12 TFT-Color Display 19" Machine Control Panel 20 Tool ATC CAPTO C6 Multifunctional Tool Carrier For Turning and Driven Tools One Fixed Tool Unit Assembled To The Compound Slide W/Coolant Thru The Turning And Drilling Tools, Coolant For The Driven Spindle From The Outside Drilling Spindle Additional Drill Spindle For Orientation Chip Conveyor Coolant Equipment -Including piping and shut-off valve and flow control switch -To supply coolant to tools for coolant and flushing through the cutting tools -To supply coolant for flushing the work piece and chuck -To supply coolant for flushing the working area Paper Band Filter Immersion Cooler High Pressure Coolant Pump, 40 Bar Through Tools Flushing Pistol, Hand Held Air Cleaner - Mechanical Separation "Mist Collector" Tool Life Display Remote Diagnostics Signal Lamp Automatic Door For Loading W/Shuttle Load and Unload Shuttle Swivel Loader Automation Cell Tuned for Part Nledpfsw Iqumsx Akujb Pallet Conveyor For 20 Raw And Finished Parts Pallets Pallets Designed for Part 596500 Handling System SPC Station (Maximum O 270 mm, Maximum H 150 mm, Maximum Wt. 12 kg) NIO Station (Closing forward leading gravity) Skiving Software (Hardware: Software and user surfaces for skiving technology) Measuring Probe (For measuring diameters and length of the workpiece in the machine) Measuring Software for Teeth Measuring (MDK and Flank Line, Software and User) Measuring Program (Automatically measuring program for measure the position of the two gears to each other, after using sister tools) SPC (Every X workpieces the MDK needs to be measured) Tool Changer (Precut, measurer and final cut) Skiving Tool Identification (Hardware, software for the identification of the skiving tool after tool change) Hydraulic Diagrams Coolant Diagrams Lubrication Diagrams Electrical Wiring Diagrams Hardcopy of Diagrams CF Certificates Specifications: Workpiece Spindle: -Speed: 0-7000 l/min -Power: 55,2 - 59,7 kW Tool: Capco C6 Tool Spindle: -Speed: 0-6000 l/min -Power: 29 - 41 kW Machine Weight, Floor Space and Voltage Supply: -Operating Voltage: 400V, 3 Phases, 50 Hz -Control Voltage: 24 V -Lighting Voltage: 240 V, 50 Hz -Floor Space: 2,700 x 2,600 mm -Height: 4,000 mm -Total Weight, Approximate: 16,000 kg Longitudinal, Z-Axis: -Stroke: 800 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Transverse, X-Axis: -Stroke: 900 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Tool Spindle, B-Axis: -Range: -20 / +90 Degree Y-Axis for Spindle Unit: -Stroke: 200 mm -Rapid Rate: 12 m/min -Feed Force: 6 kN C-Axis Main Spindle: -Positioning Accurace: 9" Multifunctional Tool Carrier: -Power: 29 kW at 100% ED -Power: 41 kW at 44% ED -Torque: 141 Nm at 100% ED -Torque: 212 Nm at 44% ED -Spindle Speed: 0-6000 min-1 -B-Axis for Stepless Motion in a Range Of: -20/+90 Degree Tool Magazine: -Maximum Tool Diameter: 100 mm -Approximate Tool Length: 300 mm -Approximate Tool Weight: 12 kg Swivel Loader: -Maximum Workpiece Diameter: 270 mm -Height: 150 mm -Weight: 16 kg

Condition: excellent (used), Year of construction: 2015, workpiece weight (max.): 20,000 kg, spindle motor power: 90,000 W, spindle speed (max.): 75 rpm, turning diameter: 4,000 mm, turning height: 1,900 mm, New 2015. Purchased 2022 for a project was cancelled before commissioning was completed and the machine has not been used in any production after Nlsdjy Uxdkopfx Akuob commissioning. Very full documentation is available upon request Main specification details. Turning diameter 3600mm. Maximum turning height 1900mm. Maximum table load 20,000kgs. Table speeds are infinitely variable between 14rpm and 75rpm. Table drive motor 90KW AC. Table torque to 61168NM. Z axis thrust 36000NM. X and Z axes traverse rates 1-5000mm/min. Ram is 320mm diameter Price, ex works UK Midlands £330,000 VTT-WB can quote transport installation and commissioning

Condition: refurbished (used), Year of construction: 1998, functionality: fully functional, feed length Z-axis: 1,000 mm, workpiece weight (max.): 15,000 kg, spindle motor power: 37,500 W, spindle speed (max.): 415 rpm, turning diameter: 2,100 mm, turning height: 1,300 mm, workpiece diameter (max.): 2,100 mm, year of last overhaul: 2026, As with all Millenniums this machine has the wonderful base structure and table drive design that makes all the production wishes possible – the highest accuracy and the highest chip removal Nledpfsy Uw Sgjx Akujb When this machine is delivered to the customer it will have been fully serviced and refurbished to ensure those qualities are ready for you to use turning, pcd drilling, rotary contour milling, angle drilling, grinding – see it all on the Millennium films on the website Only the best machine tools are designed and built with this quality and strength

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, travel distance Z-axis: 1,500 mm, chuck outer diameter: 1,800 mm, spindle speed (max.): 315 rpm, turning diameter: 2,000 mm, turning height: 2,450 mm, rotational speed (max.): 3,000 rpm, year of last overhaul: 2026, FOR SALE – 12 MONTHS GUARANTEE – CE MARKED A DORRIES-SCHARMANN VCE2000/180MC-FC CONTUMAT Vertical Turning, Centre for high accuracy heavy cut turning, high precision heavy PCD drilling and continuous rotary milling Delivered in 2002. Condition: Excellent - see INTRO page CNC specification – high level Siemens 840D Hydrostatic crossrail and ram guideways. Cutting and positioning feed rates up to 18m/min A 9-STATION MAGAZINE is for turning toolheads & machining heads. These heads are picked up by the ram during cycle The turning and milling heads are fed by a KELCH DOUBLE GRIPPER TOOL CHANGER, as seen on most machining centres The tool changer collects the turning tools (CAPTO C8) and live spindle tools (SK50) from a WERO magazine The magazine as supplied with this machine originally has the capacity to hold 60 Capto C8 tools and 76 SK50 tools The KELCH toolchanger can change the tools in both vertical and horizontal working positions. This means, for example, that various SK50 tools can be fed into a right angle milling head while it remains on the ram MACHINE SALE POSSIBILITIES The machine specification will be finalized by the purchaser and VTT-WB Nodsy Uw Emopfx Akuslb New guarding will be supplied to match the final specification GUIDE PRICES A – machine without the pallet system but with the full tool changing and tool storage system. New guarding. CE marking 12 months full warranty, including 96% uptime guarantee and 12 months Preventive Maintenance Tool storage capacity can be reduced within this price £525,000 B – machine without the pallet system and toolchanging and storage system replaced with 30 pocket disc type magazine New guarding. CE marking 12 months full warranty, including 96% uptime guarantee and 12 months Preventive Maintenance £540,000 C – machine to original specification including full pallet system and full tool change system New guarding. CE marking 12 months full warranty, including 96% uptime guarantee on machine but excluding pallet and toolchange system £650,000

Condition: refurbished (used), Year of construction: 1998, workpiece weight (max.): 15,000 kg, travel distance Z-axis: 1,000 mm, chuck outer diameter: 1,750 mm, spindle speed (max.): 400 rpm, turning diameter: 2,100 mm, turning height: 1,350 mm, rotational speed (max.): 3,000 rpm, feed force Z-axis: 50,000 N, year of last overhaul: 2026, The Millennium provides very high precision turning and versatile machining capability. Always precise, always powerful. Features of this machine:- – Involute chain drive for very high speeds, very low noise – a 36” diameter Timken cross roller bearing, the ultimate bearing – see last page – All steel 1750mm dia. 4 jaw chuck for high speeds. Maximum loading 15,000kgs. – Nlodpfx Asy Uwxtekusb A servo powered C axis control that provides backlash free C axis movement – high power and high accuracy – 200mm square forged steel ram - high accuracy heavy cutting when required and incorporating a 15KW ISO 50taper live spindle providing speeds 20 to 3000rpm for rotary contour milling, pcd drilling and angle milling and grinding with attachments (new heads can be provided to order). 1350mm maximum height under ram – Automatic pick up of turning tools, live tools and attachments from the 18 pocket tool magazine – Raise and lower crossrail - high precision latching and clamping at 200mm pitches – flexibility without loss of accuracy Fanuc 18Ti. A very precise, powerful and versatile machine tool. Performs all functions shown in photo gallery 12 months guarantee

Condition: excellent (used), Year of construction: 2003, operating hours: 8,000 h, functionality: fully functional, feed length X-axis: 3,500 mm, feed length Y-axis: 2,800 mm, feed length Z-axis: 1,500 mm, workpiece weight (max.): 35,000 kg, spindle motor power: 120,000 W, spindle speed (max.): 4,000 rpm, turning diameter: 4,000 mm, total height: 3,100 mm, rotational speed (max.): 180 rpm, workpiece diameter (max.): 4,000 mm, Equipment: documentation/manual, A STARRAG DORRIES 2VC2800/280MC-FC-V CONTUMAT High-Production 4/5 AXIS Vertical Turning Centre with Siemens 840D cnc This is not a machining centre with a turning table but a real high power, heavy duty vertical turning machine with the high power turning table on a massive base with guideways to provide a Y axis This configuration enables the machine to turn a round component to its maximum diameter and machine a square component to a similar dimension – and many more possibilities in between Nodpoy Uwg Rofx Akuolb If a DS CNC swivelling head would be purchased from DS this machine is ready for huge 5 axis work. For large precise and complex components in these industries this is the perfect ‘one stop’ machine Defence, Aero Engine, Nuclear, Turbines, Rail, Oil and Gas, Pumps, Gearboxes, Rockets etc. 12 month guarantee. PAYMENT PLAN AVAILABLE

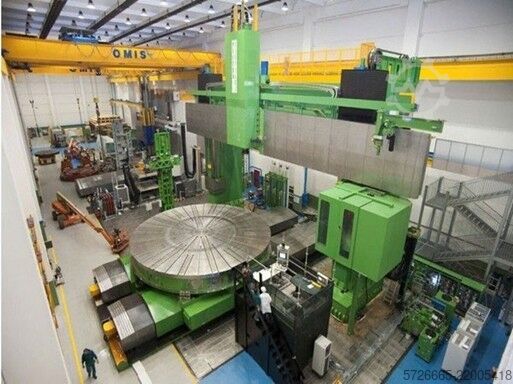

Condition: like new (used), Year of construction: 2012, functionality: fully functional, turning height: 8,000 mm, workpiece weight (max.): 350,000 kg, turning diameter: 17,000 mm, feed length Y-axis: 5,000 mm, feed length Z-axis: 4,000 mm, faceplate diameter: 10,000 mm, rotary table diameter: 10,000 mm, rotational speed (max.): 35 rpm, rotational speed (min.): 2 rpm, spindle speed (max.): 3,000 rpm, table load: 350,000 kg, table diameter: 10,000 mm, travel distance Y-axis: 5,000 mm, travel distance Z-axis: 4,000 mm, warranty duration: 12 months, workpiece diameter (max.): 17,000 mm, Equipment: documentation/manual, Huge 5 axis vertical turning centre. Never used. A magnificent machine tool Nlodpfx Akey Uvzmoujb
