Used Scm Multi-Spindle Drilling Machine for sale (71,105)

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox Gsdpob A R R Tsfx Afuobu -Number: max. 9 drill bits -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Quantity: 2 pieces available -Price: per piece -Dimensions: 310/60/H135 mm -Weight: 8 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox Gbjdjb A R Rtspfx Afuju -Number: max. 9 drill bits -Recording: M8 -right/left: rotating alternately -Drill bit spacing: 32 mm -Number: 5 drill heads available -Price: per piece -Dimensions: 285/75/H90 mm -Weight: 6 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 10x drill bits -Recording: M8 Gedpfx Asb A R Rwjfujbu -right/left: rotating alternately -Drill bit spacing: 32 mm -Dimensions: 350/95/H85 mm -Weight: 8 kg

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 9 drill bits -Recording: M8 Gbodpfxsb A R Hgj Afusu -right/left: rotating alternately -Drill bit spacing: 32 mm -Dimensions: 75/290/H90 mm -Weight: 4 kg

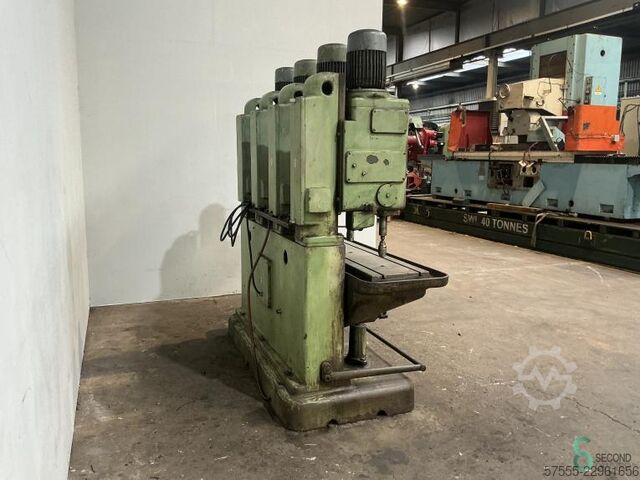

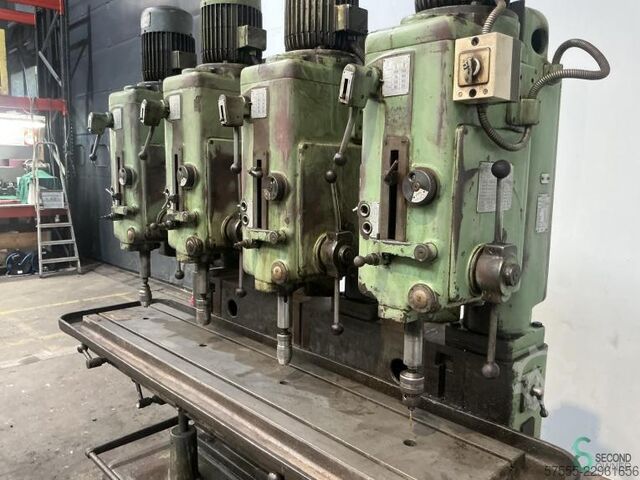

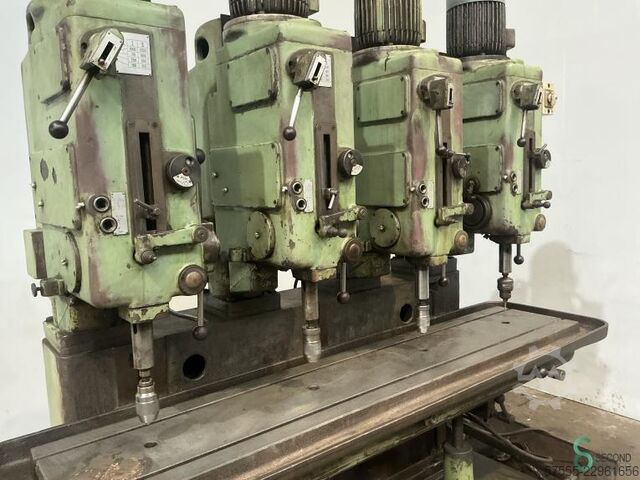

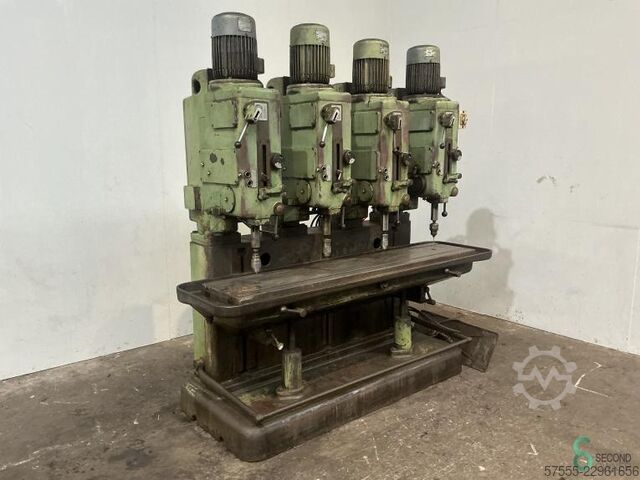

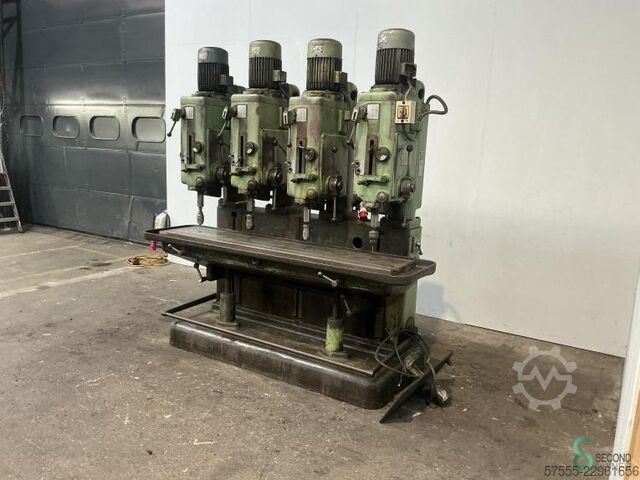

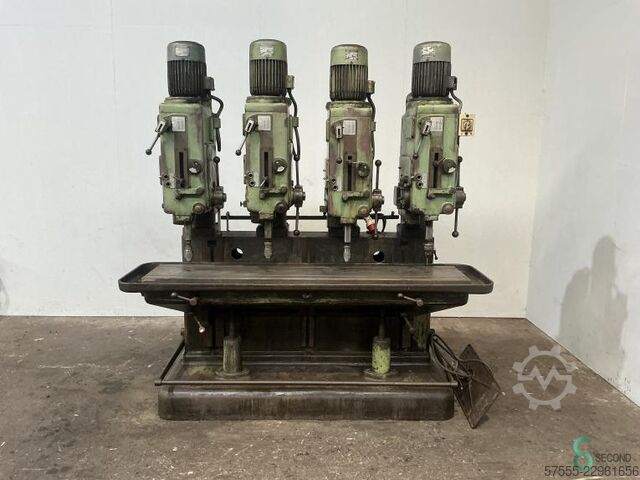

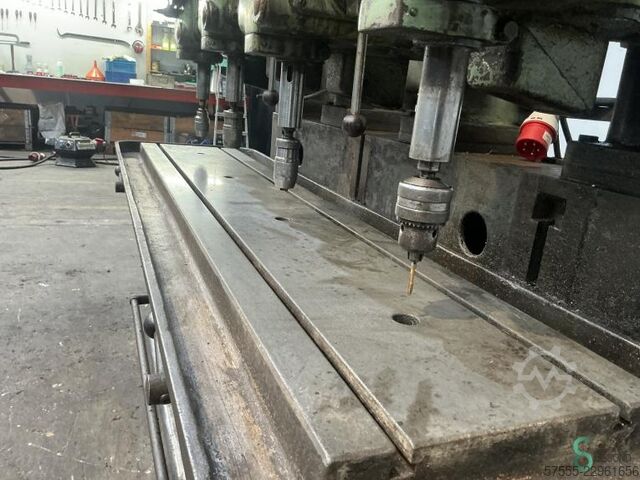

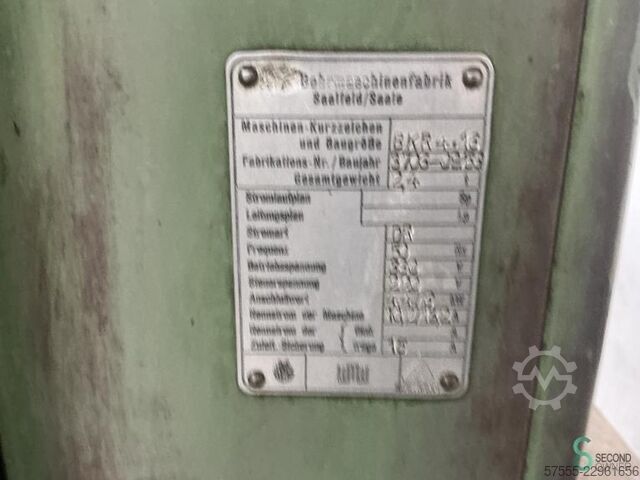

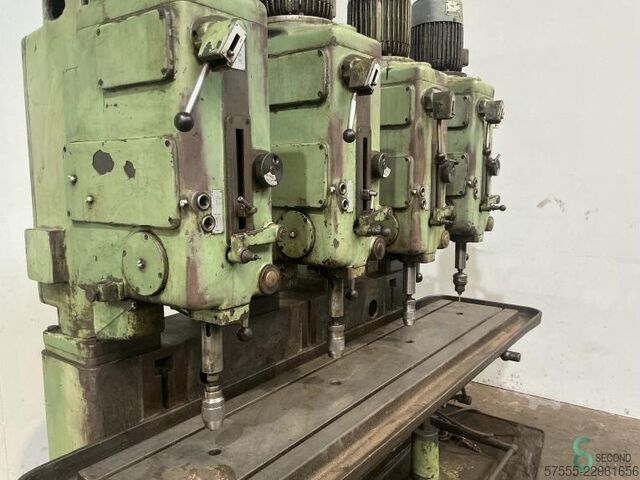

Condition: used, Year of construction: 1956, total width: 900 mm, total length: 2,050 mm, total height: 2,100 mm, Colour: Green Empty weight: 2.400 kg - Year: 1956 - Serial number: 3706 - Drive system: Conventional - Drive system: Gear drive - Number of drills [pcs]: 4 - Power [kW]: 6 - Table type: Fixed table - Table length [mm]: 1800 - Table width [mm]: 350 - Drilling depth [mm]: 160 - Drilling capacity [mm]: 25 - Reach [mm]: 275 - Main spindle power [kW]: 6.0 - Min. spindle speed [rpm]: 180 - Max. spindle speed [rpm]: 2000 Gjdpfxoz R Dt Ee Afuebu - Options: Tapping function - Transport dimensions: 2050mm x 900mm x 2100mm (l x w x h) - Transport weight [kg]: 2400kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, bar diameter (max.): 32 mm, turning length: 80 mm, rotational speed (min.): 3,150 rpm, drilling depth: 80 mm, No minimum price – guaranteed sale to the highest bidder! Gsdjy R Rqbjpfx Afujbu The machine is sold complete with collets, holders, and additional accessories! For more Schütte multi-spindle machines from the same location, see below! TECHNICAL DETAILS Maximum turning length: 80 mm Maximum drilling depth: 80 mm Largest material passage: 32 mm Maximum bar feed: 125 mm Spindle speed (turning): 200–3,150 rpm Spindle speed (right-hand threading): 11.2–1,575 rpm Thread cutting unit: Right-hand thread via undercut MACHINE DETAILS Coolant capacity: 600 l Pump output: 170 l/min Dimensions & Weight Footprint: 7.3 x 2.5 m Height: 2 m Weight: 8,300 kg Voltage: 380 V Frequency: 50 Hz Main drive: 20.5 kW Immersion pump: 1.5 kW Feed drive: 1.5 kW Hydraulic pump: 1.5 kW Circulating oil pump: 0.25 kW EQUIPMENT 6 cross slides 6 longitudinal slides 6 cams for cross slides 6 cams for longitudinal slides Operating tools Collets Holders Additional accessories

Condition: good (used), Year of construction: 1984, Multi-spindle head, multi-spindle drill head, drilling gear Gbodpfx Afsdym D Touju -Joint multi-spindle head -Max. x drill -7x drill built-in collet: mm -min. Distance drill: mm -Weight: 11.3 kg Articulated multi-spindle heads are: variable tools for various machining operations such as drilling, thread cutting, countersinking, reaming, milling, turning, with which several holes can be machined at once.

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, travel distance X-axis: 585 mm, travel distance Y-axis: 240 mm, travel distance Z-axis: 145 mm, spindle speed (max.): 2,340 rpm, spindle speed (min.): 32 rpm, spindle mount: MK 0, throat depth: 293 mm, quill diameter: 72 mm, quill stroke: 145 mm, total length: 1,340 mm, total height: 2,050 mm, table width: 225 mm, total width: 1,280 mm, table length: 800 mm, drilling capacity: 40 mm, spindle nose: ISO40, spindle diameter: 72 mm, nominal power: 3 kW (4.08 HP), Milling-/Drilling Machine, DRO, drilling capacity Ø 40 mm, motor 2,2/3,0 KW, table size 800x225 mm, spindle speed 32-3240 rpm stepless, ISO40, pneum. tollclamping el. tapping device, table stroke X/Y 585/240 mm, automatic spindle feed, coolant device, dimensions 1340x1280x2050 mm, weight ca. 780 kg Godoz Rqfzepfx Afuebu

Year of construction: 2007, condition: good (used), ■ V600 Drilling machine (moveable drilling cabinet, executed with 1 horizontal drilling unit and automatic tool changer) ■ Drilling table with power rail length 15 metres, effective length 12 metres ■ Hardware and software (includes VACON 110 machine control) Godpjq Hgg Usfx Afuobu ■ Safety devices (safety bumpers) ■ Year of construction 2007

Condition: good (used), Multi-spindle head, drill beam, multi-spindle drill head, articulated multi-spindle head, row drilling machine, dowel drill head, dowel drilling machine, drilling gearbox -Number: max. 21 drill bits -Recording: M8 -right/left: rotating alternately -Spacing between rows of drill bits: 32 mm -Drill bit spacing: 96 mm -Number: 2 drill heads available Price: per piece Godpfx Ajb A R Rbjfujbu -Dimensions: 415/220/H90 mm -Weight: 12 kg/piece

Condition: ready for operation (used), Year of construction: 1992, functionality: fully functional, bar diameter (max.): 32 mm, turning length: 80 mm, drilling depth: 80 mm, No minimum price – guaranteed sale to the highest bidder! This machine is sold complete with collets, tool holders, and additional accessories. For more Schütte multi-spindle lathes available from the same site, please see below! TECHNICAL DETAILS Maximum turning length: 80 mm Maximum drilling depth: 80 mm Maximum bar diameter, round: 32 mm Maximum bar diameter, square: 22 mm Maximum bar diameter, hexagonal: 27 mm Maximum bar diameter, octagonal: 29 mm Spindle pitch circle diameter: 300 mm Gbedez Ag Abspfx Afueu Standard bar feed up to: 125 mm Special bar feed up to: 290 mm Standard longitudinal slide travel, total: 100 mm Standard longitudinal slide travel, working travel: 80 mm Special longitudinal slide travel, total: 145 mm Special longitudinal slide travel, working travel: 115 mm Upper cross slide travel, total: 50 mm Upper cross slide travel, working travel: 33 mm Middle cross slide travel, total: 50 mm Middle cross slide travel, working travel: 30 mm Lower cross slide travel, total: 60 mm Lower cross slide travel, working travel: 37.5 mm Maximum material passage: 32 mm Maximum material feed: 125 mm MACHINE DETAILS Voltage: 400 V Frequency: 50 Hz Coolant capacity: 700 l Pump: Submersible electric pump Pump output: 180 l/min EQUIPMENT High-speed drilling unit Gripper unit Reaming unit Independent auxiliary longitudinal control Powered cross slide adjustment Collets Tool holders Additional accessories

Condition: good (used), Year of construction: 1984, Multi-spindle head, multi-spindle drilling head, drilling gearbox -Multi-spindle drill head with: drive -Drive geared motor SEW Eurodrive type: RF40DT80K4B -Power: 0.55 kW -Speed: 165 rpm -max. x: drill bit Gbododz A Tpepfx Afusu -4x built-in drill bits Collet: mm -Drilling pattern can be adjusted -Dimensions: 1115/150/H300 mm -Weight: 55 kg

Condition: good (used), Year of construction: 1984, Multi-spindle head, multi-spindle drilling head, drilling gearbox Gbjdpedz A Trjfx Afuou -Multi-spindle drill head with: drive -Drive geared motor SEW Eurodrive type: RF40DT80K4B -Power: 0.55 kW -Speed: 165 rpm -max. x: drill bit -4x built-in drill bits Collet: mm -Drilling pattern can be adjusted -Dimensions: 1115/150/H300 mm -Weight: 55 kg

Condition: ready for operation (used), Year of construction: 1992, functionality: fully functional, bar diameter (max.): 32 mm, turning length: 80 mm, drilling depth: 80 mm, No minimum price – guaranteed sale to the highest bidder! This machine is sold complete with collets, tool holders, and additional accessories. For more Schütte multi-spindle lathes available from the same site, please see below! TECHNICAL DETAILS Maximum turning length: 80 mm Maximum drilling depth: 80 mm Maximum bar diameter, round: 32 mm Maximum bar diameter, square: 22 mm Maximum bar diameter, hexagonal: 27 mm Maximum bar diameter, octagonal: 29 mm Spindle pitch circle diameter: 300 mm Standard bar feed up to: 125 mm Special bar feed up to: 290 mm Standard longitudinal slide travel, total: 100 mm Standard longitudinal slide travel, working travel: 80 mm Special longitudinal slide travel, total: 145 mm Special longitudinal slide travel, working travel: 115 mm Upper cross slide travel, total: 50 mm Upper cross slide travel, working travel: 33 mm Middle cross slide travel, total: 50 mm Middle cross slide travel, working travel: 30 mm Lower cross slide travel, total: 60 mm Lower cross slide travel, working travel: 37.5 mm Maximum material passage: 32 mm Maximum material feed: 125 mm MACHINE DETAILS Voltage: 400 V Frequency: 50 Hz Coolant capacity: 700 l Pump: Submersible electric pump Pump output: 180 l/min EQUIPMENT High-speed drilling unit Gripper unit Reaming unit Gbodpfxoy R Rm Aj Afuju Independent auxiliary longitudinal control Powered cross slide adjustment Collets Tool holders Additional accessories

Condition: ready for operation (used), Year of construction: 1983, functionality: fully functional, spindle speed (max.): 3,150 rpm, bar diameter (max.): 32 mm, overall weight: 8,300 kg, No reserve price – guaranteed sale to the highest bidder! The machine is sold with collets, tool holders, and additional accessories! For more Schütte multi-spindle machines being sold from the same location, please see below! TECHNICAL DETAILS Maximum bar diameter, round: 32 mm Maximum bar diameter, square: 22 mm Maximum bar diameter, hexagonal: 27 mm Maximum bar diameter, octagonal: 29 mm Gjdpfoz Agzqsx Afuobu Spindle circle diameter: 300 mm Bar feed normal/special up to: 125 / 290 mm Longitudinal slide travel, standard, total/work stroke: 100 / 80 mm Longitudinal slide travel, special, total/work stroke: 145 / 115 mm Cross slide travel, upper slide, total/work stroke: 50 / 33 mm Cross slide travel, middle slide, total/work stroke: 50 / 30 mm Cross slide travel, lower slide, total/work stroke: 60 / 37.5 mm Number of spindle speeds: 49 Spindle speed range I: 450–3,150 rpm Spindle speed range II: 200–1,400 rpm Workpiece revolutions per operation, standard: 60–425 Workpiece revolutions per operation, shortened: 33.5–236 Workpiece revolutions per operation, extended: 95–670 Number of main times per spindle speed: 35 MACHINE DETAILS Drive motor rated power: 18.5 kW Drive motor speed: 1,500 rpm Dimensions with control cabinet (L x W): 3,850 x 1,510 mm Length with bar feeder: 6,453 mm Machine weight: 8,300 kg Space requirement for packed machine: 15 m³ EQUIPMENT Collets Tool holders Additional accessories

Condition: ready for operation (used), Year of construction: 1991, functionality: fully functional, bar diameter (max.): 32 mm, turning length: 80 mm, rotational speed (max.): 3,150 rpm, drilling depth: 80 mm, No minimum price – guaranteed sale to the highest bidder! The machine is sold with collets, tool holders, and additional accessories! For more Schütte multi-spindle machines from the same location, see below! TECHNICAL DETAILS Maximum bar capacity: 32 mm Maximum bar feed: 125 mm Maximum turning length: 80 mm Maximum drilling depth: 80 mm Spindle speed for turning: 200–3,150 rpm Spindle speed for right-hand thread cutting: 11.2–1,575 rpm MACHINE DETAILS Coolant capacity: 600 l Pump output: 170 l/min Dimensions & Weight Required space: 7.3 x 2.5 m Height: 2 m Weight: 8,300 kg Voltage: 380 V Frequency: 50 Hz Main drive: 20.5 kW Immersion pump: 1.5 kW Gbedpsz Agz Defx Afueu Feed drive: 1.5 kW Hydraulic pump: 1.5 kW Circulating oil pump: 0.25 kW EQUIPMENT 6 cross slides 6 longitudinal slides 6 cams for cross slides 6 cams for longitudinal slides Operating tools Collets Tool holders Additional accessories

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, bar diameter (max.): 32 mm, turning length: 80 mm, rotational speed (min.): 3,150 rpm, drilling depth: 80 mm, No minimum price – guaranteed sale to the highest bidder! The machine is sold complete with collets, holders, and additional accessories! For more Schütte multi-spindle machines from the same location, see below! TECHNICAL DETAILS Maximum turning length: 80 mm Maximum drilling depth: 80 mm Largest material passage: 32 mm Maximum bar feed: 125 mm Spindle speed (turning): 200–3,150 rpm Spindle speed (right-hand threading): 11.2–1,575 rpm Thread cutting unit: Right-hand thread via undercut MACHINE DETAILS Coolant capacity: 600 l Pump output: 170 l/min Dimensions & Weight Footprint: 7.3 x 2.5 m Height: 2 m Weight: 8,300 kg Voltage: 380 V Frequency: 50 Hz Main drive: 20.5 kW Immersion pump: 1.5 kW Feed drive: 1.5 kW Hydraulic pump: 1.5 kW Circulating oil pump: 0.25 kW Gedsy R Rutspfx Afuobu EQUIPMENT 6 cross slides 6 longitudinal slides 6 cams for cross slides 6 cams for longitudinal slides Operating tools Collets Holders Additional accessories

Condition: new, Type: MZ73031A Number of spindles 3 Gbjdpfjd R Rt Sex Afusu Distance between first and last spindle 50 mm Adjustable drilling speed Height of the working table 820 mm Table dimensions 735×440 mm Number of clamps 2 Motor power 1,5 kW 400 V Motor r.p.m. 2800 r.p.m Working air pressure 6-8 bar Weight 75 kg Transporting dimensions 900x700x1500 mm

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, bar diameter (max.): 32 mm, turning length: 80 mm, rotational speed (min.): 3,150 rpm, drilling depth: 80 mm, No minimum price – guaranteed sale to the highest bidder! The machine is sold complete with collets, holders, and additional accessories! For more Schütte multi-spindle machines from the same location, see below! TECHNICAL DETAILS Maximum turning length: 80 mm Maximum drilling depth: 80 mm Largest material passage: 32 mm Maximum bar feed: 125 mm Spindle speed (turning): 200–3,150 rpm Spindle speed (right-hand threading): 11.2–1,575 rpm Thread cutting unit: Right-hand thread via undercut MACHINE DETAILS Coolant capacity: 600 l Pump output: 170 l/min Dimensions & Weight Footprint: 7.3 x 2.5 m Height: 2 m Weight: 8,300 kg Voltage: 380 V Frequency: 50 Hz Main drive: 20.5 kW Immersion pump: 1.5 kW Feed drive: 1.5 kW Hydraulic pump: 1.5 kW Circulating oil pump: 0.25 kW EQUIPMENT 6 cross slides 6 longitudinal slides 6 cams for cross slides Gbsdpsz Ag A Ijfx Afueu 6 cams for longitudinal slides Operating tools Collets Holders Additional accessories

Condition: used, Multi-spindle head, drilling beam, multi-spindle drilling head, articulated multiple-spindle head, row drilling machine, dowel drilling head, dowel drilling machine, drilling gear, drilling head -Manufacturer: Grotefeld, multi-spindle head max 3 drills -Admission: M8 -Spindle drive: dimensions see photo techn. drawing -Spindles: 2x clockwise / 1x counterclockwise rotating -Distance drill: see photo Gjdpfx Aohh Tk Eefuebu -Dimensions: 132/85 / H82 mm -Weight: 3.1 kg

Condition: ready for operation (used), Year of construction: 1991, functionality: fully functional, bar diameter (max.): 32 mm, turning length: 80 mm, rotational speed (max.): 3,150 rpm, drilling depth: 80 mm, No minimum price – guaranteed sale to the highest bidder! Gedpfx Afoy R Rcweusbu The machine is sold with collets, tool holders, and additional accessories! For more Schütte multi-spindle machines from the same location, see below! TECHNICAL DETAILS Maximum bar capacity: 32 mm Maximum bar feed: 125 mm Maximum turning length: 80 mm Maximum drilling depth: 80 mm Spindle speed for turning: 200–3,150 rpm Spindle speed for right-hand thread cutting: 11.2–1,575 rpm MACHINE DETAILS Coolant capacity: 600 l Pump output: 170 l/min Dimensions & Weight Required space: 7.3 x 2.5 m Height: 2 m Weight: 8,300 kg Voltage: 380 V Frequency: 50 Hz Main drive: 20.5 kW Immersion pump: 1.5 kW Feed drive: 1.5 kW Hydraulic pump: 1.5 kW Circulating oil pump: 0.25 kW EQUIPMENT 6 cross slides 6 longitudinal slides 6 cams for cross slides 6 cams for longitudinal slides Operating tools Collets Tool holders Additional accessories

Condition: ready for operation (used), Year of construction: 1992, functionality: fully functional, bar diameter (max.): 51 mm, turning length: 102 mm, drilling depth: 102 mm, No minimum price – guaranteed sale to the highest bidder! The machine is sold complete with collets, holders, and additional accessories! For more Schütte multi-spindle machines available from the same location, see below! Gbjdpoy R R Nwsfx Afusu TECHNICAL DETAILS Maximum turning length: 102 mm Maximum drilling depth: 102 mm Maximum round bar diameter: 51 mm Maximum square bar diameter: 36 mm Maximum hexagon bar diameter: 44 mm Maximum octagon bar diameter: 47 mm Spindle drum diameter: 340 mm Standard bar feed: 125 mm Special bar feed: 290 mm Standard longitudinal slide travel, total: 125 mm Standard longitudinal slide travel, working stroke: 100 mm Special longitudinal slide travel, total: 160 mm Special longitudinal slide travel, working stroke: 125 mm Upper cross slide travel, total: 60 mm Upper cross slide travel, working stroke: 36 mm Middle cross slide travel, total: 60 mm Middle cross slide travel, working stroke: 36 mm Lower cross slide travel, total: 70 mm Lower cross slide travel, working stroke: 44 mm Maximum material pass-through: 51 mm Maximum material feed: 125 mm MACHINE DETAILS Coolant capacity: 660 l Pump capacity: 170 l/min EQUIPMENT Thread cutting device Right-hand threading via undercut Electric submersible pump Collets Tool holders Additional accessories

Condition: ready for operation (used), Year of construction: 1982, functionality: fully functional, spindle speed (max.): 3,150 rpm, bar diameter (max.): 32 mm, overall weight: 8,300 kg, No reserve price – guaranteed sale to the highest bidder! The machine is sold complete with collets, toolholders, and additional accessories! For more Schütte multi-spindle machines available from the same location, see below! TECHNICAL DETAILS Maximum bar diameter, round: 32 mm Maximum bar diameter, square: 22 mm Maximum bar diameter, hexagonal: 27 mm Maximum bar diameter, octagonal: 29 mm Spindle pitch circle diameter: 300 mm Standard/special bar feed: up to 125 / 290 mm Standard longitudinal slide travel, total/traverse: 100 / 80 mm Special longitudinal slide travel, total/traverse: 145 / 115 mm Cross slide travel – upper slide, total/traverse: 50 / 33 mm Cross slide travel – middle slide, total/traverse: 50 / 30 mm Cross slide travel – lower slide, total/traverse: 60 / 37.5 mm Number of spindle speeds: 49 Godey R N I Ejpfx Afuobu Spindle speed range I: 450–3,150 rpm Spindle speed range II: 200–1,400 rpm Workpiece revolutions per cycle, standard: 60–425 Workpiece revolutions per cycle, reduced: 33.5–236 Workpiece revolutions per cycle, extended: 95–670 Number of main times per spindle speed: 35 MACHINE DETAILS Drive motor: 18.5 kW Drive motor speed: 1,500 rpm Dimensions & Weight Dimensions with control cabinet (L x W): 3,850 x 1,510 mm Length with bar feeder: 6,453 mm Machine weight: 8,300 kg Space required for packed machine: 15 m³ EQUIPMENT Collets Toolholders Additional accessories

Condition: used, Multi-spindle head, multi-spindle drill head, drilling gear -Piece multi-spindle head: 3 -Spindles: 2, 3 4 -Socket: Ø 20 x 28 mm -Price: complete -Dimension: see pictures Godpsd Nzg Defx Afuebu -Weight: 7 kg

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, spindle speed (max.): 3,150 rpm, bar diameter (max.): 32 mm, turning length: 80 mm, drilling depth: 80 mm, No minimum price – guaranteed sale to the highest bidder! The machine is sold with collets, fixtures, and additional accessories! For more Schütte multi-spindle machines available from the same location, see below! TECHNICAL DETAILS Max. turning length: 80 mm Max. drilling depth: 80 mm Gsdpfxey R R Ige Afuebu Maximum material passage: 32 mm Maximum material feed: 125 mm Turning speed: 200–3,150 rpm Thread cutting speed (right-hand): 11.2–1,575 rpm MACHINE DETAILS Coolant capacity: 600 l Pump output: 170 l/min Dimensions & weight: Space required: 7.3 x 2.5 m Height: 2 m Weight: 8,300 kg Voltage: 380 V Current type: 50 Hz Main drive: 20.5 kW Immersion pump: 1.5 kW Feed drive: 1.5 kW Hydraulic pump: 1.5 kW Circulation oil pump: 0.25 kW EQUIPMENT 6 cross slides 6 longitudinal slides 6 cams for cross slides 6 cams for longitudinal slides Operating tools Collets Fixtures Additional accessories
