Used Tox Hydropneumatic Press for sale (12,524)

Year of construction: 1992, condition: used, Size max 320 x 250 mm min 160 x 120 mm Pile height 50 mm Infeed height max 850 mm Fgedpec Rmtzsfx Akhef min 350 mm Speed max 50-100 m/min

Condition: excellent (used), Xerox Versant 4100 Including: Fgjdpfeychr Esx Akhof Fiery EX 4100 1 x OHCF (Optional Handling and Finishing) FIM (Feeder and Inserter Module) C/Z fold unit Booklet maker The machine is in perfect working order!

Condition: used, Single-column eccentric press BERRENBERG Type EPtG 20-325 N-0 Mach. No. 15342, Year of manufacture 1974 Pressing force 20 tons Projection 320 mm Table surface 550 x 350 mm Through hole in table 190 x 120 mm Push surface 305 x 140 mm Fedpfx Akev Tp D Hohogf Table intermediate plate L x W x H 540 x 340 x 55 mm Through hole in table intermediate plate Ø 103 mm Clamping pin bore Ø 40 mm Stroke adjustment 8 - 70 mm Push adjustment 35 mm Installation height max. 345 mm (without table intermediate plate) Installation height max. 290 mm (with table intermediate plate) Table height above floor 700 - 750 mm (without table intermediate plate) Stroke rate 100 to 180 strokes/min. Drive power 1.5 kW Power supply 380 V, 50 Hz - Pneumatic clutch-brake combination, manufacturer: ORTLINGHAUS - Electric foot switch and two-hand operation - Stroke rate continuously adjustable via variator drive - Table height adjustment via threaded spindle approx. 150 mm - Manual central grease lubrication BEKA Schmiertechnik - Height-adjustable press table via threaded spindle - Electrical diagram Space requirement L x W x H 1600 x 850 x 1950 mm Weight 1250 kg Good condition

Condition: used, machine/vehicle number: 008695, Max working length: 2500 mm Fgjdpfxoztkbpo Akhjf Max working width: 1300 mm Pressure Exerted: 2 Kg/cm2 No of Pressing cylinders: 4

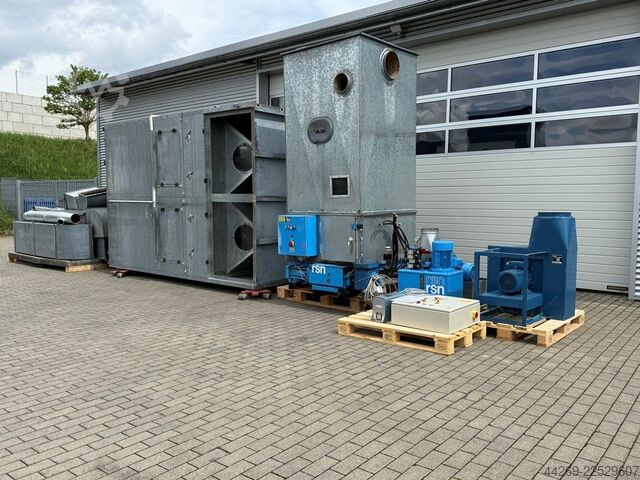

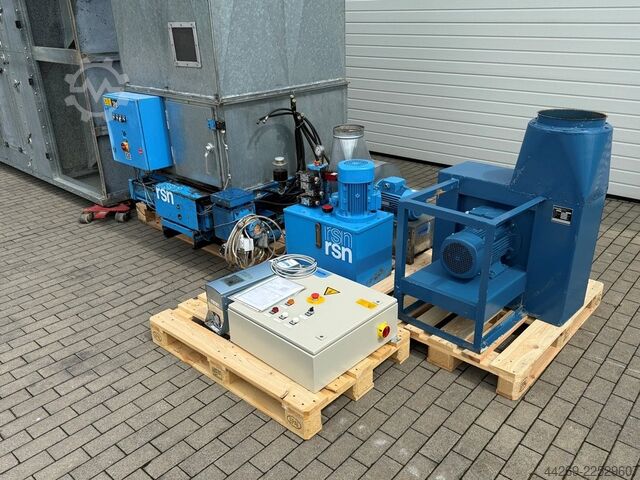

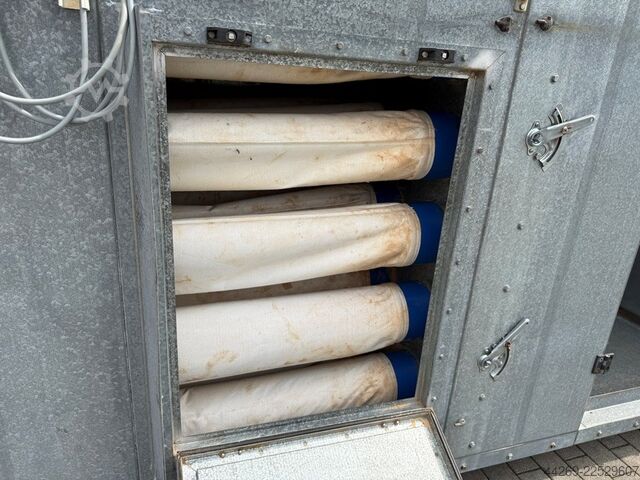

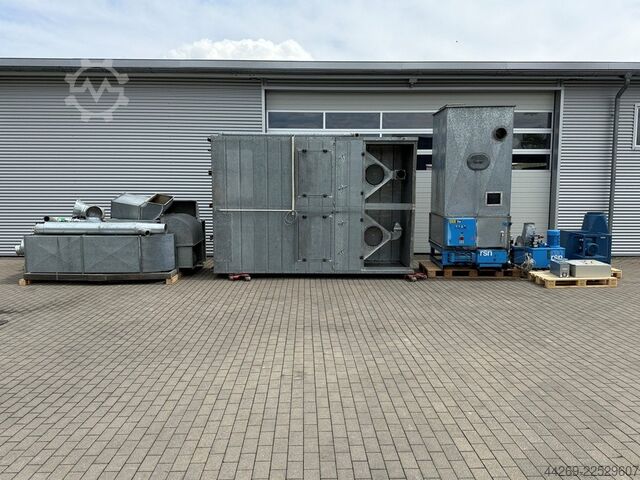

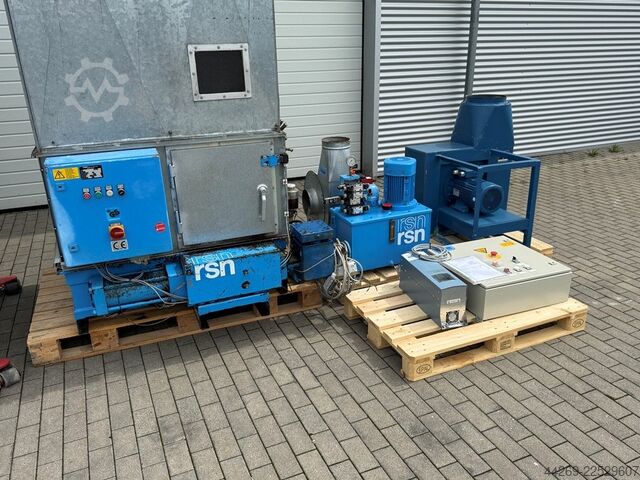

Condition: used, Höcker Polytechnik frequency-controlled extraction system with an RSN ECO 40/12 briquetting press, designed to extract wood shavings and sanding dust from a small to medium-sized joinery or other woodworking workshop, complete with a connected hopper and briquetting press. Includes heat recovery and a number of extraction pipes with pneumatic dampers, suitable for equipping a workshop with approx. 5–10 machines. Technical data: - Fan 1: 11 kW - Fan 2: 3 kW - Press: 4.5 kW - Filter bags: 50 Fodpfx Akoztvwishogf - Briquette: ~ 60 x 40 mm - Filter area: ~ 54 m² - Air flow rate: ~ 3,200 m³/h

Condition: used, Year of construction: 2020, total length: 2,450 mm, total width: 1,900 mm, total height: 2,140 mm, Weight: 5.500 kg - Year: 2020 - Documentation available: Yes - CE marking present: Yes Fjdpfxjzr Inws Akhjgf - CE certificate present: No - Drive system: CNC - Control system brand: Delem - Control system type: DA-41s - Power [kW]: 4.0 - Number of axes [pcs]: 4: Y1+Y2+X+R - Press force [ton]: 40 - Max. working width [mm]: 2000 - Column gap [mm]: 1800 - Throat depth [mm]: 200 - Backgauge depth [mm]: 750 - Max. stroke [mm]: 100 - Crowning system: None - Punch holder: Quick-release - Tool holder type: European-style - Tools included: Yes - Options: Finger safety guard - Transport dimensions: 2450mm x 1900mm x 2140mm (l x w x h) - Transport weight [kg]: 5500kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: refurbished (used), Year of construction: 1986, Chamber filter press, completely overhauled, with stainless steel lining, 82 PP (food-grade) filter plates, 30 mm cake thickness, press capacity approx. 1100 liters, filter area 96 m², new filter cloths fitted, max. 15 bar feed pressure possible, closed discharge via 2 diagonal corner holes, automatic plate transport and optional stainless steel filter cloth washing system with 100 bar high-pressure pump, with stainless steel base frame for height adjustment, control cabinet Fgsdpfxon Dw Nkj Akhjf

Condition: used, TECHNICAL DETAILS - Cutting strength : 1700 [daN] - Max. slide travel : 125 [mm] - Max. approach speed : 360 [mm/s] - Slide stopping time : 50 [ms] SUPPLY - Supply voltage : 3x400 [VAC] - Frequency : 50 [Hz] - Rated current : 5.5 [A] - Installed power : 2 [kW] FLOOR SPACE Fodpfx Aouhai Rjkhogf - Floor dimensions : 1200 x 1200 [mm] - Machine height : 2200 [mm] - Machine weight : 550 [kg] MACHINE HOURS - Working hours : 1070 [h]

Condition: used, TECHNICAL DETAILS - Pressure : 4 [t] - Execution : Fgjdpfx Asuhakbekhof * number of mounts : 2 - Fix table : * length : 210 [mm] * width : 210 [mm] - Press frame : fix - Hole in the table : diameter 80 [mm] - Number of punches : from 50 to 150 [p/min] - Adjustable slide : 40 [mm] - Fix travel : 27 [mm] - Max height for tooling : 148 [mm] - Passage through mounts - Longitudinal : 230 [mm] - Electric connection : 380 [Volt] - Total installed power : 0.75 [CV] - Weight : 640 [kg] - Floor space (length x depth x height) : 1100 x 1000 x 1500 [mm]

Condition: used, TECHNICAL DETAILS - Force : 5 [kN] - Working stroke : 35 [mm] - Spindle height : 400 [mm] - Slide bore diameter : ø 10H7 [mm] - Angle : 95 [°] - Max. tool weight : 15/30 [N] Fgodpeuhallofx Akhsf - Table dimension : 110 x 80 [mm]

Condition: used, TECHNICAL DETAILS - pressure : 4 [t] - number of supports : 2 - fixed table dimensions : 210 x 210 [mm] - fixed press assembly - hole Ø in table : 80 [mm] - number of strokes in sharpening / cutting : 50 - 150 [c/min] - adjustable slide : 40 [mm] - fixed travel : 27 [mm] - max. height for tooling : 148 [mm] - longitudinal clearance between supports : 230 [mm] Fjdeuhahmspfx Akhjgf - max. part diameter in sharpening : 30 [mm] - max. part thickness in sharpening / cutting : 1.5 / 2 [mm] - voltage : 380 [V] - installed power : 1.5 [kW] - floor space : 1100 x 1100 x 1650 [mm] - weight : 500 [kg]

Condition: used, TECHNICAL DETAILS Same as on photos Fgsdpouhaidefx Akhef

Condition: used, TECHNICAL DETAILS - Pressure : 4 [t] - Max. part diameter : 30 [mm] - Max. part thickness : 2 [mm] - Shocks per minute : 150 - Distance between mounts : 230 [mm] - Distance between table and slide : 148 [mm] Fjdjuhahaspfx Akhogf - Table diameter : 220 [mm]

Condition: used, TECHNICAL DETAILS - pressure : 4 [t] - number of supports : 2 - fixed table dimensions : 210 x 210 [mm] - fixed press assembly - hole Ø in table : 80 [mm] - number of strokes in sharpening / cutting : 50 - 150 [c/min] - adjustable slide : 40 [mm] - fixed travel : 27 [mm] - max. height for tooling : 148 [mm] - longitudinal clearance between supports : 230 [mm] Fgedpfxsuhahge Akhsf - max. part diameter in sharpening : 30 [mm] - max. part thickness in sharpening / cutting : 1.5 / 2 [mm] - voltage : 380 [V] - installed power : 1.5 [kW] - floor space : 1100 x 1100 x 1650 [mm] - weight : 500 [kg]

Condition: used, TECHNICAL DETAILS - Table dimensions : 300 x 200 [mm] - Cutting strength : 1700 [daN] - Max. slide travel : 125 [mm] - Max. approach speed : 360 [mm/s] - Slide stopping time : 50 [ms] - Number of working hours : 606 [h] - Lower extractor POWER SUPPLY - Operating voltage : 3x 400 [V] - Frequency : 50 [Hz] - Nominal current : 5.5 [A] - Installed power : 2 [kW] FLOOR DIMENSIONS - Dimensions (length-width-height) : 1200 x 1100 x 2200 [mm] Fgsdpsuhak Ijfx Akhof - Weight : 725 [kg]

Condition: used, TECHNICAL DETAILS - Table dimensions : 300 x 200 [mm] - Cutting strength : 1700 [daN] - Max. slide travel : 125 [mm] - Max. approach speed : 360 [mm/s] - Slide stopping time : 50 [ms] - Number of working hours : 2290 [h] - Lower extractor POWER SUPPLY - Operating voltage : 3x 400 [V] Fgsdpjuhak Uofx Akhef - Frequency : 50 [Hz] - Nominal current : 5.5 [A] - Installed power : 2 [kW] FLOOR DIMENSIONS - Dimensions ((ength-width-height) : 1200 x 1100 x 2200 [mm] - Weight : 725 [kg]

Condition: used, TECHNICAL DETAILS Fsdjuhaikepfx Akhsgf Same as on photos

Condition: used, TECHNICAL DETAILS Fjdpfxsuhaiqj Akhsgf Same as on photos

Condition: used, TECHNICAL DETAILS Fgsdouhakhspfx Akhsf - See photos

Condition: used, TECHNICAL DETAILS - Table dimensions : 300 x 200 [mm] - Cutting strength : 1700 [daN] - Max. slide travel : 125 [mm] - Max. approach speed : 360 [mm/s] - Slide stopping time : 50 [ms] - Number of working hours : 440 [h] - Lower extractor POWER SUPPLY - Operating voltage : 3x 400 [V] Fgodpfxeuhakzs Akhsf - Frequency : 50 [Hz] - Nominal current : 5.5 [A] - Installed power : 2 [kW] FLOOR DIMENSIONS - Dimensions ((length-width-height)) : 1200 x 1100 x 2200 [mm] - Weight : 725 [kg]

Condition: used, TECHNICAL DETAILS Fgodpfx Aeuhalfjkhjf - As per photos

Condition: used, TECHNICAL DETAILS - Pressure : 4 [t] - Max. part diameter : 30 [mm] - Max. part thickness : 2 [mm] - Shocks per minute : 150 - Distance between mounts : 230 [mm] - Distance between table and slide : 148 [mm] - Table diameter : 220 [mm] Fjdpfx Aouhag Aekhegf

Condition: used, TECHNICAL DETAILS - Pressure : 4 [t] - Max. part diameter : 30 [mm] - Max. thickness : 2 [mm] - Shocks per minute : 150 [H/min] - Distance between mounts : 230 [mm] - Distance between table and slide : 148 [mm] Fgedpfx Ajuhag Nskhsf - Table diameter : 220 [mm]

Condition: used, TECHNICAL DETAILS Fsdpfx Akeuhaiwehsgf Same as on photos

Condition: used, TECHNICAL DETAILS - Cutting strength : 1700 [daN] - Max. slide travel : 75 [mm] - Max. approach speed : 315 [mm/s] - Slide stopping time : 50 [ms] LOWER EXTRACTOR - Diameter : 16 [mm] SUPPLY - Supply voltage : 3x400 [VAC] - Frequency : 50 [Hz] - Rated current : 5.5 [A] - Installed power : 2 [kW] FLOOR SPACE Fedpfx Akouhai Dshjgf - Floor dimensions : 1300 x 1100 [mm] - Machine height : 1900 [mm] - Machine weight : 575 [kg] MACHINE HOURS - Working hours : 669 [h]
