Used Youji Machine Industrial Co. Ltd. Cnc Lathe for sale (98,647)

Condition: used, Year of construction: 2002, Tiger TFA 5 RT CNC Bed Milling Machine Manufacturer: Tiger S.p.A. (Italy) Model: TFA 5 RT Machine Type: CNC Bed Milling Machine with Rotary Table Year of Manufacture: 2002 Serial Number: 4211 Order No.: 2507 Working Area X-axis travel: 1,500 mm Y-axis travel: 800 mm Z-axis travel: 1,300 mm Rotary Table Table size: 1,020 × 1,200 mm T-slot width: 22 mm (H7 reference slot) Number of T-slots: 7 T-slot spacing: 140 mm Maximum table load: 5,500 kg Feed Rates Working feed: 0–4,000 mm/min Rcjdpjzqcy Ssfx Anked Rapid traverse: 12,000 mm/min Axis Drive Torque X-axis: 18–33 Nm Y-axis: 14 Nm Z-axis: 27–33 Nm Spindle Spindle taper: ISO 50 Tool clamping force: 15,000 N Spindle motor power: 20 kW Maximum spindle speed: 2,500 rpm Number of speed ranges: 2 Spindle Speed Ranges Constant torque Range I: 10–272 rpm Range II: 10–658 rpm Constant power Range I: 272–518 rpm Range II: 658–2,500 rpm Accuracy Ballscrew precision class: IT5 (ISO 3408/3) Electrical Specifications Supply voltage: 400 V Power supply: 3-phase Frequency: 50 Hz Installed power: 30 kW Maximum installed power (nameplate): 50 kW Rated current: 40 A Maximum current: 80 A Control voltage: 24 V DC Auxiliary voltage: 220 V Electrical protection: IP54 Motor protection: IP54 Pneumatics Air consumption (6 bar): 600 Nl/min General Machine weight: 12,000 kg Documentation reference weight: 12,500 kg

Condition: like new (used), Year of construction: 2019, functionality: fully functional, FICEP TIPO G25LG - CNC PLATE PROCESSING LINE (DRILLING, MILLING, THERMAL CUTTING) | YEAR 2019 The Ficep Tipo G25LG is a CNC plate processing line for combined drilling, milling, tapping and thermal cutting of steel plates in structural steel fabrication. Built in 2019 - a young machine in its class on the used market. All processes run in a single pass on a rigid double-bridge gantry frame. CONDITION & REFURBISHMENT Refurbished and inspected by a certified technician, ready for operation. - The exact scope of reconditioning varies from machine to machine and is disclosed individually upon serious interest. - Viewing possible by arrangement (machine reconditioned - no demonstration under power). FUNCTION & APPLICATION The vertical mono drilling unit with automatic tool changer (ISO 40) performs drilling, milling, tapping, centre-punching and countersinking. The Hypertherm XPR300 plasma torch and the integrated oxy-fuel cutting unit handle thermal cutting - from thin sheet to heavy plate. The line is operated via the Ficep Pegaso CNC control. Infeed and outfeed roller conveyors with material transfer (8 m each) ensure continuous material flow. Typical applications: structural steel fabrication, steel trading and plant engineering. TECHNICAL DATA - Manufacturer: Ficep | Model: Tipo G25LG | Year: 2019 | Serial number: 36098 - Machine type: CNC plate processing line (drilling / milling / thermal cutting) - Condition: used, refurbished by certified technician - Frame design: double-bridge gantry frame, welded | Machine weight: 8,000 kg - Plate width: max. approx. 2,540 mm, min. 200 mm - Plate thickness: max. 45 mm (plasma cutting), max. 100 mm (drilling) Redju Dw I Espfx Ankscd - Drilling heads: 1 (vertical mono drilling unit) | Tool holder: ISO 40 - Max. drilling diameter: 40 mm | Max. drilling/milling depth: 100 mm - Max. spindle speed: 7,000 rpm | Spindle power: 15 kW - Plasma cutting torch (straight): 1 | Plasma source: Hypertherm XPR300 | 300 A - Oxy-fuel cutting unit: included - CNC control: Ficep Pegaso CNC - Processes: drilling, milling (incl. straight/curved slots, Y/J weld-edge preparation), tapping, centre-punching, countersinking, marking, scribing, straight plasma cutting, oxy-fuel cutting On request (to be confirmed bindingly during inspection): processing length, tool magazine stations, min. plate thickness for drilling, min. drilling diameter, pass line height, longitudinal and cross positioning speeds, connected load and machine dimensions. SCOPE OF DELIVERY - 1 x Ficep Tipo G25LG CNC drilling, milling and thermal cutting line (year 2019) - 1 x Ficep Pegaso CNC control - 1 x Vertical mono drilling unit with automatic tool changer (ISO 40) - 1 x Plasma cutting torch (straight) | 1 x Hypertherm XPR300 plasma source (300 A) - 1 x Oxy-fuel cutting unit - 1 x Infeed roller conveyor with material transfer (8 m) | 1 x Outfeed roller conveyor (8 m) - 1 x Extraction system for plasma cutting LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM): specialist for refurbished Ficep structural-steel machinery. Further machines on request. CONTACT / INQUIRY Viewing by arrangement | Price on request. Sale exclusively to commercial customers (B2B).

Condition: used, Year of construction: 2007, Technical details: turning diameter: 220 mm turning length: 310 mm Rcodpfox Aq Hwex Ankod total power requirement: 17 kW weight of the machine ca.: 3,3 t dimensions of the machine ca.: 2,25 x 1,63 x 1940 m greates pass round over bed: 430 mm bore diameter: 45 mm centre distance: 687 mm slide travel radial ( X-axis ): 160 mm slide travel axial ( Z-axis ): 310 mm spindle turning speed range: 0-6.300 U/min

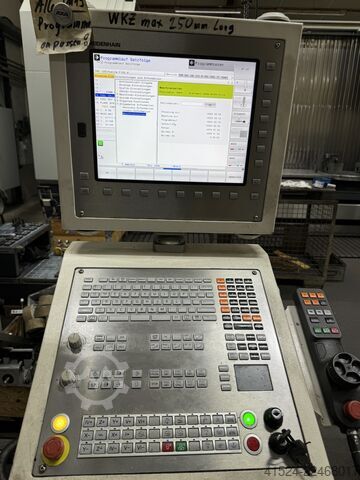

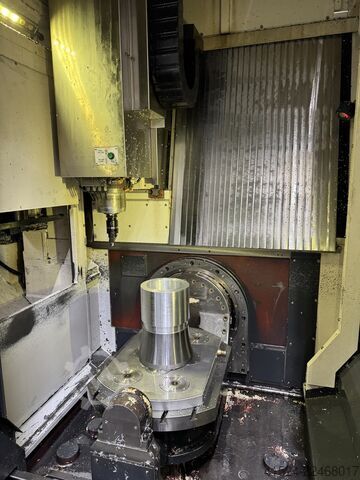

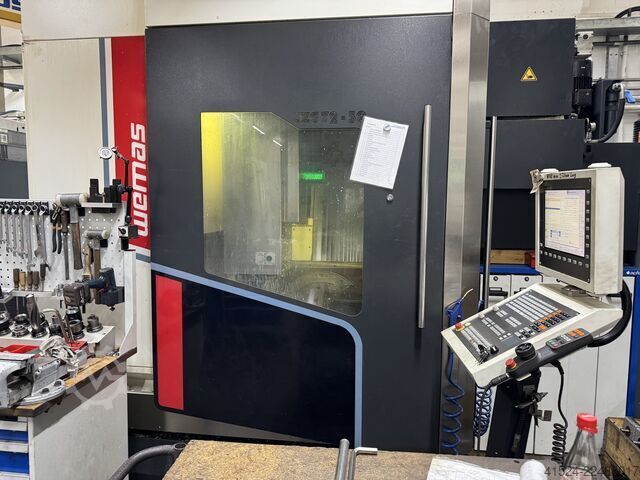

Condition: used, Year of construction: 2019, 5-Axis CNC Machining Center Manufacturer: WEMAS Type: VZG 72-5A Year of Manufacture: 2019 CNC Control: Heidenhain High-Speed Cutting TNC 640 Travel Ranges: X/Y/Z: 720 x 600 x 520 mm 5-Axis Milling and Drilling Table Rotation C-Axis: 360° Table Swivel B-Axis: -50° / +110° Spindle Nose to Table: 150-670 mm Table Diameter: Ø 720 mm Table Clamping Surface: Ø 720 x 540 mm Table Load (dynamic): 300 kg Table Load (positioning): 500 kg Centering Bore: Ø 50 mm Speed Range (stepless): 20-12,000 RPM Spindle Taper: SK 40 Tool Clamping: Pneumatic 60-Position Tool Changer Tool Diameter (max.): 76 mm (with adjacent tool): 127 mm Tool Length (max.): 250 mm Automatic Workpiece Measuring Probe Travel Speeds: Rapid Traverse Axes X/Y/Z: 48 m/min Speed (max.) B-Axis: 110 RPM Speed (max.) C-Axis: 170 RPM Coolant System I: External tool cooling via external nozzles Coolant tank: 240 liters Operating pressure, external: 0.9 bar Multi-sided machining in conjunction with Rotary indexing table Ø 720 mm IKZ 80 Bar Rjdpfx Anjzqzqvskecd 3-stage pressure regulation 20 / 40 / 80 Glass scales in all axes Temperature compensation Z-axis RENISHAW measuring probe 3D with infrared transmission Scraper-type chip conveyor (discharge height 800 mm) Chip cart Coolant system Handwheel Siemens HRS510 Automatic cabin roof 31726

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, turning diameter over cross slide: 762 mm, turning length: 863 mm, turning diameter: 431 mm, spindle speed (max.): 3,400 rpm, overall weight: 7,250 kg, chuck outer diameter: 254 mm, Haas SL-30 THE Year 2008 Control Haas Chuck 10” Turning Length 863 mm Turning Ø 431mm Ø above the bed 762 mm Turret 12 station Speed 3400 rpm Rcsdpfxjwbd Hqe Anked Length x width x height 4500 x 2300 x 2000 Weight 7250 kg

Condition: excellent (used), Year of construction: 2008, travel distance X-axis: 3,000 mm, travel distance Y-axis: 825 mm, travel distance Z-axis: 1,100 mm, rapid traverse X-axis: 48,000 m/min, rapid traverse Y-axis: 80,000 m/min, rapid traverse Z-axis: 48,000 m/min, table width: 835 mm, table length: 3,500 mm, table load: 3,500 kg, 1 Axis CNC Swivel head, infinitely variable Axis drive with ball screw drive Roller linear guides in all axes Direct path measuring systems Full work area encosure with roof Chip conveyor Coolant unit X - Travel: 3000mm Y - Travel: 825mm Z - Travel: 1100mm Redpfxswyv Nzs Ankocd B - Axis: - 3 to + 105° Table Length: 3500mm Table Width: 835mm Table load: 3500 Feed rate X-Axis: 48000mm/min. Feed rate Y-Axis: 80000mm/min. Feed rate Z-Axis: 48000mm/min. Spindle Taper: HSK 100ISO/Bt/Mk Power on spindle: 37kW Speeds / ranges: 8000Rpm ATC / revolver: 40 Coolant through spindle / Bar:25 Number of controlled axis: 4 Chip conveyor: Yes Coolantsystem: Yes Length: 8000mm Width: 3800mm Height: 3800mm

Condition: excellent (used), Year of construction: 2015, CNC Lathe with c-axis GEMINIS - GHT4-G4 MACH-ID 9182 Make: GEMINIS Type: GHT4-G4 Rjdpfowzh Eqex Ankecd Control: FAGOR 8055 TC Year: 2015 Full C-Axis 360.000 Driven tools Axiaal & Radial  Driven tailstock  Steady rest C-Type Front chuck with 180 bore Rear chuck with 180 bore 3 guide way bed width 750 mm Max. turning Ø: 800mm X-Axis: 450mm Z-Axis: 4200mm Spindle bore: 162mm Speedrange: 900Rpm ATC / revolver: 8 Speed live tools:3000Rpm Power live tools:7.5kW Pinole taper: 5Mk Stroke pinole: 250mm Workpiece load: 2500 Length: 8200mm Width: 3200mm Height: 2900mm Weight: 24000kg

Condition: excellent (used), Make: HEYLIGENSTAEDT Type: NDC 710 / 1800 Rodpfx Answzh A Ajkecd Control: R&D MTC3 4 Chuck 1400 mm Steady rest 3 units Ø 100-1050 Roller steady open 2 units Ø 1120 KNOLL Chip conveyor 2022 Boring bar Ø 260 x 3500 mm Boring bar Ø 200 x 1500 mm Boring bar Ø 150 x 1100 mm DBC Turning Length: 8250mm Swing over bed Ø: 1400mm Swing over cross slide Ø:1120mm Spindle power: 100kW Workpiece load: 16000 Length: 14000mm Width: 3500mm Height: 2900mm Weight: 32000kg

Condition: used, Year of construction: 1998, control Beckhoff bar material dia. 32 mm Rodpfx Aszp Rzusnkscd

Condition: used, Year of construction: 2007, max. turning diameter 190 mm turning length 395 mm control FANUC Series 18i-TB weight of the machine ca. 6.700 kg In our assessment, the machine is in good used condition and can be inspected under power by appointment. Rcjdpfezp Ry Rjx Ankjd Two machines are available. Price per unit. Accessories, tools, and clamping devices shown are included in the scope of delivery only if specified in the additional information. Subject to change and errors in technical data and specifications; subject to prior sale.

Year of construction: 2008, condition: ready for operation (used), A universal tool milling machine by Friedrich Deckel, overhauled in 2008 and originally built in 1989, is available. Travels X/Y/Z: 560mm/500mm/450mm, table dimensions X/Y: 900mm/530mm, max. table load: 450kg, tool taper: SK40, quill stroke: 80mm, milling head swivel: +/-90°, spindle speed: 4000rpm, feed rate: 3.6m/min, rapid traverse: 4m/min. Machine dimensions X/Y/Z: 2350mm/2200mm/2000mm, weight: approx. 2200kg. Documentation available. An on-site inspection is possible. Rcsdpfx Aozqu E Hsnksd

Year of construction: 1993, condition: ready for operation (used), A Fanuc CNC wire EDM machine is available. Travel X/Y: 350mm/500mm, max. workpiece dimensions X/Y/Z: 450mm/650mm/300mm, max. workpiece weight: 500kg, machine dimensions X/Y/Z: approx. 2600mm/2550mm/2200mm, weight: approx. 2300kg, operating system: Fanuc Series 16-WA. Documentation available. An on-site inspection is possible. Rjdpezqu E Tefx Ankjcd

Condition: ready for operation (used), Year of construction: 2006, A Reichenbacher CNC 5-axis twin-head machining center for the door manufacturing industry is available. Spindle power: 15kW, Speed: 24000rpm, Tool interface: HSK-F63, Tool positions: 60, Milling spindle spacing: 1040mm, Spindle housing dimension: 150mm, Travel X/Y/Z: 5100mm/2100mm/2650mm, Tool change stroke: 550mm, Max. travel speed X/Y/Z: 60m/min/90m/min/20m/min, Clamping beam speed: 40m/min. Vacuum support rails: 2, Vacuum cups: 2×30, Stop stroke: 150mm, Stop pin diameter: 30mm, Through-feed stop 1/2: 300mm/700mm, Max. veneer overhang: 5mm, Max. veneer thickness: 5.5mm. Workpiece length range: 800mm-3200mm, Workpiece width range: 600mm-1400mm, Workpiece thickness range: 38mm-72mm, Max. workpiece weight: 200kg. Chip conveyor belt width: 700mm, Infeed roller conveyor dimensions X/Y: 6000mm/1600mm, Outfeed roller conveyor dimensions X/Y: 6350mm/1600mm. Overall system dimensions X/Y/Z: approx. 18300mm/9750mm/3500mm, Machine dimensions X/Y/Z: approx. 4200mm/1600mm/3000mm, Machine weight: approx. 10500kg, Control system: Siemens Sinumerik 840D power-line. Including fully automatic infeed and unloading, 2×gantry cranes, safety equipment, various tools and a self-lowering roller table. This system was modernized in 2016. Documentation vorhanden. An on-site inspection is possible. Rodpfxszqu Hwe Ankocd

Condition: used, Year of construction: 2007, functionality: fully functional, NAKAMURA Model WT-150 MMY, used, year 2007 CNC turning machine Fanuc 18 iTB control Swinging diameter above the guide: 190 mm Max. turning diameter/turning length: 190 mm / 400 mm Bar capacity: 51 mm Main spindle 15/11 kW, max. speed 5,000 rpm Counter spindle 11/7.5 kW, max. speed 5,000 rpm Spindle nose: A2-5 Draw tube diameter: 52 mm (L/R) Spindle bore: 63 mm (L/R) C-axis incremental input: 0.001 degrees 2 x 12-station turrets, all stations powered 24-station indexing Tool holder dimensions, outer/inner: 20mm/25mm/32mm Speed of rotating tools: 60 – 6,000 min-1 Y-axis +/- 35 mm on the upper turret Travel X1/X2-axis: 167.5 mm Travel Z1/Z2-axis: 465 mm Rapid traverse X1/X2-axis: 16 m/min Rapid traverse Z1/Z2-axis: 40 m/min Chip conveyor type A, left Finished part discharge type G, right Coolant system Chip conveyor CE marking Equipment: Spindles, clamping devices & bar capacity Main spindle option: bar capacity 65 mm (left) at max. 4,500 rpm Draw tube adapter M74x1.5 to A-6 and M58x1.5 to A-5 (with coolant hole) Chuck air blow-out, outer left Coolant and air blow-out through the right spindle Axes, control & software options Y-axis (+/- 35 mm) on the upper turret Helical interpolation (thread milling) Polygon turning function (without holder) Intelligent handwheel 5 pairs of free M-functions (M-codes) Software: NC-Praktiker 2000 for Windows (DIN-ISO programming system) Automation & part discharge Finished part unloader: Type G WT 150 (L=150" mm", ∅65" mm") Rcedpfjzqdpnjx Anksd Profile timing belt for part gripper G (WT 150, ∅65" mm") Collection tray A ∅65 mm for material scrap discharge Coolant, filtration technology & chip disposal Chip conveyor: Hinged belt conveyor Knoll (Type 200 S-1) incl. interface Cyclone filter system: HA 180-4 incl. 2 coolant pumps Preparation for Brinkmann pumps Submersible pump TAL 401/140 51Y with TAL401 adapter plate

Condition: used, Year of construction: 2013, machine/vehicle number: 289S26, Max. bar diameter: 32 mm, max. machining length: 250 mm, control system: FANUC Series 160i-TB, conveyor belt: ERUTE, left-hand bar loader magazine: FMB Turbo 3-36, serial number: 53-262361 / 1117340, filter unit, high-pressure system: MÜLLER combiloop CL3G, serial number: CL3459, with chip conveyor, extinguishing system, without tools. Rcsdpfx Aozqy Tconkjd

Condition: used, Year of construction: 2012, machine/vehicle number: 282S25, Max. bar diameter: 32 mm, max. machining length: 250 mm, control system: FANUC Series 160i-TB, conveyor belt: ERUTE, left-hand bar loading magazine: FMB Turbo 3-36, serial number: 52-261754/966566, filter unit, high-pressure system: MÜLLER combiloop CL3, with chip conveyor, without tools. Rsdszqy Tiepfx Ankscd

Condition: used, Year of construction: 2016, machine/vehicle number: V842A0096, Machine with SIEMENS Sinumerik 840 D control, serial number V842A0096, year of manufacture 2016. Max. bar diameter 42 mm, max. feed length 180 mm. 8 independently driven spindles, max. spindle speed 4,500 rpm, power per spindle motor 11 kW (total power 88 kW), max. spindle torque 66 Nm, drum indexing time per spindle position 1 s. Max. 8 longitudinal slides, max. 7 cross slides, 1 facing slide. Machine dimensions without peripherals approx. 7,100 x 2,400 x 3,300 mm, control cabinet dimensions approx. 5,000 x 600 x 2,300 mm. Machine weight approx. 18,000 kg, control cabinet weight approx. 2,500 kg. Bar feeder IEMCA PRA 52/P/33, year of manufacture 2018, serial number 021813EA02. With chip conveyor and filter system ZPS 925A1851C1F, year of manufacture 2016, serial number 0013. Without tools. Rcodpfxozqy Slj Ankod

Condition: used, Year of construction: 2018, machine/vehicle number: V842A0141, Machine with SIEMENS Sinumerik 840 D control, serial number V842A0141, year of manufacture 2018. Max. bar diameter 42 mm, max. feed length 180 mm. 8 independently driven spindles, max. spindle speed 4,500 rpm, power per spindle motor 11 kW (total power 88 kW), max. spindle torque 66 Nm, drum shifting time per spindle position 1 s. Max. 8 longitudinal slides, max. 7 cross slides, 1 facing slide. Machine dimensions without peripherals approx. 7,100 x 2,400 x 3,300 mm, control cabinet dimensions approx. 5,000 x 600 x 2,300 mm. Machine weight approx. 18,000 kg, control cabinet weight approx. 2,500 kg. Bar loader IEMCA PRA 52/P/33, year of manufacture 2018, serial number 021809EA02. With chip conveyor, filter system ZPS 925A1851C1, year of manufacture 2018, serial number 0037, and cooling unit. Without tools. Rcsdpfjzqy Srjx Anked

Condition: excellent (used), Year of construction: 2015, operating hours: 12,500 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 550 mm, spindle speed (max.): 18,000 rpm, overall weight: 12,500 kg, We offer in perfect condition Hermle C42U Dynamic with Heidenhain 640 control. Machine has 12.000 spindle hours. Rcjdpfezpfg Ejx Anksd X-Axis travel: 800 mm Y-Axis travel: 800 mm Z-Axis travel: 550 mm Dynamic package torque axis, table Ø440 with secondary claming plates 920 x 490 mm Spindle: HSK-A63 18.000 RPM Machine will be in stock in 2 weeks

Condition: new, CNC spring forming machine. A proven machine that every spring manufacturer should have in their spring workshop for one of the best ratios on the market. Rsdpfxjtv D Awe Ankecd

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, turning length: 1,000 mm, spindle bore: 65 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 100 rpm, Microcut Challenger CNC Lathe Model: BNC-1840 Control: FAGOR 8055 FL Year: 2004 Swing over Bed: 475mm Distance between centres: 1000mm Spindle Speeds: 100 – 4500 RPM Spindle Bore: 65mm Machine with: Quick Change Toolpost Filtermist Unit 3-jaw chuck Rcsdpozlhm Hsfx Ankjd Dimensions: 3000 x 1850 x 2000mm high Weight: 3000 kgs

Condition: used, Year of construction: 2015, total height: 5,000 mm, total length: 9,000 mm, total width: 6,000 mm, overall weight: 85,000 kg, Year of Manufacture: 2015 Machine No.: 12300000163Control SystemHeidenhain iTNC 530 HSCI (3D path control)Travel PathsX: 2,700 mmY: 2,700 mmZ: 1,600 mmB-axis: controlled universal swivel milling headC-axis: NC rotary table Ø 2,200 mm5-axis simultaneous machiningSpindleMotor spindle SK50Speed: 20–12,000 min⁻¹Power: 44 kW (40% duty cycle) / 32 kW (100% duty cycle)Tool holder: SK50 according to DIN 69871Tool Changer63-slot wheel magazineDouble gripperEquipmentIKZ 40 barChip conveyorElectronic handwheelRotating viewing windowMinimum quantity lubrication (MQL)Coolant through spindleCoolant tank 980 lMold making packageActive chatter suppression (ACC)Adaptive feed control (AFC)Oil/emulsion mist separatorSmartkey packageAdditional safety viewing windows (Visiport)Operating mode 4 (process observation) Weight approx.: 85,000 kg Dimensions (LxWxH) approx.: 9000 x 6000 x 5000 mm Year of construction: 2,015 Condition: in working order Terms of payment: 100% prepayment before pick-up Rcedpfxjzqxkms Ankjd Terms of delivery: EXW EX Works under power: No

Condition: ready for operation (used), Year of construction: 2016, operating hours: 152 h, functionality: fully functional, machine/vehicle number: 665182, travel distance X-axis: 650 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 500 mm, spindle speed (max.): 42,000 rpm, number of slots in tool magazine: 40, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel distances Travel distance X-axis: 650 mm Travel distance Y-axis: 550 mm Travel distance Z-axis: 500 mm Feed rates Feed rate X-axis: 30 m/min Feed rate Y-axis: 30 m/min Feed rate Z-axis: 30 m/min Spindle Spindle interface: HSK-E 40 Spindle speed: 42,000 rpm Spindle running time: 151 h 20 min 08 s Spindle replacement: 2025 Cost of spindle replacement: approx. EUR 40,000 Tool magazine Rcjdpjzquqcjfx Ankod Number of tool slots: 40 Pallet system Pallet dimensions: approx. 320 × 320 mm Pallet clamping: Rotary table MACHINE DETAILS Machine type: CNC machining center Manufacturer: OPS INGERSOLL Model: SPEED HAWK 650 Year of construction: 2016 Electrical connection data Mains voltage: 400 V Mains frequency: 50 Hz Control voltage: 24 V DC Maximum fuse rating: 63 A Connected power: 38 kVA Dimensions and weight Overall height: 2,850 mm Overall length: 3,300 mm Overall width: 2,400 mm Machine weight: 9,000 kg EQUIPMENT Technical documentation Manual HSK-E 40 tool holders 3 pallets

Condition: ready for operation (used), Year of construction: 2004, operating hours: 11,298 h, functionality: fully functional, machine/vehicle number: 665001, travel distance X-axis: 700 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 2,000 kg, spindle speed (max.): 42,000 rpm, number of slots in tool magazine: 40, No minimum price – guaranteed sale to the highest bidder! Submitting a bid obligates you to collect the item within the period of September 21st to October 1st! TECHNICAL DETAILS Travel in X-axis: 700 mm Travel in Y-axis: 550 mm Travel in Z-axis: 450 mm Feed Axes Max. travel speed X, Y, and Z axes: 30 m/min Max. acceleration X, Y, and Z axes: 15 m/s² Positional accuracy TP according to DIN ISO 230-2: 0.005 mm Repeatability: 0.002 mm Redpfszqupxox Ankscd Work Table Table length: 850 mm Table width: 700 mm Number of T-slots: 5 T-slot dimensions: 18 H12 Table load: 2,000 kg Max. workpiece weight: 2,000 kg Distance spindle center – table: 550 mm Spindle Spindle mount: HSK-E 40 Spindle speed: 3,000 - 42,000 rpm Spindle power: 17 kW Tool Changer Tool magazine positions: 40 MACHINE DETAILS Machine type: CNC HSC machining center CNC control: Andronic Electrical Connection Data Supply voltage: 400 V Supply frequency: 50 Hz Fuse rating: 32 A (?) Dimensions and Weight Overall length: 3,300 mm Overall width: 2,300 mm Overall height: 2,300 mm Overall weight: 7,700 kg Operating Data Machine operating time: 275 d 5 h 13 min 39 s Spindle operating time: 11,297 h 20 min 11 s EQUIPMENT - Full enclosure - Dust and fluid-proof guides - Oil mist extraction - Compressor cooler - Frequency inverter - Heidenhain glass scales in X, Y, and Z axes - Work light in the interior - Technical documentation - Workbench - HSK-E-40 tool holders - Tools - Workbench dimensions: approx. 1,500 × 900 × 1,100 mm External Reference: Demo - Lot 2

Condition: ready for operation (used), Year of construction: 2009, operating hours: 4,247 h, functionality: fully functional, machine/vehicle number: 655118, travel distance X-axis: 550 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 42,000 rpm, swivel angle A-axis (min.): -120 °, swivel angle A-axis (max.): 60 °, No minimum price – guaranteed sale to the highest bidder! Submitting a bid obligates you to collect the item on time between September 21st and October 1st! TECHNICAL DETAILS Travel range X-axis: 550 mm Travel range Y-axis: 400 mm Travel range Z-axis: 400 mm Swivel angle A-axis: -120° to +60° Swivel angle C-axis: n x 360° Distance from HSK-E tool holder to table: 450 mm Clamping area: 650 x 800 mm Pallet dimensions for 4th and 5th axes: approx. 300 x 300 mm Spindle Spindle mounting: HSK-E 40 Spindle speed: 0 to 42,000 rpm Spindle power S1: 15 kW Spindle power S6: 17 kW Axes and Accuracy Drive type: Digital AC servo motors, fully synchronized Travel speed: max. 30 m/min Acceleration: max. 15 m/s² Repeatability: 0.002 mm Digital display: 0.001 mm or 0.0001 mm, selectable Rcedpfxozquprj Ankjd Nominal speed in NC axis operation A-axis: 40 min⁻¹ Nominal speed in NC axis operation C-axis: 40 min⁻¹ Tool Changer Type: Pick-up disc magazine Magazine slots: 32 MACHINE DETAILS Machine operating time: 484 d 11 h 24 min 06 s Spindle operating time: 4,246 h 55 min 36 s Type: 5-axis CNC machining center Connected load: 38 kVA Input voltage: 400 V AC, 3-phase, 50 Hz Control voltage: 24 V DC Fuses: max. 63 A Overall length: 3,300 mm Overall width: 2,200 mm Overall height: 2,300 mm Machine weight: 7,400 kg EQUIPMENT - Technical documentation and manual - Three spare pallets - HSK-E-40 tool holders - Pallets with attached specific fixtures External reference: Demo - Lot 1
