Used Cnc Engraving And Milling Machine for sale (70,051)

Condition: excellent (used), Table 1,200 x 450mm, X 560 Y 510 Z 450. ISO 40 4,000Rpm, Heidenhain TNC 410 Djdpfx Aoy S T Tnjkmowc

Condition: used, Year of construction: 2002, functionality: fully functional, Machine Data • Gantry-type machine with fixed table and moving portal for minimal footprint • Base frame, bridge, and bridge uprights made from welded, stress-relieved, and machined steel in one piece • Main machine assemblies consist of ribbed welded constructions engineered for optimal stiffness-to-weight ratio, vibration damping, and high acceleration • Each machine design is verified and optimized using finite element analysis (FEA) to ensure maximum quality, performance, and safety • Easily accessible machine table for straightforward loading and unloading via forklift or overhead crane • Ground precision linear guides with high pre-load and additional cover tape for optimal chip removal on all axes • Brushless digital A/C servo motors and controllers on all axes • Dual-side synchronised drive on the X-axis (gantry drive) • Rack-and-pinion drive on the X and Y axes • Precision ball screw drives with dual-end bearing units on the Z axis • Precision planetary gearboxes with low backlash • Enclosed cable drag chains protect the drag chain cabling against chips and dust • High-quality shielded drag chain cables offer maximum protection against interference and failures • X-axis travel: 3,120 mm • Y-axis travel: 2,190 mm • Z-axis clearance: 200 mm • Z-axis stroke: 280 mm • Network connectivity via Ethernet • Remote service via Internet Panel-Based CNC Control System • Touchscreen display • Multifunction keyboard with integrated touchpad • Integrated industrial PC with Windows 7 Professional, hard drive, and Ethernet • Comprehensive remote maintenance functionalities Dwsdpfx Aox E Tmbskmoc • Includes hand-held unit with electronic handwheel • MCP with rotary switch for feed and spindle override • Mobile control cabinet Hand-held Operating Device • Fast, increment-precise positioning • Handwheel with magnetic detent • Coarse, medium, and fine positioning • 2-channel emergency stop • Protection class IP65 Milling Spindle • Max. spindle power: 4 kW • Max. speed: 30,000 rpm • ISO-25 tool taper • Max. tool diameter (shank): 12 mm • Air-cooled • Pneumatic tool taper clamping • Dry, clean, oil-free compressed air required on customer side (< 0.1 μm, < 7 bar) Automatic Tool Changer / Linear • Linear tool magazine mounted outside the working area • Basic configuration: 4 slots • Up to 20 slots ISO-25 Extraction Unit for Automatic Tool Change • Hose connection diameter: 110 mm • Automatic up/down function for tool change Tool Length Sensor • Automatic tool length measurement via M command • Hard metal contact plate • Measuring accuracy: 0.001 mm • Contact force: 1.5 N Tool Length Sensor • Automatic tool length measurement via M command • Hard metal contact plate • Sensor mounted outside the working area 2x Side Channel Blowers • Max. power consumption: 7.5 kW • Maximum airflow: 650 m³/h • Rated voltage: 400 V • Rated current: 14 A • Pressure: 39,500 Pa

Condition: good (used), Year of construction: 1990, CNC milling machine, manufacturer: TOS, type: FGS40CNC Control system: Heidenhain TNC 355, year of manufacture: 1990 Dwsdpfx Aodtfhqokmjc Travel distances: X 1000 mm, Y 500 mm, Z 500 mm Spindle mount: ISO 50.

Condition: good (used), Year of construction: 1993, CNC universal milling machine, DMG MORI, Type: MH 600 C Control system: MAHO 532, year of manufacture: 1993. Equipped with an automatic swivel milling head (G17/G18) and B-axis rotary table. Without tool changer. Further data can be found in the data sheet. Djdpfjiihxhjx Akmswc Complete machine documentation and data backup available. Good overall condition.

Year of construction: 2005, condition: used, X-axis: 500mm, Y-axis: 450mm, Z-axis: 400mm, swivel rotary table dimensions: 630x500mm, max. table load: 200kg, swivel range: -5 to 110°, continuously variable speed: 20-10,000/min, drive power (100%/40% duty cycle): 9kW/13kW, torque (40% duty cycle): 82Nm, input resolution: 0.01mm, positioning tolerance: 0.010mm, rapid traverse: 24m/min, feed speed: 20m/min, number of SK40 tool positions (DIN 69871): 30, tool diameter (speed-dependent): D80-D130, max. tool length: 290mm, max. tool weight: 6kg, connected load: 17kW, control: Siemens 840D Powerline ShopMill, length: 4860mm, width: 4350mm, height: 2424mm, transport dimensions: 2210x2120x2150mm, weight: 4.05t, operating hours power-on time: 35,880h, spindle hours: 9609h. Equipment: digital drive and hydraulic clamping (positioning operation only), electronic angle display and plane transformation, chain magazine with double gripper, additional cabin door on the right, 80l coolant system, coolant/compressed-air switching, flushing gun, oil pan drawing, MDE interface (machine on, machine running, piece counter), documentation in German, 3D machine model for kinematic simulation in the CAM programming system (IGES, STEP format), numerous SK40 tool holders (DIN 69871), Heidenhain TS641 infrared touch probe, electronic handwheel, additional V24 RS232 interface on the control cabinet. An on-site inspection is possible. Dedpfxjzxr Rce Akmjwc

Year of construction: 1985, condition: ready for operation (used), Travel X/Y/Z: 1300mm/900mm/1000mm, table dimensions X/Y: 2000mm/750mm, max. table load: 5000kg, rapid traverse: 6m/min. Machine dimensions X/Y/Z: approx. 3650mm/2700mm/2700mm, weight: approx. 9000kg, control: Heidenhain TNC 150. Documentation available. An on-site inspection is possible. Dodpfx Akew Duuqsmowc

Condition: like new (used), Year of construction: 2004, Retrofitted: 2026 Numerical control: NUEVO/NEW HEIDENHAIN TNC-i640 Technical features Dimensions Table dimensions: 5600 x 2000 mmNumber of T slots: 13T slots dimensions: 22 mm Traverses of axis X axis traverse: 5000 mmY axis traverse: 3250 mmZ axis traverse: 1000 mmVertical capacity (VC): 450 / 1450 mmDistance between columns: 2700 mm Milling head Auto-indexing differential head (UAD - 0,1º)Tool clamping system: HydraulicTaper nose: ISO50 (DIN69871)  /  Pull stud: DIN69872Speed range: 6000 rpmSpindle power: 30 kW Feedrates Rapid feedrate (X / Y,Z): 7200 / 12000 mm/min Weight and dimensions Maximum weight on table: 25000 kgMachine weight approximate: 56000 KgMachine dimensions approximate: 13200 x 5425 x 5350 mm Accessories Guarding: 2 sliding doors and new perimetral wire-mesh fence.Automatic tool changer: OptionalChip conveyor: 1 transversal hinge typeElectronic handwheel: New HR-510Coolant: External internal high pressure through spindle Sale conditions Warranty: 6 months mechanical spare partsPrice and sale conditions: On request View all technical features Dwodpfx Aksyf Rq Njmec

Condition: used, Year of construction: 1999, total length: 13,000 mm, total width: 7,000 mm, total height: 6,000 mm, overall weight: 120,000 kg, spindle motor power: 50,000 W, HEYLIGENSTAEDT HEYMUNILL 3200-P in heavy-duty portal design with fixed crossrail, suitable for machining large and heavy workpieces. Large working area with travels of X 6,000 mm / Y 5,000 mm / Z 1,500 mm, as well as a table size of approx. 5,000 x 3,000 mm and a table load capacity of approx. 50,000 kg. Portal clearance approx. 3,220 mm width / 2,050 mm height. 5-axis machining / milling heads Dodpsy Anrtefx Akmowc A- and B-axis (swivel axes in the milling head) C-axis (360° rotation) Simultaneous 5-axis machining possible (with fork head) Milling heads: Straight milling head FK 120/340 90° angle head WFK 100/750M Fork head FK 100/2D Milling head magazine: 5 positions Automatic milling head change Additional equipment: Internal cooling (IKZ) approx. 7 bar Tool changer 32 positions (SK50, Fibro ATC 32/50) Tool holder SK50 (DIN 69871) Tool measuring system (laser) Chip conveyor Coolant system Adaptive feed control Heidenhain linear scales X/Y/Z Spindle performance: 50 kW Control: Heidenhain TNC 430 Spindle speed: 5000 - rpm Travel Y-axis: 5000 - mm Dimensions (LxWxH) approx.: 13000 x 7000 x 6000 mm Weight approx.: 120,000 kg Travel Z-axis: 1500 - mm Travel X-axis: 6000 - mm Year of construction: 1,999 Condition: unchecked Terms of payment: 100% prepayment before pick-up Terms of delivery: From foundation under power: Yes

Condition: used, TECHNICAL DETAILS TABLE - Table dimensions : 2700/850 [mm] - Maximum weight upon table : 6000 [kg] - Travels on X/Y/Z axes : 2500/1000/1100 [mm] - Rapid traverses rates (X/Y/Z) : 15 [mm/min] MILLING HEAD Manual head MILLING SPINDLE - Tool holder type : ISO50 * Spindle speeds : 3000 [rpm] * Spindle power : 25 [kW] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 24 WEIGHT & DIMENSIONS - Machine floor space : 6820/3800 [mm] - Machine height : 2870 [mm] - Machine weight : 12500 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 38 [kW] Dwjdpfx Asznd D Tokmec MACHINE HOURS - Number of hours under power : 23201 [h] - Number of working hours : 7902 [h] - Number of spindle hours : 7638 [h] EQUIPMENT - CNC : Heidenhain iTNC530 Interface : RS232/RJ45/USB - Interactive programming - Coolant tank * with high-pressure pump : 20 [bars] - Coolant through spindle - Chips conveyor

Condition: used, Year of construction: 2002, CNC Milling machine PMER type S120 Travel X: 1200 mm Travel Y: 630 mm Travel Z: 600 mm Numerical Command ANILAM 5300 (Defective ANILAM screen changed by a PC screen + PC keyboard) Cone: BT 40 Spindle speed: from 50 to 6000 RPM Table size: 1600 x 500 mm Year of construction: 2002 Maxi distance spindle nose/table: 730 mm Mini distance spindle nose/table: 130 mm Diameter of the spindle sheath : Ø 150 mm Dsdpfx Aez Nx Eyjkmswc Pneumatic tool clamp Central lubrication Lubricant pump Voltage: 380 V Width: 2300 mm Depth: 3600 mm Total height: 2600 mm Weight: approx 4,5 T

Year of construction: 2026, condition: new, functionality: fully functional, power: 2.2 kW (2.99 HP), overall weight: 400 kg, positioning accuracy: 0.05 mm, table length: 900 mm, table width: 600 mm, number of axes: 3, Equipment: CE marking, documentation/manual, Any shape or form may be cut, engraved, or 3D milled using this universal CNC router. The Wattsan A1 6090 can create décor, furniture, advertising, and packaging. This machine is compatible with several materials, including wood, MDF, chipboard, acrylic, plexiglass, PVC, composite, and aluminum. The Wattsan A1 6090 has a working area of 600x900x200mm. Its basic design includes a T-slot table and a 2.2 kW spindle. Two-phase stepper motors are responsible for accurate motions. You can give our managers a call for additional details! Wattsan A1 6090 characteristics Working area: 600x900 mm Spindle: 2.2 kW Machine size: 1260 x 1500 x 1662 mm Weight: 340 kg Virmer provides not only prime machines but also service and delivery. Our engineers and managers are ready to answer all of your questions and provide video assistance if required. Also, owners of Wattsan equipment get lifetime online support. Virmer is located in the Netherlands and works all over Europe. Virmer is Wattsan's official supplier. We provide not only laser engravers, but also metal cutters, welders, markers and cleaning machines. Wattsan is a Chinese manufacturer, which has been creating laser equipment for almost 15 years and keeps evolving with the help of its clients. Thanks to feedback Wattsan made over 50 modernizations, which made machines more reliable, precise and powerful so you could upgrade your business up to the new level. YOU CAN WRITE OR CALL US! WE WILL SELECT THE RIGHT MACHINE FOR YOUR TASK Dedpfx Akeih Sb Njmjwc On our company you can find a wide range of machines and components: Laser Metal Cutting Machine; Laser Metal Machine, Fiber Metal Laser, Fiber Metal Laser Engraver; CNC laser machine for metal; Laser machine for wood; CNC laser machine; Laser engraving machine; Laser engraver; Laser cutting machine for plywood; Laser engraver; Laser cutting machine for metal; CNC milling machine; laser marker. Lenses; Chillers; Cooling system for machine; Chiller S&A ; IPG laser, MAX photonics, Raycus; Compressor; Rotary device; Mirror for laser machine.

Condition: excellent (used), Year of construction: 2015, operating hours: 12,500 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 550 mm, spindle speed (max.): 18,000 rpm, overall weight: 12,500 kg, We offer in perfect condition Hermle C42U Dynamic with Heidenhain 640 control. Machine has 12.000 spindle hours. X-Axis travel: 800 mm Y-Axis travel: 800 mm Z-Axis travel: 550 mm Dynamic package torque axis, table Ø440 with secondary claming plates 920 x 490 mm Spindle: HSK-A63 18.000 RPM Machine will be in stock in 2 weeks Dwsdpfozpfg Ejx Akmsc

Condition: good (used), Year of construction: 1996, functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 4,000 rpm, spindle speed (min.): 1 rpm, quill stroke: 60 mm, A Kunzmann milling machine of the type WF 4/3 is for sale The machine is fully functional and ready for immediate use Technical data Control: Heidenhain TNC 124 Year of manufacture: 1996 Working range longitudinal X - axis: 400 mm transverse Y - axis: 350 mm vertical Z - axis: 400 mm Angled table, rigid Clamping surface: 650 x 350 mm Max. load: 250 kg Main drive AC motor: 5.5 kW Feed drives AC - single drives Feed infinitely variable 0 - 2 000 mm/min Tool holder: SK 40 Speed range: 1-4000 1/min Quill, vertical: stroke 60 mm Swivel range vertical milling head: ± 90° Tool clamping: hydraulic Linear stroke measuring systems, direct, distance-coded Resolution 0.001 mm Position deviation Pmax according to VDI/DGQ 3441 0.015 mm 0.015 mm Operating voltage 400 Volt, 50 Hz Power consumption approx. 12 kVA Dedpfx Akovftrxemowc Weight approx. 1,750 kg On request, transportation and loading can be arranged at extra cost. organized throughout Europe. Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

Condition: new, Year of construction: 2018, I sell the throughfeed CNC drilling machine MAGGI Boring Evolution 1000 Router, Year 2018. New machine from showroom ! Configuration: Milling head motor 3,3kW / 24.000 rpm 11 + 4 + 2 pcs. drilling units Grooving saw 1 pc. Backfeeding system to return the elements to the operator or move forwards as a throughfeed machine. Max. Working width 1200mm Max. Element thickness 40mm Total area covered: 2200 x 1400mm / Only 3m2 Total weight: 1350 kg. With full documentation and CE. Tools included and programmed. Very good condition. Available immediately. Dwodpey U Er Uefx Akmoc

Condition: used, Year of construction: 1996, functionality: fully functional, travel distance X-axis: 900 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 500 mm, Mikron UMS 900 with internal coolant system and 4th axis Considering its age, the machine is in good condition and fully functional. A special feature is the machine’s internal coolant system and full-fledged 4th axis. Dwjdpfx Aksz Iz I Homoc In addition, it has an HF spindle from Fischer with a cooling unit that can be swiveled into position. Equipment: - X-axis 900mm / Y-axis 630mm / Z-axis 500mm - Table dimensions: 1200x600mm - Internal coolant system through the spindle - Spindle speed max. 6300 rpm with SK40 - 4th axis as a rotary table, Hoffmann RWC 160 with jaw chuck - Tool changer for SK and HSK tool holders - HF spindle Fischer 42,000 rpm with HSK40 - Electric handwheel - Full protective enclosure - Complete documentation available - Control cabinet very clean - Many tool holders included The screen is not defective; the black shadows are due to the photography. Several components have already been renewed, e.g., the spindle bearings; the Y-axis has been overhauled. The absolute special feature is the internal coolant supply through the spindle! If you have any questions or need more information, please send us a message or call us.

Year of construction: 2019, condition: used, Travel X/Y/Z: 650mm/500mm/475mm, table dimensions X/Y: 1530mm/450mm, max. table load: 400kg, spindle taper: SK40, max. spindle speed: 4000rpm, spindle power: 7.5kW, milling head swivel range: 140°, control: Heidenhain TNC 620. Weight: approx. 2750kg, machine dimensions X/Y/Z: approx. 2200mm/2300mm/2050mm. An on-site inspection is possible. Dedpezwgidefx Akmewc

Condition: new, Year of construction: 2026, feed length X-axis: 80 mm, feed length Y-axis: 80 mm, feed length Z-axis: 60 mm, spindle speed (min.): 24,000 rpm, Perfect for: Applications in model and mold making, as well as for milling other materials – a universal powerhouse with a rapid traverse rate of 80 m/min. Materials: Plastics, composite materials such as CFRP/GFRP, model-making materials, aluminum. Industries: Automotive, aerospace, transportation & logistics, leisure industry, sanitary, boat building, automation. _____ Reference number: 1233 Availability from: approximately December 2026 / January 2027 CNC machine type: 5-axis CNC milling machine G-S-F/UNI (35-15) Spindle data: 13 kW / 10.3 Nm; 12000-24000 1/min; HSK F 63 Rapid traverse rate X/Y/Z: 80/80/60 Dwodszy Updspfx Akmoc Part dimensions X/Y/Z: 3500 x 1500 x 700 Control system: SIEMENS – Sinumerik One with hand terminal HT 2 Tool changer: 10 tools Tables: 1 table Vacuum system: yes Tool breakage and length monitoring: Renishaw-TS 27 R Other: on request Year of manufacture: 2026 Condition: new

Condition: like new (used), Year of construction: 2000, Retrofitted: 2026 Dwsdeznpczepfx Akmjc Numerical control: NUEVO/NEW HEIDENHAIN TNC-i640 Technical features Dimensions Table dimensions: 5600 x 2000 mmNumber of T slots: 13T slots dimensions: 22 mm Traverses of axis X axis traverse: 5000 mmY axis traverse: 3250 mmZ axis traverse: 1000 mmVertical capacity (VC): 500 / 1500 mmDistance between columns: 2700 mm Milling head Milling head model 1: UAGA orthogonal auto-indexing BC (2,5º)Tool clamping system: HydraulicTaper nose: ISO-50 (DIN69871)   /   Pull stud: (DIN69872)Speed range: 3000 rpmSpindle power: 30 kW Milling head model 2: FA large vertical spindleTool clamping system: HydraulicTaper nose: ISO-50 (DIN69871)   /   Pull stud: (DIN69872)Speed range: 3000 rpmSpindle power: 30 kW Milling head model 3: Direct spindleTool clamping system: HydraulicTaper nose: ISO-50 (DIN69871)   /   Pull stud: (DIN69872)Speed range: 5000 rpmSpindle power: 37 kW Feedrates Rapid feedrate (X / Y,Z): 7200 / 12000 mm/min Weight and dimensions Maximum weight on table: 25000 KgMachine weight approximate: 56000 KgMachine dimensions approximate: 13200 x 5738 x 5850 mm Accessories Guarding: 2 sliding doors and new perimetral wire-mesh fenceMilling head changer: Semi-automatic with hinges on columnAutomatic tool changer: OptionalChip conveyor: 1 transversal hinge typeElectronic handwheel: New HR-510Coolant: External internal high-pressure through spindle (only in direct spindle) Sale conditions Warranty: 6 months mechanical partsPrice and sale conditions: On request View all technical features

Year of construction: 2015, condition: ready for operation (used), A CNC milling machine Spinner is available. Travel X/Y/Z: 760mm/460mm/460mm, table dimensions X/Y: 900mm/410mm, max workpiece weight: 350kg, tool stations: 24, max tool weight: 8kg, max tool length: 200mm, speed: 12000rpm, max tool diameter: 80mm, tool holder: SK40. Machine dimensions X/Y/Z: approx. 2600mm/1600mm/2850mm, weight: approx. 4000kg. Including automation and robot M10. Documentation available. An on site inspection is possible. Dwjdpfx Akjxwn I Uemec

Condition: excellent (used), Year of construction: 2010, feed length X-axis: 650 mm, feed length Y-axis: 500 mm, feed length Z-axis: 475 mm, table width: 450 mm, table length: 1,530 mm, table load: 350 kg, X-Axis: 650mm Y-Axis: 500mm Z-Axis: 475mm Table Length: 1530mm Table Width: 450mm Table load: 350 Spindle speeds: 55 - 4000Rpm Feed rate X-Axis:6000mm/min. Feed rate Y-Axis:6000mm/min. Feed rate Z-Axis:3000mm/min. Length: 2300mm Width: 2550mm Dsdoxtbkujpfx Akmswc Height: 2200mm Weight: 2850kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Year of construction: 2026, condition: new, functionality: fully functional, power: 6 kW (8.16 HP), overall weight: 1,140 kg, positioning accuracy: 0.05 mm, table length: 3,000 mm, table width: 2,000 mm, number of axes: 3, Equipment: CE marking, documentation/manual, Big CNC router machine for a big production. With it, you can produce doors, cabinets, tables, chairs, gaskets, LED signs, souvenirs, and 3D relief on wood. Great choice for those who seek no limits. This machine is used for cutting and engraving wood, MDF, chipboard, acrylic, plexiglass, PVC, composite, and aluminum. Wattsan M1 2030’s planetary gears provide high speed, and the reinforced gantry and bed guarantee no vibrations during the work. Together, they provide precision. You can give our managers a call for additional details! Wattsan M1 2030 characteristics Working area: 2000x3000 mm Dsdpfx Akoih Sdgjmewc Spindle: 6 kW Machine size: 2700x3540x1780 mm Weight: 860 kg Virmer provides not only prime machines but also service and delivery. Our engineers and managers are ready to answer all of your questions and provide video assistance if required. Also, owners of Wattsan equipment get lifetime online support. Virmer is located in the Netherlands and works all over Europe. Virmer is Wattsan's official supplier. We provide not only laser engravers, but also metal cutters, welders, markers and cleaning machines. Wattsan is a Chinese manufacturer, which has been creating laser equipment for almost 15 years and keeps evolving with the help of its clients. Thanks to feedback Wattsan made over 50 modernizations, which made machines more reliable, precise and powerful so you could upgrade your business up to the new level. YOU CAN WRITE OR CALL US! WE WILL SELECT THE RIGHT MACHINE FOR YOUR TASK On our company you can find a wide range of machines and components: Laser Metal Cutting Machine; Laser Metal Machine, Fiber Metal Laser, Fiber Metal Laser Engraver; CNC laser machine for metal; Laser machine for wood; CNC laser machine; Laser engraving machine; Laser engraver; Laser cutting machine for plywood; Laser engraver; Laser cutting machine for metal; CNC milling machine; laser marker. Lenses; Chillers; Cooling system for machine; Chiller S&A ; IPG laser, MAX photonics, Raycus; Compressor; Rotary device; Mirror for laser machine.

Condition: excellent (used), Year of construction: 2019, Sub-spindle, C-axis Dwjdpfxoud Nhhj Akmoc SIEMENS 840DSL Turning diameter max 16 mm Turning length 145mm Spindle speeds main & sub-spindle 15'000 rpm Tool holder group 1+2: 6 driven positions C-Axis 0.001° Misc. accessories MARCELS MASCHINEN CH

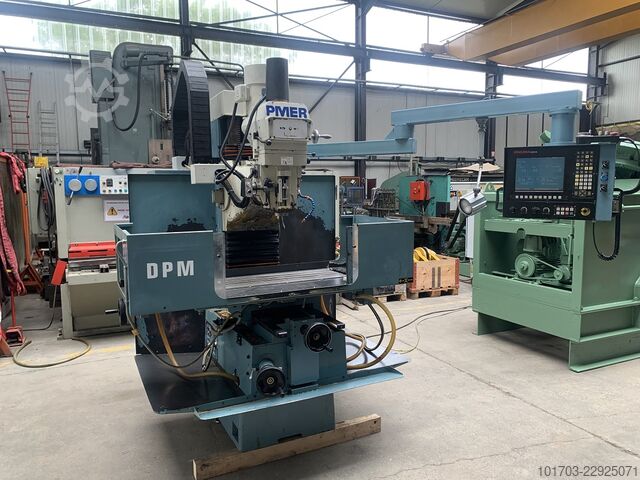

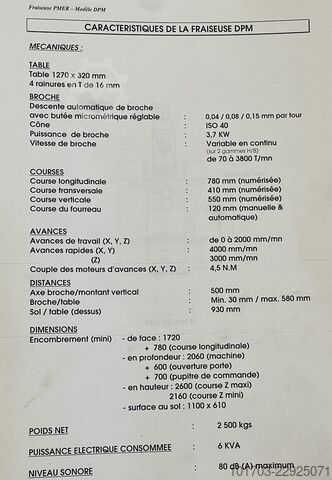

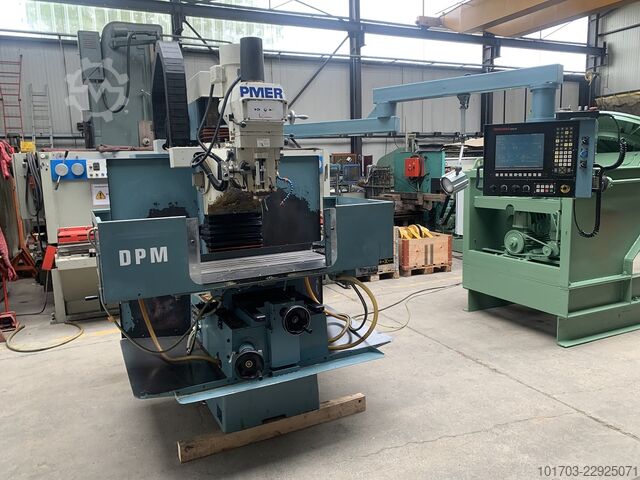

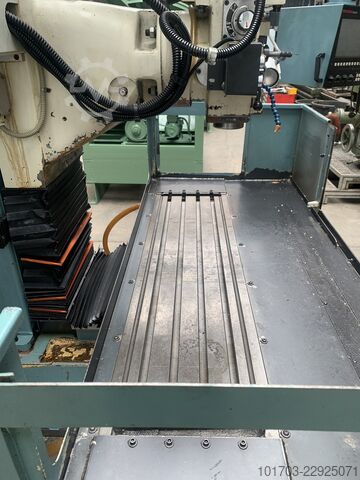

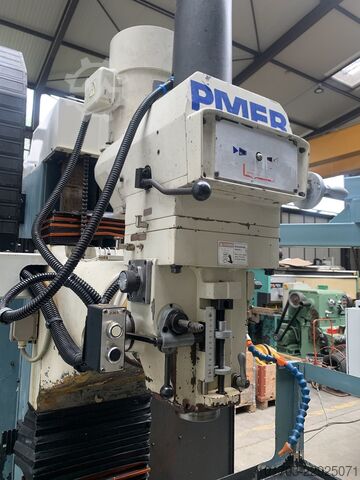

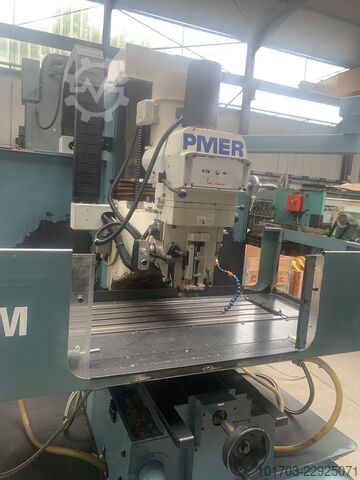

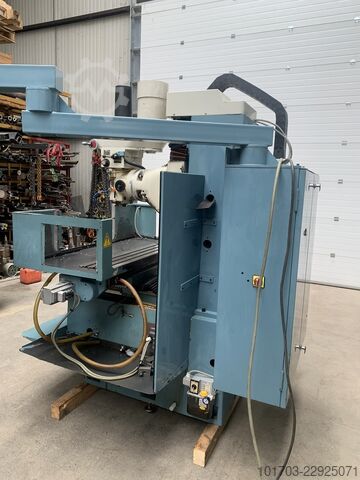

Condition: used, Year of construction: 2004, CNC Milling machine PMER type DPM Travel X: 780 mm Travel Y: 410 mm Travel Z: 550 mm Numerical Command ANILAM type 5000 M Cone: ISO 40 Spindle exit: 120 mm (manual) Spindle speed: from 70 to 3800 RPM Table size: 1270 x 320 mm Year of construction: 2004 Maxi distance spindle nose/table: 500 mm Mini distance spindle nose/table: 100 mm Swivel head right/left Dwedpfsz Nx Etsx Akmjc Jog crank Possibility to work manually (with cranks) or driven by the CN Lubricant pump Voltage: 380 V Width: 1900 mm Depth: 2100 mm Total height: 2500 mm Weight: 2,5 T

Year of construction: 1998, condition: ready for operation (used), A Unisign CNC 5-axis large-format portal milling machine is available. Portal clearance height: 1200mm, tool stations: 35/53, tool interface: SK50, travel X/Y/Z: 10000mm/2000mm/800mm, table dimensions X/Y: 11750mm/1670mm, max. table load: 2500kp/m², max. table-to-spindle nose distance: 1200mm, main spindle power: 26kW, spindle speed: 6000rpm, feed rate: 24m/min, rapid traverse: 24m/min. Machine dimensions X/Y/Z: approx. 14000mm/5800mm/4000mm, weight: approx. 45t, control: Siemens Sinumerik 840C. Including automatic angular milling head coupling and decoupling, spindle orientation system, rigid tapping, through-spindle coolant, workpiece probing system and two-station pendulum operation. Documentation available. An on-site inspection is possible. Dsdpfx Akozpyw Ejmewc

Condition: used, Year of construction: 2018, operating hours: 500 h, Throughfeed machining, workpiece machining from below, and automatic workpiece return to the operator. 3 controlled axes: X axis - uninterrupted workpiece transport via DDT (double dynamic transport system) with a brushless motor Y axis - drilling head travel Z axis - drilling - Double "0" reference: new laser generation for detecting the start and end of the workpiece. The program can adjust the drilling from below to achieve perfect alignment in vertical and horizontal workpieces. The laser consists of a transmitter and receiver to avoid errors with dark edge materials. - Side stops with rollers consisting of a fixed and a movable part, mechanical digital readout with automatic alignment to the 0 stop for removal of up to 3 mm on the 0 line - Constant side pressing device for precise positioning on the 0 line. - Rear workpiece outlet - Automatic 4-position tool changer - No workpiece length limitation - Monitor LCD TFT 19" 5/4 - Industrial PC - Operator interface WSC with Lister, parametric tool, and parametric setup - Graphical programming CAD TPA EDI32, basic version - USB port - Storage of all files - Macro programming - Import DXF files Technical data Number of independent, vertical spindles: 12 Number of independent, horizontal spindles on the X axis: (2+2) Number of horizontal drilling spindles on the Y axis: (2+2) 1 saw (Ø 100mm) Electric spindle 5 kW with ISO30 taper (RPM 12000-24000) Max. workpiece weight: 80 kg Max. workpiece dimensions: X unlimited, Y 1200 mm, Z 50 mm Min. workpiece dimensions: X 270, Y 185 (70op), Z 4 mm Feed rate: 25m/min Spindle speed: 3500 RPM Max. horizontal tool Ø 12mm Max. drilling depth horizontal on the X and Y axis 30mm Max. drilling depth vertical: 45 mm Max. vertical tool Ø 35mm Air consumption 2000 m3/h Extraction speed 30 m/s Extraction nozzle 2xØ. 100mm + 1xØ.50 mm Motor: 1.7 kw Compressed air: 7 bar Max. air consumption: 60 nlt/min CE STANDARDS - Office software - license - Adjustable zero point for 4-sided formatting - CE compliant Dwsdpfx Akjzuxdbomjc - Status: 05/28/2026: approx. 500 operating hours and a new PC has been installed.
