Used H. Cegielski Radial Drilling Machine for sale (99,880)

Condition: used, Year of construction: 2007, bore capacity in steel (diameter) 40 mm arm length 1050 mm turning speeds 15 - 2800 U/min feed range 0,075 - 0,45 mm/min dimensions 2450 x 1300 x 2300 mm Weight 1500 kg Equipment: Machine in top condition 2026 serviced and repaired by the factory customer service Machine design - Work table 1800 x 600 mm with 4T-slots - Boom travel 1050 mm - SK 40 drilling spindle with tool clamping device - Infinitely variable speed programming - Infinitely variable quill feed via three-phase servo motor - 2 T-slots 18 mm on the machine base at the rear - 2 T-slots 18 mm on the left machine base frame - Thread cutting device - Central lubrication - Coolant device - Machine light - CE marking - Safety device - USB interface Dimensions and travels Tool holder SK 40 Column diameter mm 195 Table dimensions mm 1800 x 600 Number of T-slots 4 Distance between T-slots mm 125 Quill stroke (Z-axis) mm 200 Column stroke (W-axis) mm 410 Distance spindle bottom edge - min mm 70 Table top edge max. mm 680 Distance spindle bottom edge - min mm 970 Floor max. mm 1580 Fodpfx Aoy Nd T Hjfuopn Drilling radius mm 540 - 1590 Worktable height mm 900 Cutting values Drilling capacity into solid St 60 ? 40 GG 22 ? 50 Thread cutting St 60 M 36 GG 22 M 42 Main spindle drive AC motor, frequency-controlled kW 5.5 at 100 % ED. Speed range: min -1 15 - 2800 Torque Nm max. 250 constant from min -1 15 - 2000 Feed drives X-axis - AC - servo motor kW 0.25 Y-axis - AC - servo motor kW 0.25 Z-axis - AC - servo motor kW 4.50 W-axis - AC - servo motor kW 2.50 Rapid traverse speeds (X/Y/Z): m/min. 7,5 / 7,5 / 5 Rapid traverse speeds (W): m/min. 3 Feed rates stepless mm/min 5 - 2000 Accuracy Positioning accuracy X-, Y-axis to 1200 mm mm ± 0.075 Electrical data Operating voltage / frequency V / Hz 400 / 50 Control voltage V 24 Hydraulic unit for clamping kW 0.75 Total connected load kVA 13.0 Weight Danumeric 440 (without packaging) with table 1800 x 600 mm kg 2800 CNC control Axes: 3 (X, Y, Z, ) Processor: 32-bit CPU Screen: TFT flat screen, backlit, easy to read from all sides readable from all sides, 215 x 160 mm Position information: Cartesian or polar, absolute or incremental measurements, Unit of measurement: mm or inch or in degrees Interpolation: 2 axes (X, Y) Technology database: tool management, tool suggestions according to machining type, material-dependent cutting data suggestions Tool management: max. 500 tools Subroutine technology: yes Standard software options: Programming in dialog, 38 zero offsets, rotation and mirroring, teach-in for X,Y,Z, restart in program with selection functions for targeted entry Zero point determination: Cycles for determining zero points by manually probing the workpiece for by manually probing the workpiece for: - any clamped rectangular parts - any clamped round parts - Mediation of cast and flame-cut parts - Angular position detection for round parts by touching reference edges or surfaces Test graphic Graphic display of drilling patterns

Condition: refurbished (used), Year of construction: 2000, functionality: fully functional, drilling capacity: 40 mm, quill stroke: 200 mm, quill diameter: 80 mm, • Worktable 1200 x 750 mm with 5 T-slots • Arm travel 1050 mm • Drill spindle Morse taper 4 • Infinitely variable speed control • Infinitely variable quill feed • Thread cutting device • 2 T-slots (18 mm) each, machine base rear and left • Machine lamp • Central lubrication • Table surface machined on all sides • Safety guard on drill • Coolant system Dimensions and Travel Tool holder MT 4 Column diameter mm 195 Table dimensions mm 1200 x 750 Number of T-slots 5 T-slot spacing mm 125 Quill stroke mm 220 Column stroke mm 450 Distance spindle nose to table min. mm 40 max. mm 710 Distance spindle nose to base plate Fedpoyhdvkefx Afuopn min. mm 840 max. mm 1510 Drilling radius min. mm 540 max. mm 1590 Working table height mm 900 Machining Data Drilling capacity solid material St 60 Ø 45 mm GG 22 Ø 55 mm Thread cutting St 60 M 36 GG 22 M 45 Main Spindle Drive AC motor, frequency-controlled kW 5.5 at 100% duty cycle Speed range rpm 15 - 2800 Torque Nm max. 250 Constant from rpm 15 - 200 Feed Drives Feed, stepless mm/rev 0.02 - 0.7 Feed force N 12,000 Electrical Data Operating voltage / frequency V / Hz 400 / 50 Control voltage V 24 Total connected load kVA 9.3 Weight DANUFLEX 145 (without packaging) with 750 x 1200 mm table kg 2,600 Documentation Operating manual, incl. Lubrication and hydraulic diagram Electrical schematic

Condition: good (used), Includes tool cabinet and drill bits! 2. Table Work area: 600mm x 1200mm Tool holder: MK 4 Drilling capacity: 40mm in steel Fsdpfxez Db Eqe Afuspn Tapping attachment Coolant system

Condition: good (used), Year of construction: 1962, High speed radial drilling machine, radial drilling machine, drilling machine, boom drilling machine, high speed radial drilling machine -Clamping table: 400 x 1100 mm -Projection: 930 mm -Taper mount: MK4 -Engine power: 1.35/1.8 kW -Speed: 41-1700 rpm -Columns: Ø 200 mm -Spindle stroke: 125 mm -Thread cutting device: YES Fpedpfx Afjirax Usujn -Feed: 0.075 - 0.3 mm/rev -Dimensions: 1800/1235/H2240 mm -Weight: 1500kg

Condition: good (used), Year of construction: 2000, machine/vehicle number: 152362081, functionality: fully functional, throat depth: 2,700 mm, spindle diameter: 110 mm, sheet thickness steel (max.): 100 mm, spindle speed (max.): 1,800 rpm, spindle speed (min.): 9 rpm, Radial drilling machine MAS U 1000 Fsdjrwxpfspfx Afuopn Year of construction 2000 Conventional / digital control With face plate 1,000 mm and tool package Viewing is possible at any time by arrangement. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: Radial drilling machine MAS | MAS1000 | U1000

Condition: like new (used), Year of construction: 1990, Drilling capacity in steel: 50mm Drilling capacity in cast iron: 63mm Spindle: MK4 Spindle Speeds: (12) 45-2000 RPM Drill head displacement: 350-1250mm Fpsdsg I I Ekopfx Afuen Distance spindle base plate: 350-1420mm

Condition: used, Year of construction: 1960, Technical details: workpiece height max.: 600 mm Fsdpex Afn Njfx Afuopn Arm length: ca. 700 mm bore capacity in steel (diameter): 25 mm Table dimensions: 1100 x 400 mm

Condition: used, Year of construction: 1997, Henkovac H 1000 – Industrial Vacuum Packaging & Sealing Machine (1997) The Henkovac B.V. H 1000, manufactured in 1997, is a robust industrial vacuum packaging and sealing machine designed for high-volume food processing environments. Built for reliability and durability, it is ideal for commercial kitchens, food processors, and manufacturing lines that require hygienic, efficient, and consistent vacuum packaging. Key Features: - Heavy-Duty Vacuum Packaging: Securely evacuates air from packages, extending product shelf life and maintaining quality. - Reliable Sealing: Ensures airtight seals for a variety of food products, including meats, cheeses, and prepared meals. Fsdoyudxxepfx Afuepn - Industrial-Grade Construction: Designed for continuous operation in demanding food processing environments. - Versatile Application: Suitable for vacuum packaging of different types and sizes of food products. - Long-Term Reliability: Proven design ensures dependable performance even after decades of use. - User-Friendly Operation: Controls and interface designed for efficient workflow in industrial kitchens. Technical Highlights: - Manufacturer: Howden Food Equipment B.V. - Model: H 1000 - Year of Manufacture: 1997 - Machine Type: Industrial vacuum packaging and sealing machine - Applications: Food processing, commercial packaging, shelf-life extension Whether for high-volume production lines or specialized food processing tasks, the H 1000 delivers professional vacuum sealing performance, combining durability, hygiene, and reliability. More photos and full specifications: / * Manufacturer: Henkovac * Model: H 1000

Condition: refurbished (used), Year of construction: 2006, functionality: fully functional, drilling capacity: 40 mm, quill stroke: 200 mm, quill diameter: 80 mm, • Work table 1200 x 750 mm with 5 T-slots • Arm travel 1050 mm Fpsdpsx Uwpxofx Afujn • Drill spindle Morse taper 4 (MK 4) • Infinitely variable speed control • Infinitely variable quill feed • Thread cutting attachment • Two 18 mm T-slots each on rear and left of machine base • 3-axis digital readout • Machine lamp • Central lubrication • Table top machined all around • Drill guard • Coolant system Dimensions and Travels Tool holder MK 4 Column diameter mm 195 Table size mm 1200 x 750 Number of T-slots 5 T-slot spacing mm 125 Quill stroke mm 220 Column travel mm 450 Distance spindle nose - table top min 40 mm, max 710 mm Distance spindle nose - base plate min 840 mm, max 1510 mm Drilling radius min 540 mm, max 1590 mm Work table height mm 900 Machining Capacities Drilling capacity (solid) St 60 ⌀ 45 mm GG 22 ⌀ 55 mm Tapping St 60 M 36 GG 22 M 45 Main Spindle Drive AC motor, frequency controlled kW 5.5 at 100% duty cycle Speed range min⁻¹ 15 – 2,800 Torque Nm max. 250 Constant from min⁻¹ 15 – 200 Feed Drives Feed, stepless mm/rev 0.02 – 0.7 Feed force N 12,000 Electrical Data Operating voltage / frequency V / Hz 400 / 50 Control voltage V 24 Total connected load kVA 9.3 Weight DANUFLEX 145 (without packaging) with table 750 x 1200 mm kg 2,600 Documentation Operating manual, incl. Lubrication and hydraulic system diagram Electrical wiring diagram

Year of construction: 1973, condition: used, bore capacity in steel (diameter) 32 mm arm length 410 - 1000 mm workpiece height max. 765 mm coolant ja boring spindle diameter 38 mm diameter of quill 70 mm spindle stroke 225 mm boring spindle MK 4 mm/min spindle turning speed - stepless 70 - 2000 U/min feed range - spindle 0,04 - 0,32 mm/U column diameter 225 mm bore radius max./min max. 1130 mm table surface area 630 x 1320 mm height adjustment 500 mm base plate 1500 x 1000 mm T-slots 4 Stück T-slot - distance 18 mm Fedpfx Afegmu A Sjuepn total power requirement 2,2 kW weight of the machine ca. 1,8 t dimensions of the machine ca. m shift of supports: 590 mm without turntable and tools

Condition: repair required (used), bore capacity in steel diameter / mm arm length 1000 mm Fodpfovmtlhox Afuspn workpiece height max / mm - throat (max) 1000 mm - sleeve stroke 250 mm MILLING SPINDLE / HEAD / - spindle revolutions (min) 47.5 /min - spindle revolutions (max) 2120 /min - spindle diameter 60 mm - space requirements -left/right- 2000 mm - space requirements -front/back- 750 mm - total height 2160 mm - total weight approx. 2500 kg Machine is not 100% OK, and needs an overhaul. - Height adjustment and cross adjustment must be repaired

Condition: used, Year of construction: 1970, bore capacity in steel (diameter) 65 mm arm length 1600 mm workpiece height max. 1600 mm surface area 1800x800 mm turning speeds 18-1800 U/min Feed -2,54 mm/U The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. Fpedjy Tplvjpfx Afuon We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 2011, working width: 1,300 mm, workpiece height (max.): 50 mm, working length: 3,000 mm, TECHNICAL DETAILS Working area, X-axis: 3,000 mm Working area, Y-axis: 1,300 mm Maximum workpiece thickness: 50 mm Number of working areas: 2 Number of controlled axes: 3 Drilling units Number of drilling units: 4 Drilling unit 1: Top Vertical drilling spindles: 51 Horizontal drilling spindles in X-direction: 4 Drilling unit 2: Top Vertical drilling spindles: 51 Horizontal drilling spindles in X-direction: 4 Drilling unit 3: Bottom Fjdpfxoz Ekggs Afuspn Horizontal drilling spindles in Y-direction: 42 Drilling unit 4: Bottom Horizontal drilling spindles in Y-direction: 42 Milling units Number of milling units: 2 Milling unit 1: Top Controlled axes: 3 Motor power: 6.6 kW Milling unit 2: Top Controlled axes: 3 Motor power: 6.6 kW Sawing units Number of sawing units: 2 Sawing unit 1: Top Design: Fixed unit for grooving in X-direction Maximum tool diameter: 125 mm Sawing unit 2: Top Design: Fixed unit for grooving in X-direction Maximum tool diameter: 125 mm EQUIPMENT Albatros machine programming software Collets for workpiece clamping The machine is sold and delivered in its actual and legal condition (“as is, where is”) based on photo documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 5446

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, drilling capacity: 40 mm, quill travel distance: 200 mm, table length: 1,200 mm, table width: 600 mm, drill spindle length: 200 mm, overall weight: 1,700 kg, input voltage: 400 V, travel distance Y-axis: 780 mm, input frequency: 50 Hz, distance table to spindle center: 800 mm, Donau DR40 Z Manufacturer: Donau Machine type: Radial drilling machine / Quick-change radial Designation: DR40 Z Fsdsz Da Idepfx Afuepn Year of manufacture: 1992 Drilling capacity: 40mm Threading capacity: M33 in steel Taper: SK 40 Feed rate: 0.075 - 0.15 – 0.3 – 0.45 – 0.6 / revolution Drilling spindle speed: 18 Overhang: 800mm Drilling spindle stroke: 200mm Vertical adjustment of the drilling spindle head (electric): 450mm Max. distance between table and spindle: 780mm Table: 600x1200mm Machine weight: 1700 kg Documents: Operating manual, wiring diagram, spare parts list, test report The machine was completely overhauled by Vaumatec, 89431 Bächingen, in 2016 and has been used very little since. The machine is in very good condition. Purchased in 2016.

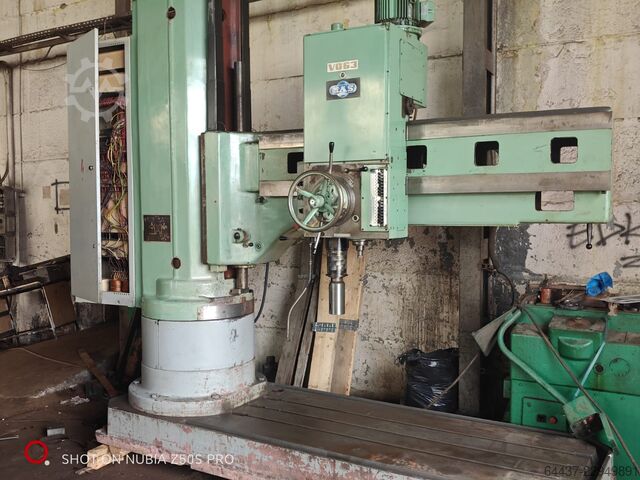

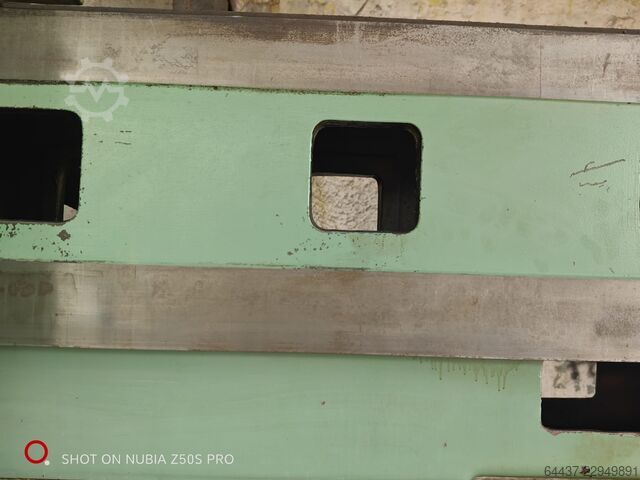

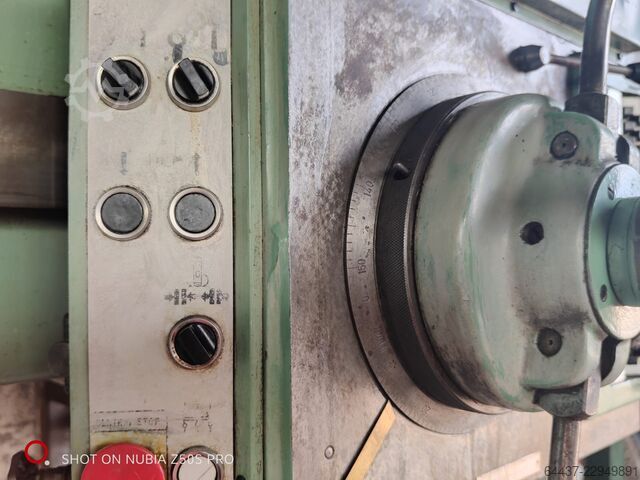

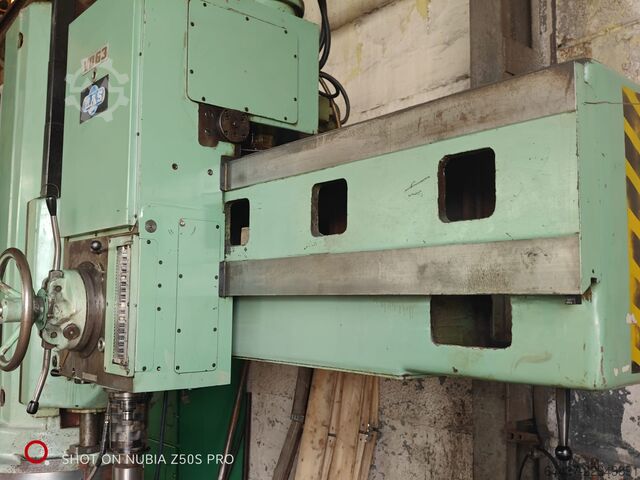

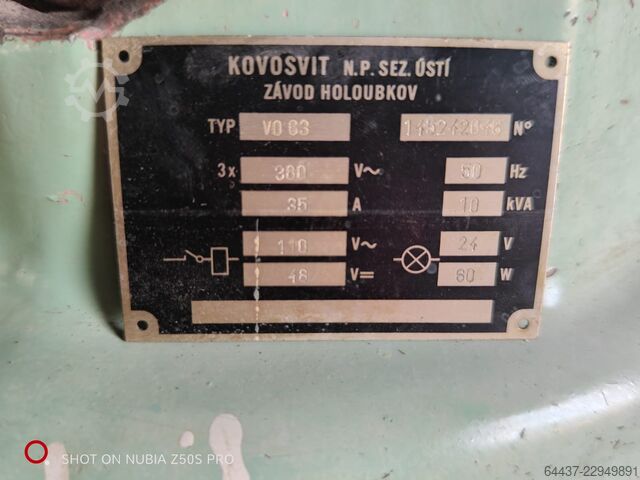

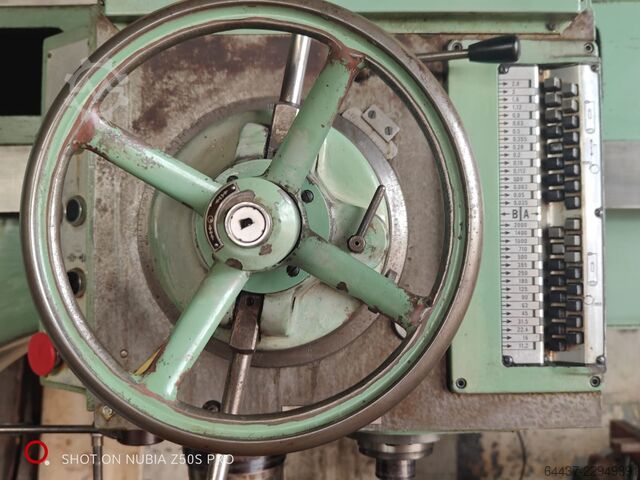

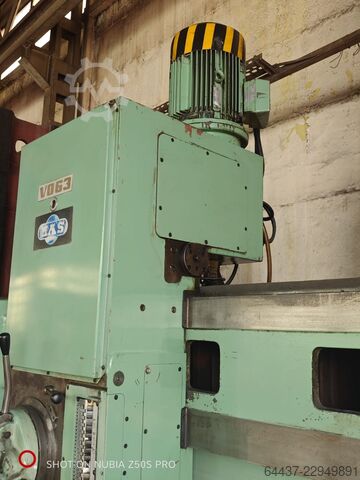

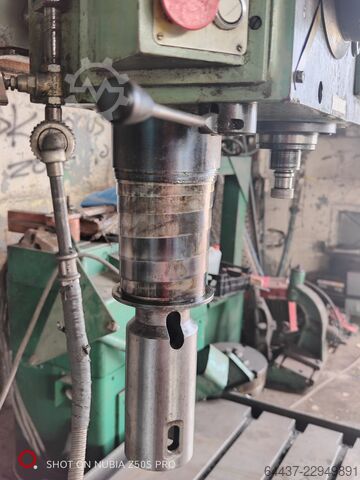

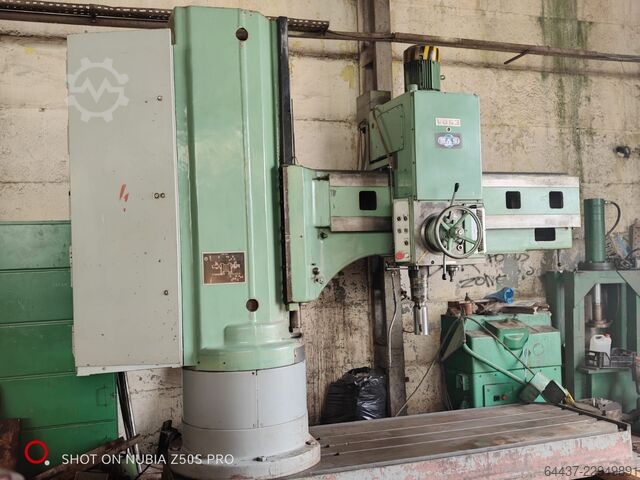

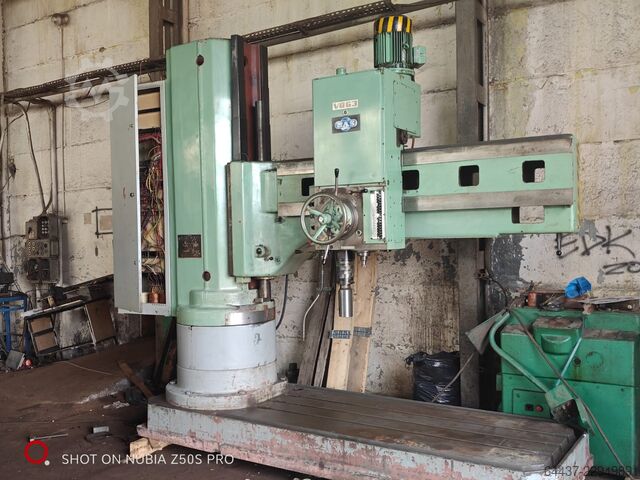

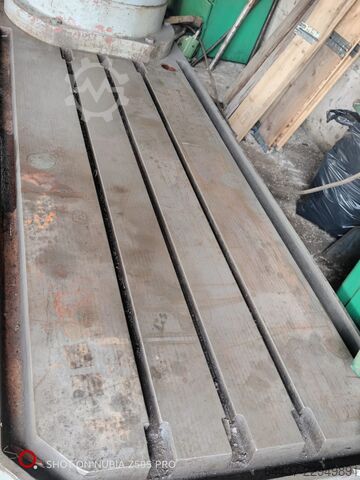

Condition: used, functionality: fully functional, KOVOSVIT VO 63 Radial Drilling Machine – Drilling Capacity 80/100 mm For sale: used KOVOSVIT VO 63 radial drilling machine, manufactured in the former Czechoslovakia. Heavy-duty industrial radial drill designed for drilling, boring, countersinking and tapping operations on large and heavy metal workpieces. The machine features a height-adjustable and swivelling radial arm, a horizontally movable drilling head and a heavy-duty base plate with T-slots. Technical specifications: - Manufacturer: KOVOSVIT Holoubkov - Model: VO 63 - Max. drilling capacity in steel / cast iron (solid drilling): 80 / 100 mm - Max. tapping capacity in steel / cast iron: M85 - Max. spindle nose diameter: 100 mm - Spindle travel: 380 mm - Spindle taper: Morse MT6 - Number of spindle speeds: 16 - Spindle speed range: 11.2–2,000 rpm - Number of spindle feeds: 16 - Spindle feed range: 0.035–2.8 mm/rev - Spindle reach min./max.: 386–2,000 mm - Distance from spindle to base working surface min./max.: 473–1,803 mm - Base working surface: 1,100 × 2,300 mm - Number of T-slots: 3 - T-slot width: 22 mm - Distance between T-slots: 250 mm - Main motor power: 7.5 kW - Power supply: 3 × 380 V / 50 Hz - Connected power: 10 kVA Dimensions and weight: - Length: 3,700 mm Fedpfoz Rpadox Afujpn - Width: 1,380 mm - Height: 4,050 mm - Machine weight: 7,100 kg Equipment and features: - Height-adjustable and swivelling radial arm - Horizontally adjustable drilling head - Mechanical spindle speed and feed selection - Mechanical spindle feed - Heavy-duty base plate with T-slots - Conventional control Machine condition: Used machine in the visual condition shown in the attached photographs. Normal signs of age and previous use, including paint wear and areas of superficial corrosion. Further information available upon request.

Condition: good (used), Year of construction: 1965, functionality: fully functional, throat depth: 930 mm, For sale is a Donau brand DR30 high-speed radial drilling machine. The machine is in good and fully functional condition. Technical specifications: Year of manufacture: 1965 Drilling capacity in steel (diameter): approx. 30 mm Tapping capacity in steel: approx. M36 in cast iron Spindle mount: MK 3 Spindle speeds: Continuously variable approx. 45 - 2240 rpm Quill stroke: approx. 170 mm Thrust: approx. 930 mm Boom swivel range: 360° Table size: 1200 x 500 mm Spindle motor power: 4.0 kW Weight: approx. 1.8 t Dimensions (L x W x H): approx. 1.3 x 2.1 x 2.45 m Tapping device with shut-off and reversing. Motorized boom height adjustment. Left-hand drilling control, hand and foot. Fsdpowal Hpofx Afuopn Transport and loading can be arranged throughout Europe upon request for an additional charge. Prices exclude VAT. Viewings are available by appointment. Contact us; our team will be happy to assist you. Trade-ins or exchanges are possible! Machine Purchase/Sale PURCHASE/SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality, yet affordable metalworking machine for your production? Or do you want to sell yours? For further information or to contact us, visit our website.

Condition: excellent (used), Year of construction: 1988, Drilling capacity in steel (diameter) 40 mm Overhang 1,250 mm Spindle mount MK 5 Drilling spindle stroke 355 mm Speed range 20 – 1200 rpm Fpsdpfx Aezgdfbofuen Machine weight approx. 3.0 t

Condition: ready for operation (used), functionality: fully functional, ARBOGA UM 3008 / Drilling and Milling Machine -Spindle speeds / 8 stages / 105 - 3020 rpm -Gear / Gear head / Swiveling and tilting -Tool holder MK 3 -Drilling capacity / Steel max. 30mm -Drilling depth / Quill stroke approx. 130mm -Max. distance - Spindle / Table approx. 600mm -Cross table 585x245mm, adjustable via crank Fedpfoz Hy Hrjx Afuspn Dimensions: L x W x H 0.9 x 0.8 x 1.9 meters / Weight approx. 600 kg Errors and omissions excepted.

Condition: used, Year of construction: 1997, bore capacity in steel (diameter) 40 mm arm length 1.000 mm workpiece height max. 1.250 mm table-size 1.150 x 690 mm spindle taper MT 4 spindle turning speed range 40 - 1.400 U/min feed range 0,08 - 0,40 mm/min crossrail adjustment horizontal 800 mm crossrail adjustment vertical 700 mm spindle stroke 220 mm power requirement 3,5 kW voltage 380 V total power requirement 4,0 kW weight of the machine ca. 1,6 t - Serial-No.: A01/446/97 - adjustable cube table 600 x 500 x 500 mm - coolant device Fjdpfol Ha Twjx Afuspn - machine light

Condition: used, Year of construction: 1957, Technical details: bore capacity in steel (diameter): 32 mm arm length:: 1000 horizontal adjustment of the boring slide: 700 mm vertical adjustment of arm: 600 (motorisch) mm swivel range of the arm: 90° rechts/links Grad distance table - lower edge spindle: min./max.: 200 / 1120 mm spindle taper MT: 4 bore spindle stroke: 420 (manuell-automatisch) mm range of revolutions per minute - continous: 20 - 2000 / 3 step U/min feed: 01, / 0,2 / 0,3 / 0,4 / 0,8 / 1,2 mm/U column diameter: 250 mm base plate surface area: 1100 x 600 mm total power requirement: 4,6 kW weight of the machine ca.: 2,5 t dimension machine xH: 1,8 x 0,8 x 2,5 m Tool ejection via expulsion wedge Equipment: Coolant system with pump (without feed) Drill cube L: 760 x W: 500 x H: 510mm / horizontal surface 760 x 500mm and vertical surface 760 x 510mm Machine ilumination * Fodpfx Asvhbpqsfuepn

Condition: used, bore capacity in steel (diameter) 23 mm spindle taper MK 2 spindle stroke 130 mm arm length ca. 860 mm table-size 1280 x 500 mm surface area ca. 1250 x 480 mm turning speed range 115 - 2400 U/min workpiece height max. ca. 535 mm boring chuck Schnellspannfutter 1-13 Fpsdowugrcspfx Afuon weight of the machine ca. 690 kg total power requirement 1 kW range L-W-H ca. 1300 x 1800 x 2100 mm Distance spindle center - stand center (projection): approx. 860 mm Distance table quill (workpiece height): max. 535 mm Adjustability of the horizontal/vertical arm: approx. 300 - 400 mm

Condition: used, Year of construction: 1972, bore capacity in steel (diameter) 50,0 mm arm length 1.350 mm workpiece height max. 1630 mm turning speeds 19 - 1320 U/min bore spindles - Morse Taper 5 MK engine output 5,5 kW Fedpfxswiikdj Afujpn weight 5 t range L-W-H 2,4 x 1,0 x 3,55 mm feed movement 475 mm floor plate size: 1650x1000 mm feeds 0,07-2,9 mm/U

Condition: good (used), Year of construction: 1999, functionality: fully functional, drilling capacity: 40 mm, quill stroke: 200 mm, quill diameter: 80 mm, Machine Specification • Work table 1800 x 600 mm with 4 T-slots • Traversing arm travel 1050 mm • Drilling spindle SK 40 with tool clamping device • Infinitely variable speed programming • Infinitely variable quill feed via three-phase servo motor • 2 T-slots, 18 mm, rear side of machine base • 2 T-slots, 18 mm, left side of machine base • Thread cutting unit • Central lubrication • Coolant system • Machine light • CE marking Fpodpfoyxw Ddsx Afuon • Safety device • USB interface Dimensions and Travel Ranges Tool holder: SK 40 Column diameter: 195 mm Table dimensions: 1800 x 600 mm Number of T-slots: 4 Distance between T-slots: 125 mm Quill travel (Z-axis): 200 mm Column travel (W-axis): 410 mm Distance spindle nose – table (min): 70 mm Distance spindle nose – table (max): 680 mm Distance spindle nose – floor (min): 970 mm Distance spindle nose – floor (max): 1580 mm Drilling radius: 540 – 1590 mm Working table height: 900 mm Machining Capacities Drilling capacity (solid): St 60: ⌀ 40 mm GG 22: ⌀ 50 mm Tapping: St 60: M36 GG 22: M42 Main Spindle Drive AC motor, frequency controlled: 5.5 kW at 100% duty cycle Speed range: 15 – 2800 rpm Torque: max. 250 Nm Constant torque from 15 – 2000 rpm Feed Drives X-axis - AC servo motor: 0.25 kW Y-axis - AC servo motor: 0.25 kW Z-axis - AC servo motor: 4.50 kW W-axis - AC servo motor: 2.50 kW Rapid traverse (X/Y/Z): 7.5 / 7.5 / 5 m/min Rapid traverse (W): 3 m/min Infinitely variable feeds: 5 – 2000 mm/min Accuracy Positioning accuracy X, Y axis (over 1200 mm): ± 0.075 mm Electrical Data Operating voltage/frequency: 400 V / 50 Hz Control voltage: 24 V Hydraulic unit for clamping: 0.75 kW Total connected load: 13.0 kVA Weight (Danumeric 440, without packaging, with 1800 x 600 mm table): 2800 kg CNC Control Axes: 4 (X, Y, Z, W), expandable Processor: 32-bit CPU Display: TFT flat screen, backlit, easily readable from all sides, 215 x 160 mm Position indication: Cartesian or polar, absolute or incremental Measurement units: mm or inch or degrees Interpolation: 2 axes (X, Y) Technology Database: Tool management, tool suggestions based on machining operation, material-dependent cutting data suggestions Tool management: max. 500 tools Subprogram function: yes Machining Cycles Standard software options: Conversational programming, 38 reference point shifts, rotation and mirroring, teach-in for X, Y, Z, program restart with selectable entry functions Zero point determination: cycles for determining reference points by manual probing of the workpiece for: - Arbitrary clamped rectangular parts - Arbitrary clamped round parts - Centering of cast and flame-cut parts - Angle position detection for round parts by probing reference edges or surfaces Test graphics: Graphical display of drilling patterns

Condition: used, Year of construction: 1970, bore capacity in steel (diameter) 50 mm arm length 1250 mm workpiece height max. ca. 1150 mm bore capacity in cast iron 60 mm spindle taper MK 5 spindle turning speed range 25 - 2000 U/min feeds 0,06 - 0,5 mm/U crossrail adjustment vertical 620 mm column diameter 350 mm total power requirement 7,5 kW weight of the machine ca. 4,6 t Fpsdpfx Afevh Nbhousn dimensions of machine L x W x H 2,50 x 1,08 x 2,50 m Accessories: box table 1100 x 700 x 550 mm, coolant pump

Condition: refurbished (used), Year of construction: 2000, functionality: fully functional, drilling capacity: 40 mm, quill stroke: 200 mm, quill diameter: 80 mm, Machine Specification • Work table 1800 x 600 mm with 4 T-slots • Traversing arm travel 1050 mm • Drilling spindle SK 40 with tool clamping device • Infinitely variable speed programming • Infinitely variable quill feed via three-phase servo motor • 2 T-slots, 18 mm, rear side of machine base • 2 T-slots, 18 mm, left side of machine base • Thread cutting unit • Central lubrication • Coolant system • Machine light • CE marking • Safety device • USB interface Dimensions and Travel Ranges Tool holder: SK 40 Column diameter: 195 mm Table dimensions: 1800 x 600 mm Number of T-slots: 4 Distance between T-slots: 125 mm Quill travel (Z-axis): 200 mm Column travel (W-axis): 410 mm Distance spindle nose – table (min): 70 mm Distance spindle nose – table (max): 680 mm Distance spindle nose – floor (min): 970 mm Distance spindle nose – floor (max): 1580 mm Drilling radius: 540 – 1590 mm Working table height: 900 mm Machining Capacities Drilling capacity (solid): St 60: ⌀ 40 mm GG 22: ⌀ 50 mm Tapping: St 60: M36 GG 22: M42 Main Spindle Drive AC motor, frequency controlled: 5.5 kW at 100% duty cycle Speed range: 15 – 2800 rpm Torque: max. 250 Nm Constant torque from 15 – 2000 rpm Feed Drives X-axis - AC servo motor: 0.25 kW Y-axis - AC servo motor: 0.25 kW Z-axis - AC servo motor: 4.50 kW W-axis - AC servo motor: 2.50 kW Rapid traverse (X/Y/Z): 7.5 / 7.5 / 5 m/min Rapid traverse (W): 3 m/min Infinitely variable feeds: 5 – 2000 mm/min Accuracy Positioning accuracy X, Y axis (over 1200 mm): ± 0.075 mm Electrical Data Operating voltage/frequency: 400 V / 50 Hz Control voltage: 24 V Hydraulic unit for clamping: 0.75 kW Total connected load: 13.0 kVA Weight (Danumeric 440, without packaging, with 1800 x 600 mm table): 2800 kg CNC Control Axes: 4 (X, Y, Z, W), expandable Processor: 32-bit CPU Display: TFT flat screen, backlit, easily readable from all sides, 215 x 160 mm Position indication: Cartesian or polar, absolute or incremental Measurement units: mm or inch or degrees Interpolation: 2 axes (X, Y) Technology Database: Tool management, tool suggestions based on machining operation, material-dependent cutting data suggestions Tool management: max. 500 tools Subprogram function: yes Machining Cycles Standard software options: Conversational programming, 38 reference point shifts, rotation and mirroring, teach-in for X, Y, Z, program restart with selectable entry functions Zero point determination: cycles for determining reference points by manual probing of the workpiece for: - Arbitrary clamped rectangular parts - Arbitrary clamped round parts - Centering of cast and flame-cut parts - Angle position detection for round parts by probing reference edges or surfaces Test graphics: Graphical display of drilling patterns Fpedjzrr Uuspfx Afuen
