Used Beck Plate Swiveling Table for sale (28,212)

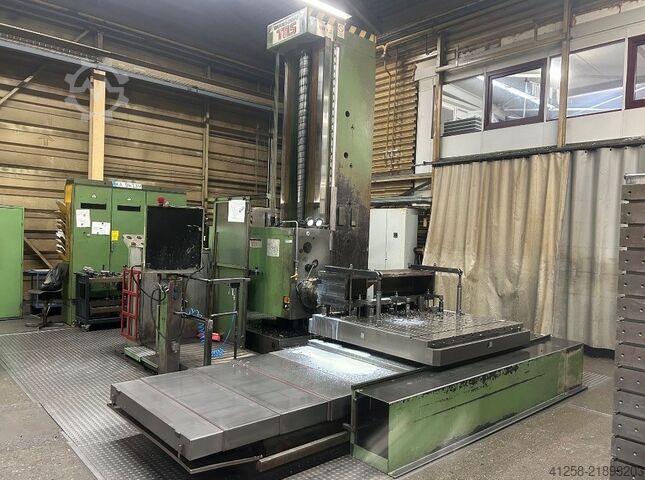

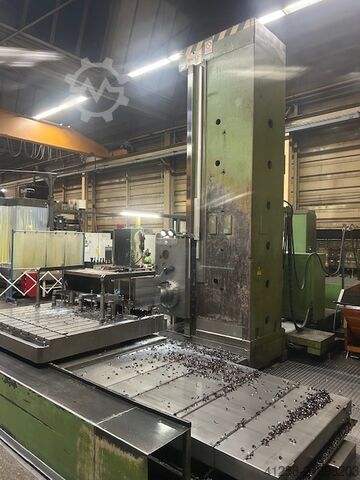

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, spindle diameter: 100 mm, spindle speed (min.): 7 rpm, spindle speed (max.): 1,120 rpm, total height: 3,000 mm, total length: 6,000 mm, total width: 3,000 mm, table length: 1,250 mm, table width: 1,250 mm, type of input current: three-phase, spindle stroke: 900 mm, overall weight: 14,000 kg, year of last overhaul: 1999, Machine in excellent condition, used only for small operations. Condition of the slides: very good. Its green color is still the original. Functional and available quickly. Equipped with a Heidenhain visual display and measuring scale, on 4 axes: X/Y/Z/B. Tooling included with this machine: see the photos below. Great deal, priced below market value. Technical specifications: 🔹 Spindle Spindle diameter: 100 mm Spindle taper: ISO 50 Spindle travel (W-axis): 900 mm Rotation speed: 7.1 to 1,120 rpm Main motor power: 11 kW to 15 kW 🔹 Travels X-axis (Longitudinal): 1,600 mm Y-axis (Vertical): 1,120 mm Z-axis (Cross): 1,250 mm W-axis (Spindle travel): 900 mm 🔹 Rotary Table Table surface: 1,250 × 1,250 mm Maximum allowable load on the table: 3,000 kg (3 tons) Table rotation: 360° (manual or motorized) 🔹 Facing Head Hnsdpfxjzunfbo Aaijr Facing head diameter: 600 mm Max. boring/facing diameter: 900 mm Facing head speed: 7.1 to 224 rpm Facing head slide travel: 210 mm 🔹 Dimensions and Weight Overall dimensions (L × W × H): ~ 6,000 × 3,000 × 3,000 mm Total machine weight: ~ 14,000 kg (14 tons)

Condition: not inspected (used), functionality: unexamined, machine/vehicle number: 5645, input voltage: 380 V, type of input current: three-phase, total width: 1,600 mm, total length: 2,000 mm, total height: 1,700 mm, overall weight: 2,150 kg, power: 8.2 kW (11.15 HP), input frequency: 50 Hz, input current: 15 A, table length: 600 mm, table width: 200 mm, number of digital displays: 1, Hydraulic surface grinder with electromagnet and digital readout. Hnjdpfszt Ibyox Aaisr

Condition: new, table length 1220 mm table width 760 mm table height 910 mm Hnsdpfx Ajxqrhleaisr weight 226 kg

Condition: new, Year of construction: 2025, table length 3000 mm table width 1500 mm table height 200 mm weight 1500 kg Manufacturer: GERD WOLFF Technical Details: • Length 3000 mm • Width 1500 mm • Height 200 mm • Weight 1500 kg • Hole diameter 28 mm • Hole spacing 100 mm • Plate thickness: 25mm Advantages and Features: • 3-day gas nitriding process • Increased corrosion resistance • Weld spatter adhesion protection • Maximum load capacity • Enhanced fatigue strength • Improved vibration resistance • Fine scale engraving • Reinforcement with welded seams and ribs on the underside • Optimal working height of 820-865 mm • 8 height-adjustable support legs Hsdpfx Aajymf Rtjijnr • Available with a matching accessory set (optional) Our welding tables are manufactured using HT 300 cast iron and are nitrided as a whole after mechanical processing. Furthermore, they feature precise fine scale engraving using laser technology. To ensure adequate stability, our welding tables are reinforced with welded seams and ribs on the underside (see illustrations). Additionally, they undergo a 3-day gas nitriding process, enhancing their corrosion resistance, fatigue strength, and vibration resistance, among other factors. All our tables come with adjustable legs. The minimum height adjustment range is 620 mm, while the maximum is 665 mm, allowing for a variable working height of 820 to 865 mm. Additional available dimensions: • 1000 x 1000 x 200 • 2000 x 1000 x 200 • 1200 x 1200 x 200 • 1500 x 1000 x 200 • 1500 x 1500 x 200 • 1500 x 2000 x 200 • 2000 x 3000 x 200 • 3000 x 1500 x 200 • 3000 x 2000 x 200 • 4000 x 2000 x 200 Please note that the images are not to scale and are for illustrative purposes only. Our welding tables are produced for our distribution brand "GERD WOLFF Maschinenfabrik" by a reputable manufacturer. 3D Welding Table - 3D Clamping Fixtures - 3D Precision Welding Table

Condition: used, length 450 mm width 140 mm height 100 mm Hsdpezcghrsfx Aaijnr 2 magnetic plates with control unit approx. 450 x 140 x 100 mm

Condition: used, Year of construction: 1990, length 4000 mm width 1500 mm table height 950 mm Hnjdpfeii Shdjx Aaisr total power requirement 0 kW weight of the machine ca. 4 t dimensions of the machine ca. 4 x 1,5 x 1 m

Condition: used, Year of construction: 1990, table length 3000 mm table width 2500 mm table height 300 mm Hsdogrd R Rjpfx Aaienr weight of the machine ca. 4 t dimensions of the machine ca. 3 x 2 x 0,3 m

Condition: new, Year of construction: 2026, table length 1000 mm Hjdpfxjy S D Nae Aaionr table width 1000 mm table height 200 mm weight 300 kg Manufacturer: GERD WOLFF Website: Technical Details: • Length 1000 mm • Width 1000 mm • Height 200 mm • Weight 300 kg • Hole diameter 28 mm • Hole spacing 100 mm • Plate thickness: 25mm Advantages and Features: • 3-day gas nitriding process • Increased corrosion resistance • Weld spatter adhesion protection • Maximum load capacity • Enhanced fatigue strength • Improved vibration resistance • Fine scale engraving • Reinforcement with welded seams and ribs on the underside • Optimal working height of 820-865 mm • 4 height-adjustable support legs • Available with a matching accessory set (optional) Our welding tables are manufactured using HT 300 cast iron and are nitrided as a whole after mechanical processing. Furthermore, they feature precise fine scale engraving using laser technology. To ensure adequate stability, our welding tables are reinforced with welded seams and ribs on the underside (see illustrations). Additionally, they undergo a 3-day gas nitriding process, enhancing their corrosion resistance, fatigue strength, and vibration resistance, among other factors. All our tables come with adjustable legs. The minimum height adjustment range is 620 mm, while the maximum is 665 mm, allowing for a variable working height of 820 to 865 mm. Additional available dimensions: • 1000 x 1000 x 200 • 2000 x 1000 x 200 • 1200 x 1200 x 200 • 1500 x 1000 x 200 • 1500 x 1500 x 200 • 1500 x 2000 x 200 • 2000 x 3000 x 200 • 3000 x 1500 x 200 • 3000 x 2000 x 200 • 4000 x 2000 x 200 • 2400 x 1200 x 200 Please note that the images are not to scale and are for illustrative purposes only. Our welding tables are produced for our distribution brand "GERD WOLFF Maschinenfabrik" by a reputable manufacturer. 3D Welding Table - 3D Clamping Fixtures - 3D Precision Welding Table

Condition: used, plate width 4000 mm plate depth 2000 mm plate height 500 mm weight / kg Hsdpfx Aaoy Dibrsionr LxWxH: 4000 x 2000 x 500mm Area for 2 slab fields: Dimension of the T-slots:

Condition: used, plate width 4000 mm plate depth 3000 mm plate height 300 mm weight / kg Hnsdpfozfqm Njx Aaisr LxWxH: 4000 x 3000 x 300mm

Condition: new, plate width nach Wunsch plate depth nach Wunsch plate height nach Wunsch #-Plates made to measure Below you can see some examples with different dimensions. 1000 mm x 1000 mm x 200/300 mm 1500 mm x 1500 mm x 200/300 mm 2000 mm x 2000 mm x 200/300 mm 3000 mm x 1500 mm x 500 mm 3500 mm x 2500 mm x 400 mm 4000 mm x 3000 mm x 300 mm 5000 mm x 1500 mm x 300 mm Hnjdpfx Aaoymf Ufjijr 6000 mm x 1500 mm x 300 mm 7000 mm x 3000 mm x 300 mm Casting qualtity: HT 250. Surface is machined according to DIN 876/III System plate field - Clamping plate - Clamping cube - Clamping angle - Modular plate - Plate field - Milling table - Clamping tables

Condition: used, Year of construction: 1999, plate width 2980 mm plate depth 3000 mm Hnjdpegxqvzsfx Aaijr plate height 1400 mm total power requirement 11 kW

Condition: new, overall weight: 4,400 kg, total height: 310 mm, total length: 4,000 mm, total width: 1,500 mm, Clamping plates - T-slot plates 4000 x 1500 x 310 mm If you have not found the size you are looking for, you can also send us an e-mail with the completed PDF form. With this form we can produce an individual plate for you. Number of hookers: 5 Edge distance: 14mm Hook spacing: 270mm Hjdpfx Aajtrli Rjijnr Hook width: 28mm Material: cast iron HT250. Flatness less than 0.12 mm. Surface processed according to DIN 876 / III

Condition: used, length 700 mm width 500 mm Hnsdpewth Trefx Aaisr height 105 mm weight 260 kg The electro-magnetic clamping plate is in good, ready-to-use condition. Length: 700mm Width: 500mm Height: 105mm Weight: 260kg We have two identical magnetic chucks with the same dimensions. See S9064

Condition: used, table length 4000 mm table width 3000 mm table height 400 mm Arrival table with linear guide and height indicator dimension Length: 4000mm Hjdpfogrnbgex Aaionr Width: 3000mm

Condition: new, plate depth 4000 mm plate width 2000 mm plate height 600 mm weight 6700 kg GERD WOLFF clamping cube 4000 x 2000 x 600 mm If you cannot find your desired size, simply send us an email with the completed PDF form. We can then provide you with a custom plate tailored to your requirements. T-slot size: 52 x 28 T-slot spacing: 500 Number of grooves: 8 x 8 Edge distance: 250 Weight: 6700 kg Casting quality HT250 Flatness less than 0.12 mm Surface machined according to DIN 876/II Keywords: Clamping cube, Cubic clamping table, Multi-sided clamping, Angle clamping cube, Precision cube, CNC clamping cube, Clamping angle, Machine cube, 90-degree Hnjdpfxoymf I Ee Aaior clamping device, Drilling cube, Modular clamping cube, Workpiece positioning, Mounting cube, Fixing cube, Clamping block

Condition: new, plate depth 2000 mm plate width 1500 mm plate height 300 mm weight 2385 kg dimensions of the machine ca. 2000 x 1500 x 300 mm GERD WOLFF clamping plate 2000 x 1500 x 300 mm If you cannot find the size you need, you can also send us an e-mail with the completed PDF form (attached). This way we can manufacture a clamping plate for you according to your requirements. Hnjdpfjyk Ih Njx Aaisr T-slot size: 48 x 28 T-slot spacing: 300 Number of slots: 5 Edge distance: 150 Weight: 2385 kg Casting quality HT250 Flatness less than 0.12 mm Surface machined according to DIN 876/II

Condition: new, plate width 1500 mm plate depth 1500 mm plate height 150 mm weight 1300 kg GERD WOLFF clamping plate 1500 x 1500 x 150 mm If you cannot find your desired size, simply send us an email with the completed PDF form. We can then provide you with a custom plate tailored to your requirements. T-slots - width: 45 x 22mm T-slot spacing: 250mm Number of slots: 6x6 Edge distance: 125mm Casting quality HT250 Flatness less than 0.12 mm Surface machined according to DIN 876/III Hjdsyk Iitspfx Aaijnr Keywords: Clamping plate, Machine table, Workpiece clamping, Fixing holes, Clamping system, Tool clamping surface, Clamping device, T-slot plate, Precision plate, Modular clamping plate, Hole system, Mounting plate, Workpiece fixation, CNC machine clamping plate, Machine base

Condition: new, plate width 4000 mm plate depth 1500 mm plate height 310 mm weight 4930 kg dimensions of the machine ca. 4000 x 1500 x 310 mm GERD WOLFF clamping plate 4000 x 1500 x 310 mm If you cannot find the size you need, you can also send us an e-mail with the completed PDF form (attached). This way, we can manufacture a clamping plate according to your requirements. T-slot size: 52 x 28 T-slot spacing: 300 Number of slots: 5 Edge distance: 150 Weight: 4930 kg Casting quality HT250 Flatness less than 0.12 mm Hedpfxeymf T Uj Aaionr Surface treatment according to DIN 876 / III

Condition: new, plate width 1500 mm plate depth 1500 mm plate height 800 mm weight 2595 kg GERD WOLFF clamping cube 1500 x 1500 x 800 mm Also available in 600 mm version (H1153). The images above depict the clamping cubes with dimensions of 1500 x 1500 x 600 mm. Shortly, we will provide images of the 800 mm high variant, which features an additional fourth slot on the side. If you cannot find your desired size, simply send us an email with the completed PDF form. We can then provide you with a custom plate tailored to your requirements. T-slot size: 38 x 22 T-slot spacing: 140 Number of slots: 14 Edge distance: 120 Weight: 2595 kg Casting quality HT250 Flatness less than 0.12 mm Surface machined according to DIN 876/II Keywords: Clamping cube, Cubic clamping table, Multi-sided clamping, Angle clamping cube, Precision cube, CNC clamping cube, Clamping angle, Machine cube, 90-degree clamping device, Drilling cube, Modular clamping cube, Workpiece positioning, Hnedpfoymf Ulox Aaijr Mounting cube, Fixing cube, Clamping block

Condition: new, plate depth 2000 mm plate width 1000 mm plate height 600 mm weight 1800 kg GERD WOLFF clamping cube 2000 x 1000 x 600 mm Hnjdpoymf Uxjfx Aaier If you cannot find your desired size, simply send us an email with the completed PDF form. We can then provide you with a custom plate tailored to your requirements. T-slot size: 38 x 22 T-slot spacing: 140 Number of slots: 10 Edge distance: 80 Weight: 1800 kg Casting quality HT250 Flatness less than 0.12 mm Surface machined according to DIN 876/III Keywords: Clamping cube, Cubic clamping table, Multi-sided clamping, Angle clamping cube, Precision cube, CNC clamping cube, Clamping angle, Machine cube, 90-degree clamping device, Drilling cube, Modular clamping cube, Workpiece positioning, Mounting cube, Fixing cube, Clamping block

Condition: new, plate depth 5000 mm plate width 1500 mm plate height 300 mm weight of the machine ca. 6060 kg required space 5000 x 1500 x 300 mm GERD WOLFF clamping plate 5000 x 1500 x 300 mm If you cannot find the size you need, you can also send us an e-mail with the completed PDF form (attached). This way we can manufacture a clamping plate according to your requirements. Hnjdsyk Iluopfx Aaior T-slot size: 52 x 28 T-slot spacing: 300 Number of slots: 5 Edge distance: 150 Weight: 6060 kg Casting quality HT250 Flatness less than 0.12 mm Surface machined according to DIN 876/III

Condition: used, centre height / mm weight 160 kg diameter 500 mm Hodpey S Dylofx Aaienr

Condition: new, Year of construction: 2025, diameter 28 mm length 75 mm clamping range 70-75 mm The price is exclusive of statutory VAT. Also available in D28 x 50 mm (clamping range 45–50 mm). Clamping range: 70–75 mm Type: Ball Lock Pin 75 mm Diameter: 28 ± 0.02 mm Material: 45# steel Hardness: HRC28–32 Surface roughness: Ra 0.8 µm GERD WOLFF's ball lock pins are specialized fastening elements designed for integration into various welding table systems and setups. Their primary function is the efficient and precise positioning and securing of workpieces. These pins are compatible with welding tables from all manufacturers featuring 28 mm bore holes. The unique ball-lock design enables flexible alignment of workpieces at different angles and positions. Thanks to high-quality craftsmanship and robust construction, GERD WOLFF's ball lock pins provide reliable holding force throughout the entire welding process. These pins ensure easy handling, quick clamping, and release of workpieces — no additional tools required. Hnedouia Ngopfx Aaier GERD WOLFF stands for quality and precision in welding technology. These ball lock pins are engineered to meet the demanding requirements of professional welding applications. Quick release locking pins, quick lock pins, quick releases, quick installation pin, metal horizontal quick release, working pin, quick release locking pin, quick latch pin, locking quick release pins.

Condition: used, table length 2000 mm table width 1250 mm table height 250 mm Hnodpsu Su I Sofx Aaisr weight of the machine ca. 1,4 t
