Used Btm 560 Automatico Cnc for sale (10,213)

Condition: used, Year of construction: 2016, MORBIDELLI AUTHOR M400 MAIN FEATURES 5-AXIS MACHINING UNIT "PRISMA: QUALITY AND PRODUCTIVITY AT THE HIGHEST LEVEL XILOG MAESTRO SOFTWARE: EXTREMELY SIMPLE MATIC PROGRAMMING" WORKTABLE: ONE POSITIONING FOR MULTIPLE MACHINING OPERATIONS TECHNICAL DATA AUTHOR M400 AXES Working area X-axis (inside stop) mm 3,680 Working area Y-axis (max. loadable piece on rear stops) mm 1,680 Workpiece passage Z / number of Z axes mm 170 / 1 Workpiece length with pendulum machining mm 1,650 Travel speed X-Y axes Pro-Speed m/min 85 Z-axis speed m/min 30 INSTALLATION Installed power KVA 62÷82 Compressed air requirement NL/min 400 Extraction air requirement m³/h 4,430 Extraction air speed m/s 25 Extraction nozzle diameter mm 250 GENERAL CHARACTERISTICS CNC-controlled drilling and milling center in gantry design and work table with workpiece supports, for carrying out: - vertical drilling on the panel surface - horizontal drilling on all four sides of the workpiece - groove milling with disc milling cutters - general milling work 3-4-5 axes MACHINE STRUCTURE The basic structure is a monolithic construction made of thick-walled steel. It is stiffened by welded reinforcements across the entire machine bed, making it extremely stable. The table shape used, with a large base, is the secret to ensuring lasting precision and stability. The machine layout allows the user optimal workflow with a minimum of space requirements. The mobile gantry support is made of a solid monoblock. It is positioned in the X direction on prismatic ground guides via recirculating ball slides. On this mobile unit carrier, the work unit is mounted on prismatic, ground guides and recirculating ball slides. All axes are moved on large-section prism linear guides and recirculating ball bearings with a large contact surface, ensuring optimal gliding even at the highest speeds and accelerations. Precise and rapid positioning of the movable gantry (X-axis) is achieved by a pinion and rack with helical teeth. Large-section recirculating ball screws ensure precise positioning of the work unit along the movable gantry (Y and Z axes). MOTORS, DRIVES AND INVERTERS Perfect mechanical dynamics and maximum positioning accuracy are controlled by high-quality drives and brushless motors, designed to achieve speeds of up to 90 m/min while ensuring the best finishing quality. CONTROL The control unit consists of a numerical control for milling and drilling machines with "Xilog Maestro" graphical user interface based on the Windows 7 Office operating system. 17-inch LCD color screen. QWERTY keyboard. Tilting control panel. Machine interface with Xilog Maestro software. Xilog Maestro Features Programming Parametric graphic programming Import of DXF files (2D; SPLINE, POLYLINE 3D geometries), linear or circular interpolation in three axes, linear in space, spiral in the selected plane. Programming with graphic and syntax aids for drilling and milling operations Automatic optimization of drilling operations and tool change cycles Possibility of Plate zero point shift for drilling on inclined or curved plate sides Iedpfxsy Dta Se Ah Aeti

Condition: used, Year of construction: 2007, Working area: 2780 x 1140 mm (vertical milling) 2500 x 950 mm (horizontal drilling) X-Y travel: 2980 x 1271 mm Z-axis travel: 200 mm Passage height: 180 mm The structure of the base body is a monolithic construction made of thick-walled steel. It is stiffened by welded triangular plates across the entire machine bed, making it extremely stable. The triangular shape used for load-bearing parts, with a large base, is the secret to ensuring lasting precision and stability. The machine layout allows the user optimal workflow despite minimal space requirements. The base body constructed in this way therefore offers the machining unit a balanced and secure base with particularly good load distribution. The mobile unit carrier is made of a solid monoblock. It is positioned in the X direction on prismatically ground guides via recirculating ball slides. On this mobile unit carrier, the working unit is mounted on prismatic, ground guides and the recirculating ball slide. Description of the units and accessories (basic) Drilling unit: Drilling head with 10 + 4 spindles · 6 individually accessible vertical spindles in X · 4 individually accessible vertical spindles in Y · 2 horizontal spindles in X (1 + 1) · 2 horizontal spindles in Y (1 + 1) · Speed: 4,000 rpm · Power: 2.2 kW · Grid: 32 mm · Drill chuck: M 10 with 11 mm fitting · Extraction nozzle: D = 160 mm Vertical milling unit (position 2) · Tool chuck HSK 63F · Speed 1,500 - 24,000 rpm continuously adjustable via inverter · Motor power 4.4 kW (6 HP) from 12,000 rpm (S1) · Right-hand / left-hand rotation · Ceramic bearings · Scope of delivery: 4 tool chucks (right) without collet chuck · Tool changer · Side-mounted tool magazine 7-way (TR7) with full encapsulation to prevent chipping · 7 tool positions for HSK 63F tool holder arranged in a row · maximum tool diameter D=120 mm · maximum weight per holder 4.5 kg · maximum tool weight of all tools 20 kg (TR7) · angular gears can be accommodated Horizontal milling unit (position 1) Horizontal unit with two opposite outputs for milling and grooving. · Speed 9,000 - 18,000 rpm continuously variable via inverter · 1 output for collet 3-20 mm (ER 32) · 1 output for saw/collet 3-12 mm (ER20) (For saw D = 120 mm / bore 50 mm) · Motor power 3 kW (4 HP) · Max. tool diameter front milling: 20 mm · Max. tool length front milling: 110 mm · Max. tool diameter rear milling: 12 mm · Max. tool length rear milling: 80 mm · Max. saw blade diameter: 100 mm · Bore saw blade (ER 32): 50 mm · Mandrel diameter saw blade (ER 20): 12 mm Work table The work table is designed to guarantee the operator maximum freedom of movement. The vacuum quick clamping system ensures maximum flexibility with precise positioning and optimal grip of the workpieces. · 4 supports 900 mm continuously adjustable in X · 8 vacuum suction cups round D = 110 mm continuously adjustable in Y (2 per support) · 2 stops in X (1 x left / 1 x right) · 1 stop in Y per support (total 6) · The retractable reference stops are controlled via CNC. · Scope of delivery: 4 plug-on adapters for suction cups · Pendulum machining standard (2 working areas) Axis movement The drive system in X, Y and Z is carried out via ground ball screws of the highest precision class. The ball drive screw of the X-axis is located exactly in the center Itodpex Twdyefx Ah Aji

Condition: used, Year of construction: 2006, · Working area: 2,650 x 1,240 mm · X-Y travel: 2,995 x 1,385 mm · Z-axis travel length: 200 mm · Clearance height: 180 mm C-axis deactivated – 3-axis machine The base structure is a monolithic construction made of thick-walled steel. It is reinforced throughout the entire machine bed with welded-in triangular plates, which makes it extremely stable. The use of the triangle shape with a broad base for load-bearing parts is the key to lasting precision and stability. The machine layout allows the operator an optimal workflow despite minimal space requirements. The resulting base frame thus provides the machining unit with a balanced and secure foundation, ensuring excellent load distribution. The mobile unit carrier is built as a solid monoblock. It is positioned in X-direction on ground prismatic guides with recirculating ball carriages. The working unit is again mounted on ground prismatic guides and a recirculating ball carriage on this mobile unit carrier. Description of aggregates and accessories (basic equipment) Drilling unit: Drill head with 12 + 6 spindles · 7 individually selectable vertical spindles in X · 5 individually selectable vertical spindles in Y · 4 horizontal spindles in X (2+2) · 2 horizontal spindles in Y (1+1) · Speed: 4,000 rpm · Power: 2.2 kW · Grid: 32 mm · Drill interface: M 10 with 11 mm fitting Grooving saw unit in X: · Integrated in drill head · Grooving saw blade with max. diameter 120 mm Main milling unit (Position 2): · Tool holder HSK 63F · Speed: 1,500 - 24,000 rpm stepless via inverter · Motor power 4.4 kW (6 HP) from 12,000 rpm (S1) · Motor power 6.6 kW (9 HP) from 12,000 rpm (S6) · Clockwise/counterclockwise rotation · Ceramic bearings · Includes: 4 pcs. tool holders (right) without collet Tool changer R8L: Automatic tool changer for 8 tools. Mounted on the rear unit carrier for quick tool access. · Number of tool stations: 8 · Max. tool diameter: 120 mm · Max. weight per tool: 4.5 kg · Max. total weight all tools: 22 kg · Holder for 1 angle gear · Moves in X direction Horizontal milling unit (Position 1): Horizontal unit with two opposing outputs for milling and grooving. · Speed: 9,000 – 18,000 rpm stepless via inverter · 1 output for collet 3-20 mm (ER 32) · 1 output for saw/collet 3-12 mm (ER20) (for saw D=120 mm / bore 50 mm) · Motor power: 3 kW (4 HP) · Max. front milling tool diameter: 20 mm · Max. front milling tool length: 110 mm · Max. rear milling tool diameter: 12 mm · Max. rear milling tool length: 80 mm · Max. saw blade diameter: 100 mm · Saw blade bore (ER 32): 50 mm · Saw blade arbor diameter (ER 20): 12 mm Work table: The work table is designed to guarantee the operator maximum freedom of movement. The quick vacuum clamping system provides maximum flexibility for precise positioning and optimal holding of workpieces. · 6 supports, 1000 mm, steplessly adjustable pneumatically in X direction · 12 round vacuum cups D = 110 mm, steplessly adjustable in Y (2 pcs. per support) · 2 stops in X (1 left / 1 right) · 1 stop in Y per support (6 in total) · Retractable reference stops are CNC controlled · Pendulum machining standard (2 work zones) Itedpfx Ahox Twcco Aei --- other clamping systems available as options --- Axis movement: The drive system in X, Y and Z is via ground recirculating ball screws...

Condition: used, Year of construction: 2018, Delivery time approx. 5 months. Machine from educational use – TOP condition, low hours (edging unit unused). No tools included. Dismantling, delivery, assembly, commissioning, and training not included in the price. Includes Maestro 3D and Pro View. MORBIDELLI P200 Working area X-Y: 3,110 x 1,620 mm, workpiece height Z180 mm Edge banding made for you: The CNC machining center is equipped with a comprehensive selection of edge banding tools to meet any woodworking requirement. MAIN ADVANTAGES Itodpfsyuw Srex Ah Aji · High performance with the advanced H80C edge banding unit, 8,000 rpm drilling spindles. The most robust spindle technology on the market, offering over 1,000 maintenance-free operating hours. · Better equipped: Suction cups can be disabled and configured via the FLEX worktable to optimally adapt the machine to requirements. · Easier, more intuitive programming thanks to the integrated CAD-CAM module for edge banding technologies “MAESTRO EDGE”. · Easier operation: The lowered frame ensures the worktable is always accessible. The control cabinet and vacuum pump are integrated, and in the PRO SPACE configuration, no safety barriers are needed. Base structure: The base frame is a monolithic construction made from thick-walled steel, reinforced across the entire machine bed with welded square plates for exceptional rigidity. The bed’s shape, with a wide base, is the secret to lasting precision and stability. The load-bearing structure consists of a particularly robust, monolithic steel base, heavily ribbed and highly stiffened; the extra-wide support was specially designed to give the machine maximum stability, ensuring lasting precision regardless of operating conditions—with no need for floor anchoring. The base provides a large, solid support for the moving gantry: the working unit is thus equipped with a balanced, stable, and resilient support capable of handling the highest loads, ensuring top-quality performance and greater accuracy. The moving gantry is made from a robust single piece anchored to the base, sliding along top-quality prismatic guides with recirculating ball carriages. The working unit is attached and moves along the Y and Z axes on prismatic guides with recirculating ball carriages. Movement of the lower carriage (X-axis) and the working unit along the moving carriage (Y-axis) is enabled by rack-and-pinion transmission with helical teeth. This design results in greater tooth-on-tooth engagement, delivering higher acceleration and greater speed along the X and Y axes. The specially designed helical gearing ensures reduced wear on mechanical components and quieter operation. The vertical Z-axis is driven by a ball screw, ensuring perfect balance with dynamic loads and smooth acceleration and deceleration. The main milling unit is directly coupled to the Z-axis carriage for maximum finishing quality.

Condition: used, turning diameter over cross slide: 250 mm, rotational speed (max.): 3,500 rpm, CNC Lathe Brand: Biglia Model: B131/S1 Maximum turning diameter: Ø250mm Distance between centers: 400 mm Iedpfx Ahezlfqvo Asti Spindle bore: Ø49 mm Maximum spindle speed: ±3500 RPM Digital readout

Condition: ready for operation (used), Year of construction: 2001, controller manufacturer: SIEMENS, controller model: 840, overall weight: 11,500 kg, number of axes: 5, This 5-axis Gleason PFAUTER G320 CNC + Promot Automation was manufactured in 2001. It features a Siemens 840 control unit, a maximum workpiece diameter of 380 mm, and a module range of 0.5-7.0. The system includes Promot Automation handling, a robotics system, and a cooling belt system. If you are looking to get high-quality gear grinding capabilities consider the Gleason PFAUTER G320 CNC machine we have for sale. Contact us for more information about this machine. • Operator panel: included • Module range: 0.5–7.0 • Workpiece diameter: min 10 mm, max 380 mm • Number of teeth: 10–600 • Axis travels: Z (vertical) 200 mm; X (horizontal) 230 mm; Y (tangential/shift) 135 mm • Clamping head swivel (A): ±45° • Tailstock stroke: 125 mm • Dressing travels: V (tangential) 180 mm; U (radial) 110 mm • Grinding wheel speed: up to 3000 rpm, stepless • Linear axis speed: 10,000 mm/min • Max. table rotation speed: 240 rpm • Table resolution: 0.001° • Feeds: machining and working feeds stepless • Grinding wheel dimensions: diameter 270–350 mm; width up to 104 mm; bore 160 mm • System weight: approx. 11,500 kg • Space required (machine): approx. 3.7 m × 2.4 m × 2.75 m Additional equipment • Promot Automation handling unit (robotics handling) Itodpoyf E R Djfx Ah Aoi • Operator panel/handheld (for automation) • Conveyor belt • Cooling belt system • Hydraulic unit • Space required (automation): approx. 4.5 m × 1.6 m × 4.0 m • Accessories as shown in photos

Condition: used, Year of construction: 2014, turning diameter 320 mm turning length 510 mm control i Serie Fanuc swing diameter over bed slide 250 mm spindle turning speed - stepless 6000 U/min spindle bore 65 mm power capacity 15 kW total power requirement 20 kW weight of the machine ca. 3.5 t dimensions of the machine ca. 2,59x 1,6 x 1,7 m Itsdpfx Ahszl E Rie Aoi Machine has chip conveyor and Tail stock. It has C- axe and live tooling. Control: Fanuc i series

Condition: good (used), Year of construction: 2006, operating hours: 14,119 h, functionality: fully functional, machine/vehicle number: 6682NL151EG0306J, turning diameter: 260 mm, spindle speed (max.): 6,000 rpm, total height: 2,000 mm, total length: 2,185 mm, total width: 2,460 mm, bar diameter (max.): 45 mm, overall weight: 5,300 kg, Machine type: CNC lathe Manufacturer: DMG Mori Model: NL1500/500 Year of manufacture: 2006 Operating hours: 14,119h (as of 17.12.2025) Control: MSX-850 BM Spindle speed: 6,000 rpm Machining diameter: with bar loader Ø16-45mm Itedpoyxnu Hjfx Ah Asi Tool stations: 12 plus tailstock Weight: 5,300kg Dimensions (W×D×H): 2460×2000×2185mm Transport, collection, and dismantling must be organized by the buyer.

Condition: excellent (used), Year of construction: 2019, XYZ UMC-5X 5 Axis CNC Vertical Machining Centre Heidenhain iTNC 640 HSCI Control Model UMC-5X Control Heidenhain iTNC 640 HSCI X Axis Travel 600 mm Y Axis Travel 600 mm Z Axis Travel 500 mm A Axis Travel +120° / -120° C Axis Travel 360° Table Size 600 mm Diameter Maximum Table Load 600 kg Spindle Speed 24,000 rpm Direct Drive Spindle Taper BBT40 Rapid Traverse 36 m/min Feed Rate 1 - 36,000 mm/min Tool Changer 60 Station Automatic Maximum Tool Length 300 mm Through Spindle Coolant 70 Bar Machine Weight 9,500 kg Machine Fitted With: Heidenhain iTNC 640 HSCI CNC Control, 24,000 rpm Direct Drive High Speed Spindle (20kW S6 Rated), 60 Station Automatic Tool Changer, 70 Bar Through Spindle Coolant, Fixed Roof for High Pressure Coolant System, Renishaw RMP600 Strain Gauge Wireless Workpiece Probe, Laser Tool Setting System, Kinematic High Accuracy Machine Setup, Kinematic Reference Ball, Thermal Spindle Compensation, Linear Scales on X, Y & Z Axes, Direct Drive C Axis Rotary Table, Swarf Conveyor & Bin. Features: Simultaneous 5 Axis Machining Centre, Gantry Frame Construction, Direct Drive High Torque Rotary Table, High Precision Linear Roller Guideways, Dynamic Collision Monitoring, High Accuracy Machine with Linear Scales, Ideal for Aerospace, Medical, Precision Engineering & Complex Multi-Sided Components. For sale with Jet Machinery Ltd Jet Machinery Stock No: TBC Machine Serial Number: TBC Cost: £120,000.00 Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to inspect the machine prior to purchase. Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Itodpfx Aozi Awheh Aoi Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: good (used), Year of construction: 1996, Pipe bending machine for pipes up to 50 mm, length up to 5 m. Maximum bending radius: 260 mm. Itodpfxezl Tfbs Ah Aoi Must be disassembled by the buyer.

Condition: used, TECHNICAL DETAILS - Maximum workpiece diameter : 80 [mm] Iodsyuzggjpfx Ah Ajti - Z-axis travel : 220 [mm] - Max module : 2.5 - Max workpiece-holding spindle speed : 3000 [rpm] - Max dimensions of the hob (diameter x length) : 118 X 120 [mm] - Speed of the hob-holding spindle : 200-5000 [rpm] - Shifting travel : 140 [mm] - Angular travel of hob-holding headstock : -45/+115 [°] - Machine floor space : 2700/2180 [mm] - Machine height : 2310 [mm] - Machine weight : 4800 [kg] EQUIPMENT - CNC : Siemens 840D PowerLine - Loading manipulator

Condition: used, TECHNICAL DETAILS - Maximum workpiece diameter : 80 [mm] - Z-axis travel : 220 [mm] - Max module : 2.5 - Max workpiece-holding spindle speed : 3000 [rpm] - Max dimensions of the hob (diameter x length) : 118 X 120 [mm] - Speed of the hob-holding spindle : 200-5000 [rpm] - Shifting travel : 140 [mm] Itjdsyuzgaspfx Ah Aji - Angular travel of hob-holding headstock : -45/+115 [°] - Machine floor space : 2700/2180 [mm] - Machine height : 2310 [mm] - Machine weight : 4800 [kg] EQUIPMENT - CNC : Siemens 840D PowerLine - Loading manipulator

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 205 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 2.2 [kW] - C axis indexing precision : 1 [°] - Number of guide bush holders : 1 GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 4 END ATTACHMENT - Number of positions : 7 SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 7 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2200 x 1200 [mm] - Machine height : 1700 [mm] - Machine weight : 2200 [kg] MACHINE HOURS - Number of hours under power : 107555 [h] - Number of working hours : 91025 [h] - Number of spindle hours : 54783 [h] EQUIPMENT - CNC : Fanuc 300is-model A - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank Itedpjy Dim Ijfx Ah Aoi - Bar loader : FMB turbo 3-26 / 3200 A

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 32 [mm] - Travel : 310 [mm] - Spindle speeds : 350-7000 [rpm] - Spindle power : 7.5 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 32 [mm] - Spindle speeds : 350-7000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 5000 [rpm] GUIDE BUSH HOLDER 2 - Number of positions : 6 END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 4 POWER SUPPLY - Supply voltage : 380 [V] - Total installed power : 20 [kW] WEIGHT & DIMENSIONS - Machine floor space : 1700x2515 [mm] - Machine height : 1700 [mm] Iedpfxjy Dimue Ah Aeti - Machine weight : 2900 [kg] MACHINE HOURS - Number of working hours : 59144 [h] - Number of spindle hours : 42219 [h] EQUIPMENT - CNC : Fanuc - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank * with high-pressure pump : SFB-200 [bars] - Bar loader : FMB 3-32/3200A

Condition: used, Year of construction: 2007, turning diameter 65 mm turning length 150 mm control Siemens 840D spindle passage 75 mm turning length 150 mm c-axis 2x 0,001 ° gripping station 65 mm speeds 5000 U/min rapid traverse 30 m/min turret (x-stations) 3x12 Number of axles 10 St. number of toolholder-holes 36 chip conveyor ja / yes kW coolant filtering unit ja / yes kW Number of working hours 35000 h total power requirement 22 kW weight of the machine ca. 9 t dimensions of the machine ca. 4,4 x 2 x 2,3 + Iemca m DMG Sprint 64 Linear CNC lathe, built in 2007, 10 axes, 2 spindles, Iodpszdk Evofx Ah Aoti 3 turrets with Iemca Master 880 loading magazine Accessories: a large number of tool holders in total 104 off, 16 of them are driven tool holder

Condition: good (used), Year of construction: 1998, functionality: fully functional, turning length: 305 mm, turning diameter: 210 mm, spindle bore: 56 mm, spindle speed (max.): 25 rpm, spindle speed (min.): 5,000 rpm, Revolver lathe with 12 stations (non-powered) Tool holder: MK 3 Chip conveyor Bar feed tube: IRCO DS 34.8 (year of manufacture 2013) Dimensions (L x W x H): Ijdpfx Aezl Ei Soh Asti - Machine: 4000 x 1700 x 1700 mm - Bar feed tube: 5500 x 1300 x 1500 mm Total weight: approx. 4,000 kg

Condition: used, Control system: Siemens 3-T Faceplate: 1500 mm Max. turning diameter: 1800 mm Iodpfx Ahjzl D Rho Ajti Max. turning height: 600 mm X-axis travel: 1995 mm Z-axis travel: 750 mm Faceplate speed: 260 RPM Main motor: 66 kW Milling motor: 31 kW Milling spindle speed: 3000 RPM Tool changer: 26 positions Machine is disassembled. Many tools and spare parts included.

Condition: ready for operation (used), Year of construction: 2009, A Hurco CNC vertical machining center is available. Tool holder: SK50, travel X/Y/Z: 1270mm/660mm/610mm, max. table load: 1500kg, spindle speed: 8000rpm, tool stations: 30, rapid traverse: 30m/min. Machine dimensions X/Y/Z: approx. 4600mm/4600mm/3000mm, weight: approx. 9250kg. Documentation available. An on-site inspection is possible. Isdpfozmh Tisx Ah Asti

Condition: used, Year of construction: 2014, operating hours: 11,517 h, Colour: Grey Empty weight: 6.000 kg - Year: 2014 - Documentation available: No - CE certificate present: No - Serial number: 070614/B/1-407 - Operating hours: 11517 - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 4 - - C-axis present: Yes - Type milling table: Flat table - Drilling unit present: Yes - └ Horizontal drill spindles [pcs.]: 6 - └ Vertical drilling spindles [pcs.]: 18 - Tool changer positions [pcs.]: 12 - System/software: TWINCAT - Safety feature: Enclosed fence, Safety mat - Vacuum pump present: Yes - └ Number [pcs.]: 2 - └ Brand: Becker - └ Year of manufacture: 2023 - └ Main motor power [kW]: 18.5 - └ Capacity [m³/h]: 600 - └ Vacuum pressure [bar]: 250 - CNC documentation available: USB stick - Working range X [mm]: 7220 Itedpfjx E Uk Usx Ah Aei - Working range Y [mm]: 1580 - Z-axis working range [mm]: 180 - Transport weight [kg]: 6000kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: used, Year of construction: 2006, turning diameter over cross slide: 612 mm, turning length: 700 mm, turning diameter: 500 mm, spindle bore: 86 mm, spindle speed (max.): 3,500 rpm, travel distance X-axis: 300 mm, travel distance Z-axis: 750 mm, rapid traverse X-axis: 20 m/min, rapid traverse Z-axis: 24 m/min, rotational speed (max.): 3,500 rpm, total height: 2,000 mm, total length: 5,800 mm, total width: 1,800 mm, overall weight: 5,500 kg, chuck outer diameter: 250 mm, spindle nose: A2-8, Equipment: documentation/manual, rotational speed infinitely variable, Originally from a production facility but removed due to the closure of the entire machining department. Additional options & accessories: Itodpozlc I Sefx Ah Aei - Foot pedal for clamping and unclamping the chuck. - Chip conveyor. - Chip container. - Coolant gun. - Various hard and soft jaws. - Filter mist extraction system. - Various turning tools, including inserts. - Rotating tailstock. Weight & dimensions: approx. 5500 kg approx. 5800x1800x2000 mm (L x W x H)

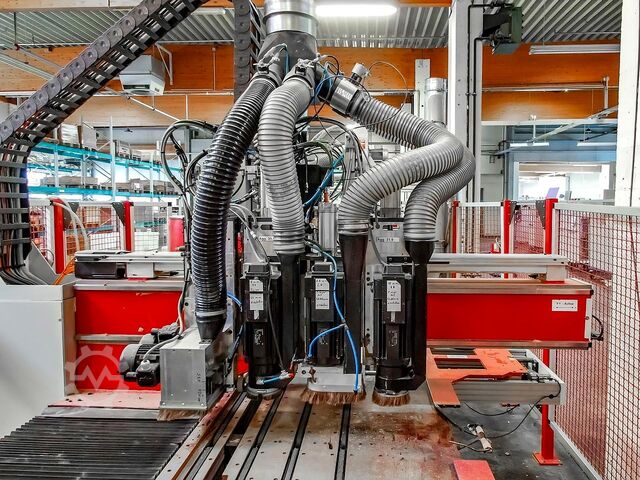

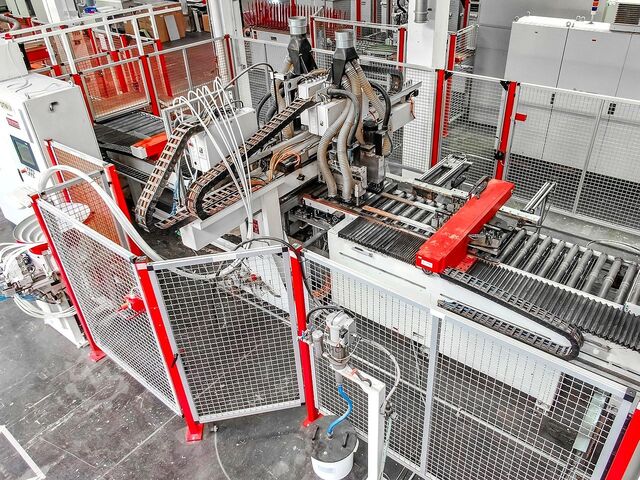

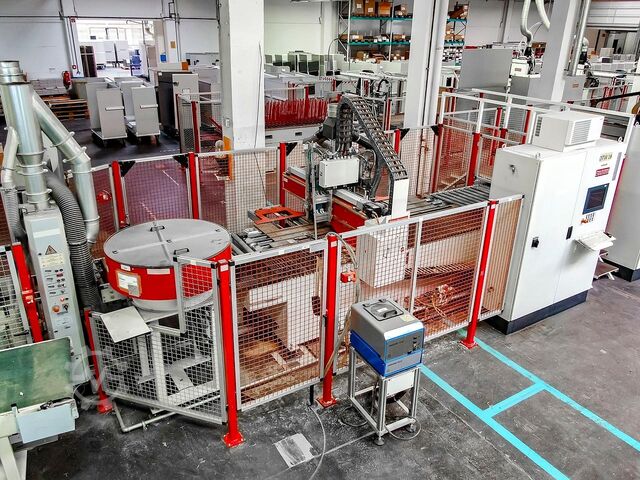

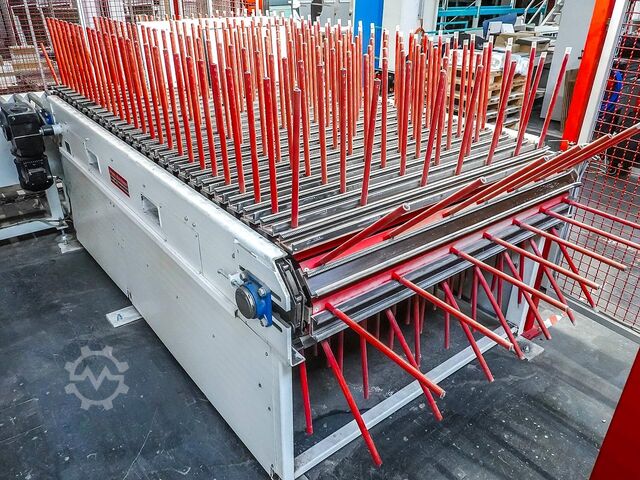

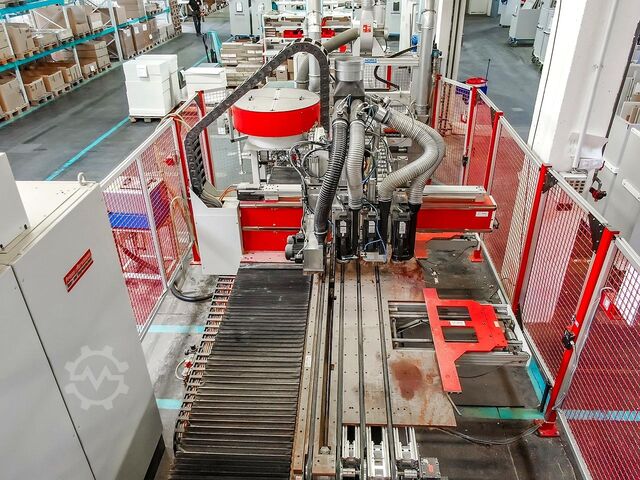

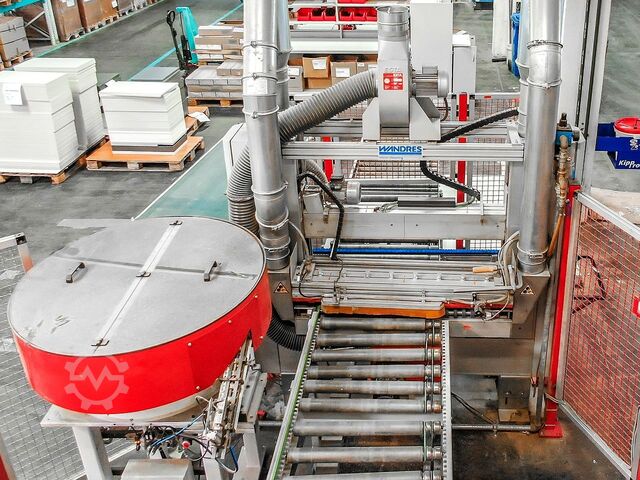

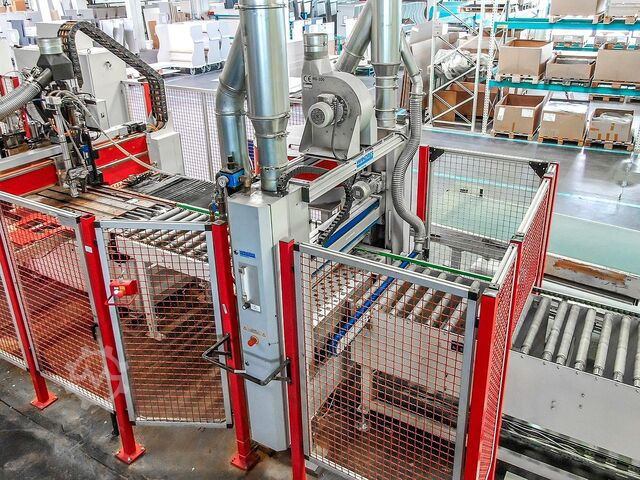

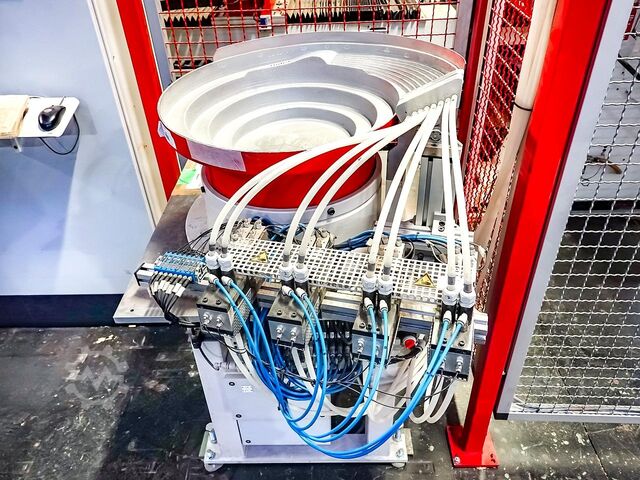

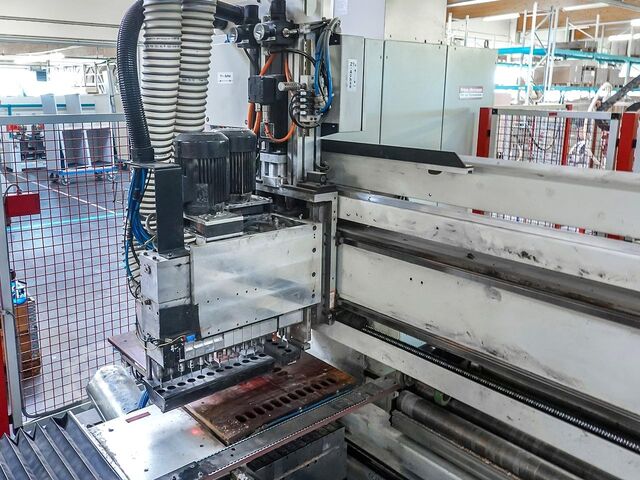

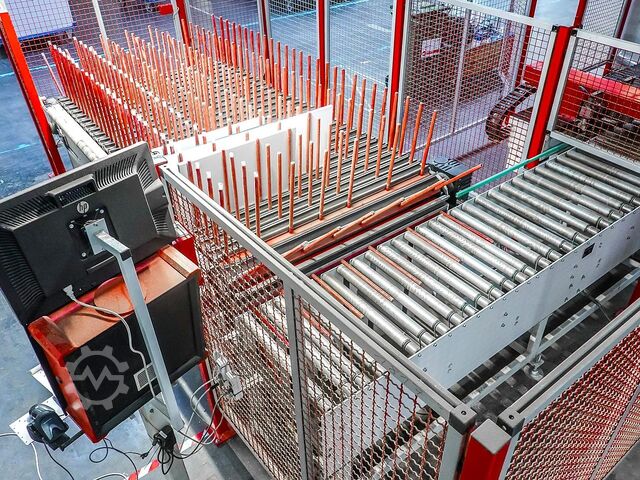

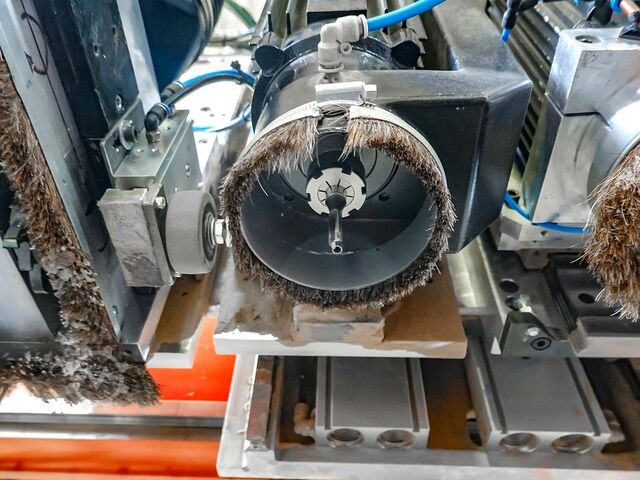

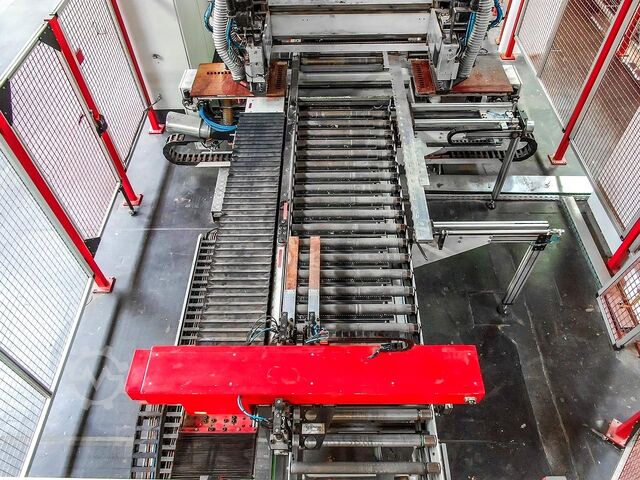

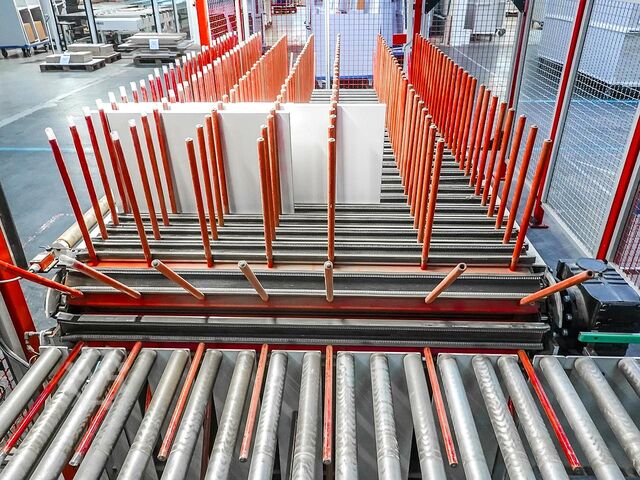

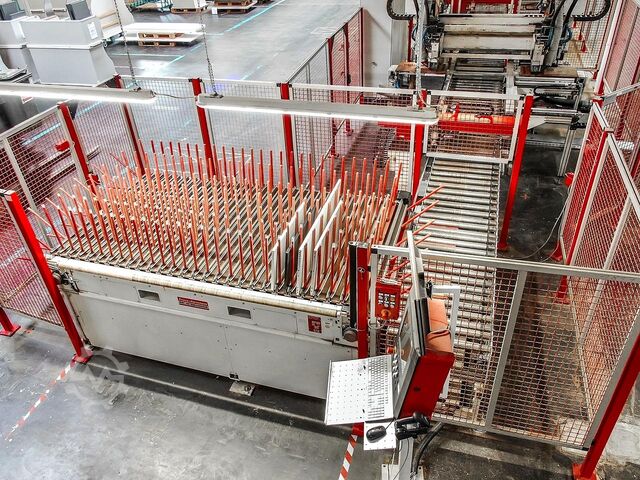

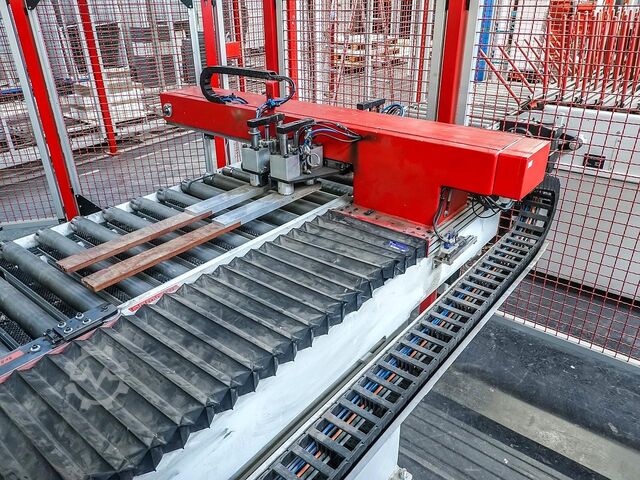

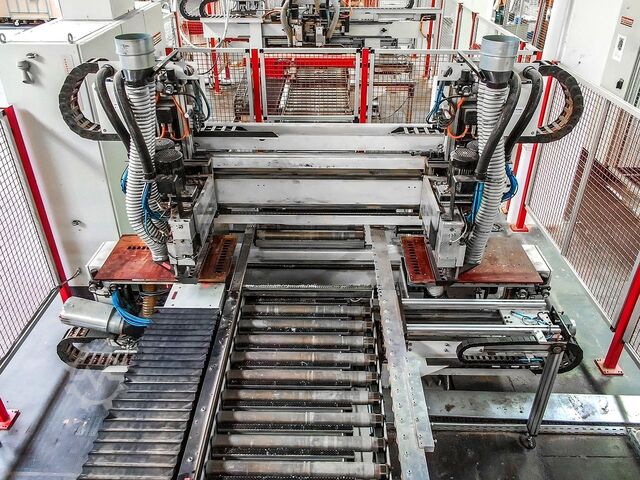

Condition: ready for operation (used), functionality: fully functional, TECHNICAL DETAILS VERTICAL STORAGE SYSTEM Max. panel width: 500 mm Max. panel length: 1,500 mm MACHINE DETAILS Manufacturer: PRIESS Model: EIN-Igel Overall width: 1,800 mm Overall length: 3,800 mm Safety standard: CE marking EQUIPMENT TECHNICAL DETAILS CNC DRILLING MACHINE Processing type: Drilling Working area X-axis: 2,500 mm Working area Y-axis: 800 mm Max. panel thickness: 26 mm Number of drilling units: 4 Total number of drilling spindles: 88 DRILLING UNIT 1 Position: Top Vertical drilling spindles: 23 DRILLING UNIT 2 Position: Top Vertical drilling spindles: 23 DRILLING UNIT 3 Position: Bottom Vertical drilling spindles: 12 DRILLING UNIT 4 Position: Bottom Vertical drilling spindles: 20 MACHINE DETAILS Manufacturer: PRIESS Model: BAT-DTW-CNC Connected power: 37 kW Safety standard: CE marking EQUIPMENT Protective guard on the machine TECHNICAL DETAILS CNC DRILLING AND DOWEL INSERTION MACHINE Processing type: Drilling and insertion Working area X-axis: 2,500 mm Working area Y-axis: 800 mm Number of working areas: 1 Total number of drilling spindles: 49 Number of drilling units: 4 DRILLING UNIT 1 Position: Top Horizontal drilling spindles in X-direction: 8 DRILLING UNIT 2 Position: Top Horizontal drilling spindles in X-direction: 17 DRILLING UNIT 3 Position: Top Vertical drilling spindles: 12 DRILLING UNIT 4 Position: Top Vertical drilling spindles: 12 INSERTION UNIT Number of insertion units: 1 Number of injectors: 10 Number of hoppers: 1 Insertion material: Wood dowels MACHINE DETAILS Manufacturer: PRIESS Model: BAT-DTW-CNC Connected power: 25 kW Safety standard: CE marking EQUIPMENT Automatic panel loading Motorized transfer of panel loading Automatic panel stacking Motorized transfer of panel stacking Protective guard on the machine TECHNICAL DETAILS CNC DRILLING AND INSERTION MACHINE Processing type: Drilling and insertion Working area X-axis: 2,500 mm Working area Y-axis: 800 mm Number of controlled axes: 3 Main electro-spindle power: 4.4 kW Number of milling spindles: 3 Number of insertion units: 2 MILLING SPINDLE 1 Position: Top Number of controlled axes: 3 Motor power: 4 kW MILLING SPINDLE 2 Position: Top Number of controlled axes: 3 Motor power: 4 kW MILLING SPINDLE 3 Position: Top Number of controlled axes: 3 Motor power: 4 kW GROOVING UNIT Position: Top INSERTION UNIT 1 Number of injectors: 1 Number of hoppers: 1 INSERTION UNIT 2 Number of injectors: 1 Number of hoppers: 1 MACHINE DETAILS Manufacturer: PRIESS Model: BMA DLS-CNC Safety standard: CE marking EQUIPMENT Grooving unit Protective guard on the machine TECHNICAL DETAILS BRUSHING MACHINE Max. working width: 800 mm Max. processing width: 800 mm Max. processing length: 2,500 mm Brush diameter: 160 mm MACHINE DETAILS Manufacturer: WANDRES Model: CVT Safety standard: CE marking Isdpfx Aezmtpvoh Aeti EQUIPMENT Blowing unit TECHNICAL DETAILS ROLLER CONVEYOR Max. panel width: 800 mm Max. panel length: 2,500 mm Panel feed: Motorized belt MACHINE DETAILS Manufacturer: PRIESS Safety standard: CE marking EQUIPMENT

Condition: used, Year of construction: 2001, Clamping force: approx. 200 t Components: 1 Mold mounting height: approx. 310 / 760 mm Opening stroke: approx. 320 / 575 mm Tie bar distance: approx. 560 × 560 mm Horizontal screw diameter: approx. 60 mm Isdpfx Aszl S U Ijh Ajti L/D ratio: 1 / 20 Core pull: 4 Hot runner zones: 12 Flow rate: approx. 206 l/min Frequency: 50 Hz Power supply: 3 × 400 V Pressure: approx. 190 bar Current 1: 186 A Current 2: 102 A Current 3: 84 A Current 4: 67 A Weight: approx. 10.1 t

Condition: excellent (used), New 2008 Swing over bed - 600 (Ø 23.62) Diameter × length - Ø 300 × 600 (Ø 11.81 × 23.62) Max. diameter - Ø 380 (Ø 14.96) Max. travel range of Z/X axis - 600 / 240 (23.62 / 9.44); Z-axis: FANUC 2.8 kW (4 HP) /3000 rpm; X-axis: FANUC 2.8 kW (4 HP) /3000 rpm Diameter of spindle bore/Draw bar bore - STD: Ø 77 / Ø 52 (Ø 3.03 / Ø 2.04); OPT: Ø 86 / Ø 77 (Ø 3.38 / Ø 3.03) Spindle speed - STD: 8” chuck 3500 rpm; OPT: 8” chuck 4500 rpm, 10” chuck 3500 rpm Ijdperfx Tnofx Ah Aeti Chuck diameter - STD: Ø 8” ; OPT: Ø 10” Hydraulic Tailstock – travel 465 (18.3) MT. No.4 VDI Tool stations - OPT: 8 STD: 10 Coolant Chip conveyor Power requirement - 208-220 volts / 100 Amps / 3 Phases / 60 Cycles Floor area (L × W × H) - 4080 ×1675 × 1842 (160.62 × 65.94 × 72.51) Gross weight (approx.) - 5200 kg (11440 Ibs)

Condition: used, 4 Axis Itjdpfx Ahey Druno Aoi Year Of Manufacture: 1998 8” Chuck 2 Turrets – Turret 1 – 12 Stations Turret 2 – 8 Stations Programable Tailstock 750mm Between Centres Live Tooling C Axis Touch setter Y axis Swarf Conveyor Okuma OSP 7000L Control

Condition: used, New 2013 Table size 1474 x 356 mm X axis 1016 mm Y Axis 596 mm Z Axis 584 mm (Head Traverse) Spindle Speeds 40 – 5000 rpm & 40ISO 7.5 hp Spindle Drive. Max Table load 850 kg Isdpfx Asyhdi Rjh Ajti
