Used Galen Forestry Grapple (Loader Grab) for sale (6,745)

Condition: new, maximum load weight: 39,150 kg, overall weight: 48,000 kg, axle configuration: 3 axles, Equipment: ABS, You can find our complete vehicle inventory, including vehicles available for immediate and short-term delivery, on our website. Excerpt from the equipment list Complete equipment list available upon request. Equipment: * Gooseneck with beveled front corners at approximately 45° and rear bevel of approximately 750 mm x 10° * 3 pairs of lashing rings (LC 5,000 daN) * Hardwood flooring, approximately 30 mm thick. Loading platform: * with rear bevel of approximately 1,000 mm x 8° * 5 pairs of lashing rings that can be folded outwards (LC 5,000 daN) * 3 pairs of lashing rings that can be folded outwards (LC 10,000 daN) * 1 pair of lashing rings, located horizontally at the front of the loading platform, for (LC 10,000 daN) * Recesses in the outer frame of the loading platform for attaching tension straps (LC 2,000 daN) * Hardwood flooring, approximately 48 mm thick, with diamond-plate flooring over the axles. Kingpin: * JOST kingpins (mechanical) with 2-speed gearbox for approximately 24 t lifting capacity (approximately 50 t test load) Axles: * BPW axles and suspension, 2 axles rigid, 1 axle with trailing arm steering * Technical axle load: 12,000 kg each * Electromagnetic reverse lock, activated via reverse gear and manually Air suspension: Kodpfxsz Rr R Ss Ag Aodu * with lifting and lowering valve Tires: * 235/75 R 17.5 3PMSF – manufacturer of our choice * TPMS: TPMS tire pressure monitoring system according to ECE R 141 Braking system: * WABCO braking system according to EU regulations with EBS-E (2S2M) Steel construction: * made of high-strength fine-grain steels * Steel grades: S355J2+N/S355MC (yield strength 355 MPa) S690QL/S700MC (yield strength 690 MPa) Electrical system: * according to EU regulations * Lighting: 24 Volt ASPÖCK-NORDIK (ASS3) * All LED side marker lights flash with the turn signal * ASPÖCK-UNIBOX on the connection strip at the front with 24N, 24S & 15-pin sockets according to ISO. 24N ISO-1185, 24S ISO-3731, 15-pin ISO-12098 Painting: * Complete steel construction automatically blasted with a shot blasting machine after welding * Second blasting with corundum for optimal adhesion of the coating system * HRM metallization of the entire vehicle chassis with ZINACOR 850 (85% zinc/15% aluminum) to ensure the best corrosion protection * Final coating with 2 layers of 2K topcoat, solid color in RAL 3002 carmine red * Rear section metallized and painted in RAL 9010 (pure white) * Metallic paint not possible * Paint build tested in a salt spray test according to ISO 9227-NSS * Sealing of cavities with special wax Incl. the following additional equipment: * 2-inch kingpin * One galvanized steel front bulkhead, approximately 400 mm high * A spare wheel holder in front of the bulkhead * Mounting rail for aluminum loading ramps on the gooseneck with integrated impact protection (± 56 kg) * Galvanized folding supports under the bevel of the loading platform * A mounting bracket for a rotating beacon on the rear of the trailer * On the gooseneck and rear panel, on the left and right, a mounting bracket for warning signs including socket * Load indicator to determine the axle loads including load diagram * 1 pair of recessed lashing rings along the center beam at the rear in the bevel (LC 10,000 daN) * Additional fastening option for the license plate of the trailer at the rear right of the trailer Incl. special accessories: * Aluminum sideboards and rear panel on the gooseneck, pluggable, approximately 2,440 x 400 mm (L x H) * The rear galvan

Condition: used, overall weight: 3,500 kg, axle configuration: 2 axles, first registration: 07/2013, * Unladen weight: 780 kg * TÜV inspection expired * Loading ramp * Tires: 185 R14 LT -----Internal vehicle number: 11443----Errors and prior sale excepted. Kedpfxjz Sixqe Ag Aedu

Condition: used, Beam gripper, model Trgf.7500kg, gripping range 0-45mm for horizontal transport · With safety locking mechanism for the horizontal transport of beams, sheets, profiles, etc. Kedpjz T Sddsfx Ag Ajdu · The offset suspension eye allows for a largely horizontal position of the beam.

Condition: used, HOLZKNECHT – HS 850 Cable Winch with KIPP-STOP system and cable payout with cable infeed brake Advantages: • No more cable slipping • Always pre-tensioned cable • No cable pinching • Enormous reduction in workload Kdjdez T Saxopfx Ag Asu AUTEC Funk Profi (AUTEC Radio Professional) Functions: Pull, Release, Short Release, prepared for gas + and -, Motor Start – Motor Stop, extra switch for cable payout, complete with transmitter, receiver, and strap, 12 Volt & 230 Volt charger Traction force 8.5 tons Cable length 80 m / 12 mm, 1 loop, tested with running hook Cable infeed speed 26 m/min Shield width 1,900 mm Cable infeed height 1,350 mm Weight 540 kg For tractors from 50 kW

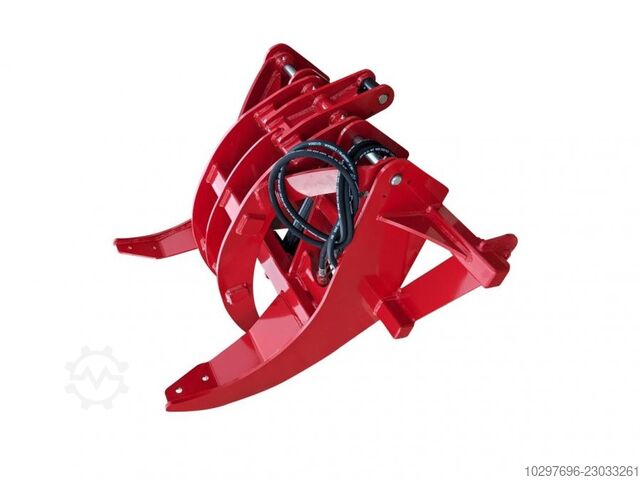

Condition: used, Description The AMR timber grapple UWG1 impresses with its large working opening of up to 98 cm and a loading diameter of 68 cm, making it ideal for efficient timber harvesting operations. Equipped with a hydraulic cylinder, the grapple offers a total load capacity of up to 1000 kg. The welded EURO standard mounting allows for easy attachment to common machines, and alternative mountings are available upon request. - 1 hydraulic cylinder - Large working opening, max. 98 cm - Loading diameter: 68 cm - Total load capacity: 1000 kg - Welded EURO standard mounting (standard) Kodpfsz T Sqqox Ag Aedu Other mountings available upon request!

Condition: used, Description Kedpfx Agez Uhdpe Asdu The PERZL HVZ 130 is a high-quality timber grab manufactured in Germany and equipped with a double-acting hydraulic connection. It is supplied complete with a mounting arm for a EURO quick-change frame and a straight rack. Made from high-strength fine-grained steel QSTE700, the grab offers an impressive opening width of 1,300 mm and a closing force of 7.5 t at an operating pressure of 200 bar. The scope of supply also includes a universal joint, a 3 t flanged rotor and four hydraulic hoses. The grab is delivered fully assembled, thus ensuring easy handling. - With double-acting hydraulic connection - Complete with mounting arm for EURO quick-change frame, with straight rack - Made of high-strength fine-grained steel QSTE700 - High-quality product from PERZL, manufactured in Germany - Incl. universal joint and 3 t flanged rotor - Incl. 4 hydraulic hoses - Fully assembled on the grab

Condition: used, Description The PERZL HVZ 150 is a high-quality timber grab designed specifically for front loaders up to 120 hp. With a double-acting hydraulic connection and a mounting arm for quick-change frames, complete with a toothed rail, it offers flexibility and efficiency in timber handling. The mechanical swivel joint enables a 180° rotation and is equipped with a flange plate that integrates two hydraulic hoses. The grab is made of high-strength fine-grain steel QSTE700 and has a self-weight of 130 kg. It achieves an opening width of 1,500 mm and an impressive closing force of 9.5 t. The smallest diameter is 100 mm, and the grab operates at an operating pressure of 200 bar. This quality product is delivered fully assembled and is manufactured in Germany. - With double-acting hydraulic connection - With mounting arm for quick-change frame with toothed rail - Mechanical swivel joint for 180° rotation - Flange plate for mechanical swivel joint with 2 hydraulic hoses - Made of high-strength fine-grain steel QSTE700 - Quality product by PERZL, made in Germany - Fully assembled on the grab Kdsdpfez Ufp Asx Ag Aeu

Condition: used, The GRA-E 42 timber grapple impresses with its robust design, long service life, and consistent clamping force. The high-strength S700 steel blades, durable bronze bushings, and reinforced grapple head guarantee reliable operation even under the harshest conditions. Thanks to the integrated slewing ring with rotation, precise and efficient work is made possible. Kjdez Ucwwjpfx Ag Aodu - Fixed installation | Closed tines - Bronze bushings for optimal lubrication and long service life - Blades made of high-strength S700 steel – robust and weight-optimized - Two spacers and a central cylinder for consistent clamping force - Reinforced grapple head for intensive use - Slewing ring with integrated rotation included in the scope of supply

Condition: used, The GRA-R 22 wood grapple from ICM is a professional wood grapple designed for demanding wood handling and sorting operations in continuous use. The open fingers allow for optimal handling of bulky, large, or irregularly shaped wood, while the pivoting installation ensures precise positioning and high maneuverability. Durable bronze bushings guarantee optimal lubrication, low friction, and high wear resistance. The lightweight, functional design minimizes the overall weight and increases efficiency in professional applications. High-strength blades made of Strenx 700 offer maximum stability while simultaneously reducing weight. - For professional use - Open fingers Ksdpfsz T Izrex Ag Aedu - Pivoting installation - Durable bronze bushings for optimal lubrication and durability - Lightweight, functional design for minimal weight - High-strength blades made of Strenx 700 – maximum stability with reduced weight

Condition: used, - Standard sickle-shaped design - Double-acting hydraulic connection Kedpfx Aoz T Nk Ieg Ajdu - Catch hook for quick-change frames

Condition: used, Sheet metal gripper, capacity 2000 kg, gripping range 0-32 mm, with cardan suspension and swivel eye · with swivel eye and safety lock · due to the cardan suspension, the sheet metal gripper can be positioned against the sheet metal in different positions (e.g. it is possible to Kdsdpfx Aoz Uaxfjg Aou

Condition: used, The Königswieser KGD 80 SA is a hydraulically controlled, professional forestry winch with a pulling force of 8.0 tons. It is designed for large tractors with approximately 80 hp and is suitable for demanding forestry applications. Kedsz Ubuuopfx Ag Ajdu The KGD 80 SA comes standard with a hydraulic rope payout system and a continuously adjustable rope infeed brake. The robust design, high-quality powder coating, and reinforced drive chain ensure reliable operation and high power transmission, even under heavy loads.

Condition: used, 100m / 10-strand hammered rope Holzknecht Funk Standard The new generation of winches from HOLZKNECHT features the classic design with a rope drum installed transversely to the direction of travel, enabling a large rope core diameter, a wide rope drum, and, in combination with a rope winding arm, perfect rope spooling. Tractive force 6.6 tons Max. rope length 100m / 11mm diameter Rope infeed speed 26 m/min Shield width 1,750 mm Kodjz Udd Eopfx Ag Asdu Rope infeed height 1,250 mm Weight 450 kg For tractors with 35 kW and above

Condition: used, Forestry safety boots, Ulme, size 46, olive/orange, natural rubber · Complies with DIN EN ISO 20345 SB E · EN ISO 17249 Class 3 · FPA-approved · With steel toe cap · Cut-resistant insert Kdsdpfx Agjz T Al So Asu · Outsole made of acid- and oil-resistant nitrile rubber · Reinforced, robust heel protection · Shaft made of 100% natural rubber · Generously sized fit · Additional toe space · Optimal protection against injuries from chainsaws · Lining: 100% cotton · Shaft height: approx. 37 cm · Width: extra wide · Other technical features: Toe protection cap: steel · Category: I · Design: KWF-tested · Standard: EN ISO 20345

Condition: used, Description The PERZL HVZ 150 timber grab is a high-quality product manufactured in Germany. It is made from high-strength, fine-grained QSTE700 steel and offers an impressive closing force of 9.5 tons. With an opening width of 1,500 mm, it is ideally suited for front loaders up to 120 hp, timber trailers, and mini excavators up to 7 tons. The grab features a double-acting hydraulic connection and is fully equipped with a mounting arm for quick-change frames, which also includes a pivoting mechanism. It is supplied with 4 hydraulic hoses and a solenoid valve and is pre-assembled to ensure easy installation. The universal joint and the 3-ton, 4-hole flange rotor provide additional stability and functionality. The grab weighs 125 kg and operates at a working pressure of 200 bar. - For front loaders up to 120 hp and timber trailers, as well as mini excavators up to 7 tons - With double-acting hydraulic connection - Complete with mounting arm for quick-change frames, with a straight rack - Made from high-strength, fine-grained QSTE700 steel - Quality product from PERZL, manufactured in Germany - Universal joint and 3-ton, 4-hole flange rotor - 4 hydraulic hoses - Additional mounting arm with pivoting mechanism - 1 solenoid valve Kdedoz T Dl Tjpfx Ag Aju - Pre-assembled on the grab

Condition: used, The transmitters in the ARES2 E series are characterized by an extremely compact and ergonomic design. They can be customized and equipped with push buttons, toggle switches, rotary switches, and potentiometers. ARES E features a mushroom-shaped emergency stop button, category PL e (ISO 13849:1), SIL 3. It can be combined with all IMET receivers, including those with ON/Off and proportional controls, and with CAN-BUS and CAN-OPEN outputs. The coding of the radio signals and the 30 available transmission channels eliminate the possibility of interference with other devices. ARES2 E is made of a particularly impact-resistant material and is resistant to water splashes (protection class IP65). Transmitter: M880S-ARES2 E3 1. Toggle switch: Winch, PULL/RELEASE 2. Toggle switch: GAS +/- & Engine START/STOP 3. Toggle switch: START & 2nd function LED: Release in continuous operation Emergency stop Includes: 12-24VDC charger with 2 batteries Receiver: M880 LDC DC version, compact design Safety outputs: Emergency stop, Safety stop Service outputs: Start, T-Stop, Horn Max. number of digital outputs: 20 Operating voltage: 12-28 VDC Dimensions: 145x65x225mm Output with 7-pin circular connector, belt The scope of delivery includes: 1 transmitter Kdodoz Ucnpspfx Ag Aeu 1 receiver with connector 1 quick charger 2 batteries 1 wiring harness with connector for receiver and winch 1 belt

Condition: used, Telescopic loader, max. 3690 mm, lifting capacity 2500 kg, painted yellow-orange, for forklifts. · Triple height adjustment Ksdpfez Tg D Sex Ag Ajdu · Securing is achieved by means of a locking pin · A chain serves as an anti-slip safety device · The internal telescopic boom is 8-way adjustable · End position

Condition: used, Description Kdsdpfx Aoz Umpqsg Aou The PERZL forestry trailer PRW 12-4 is a powerful trailer designed for forestry applications, capable of carrying a payload of up to 12 tons. Equipped with a pivoting drawbar (40° on each side), it allows for precise maneuvering, while the frame can be extended from 4.00 m to 4.90 m. With four pairs of stakes and a 4-wheel air pressure braking system, it guarantees the safe transport of timber. The tires (400-60-15) with a traction tread provide optimal grip. Special features include a VK 5077 loading crane with a 4-cylinder swivel mechanism, two cross levers with an electric auxiliary function, and a HVZ 130/30 loading grab with a pulling force of 3 tons. The forestry trailer has a double-acting hydraulic connection, a standing platform, and a ladder, and is supplied with an expert opinion for operating approval. Optionally, the trailer can be equipped with a 4-wheel oil brake instead, but this does not have German approval. - Forestry trailer 12 t with pivoting drawbar - Frame 4.00 m, extendable to 4.90 m - With 4 pairs of stakes - With 4-wheel air pressure braking system - Tires 400-60-15; traction tread - Loading crane type VK 5077 - 4-cylinder swivel mechanism - 2 cross levers, each with 3rd function, electrically operated - Loading grab type HVZ 130/30 with flange rotor, pulling force 3 t - With double-acting hydraulic connection - With standing platform and ladder - Incl. expert opinion for operating approval Technical data loading crane VK 5077: Total weight: 12 t Unladen weight: approx. 3.2 t Frame length: 4.0 m Overall length: extendable to 4.90 m Width of loading platform: 0.92 m Overall width: 2.22 m (with standard tires) Height of loading platform: approx. 76 cm Overall height of forestry trailer 12t, PRW 12 with crane VK 5077: 3.05 m Standing platform with ladder: standard Tires: 400 x 60 x 15.5, traction tread Brakes: 4-wheel air pressure brake Height of trailer coupling: approx. 850 mm Height of PTO pump (for oil supply): approx. 600 mm Approval according to StVZO for total weight: 12 t Type of paint: 2K paint Lighting: yes Support leg: yes Height adjustment of the support leg: with bolts 4 x Technical data loading crane: Forest crane: VK 5077 Swivel mechanism: 4-cylinder Torque of the swivel mechanism: 19 kNm Max. working height: 9000 mm Max. working depth: 3000 mm Extension 1 with: 1750 mm Total weight with mounting bracket: 1180 kg Operating pressure: 185 – 200 bar Base plate for drawbar mounting: 350 x 800 mm With folding supports; distance when folded up: 2.05 – 3.20 m Type of paint: 2K paint; red RAL 3020; anthracite gray RAL 7016 Standard equipment - Loading crane VK 5077: Net load moment: 50 kNm Max. boom length: 7700 mm Swivel range: 320°

Condition: used, Handrail as an aid for entry into shafts, for stainless steel shaft ladders, 1600 mm · Made of corrosion-resistant and acid-resistant stainless steel V4A 1.4571 · Can be mounted as an aid for entry into shafts for shaft ladders in any shaft with any diameter · Simple, quick installation Kedpfx Agez Ug Rze Aedu

Condition: used, Description Suitable for excavators in the 12.0 to 20.0 ton class. Powerful, fast, flexible, and durable – these are the characteristics of the sorting grapples. Universally applicable for loading stones, scrap metal, and other waste. Robust, high-performance jaws with reinforcement, as well as Hardox 450 steel, guarantee a long service life. Technical Data Fully open height: 730 mm Maximum opening width: 1765 mm Fully closed height: 910 mm Length (closed): 945 mm Maximum width: 780 mm Grip area width (closed): 610 mm Kdodpfxjz Ukage Ag Aeu Grip area height (closed): 555 mm Grip area height (1 meter open): 635 mm Grip area height (maximum open): 385 mm Weight: 455 kg Maximum load capacity: 5000 kg Maximum working pressure: 350 bar Cylinder force: 222 kN Closing force of the grapple: 28 kN Opening time at 70 l/min: 0.8 s Closing time at 70 l/min: 1.3 s

Condition: used, The CLA-SR 403 two-shell grapple from ICM is part of the heavy-duty series with open side walls and has been specifically developed for use under the harshest conditions. The robust design ensures maximum load-bearing capacity and a long service life, while the shells and counter-blades made of wear-resistant quality steel provide reliable gripping performance. The integrated shut-off valve guarantees that the shells remain securely closed even in the event of a hydraulic hose rupture. Kedpfjz Uuqcex Ag Aodu - Two-shell grapple – Heavy-duty series with open side walls - Developed for the most demanding operating conditions - Shells and counter-blades made of wear-resistant quality steel - Robust design for maximum load-bearing capacity and durability - Includes a shut-off valve that keeps the shells securely closed in the event of a hydraulic hose rupture.

Condition: used, The PLY-W 120/5 from ICM is a compact, specially designed multi-grabber for the efficient handling of split or chipped wood. The five gripping fingers ensure optimal load retention, minimize material loss, and enable precise lifting and placing of the wood pieces. The robust construction guarantees a long service life and low-maintenance continuous operation. The grabber is ideally suited for applications in wood processing and for handling firewood, especially in confined working areas or with smaller machines. - Special grabber for split wood - The PLY-W multi-grabbers were specifically developed for handling split or chipped wood. - Five fingers ensure optimal load retention and minimize material loss. - Ideal for applications in wood processing and for handling firewood. Kdedpfx Agsz Uutqo Aju

Condition: used, Description The design is reinforced, using thicker material with additional supports. The materials used are well-known SSAB quality steels: Strenx 650 Mc and Strenx 700 Mc. These materials provide increased durability and the lowest possible weight for the grapple. A lighter grapple reduces wear and tear on the excavator or forestry machine. The grapples have additional mounting points to which a specially adapted coupling can be attached. The adapters are secured with screws, allowing them to be easily exchanged and mounted on different excavators or forestry machines. With the exception of the DGE12 and DGE20 models, all other models have 2 reaction rods, which contribute to stable and symmetrical grapple performance and distribute the load on the cylinder, reducing grapple wear in the long term. The short cylinder stroke ensures fast opening and closing movements. Technical Data Height, fully open: 745 mm Maximum opening width: 1435 mm Height, fully closed: 530 mm Minimum gripping diameter: 105 mm Length, closed: 810 mm Gripping volume: 0.28 m² Width, bottom: 420 mm Maximum width: 430 mm Kodpfxjz T Ddce Ag Aodu Weight: 195 kg Maximum load capacity: 3500 kg Maximum working pressure: 250 bar Cylinder force: 115.5 kN Closing force of the jaws: 19.2 kN Opening time at 70 l/min: 0.5 s Closing time at 70 l/min: 0.9 s Rotator connection: Type C (6-hole circle Ø 173 mm with 60° hole spacing, bores always Ø17 mm) Optional load-holding valves are available for all models.

Condition: used, Universal grab Trgf.1250kg, grab width 90-200mm, with round link chain · with single-jaw opener · the large grab width enables its use for a wide range of transport tasks in steel construction and apparatus engineering · even when the lifting cable is relieved, the F[component] remains securely closed. Kdjdpfx Agez Uidqo Aju

Condition: used, The Königswieser KGD 55 SA - 1700 is a hydraulically operated forestry winch with a pulling force of 5.5 tons and hydraulic cable payout. With a shield width of 1.70 m, it offers wider support and is suitable for professional use in timber extraction. The hydraulic cable payout with adjustable speed facilitates comfortable and controlled cable extension. The robust all-steel construction, the high-quality powder coating, and the reinforced drive components ensure reliable operation even under demanding conditions. Kdodpfx Agoz Upfzo Asu
