Used Punching Tool for sale (37,706)

Condition: excellent (used), Number of knives 24 z= width 15/20 mm circle diameter 240 mm material Stahl Hodpfx Abeywzwxj Njnl HM Bore diameter 30 mm

Condition: excellent (used), Diameter 145 mm Hedpsyz Dfgsfx Ab Nsnl Width 17 mm Bore 40 mm Number of knives 2+2 z= material Stahl knife system WP

Condition: good (used), Number of knives 2 z= width 60 mm circle diameter 120 mm Hnsdpfx Abjyiu R Us Nsl material Stahl WP Bore diameter 30 mm

Condition: used, length ~ 450 mm Hnsdpfx Asx R Ttlsb Njl width ~ 650 mm height ~ 1.100 mm Battery-powered hand strapping tool BW-03 with 2 x battery, charger and Cyklop dispenser and 2.5 rolls of strapping.

Condition: new, Bore: 50/40 mm Swing circle (ø): 160 mm Length: 21–35 mm Hnodpfx Abexxy Dqe Njl Material: steel Knives: WP Z4 V4

Condition: new, Bore: 40 mm Swing diameter (ø): 136 mm Identification: BG-Test Length: 25/120 mm Material: Steel Hodpfx Asxvy Ikob Nonl Blade: WP

Condition: new, Bore: 40 mm Cutting circle (ø): 160 mm Designation: MEC Length: 17 mm Hodpfxoxvy Abo Ab Nonl Material: steel Knife: WP Z2 V2

Condition: used, Arbor length 65 mm Arbor Ø 35 mm width ~ 800 mm height ~ 900 mm length ~ 1.400 mm Tool sharpening machine with coolant pump. After setting the correct grinding angle, the tool is ground by means of manual/linear feed. Hnjdew Nv Aropfx Ab Njl

Condition: like new (used), Year of construction: 2008, PE 100 D; Manufacturer: PME, Year of construction: 2008 Nominal Pressing Force: 1,000 kN Ram Adjustment: 80 mm Adjustable Ram Stroke: 10...90 mm Continuously Adjustable Strokes per Minute: 40...140 / min Tool Installation Height (at maximum stroke bottom and adjustment top): 380 mm Hjdpfx Absy Sku Ae Nenl Table Clamping Surface (W x D): 900 x 560 mm Ram Clamping Surface (W x D): 900 x 560 mm Lateral Passage (W x H): approx. 365 x 575 mm Main Motor Power: 11.0 kW Machine Height: approx. 3,240 mm Machine Weight: approx. 8,600 kg Equipment: H-frame, motorized ram adjustment, fully automatic stroke adjustment Infinitely variable stroke speed control (ABB) Siemens S7/300; Pilz press safety control Touch screen in movable operator panel Electronic press force measurement Central lubrication Stroke gate Split, movable table plate Centering groove in ram Anti-vibration mounts Roll Feed: Band width 200 mm, band thickness: 2 mm Decoiler: driven, ultrasonic band loop control, manual expansion Coil weight: 600 kg

Condition: good (used), functionality: fully functional, machine/vehicle number: 542, Equipment: Precision six-jaw chuck -- Cylindrical grinding device -- Dividing device -- Coolant device -- Grinding wheel holder -- Grinding wheels --- Operating instructions . Hnjdjy St Ifopfx Ab Nsl

Condition: used, Cam switch assembly with 6 switching tracks, tool monitoring, process monitoring BALLUFF type BSW 493-6 K3 /06 Year of manufacture: 1988 Number of cam switches: 6 Switching voltage: 230 Volts Switching current: 6 A Drive shaft: Ø 20 mm with 6 mm key - 6 mechanical cam switches BALLUFF - Cam length adjustable - Adjustment tool missing Enclosure dimensions (L x W x H): 240 x 185 x 140 mm Weight: 6.3 kg Hnsdpfx Absy Sbw Uo Nsl Good condition

Condition: reconditioned (used), Year of construction: 2010, • Traveling distances X=3100 mm, Y=1950 mm, Z=1390 mm • Heidenhain iTNC 530 with handwheel HR 410 • Machine table for multi side working 3000 mm x 1600 mm • 2-axis NC-universal milling head, for simultaneous and positioning working • Spindel 10.000 U/min HSK 100, 130 Nm Spindle torque • Tool change system HSK 100 / 40 places for 750 mm long tools • Chip conveyor (screw type) in X-axis, for transport into • Chip conveyor scraper belt type (traverse conveyor), Fabr. Knoll • Coolant container 900 l, Fabr. Knoll • Outside air at spindle • IKZ 60 bar for deep hole drilling function • Covering with safety glass pane, open at the top for loading by crane • 2 part sliding doors at the operator side • 2 part sliding doors at the front side, for easy loading • Radio-controlled measuring probe RMP 60 • incl. washing gun • incl. podiums at the front side and operator side • complete factory overhauled and painted new • short time delivery after arrangement • used machine • Y-axis ball screw in September 2021 incl. bearings renewed • X-axis new linear guiding system, July 2023 changed, renewed • Spindle overhauled at Mai 2023 (clamping system new, clamping cartridge new, rotation unit new, general tests) (at 23105 spindle hours)) • can be visited under power at 72793 Pfullingen Hnjdpfxsy Sl Dxo Ab Nel • optional fixators • optional installation at customers plant • optional transport • 23122 spindle hours in total • 53991 machine hours in total • Year of construction 2010 Subject to prior sale

Condition: excellent (used), functionality: fully functional, We are offering a used EROWA UPC chuck here. Hsdpsy Rzx Nsfx Ab Nenl EROWA ER-070649 UPC chuck with ITS Chuck 100P. The chuck was mounted on a measuring machine and thus was not subject to load or contamination. The clamping plate is in very good condition and fully functional. Inspection possible by appointment. Shipping and inspection available!

Condition: good (used), functionality: fully functional, We are offering a used EROWA UPC chuck here. ER-016093. Clamping force: 32,000 N. UPC dimensions: 320 x 300 x 64.5 mm. The UPC chuck is in good condition and fully functional. Inspection by appointment is possible. Shipping and inspection available! Hodpsy Rzttjfx Ab Nonl

Condition: good (used), Universal punching machine Dimensions: 145x120x210 cm LxWxH Hnjdpfxjiki Dbs Ab Nel

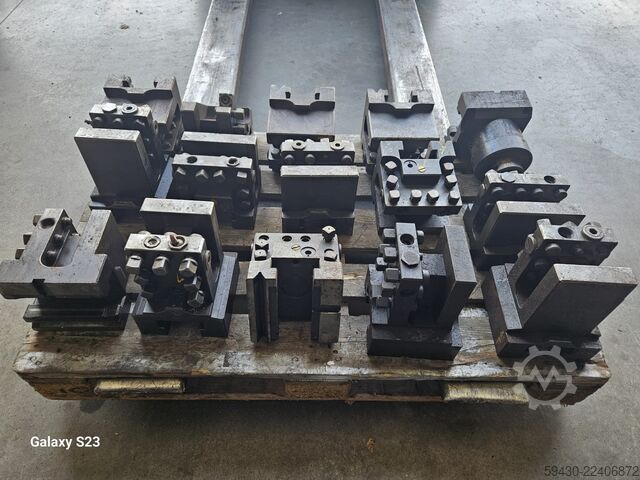

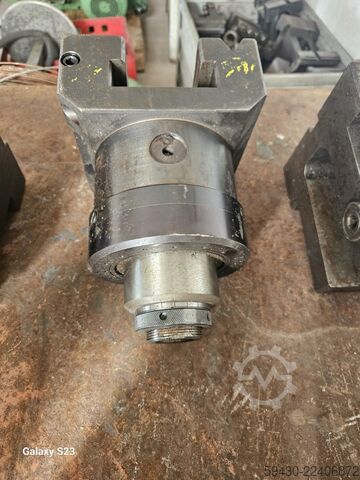

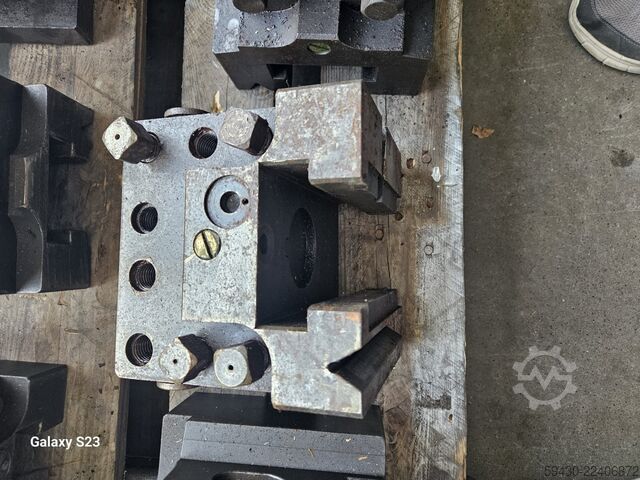

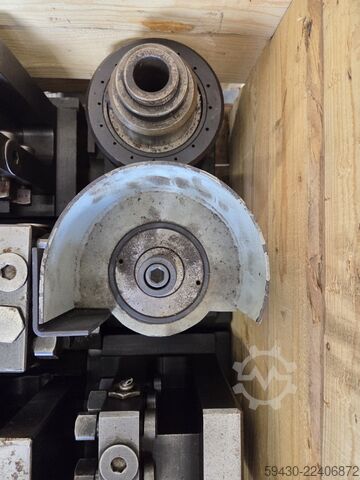

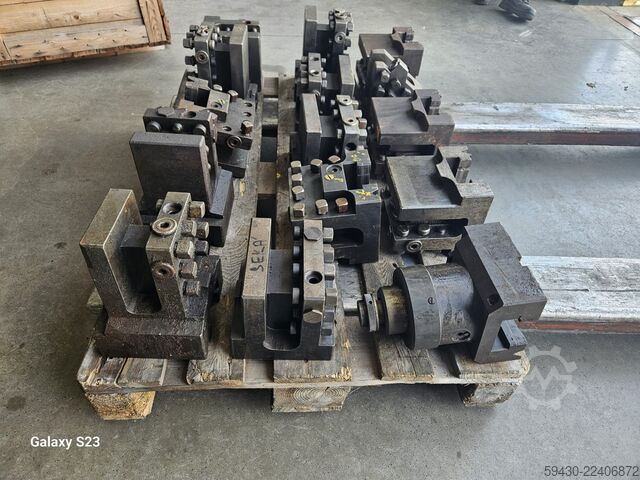

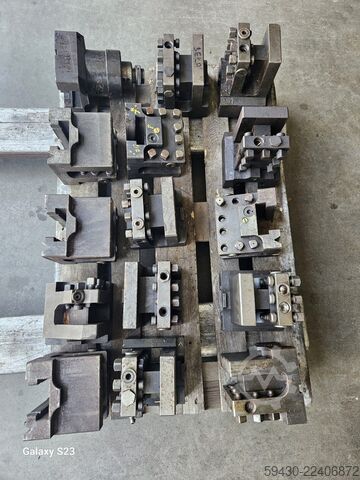

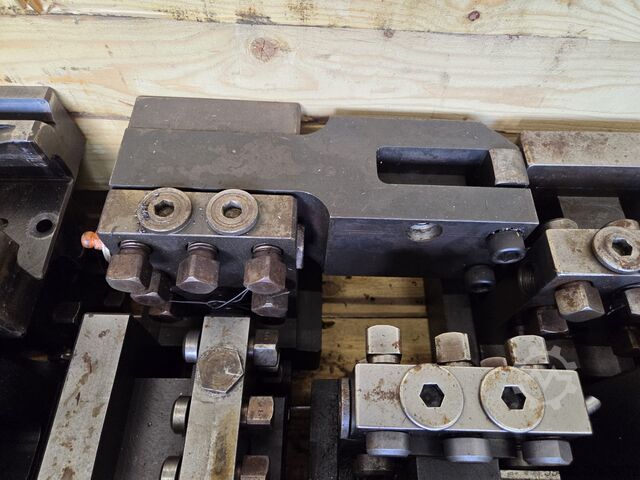

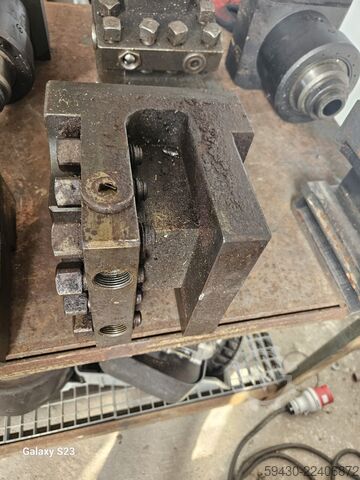

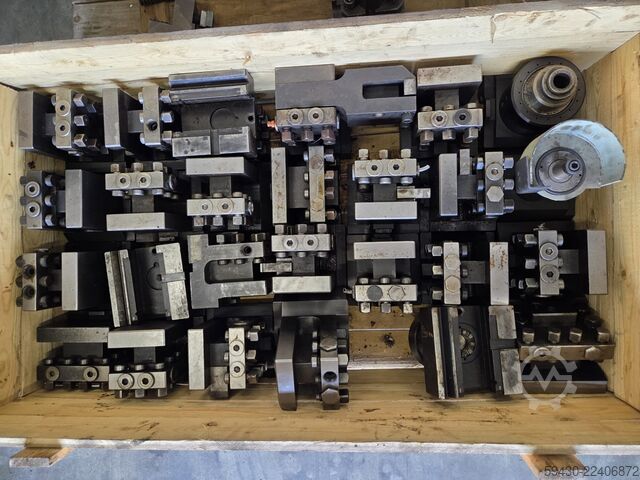

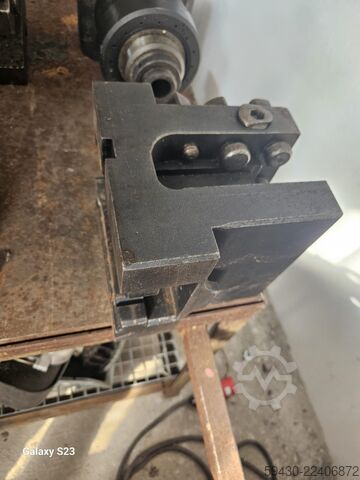

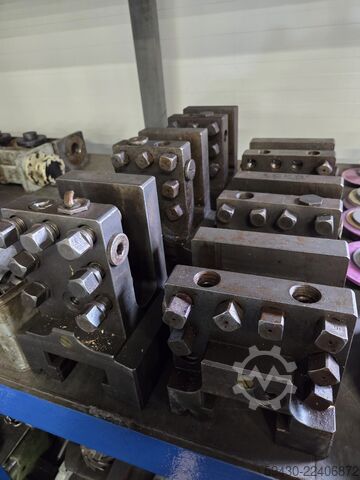

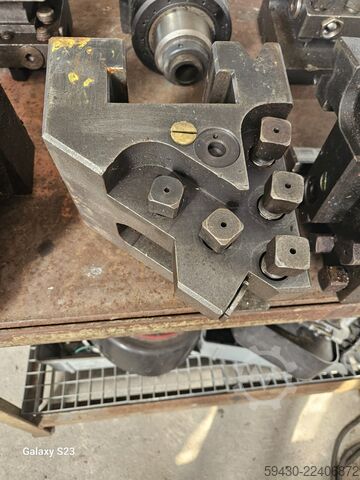

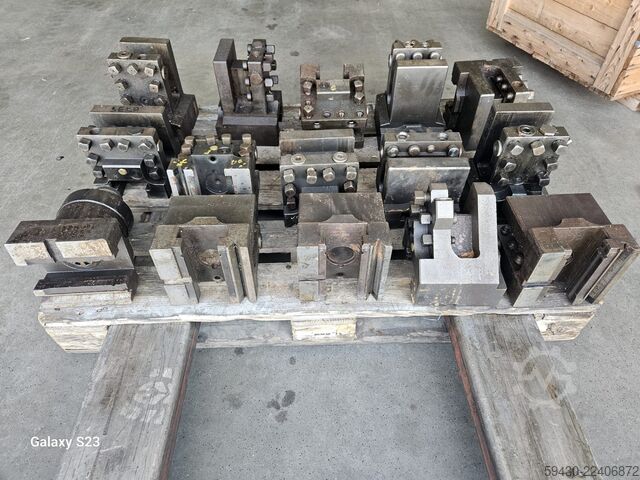

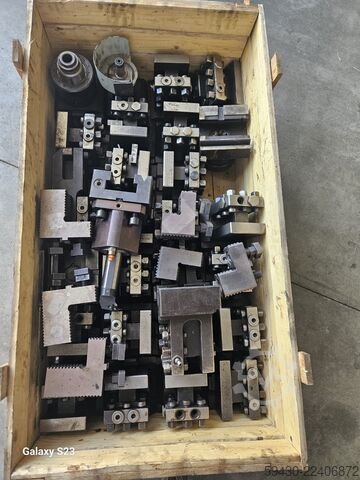

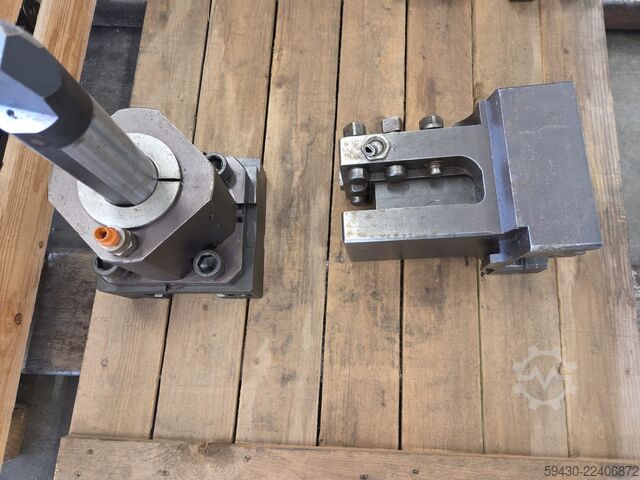

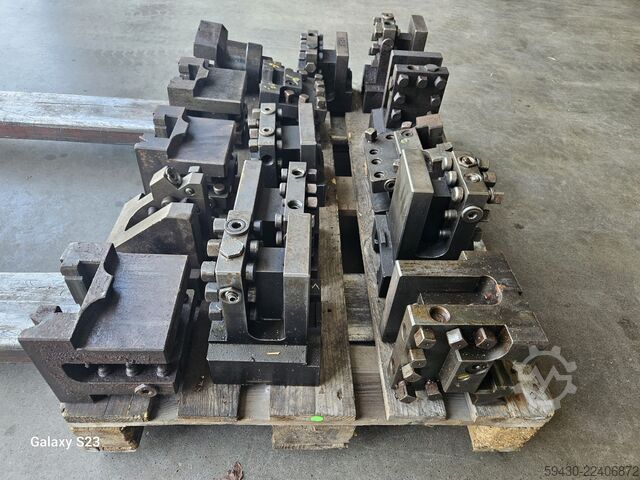

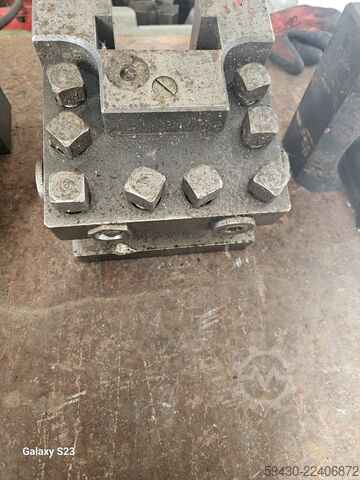

Condition: good (used), Different tool holders . As we informed, they are used on Biglia CNC lathe. Hnedpfxey Shyis Ab Nsl

Condition: excellent (used), functionality: fully functional, Year of construction: 2010, laser power: 4,000 W, X working area max.: 3050 mm Y working area max.: 1550 mm Control: Rexroth IndraMotion MTX Laser power: 4,000 watts Standard equipment: Machine - Sturdy, easily accessible C-frame - Coordinate guidance for high-precision machining - Linear tool changer with 21 tool stations and 4 clamps - Maintenance-free three-phase drive motors - Repositioning device with programmable hold-down - Foot switch for closing clamps - 2 good parts containers - Automatic shutoff Laser station - TruFlow laser - High-frequency excitation - Cooling unit - TASC 3 laser controller - Enclosed beam guidance - Beam tube ventilation with compressed air - Programmable cutting gas pressure - Laser cutting head with 170 mm focal length - Universal quick-change cutting head device UTI with bus connection - LensLine - FocusLine - ControlLine - NitroLine - SprintLine - ContourLine - FlyLine Hsdpsy Saqgsfx Ab Njnl - PlasmaLine - High-speed cutting - Additional Xp and Yp axes - Ejector cylinder for laser parts - Fast flap for laser parts 500 x 500 mm - Liftable laser cutting support - Slag cone detection - Laser logbook function Punching station - Electro-hydraulic punching head - Rotatable mono-tool holder - Tool length compensation - Programmable hold-down with adjustable force - Stroke counter for punches - Spray lubrication for punches - Punch slug extraction - Warp detection - Flap for punched parts 500 x 500 mm - Fill level monitoring in the punching console Control - Open control system based on Bosch Rexroth IntraMotion MTX - Operating panel with 15" TFT touchscreen - Program management and 80 GB storage capacity - Diagnostic function with laser logbook - Integrated technology data - Teleservice Data transfer - Network connection RJ45 and USB interface Safety - CE marking - Multi-beam light barriers - Monitoring system for, among others, gas pressure, temperature, cooling water - Hydraulic quick shut-off - Protection against stray radiation - Compact extraction unit - TruFlow 4000 - Vibration-dampened installation - Thread forming function - MultiTool function - Chip conveyor with tilting container - Active die - Ejector for small parts - Brush tables with loading aid - Marking function - Repositioning cylinder - Warp detection

Condition: good (used), functionality: fully functional, Year of construction: 2019, controller model: Rexroth IndraMotion MTX, laser type: CO₂ laser, laser hours: 980 h, laser power: 4,000 W, punching force: 22 t, Equipment: CE marking, nozzle changer, safety light barrier, Machine - C-frame - Coordinate guide - Linear magazine with 25 stations for clamps and tools - 4 x hydraulic clamps - Drives with maintenance-free three-phase motors - Repositioning system with programmable hold-down - Flap for punched parts 500x500mm incl. sensor - Foot pedal for closing clamps - FocusLine - NitroLine - FastLine - FlyLine - Additional XP and Yp axes - Ejector cylinder for laser parts - Fast flap for laser parts 500x500mm incl. sensor - Liftable laser cutting support TRUMPF Laser - TruFlow 4000 laser incl. LensLine and optimized standby - High-frequency excitation - Fine filtration of compressed air for beam tube ventilation - Closed beam guidance Cutting Head - Lens cutting head with 170mm focal length - Universal quick-change device for cutting head - LensLine - ControlLine Punching Head - Electro-hydraulic punching head - Rotatable mono-tool holder - Programmable hold-down position - Tool length compensation - Punch slug extraction - Calculation of fill level in the punching console - Stroke counter for punches - Spray lubrication for punches - Fill level monitoring for tool lubrication - Stripper position measuring system with sheet thickness measurement function Control System - TRUMPF control based on Rexroth IndraMotion - Touch panel with 19" TFT color display - Integrated technology data - Programmable cutting gas pressure - Remote Support interface - Automatic shut-off with wake-up function - Production planner Functions - PlasmaLine Data Transmission - USB interface - RJ-45 network interface - Wireless Operation Point Safety - CE marking - Two-beam safety light barrier - Monitoring system for gas pressure, temperature and cooling water - Emergency stop for drives - Warp detection - Protection against stray radiation Extended Standard Equipment: - Network installation via Remote Support - Chiller (water-air) - Compact extraction system - 1st locating pin (inside right) - 2 finished parts containers - Chip container - 40 used RTC cassettes + die plate Punch Quality Package - MultiShear - Deburring and rolling technology - Adaptive stroke calibration - StripLine Forming Package - Thread forming incl. thread former breakage control - Marking/fast beading Hodpoy Sappjfx Ab Nsnl - MultiBend - Height-adjustable clamps - Automatic nozzle changer - MultiTool - Engraving - Smart Punch Monitoring with sheet format detection - 4 individually openable clamps - Automatic clamp closing with mechanical sensor zero stop - Repositioning cylinder - Vibration-damped installation - Chip conveyor with tilting container - Foot pedal start incl. rear-view mirror - Brush tables with loading and unloading support - Ejector unit for small parts - CO2 extinguishing system for compact extractor - Connection piece for exhaust air duct of compact extractor MobileControl App SheetMaster (AK08) UF - Loading station with spreader magnet - Simultaneous loading and unloading during main time - Peeling system incl. positioning aid for oversize formats - Additional positioning aids for medium format - Additional positioning aids for large format - First add-on package with 9 suction cups (incl. vacuum ejector) - Unloading monitoring for laser parts - Loading of blanks GripMaster 4000 x 1500 mm SortMaster Pallet 4 pallets longitudinal ToolMaster Linear 54 stations with simultaneous tool setup during main time - Safety devices for warehouse connection incl. 2nd light barrier circuit - Warehouse interface

Condition: good (used), Year of construction: 1999, operating hours: 52,324 h, functionality: fully functional, X working area max.: 1270 mm Y working area max.: 1270 mm Control: Bosch Type 3 Basic Standard equipment: - Robust C-frame - Safety light barriers - Coordinate guide with integrated linear magazine - 2 clamping claws - Automatic tool changer - Automatic repositioning - Tool length compensation - Forming capability - Mono tool holder with 360° rotation for all tools Hnodpfoy Sat Uex Ab Nsl - Programmable hold-down device - Multitool drive - Punch slug extraction - Brush tables - Part chute 200 x 200 mm, sorting of parts into 2 containers - NC-controlled, digital, maintenance-free three-phase drives - Network interface RJ34 - 3.5" floppy disk drive - TOPS 2000 graphical programming - Online diagnostics via modem - Operating manual + Vibration-damped installation + Multitool + Thread forming + Start post

Condition: good (used), Year of construction: 2009, operating hours: 44,287 h, functionality: fully functional, X Working area max.: 2500 mm Y Working area max.: 1250 mm Operating hours: 44,287 hours Hnodpfx Aey Sathjb Njl Control system: Bosch PNC-P Standard equipment: Machine - Stable, easily accessible C-frame - Coordinate guide for high-precision machining - Linear magazine with 18 tool positions including 2 clamps - Drives with maintenance-free three-phase motors - Reloading device with programmable hold-down device - Ball tables - Part chute 180 x 150 mm - Automatic shut-off Punching head - Hydraulic punching head - Rotatable mono-tool holder - Programmable hold-down device - Tool length compensation - Punch spray lubrication - Punch slug extraction - Forming Control system - Open control system based on Bosch PNC-P - Control panel with 15" TFT color screen - Program management - Integrated Technology Data - Teleservice Data Transfer - USB Interface and Network Connection Safety - CE Marking - Multi-Beam Light Barriers - Hydraulic Quick Shutdown + Multitool Function + MultiShear Function + MultiBend Function + Thread Forming Function + Marking/Fast Beading Function + Deburring and Rolling Technology Function + Soft Punch Function + Movable Support Table + Part Slide Sensor + Vibration-Dampened Installation + 2nd Stop Pin + Bow Detection

Condition: good (used), functionality: fully functional, Year of construction: 2013, laser power: 2,700 W, X working area max.: 2500 mm Y working area max.: 1250 mm Control system: Rexroth IndraMotion MTX (basic version) Laser power: 2700 Watt Hnedoy Saqmepfx Ab Nsl Standard Equipment Machine - Sturdy, easily accessible C-frame - Coordinate guide system for high-precision machining - Linear magazine with 23 tool stations and 2 clamps - Maintenance-free three-phase drive motors - Repositioning unit with programmable hold-down device - Foot pedal for clamp closing - Alignment pin (right inside) - Ball tables - 2 parts flaps 500 x 500 mm incl. sensor for parts ejection - Two good parts containers - NitroLine - Focus Line - FastLine - FlyLine - Slag cone detection - Ejector cylinder for laser parts TRUMPF Laser - TruFlow 2000 laser with LensLine and optimized standby mode - High-frequency excitation - Cooling unit - Laser control - Enclosed beam guidance - Fine filtration of compressed air for beam tube ventilation Cutting Head - Lens cutting head with 170 mm focal length - Universal cutting head quick-change system UTI with bus connection - ControlLine Punching Station - Electro-hydraulic punching head - Rotatable mono-tool holder - Tool length compensation - Programmable hold-down device with manually adjustable holding force - Stroke counter for punch and thread-forming - Punch spray lubrication - Punch slug extraction - Measurement of fill level in punching console - Level monitoring for thread-forming and tool lubrication Control - TRUMPF control based on Rexroth IndraMotion MTX - Operating panel with 17" touch screen - Integrated technology data - Teleservice via internet - Programmable cutting gas pressure - Automatic shutdown incl. wake-up mode - Program management - Production scheduling Data Transfer - Network connection RJ45 and USB interface Safety - CE marking - Two-beam light curtain - Monitoring system for gas pressure, temperature, and cooling water - Emergency stop - Protection against stray radiation - Compact extraction unit + Brush tables + Lowerable die + MultiTool function + Softpunch function + Marking function + Chip conveyor with tilting container + Roll technology functions: roll knurling, roll deburring, roll shearing, roll offsetting, roll bead forming, roll cutting + Die spray lubrication + Blow-off device for small parts + 1 pc. additional clamp + Smart Punch Monitoring (punch breakage monitoring) + Vibration-damped installation + Repositioning cylinder + Warping detection + Parts conveyor belt in punching area + Parts conveyor belt in laser area + GripMaster (2500x1250) + Scissor lift table + Scrap grid pallet + SheetMaster (2500x1250) (AK04) + Peeling system + Automatic clamp closing + HZP loading/unloading + TwinCarts loading station with toothed belt drive + TwinCarts unloading station with toothed belt drive

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2014, laser power: 3,000 W, X Working area max.: 2500 mm Y Working area max.: 1250 mm Control: IndraMotion MTX Laser power: 3000 watts Standard equipment: Machine - Coordinate guide for high-precision machining - Stable, easily accessible C-frame - Linear magazine with 21 tool positions and 4 clamps - Drives with maintenance-free three-phase servo motors - Repositioning device with programmable hold-down device - Foot switch for clamp closing - Ball tables - 2 part flaps 500 mm x 500 mm - FocusLine - NitroLine - FastLine - Ejection cylinder for laser parts - Slag cone detection TRUMPF laser - TruDisk 3001 solid-state laser with 1 LLK outlet - Excitation via pump diodes - LLK according to standard layout (10m) - TruControl laser control 1000 - Cooling unit - Laser logbook function Cutting head - Solid-state laser compact cutting unit - ControlLine Punching head - Electro-hydraulic punching head - Rotatable mono tool holder - Tool length compensation - Programmable hold-down device (active / passive / repositioning) - Punch stroke counter and thread stroke counter - Spray lubrication of punch - Punch slug extraction - Calculation of filling level in the punching console - Level monitoring of thread forming and tool lubrication Control - Open control based on Rexroth IndraMotion MTX - Control panel with 17" touch control panel - Program management - Production plan - Integrated technology data - Teleservice via Internet - Programmable cutting gas pressure - Automatic switch-off with wake-up mode Data transfer - USB interface - RJ-45 network connection Safety - CE marking - Two-beam light barriers - Monitoring system for, among others Gas pressure, temperature, cooling water - Quick shutdown hydraulics - Protection against scattered radiation - Compact dust extraction system - MultiTool function - MultiBend function - Thread forming function Hnedpfx Asy Samuob Nol - Engraving function - Deburring and rolling technology function - SoftPunch function - StripLine - Lowerable die - Spray lubrication die including level monitoring - Additional clamping claw - 4 pcs. Height-adjustable clamping claws - Vibration-damped installation - Chip conveyor with tilting container - Blow-out device for small parts - Warping detection SheetMaster - Unloading platform - Suction frame with 36 suction cups - Peeling suction cup - Vacuum sensors for each suction cup - Double sheet detector for double sheet control - Central lubrication - TRUMPF control based on Rexroth IndraMotion MTX - Automatic clamp closing machine - Loading and unloading parallel to production time - Peeling system including positioning aid medium format (2500x1250) - First additional suction cup package standard - Second additional suction cup package standard - Unloading monitoring laser parts GripMaster - Parts conveyor belt punching station - Parts conveyor belt laser station ToolMaster with 70 stations (only for punching operation) - ToolMaster set-up parallel to production time

Condition: used, Year of construction: 2011, turning diameter over cross slide: 75 mm, turning diameter: 381 mm, spindle speed (max.): 3,500 rpm, spindle bore: 75 mm, travel distance Z-axis: 850 mm, total height: 2,325 mm, total length: 4,820 mm, total width: 2,100 mm, overall weight: 8,000 kg, CNC Lathe with Y-axis, driven tools and 2nd Spindle CNC Control Fanuc series 18i-TB Turning diameter 381 mm Spindle bore diameter 75 mm Spindle speed 3500 R/min Spindle motor 22/15 Kw Movement X-axis 190 + 69,5 mm Movement Y-axis +55 / -55 mm Movement Z-axis 850 mm Movement W-axis (subspindle to mainspindle) 830 mm Hedpfx Aey N A Hxob Nenl Min indexing C-axis main spindle 0,001 ° Number of tools on turret 12x Number of driven tools 12 x Tool Taper VDI 40 Bar feeder Irco-Breuning ILS MUK Spindle motor driven tools 4000 R/min If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, Year of construction: 2008, turning diameter: 275 mm, spindle bore: 80 mm, spindle speed (max.): 4,000 rpm, travel distance X-axis: 260 mm, travel distance Z-axis: 1,345 mm, total height: 2,232 mm, total length: 4,339 mm, total width: 2,232 mm, overall weight: 7,600 kg, Equipment: documentation/manual, CNC Lathe with Y-axis, driven tools an 2nd spindle Hedpfjy Nyzgex Ab Nsnl CNC Control MSX-850-lll (mitsubishi 720 BM) Turning diameter 275 / 366 mm Spindle bore diameter 80 mm Spindle speed 4000 R/min Spindle motor 18.5/15 Kw Movement X-axis 260 mm Movement Y-axis +50 / -50 mm Movement Z-axis 1345 mm Movement W-axis (subspindle to mainspindle) 1275 mm Min indexing C-axis main spindle 0,001 ° Number of tools on turret 12x Number of driven tools 12 x Tool Taper BMT Bar feeder LNS Quick Load Servo lll Spindle motor driven tools 6000 R/min If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: excellent (used), Year of construction: 2010, Helmerding Press Type: KDH 315/2100/2 Pressing force: 3,150 kN Stroke height: 40–200 mm Strokes per minute: 20–100 min⁻¹ Ram adjustment: 120 mm Shut height: 500 mm Table size: 2,000 x 1,200 mm Ram surface: 2,000 x 1,100 mm Machine weight: 44,000 kg Helmerding Roller Feeder Type: EWH 800/150 Strip width: 100–800 mm Strip thickness: 0.5–6.0 mm Helmerding Straightening Machine Type: R-70/800/9-S Strip width: 100–800 mm Strip thickness: 0.5–5.0 mm Roll diameter: 70 mm Number of straightening rolls: 9 pcs Hnodpfsy R Elyjx Ab Nsl Helmerding Decoiler Type: HE-4/800/MOT/HYD Strip width: 100–800 mm Max. coil weight: 4,000 kg Coil inner diameter: 508 mm Coil outer diameter: 1,000–1,600 mm
