Used Tensioning Carriage For Frame Saw for sale (18,818)

Condition: good (used), Year of construction: 1991, Braun Canali band resaw TB 1100 Unimaster Roller diameter 1100mm With swivel table for diagonal cut Hnjdpfoucnt Hsx Ahzjp disassembled from our warehouse in 23936 Grevesmühlen

Condition: good (used), Artiglio ST 80 band resaw Hnedpfxjucnt To Ahzep -technically tested and newly painted

Condition: used, Year of construction: 2018, Horizontal bandsawing machine Make: JAESPA Model: Compact 2.8 Year of construction: 2018 TECHNICAL DETAILS: Automatic band saw - horizontal Cutting diameter 280 mm Saw blade length 5080 x 34 x 1.1 mm Cutting area flat 330 x 280 mm Cutting width 330 mm NC control Feed 460 mm Cut-off lengths 9999.9 mm Speed 15 - 120 m/min Machine weight approx. 2.3 t Dimensions approx. 3250 x 1580 x 2050 mm Column design for heavy-duty, industrial use o Intuitive NC control of the machine via PLC WAGO and 7" color touchscreen. Frequency-controlled, infinitely variable belt drive Saw arm with highly sensitive feed movement via servo motor and ball screw ball screw Backlash-free linear guides in both columns Hydraulic material clamping with long-stroke cylinder in front of and behind the saw blade saw band Clamping vice and lifting jaws open on both sides with infinitely adjustable clamping pressure clamping pressure Material feed via servo motor and ball screw drive in chain dimension the repeating operation is clocked. Unlimited material feed length Fully hydraulic saw blade tensioning Hnodpfsudb Sfsx Ahzop Automatic saw blade guide arm adjustment Fully equipped with chip conveyor

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, Kasto V 315 M with CE Saw blade 315 mm with 3 sharp spare blades 2 speeds, 1.8 kW drive Cutting range: round 110 mm, flat 150 mm Mitre cuts right / left Coolant system + minimum quantity lubrication Length stop Condition: very good, no play in the drive Of course, can be inspected under power Hjdpfoy Rt H Ejx Ahzjnp Free loading from D - 88433 Schemmerhofen

Condition: used, Year of construction: 2019, total length: 4,200 mm, total width: 1,200 mm, total height: 2,450 mm, Colour: Black Weight: 600 kg Hodpfxjzk Ia Dj Ahzenp - Year: 2019 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 5025 CV - Max. cutting height horizontal [mm]: 1550 - Max. cutting width [mm]: 3300 - Max. cutting depth [mm]: 55 - Min. saw blade diameter [mm]: 250 - Max. saw blade diameter [mm]: 250 - Arbor saw blade diameter [mm]: 30 - Horizontal cutting: Yes - Vertical cutting: Yes - Voltage [V]: 400 - Current consumption [A]: 6.6 - Fuse [A]: 16 - Power [kW]: 3.0 - Transport dimensions: 4200mm x 1200mm x 2450mm (l x w x h) - Transport weight [kg]: 600kg - Transport packages [pcs.]: 0 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, machine/vehicle number: 008394, Max. panel width: 3800 mm Max. panel length: 3800 mm Main saw blade projection: 55 mm No of Grippers: 4 Hjdpeygtbtsfx Ahzjnp

Condition: ready for operation (used), Year of construction: 1992, Bandsaw with infeed. Hsdpfszl Tiysx Ahzsnp

Condition: good (used), Year of construction: 2015, 1 used miter band saw Manufacturer: MEP Type: Shark 512 SXI EVO Year of manufacture: 2015 Technical data: Design: Semi-automatic double miter metal band saw Miter range: -60° to +60° Max. cutting capacity at 0°: 510 × 320 mm Saw band dimensions: 4,640 × 34 × 1.1 mm Band speed: 15–100 m/min (continuously variable) Drive power: 4.0 kW Vise opening: 515 mm Machine weight: approx. 1,190 kg Hnsdpfx Ahozlgmljzop with various roller conveyors

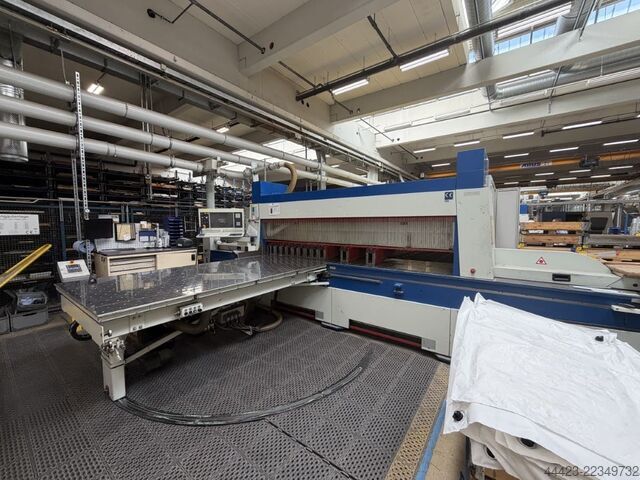

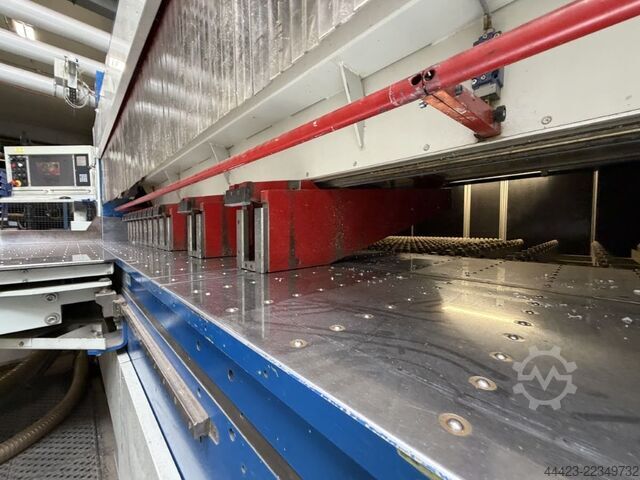

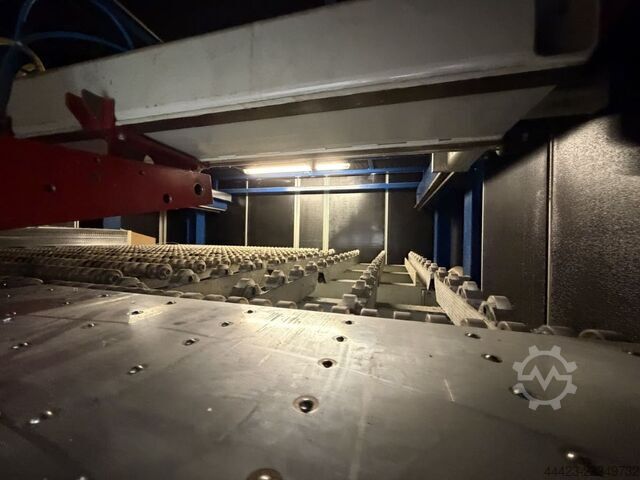

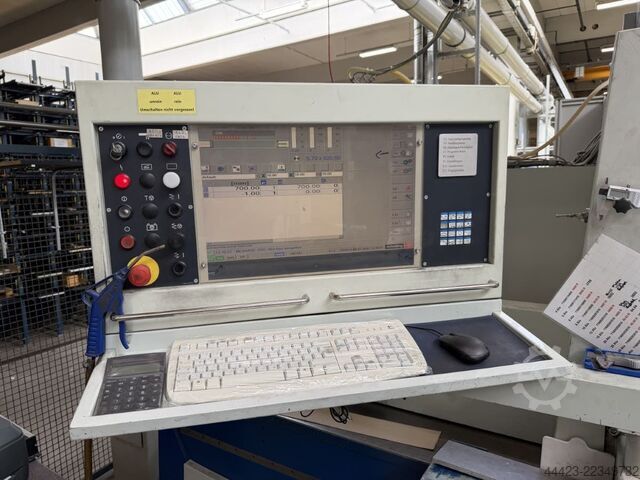

Condition: used, Year of construction: 2005, controller manufacturer: Sonstige, controller model: Schelling Modular Control, _____ Hsdpfezmb Sfox Ahzjnp Description: Year of manuf. : 2005 In General: Year of manufacture:2005 Cutting length:3,300 mm Panel thickness:5–180 mm Saw blade diameter:620 mm Outfeed table:3,200 x 1,600 mm Saw feed:0.1–60 m/min Feed speed:20 m/min

Condition: excellent (used), Year of construction: 2023, power: 4 kW (5.44 HP), cutting height (max.): 2,200 mm, cutting width (max.): 4,000 mm, stationary panel saw STRIEBIG, cutting dimensions 4000 x 2200 mm. Hsdpfxszlpi Ns Ahzjnp

Condition: used, machine/vehicle number: 2708-07, power: 7.5 kW (10.20 HP), cutting height (max.): 115 mm, cutting width (max.): 1,000 mm, height adjustment type: mechanical, saw blade bore: 30 mm, actuation type: electric, Equipment: saw blade guard, Cutting length, max. 5600 mm Cutting width 1000 mm Cutting height, max. 115 mm Electric feed Motor power 7.5 kW Hedpfx Aozl Tafshzjnp Protective bar

Condition: used, Year of construction: 1983, machine/vehicle number: HL 2100 5083044, Working area: 3000 x 2250 mm (length x height) 3 vertical pressure bars 2 horizontal pressure bars Electric height and width adjustment Hjdpfx Ahozl Rugjzsnp with automatic sensing Machine in good condition.

Condition: good (used), Year of construction: 1979, machine/vehicle number: 3297, functionality: fully functional, CIRCULAR SAWING MACHINE WITH MULTI-STAGE GEARBOX TYPE: 1631 MACHINE NO.: 3297 YEAR OF MANUFACTURE: 1979 Technical Data: Table size: 675 x 500 mm Minimum distance from saw mandrel to top edge of table: 60 mm Height adjustment: 50 mm Maximum saw blade diameter: 300 mm Minimum saw blade diameter: 160 mm Saw blade arbor holes: 32 mm and 40 mm Maximum table travel: 200 mm Maximum cutting height: 87 mm Maximum cutting width to the side of the saw blade: 300 mm Hnsdpfx Ahjy S Sxcszjp Standard motor power: 1.5 hp Height from top edge to table: 885 mm Space requirement: 700 x 900 mm Weight: approx. 197 kg Condition: good, functional

Condition: good (used), Year of construction: 1976, functionality: fully functional, Cold circular saw with automatic feeder Year of manufacture: approx. 1976 Hnedpfxjwtdi Aj Ahzjp Equipment: - Standard accessories - Automatic feeder, cutting length 1700 mm - Various saw blades - Coolant system - Infeed roller conveyor 2400 mm, split (2 x 1200 mm) - Outfeed roller conveyor 500 mm - Documentation Condition: good, workshop tested

Condition: as good as new (ex-display), Year of construction: 2025, Panhans bandsaw BSB 500 Upper and lower APA II bandsaw guides Tilting table top up to 45° Door locking system via limit switch Wheel diameter 500 mm Drive motor 1.5 kW / 2.0 hp 400 Volt motor with motor brake Band speed 1,290 m/min Maximum cutting height 320 mm Maximum cutting width 485 mm Maximum blade length 4,145 mm Table size 500x680 mm Table height 890 mm Dust extraction port 2x100mm Space requirement: 900x525x1925 mm Weight 220 kg CE compliant, GS tested Hjdpfxodq D I Hj Ahzenp Available in stock at 54634 Bitburg

Condition: new, Year of construction: 2025, machine/vehicle number: C890, PANHANS Bandsaw Type BSB 600 Stand in modern steel construction, table top made of thick-walled, heavily ribbed cast iron, massive gray cast iron bandsaw wheels Technology: • Upper and lower PANHANS bandsaw blade guide APA II • Finely planed gray cast iron table • Table top can be swivelled up to 20° • Dynamically balanced bandsaw wheels with vulcanized rubber coverings • Fence rail can be used on the left of the saw blade • Fence profile can be folded over • Blade tension indicator • Mechanical height adjustment via handwheel with locking ratchet • Automatic motor brake with main switch and motor protection switch Technical data: • Max. cutting height 380 mm • Max. cutting width 570 mm • Table size (W x D) 590 x 810 mm • Table height 905 mm • Wheel diameter 600 mm • Motor power 2.2 kW • Wheel speed 820 rpm • Max. saw band length 4710 mm • Suction nozzle diameter 2 x 100 mm Hnedpobzmb Hofx Ahzsp • Machine weight 272 kg • Machine size (L x W x H) 1120 x 750 x 2125 mm Location: Available in stock, Bitburg Top exhibition price Free loading

Condition: new, Year of construction: 2026, Miter saw and cut-off saw, type: ZS 200 N - 5 KW motor with machine stand, but without saw blade Machine operated via handwheel and worm gear (rear) Tilting Saw blade diameter: 520 mm, saw blade arbor bore: 50 mm Saw blade speed: 2800 rpm 400 volts / 5 KW (S6/40%) motor with brake and automatic star-delta motor switching Cutting width at 90 degrees: 420 mm Cutting width at 45 degrees: when tilted: 295 mm Cutting height at 90 degrees: 200 mm Cutting height at 45 degrees when tilted: 140 mm Hnodpfxji Dfide Ahzsp The saw can be tilted to an acute angle of approximately 25 degrees on one side and tilted flat to the left up to 30 degrees. Machine weight: approx. 250 kg Location: Available from stock in 54634 Bitburg - immediately available -

Year of construction: 2022, condition: new, Altendorf WA 6 Manual height adjustment, Double roller carriage, length 2000 mm, Scoring unit, Swiveling, Extension table, Angle/miter fence, Automatic brake, Lowerable below table height Hnedpfx Aeihahmehzep ----- Technical data ----- Swivel range: 0 - 45°, Cutting width at parallel fence: 1,000 mm, Max. cutting height: 87 mm, Max. saw blade diameter: 315 mm, Swivel range for miter fence: up to 49°, Speeds: 4,200 rpm, Main motor power: 5.5 hp / 4 kW, Scoring motor power: 0.5 hp / 0.37 kW, Work table height: 910 mm, Dust extraction port diameter: 1 x 100 / 50 mm each, Weight: 450 kg Large dust extraction hood Location: Available in stock, 54634 Bitburg - immediately available - Location: Available in stock, 54634 Bitburg - ready for loading - - immediately available -

Condition: new, Year of construction: 2026, Holzkraft HBS precision wood band saws for the craftsman Top quality, workmanship and price-performance ratio Particularly quiet and precise running thanks to a torsion-free machine housing Large-dimensioned gray cast iron saw table made from one piece, with a precisely ground and polished surface. Quick saw band tensioning via eccentric lever on the back of the machine Standard with two speeds Precise 3 roller saw band guides, standard at the top and bottom from HBS 351 Quick cutting height adjustment via rotary knob and rack with millimeter scale Smooth-running aluminum parallel stop with eccentric quick clamp and magnifying glass Standard miter angle stop, adjustable by 60 degrees on both sides Aluminum parallel stop with eccentric quick clamp Technical data: Work table dimensions: 495*356 mm Cutting speed: 650/400 m/min Flywheel diameter: 356 mm Max. cutting height: 200 mm Max. cutting width with stop: 321 mm Saw band length: 2562 mm Precision guide 3 rollers: top/bottom Saw table inclination: -10 degrees, + 45 degrees Motor power: 550 watts/230 volts Weight: 80 kg Dimensions in mm: 610*445*1753 Hnodpfx Ajvk Sdkshzep Extraction nozzle diameter: 100 mm Location: from stock 54634 Bitburg - immediately available -

Condition: excellent (used), Year of construction: 1999, STRIEBIG III TRK scoring unit Hjdpfxsvluwve Ahzjnp In wooden box Can be retrofitted to a Striebig Standard TRK Location: from stock 54634 Bitburg - available immediately -

Condition: new, Year of construction: 2025, Panel Saw ALTENDORF F 35 Type 3 - 1000 with Scorer 7.5 kW (10 HP), 3 speeds, Motorized height and tilt adjustment, Large protective hood, Double roller carriage 3,200 mm, Scoring unit with LED lighting, CNC rip fence, cutting width 1,000 mm, Angle/miter fence Digit-L, Hnjdexyl Ecopfx Ahzjp Table extension/table width extension, With proven CDF surface ----- Technical Data ----- Swivel range: 0 - 46°, Carriage length: 3,200 mm, Cutting length: 3,100 mm, Cutting width: 1,000 mm, Cutting height: 154 mm, Max. saw blade Ø: 450 mm, Motor power: 7.5 kW, Screen size: 15 inch, Working table height: 910 mm, Extraction connection Ø: 80 + 120 mm Equipment: Altendorf F 35 Type: III - 1000 7.5 kW (10 HP) 3 speeds (M51064) Angle/miter fence Digit L option (M44154) Location: Ex stock 54634 Bitburg - immediately available -

Condition: good (used), Year of construction: 1993, 1 x Graule Crosscut and Mitre Circular Saw Type ZS 170 Technical data: - Motor: 400 V / 3.0 kW - Speed: 3500 rpm - Cutting length: 410 mm - Cutting width: 410 mm at 90° / 290 mm at 45° - Cutting height: 170 mm at 90° / 115 mm at 45° - Mitre range horizontal: 45°-90°-25° - Saw blade diameter: 420 mm - Extraction port diameter: 100 mm - Weight: 120 kg Location: ex-stock 54634 Bitburg - immediately available - Hnsdeyxxzwepfx Ahzjp

Condition: good (used), Year of construction: 1988, Double Mitre Saw Düspohl DGK 400 B Stock number: 001071 Double Mitre Saw Düspohl Type: DGV 400 B Year of manufacture: 1988 Swivelling saw blades Max. cutting length: 2500 mm Approx. cutting height: 70 mm Hnodpjyv R Nzsfx Ahzjp Max. saw blade diameter: approx. 300 mm Was used for door frames Motor power: 4 kW Location: ex stock 54634 Bitburg - immediately available -

Condition: ready for operation (used), Year of construction: 1995, Immediately available Cutting length: 5300 mm Hnedpeyv R N Ijfx Ahzsp Cutting height: 2100 mm Cutting depth: 60 mm Scoring unit: no Feed: manual Horizontal cut display: scale Vertical cut display: scale Saw blade diameter: 300 mm Tilting material support: yes Saw blade speed: approx. 4000 rpm Motor power: 3 kW Machine length: 6500 mm Machine depth: 1500 mm Machine height: 3000 mm Weight: 800 kg Location: ex-customer site - immediately available -

Condition: new, Year of construction: 2026, Panel Saw Holzkraft / SCM minimax si 4 - 400 / 32 M A With tilting saw blade and sliding table made of anodized aluminium Item number: 5504933 Hedpsxw N N Hsfx Ahzsnp Brand: Holzkraft TECHNICAL DATA Dimensions and Weights Weight (net): approx. 690 kg Dust Extraction Extraction port diameter: 120 mm Saw blade guard extraction port diameter: 80 mm Electrical Data Connection voltage: 400 V Mains frequency: 50 Hz Scoring motor power: 0.65 kW Output power (main motor): 7.0 kW Rated duty cycle (main drive): S6 Duty cycle (main drive): 40% Sliding Table and Worktable Sliding table length: 3200 mm Sliding table width: 360 mm Sliding table height: 175 mm Table length: 1000 mm Table width: 560 mm Table height: 900 mm Saw Unit Cutting width with rip fence: 900 mm Max. crosscut width left of blade: 3200 mm Edging length: 3200 mm Saw blade tilting range: 90 - 46° Max. cutting height at 90°: 136 mm Max. cutting height at 45°: 97 mm Note max. cutting height: independent of scorer Saw blade diameter: 400 mm Note saw blade diameter: independent of scorer Saw blade speed: 3500/5000 rpm Scoring Unit Scoring blade diameter: 120 mm Scoring blade speed: 9200 rpm EQUIPMENT Scoring unit with separate scoring motor Anodised aluminium sliding table Handle for sliding table On/off switch on sliding table for main and scoring blade motors Edging frame Material roller on edging frame Rip fence with round bar guidance Stops: two professional folding stops Edging shoe Excenter clamp Table extension Table width extension Pendulum-type saw blade guard Motorised height adjustment and tilt of saw unit, digital tilt angle display Location: ex stock 54634 Bitburg - immediately available -
