Used Amada Wasino Jj3 for sale (365)

Condition: ready for operation (used), Year of construction: 2007, spindle speed (max.): 4,000 rpm, travel distance X-axis: 245 mm, travel distance Z-axis: 210 mm, spindle motor power: 7,500 W, number of axes: 6, This 6-axis AMADA Wasino JJ3 was manufactured in 2007. It features a twin spindle, twin turret turning cell with a maximum spindle speed of 4000 rpm and a chuck size of 8”. The machine is designed for high-volume production with automatic loading and unloading capabilities. If you are looking to get high-quality turning capabilities, consider the AMADA Wasino JJ3 horizontal turning machine we have for sale. Contact us for further details. • Axes: X1, Z1, C1, X2, Z2, C2 • Travels: X1/X2 245 mm; Z1/Z2 210 mm • Spindles: 2 (double front spindle), max speed 4000 rpm, power 7.5 kW (option 11 kW), high-acceleration spindle • Turrets: 2 × 12 stations • Chuck size: 8" (3-jaw, both spindles) • Bed: High rigidity monoblock design • Cutting performance: • Turning (S45C): depth of cut 1.6 mm; feed 0.22 mm/rev; cutting speed 160 m/min • Drilling: Ø22 mm; feed 0.56 mm/rev • Tapping: M16 • Grooving: up to 8 mm • Precision: positioning accuracy ±2 µm; repeatability ±2 µm • Coolant/system: 290 L tank; filtration; high-pressure coolant pump • Cell concept/capability: automatic loading/unloading; fully automated; designed for unmanned, high-volume production • Driven tools: Yes, for both spindles • Condition: Good, properly working; regular maintenance since 2008 Additional equipment • Gantry loader with reverse turn unit • Work stocker: 2 units (expandable to 4) • Chip conveyor Crjdpfxey Ndu Dj Aipjc • Transformer • Integrated measuring unit (optional concept) • Cleaning unit (optional concept) Technical Specification Counter Spindle Yes Driven Tools Yes

Condition: new, Year of construction: 2015, 2-spindle 2-turret machine, max. spindle speed 6000 RPM, with feeder (vibrational bowl), robot handling unit and post-process measurement unit. Control system Fanuc. Dimensions 2400 x 1650 x 1790 mm ( main unit ). SALE IN EU / SWITZERLAND / UK ONLY. Crsdpfx Aislgy U Eepec

Condition: excellent (used), Year of construction: 2001, AMADA MODEL HFE 103-3 100 tons capacity x 3000 bending length hydraulic downstroking press brake complete with OP 2000 7 AXIS cnc control, ERWIN SICK machine mounted electronic guards , side and rear interlocked fencing Model Amada HFE 100-3 downstroke CNC Press brake Year 2001 Tonnage 1000 KN Type OP 2000 CNC Controlled Axis Y1, Y2, X, R1 R2 Z1 Z2 Max. Bend Length 3000 mm Open height 470 mm Stroke Length 200 mm Approach Speed 100 mm/sec Bending Speed 1 - 10 mm/sec Return Speed 1-100 mm/sec Oil Capacity 110 LITRES Motor Power 11 kw Cjdpfx Aoyt H Awoipjrc Weight 6800 KG kg CNC Control Backgauge Stoke (X axis) 700 mm/s Max gauge 1000mm R axis 250mm can be demonstrated under power BROCHURE AND FURTHER INFORATION AVAILABLE UPON REQUEST

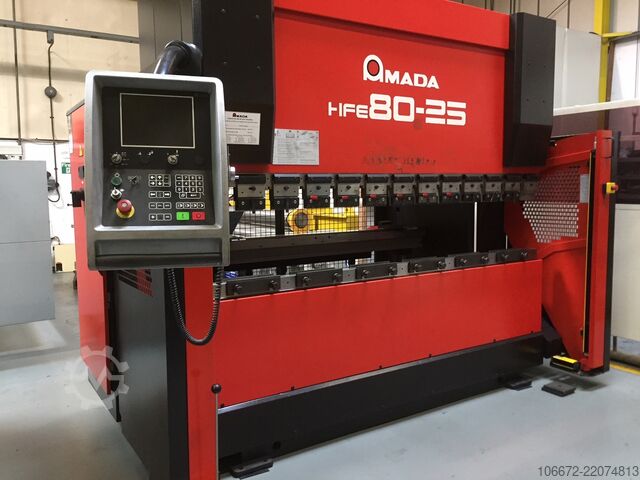

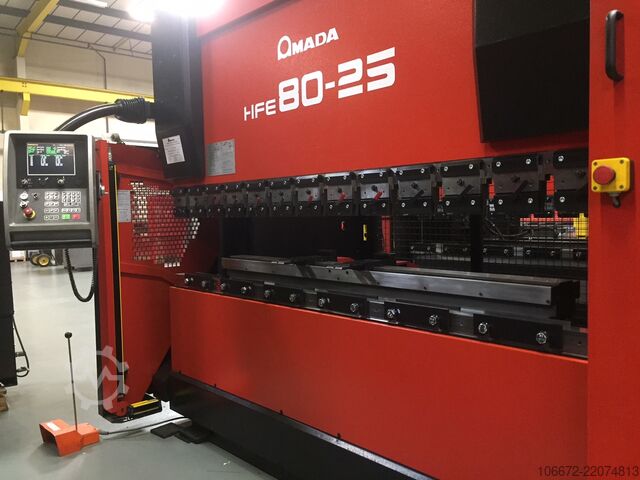

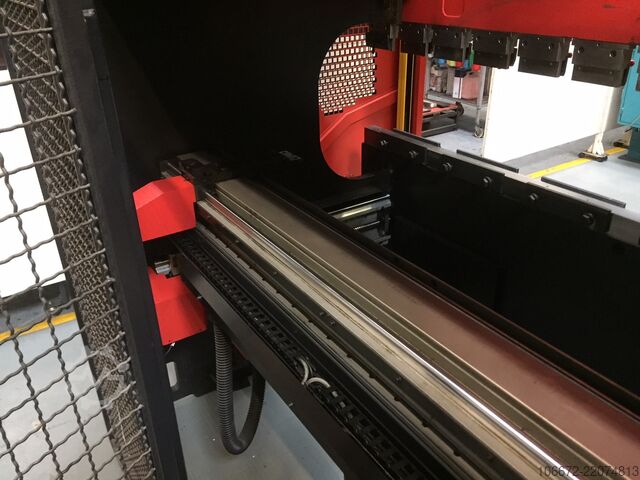

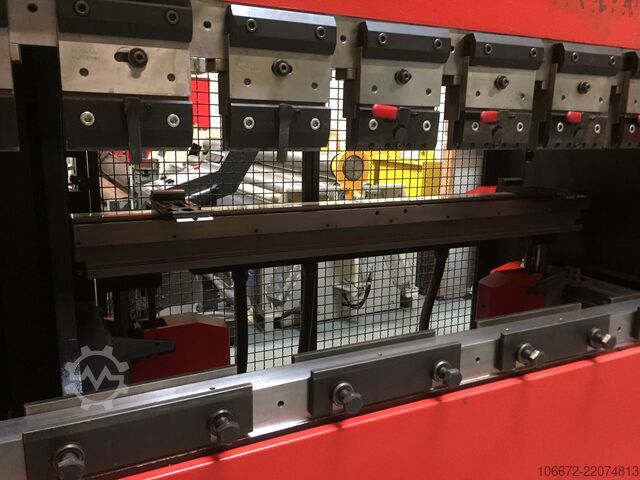

Condition: excellent (used), Year of construction: 2000, AMADA PROMECAM MODEL HFE 8025 7 AXIS CNC 80 TONS X 2500 HYDRAULIC DOWNSTROKING PRESS BRAKE description TYPE HYDRAULIC DOWNSTROKING CAPACITY 80 TONS CONTROL OP 2000 CNC NO OF AXIS SEVEN X 1 X 2,Y 1 Y 2, R 1 , Z1 & Z2 BENDING LENGTH 2500 mm OPEN HEIGHT 470 STROKE LENGTH 200 THROAT DEPTH 420 MOTOR SIZE 7.5 KW APPROACH SPEED 100 BENDING SPEED 10 RETURN SPEED 100 SERIAL NO.V000426 Codpozbzq Sofx Aiporc GUARDING MACHINE MOUNTED ERWIN SICK ELECTRONIC SIDE INTERLOCKED FENCING REAR INTERLOCKED year 2000 price POA

Condition: excellent (used), Year of construction: 1991, AMADA MODEL HFBE 170-3 Csdpswcd Spofx Aipsrc 170 tons x 3000 complete with DELEM DA 58 MULTI AXIS CNC CONTROL ERWIN SICK MACHINE MOUNTER ELECTRONIC GUARDING SUYSTEM SIDE AND REAR INTERLOCKED FENCING Bending force: 170 T Bending length: 3100 mm Distance between uprights: 2650 mm Cnc control: DELEM DA 58 Throat: 410 mm Vertical stroke: 180 mm Working speed: 10 mm/s Axis number: 6 Including Z axis Motor Power: 13 kW Machine weight: 10500 kg Machine dimensions (LxWxH): 3200 x 1700 x 2500 mm

Condition: excellent (used), Year of construction: 2001, year 2001 price POA stock no. 01859 specification 7 AXIS CNC 80 TONS X 2500 HYDRAULIC DOWNSTROKING PRESS BRAKE HIGH SPEED LONG STROKE MODELSTOCK NO 02029 description TYPE HYDRAULIC DOWNSTROKING PRESS BRAKE CAPACITY 80 TONS CONTROL OP 2000 NO OF AXIS SEVEN BENDING LENGTH 2500mm OPEN HEIGHT 620 STROKE LENGTH 350 THROAT DEPTH 420 Crjdpfx Aozbqn Hjipsc MOTOR SIZE15 KW FRONT GUARDING MACHINE MOUNTED ERWIN SICK SIDE INTERLOCKED FENCING REAR INTERLOCKED SERIAL NUMBER V011137 MAX APPROACH SPEED 200 MAX BEND SPEED 20 MAX RETURN SPEED 200

Condition: excellent (used), Year of construction: 2005, AMADA MODEL HFT 130-4 130 tons capacity x 3000 bending length hydraulic downstroking press brake complete with CD 2000 AMADA CONTROL 4 AXIS cnc control, FEISSLER machine mounted laser guards , side and rear interlocked fencing Model Amada HFT 13/3 downstroke CNC Press brake Year 2005 Tonnage 1300 KN Controlled Axis Y1, Y2, X, R Max. Bend Length 3000 mm Open height 470 mm Stroke Length 200 mm Approach Speed 100 mm/sec Bending Speed 1 - 10 mm/sec Return Speed 1-100 mm/sec Motor Power 11kw Weight 8750 kg Bed Length 3000 mm Bed Width 180 mm Open Height 470 mm Throat Depth 420 mm Cjdpfxozbqnys Aiporc CNC Control can be demonstrated under power BROCHURE AND FURTHER INFORATION AVAILABLE UPON REQUEST

Condition: excellent (used), Year of construction: 2007, AMADA MODEL HFT 103 100 tons capacity x 3000 bending length hydraulic downstroking press brake complete with CD 2000 4 AXIS colour graphic cnc control, FEISSLER machine mounted electronic laser guards , side and rear interlocked fencing Model Amada HFT 100/3 downstroke CNC Press brake Year 2007 Tonnage 100 KN Type CD 2000 CNC Controlled Axis Y1, Y2, X, R Max. Bend Length 3000 mm Open height 470 mm Stroke Length 350 mm Approach Speed 100 mm/sec Bending Speed 1 - 10 mm/sec Return Speed 1-100 mm/sec Motor Power 7.5kw Weight 7300 kg Bed Length 3000 mm Bed Width 180 mm Throat Depth 420 mm Csdpfx Aiozbql Sepjrc CNC Control 12000 hours BROCHURE AND FURTHER INFORATION AVAILABLE UPON REQUEST

Condition: like new (used), functionality: fully functional, Year of construction: 2021, control type: CNC control, controller manufacturer: FANUC, GLS-150-LED ALL AXIS NC CONTROLED Optical Profile Grinding Machine for Wet and Dry Machining DISPLAY MACHINE (demonstration machine) Contour accuracies of 1 μm, CNC-controlled, and with up to 5-axis interpolation. The teach-in-playback method even compensates for grinding wheel wear. Grinding in automatic, semi-automatic or manual mode. High-accuracy projector can be switched to X 20 and X50 enlargement, ready for magnification X 100, no need to change working component Codpfx Aijzazmdspsrc Control System F-32i-GT NON STANDARD: ALL AXIS FULLY MOTORIZED

Condition: refurbished (used), Year of construction: 2008, Used AMADA press brake: Illustrative image, machine in stock but not yet prepared. It will be in the same condition once it has been refurbished. Year: 2008 Type: HFE400-4L Capacity: 4000 x 400T Number of axes: 6 Stroke of cylinders: 350 mm Rapid traverse speed: 100 mm/sec Installation of new, high-tonnage tooling along the entire length Machine completely refurbished upon order. Credpfezbg Sbex Aipsc

Condition: reconditioned (used), Year of construction: 1982, functionality: fully functional, overall weight: 17,500 kg, working width: 1,300 mm, working height: 1,300 mm, working range: 1,300 mm, Amada H1300 Horizontal Bandsaw (1982) Capacity 1300 x 1300mm Power 230 V – 50/60 hz / 400 v – 50hz / 460 v 60hz Blade drive 11 kw Hydraulic drive 3.7 kw Coolant drive 0.4 kw Wire brush drive 0.4 kw Blade size 11380mm x thickness 1.6 x width 65 mm Net weight 17.500 kgs Total power requirement 16 kw Machine Data: Model H1300 Csdpfstv E Hcjx Aiporc Year of Construction 1982 Built in Japan

Condition: good (used), functionality: fully functional, Year of construction: 2008, operating hours: 20,000 h, control type: CNC control, degree of automation: automatic, actuation type: electric, laser type: CO₂ laser, laser power: 4,000 W, AMADA LC 3015 X1 NT – Laser Cutting Machine for Sale For sale: A used CO₂ laser cutting machine, manufacturer Amada, model LC 3015 X1 NT. This reliable, industrial-grade solution from the renowned Japanese manufacturer is ideal for high-precision cutting of steel, stainless steel, and aluminium sheets. General Information Year of manufacture: 2008 Operating hours: approx. 20,000 h Crsdsy Hxy Nspfx Aipoc Laser power: 4 kW Working Range and Traverse Speeds X-axis travel: 3,000 mm Y-axis travel: 1,500 mm Z-axis stroke: 120 mm Max. rapid feed X/Y: 85 m/min Max. rapid feed Z: 60 m/min Max. workpiece weight: 730 kg Cutting Capacities Mild steel: up to 20 mm Stainless steel: up to 15 mm Aluminium: up to 12 mm Included Equipment - Donaldson filtration system - Sheet material storage (without shuttle table) Dimensions and Weight Approx. dimensions: 6,670 × 2,360 × 2,100 mm Total weight: 11,700 kg Why Choose This Machine? The Amada LC 3015 X1 NT is a true workhorse for sheet metal fabrication. The spacious 3 × 1.5 m working area accommodates standard sheet formats in a single setup, and the built-in sheet storage optimizes material flow and reduces manual loading efforts. The robust 4 kW laser source ensures reliable cutting of thicker materials, while the Donaldson filtration system maintains a clean working environment. Delivery and Inquiries The machine is offered as is. Further details, photos, and quotes for dismantling, transport, and potential commissioning are available upon request.

Condition: refurbished (used), functionality: fully functional, Shear Brand: AMADA PROMECAM Model: GP1230 Capacity: 3000 x 12 Back gauge: 1000 mm Credpfoxfbb Rjx Aipoc Rear pneumatic sheet support Cylinder seals replaced – Blades sharpened – In compliance

Condition: excellent (used), Year of construction: 2008, Technical specifications: Working length: 2550 mm Frame width: 2050 mm Pressing force: 80 tons CNC control: OPERATOR II Graphic Csdpfx Aioy D T Rwsperc 14” TFT color monitor Controlled axes: Y1/Y2; X1/X2; R1/R2; Z1/Z2 Automatic crowning Stroke: 350 mm Overhang: 420 mm Working height: 960 mm Motor power: 9 kW CE marking Dimensions (length x width x height): approx. 3400 x 2050 x 2550 mm Weight: approx. 6 tons Accessories: 1 set of tools: 1 upper tool punch: 120 mm 1 segmented die: V50, V35, V22, V16 Condition: Very good condition, little used, only approx. 5,350 operating hours The seller is not liable for typographical or data transmission errors. The machine’s appearance, technology, and wear correspond to its age; used machines are sold without any warranty.

Condition: good (used), functionality: fully functional, input frequency: 50 Hz, type of input current: three-phase, pressing force: 130 t, Equipment: CE marking, FOR SALE: Amada HFE 130-3 L CNC Hydraulic Press Brake Amada HFE 130-3 L – Heavy-Duty CNC Press Brake, 130 Tonnes We are offering a used Amada HFE 130-3 L CNC hydraulic press brake in [good / fully operational] condition. A well-built machine from Amada Europe, ideal for demanding sheet metal bending applications. Key Specifications ParameterValuePressing force1,300 kN (approx. 130 tonnes) Maximum stroke 350 mm Machine Details Year of manufacture: 2001 Crjdjy Hf Tvjpfx Aipec Condition: Good ! Tooling included Why Buy This Machine? The Amada HFE 130-3 L is a robust and precise hydraulic press brake built for high-volume industrial production. With 130 tonnes of pressing force and a generous stroke of 350 mm, this machine handles a wide variety of demanding bending tasks with excellent repeatability. Amada's renowned build quality ensures long service life and low maintenance requirements.

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, pressing force: 80 t, control type: CNC control, Equipment: safety light barrier, 1 Used Very Clean Amada 8025 cnc down stroke hydraulic pressbrake for sale Codpfxeyzy D Eo Aipjrc The Amada HFT 8025 is a CNC hydraulic down-stroking press brake designed for precise sheet metal bending with an 80-ton pressing capacity. It is often equipped with the CD 2000 CNC control system, providing 4-axis control (typically Y1, Y2, X, and R) for high accuracy in industrial applications. Key Technical Specifications Year 2010 Feature Standard HFT 8025 Press Force 80 Tons (800 kN) Bending Length 2,500 mm Stroke Length 200 mm Open Height 470 mm Throat Depth 420 mm Motor Power 7.5 kW

Condition: excellent (used), Year of construction: 2011, MODEL AMADA TOGU EU PRESCISION TOOL GRINDING MACHINE WHEEL CBN 150 MAX TOOL DIAMETER 160 MAX GRINDING DEPTH ,ONE CYCLE, 0.99 SPINDLE MOTOR 1.5KW SPINDLE MOTOR SPEED 3000 RPM VERTICAL TRAVERSE 200 MACHINE WEIGT 470 KGS Crsdpfx Aijyyln Topjc PWOER CONSUMPTION 4.8 KVA

Condition: good (used), Matrices, 100 mm x 2 Offset punches x 2 In good condition Crjdpfxozaitro Aipec

Condition: good (used), Rear back gauge fingers for Promecam press brakes, adjustable in height. Sold as a complete set or in pairs. Crsdpfxjzagq Uo Aipjc

Year of construction: 2008, condition: ready for operation (used), X-axis: 2500mm, Y-axis: 1270mm, positioning speed X-axis/Y-axis: 80/90m/min, simultaneous axis speed: 100m/min, punching capacity: 200kN, number of turret stations: 51, max. material thickness mild steel: 3.2mm, max. material weight at traverse speed F1/F4: 50/150kg, positioning accuracy: ±0.1mm, stroke rate X-axis: 350/min, stroke rate Y-axis: 260/min, max. stroke length: 42mm, max. feed speed X-axis/Y-axis: 80/60m/min, turret speed: 30rpm, compressed air requirement: 500l/min, operating air pressure: 5bar, connected load: 19kVA, length: 4165mm, width: 5120mm, height: 2082mm, height with mirror: 3028mm, weight: 13t, operating hours: 4531h, regularly maintained by the manufacturer, with documentation, without punching tools. An on-site inspection is possible. Cjdpfx Aioza E S Djperc

Condition: excellent (used), Year of construction: 2010, AMADA MODEL HFT 8025 80 tons capacity x 2500 bending length hydraulic downstroking press brake complete with CD 2000 4 AXIS colour graphic cnc control, ERWIN SICK machine mounted electronic guards , side and rear interlocked fencing Model Amada HFT 8025 downstroke CNC Press brake Year 2010 Tonnage 100 KN Type CD 2000 CNC Controlled Axis Y1, Y2, X, R Max. Bend Length 2500 mm Open height 470 mm Stroke Length 350 mm Approach Speed 100 mm/sec Bending Speed 1 - 10 mm/sec Return Speed 1-100 mm/sec Oil Capacity Motor Power 7.5kw Weight 6100 kg Bed Length 2500 mm Bed Width 60 mm Open Height 470 mm Throat Depth 420 mm CNC Control Credpfx Aeu A Dgreipsc Backguage Stoke (X axis) 700 mm/s Max gauge 1000mm R axis 250mm can be demonstrated under power BROCHURE AND FURTHER INFORATION AVAILABLE UPON REQUEST

Condition: excellent (used), Year of construction: 2015, Model Amada HFE MK2 5012 50 tons x 1250 , 4 axis CNC Press Brake Year 2015 Tonnage 50 tonnes Max. Bend Length 1250 mm Stroke Length 150 mm Approach Speed 1 - 100 mm/sec Bending Speed 1 - 10 mm/sec Return Speed 1 - 100 mm/sec Oil Capacity 55L Motor Power 6KW Weight 2550 Kg Crjdsyym Hkjpfx Aipoc guarding Erwin Sick machine mounted light screen,side and rear interlocked fencing Dimensions Machine Length 2000 mm Machine Depth 2300 mm Machine Height 2300 mm Distance Between Side Frames 1035mm Beam width 60 mm Table height 960 mm Open Height 370 mm Throat Depth 100 mm

Condition: good (used), Year of construction: 1984, CNC Optical Profile Grinding Machine Wasino GLS-130AS 1984 Csdpep R Rm Isfx Aipjrc

Condition: excellent (used), Year of construction: 2008, Technical data: Working length: 6100 mm Distance between columns: 5230 mm Press force: 400 tons CNC control: OPERATOR II graphic TFT screen 14" Number of controlled axes: 8 Controlled axes: Y1/Y2; X1/X2; R1/R2; Z1/Z2 Stroke: 350 mm Overhang: 420 mm Motor power: 38.5 kW CE marking Dimensions (length x width x height): approx. 6300 x 2500 x 3600 mm Weight: approx. 36.5 tons Note: Table extends approximately 450 mm into the floor. Accessories: 1 set of tools: 1 upper tool punch: 120 mm 1 segmented die: V50, V35, V22, V16 Codpsy D Sb Ujfx Aipjrc Condition: Very good condition Only 9,200 operating hours In the meantime, we have stored the machine and removed the table. The seller is not liable for typing or data transmission errors. The machine's appearance, technology, and wear are in accordance with its age; used machines are sold without any warranty.

Condition: good (used), Year of construction: 2008, Used 6-meter CNC press brake by Amada Type: HFE 400 6 L Capacity: 6100 x 400 tons Stroke: 350 mm Y1, Y2, X1, X2, R1, R2, Z1, and Z2 CNC controlled 9204 operating hours Csdpfxey T Hlte Aipjrc Weight: 36 tons Transport in 2 parts (main frame + separate lower table) Self-adjusting crowning system in the lower table 450 mm mounted on the floor foundation Dismantling and loading included
