Used Cnc Guillotine Shear for sale (10,510)

Condition: used, Year of construction: 1986, functionality: fully functional, Hydraulic CNC plate shear Fischer DHS 10 / 3000 Hodpfszl Twqsx Ahzenp Maximum cutting length / sheet width: 3,000 mm Maximum sheet thickness, normal steel: 10 mm Maximum sheet thickness, stainless steel / V2A: approx. 6 mm Control: CNC-controlled back gauge Machine weight: approx. 7.5 to 9.0 tons Installation dimensions L x W x H: approx. 3.80 m x 2.20 m x 2.00 m

Condition: new, Year of construction: 2026, control type: CNC control, KBA - Combined CNC-controlled press brake / guillotine shear Super-compact machine with a very small footprint. Maximum cutting length: 3,020 mm or 2,020 mm Rated cutting capacity: 6 mm steel sheet / ST 40 Cutting angle: 1°30″ Backgauge for the shear station – adjustment range: 750 mm Table height: 750 mm Maximum bending length between side frames: 3,550 mm or 2,505 mm Maximum pressing force: 1,000 kN Working height for bending: only 1,230 mm Stroke range (bending station): 175 mm Maximum installation height (bending station): 350 mm Backgauge adjustment range (bending station): 750 mm Dimensions including operator’s pendant: 4.25 or 3.25 m x 1.82 m x H 2.8 m Required floor space: 3.85 or 2.85 x 1.82 m Drive power: 10 kW Weight: 9,000 kg or 7,500 kg Equipment: - CNC control with touchscreen and 10” colour display, graphical user interface, and automatic bending angle calculation - 1 set of press brake tools (bending punch + four-way reversible die) - Sheet metal supports for the press brake station - 90° angle stop for the guillotine shear with 1 m length - Bending station working area safeguarding via light barriers, rear area safeguarded by lateral safety guards and light barriers Hnedpfx Ahozhklkszop Optional: - Front bending area guarding by PILZ® camera monitoring - Rotatable angle stop

Condition: new, Year of construction: 2024, Hydraulic shear MVD I-SHEAR C 3100 – 10 complete with pneumatic sheet support at the rear. CNC ESA S 625 TOUCH SCREEN CUTTING ANGLE ADJUSTMENT AUTOMATIC BLADE GAP ADJUSTMENT Cutting capacity for 450N/mm2 material: 10 mm Cutting capacity for 700N/mm2 material: 6 mm Cutting length: 3100 mm Distance between uprights: 3600 mm Variable cutting angle: 0.5 - 3° Hodpfx Ahsfh R Iljzenp Sheet clamping cylinders: 14 Strokes per minute: 7 – 13 Throat: 250 mm Motor power: 22 kW Graduated square and two sheet supports: 1000 mm Rear gauge stroke: 1000 mm with PNEUMATIC SHEET SUPPORT. Approximate weight: 10.5 tons

Condition: excellent (used), Year of construction: 2013, AMADA MODEL GS 11 840 8 mm x 4050 HYDRAULIC year 2013 PROGRAMMABLE CNC SHEAR STAINLESS STEEL CAPACITY 6mm ALUMINIUM CAPACITY 10 mm CUTTING LENGTH 4050MM POWER BACK GAUGE 1000MM PNEUMATIC SHEET SUPPORTS SIDE GUAGE 1.5 METRE SERIAL NUMBER Hedpfxsyr H U Do Ahzenp HOLD DOWN HYDRAULIC BLADE GAP ADJUSTMENT STANDARD VARIABLE RAKE STANDARD SHADOW LINE LIGHT STANDARD CENTRALISED LUBRICATION STANDARD SHADOW LINE LIGHT STANDARD STROKE COUNTER STANDARD ADJUSTABLE STROKE STANDARD MOTOR 16 KW WEIGHT 11650KG

Condition: used, LVD MVS 5050 × 6 – Technical Specifications: * Maximum sheet thickness: 6.35 mm * Maximum cutting length: 5,050 mm * Back gauge range: 750 mm * Adjustable cutting angle: 0.5° – 2.5° * Adjustable blade clearance: 0.05 – 0.7 mm Hnjdpfx Aszmam Iohzep * Strokes per minute: 12 – 45 * Main motor: 15 HP (approximately 11 kW) * Machine weight: 12,000 kg * Power supply: 230 V

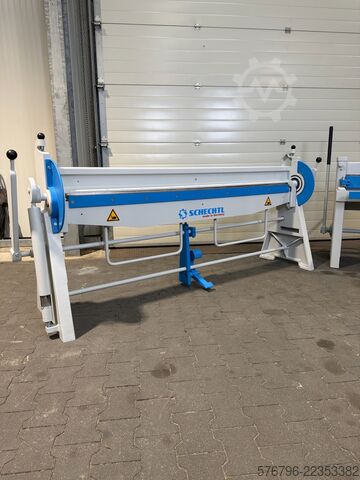

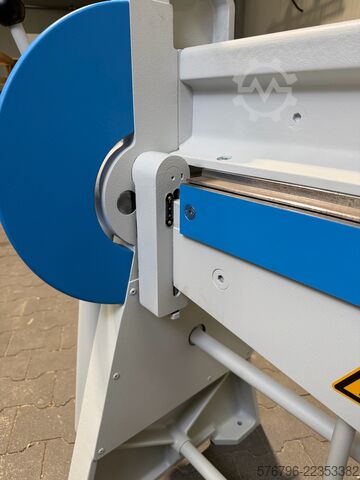

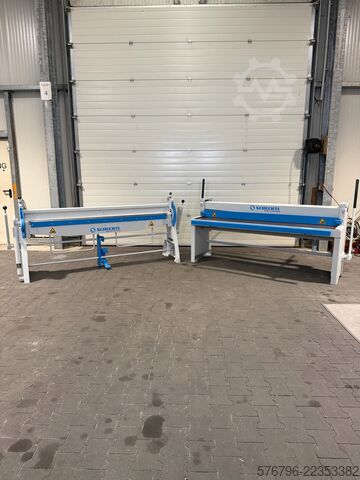

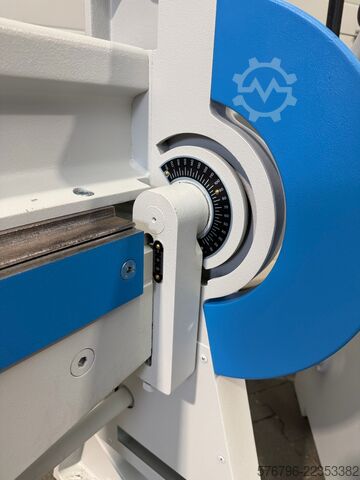

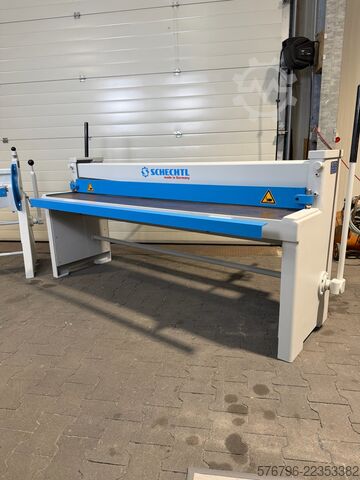

Condition: excellent (used), Schechtl KS 200 ✅ with foot pedal ✅ Capacity: 1.0mm steel sheet (also aluminum, copper, and zinc) ✅ Working length: 2040mm ✅ Weight: approx. 700kg Schechtl HT 200 ✅ with new blade ✅ Working length: 2040mm ✅ Capacity: 1.25mm steel sheet (also aluminum, copper, and zinc) ✅ with backstop ✅ Weight: approx. 650kg Hsdpozmgthefx Ahzjnp An inspection and test run can be arranged by appointment.

Condition: like new (used), Year of construction: 2023, operating hours: 1 h, actuation type: manual, working width: 2,030 mm, back gauge: 750 mm, Equipment: documentation/manual, type plate available, Panel shear, like new, unused. The machine was delivered by Schröder in January 2023 and put into operation. Since it was unsuitable for the intended application (see photos), it was subsequently stored and is in absolutely new condition. The new price was €12,381 (excluding transport + assembly). Manufacturer: SCHRÖDER Type: HS 2000 x 1.25 Year of manufacture: 2023 Hnjdpfjzl A Rajx Ahzsp Usable length: 2,030 mm Cutting capacity at 400 N/mm2: 1.25 mm Equipment: - Rear stop 750 mm, digital display, adjustable at the front - Hold-down device 750 mm - Stainless steel blade - Clamping beam with hard rubber strip - Front support table, extendable - Angle stop right + left - Sliding carriage

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2008, working width: 3,000 mm, cutting angle (min.): 1.5 °, sheet thickness (max.): 30 mm, throat depth: 100 mm, TECHNICAL DETAILS Sheet metal width: 3,050 mm Sheet metal thickness: 30.0 mm Stand extension: 100 mm Cutting angle: 1.5° - 3.5° Adjustment speed: max. 200 mm/s Hedpfx Ahszlg Sbozenp MACHINE DETAILS Dimensions & Weight Dimensions: 4,700 x 3,535 x 2,980 mm Weight: 36,000 kg

Condition: used, Year of construction: 2011, machine/vehicle number: 300195, Item No. 24215 Hnodpfxotpnldj Ahzop Technical data: - max. working width 3040 mm - max. material thickness 4 mm - manual adjustment of cutting angle - stroke rate up to 34 1/min - rear stop with positioning control Pos100, 750 mm - front angle stop - 2 front support arms - rear guard with light barrier - electric foot switch - pneumatic connection 6 bar - power supply 400 V - space required without support arms approx. W 4000 x H 1400 x D 2100 mm - weight approx. 4700 kg

Condition: good (used), functionality: fully functional, Year of construction: 1978, Used conventional press brake by Darley Type AP 150 3100 Capacity: 3100 x 150 tons Hnedpfx Ahezk Hl Eozjp Simple operation The front beam partially sinks into the ground Includes tooling

Condition: good (used), functionality: fully functional, Year of construction: 1987, Used small hydraulic plate shear from OMAG Type: CEL 104 Capacity: 1050 x 4 mm Hodpjzk Akdofx Ahzjnp Electric back gauge Year of manufacture: 1987

Condition: good (used), functionality: fully functional, Hydraulic Guillotine Shear SAGITA Working width: 2500 mm Shearing capacity: 5 mm Electric back gauge Foot pedal, machine feet Condition: Good, blades OK, cuts cleanly. Can be inspected under power. Hnsdpfx Ajyv Ikcjhzop Loaded free of charge from D -88433 Schemmerhofen.

Condition: good (used), Year of construction: 1993, Sheet metal width: 6200 mm Hnsdpfx Ahozly Hxjzop Sheet metal thickness: 8 mm Overhang: 60 mm Stand spacing: 6400 mm Cutting angle adjustment: 0.5 to 2° Total power requirement: 13 kW Machine weight (approx.): 19 t

Condition: good (used), Year of construction: 1995, Sheet width 6040 mm Sheet thickness 4 mm Total power requirement 12 kW Machine weight approx. 22 t Hnodozly Euopfx Ahzep Additional information - Specification - Back stop - Roll shelf

Condition: new, functionality: fully functional, Year of construction: 2026, operating hours: 10 h, machine/vehicle number: ShearOne H3000-6_14, sheet thickness (max.): 6 mm, sheet thickness steel (max.): 6 mm, back gauge: 1,000 mm, overall weight: 7,000 kg, total length: 2,700 mm, total width: 4,500 mm, total height: 2,100 mm, warranty duration: 36 months, travel distance X-axis: 1,000 mm, cutting length (max.): 31,000 mm, cutting width (max.): 3,100 mm, Equipment: safety light barrier, Hydraulic guillotine shear ShearOne H3000-6 from CoastOne in Finland Cutting length - 3,100.0 mm Sheet thickness 400 N/mm² - 6.0 mm Sheet thickness 700 N/mm² - 4.0 mm Cutting angle ° - 0.5 - 2.0 Back stop - 1000 mm Hodpfjzlhhkex Ahzonp

Condition: used, LVD Shear Hjdpfxjx Tqtbj Ahzonp Type HST C-10/31 Capacity 3000 x 10

Condition: good (used), functionality: fully functional, Year of construction: 1987, Used 3-meter plate shear from Haco Atlantic Hnsdpfjzi Rl Tex Ahzjp Type: ATS 3006 Capacity: 3100 x 6 mm Electric back gauge Electric cutting angle adjustment Year of manufacture: 1987

Condition: excellent (used), functionality: fully functional, Year of construction: 2009, machine/vehicle number: 00521120, MACHINE SPECIFICATION Maximum cutting thickness 1.5mm Maximum Cutting length 1030mm Shear angle 3 degrees Working pressure 7 to 10 bar Dimensions (L x W x H) 1380mm x 1210mm x 1300mm Back gauge range 0 – 600mm Approximate weight 195Kg MACHINE EQUIPPED WITH Hedpfx Ahozia Nzezjnp Squaring arm Rear guarding Trailing footswitch

Condition: used, functionality: fully functional, LVD Plate Shear MV 31/3.5 – 3100 × 3.5 mm – Guillotine Shear Manufacturer: LVD Company, Gullegem (Belgium) Type: MV 31/3.5 Max. cutting length: 3100 mm Max. plate thickness (steel): 3.5 mm Hsdpfjzi Hhwjx Ahzenp Drive: hydraulic Rear gauge: electric, 750 mm Machine weight: approx. 4000 kg Dimensions: approx. 4000 × 1800 × 1600 mm

Condition: used, functionality: fully functional, Year of construction: 2008, Equipment: CE marking, angle stop, documentation/manual, emergency stop, finger protection, foot remote control, safety light barrier, type plate available, The machine is in good condition, fully functional, and can be tested on site. Hsdpfxozkgf Ee Ahzjnp

Condition: good (used), Year of construction: 1999, cutting width: 6.050 mm cutting thickness: max. 4 mm Hnsdpfx Ajwzvntshzjp length stop range: 10 - 1.000 mm

Condition: used, Year of construction: 2002, Hydraulic Guillotine Shear HACO TS 3006 Capacity: 3100 x 6,5 mm Back gear gauge travel: 1000 mm Year of construction: 2002 Hnsdpfezku Disx Ahzsp Motor power: 7,5 kW SP8 Command Blades with 4 cutting edges Voltage: 380 V Photocells at the back Length: 4000 mm Depth with photocells : 2800 mm Depth without photocells: 2200 mm Height: 1900 mm Weight: approx 5 T

Condition: good (used), functionality: fully functional, Year of construction: 1994, machine/vehicle number: 94094175, sheet thickness (max.): 6 mm, input voltage: 380 V, overall weight: 7,000 kg, total length: 3,500 mm, total width: 2,200 mm, total height: 1,600 mm, HACO TS 3006 Guillotine Shear - Max. sheet thickness: 600 mm - Max. sheet width: approx. 3200 mm Hsdjx Uymmspfx Ahzenp Note: The item can be collected from 16.02.2026 on a date to be agreed. FCA D-73529 Schwäbisch Gmünd – loaded onto truck

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2020, control type: CNC control, working width: 3,000 mm, sheet thickness (max.): 6 mm, overall weight: 6,500 kg, Hydraulic plate shear Manufacturer: Schrödergroup, Type: Powershear – 3000 x 6mm Year of manufacture: 2020 Technical data Manufacturer: Schröder Type: 530 - 30/6 Year of manufacture: 2020 Sheet width: 3040 mm Sheet thickness: 6.00 mm (400N/mm) Shear gap adjustment: 0.5 – 1.8 mm Stroke rate: 24-61 strokes/min Drive power: 12.0 kW Space requirement (L x W x H): approx. L 4.00 x 3.00 x 1.96 m Weight: approx. 6.5 t Equipment - 12" touchscreen control PSC 150 on a swiveling panel - energy-efficient drive for frequency-controlled motor and pump - automatic shear gap adjustment - Adjustable clamping pressure, pre-selectable via the control unit - motorized back gauge 10-1000 mm on ball screw spindles - pneumatic sheet metal holding device - LED cutting edge lighting Hnedszi Ezvepfx Ahzsp - programmable start and end position of the blade beam - angle stop mounted on the left, incl. electronic length measuring system, fine adjustment and side folding stop on linear guide 1000 mm - 2 stop arms with ball rollers, movable on a linear guide - table support made of stainless steel sheets, incl. ball rollers - protection of the rear side with a light curtain - scrap and small parts chute to the front, incl. "Return to Sender" function - movable table extension mounted on a guide rail - finger guard, retractable to approx. 1500 mm, incl. electrical protection All information without guarantee. A demonstration is possible at any time in our showroom.

Condition: good (used), functionality: fully functional, Year of construction: 1997, sheet thickness steel (max.): 12 mm, power: 22 kW (29.91 HP), input voltage: 380 V, input frequency: 50 Hz, overall weight: 8,000 kg, total length: 4,500 mm, total width: 2,600 mm, total height: 2,100 mm, tool weight: 31,500 g, working length: 3,000 mm, VOLZ EURO-CUT 12 x 3050 sheet metal shear - Rated performance, sheet metal thickness, steel: 450 N/mm² - Sheet metal thickness: 12 mm - Max. speed: 88 mm/s feed rate Please note: the item must be picked up on a date to be determined between September 15 and September 17, 2026. Hedpfxjzkhywo Ahzsnp FCA D-76474 Au am Rhein – loaded onto a truck.
