Used Deckel Universal Font Engraving Machines for sale (67,226)

Condition: good (used), Year of construction: 1969, Work table Clamping area 500 x 200 mm Distance between milling spindle and work table 300 mm Longitudinal movement of the table, manual 300 mm Transverse movement of the table, manual 160 mm Template table Template table 550 x 324 mm Distance between pantograph arm and clamping area 20 mm Rotatable 360° Hfedpoidckfofx Abfsk Template slots 7 pcs., spacing 45 mm Milling spindle Spindle speeds 1,900 – 15,000 rpm Cutting speed 1 – 226 m/min Motor speed 2,800 rpm Internal taper of the tool spindle 1:5 Size of the collet bore 6 mm Adjustability of the spindle 1 mm fine, 3 mm coarse Pantograph Transmission ratio 1:1 to 1:50 Drive power 0.2 kW Dimensions Footprint L x W x H 1400 x 1000 x 1420 mm Weight 260 kg Accessories / Special features: • 1 set of templates with letters and numbers • Stylus

Condition: used, DECKEL MAHO DMC 60 U 5-axis universal machining centre, built 2002. Travels 600 x 700 x 600 mm with rapid traverse up to 40 m/min. The 12.000 rpm motor spindle in SK 40 DIN 69871 delivers 28 kW (40% ED) / 19 kW (100% ED) and is carried by an automatic universal swivel milling head with controlled B axis, working together with an NC rotary table to give full 5-axis capability. Siemens SINUMERIK 840D 3D path control. Rotary pallet changer with 2 pallets of 630 x 500 mm, 600 kg each, plus clamping hydraulics for hydraulically actuated fixtures on the rotary table and pallets. 60-pocket SK 40 magazine with horizontal double-gripper changer. Fitted with internal coolant supply and a 900 l coolant tank, chip conveyor, RotoClear rotating viewing window and Blum laser tool measurement in the work area. Hedpfx Aoznffrebfofk

Condition: used, Universal swivel-tilt-rotary table DECKEL type FVW, suitable for FP 2 or FP 3 (Deckel no. 62473). Table size: 700 x 240 mm. Swivel range: +/- 30° in all directions. Weight: approx. 90 kg. Hfsdpfxoxcilrj Abfek

Condition: ready for operation (used), Year of construction: 2017, operating hours: 7,315 h, functionality: fully functional, machine/vehicle number: 4445, travel distance X-axis: 2,320 mm, travel distance Y-axis: 1,980 mm, travel distance Z-axis: 860 mm, controller model: Siemens Sinumerik 840D sl, spindle speed (max.): 40,000 rpm, No minimum price – guaranteed sale to the highest bidder! The new price of the machine was €425,000 plus VAT! Note: This sale concerns the sister machine of the identical Hamuel Reichenbacher machine that was recently auctioned. TECHNICAL DETAILS Travel distance X1/X2 axis: 2,320 mm Travel distance X3/X4 axis: 2,320 mm Travel distance Y1/Y2 axis: 1,980 mm Travel distance Z1/Z2 axis: 860 mm Rotational range B1 axis: ±181° Rotational range B2 axis: ±181° Rotational range C1 axis: ±361° Rotational range C2 axis: ±361° Spindle speed: 40,000 rpm Tool holder: HSK-E40 Spindle power: 7 kW Number of spindles: 2 Travel speed in X direction: 90 m/min Travel speed in Y direction: 45 m/min Travel speed in Z direction: 90 m/min Number of tools: max. 6 Tool diameter with 4 tools: max. 40 mm Hfsdpfxoztxczo Abfek Tool diameter with 2 tools: max. 240 mm Tool length from reference plane: max. 270 mm Tool weight: max. 2 kg Total weight of all tools: max. 24 kg MACHINE DETAILS Control system: Siemens Sinumerik 840D sl Compressed air supply Compressed air quality: according to DIN ISO 8573-1 Pressure: min. 7 bar Air volume flow: approx. 1,000 Nm³/min Voltage: 400 V (±5 %) Frequency: 50 Hz Mains connection: 3 phases, neutral conductor and protective conductor Short-circuit strength Ic: 17 kA Dimensions & Weight Dimensions (X x Y x Z): approx. 5,800 x 3,600 x 3,000 mm Machine weight: approx. 15.0 t Operating Hours Spindle hours, spindle 1: 7,872 h Spindle hours, spindle 2: 7,315 h EQUIPMENT Chip conveyor Hexagon 3D measuring probe Note: Further technical details can be found in the attached offer. Clamping devices and tools are not included in the offer.

Year of construction: 1976, condition: ready for operation (used), functionality: fully functional, center height: 125 mm, center width: 600 mm, year of last overhaul: 2026, The machine underwent a comprehensive retrofit in 2026! New centering point with carbide insert on the workpiece spindle stock Tailstock with MK-3 mount and air lift Adjuster on the tailstock New centering point with carbide insert on the tailstock 2 grinding wheel flanges 1 new grinding wheel 1 internal grinding spindle Completely renewed paper band filter with new filter fleece and circuit Completely overhauled, steplessly adjustable grinding spindle motor Automatic grinding cycle with dwell time and shut-off Machine geometrically completely overhauled Guides ground and scraped Hfsdpozr Ep Ejfx Abfjk Hydraulic cylinder overhauled New piston rod and seals Machine body and assemblies blasted, primed and completely painted TECHNICAL DETAILS Center height: 125 mm Center distance: 600 mm Grinding wheel flange dimensions: 400 × 50 × 127 mm Speed of internal grinding spindle: 14,000 rpm EQUIPMENT Workpiece spindle stock standard with MK-5 mount, swiveling Stepless speed control via potentiometer

Condition: ready for operation (used), Year of construction: 2014, operating hours: 15,662 h, functionality: fully functional, travel distance X-axis: 620 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 460 mm, controller model: Heidenhain TNC530i, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 620 mm Travel range, Y-axis: 520 mm Travel range, Z-axis: 460 mm C-axis: 360° B-axis: -50° / +110° Rotary table diameter: 500 mm Spindle speed (max.): 12,000 rpm Spindle type: SK40 Number of spindles: 1 Hfsdjzr Nmbepfx Abfjk Number of tool positions in the tool magazine: 30 MACHINE DETAILS Control system: Heidenhain TNC530i Operating hours (see image) Control system operating hours: 38,569 h Machine operating hours: 37,263 h Spindle operating hours: 15,662 h EQUIPMENT Documentation/Manual Speed infinitely adjustable Chip conveyor Scraper-type chip conveyor Workpiece measuring probe Coolant system Compressed air via M-command Heidenhain handwheel Kinematic optimization cycle Note: The machine is sold without tools, vise, and clamping plate.

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 1,250 mm, travel distance Y-axis: 660 mm, travel distance Z-axis: 540 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 32 m/min, feed rate X-axis: 32 m/min, feed rate Y-axis: 32 m/min, feed rate Z-axis: 32 m/min, controller manufacturer: Okuma, controller model: OSP P200M-H, rotary table diameter: 500 mm, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Okuma MU500VA CNC Vertical Machining Centre (2007) Equipped with OKUMA OSP P200M-H CNC CONTROL 20" ROTARY PLATEN 4TH AND 5TH AXIS BUILT IN TRUNION 32 POSITION AUTOMATIC TOOL CHANGER COOLANT THRU SPINDLE TOOL LENGTH MEASURING Travels X-axis (saddle left/right) – 1250mm, Y-axis (pallet front/back) – 660mm, Z-axis (spindle up/down) – 540mm, A-axis – +20~-110 deg., C-axis – 360 deg., Table surface to spindle nose – 127~667mm Table Table size – ø500mm, Max work size – ø730xh500, Floor to table top – 1073mm, Max load capacity – 500kg Spindle Spindle speed – 15000rpm, Turning specification – C-axis table 1000rpm , No. of spindle ranges – Infinitely variable, Tapered bore – 7/24 taper No.40, Bearing dia – ø70mm Feed Rapid traverse – X-Y: 40m/min, Z:32m/min, Rapid traverse (A-C) – 18,000 deg/min, Cutting feed rate – X-Y-Z: 32m/min Hsdjyf Ncqjpfx Abfjfk Motors Spindle (10min/cont) – 11/7.5kW ATC Tool shank type – MAS BT40 Big plus, Retention knob type – MAS 2, Tool capacity – 32, Max. tool dia (w/ adjacent tool) – ø90mm, Max. tool dia (w/o adjacent tool) – ø125mm, Max. tool length – 400mm, Max. tool mass – 8kg, Tool selection – Memory random ATC Retention knob type – MAS 2, Tool capacity – 32, Max. tool dia (w/ adjacent tool) – ø90mm, Max. tool dia (w/o adjacent tool) – ø125mm, Max. tool length – 400mm, Max. tool mass – 8kg, Tool selection – Memory random

Condition: used, Year of construction: 1988, x-travel 870 mm y-travel 370 mm z-travel 400 mm table-size 310 x 1370 mm distance vertical spindle / table 50 - 450 mm feed - longitudinal/cross 20 - 800 mm/min 9 - 355 mm/min rapid traverse longitudinal and cross 3000 / 1375 mm/min spindle taper SK 50 spindle turning speed range 40 - 1750 U/min spindle speed: 12 Stück total power requirement 5,5 kW weight of the machine ca. 2,4 t dimensions of the machine ca. 1,9 x 2,0 x 1,5 m - Powerful CNC universal milling machine - Includes Fanuc control system - Kneading milling head - Automatic feeds on X/Z/Y axes - Central lubrication system - Coolant system - Pivoting machine light - Splash guard tray - Separate transformer Hjdpfx Asxlkw Ujbfofk

Year of construction: 2026, operating hours: 1 h, condition: new, machine/vehicle number: H10TM, Universal testing machine H10TM Force: 10 kN Crosshead travel: 700 mm Installation space: 400 mm Overall height: 1230 mm Weight: approx. 84 kg Stroke resolution: 0.01 mm Testing speed: 1-500 mm/min Return speed: 700 mm/min Force sensor: 10 kN Including evaluation electronics and basic software. Our testing machines can be operated in stand-alone mode using a numeric keypad, allowing for a “quick test” even without a PC. For tests that require data storage and recording of the curve profile, we offer you the option to control and evaluate the test using the basic software. This allows you to generate various test sequences and create a test report. Furthermore, you have the option to process the raw data in your own programs. Hfedpfxezuma Rj Abfsk Optional: - Delivery & commissioning - DAkkS or factory calibration according to DIN EN ISO 7500-1 Load cells: 5N-10N-20N-50N-100N-200N-500N-1kN-2kN-3kN-5kN-10kN - Grips: Compression platens, bending fixtures, shear fixtures, wedge grips, scissor grips, screw grips, pneumatic grips, and hydraulic grips.

Condition: used, Year of construction: 1999, x-travel 2000 mm y-travel 800 mm z-travel 850 mm control HEIDENHAIN TNC 360 Hfedev H Ertopfx Abfok total power requirement / kW weight of the machine ca. / t required space / m

Year of construction: 2026, condition: new, functionality: fully functional, Universal testing machine PM10 (10 kN) – Complete system including software For sale is a versatile universal testing machine PM10 with a maximum testing force of 10 kN. The system is characterized by its flexibility and efficient stand-alone operation. The machine is ready for use, including evaluation electronics and basic software for comprehensive data analysis. Technical data & performance features Hsdsyc U Ugspfx Abfofk • Maximum testing force: 10 kN (including matching load cell) • Crosshead travel: 700 mm • Testing space / installation space: 400 mm • Testing speed: 1 – 500 mm/min • Return speed: 700 mm/min • Path resolution: 0.01 mm • Overall height: 1,230 mm • Weight: approx. 85 kg Highlights & operation • Flexible stand-alone operation: Quick tests can be performed directly on the machine via a numeric keypad, completely without a PC. • Powerful basic software: Machine control, recording of curves, and detailed data storage when connected to a PC. • Open data interface: Easy export of raw data for further processing in your own programs (e.g., Excel). Scope of supply • Universal testing machine PM10 • Load cell 10 kN • Integrated evaluation electronics • Basic software for control and evaluation Optional services & accessories (upon request) • Service: Delivery, professional installation, and commissioning on site • Certification: DAkkS or factory calibration according to DIN EN ISO 7500-1 • Extensive range of clamping devices: Pressure plates, bending and shear devices, wedge and scissor clamps, peeling and screw clamps, as well as pneumatic or hydraulic clamping devices. The machine is available immediately. Please contact us for an individual offer including the appropriate accessories for your testing requirements!

Year of construction: 2026, condition: as good as new (ex-display), Universal Testing Machine PM10 Force: 10 kN Crosshead travel: 700 mm Installation space: 400 mm Overall height: 1230 mm Weight: approx. 85 kg Resolution: 0.01 mm Testing speed: 1-500 mm/min Return speed: 700 mm/min Load cell: 10 kN Includes evaluation electronics and basic software. Our testing machines can be operated in stand-alone mode via a numeric keypad, allowing for a “quick test” even without a PC. For tests that require data storage and recording of the curve profile, we offer the option of control and evaluation with the basic software. This allows you to generate different test sequences and create a test report. Furthermore, you have the option to process the raw data in your own programs. Optional: - Delivery and commissioning - DAkkS or factory calibration according to DIN EN ISO 7500-1 Hfedpsd R Dpmsfx Abfok - Clamping devices: Pressure plates, bending fixtures, shear fixtures, wedge clamps, scissor clamps, peeling clamps, screw clamps, pneumatic clamps, and hydraulic clamps.

Condition: as good as new (ex-display), Year of construction: 2026, functionality: fully functional, Universal Testing Machine PM3 Force: 3 kN Crosshead travel: 520 mm Working space depth: 66 mm Overall height: 1036 mm Weight: approx. 40 kg Stroke resolution: 0.01 mm Testing speed: 1-500 mm/min Cc7d2rmq Return speed: 700 mm/min Force sensor: 3 kN Includes evaluation electronics and basic software. Our testing machines can be operated in stand-alone mode via a numeric keypad, allowing for a "quick test" even without a PC. For tests that require data storage and recording of the curve profile, we offer you the option of control and evaluation with the basic software. Hsdpfxsfdzupo Abfofk This enables you to generate different test sequences and create a test report. Furthermore, you have the option of further processing the raw data in your own programs. Optional: - Delivery and commissioning - DAkkS or factory calibration according to DIN EN ISO 7500-1 - Clamping devices: Pressure plates, bending fixtures, shear fixtures, wedge clamps, scissor clamps, peeling clamps, screw clamps, pneumatic clamps and hydraulic clamps.

Year of construction: 2026, condition: as good as new (ex-display), Universal Testing Machine PM3 Hfsded R Dpuopfx Abfsk Force: 3 kN Crosshead travel: 520 mm Working space depth: 66 mm Overall height: 1036 mm Weight: approx. 40 kg Resolution: 0.01 mm Testing speed: 1-500 mm/min Return speed: 700 mm/min Force sensor: 3 kN Includes evaluation electronics and basic software. Our testing machines can be operated in stand-alone mode using a keypad, allowing for a “quick test” even without a PC. For tests that require data storage and a record of the curve profile, we offer you the option to control and evaluate the test using the basic software. This allows you to generate various test sequences and create a test report. Furthermore, you have the option to process the raw data in your own programs. Optional: - Delivery and commissioning - DAkkS or factory calibration according to DIN EN ISO 7500-1 - Clamping devices: Pressure plates, bending fixtures, shear fixtures, wedge clamps, scissor clamps, peeling clamps, screw clamps, pneumatic clamps, and hydraulic clamps.

Condition: used, Year of construction: 2012, functionality: fully functional, 3-axis digital display – cooling system – central lubrication – guide covers – chip guard with sliding doors – machine light – documentation – good condition – travel range X: 100 mm – travel range Y: 450 mm – travel range Z: 630 mm – table size: 1270 x 320 mm – spindle mount: ISO 40 – speed range: 80 – 3800 rpm – quill stroke: 120 mm – quill diameter: 100 mm – total power consumption: 3.72 kW – machine weight: approx. 2.5 t – space requirement: approx. 2.35 x 1.9 x 2.35 m. Hfjdpjzunfnsfx Abfok

Year of construction: 1998, condition: used, x-travel // mm Hfedsig A Erspfx Abfsk y-travel / mm z-travel // mm total power requirement / kW weight of the machine ca. 950 KG

Condition: not inspected (used), x-travel 850 mm Hfedpfsud Illox Abfjk y-travel 440 mm z-travel / mm Control TNC 355C

Condition: ready for operation (used), Year of construction: 1989, Immediately available from training center: Universal Milling Machine Horizontal - Vertical WMW Auerbach Type FW 250 x 1000 / 2 Year of manufacture: 1989 Table: 1250 x 250 mm Table load capacity: 1250 kg Travel X/Y/Z: 700 / 400 / 500 mm Heidenhain 3-axis digital readout SK 40 Spindle speeds: 55 – 2800 rpm Feeds: 10 – 630 mm/min, stepless Hfedezukd Hepfx Abfsk Vertical head Horizontal milling device Drive power: 6.3 kW Weight: 2.5 t Offered at EUR 2,000 – plus VAT, ex location

Condition: ready for operation (used), Year of construction: 1996, Immediately available ex location: CNC universal milling machine Reckermann Type: Primo II Year of manufacture: 1996 Heidenhain TNC 430 control Hfsdpfx Aszukdajbfjk Spindle taper SK 50 Infinitely variable spindle speeds: 20 – 2,000 rpm Table load capacity: 1,000 kg Stepless feed rates: 20 – 6,000 mm/min Travel (X / Y / Z): 1,000 / 400 / 350 mm Drive: 7.5 kW Weight: 4 t Price: EUR 2,500 plus VAT, ex location

Condition: refurbished (used), Year of construction: 2015, operating hours: 180 h, functionality: fully functional, machine/vehicle number: H5KS, Universal testing machine, type H5kS Extended version by 254 mm With 5KN 500N load cells, screw-type clamping device up to 5kN, and Windows 10-11 software For tensile, compressive, bending, and shear testing, etc., in accordance with EN ISO 7500-1, ASTM E4. The H5kS is a universal testing machine designed according to the latest standards. The machine operates in accordance with the relevant EU radiation protection and safety guidelines (EN 50081-1, 72/23/EEC, EN 61010-1). The maximum voltage within the machine is 48 volts. Special features: • Large, easy-to-read liquid crystal display with backlight • Graphical or numerical display mode • Alphanumeric file input • Speed range 0.001 to 1000 mm/min (2.5kN) • Speed range 0.001 to 500 mm/min (5kN) • High return speed 0.001 to 1500 mm/min • Precise crosshead positioning • Robust load frame • Output of test results with mean value and standard deviation via printer • Wide selection of testing software under Windows for various standards • RS232 interface for use with computer systems • Accuracy of the force display of the load cell: 0.5% across the entire range • Accuracy of the displacement display: 0.001 mm • Equipped with a force and displacement alarm system • 32-bit motor controller • 20% digital weight adjustment during calibration of the load cell capacity • Automatic motor alarm for over- or undervoltage and overheating Specifications: • Force measurement accuracy: +/- 0.5% of the displayed force in the range of 2% to 100% • Accuracy of position measurement: +/- 0.01% or 0.001 mm • Accuracy of speed: +/- 0.005% of the selected speed • Operating temperature: 0 to 38°C • Humidity range: 10% to 90% Technical data: • Single-column table model • Maximum load: 5kN in tension and compression Hfsdpfszt S Hmsx Abfjk • Maximum travel: 1004 mm without clamping device • For further details, please refer to the brochure. Dimensions: Height: 1394 mm Width: 490 mm Depth: 450 mm Weight: 102 kg Connection: Machine: 50-60 Hz - 2000 W Power supply: 220/240VAC

Condition: good (used), Year of construction: 2013, operating hours: 300 h, functionality: fully functional, machine/vehicle number: H50KS, tractive force with load: 50,000 N, Universal testing machine, type H50kS up to 50KN for tension and compression Load cell 50KN 10KN 1KN and Windows software 8-9-10-or 11 for tension, compression, bending, shear etc., according to EN ISO 7500-1, ASTM E4 The H50kS is a universal testing machine developed according to the latest standards. The machine operates in accordance with the relevant radiation protection and safety directives in the EC. (EN 50081-1, 72/23/EEC, EN 61010-1) The maximum voltage within the machine is 48 volts. Special features - large, easy-to-read liquid crystal display with backlighting - Graphical or numerical display mode - alpha-numeric file input - speed range 0.001 to 500 mm/min. - high return speed 0.001 to 500 mm/min. - exact crosshead positioning - Robust load frame - Output report of results with mean value and standard deviation via printer - Large selection of test software under Windows for various standards - RS232 interface mode for use with computer system - Accuracy of load cell force display 0.5 % over the entire range - Displacement display accuracy 0.001 mm - Equipped with a force and displacement alarm system - 32bit motor controller - 20% digital weight blanking during load cell capacity check - Automatic motor alarm in case of over or under voltage and overheating Specifications: - Force measurement accuracy +/- 0.5 % of the displayed force in the range 2% to 100% - Accuracy of position measurement +/- 0.01 % or 0.001 mm - Speed accuracy +/- 0.005 % of the selected speed - Operating temperature 0 to 38°C - Humidity range 10% to 90% Hjdpfx Aboq Ruw Njfefk Technical data: - Two-spindle table model - maximum load 50kN in tension and compression - maximum stroke 1100 mm without clamping fixtures - for further details please refer to the brochure Dimensions: Height: 1613 mm width: 720 mm Depth: 500 mm Weight: 140 kg Connection: Machine: 50-60 Hz - 2000 W Power supply: 220/240VAC

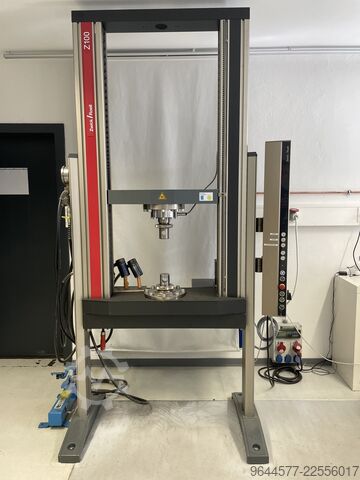

Year of construction: 2014, operating hours: 100 h, condition: excellent (used), functionality: fully functional, machine/vehicle number: 129109, Zwick / Roell Z100 Universal Testing Machine 100 kN – Top Condition, Ready for Use with Extensive Accessories in a Tool Cabinet Description: Manufacturer: ZwickRoell GmbH & Co. KG Model: Z100 (Electromechanical Universal Testing Machine) Electronics: Test-Control Condition: Very good, little use (acquired as a refurbished machine in 2014) Availability: Immediate For sale is a highly precise and extremely reliable Zwick Z100 universal testing machine with a maximum testing force of 100 kN. The machine is in excellent condition, has been used very little in recent years, and is completely ready for use (Plug & Play). Extensive accessory package in a matching tool cabinet: The machine is offered as a complete, ready-to-use solution, including a well-stocked tool cabinet. Two clamping devices for flat specimens: Robust clamping jaw chuck designed for the full machine capacity up to 100 kN. Pneumatic clamping: Quick and gentle clamping up to a test load of 5 kN, ideal for standard-compliant testing of plastics. Mechanical accessories: Numerous specific test setups, devices, and mechanical equipment for standard-compliant material testing. Precise high-end measuring technology: The scope of delivery also includes a high-quality sensor package, consisting of an Epsilon extensometer (Type 3442-010M-100-ST) for indirect strain measurement, as well as a Heidenhain MT25 displacement sensor and an HBM MP55 measurement amplifier for direct strain measurement using strain gauges. These perfectly matched components guarantee seamless and calibratable signal acquisition according to strict testing standards. Scope of supply & System: Load frame Zwick Z100 (100 kN) with Test-Control electronics. Hfsdpfozunnvox Abfjk Complete PC with Zwick testXpert II software installed under Windows 7 (operates completely independently and is immediately ready for use). Sturdy tool cabinet with the above-mentioned, sorted accessories. The machine can be inspected by prior arrangement. As this is a commercial sale, it is sold ex works without warranty or guarantee. The sale is preferably to a buyer who will collect the machine; disassembly and transport must be arranged by the buyer. Price: €29,500 (negotiable) plus VAT.

Condition: used, Year of construction: 1968, max. wheel diameter 120 mm gear width 130 mm max. module 2 no. of teeth to be hobbed 6-325 Z min/max. spiral pitch 20-5000 mm hobbing length 130 mm weight of the machine ca. 860 kg Universal hobbing machine MIKRON 102.05 MPS > External surface gearing Technical data: Maximum millable workpiece diameter: 120 mm Maximum millable length: 130 mm Maximum number of modules: 2 Number of millable teeth: 6-399 (with gear ratio 80:5) Pitch of the spirals: 20 - 5000 mm Pitch angle of the spirals (left or right): 0 - 90° 14 milling cutter revolutions (50c/s): 140 - 1870 rpm 13 Axial feeds: 0.05 - 3.0 mm/w.p.rev. Main motor speed: 1500 rpm Main motor power: 1.1 kW Connected load: 3 x 380 VAC Hsdozuplijpfx Abfsfk Frequency: 50 Hz Control unit: Omron CP1L Machine dimensions L/W/H: 1030x800x1520 mm Weight of the machine: 880 kg

Condition: good (used), Year of construction: 2013, grinding diameter 390 mm grinding length 650 mm centre height 200 mm total power requirement 46 kW weight of the machine ca. 6 t dimensions of the machine ca. 3x3x2,4 m Universal cylindrical grinding – Type WUG21 (W27) Grinding length 650 mm EMAG Weiss stands for high-end technology in universal cylindrical grinding between centres. With its CNC-controlled WUG 21 machines, EMAG Weiss offers the right solution for virtually every user. --> Technical data Max. grinding length: 650 mm --> Centre height: 200 mm --> External grinding diameter: 1 – 390 mm --> Max. weight flying MK4: 100 kg --> Max. workpiece weight between centres: 250 kg --> Feed: --> X-axis travel: 480 mm --> Z-axis travel: 1.150 mm Hsdpfsw Inr Njx Abfsfk --> Workpiece headstock --> Tailstock --> Grinding spindle headstock --> Coolant device, manufacturer HYFRA, --> Belt filter, manufacturer Knoll, type KF 200 - year of manufacture 2012, --> Oil mist filter, manufacturer Cobaron Here are a few specifications for the machine: - Grinding length / max. workpiece length: 650 mm - Max. workpiece diameter: 400 mm (center-to-center distance: 200 mm) - Workpiece headstock: MK4, speed up to 600 rpm, continuously adjustable - Hydraulic NC tailstock with 150 mm stroke, MK4 - 2 external grinding spindles—1 wheel on the left, 1 wheel on the right—B- axis infinitely adjustable - Grinding wheel peripheral speed: 50 m/s - Grinding spindle motors: 7.5 kW each, toothed belt drive - Machine dimensions (without external peripherals): Width 4130 x Depth 2400 x Height 2300 mm - No rotating dressing device for CBN grinding wheels; only a holder for a stationary dressing tile

Condition: excellent (used), Year of construction: 1998, operating hours: 17,260 h, Table size: 1000 x 500 mm Tool holder: ISO 40 Travel paths: X-axis: 800 mm Y-axis: 500 mm Z-axis: 420 mm Distance between horizontal spindle axis and table: 210 – 630 mm Distance between vertical spindle nose and table: 130 – 550 mm Table load capacity: max. 500 kg Speed range: 50 - 4000 rpm Feed rate (infinitely variable): 5 - 2000 mm/min Rapid traverse in all axes: 8 m/min Vertical milling head, swiveling: ± 90° Manual quill stroke adjustment: 100 mm Drive power: 7.5 kW Dimensions (L x W x H): approx. 3000 x 2400 x 1975 mm Weight: approx. 3000 kg Accessories / Special features: • CNC contouring control HEIDENHAIN TNC 410 • Electronic handwheel HEIDENHAIN HR 410 • SIEMENS AC servo drives • Data interface V 24 / RS 232 • Swiveling vertical milling head ± 90° right & left with 100 mm quill adjustment • Hydraulic tool clamping, vertical & horizontal, ISO 40 • Swivel-away device for the vertical milling head • Very wide speed range up to 4,000 rpm • Vibration-free operation thanks to rigid and heavily ribbed cast iron guideways • Ball screws for X, Y, and Z axes • All electrical control elements on one side, in a movable control panel • Fixed angle table with foldable chip guard • Coolant system integrated in the machine base • Hydraulic unit • Central lubrication • CE compliant Operating hours: 17,256 Spindle hours: 3,816 Image: shows brochure photo Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 Hjdpfxsxtu H Ne Abfjfk DE - 44143 Dortmund - Wambel / Germany
